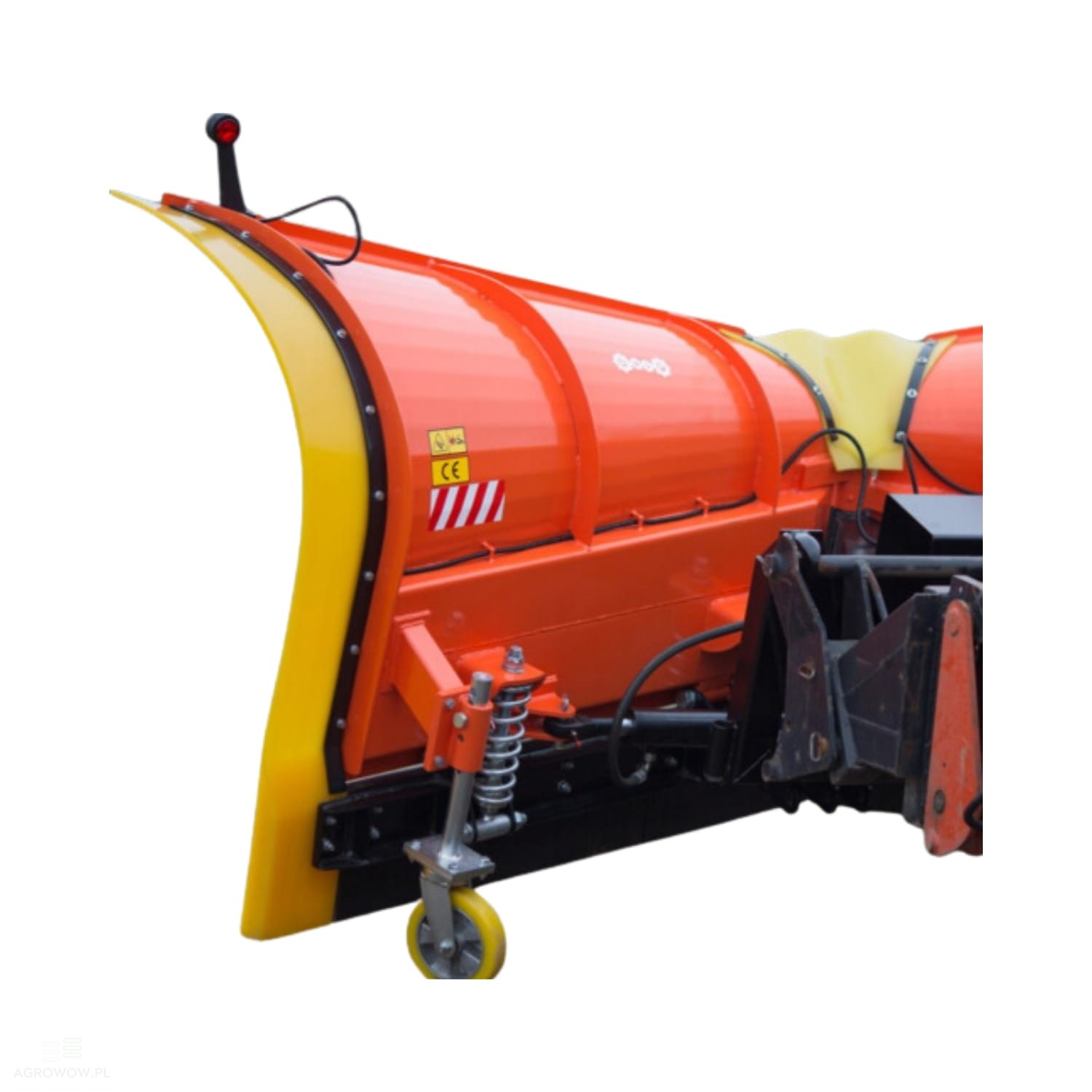

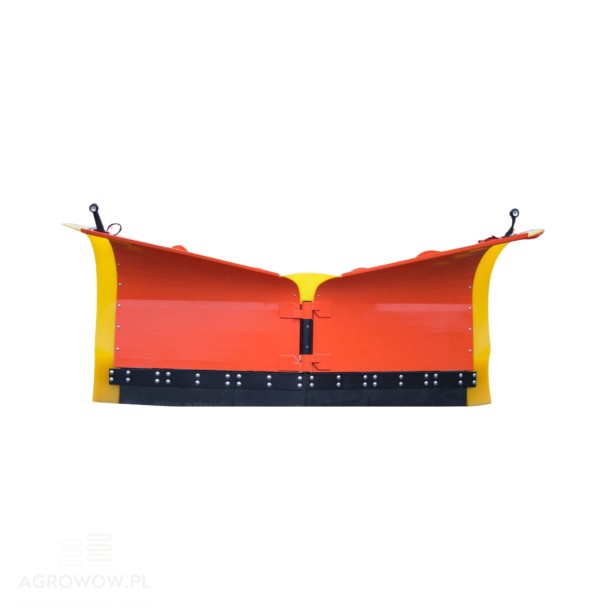

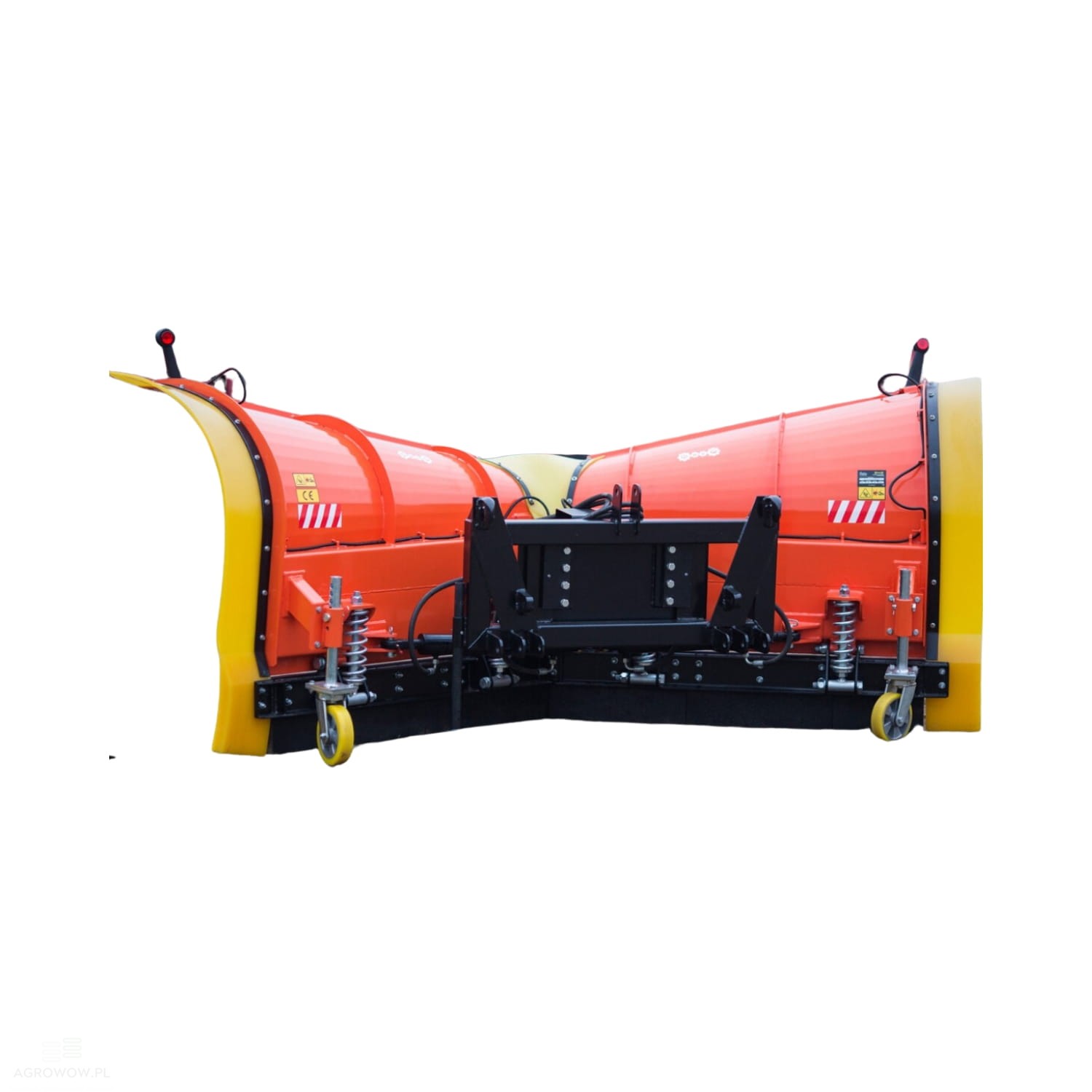

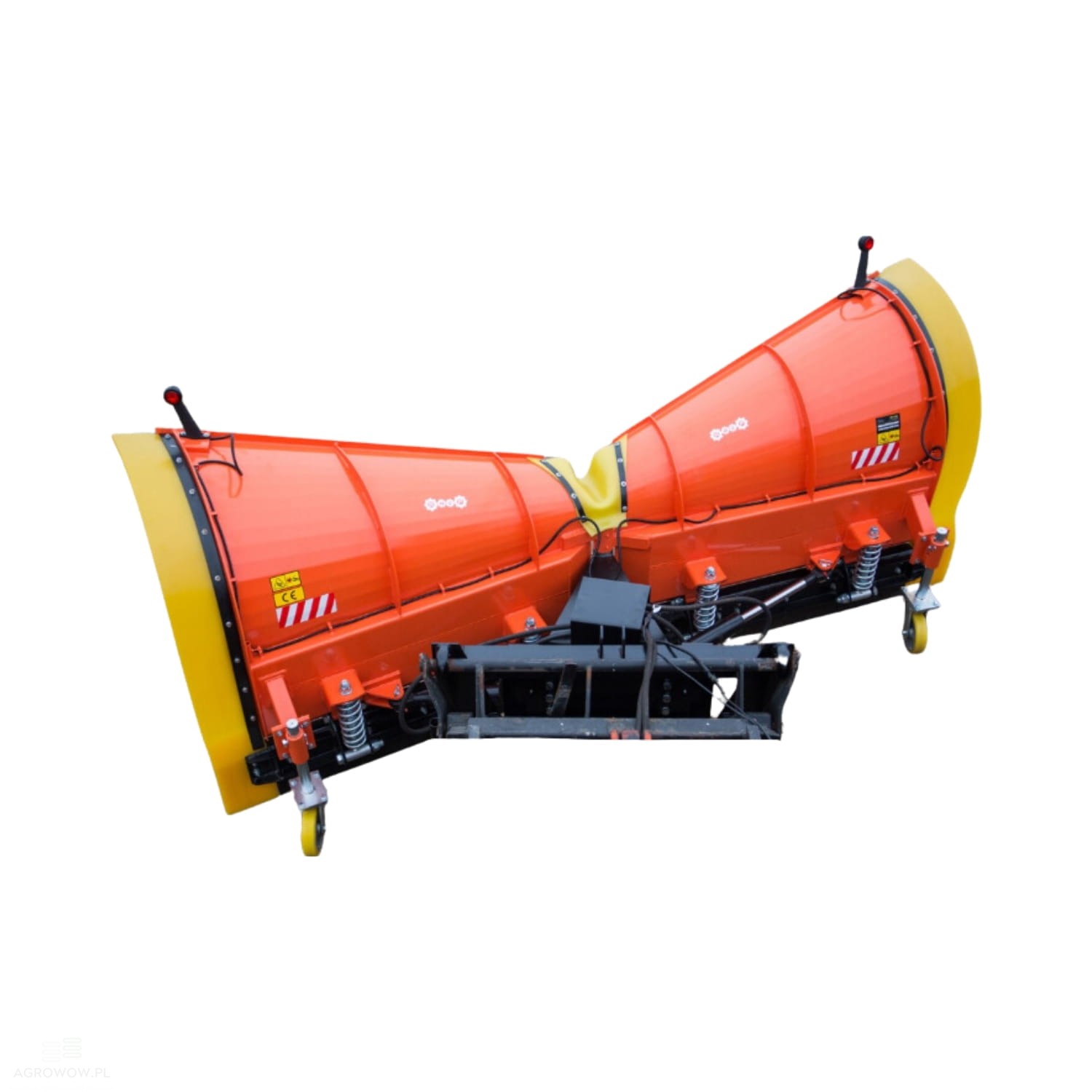

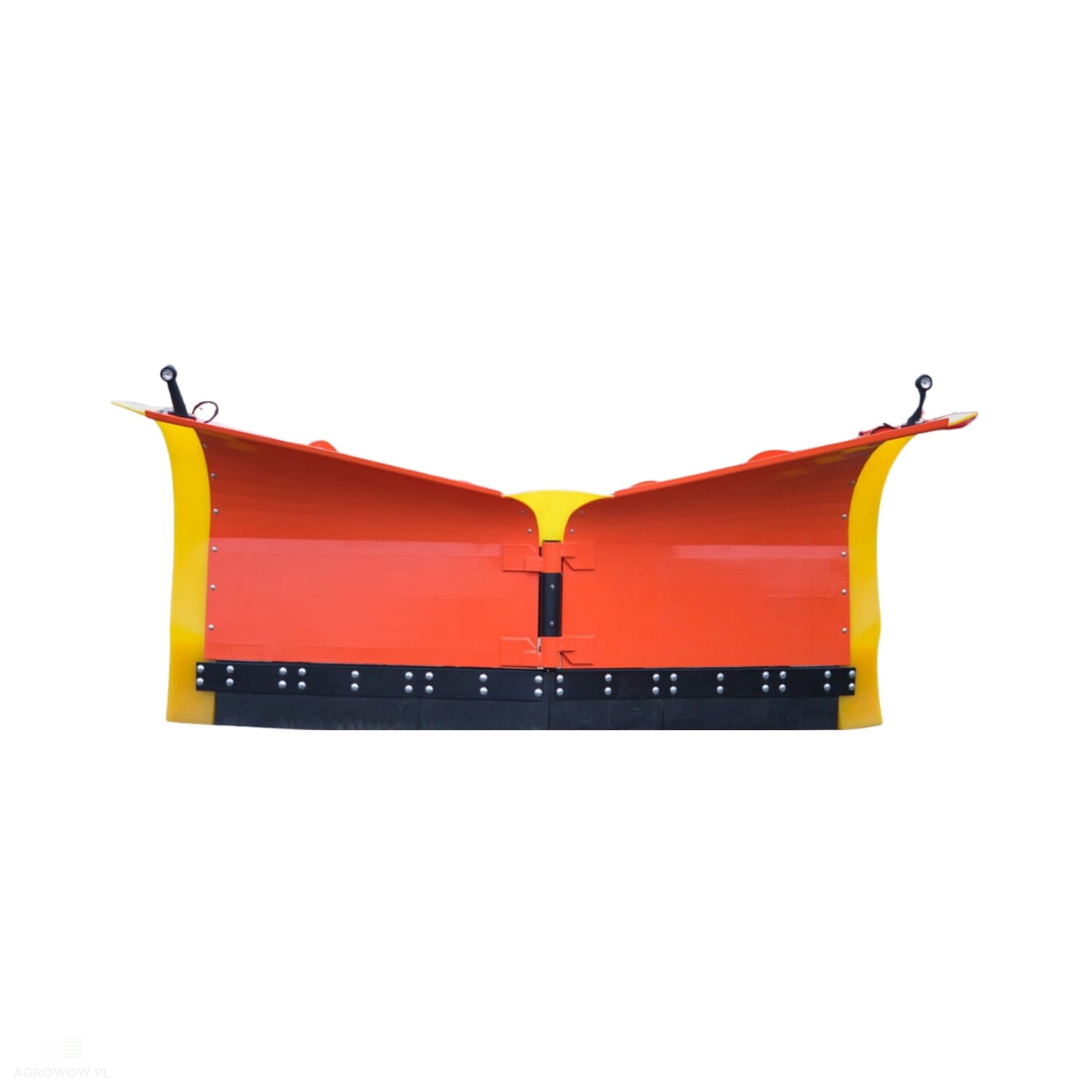

ATMP folding snow plow 3.3 x 1.3 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: ATMP

- Catalogue number: AT33PS0

- Manufacturer's name: V-snow plow 'Model 2' / Arrow snow plow 'Model 2'

- Width: 3300 mm

- Height: 1290 mm

- Weight: 580 kg

- Heavy-duty build: One of the heaviest snow plows on the market

- Hitch: Three-point linkage Cat. II

- Moldboard working angle: 30°

- Number of cylinders: 2 hydraulic cylinders

- Lighting: LED lighting included

- Design origin: Specially designed for harsh Scandinavian conditions

Extra Cost:

- Hardox HB 500 Cutting Edge (on request)

This cutting edge is a heavy-duty wear-resistant component made of high-quality Hardox steel, which ensures exceptional strength and durability. It is the key component responsible for effectively scraping snow from the surface, especially in demanding winter conditions. The material features a hardness of 500 HB (Brinell), providing long-term resistance to abrasive wear when working on hard surfaces such as asphalt, concrete, or paved roads. Additionally, this steel is highly corrosion-resistant, meaning the cutting edge retains its properties over a long service life and withstands road salt, low temperatures, and intense friction.

- Polyurethane Cutting Edge (on request)

A specialized working element for the snow plow, designed specifically to protect delicate surfaces such as cobblestones, asphalt, concrete, ceramic tiles, or airport areas, while ensuring efficient winter performance. Polyurethane, as a material of exceptional durability and elasticity, provides a long operational life and minimizes the risk of surface damage during snow removal.

- Polyurethane Side Guards (on request)

Additional protective elements used on snow plows, whose primary purpose is to protect the sides of the plow and prevent surface damage during operation. Utilizing polyurethane—a material characterized by high flexibility and durability—makes these guards an ideal solution for working on delicate and demanding surfaces.

- Overload Protection: Hydraulic Accumulator (on request)

An advanced protection system used in snow plows. The hydraulic accumulator acts as a shock absorber, absorbing impact energy and reducing the forces acting on the plow structure and the vehicle's hydraulic system. This system can be used with most plows equipped with hydraulic control of the cutting edge or working angle. It significantly reduces the risk of damage to the plow frame, cutting edge, hydraulic cylinders, and mounting hitch when striking an obstacle.

Detailed Description:

• This folding snow plow is a versatile tool, perfect for winter maintenance of commercial, agricultural, and municipal areas such as squares, sidewalks, parking lots, or residential roads.

• Despite its heavy-duty build and robust frame, the weight distribution is optimized for its category, making it an excellent choice for a wide range of operators.

• The hydraulic folding snow plow is an advanced V-plow (arrow design) engineered for highly efficient snow removal under the most demanding winter conditions.

• Equipped with a spring-loaded cutting edge safety trip mechanism, it effectively protects both the machine and the carrier vehicle from damage when hitting hidden obstacles, which drastically increases its durability and reliability.

• Featuring independently controlled left and right hydraulic wings, the plow allows the operator to set multiple independent working positions (e.g., V-shape, straight, one-sided angled, or scoop), maximizing its functionality and precision on the job.

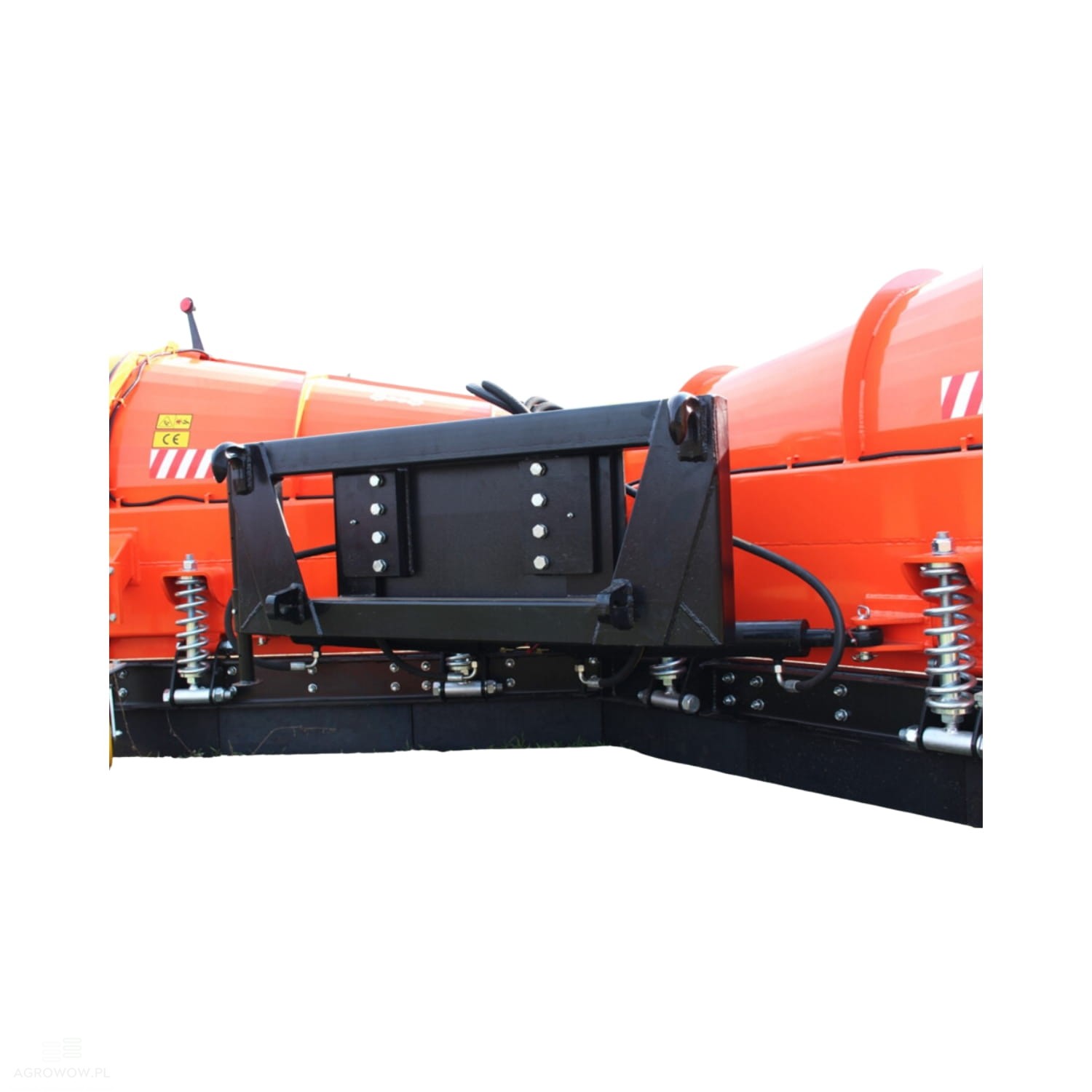

• Equipped with a Category II three-point linkage hitch, the snow plow can be quickly and easily mounted to the tractor, significantly streamlining daily operations and speeding up the start of work.

• The straightforward mounting system increases user convenience, while the robust, rugged construction of the plow guarantees an extended service life, even under the harshest Scandinavian winter conditions.

• It stands as an indispensable tool for efficient snow removal and surface maintenance, ensuring top-tier reliability and ease of use for many seasons to face the winter head-on.
