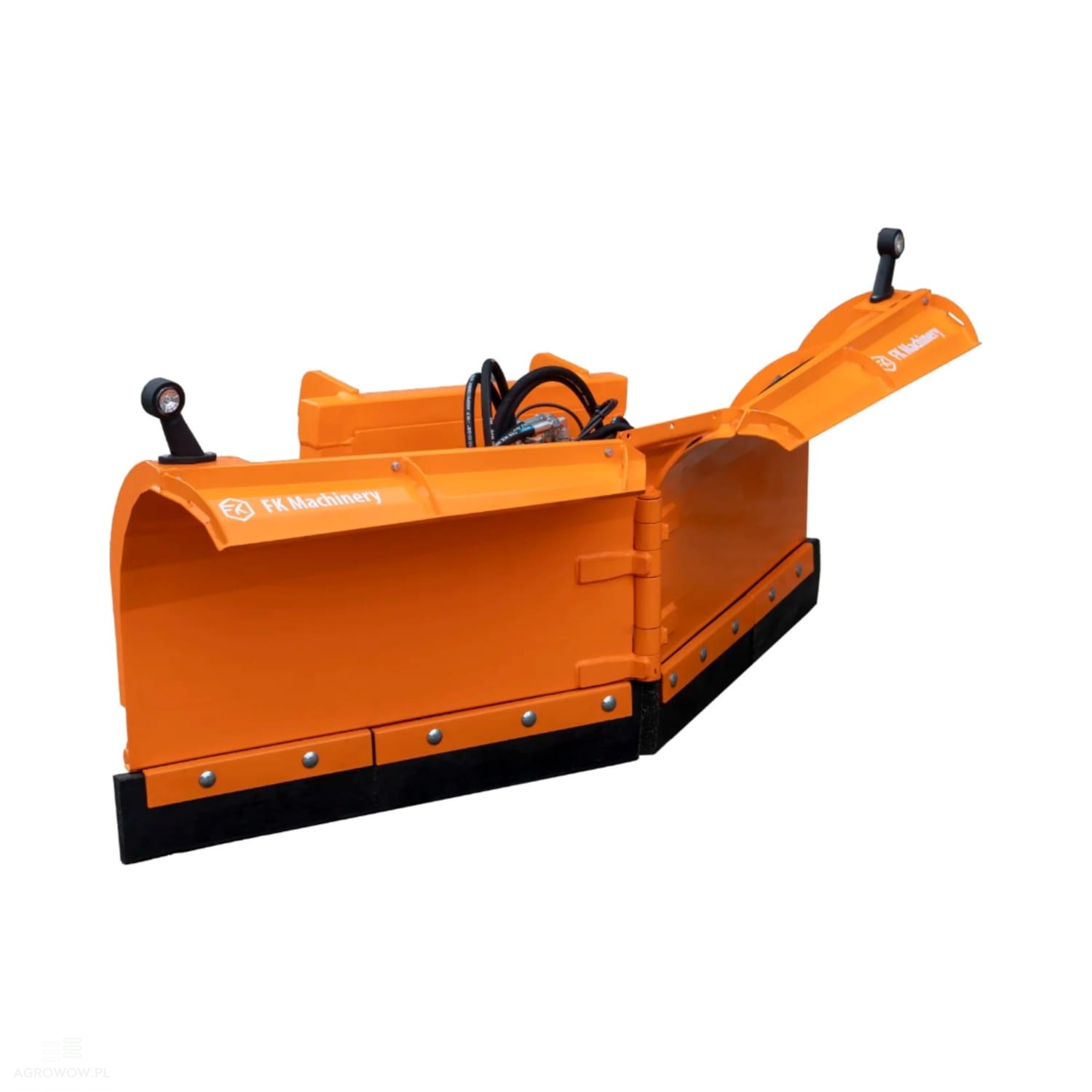

V-plow snow plow 2.0 x 0.75 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KCPLV200

- Manufacturer's name: Vario light snow plow

- Width: 2000 mm

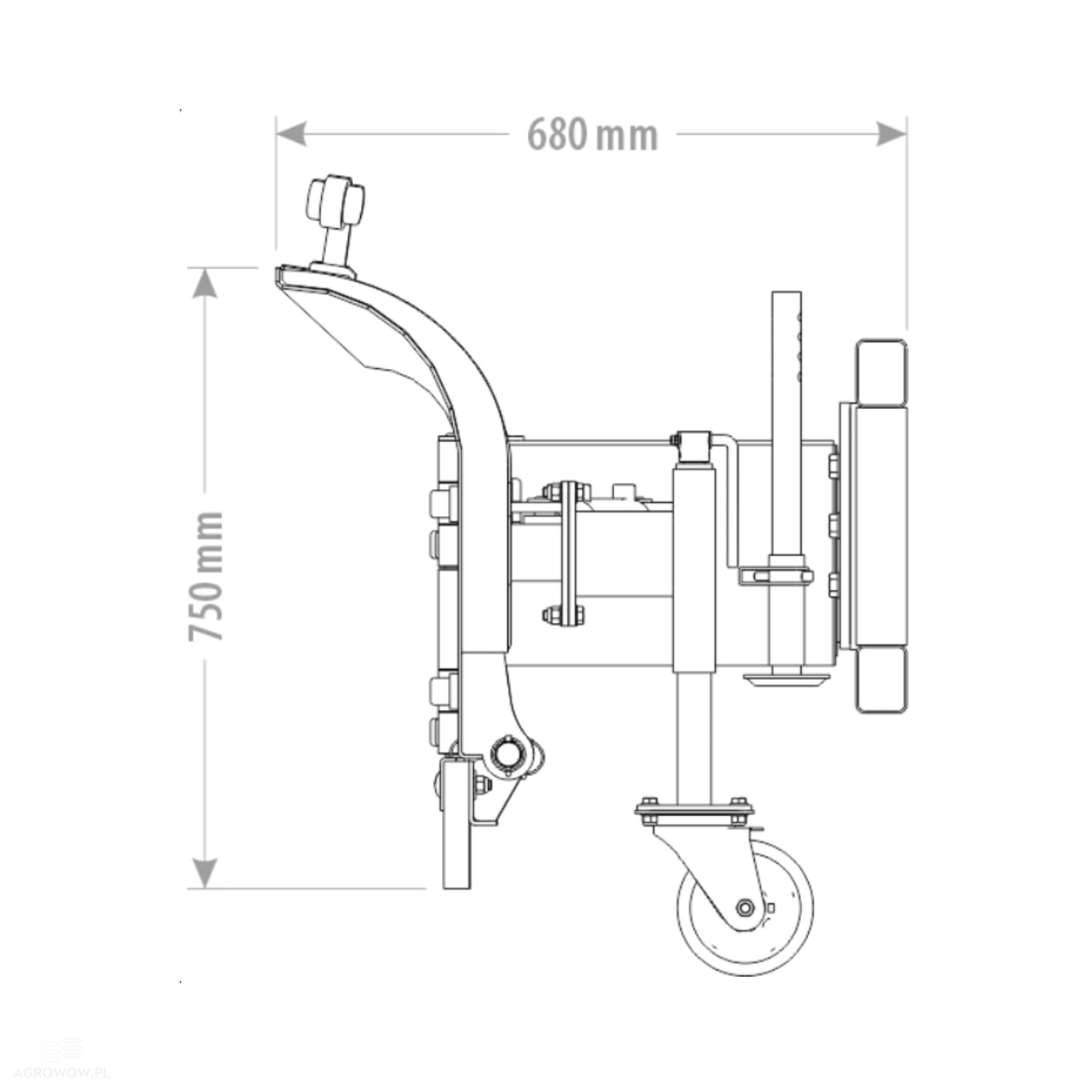

- Height: 750 mm

- Weight: 180 kg

- Ribs: 6 mm

- Main moldboard shell thickness: 4 mm

- Rubber cutting edge / blade: 150 x 30 mm

- Hydraulic moldboard adjustment: Yes

- Spring-loaded / trip moldboard mechanism: Yes

- Terrain contour following / oscillation system: Yes

- Left / right turning angle: 30°

Optional Extras:

- LED Lighting System

High-performance LED work lights mounted directly on the snow plow significantly improve safety and operational efficiency during low-visibility conditions, such as nighttime operations, heavy fog, or intense blizzards. This upgrade illuminates the immediate working path, granting the operator maximum control over the cleared surface.

- Support Wheels

Heavy-duty support wheels are essential for precise height clearance adjustment over the terrain. They allow the operator to tailor the plow's positioning to various ground surfaces, effectively preventing premature cutting edge wear. Depending on the exact specification, height configuration is handled via a manual screw spindle or hydraulic actuator. These wheels distribute the attachment's weight evenly, relieving strain from the carrier machine's suspension and prolonging overall equipment life.

- Skid Shoes

Adjustable support skid shoes act as both a leveling mechanism and a protective guard. They ensure smooth tracking across the ground, minimizing the risk of causing damage to paved surfaces or inflicting impact stress on the cutting edge itself. Mounted on adjustable brackets, they allow micro-adjustments of the moldboard height depending on surface type and snow accumulation depth.

- Moldboard Extension (Snow Deflector / Extension Top)

Available upon request. A moldboard extension is an additional element mounted on the upper edge of the plow designed to increase its overall working height. This extension allows the unit to capture and move larger volumes of snow in a single pass, prevents snow from spilling over the top edge, and protects the operator's vehicle from being buried. It is particularly useful during heavy blizzards or severe winter conditions. These extensions are highly compatible with most models and engineered for demanding, heavy-duty applications.

Detailed Description:

• This V-plow snow plow is a versatile, high-efficiency attachment engineered for the rapid clearing of sidewalks, parking lots, access roads, and urban squares.
• Featuring a heavy-duty frame build and premium structural materials, this snow plow serves as a dependable, professional-grade solution capable of managing demanding winter maintenance operations under severe weather conditions.
• To maximize operational durability and workplace safety, the moldboard is equipped with a responsive spring-loaded trip mechanism.
• These integrated shock-absorbing springs allow the moldboard to deflect safely when encountering hidden obstacles, preventing structural stress and significantly extending the lifespan of the machine.

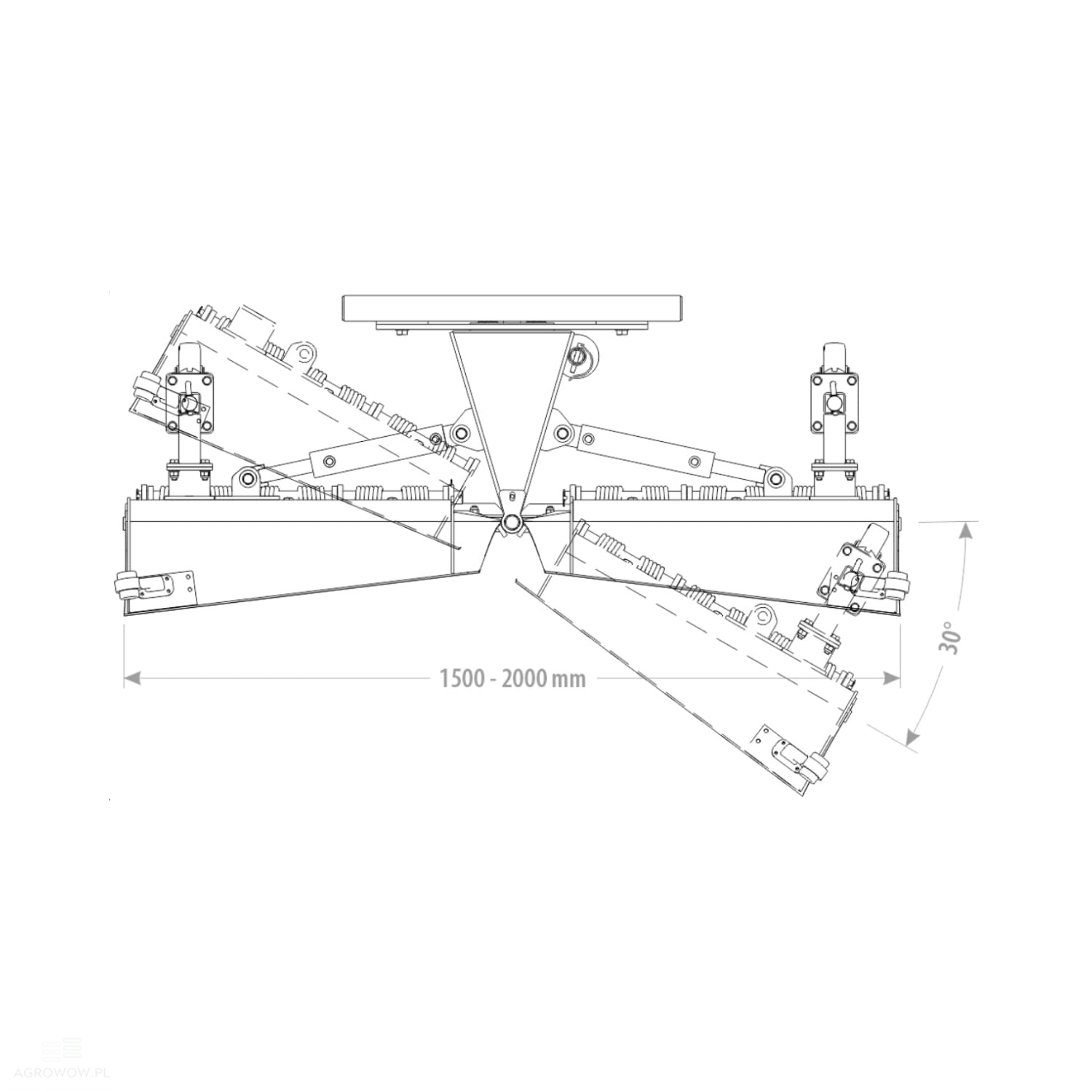

• The machine is equipped with a flexible multi-position angling system that allows for a 30° turn to both the left and right sides.
• This provides the operator with precise control over snow discharge direction and allows the setup to easily adapt to narrow or complex spatial layouts.
• Thanks to the integrated hydraulic moldboard control, the operator can adjust the configuration seamlessly on the move directly from the vehicle cabin.
• This significantly quickens work cycles, reduces operator fatigue, and enhances on-site productivity.
• The core structure is heavily reinforced with 6 mm thick steel support ribs and a 4 mm thick main shell wrapper, delivering high torsional rigidity and exceptional resistance to impact deformation.
• To safeguard the pavement, the unit utilizes a 150 x 30 mm rubber cutting edge that cleanly removes snow without scratching delicate surfaces.
• Furthermore, the built-in terrain contour following system guarantees continuous ground contact across uneven surfaces, ensuring a clean scrape.
• This Vario light snow plow represents an excellent choice for municipal service providers, commercial contractors, and property managers requiring a durable, low-maintenance asset that ensures maximum throughput with minimal operational effort.
• It stands as an indispensable tool for winter maintenance, delivering fast, precise, and highly efficient surface clearing through every winter storm.
