V-snow plow 1.8 x 0.5 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: FK Machinery

- Catalogue number: KCPK180

- Manufacturer's name: Municipal straight snow plow

- Width: 1800 mm

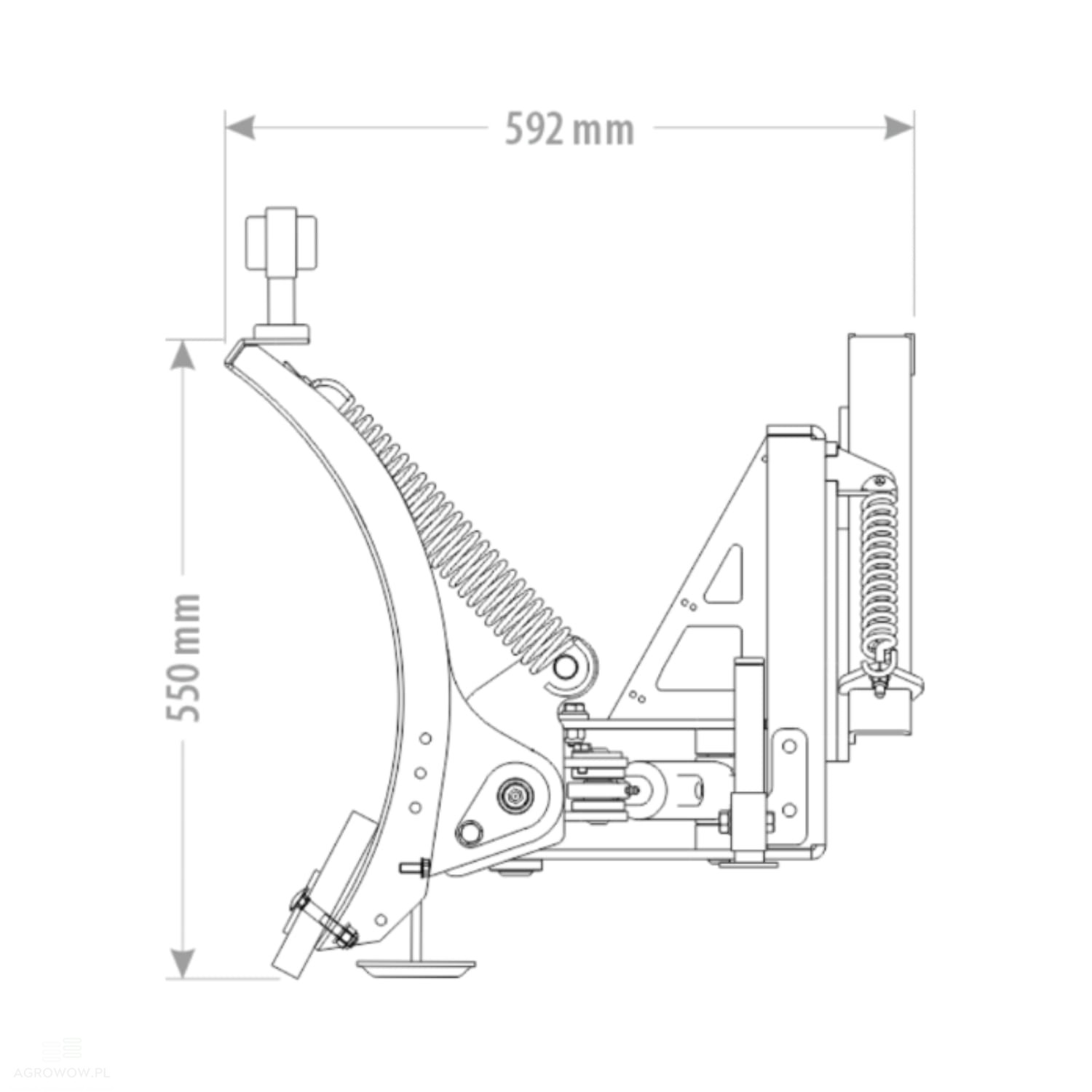

- Height: 550 mm

- Weight: 123 kg

- Ribs: 4 mm

- Main moldboard shell thickness: 4 mm

- Rubber cutting edge / blade: 150 x 30 mm

- Curved moldboard: Yes

- Hydraulic moldboard adjustment: Yes

- Spring-loaded / trip moldboard mechanism: Yes

- Terrain contour following / oscillation system: Yes

- Left / right turning angle: 26°

- Skid shoes: Yes

Optional Extras:

- LED Lighting System

High-performance LED work lights mounted directly on the snow plow play a key role in improving safety and operational efficiency during low-visibility conditions, such as nighttime operations, heavy fog, or intense blizzards. This upgrade illuminates the immediate working path, granting the operator maximum control over the cleared surface.

- Alternative Brackets / Mounts (e.g., for loaders): Available upon request (Inne zaczepy, np. do ładowarek: na zapytanie).

Detailed Description:

• This municipal straight snow plow is a versatile machine engineered for the effective clearing of sidewalks, parking lots, and urban squares.
• Featuring a heavy-duty frame build and premium structural materials, this snow plow serves as a dependable tool capable of managing winter maintenance operations under challenging weather conditions.
• The moldboard framework is equipped with heavy-duty trip springs that absorb impacts and protect the machine from structural damage when hitting hidden obstacles, significantly increasing equipment durability and operational safety.

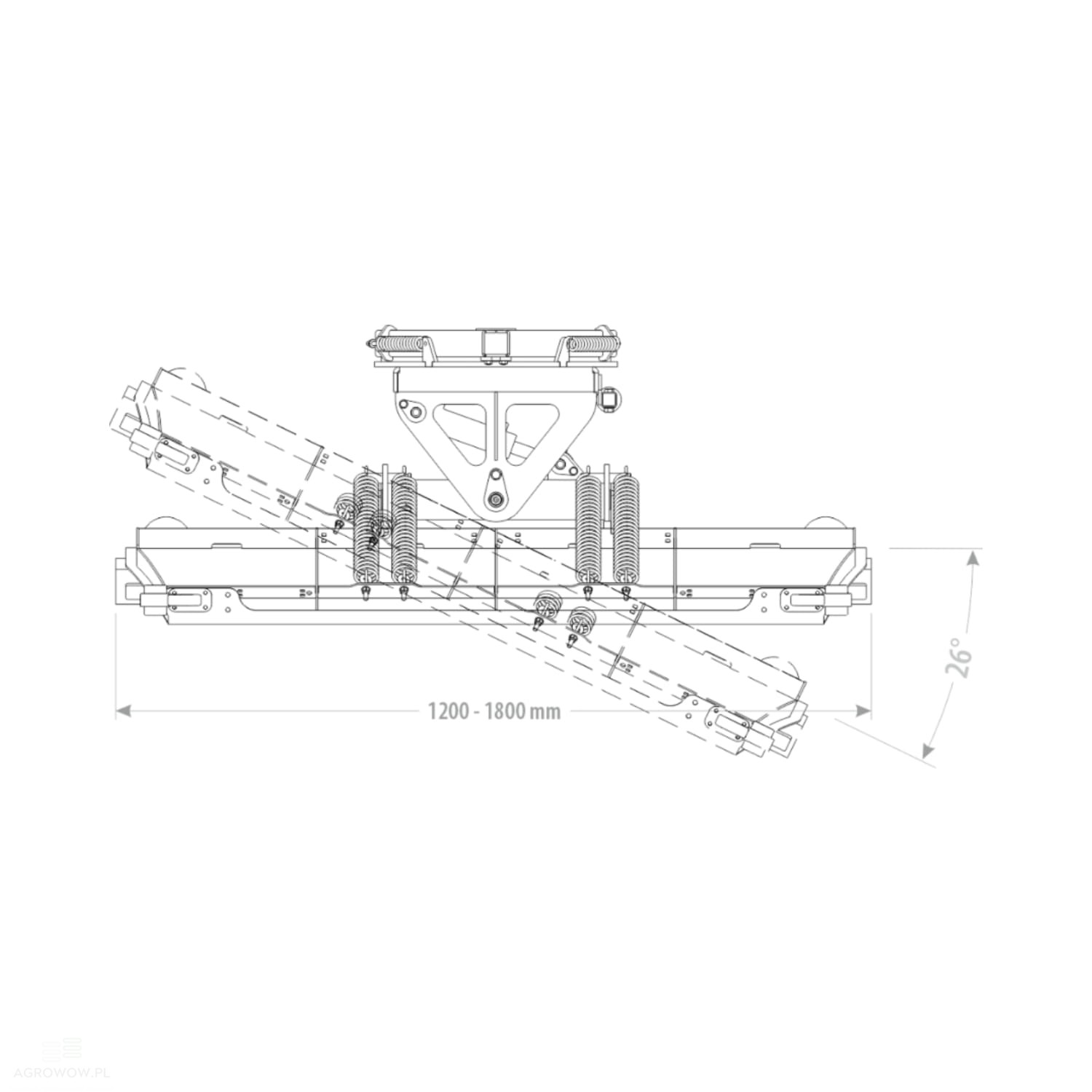

• The design allows for a 26° angling adjustment to both the left and right sides, enabling precise adaptation of the plow to diverse terrain layouts.
• Thanks to the integrated hydraulic moldboard control, the operator maintains complete command over the machine seamlessly without needing to leave the vehicle cabin.
• This significantly quickens work cycles, reduces physical effort, and enhances on-site productivity.
• With its compact design, this plow is ideal for use with ATVs/quads or compact mini tractors, making it an excellent solution for municipal work in smaller, hard-to-reach areas.
• It stands as an indispensable tool for winter maintenance, ensuring fast and efficient snow removal across various surfaces.
