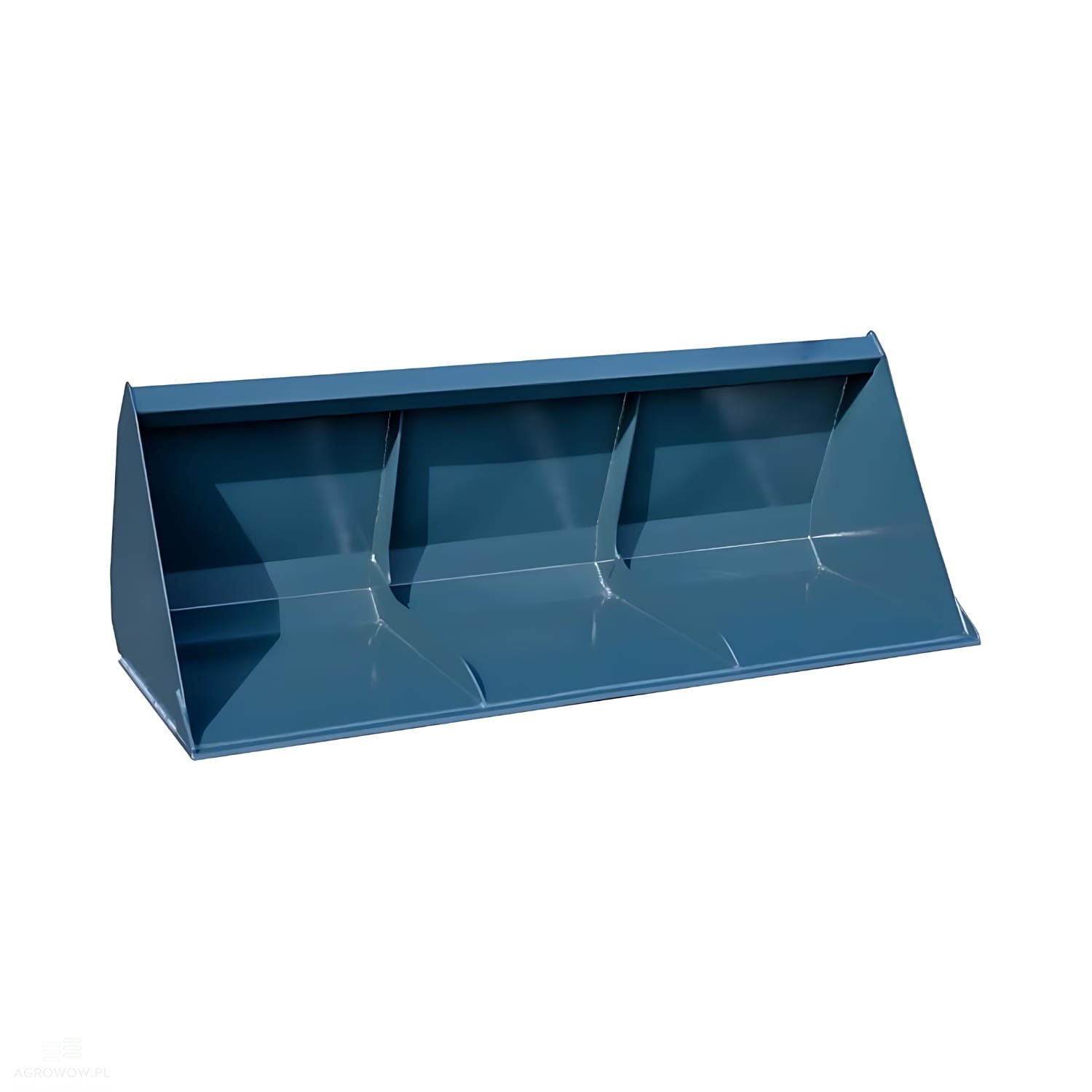

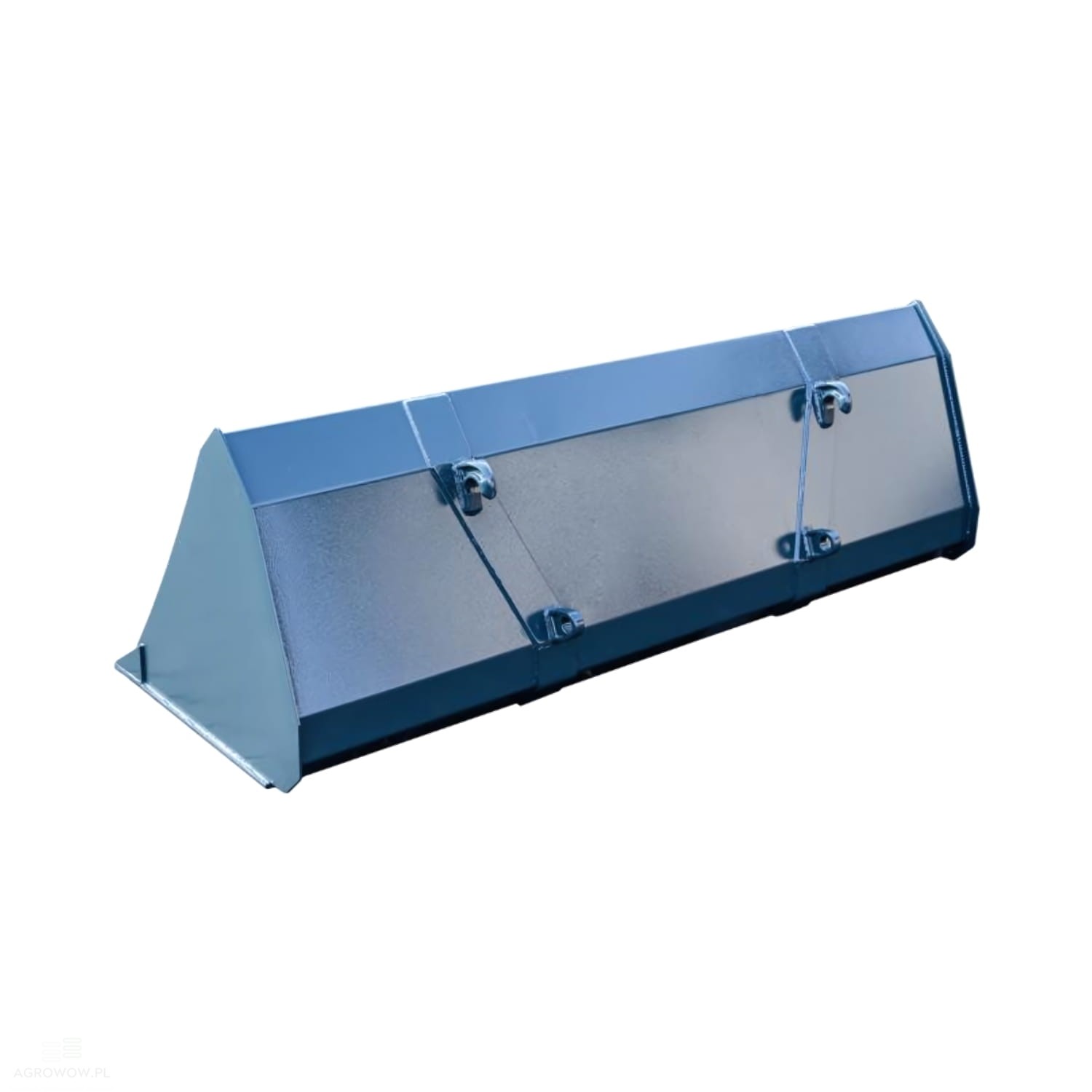

WAW-POL standard bucket 5-7 T / 1.6 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: WAW-POL

- Catalogue number: WL16LS

- Manufacturer's name: Standard bucket

- Width: 1600 mm

- Weight: 135 kg

- Capacity: 0.43 m³

- Shell thickness: 4 mm

- Side plate thickness: 4 mm

- Reinforcement: 8 mm

- Cutting edge: 80x10 mm

- Machine weight class: 5-7 T

- Universal compatibility for any machine

- Hitch upon request: any mounting type available (e.g., Euro, JCB, Manitou, Bobcat, CAT, Weidemann, Tramer, etc.)

Detailed Description:

• The standard bucket featuring a width of 1600 mm is a durable and functional attachment designed for machines with an operating weight ranging from 5 to 7 tons.

• It has been developed for intensive use across various industries – from construction works and agricultural tasks to municipal applications.

• It performs excellently during excavation, material handling, and clearing operations, enabling efficient movement of loose materials such as sand, soil, gravel, or rubble.

• With a capacity of 0.43 m³, the bucket allows tasks to be completed with higher efficiency while maintaining stability and proper balance.

• Its weight of 135 kg ensures that the attachment does not overload the machine, guaranteeing safe utilization and smooth operation of the hydraulic system.

• The entire unit is manufactured from high-grade steel, which guarantees wear resistance and durability even in challenging terrain conditions.

• The 4 mm thick shell and side plates protect the structure against mechanical damage, while an 8 mm thick internal reinforcement strengthens the assembly, protecting the bucket from deformation under force and load.

• A steel cutting edge measuring 80x10 mm is utilized at the bottom of the bucket, serving as the main working edge – facilitating material scraping and minimizing wear on surfaces exposed to friction.

• A major advantage of this bucket is its mounting universality – it can be equipped with any type of hitch, allowing it to be matched to a wide range of machinery.

• Depending on the user's requirements, it is possible to prepare the mounting interface in Euro, JCB, Manitou, CAT, Bobcat, Weidemann, Tramer, and other systems.

• Thanks to its robust construction, careful execution, and wide configuration possibilities, the 1600 mm standard bucket is an excellent solution for users seeking a durable, efficient, and versatile attachment.

• It can be successfully used with excavators, front loaders, telehandlers, as well as forklifts with a suitable connection system.
