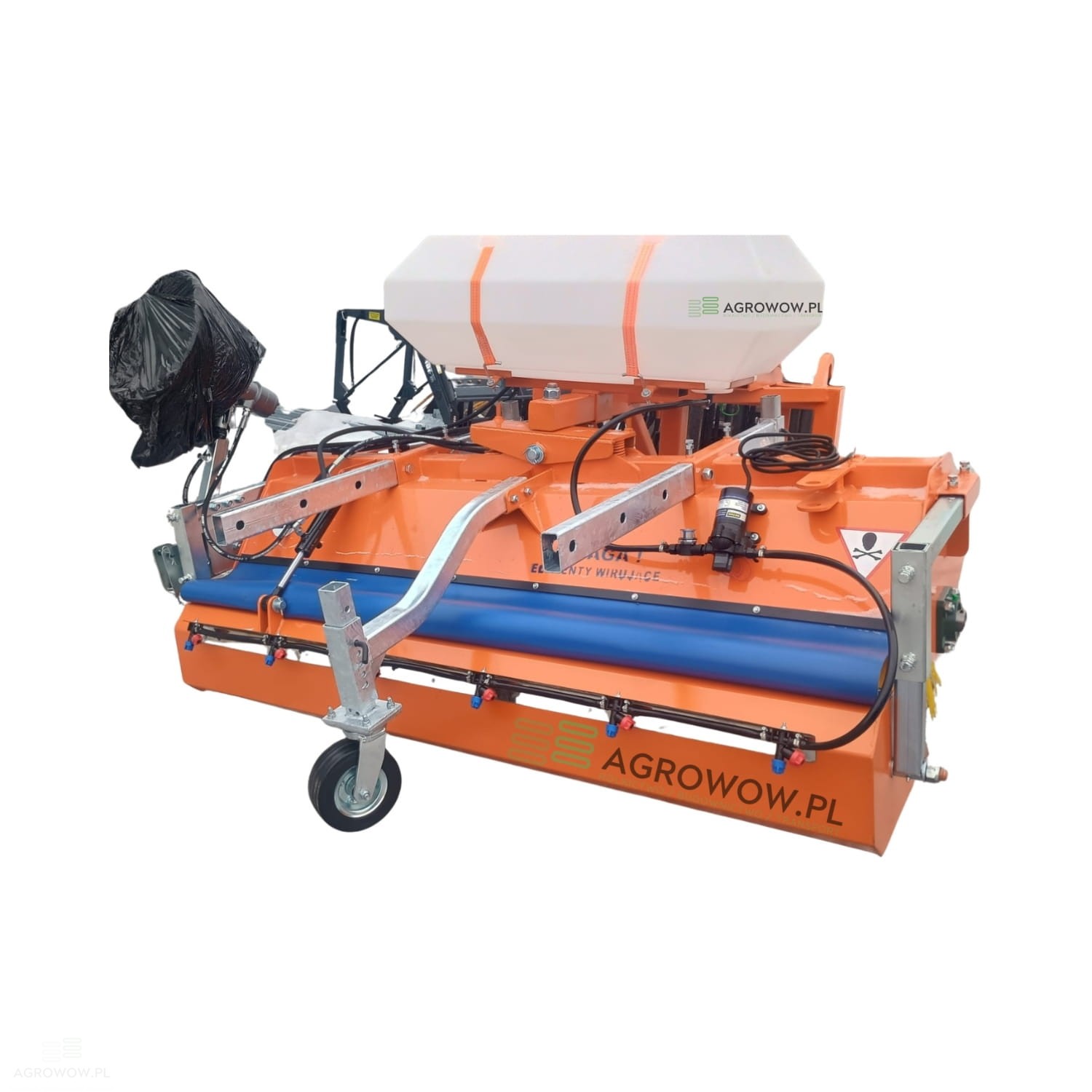

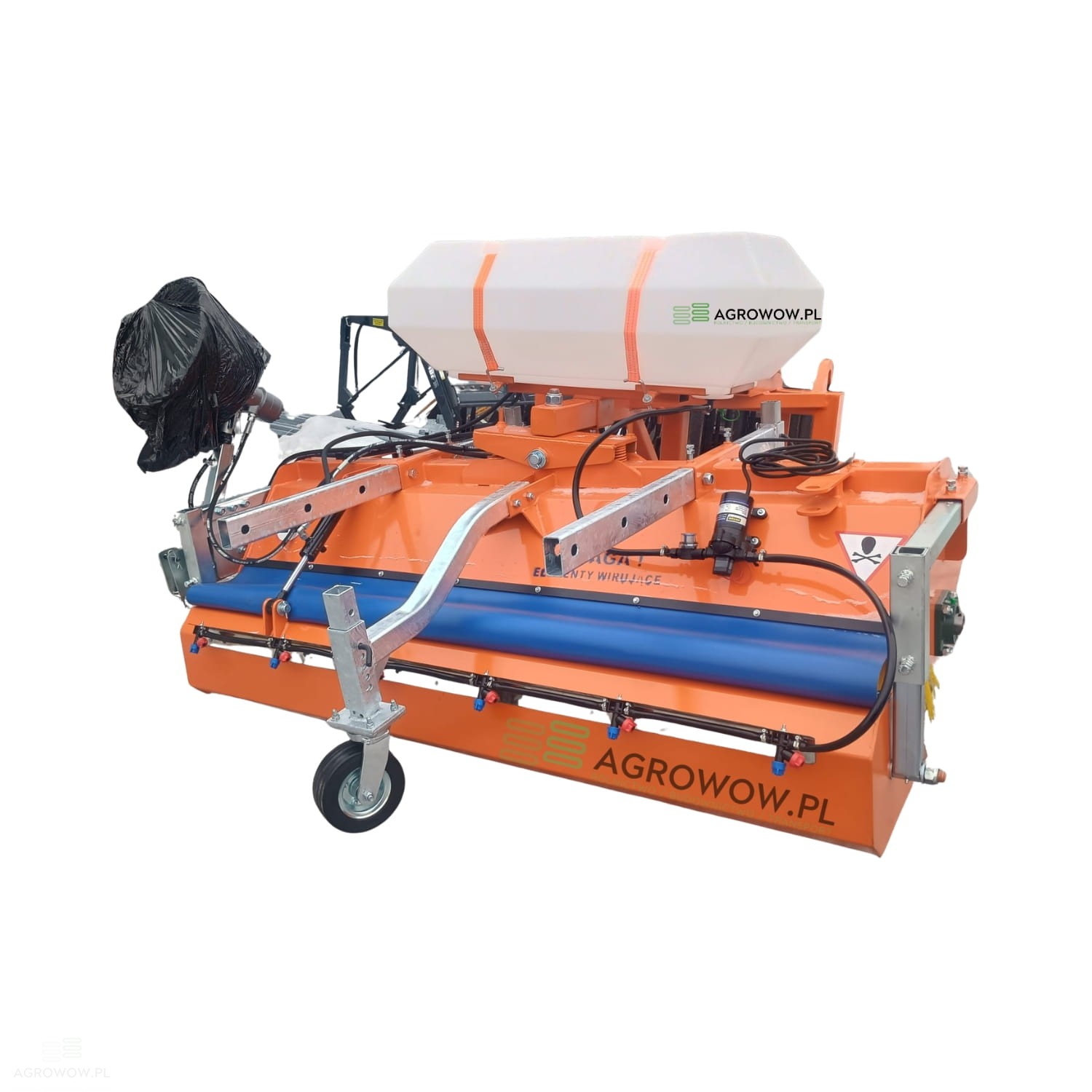

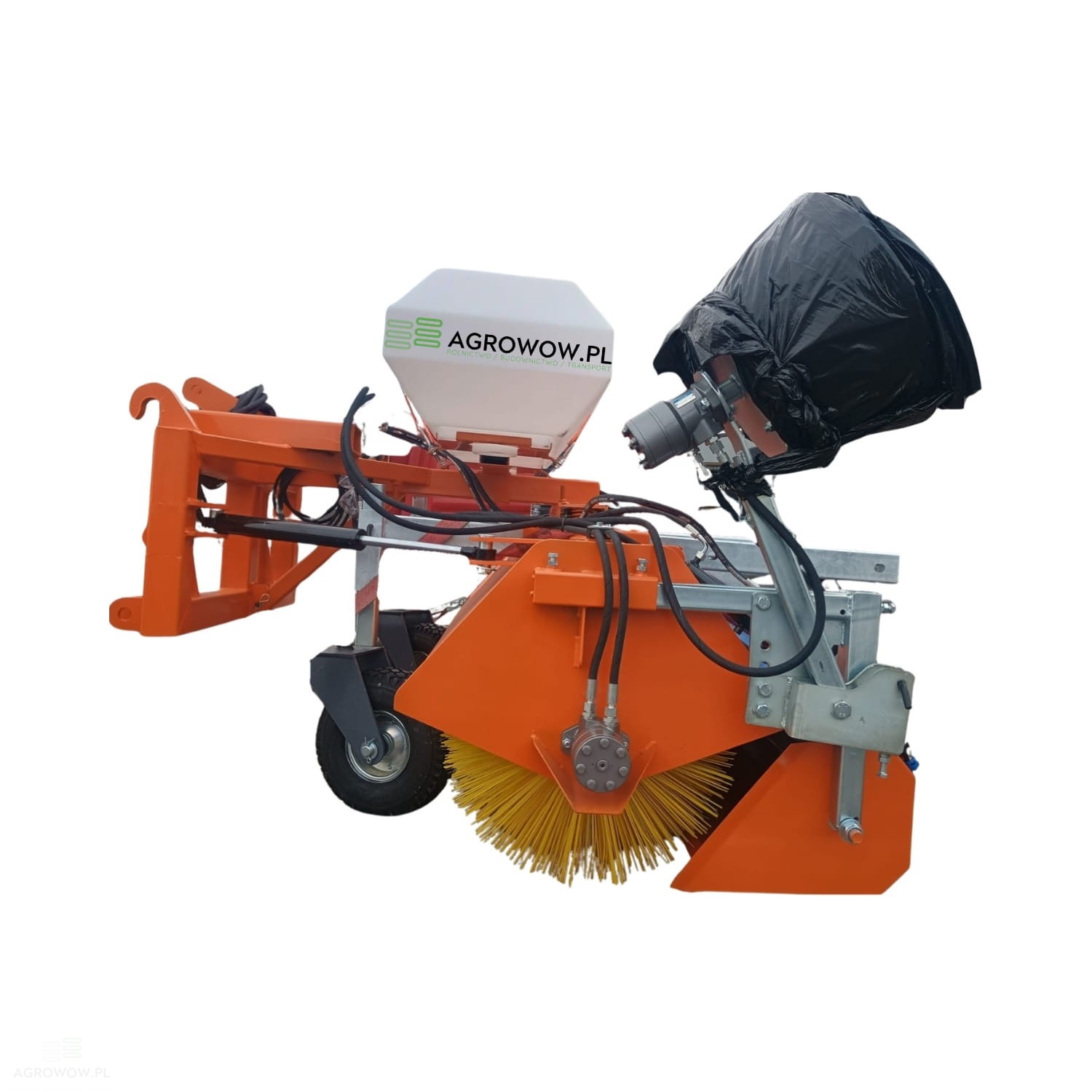

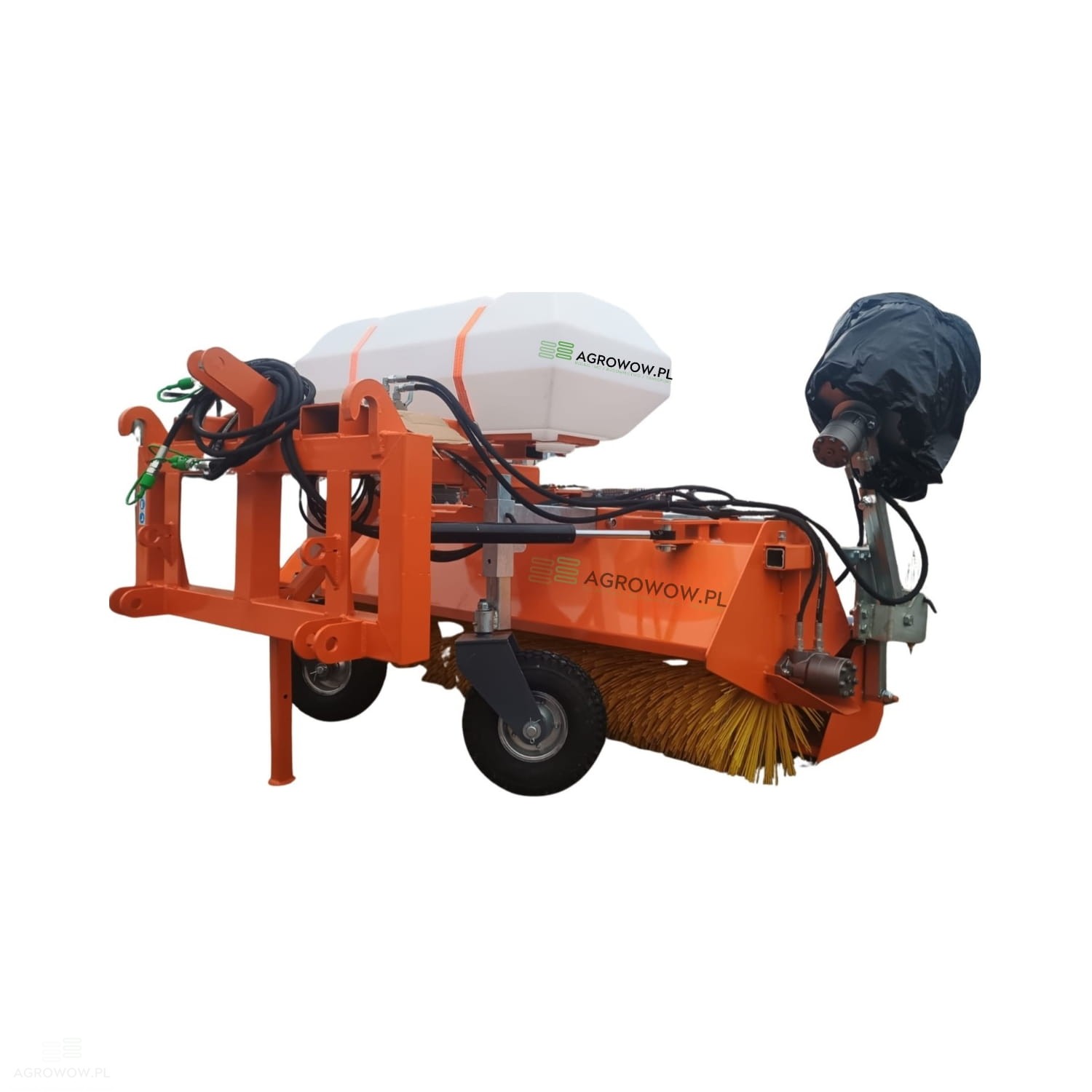

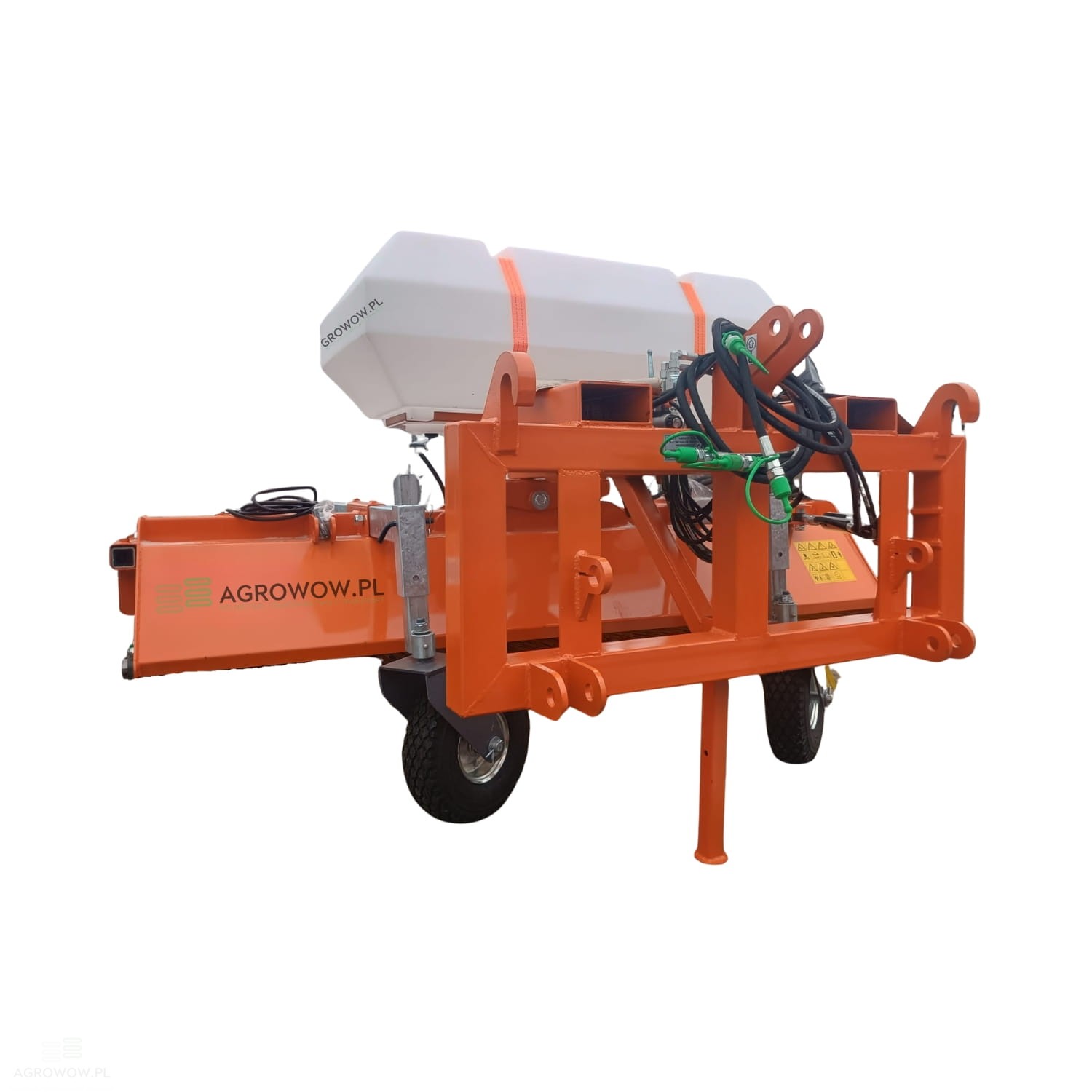

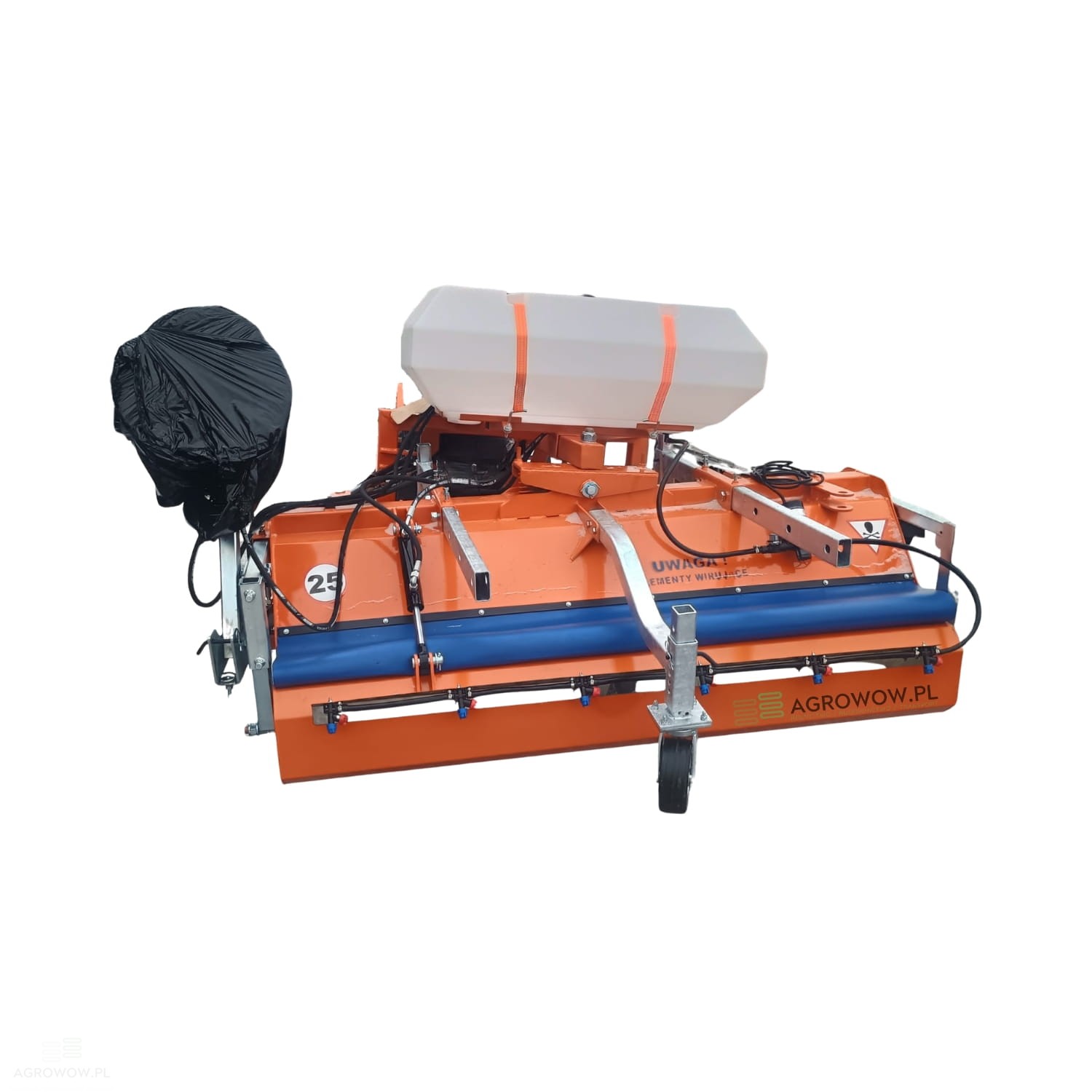

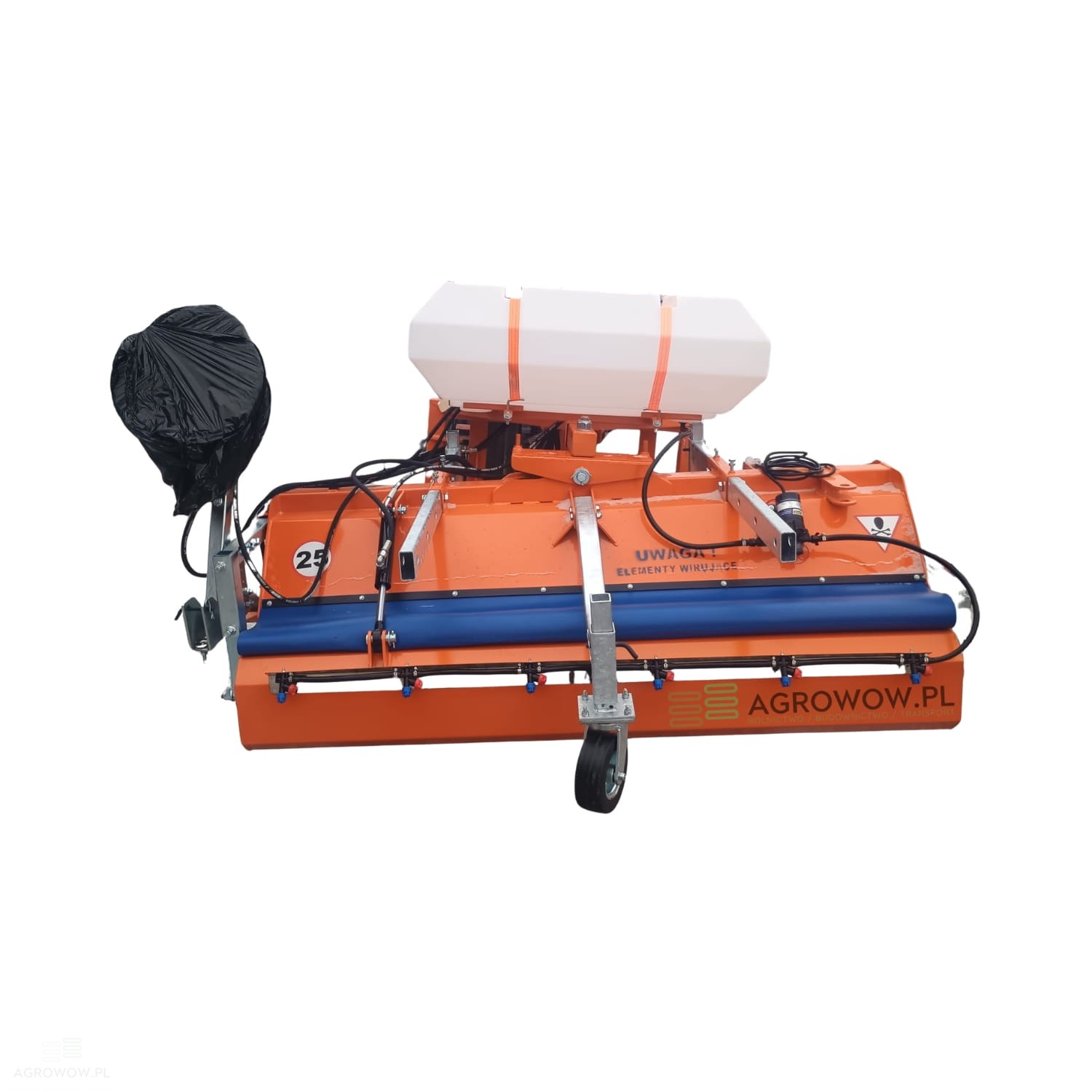

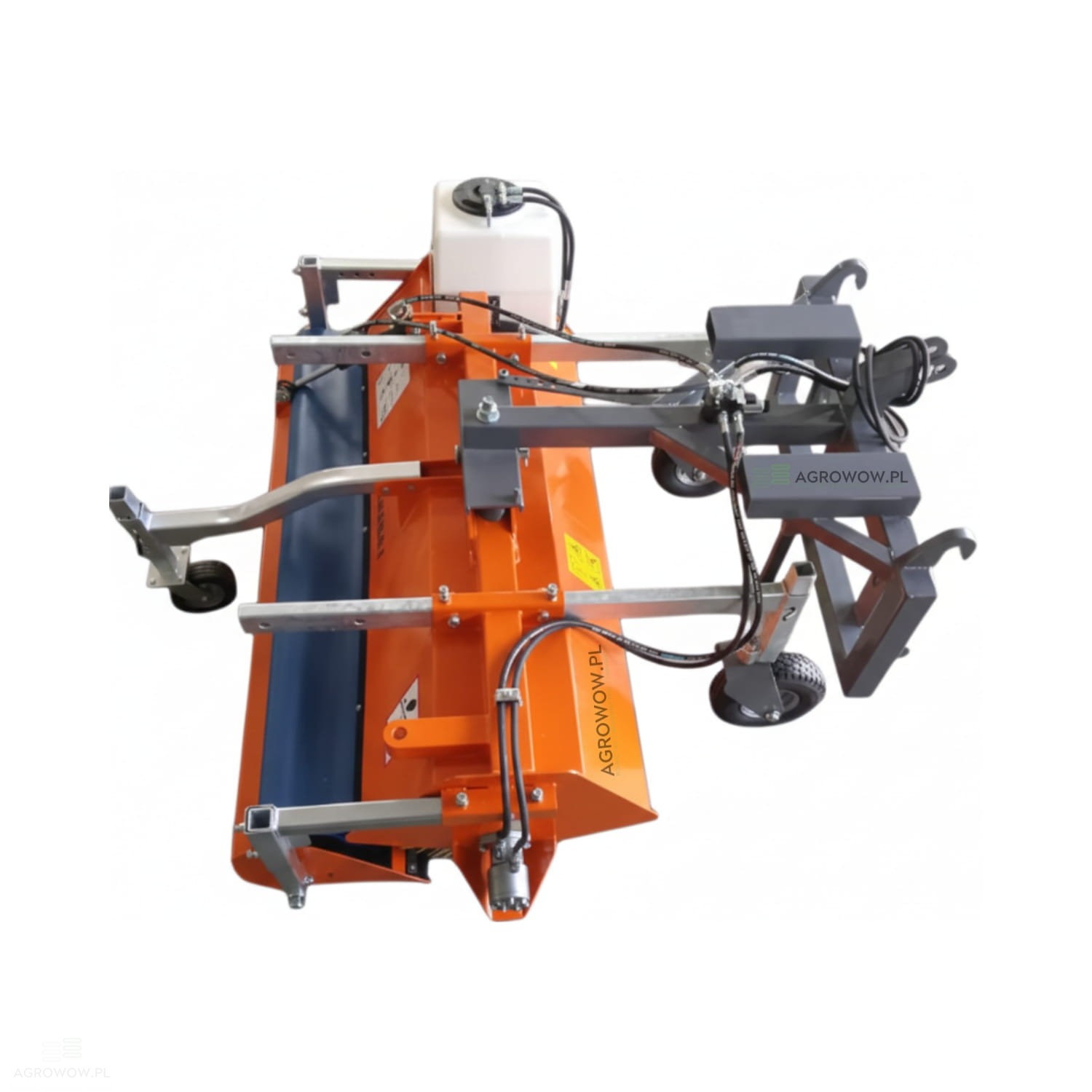

Agrowow 1.6 m road sweeper for tractors and loaders

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AB16ZD

- Manufacturer's name: IGA Sweeper

- Width: 1867 mm

- Length: 1150 mm

- Working width: 1600 mm

- Height: 1200 mm

- Brush speed: 140 – 160 RPM

- Weight: 350 kg

- Working speed: Up to 10 km/h

- Transport speed: Up to 20 km/h

- Minimum working pressure in the hydraulic system: 10 MPa

- Maximum pressure in the hydraulic system: 14 MPa

- Tractor pump capacity: 30 – 50 L/min

- Brush drive: Hydraulic drive powered by the carrier's external hydraulics

- Hitch: Front and rear tractor mounting, Cat. I and Cat. II

- Compatibility: Adapted for loaders and forklifts

- Hopper lifting: Hydraulic waste hopper emptying/lifting

- Brush options: Easily replaceable brushes

- Wheels: Solid rubber wheels with adjustable working height

- Application suitability: Designed for sweeping flat surfaces, roads, asphalt sidewalks, paving stones, and concrete

Extra Cost:

- Steering Cylinder

The steering cylinder is a key component of hydraulic control systems used in agricultural, construction, and municipal machinery such as sweepers, loaders, or tractors. Its role is the precise adjustment of the turning angle of axles, wheels, or other moving elements, which improves vehicle maneuverability and stability. It works by converting hydraulic pressure into linear motion, enabling smooth and precise control. Made of durable materials resistant to heavy loads, the cylinder ensures long service life and reliability even under difficult operating conditions.

- Side Brush

The side brush is an essential element of sweepers designed to remove debris from hard-to-reach places such as curbs, roadsides, and corners. Made of durable synthetic fibers or a plastic-metal composite, it guarantees efficient and long-lasting operation. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise adjustment of its position to terrain conditions. In many sweeper models, the side brush works in conjunction with a water sprinkling system, which limits dust generation and increases cleaning efficiency.

- Water Sprinkling System

The water sprinkling system is an important element of road and municipal sweepers, responsible for dust reduction and increasing debris collection efficiency. It consists of a water tank, pressure pumps, hoses, and nozzles positioned in strategic places – near the working brushes and close to the waste hopper. The system allows for adjustment of the amount of sprayed water, enabling optimal adaptation of the work to the surface contamination level and weather conditions. Made of corrosion-resistant materials, it ensures long-lasting and trouble-free operation.

- Third Support Wheel

The third support wheel is an additional structural element mounted centrally on the sweeper, intended to improve machine stability and evenly distribute pressure during operation. Particularly useful for sweepers with a large working width, it simplifies guiding the device and protects the brushes from excessive wear. This wheel provides better control over the machine, especially when working near curbs or on uneven ground, and increases sweeping precision. Additionally, it improves operator handling comfort and reduces the risk of surface damage thanks to better adaptation of the sweeper to terrain conditions.

Detailed Description:

• This road sweeper with a working width of 1600 mm is a versatile and efficient device designed for the professional maintenance of cleanliness on various types of surfaces.

• Thanks to its robust construction and precise operation, it performs perfectly as a tractor, loader, or forklift sweeper, allowing for the effective cleaning of streets, roads, sidewalks, maneuvering yards, and industrial zones.

• The device has been designed with maximum working efficiency in mind.

• The 1600 mm working width enables the quick and thorough removal of contaminants such as dust, leaves, sand, or other waste, making it an ideal solution for both the municipal and industrial sectors.

• The sweeper is equipped with a hydraulic brush drive powered by the carrier's external hydraulics, which ensures smooth and efficient performance.

• It can be mounted on either the front or the rear of the tractor in Category I and II, offering great operational flexibility.

• The brush speed within the range of 140–160 RPM guarantees precise and effective cleaning even under intensive use.

• The hydraulically lifted waste hopper makes emptying the container easy, increasing operating comfort and speeding up the cleaning process.

• Adjustable, solid rubber wheels allow the working height of the sweeper to be adapted to different types of surfaces, ensuring optimal cleaning efficiency regardless of terrain conditions.

• High manufacturing quality and durable materials make the sweeper ideally suited for sweeping asphalt roads, interlocking paving stone sidewalks, and concrete industrial surfaces.

• A working speed of up to 10 km/h and a transport speed of up to 20 km/h allow for efficient transit between different working areas, saving time and increasing operational productivity.

• The hydraulic system of the sweeper operates within a pressure range of 10 to 14 MPa, with a carrier pump capacity of 30–50 L/min, ensuring optimal operating conditions.

• Easily replaceable brushes make machine maintenance quick and simple, which translates into a long lifespan and minimized operational costs.

• This sweeper is a professional tool that will meet the expectations of users looking for an efficient and reliable solution to maintain cleanliness on large surfaces.

• It represents an excellent choice for municipal companies, road managers, industrial plants, and farms.
