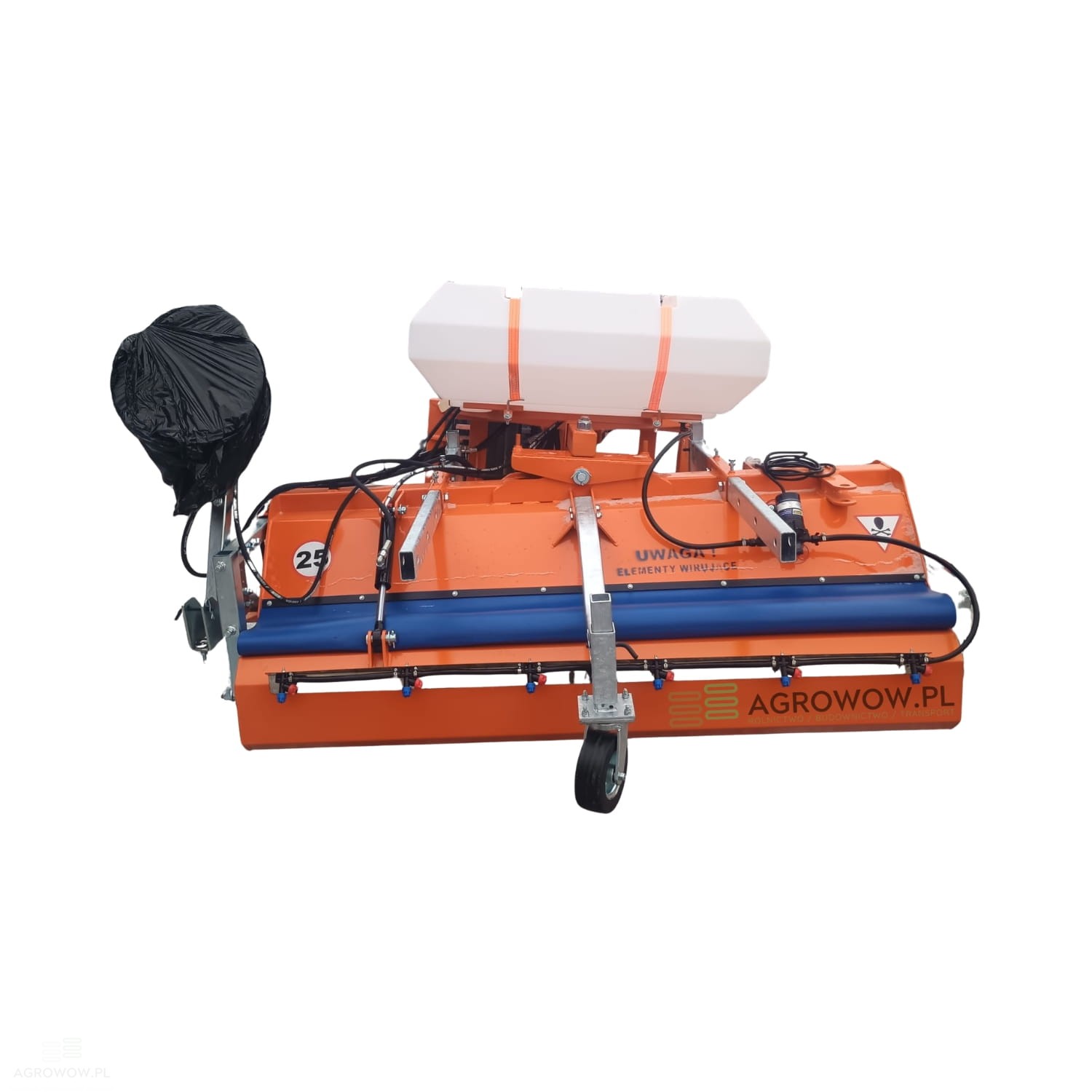

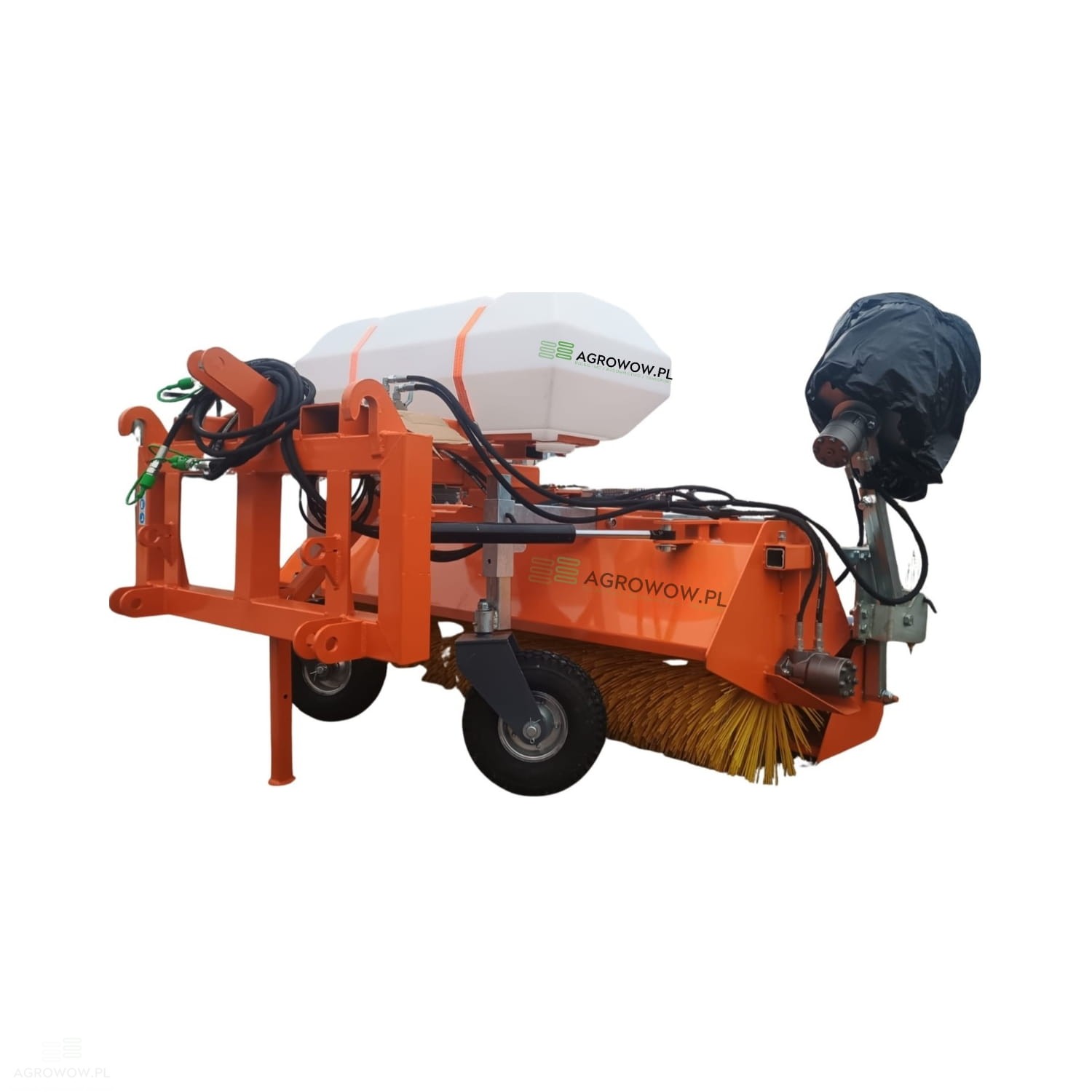

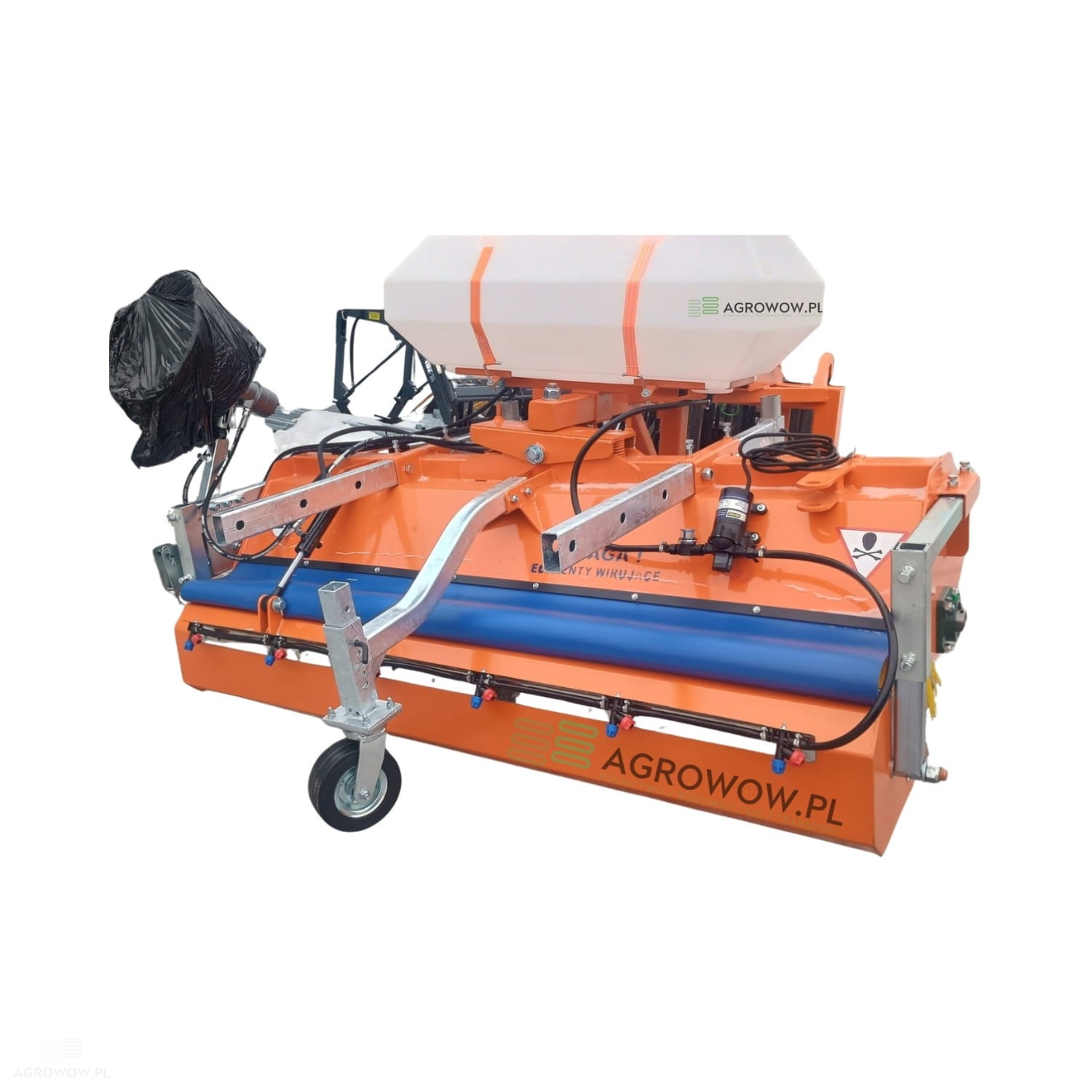

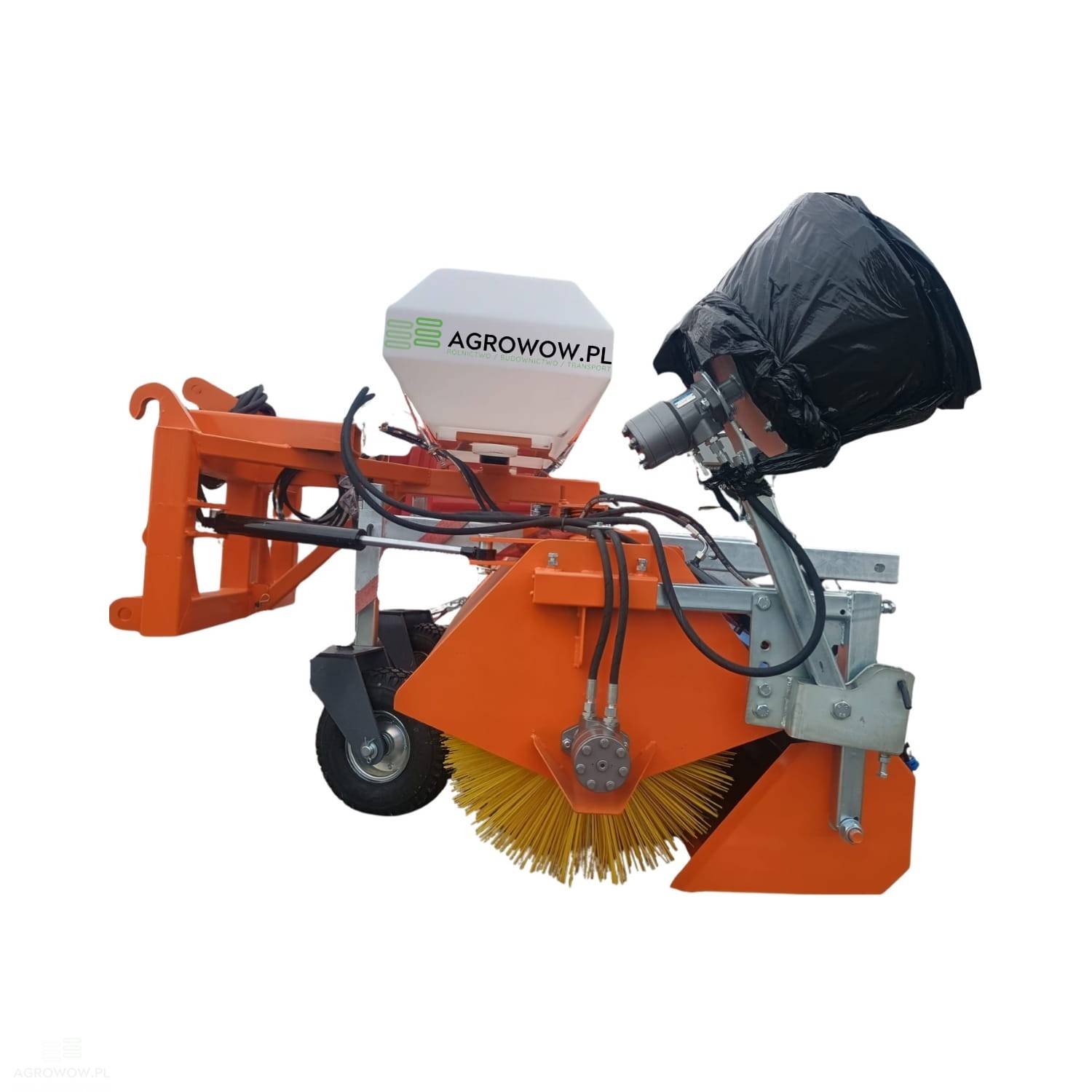

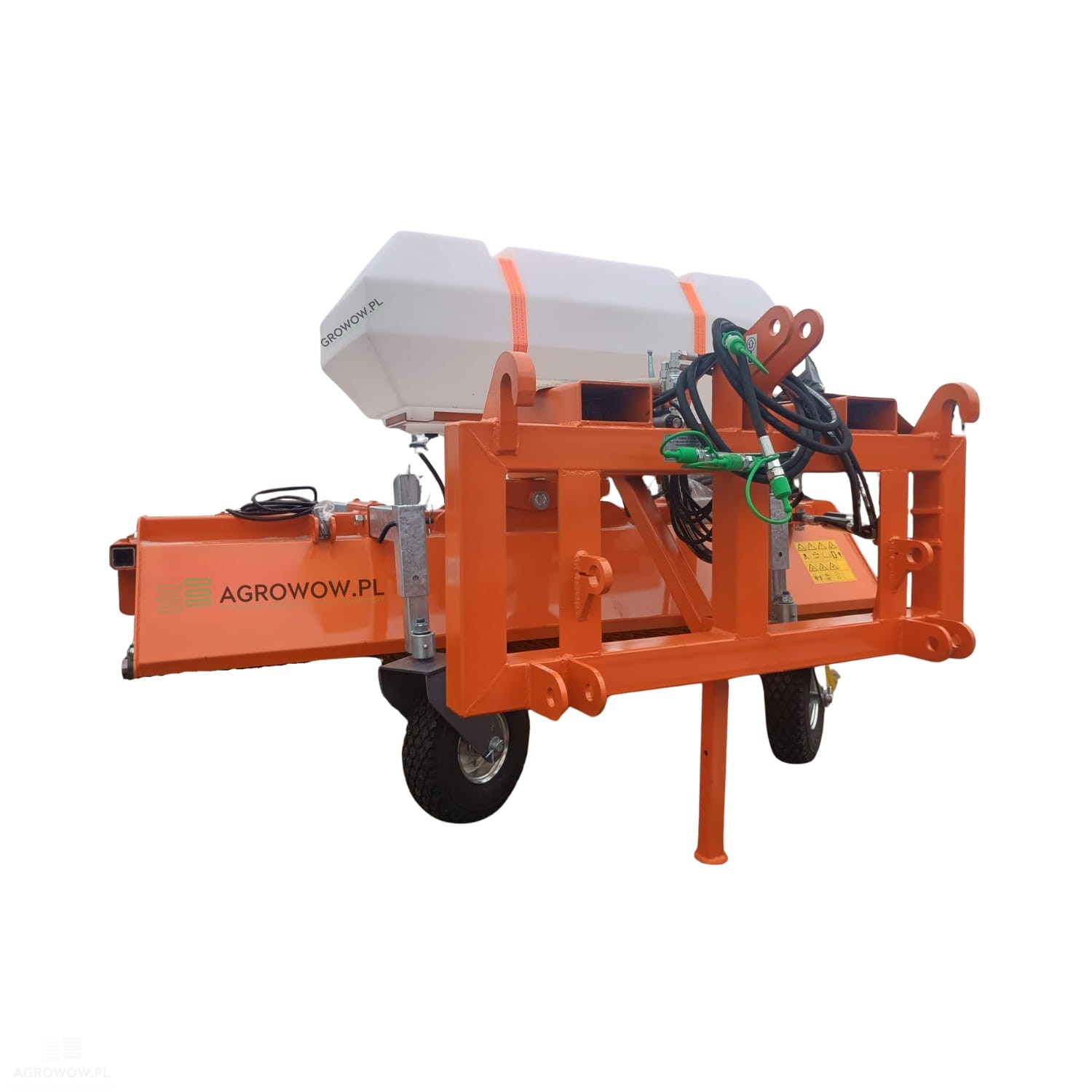

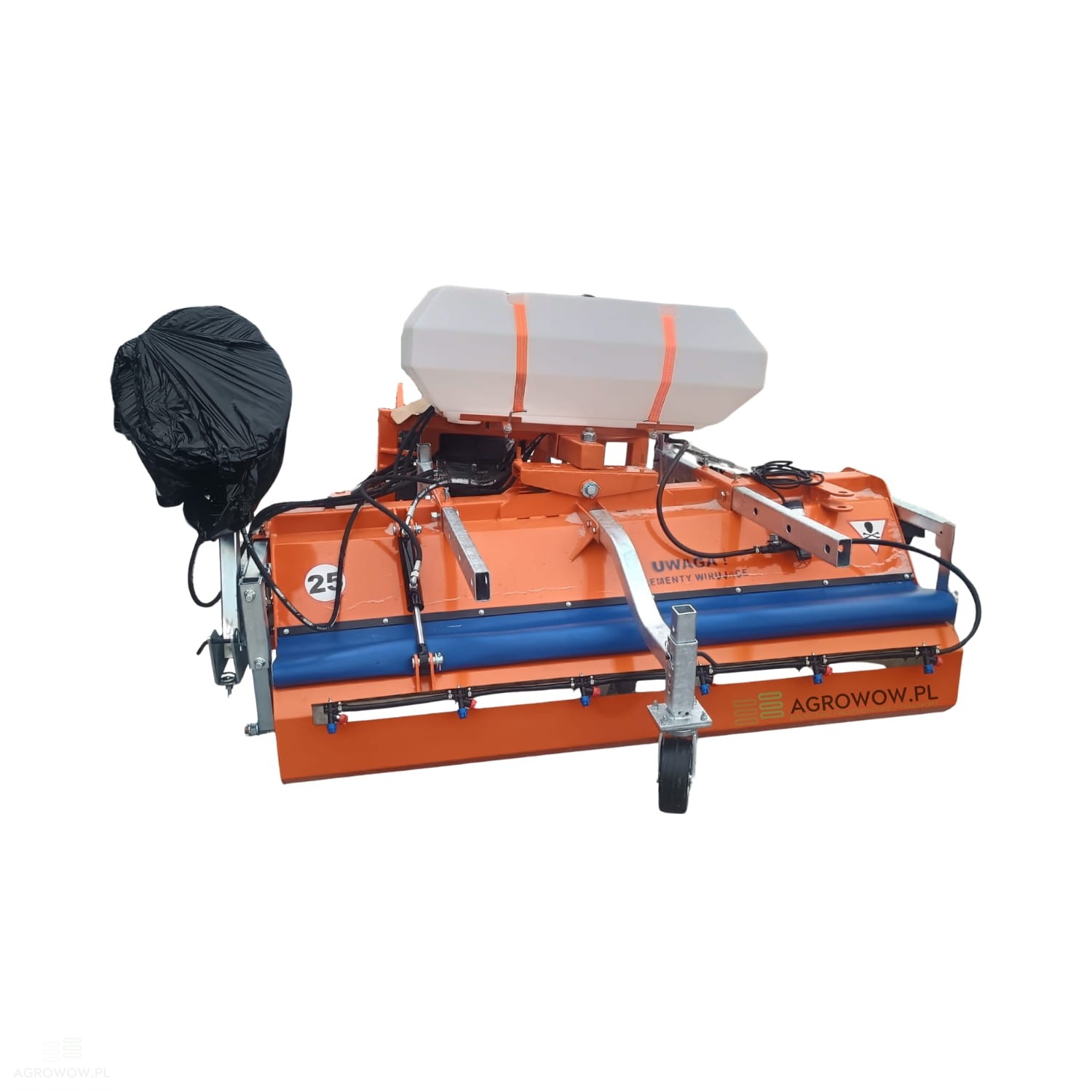

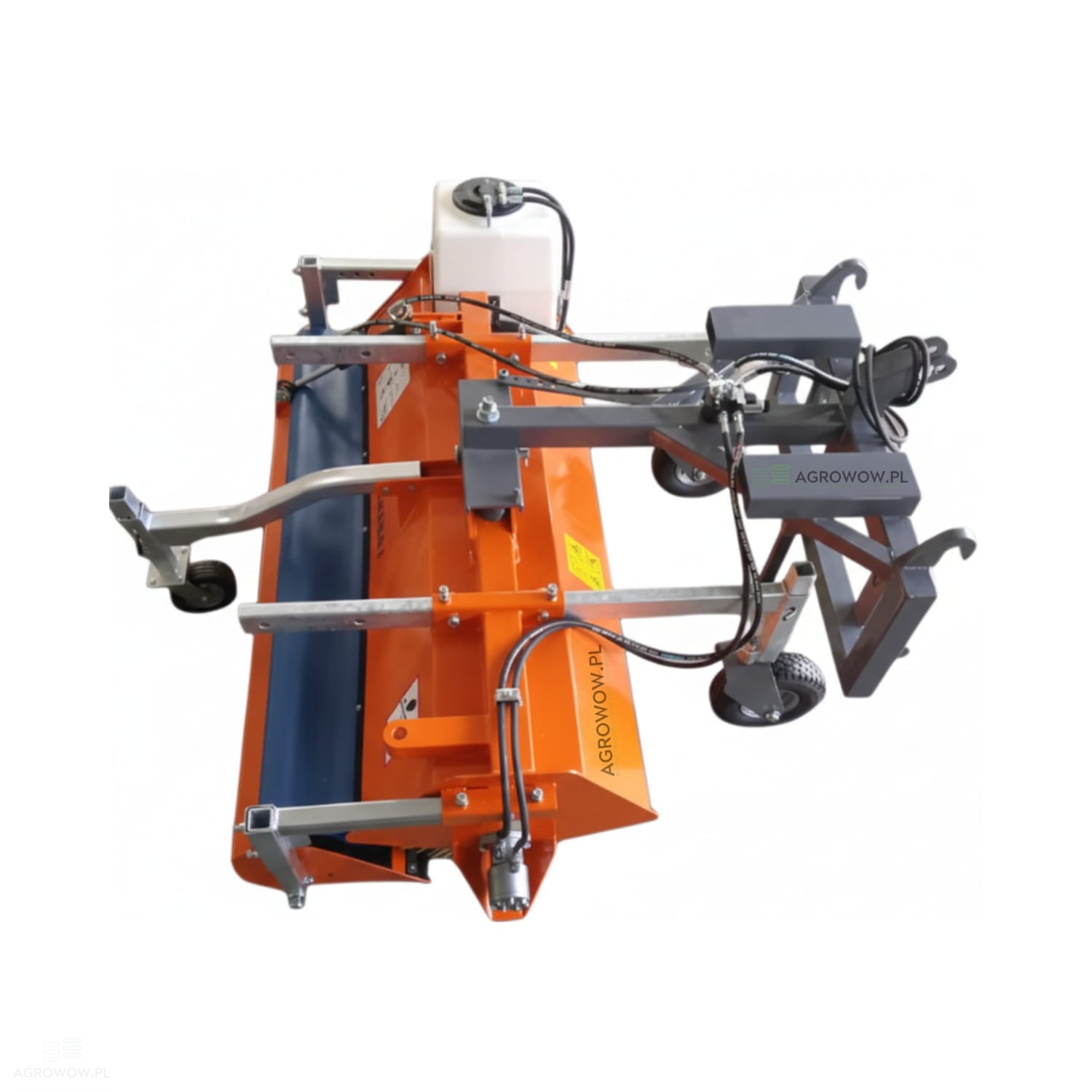

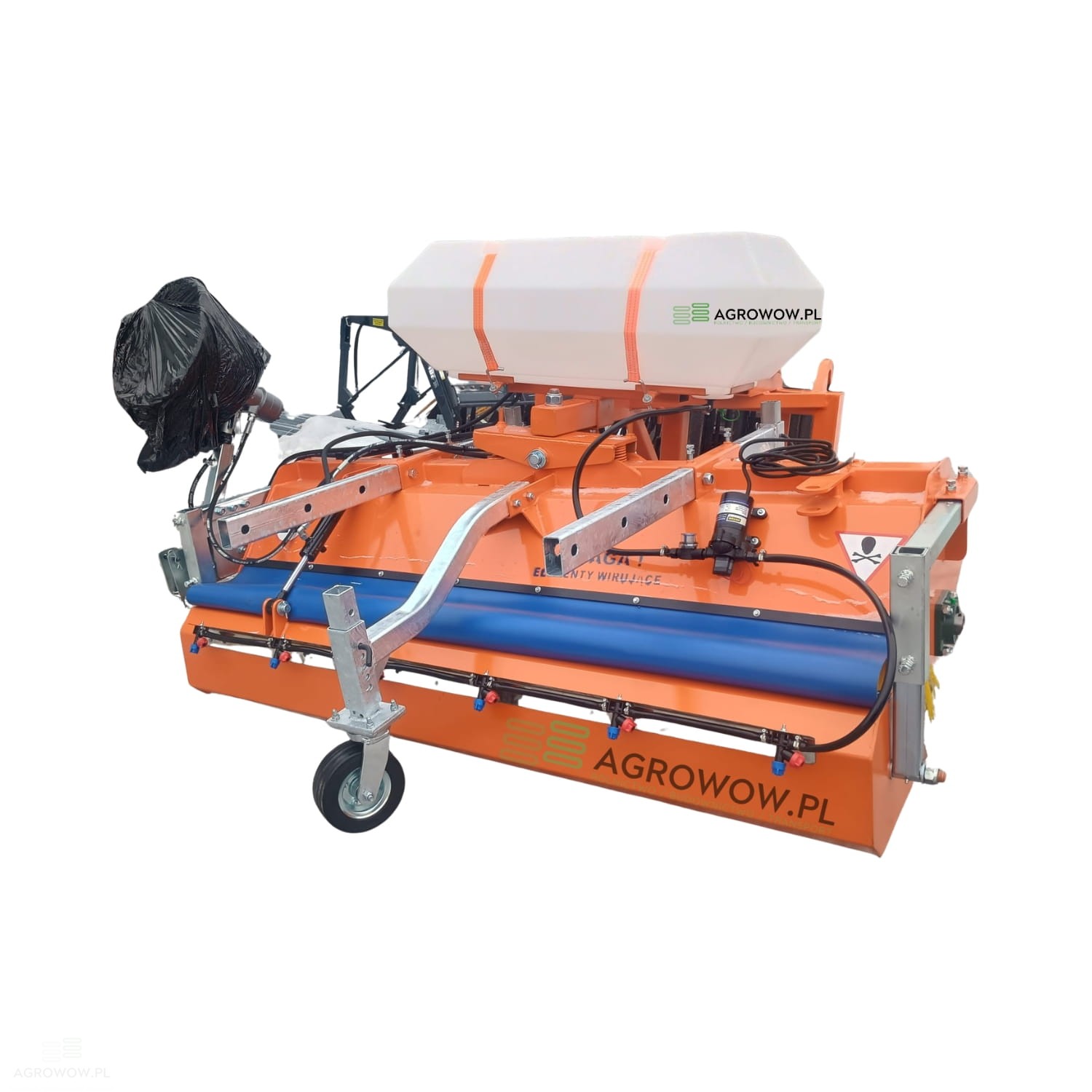

Agrowow 1.8 m road sweeper for tractors and loaders

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AB18ZD

- Manufacturer's name: IGA Sweeper

- Width: 2067 mm

- Length: 1150 mm

- Working width: 1800 mm

- Height: 1200 mm

- Brush speed: 140 – 160 RPM

- Weight: 380 kg

- Working speed: Up to 10 km/h

- Transport speed: Up to 20 km/h

- Minimum working pressure in the hydraulic system: 10 MPa

- Maximum pressure in the hydraulic system: 14 MPa

- Tractor pump capacity: 30 – 50 L/min

- Brush drive: Hydraulic drive powered by the carrier's external hydraulics

- Hitch: Front and rear tractor mounting, Cat. I and Cat. II

- Compatibility: Adapted for loaders and forklifts

- Hopper lifting: Hydraulic waste hopper emptying/lifting

- Brush options: Easily replaceable brushes

- Wheels: Solid rubber wheels with adjustable working height

- Application suitability: Designed for sweeping flat surfaces, roads, asphalt sidewalks, paving stones, and concrete

Extra Cost:

- Steering Cylinder

The steering cylinder is a key component of hydraulic systems used in agricultural, municipal, and construction machinery such as sweepers, tractors, and loaders. Its primary function is the precise control of the turning angle of axles, wheels, or moving elements, ensuring better maneuverability and vehicle stability. The cylinder converts hydraulic pressure into linear motion, allowing for smooth and accurate steering. Made of durable materials resistant to heavy loads and corrosion, it guarantees long-term and reliable operation.

- Side Brush

The side brush is an essential element of road, industrial, and municipal sweepers, designed for the thorough cleaning of hard-to-reach areas such as curbs, corners, and roadsides. Made of durable synthetic fibers or a plastic-metal mixture, it ensures high durability and efficiency in removing debris. Mounted on a movable arm, it can be hydraulically controlled, allowing for optimal adaptation to working conditions. In many sweeper models, the side brush works in conjunction with a sprinkling system, which limits dust generation and increases cleaning efficiency.

- Water Sprinkling System

The water sprinkling system is an important component of sweepers, responsible for dust reduction and improving cleaning effectiveness. It consists of a water tank, pressure pumps, delivery hoses, and special nozzles positioned in key locations – near the working brushes and close to the waste hopper. The ability to adjust the amount of sprayed water allows the system to be tailored to the surface contamination level and weather conditions. All components are made of corrosion-resistant materials, guaranteeing their durability and reliable performance.

- Third Support Wheel

The third support wheel is an additional structural element mounted centrally on the sweeper, intended to improve machine stability and evenly distribute pressure during operation. Particularly useful for sweepers with a large working width, it simplifies guiding the device and protects the brushes from excessive wear. This wheel provides better control over the machine, especially when working near curbs or on uneven ground, and increases sweeping precision. Additionally, it improves operator handling comfort and reduces the risk of surface damage thanks to better adaptation of the sweeper to terrain conditions.

Detailed Description:

• This road sweeper with a working width of 1800 mm is an efficient and versatile device created for the professional maintenance of cleanliness on various types of surfaces.

• Thanks to its robust construction and modern technical solutions, it performs perfectly as a tractor, loader, or forklift sweeper, enabling the effective cleaning of streets, roads, parking lots, maneuvering yards, and industrial zones.

• The advanced design of the device ensures maximum working efficiency.

• The 1800 mm working width allows for the quick and thorough removal of various types of debris, such as sand, leaves, mud, or other waste, making it an excellent choice for municipal services and industry.

• Equipped with a hydraulic brush drive, the sweeper is powered by the carrier's external hydraulics, which guarantees smooth and efficient performance.

• The option for front or rear tractor mounting in Category I and II provides operational flexibility and easy adaptation to different working conditions.

• The brush speed range from 140 to 160 RPM ensures thorough and precise cleaning even during intensive use, resulting in high sweeping efficiency.

• The hydraulically lifted waste hopper allows for quick and convenient emptying of the container, which increases working comfort and saves time.

• Thanks to adjustable, solid rubber wheels, the user can adapt the working height of the sweeper to different surfaces, guaranteeing optimal efficiency under all conditions.

• The durable and solid construction makes the sweeper perfectly suited for cleaning asphalt surfaces, interlocking paving stone sidewalks, concrete squares, or parking lots.

• A working speed of up to 10 km/h and a transport speed of up to 20 km/h allow for smooth transit between different working areas, maximizing operational productivity.

• The hydraulic drive system operates within a pressure range of 10 to 14 MPa, with a tractor pump capacity of 30 to 50 L/min, ensuring optimal operating parameters.

• Easily replaceable brushes allow for fast machine servicing, minimizing maintenance costs and ensuring its longevity.

• This sweeper is a professional tool that will meet the expectations of users looking for an effective and reliable solution to maintain cleanliness on large surfaces.

• It represents the ideal choice for municipal companies, road managers, industrial plants, and farms.
