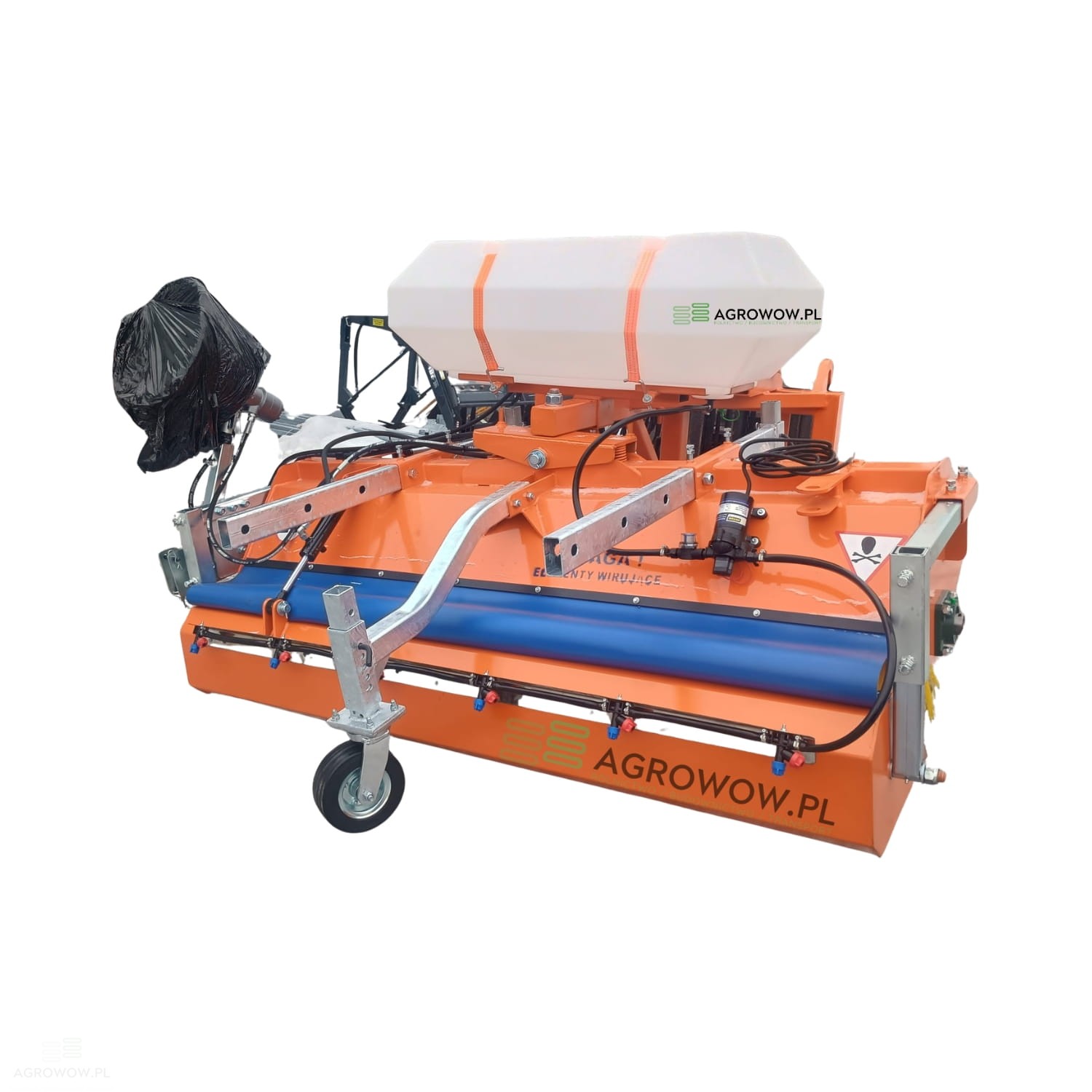

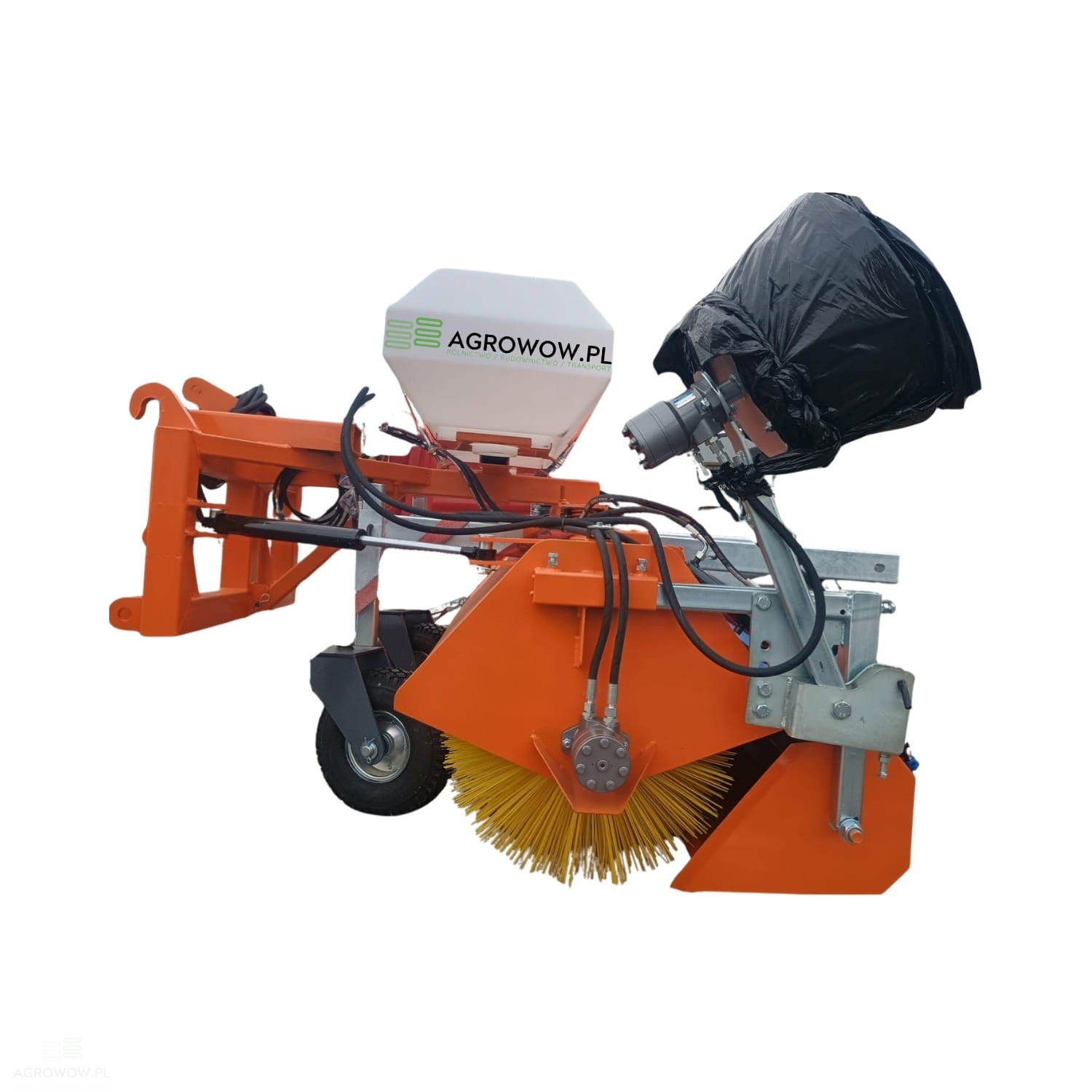

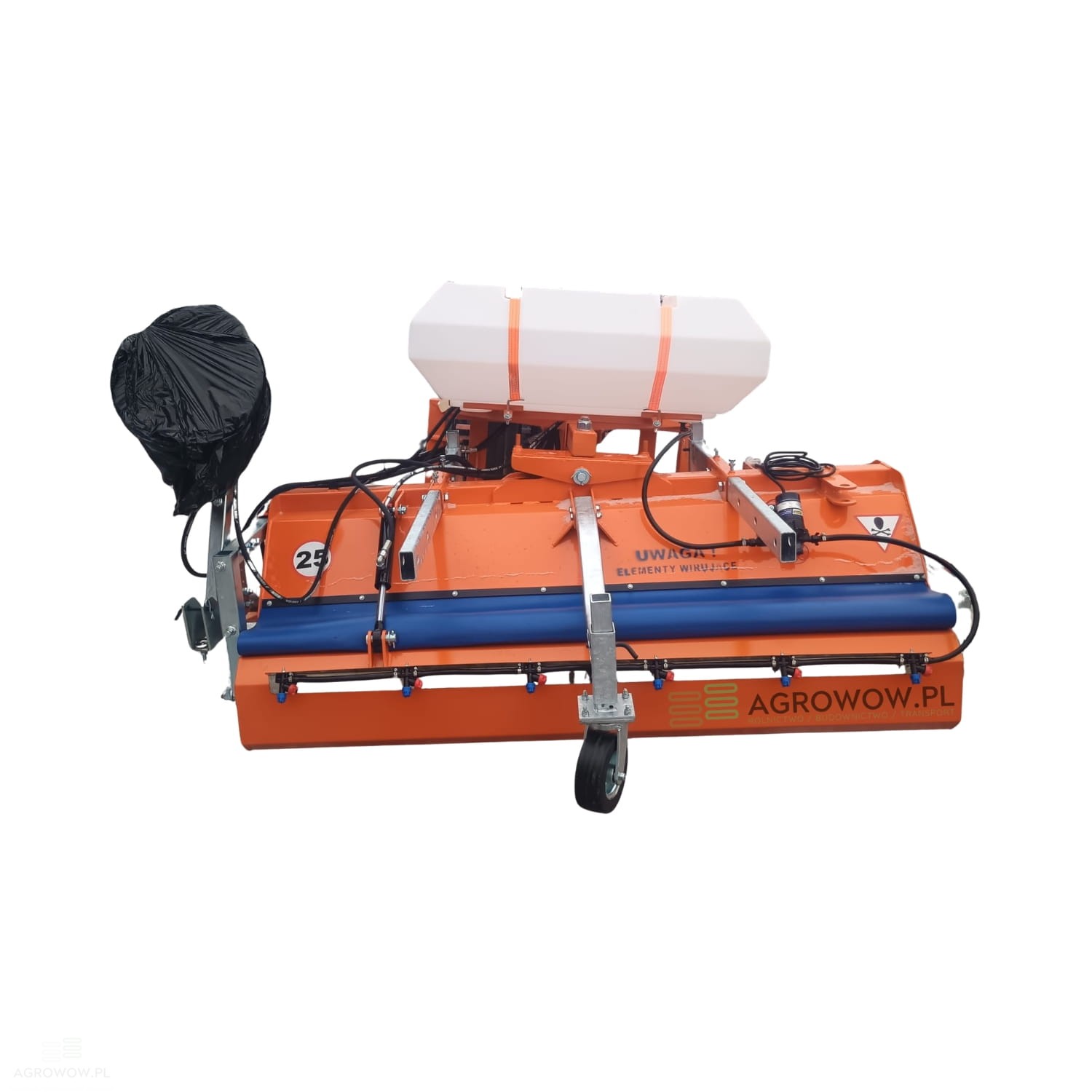

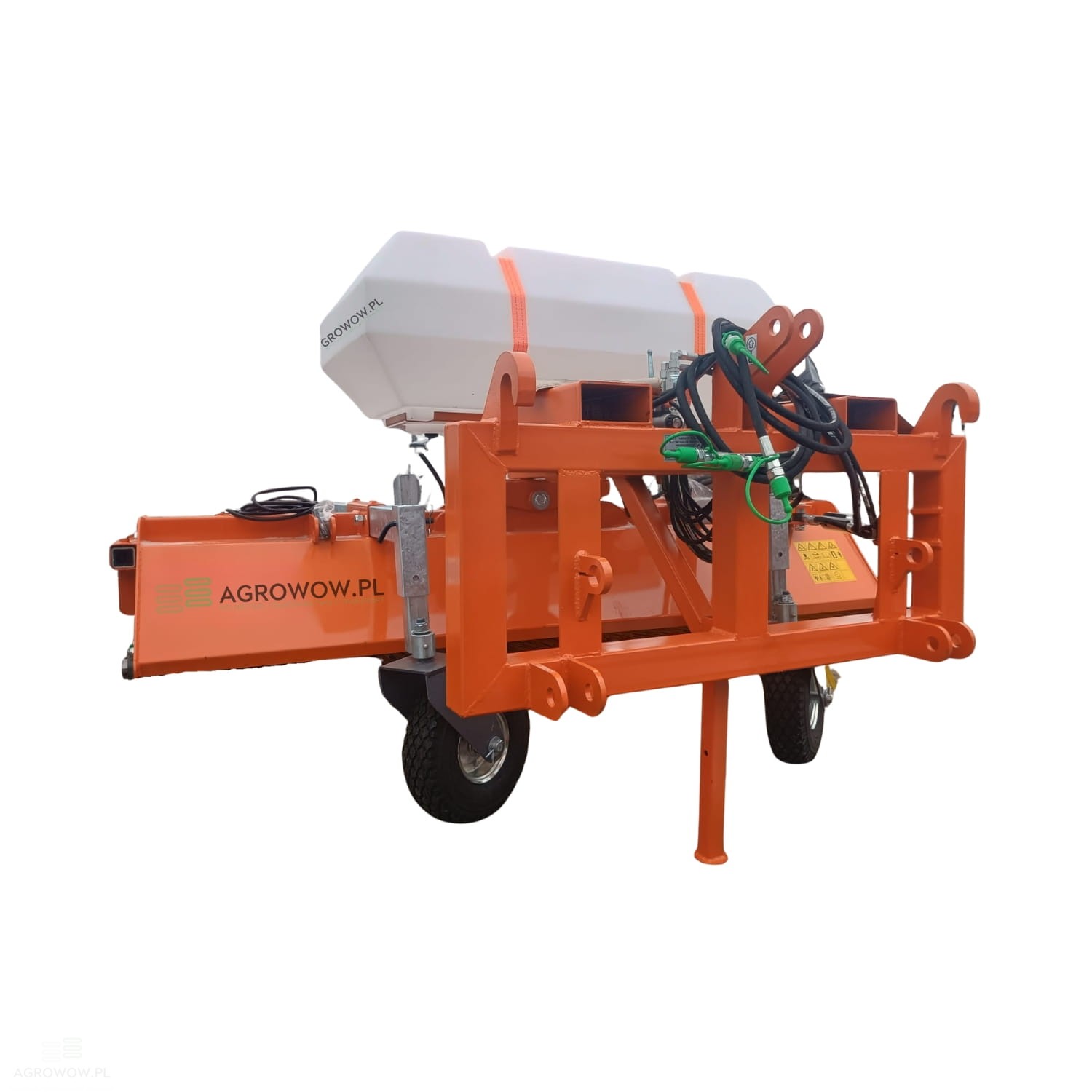

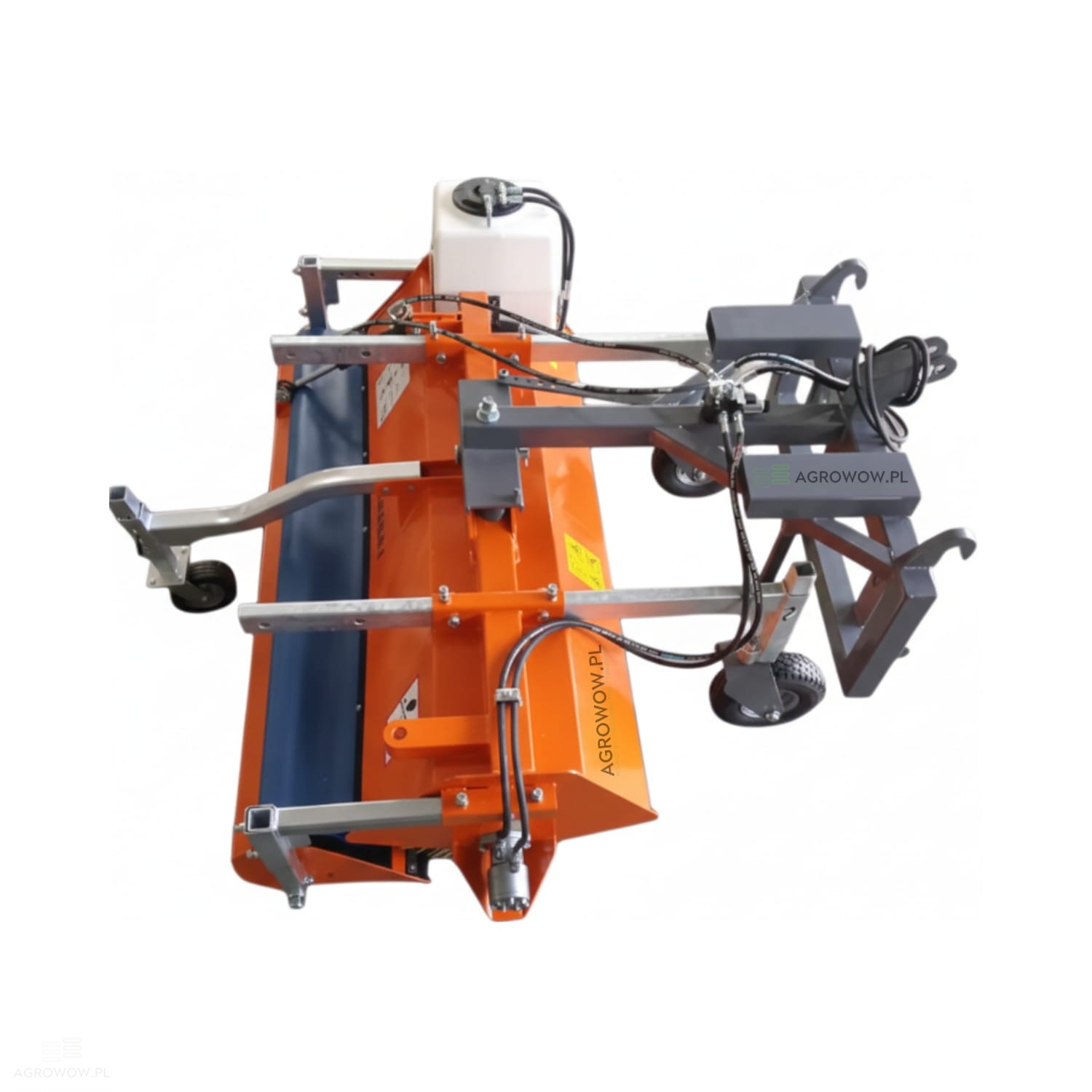

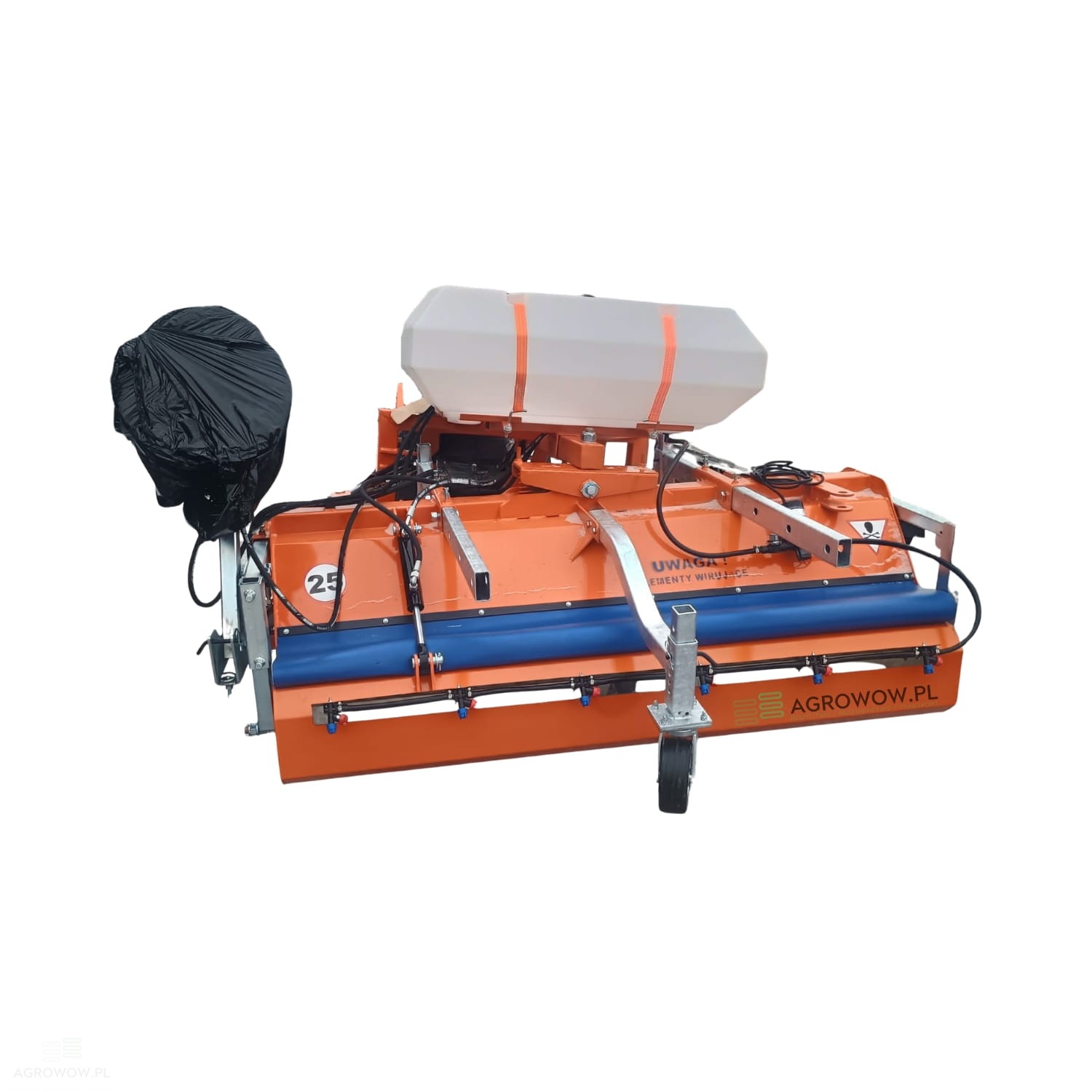

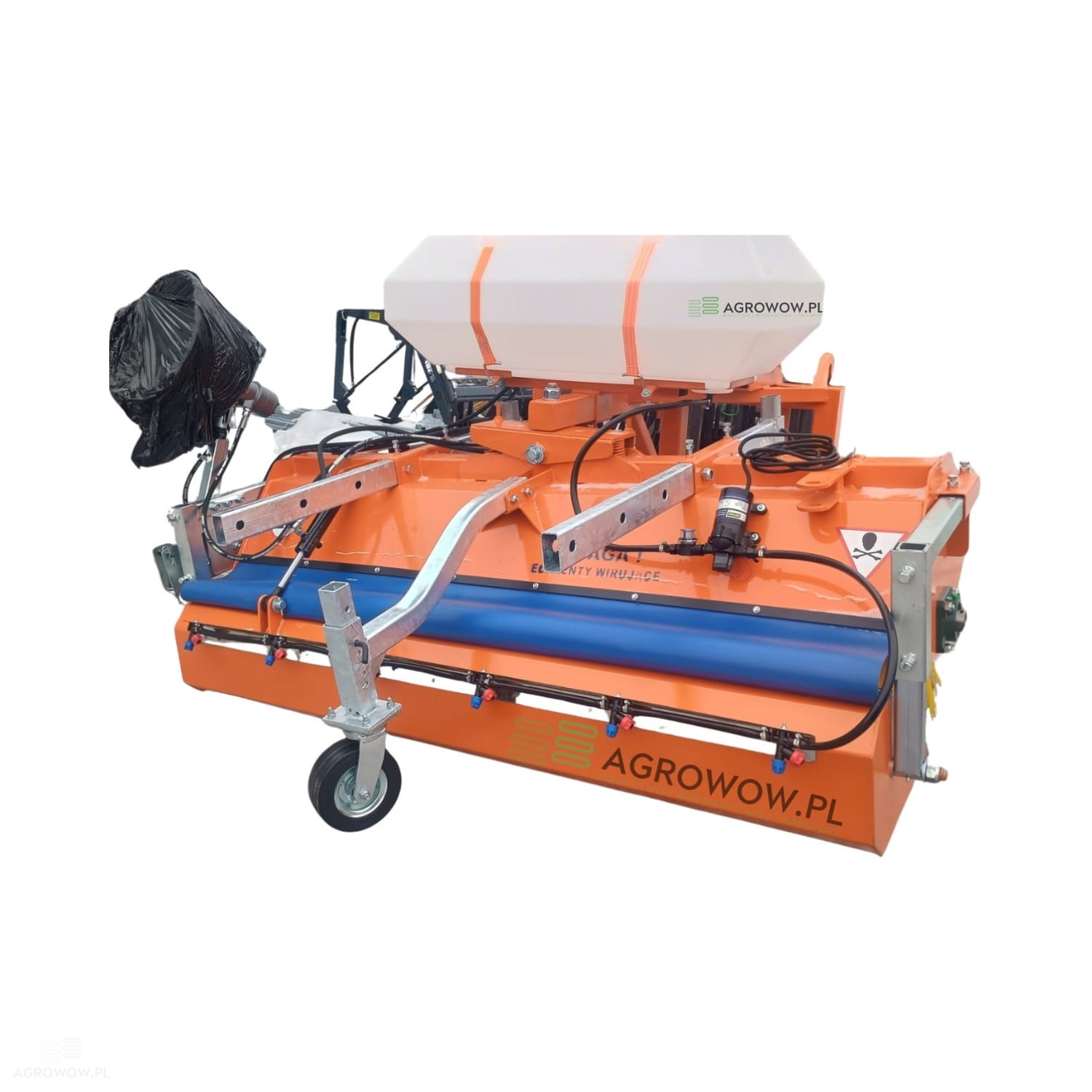

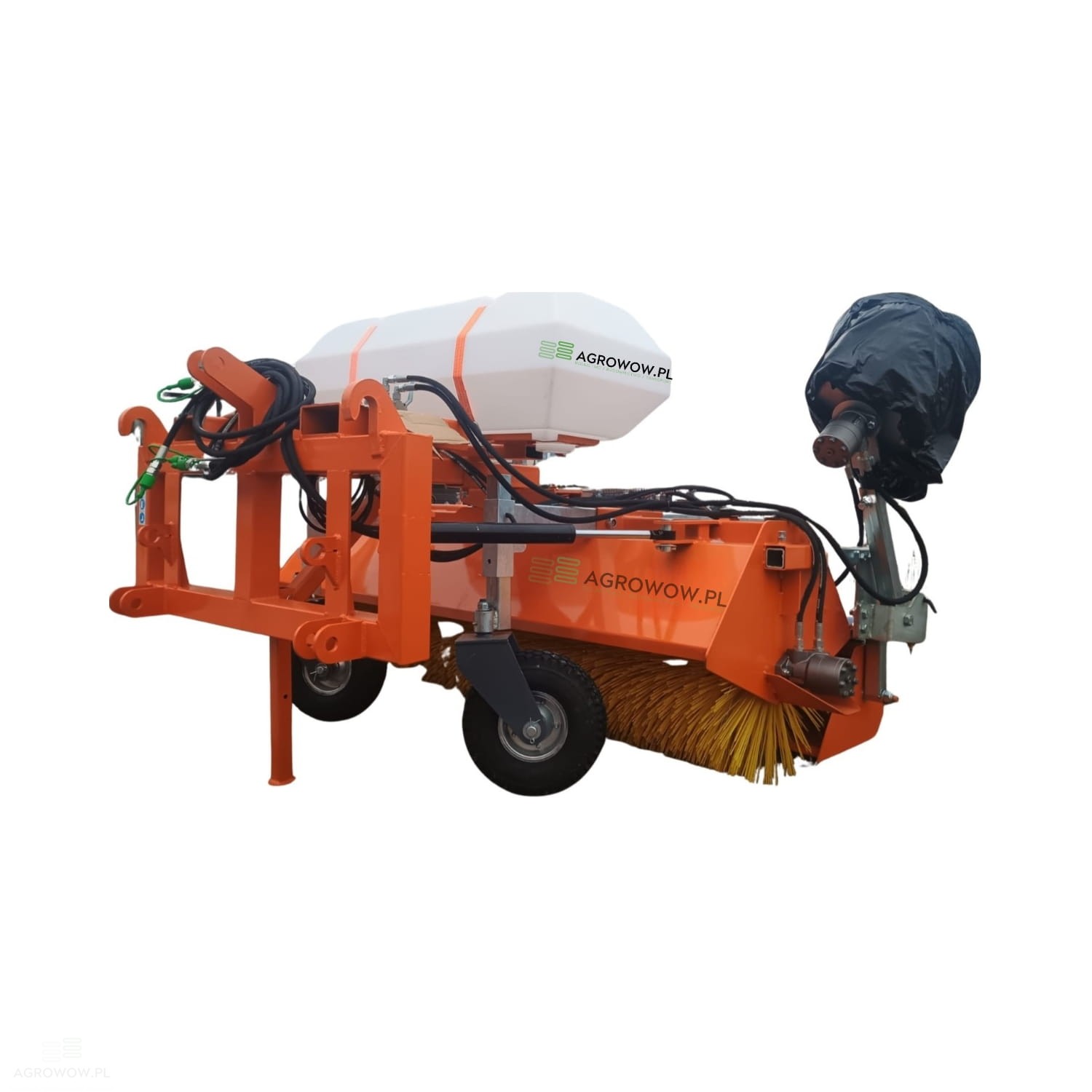

Agrowow 2.0 m road sweeper for tractors and loaders

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Adres e-mail: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AB20ZD

- Manufacturer's name: IGA Sweeper

- Width: 2252 mm

- Length: 1150 mm

- Working width: 2000 mm

- Height: 1200 mm

- Brush speed: 140 – 160 RPM

- Weight: 420 kg

- Working speed: Up to 10 km/h

- Transport speed: Up to 20 km/h

- Minimum working pressure in the hydraulic system: 10 MPa

- Maximum pressure in the hydraulic system: 14 MPa

- Tractor pump capacity: 30 – 50 L/mi

- Brush drive: Hydraulic drive powered by the carrier's external hydraulics

- Hitch: Front and rear tractor mounting, Cat. I and Cat. II

- Compatibility: Adapted for loaders and forklifts

- Hopper lifting: Hydraulic waste hopper emptying/lifting

- Brush options: Easily replaceable brushes

- Lane gumowe koła z regulowaną wysokością pracy zamiatarki

- Application suitability: Designed for sweeping flat surfaces, roads, asphalt sidewalks, paving stones, and concrete

Extra Cost:

- Steering Cylinder

The steering cylinder is a key component of the hydraulic system used in municipal, agricultural, and construction vehicles such as sweepers, tractors, and loaders. Its purpose is the precise adjustment of the turning angle of axles, wheels, or moving components, which significantly improves the machine's maneuverability and stability. It operates by converting hydraulic pressure into linear motion, enabling smooth and accurate positioning of the vehicle as required. Made of high-strength materials resistant to heavy loads and corrosion, it ensures long and reliable service life.

- Side Brush

The side brush is an essential component of sweepers, responsible for the effective cleaning of hard-to-reach areas such as curbs, roadsides, and corners. Made of wear-resistant synthetic fibers or a mixture of plastic and metal wires, it ensures great durability and high operational efficiency. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise adjustment of its position relative to the surface. In many sweeper models, the side brush works in conjunction with a sprinkling system, which limits dust generation and improves cleaning quality.

- Water Sprinkling System

The water sprinkling system is an indispensable solution in sweepers and cleaning machines that minimizes dust and increases the effectiveness of debris removal. It consists of a water tank, pressure pumps, delivery hoses, and spray nozzles positioned in strategic locations – near the working brushes and close to the waste hopper. The ability to adjust the sprinkling intensity allows the amount of sprayed water to be tailored to the surface contamination level and working conditions. Made of corrosion-resistant materials, the system ensures reliable operation and long-term durability.

- Third Support Wheel

The third support wheel is an optional structural element mounted centrally on the sweeper, with the primary function of providing better stability during operation and even weight distribution. It is particularly useful for models with a larger working width, as it reduces pressure on the brushes and protects the frame from overloading and deformation. It simplifies guiding the machine over uneven ground, ensuring smooth and precise sweeping – especially along curbs or edges. Thanks to the third support wheel, user comfort is increased, the risk of surface damage is reduced, and overall control over the machine in demanding working conditions is improved.

Detailed Description:

• This road sweeper with a working width of 2000 mm is a reliable device designed for the professional maintenance of cleanliness on various types of surfaces.

• Its robust construction and modern technological solutions make it an excellent choice as a tractor, loader, or forklift sweeper, enabling the effective cleaning of streets, squares, parking lots, and industrial zones.

• The advanced design of the device guarantees high working efficiency.

• The 2000 mm working width allows for the quick and thorough removal of contaminants such as sand, leaves, mud, or municipal waste, making it an ideal solution for municipal services, construction companies, and industrial plants.

• The hydraulic brush drive, powered by the external hydraulics of the carrier machine, ensures smooth and efficient performance.

• The ability to mount it on either the front or the rear of a tractor in Category I and II categories gives the user total flexibility to adapt the machine to specific tasks.

• The brush rotating at a speed of 140–160 RPM effectively collects all debris, allowing for fast and efficient cleaning of large surfaces.

• The hydraulically lifted waste hopper makes emptying the container easy, which increases operating comfort and saves time spent on cleanup.

• Solid rubber wheels with adjustable working height allow for precise adaptation of the sweeper to different types of surfaces, ensuring optimal cleaning results.

• Thanks to its heavy-duty construction and high-quality materials, the sweeper is perfectly suited for cleaning asphalt surfaces, interlocking paving stone sidewalks, and concrete squares.

• A working speed of up to 10 km/h and a transport speed of up to 20 km/h ensure rapid transit between different working areas, saving time and increasing overall efficiency.

• The hydraulic system operates within a pressure range of 10 to 14 MPa, and compatibility with tractor pump capacities at a level of 30–50 L/min guarantees optimal machine operating conditions.

• Easily replaceable brushes enable fast machine servicing, minimizing downtime and operational costs.

• This sweeper is a professional solution for companies and institutions that look after the cleanliness of large surfaces.

• It represents the perfect choice for municipal companies, road managers, industrial enterprises, and farms that require effective and durable cleaning equipment.
