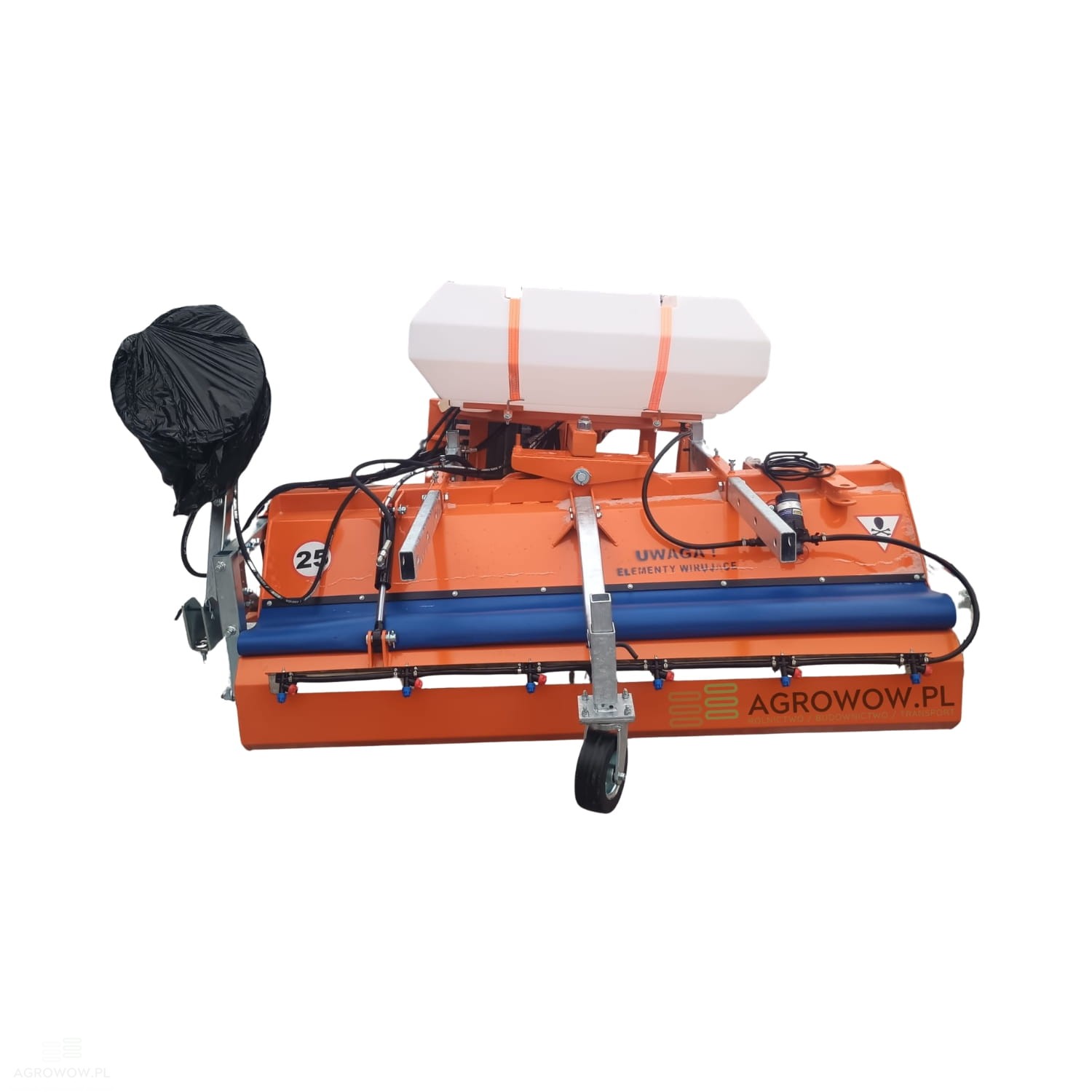

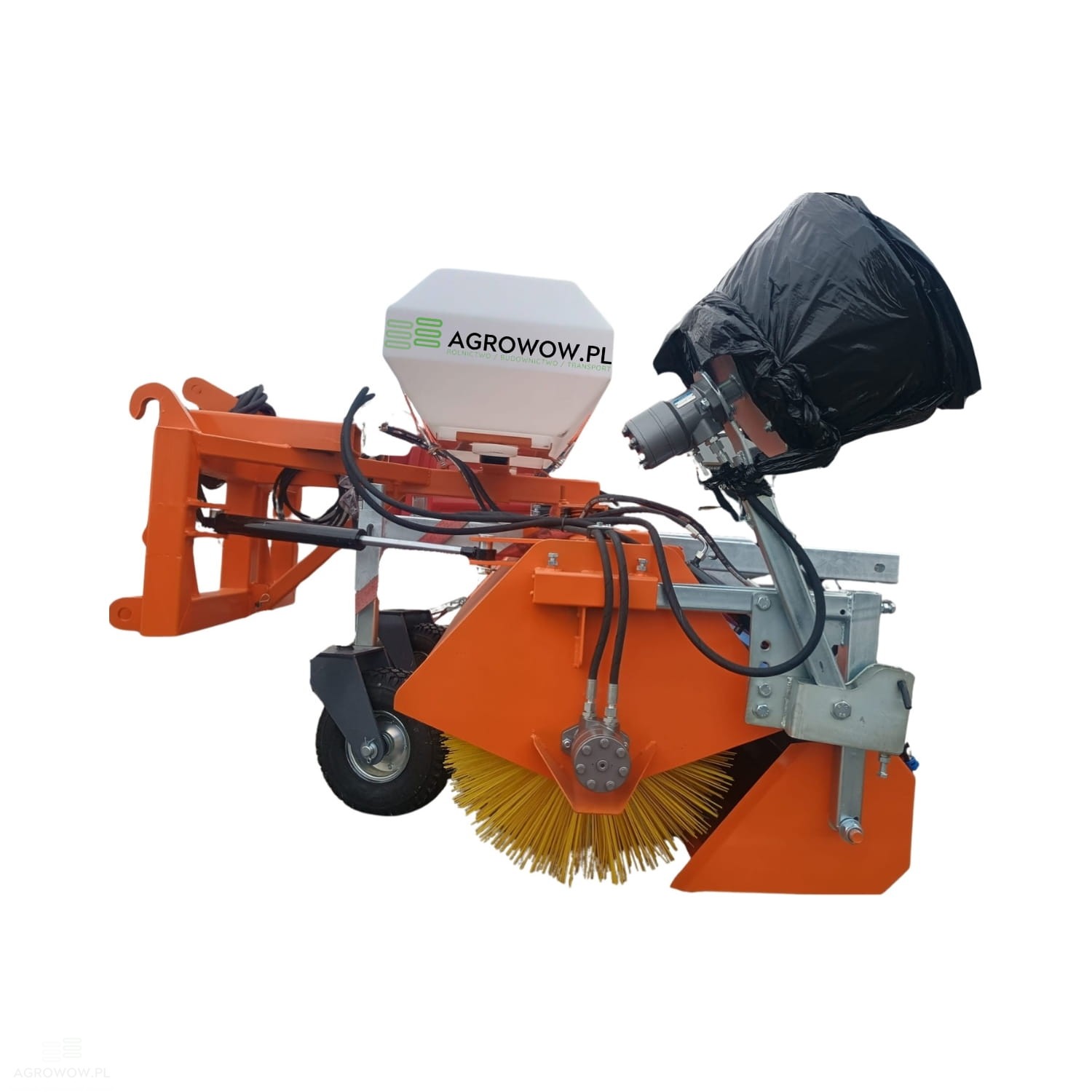

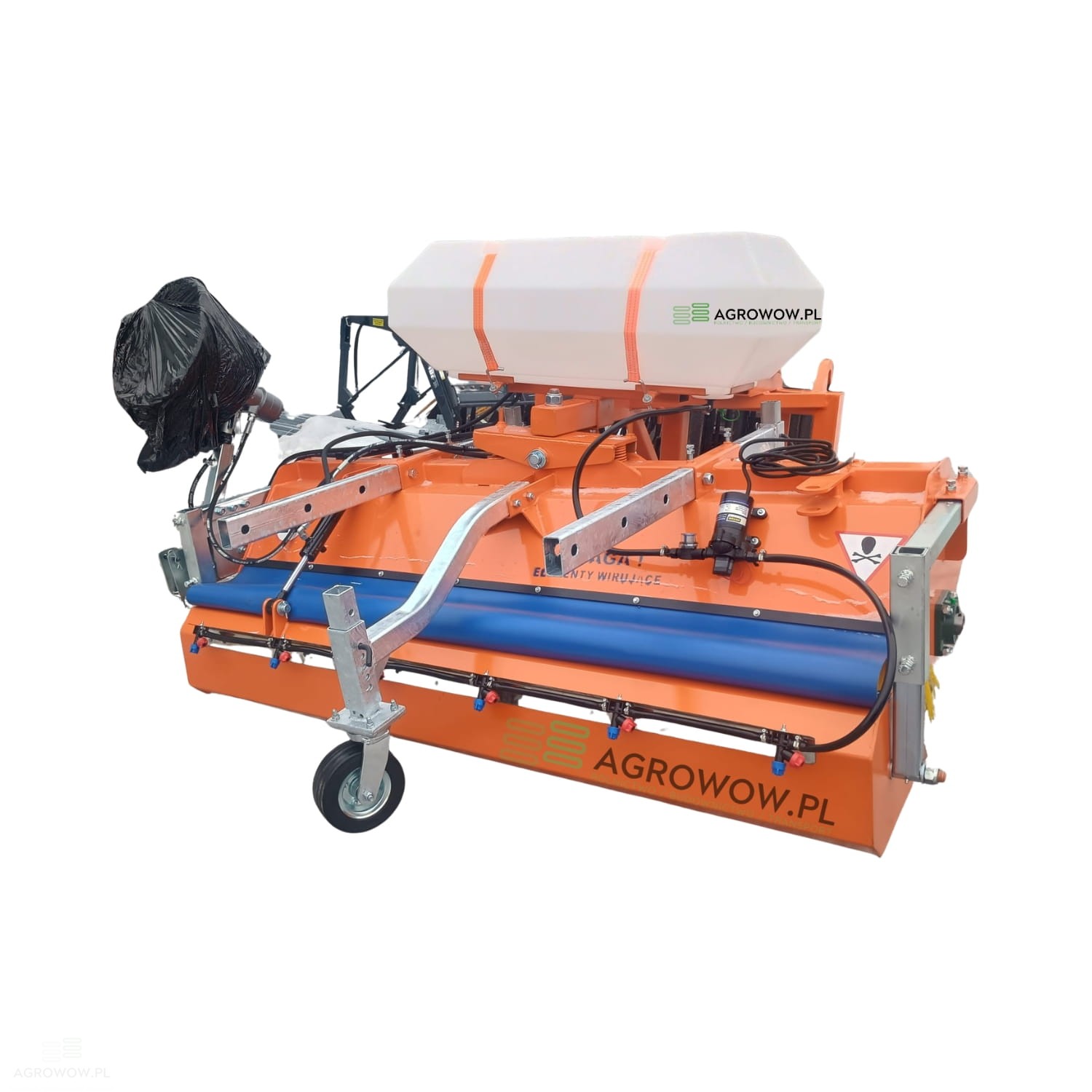

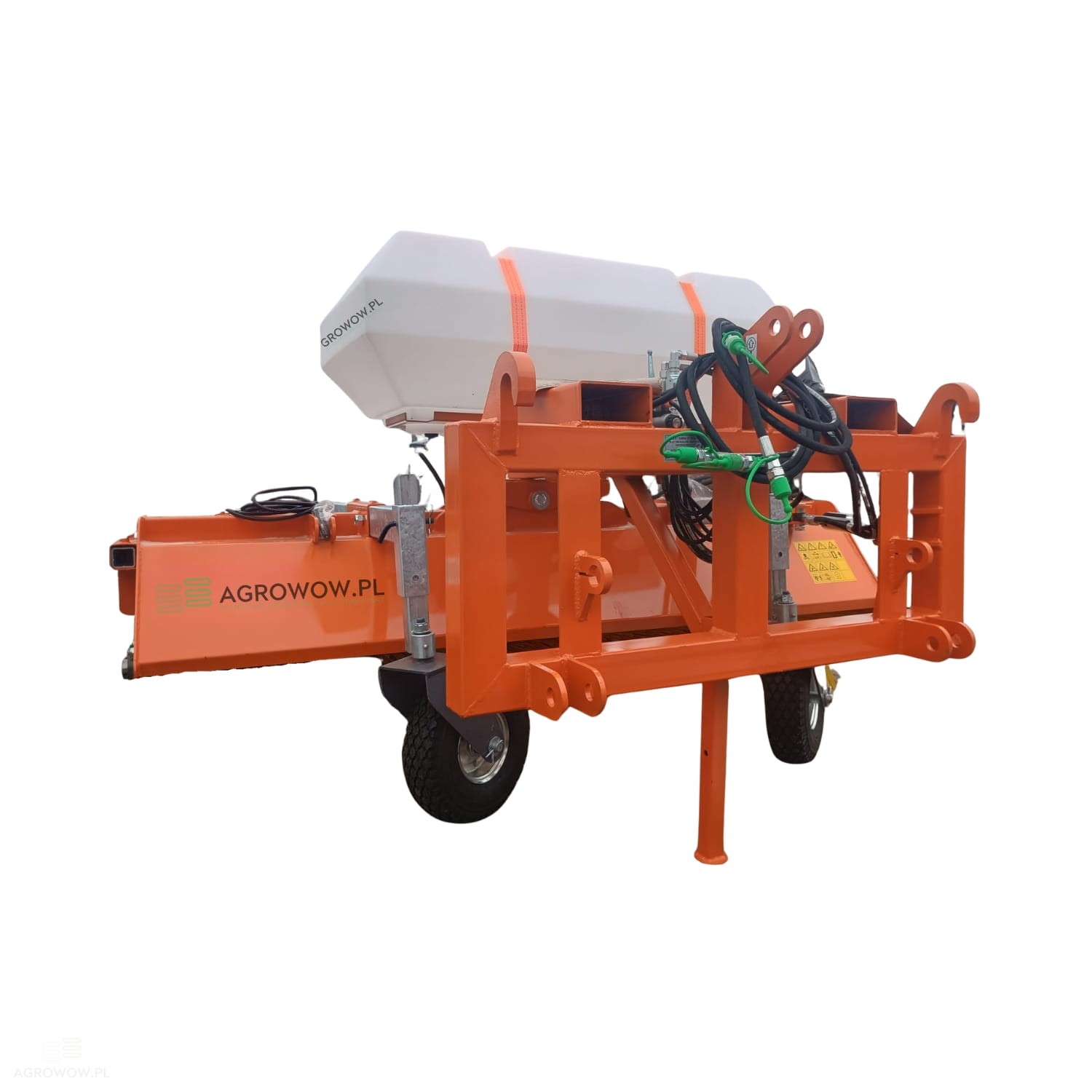

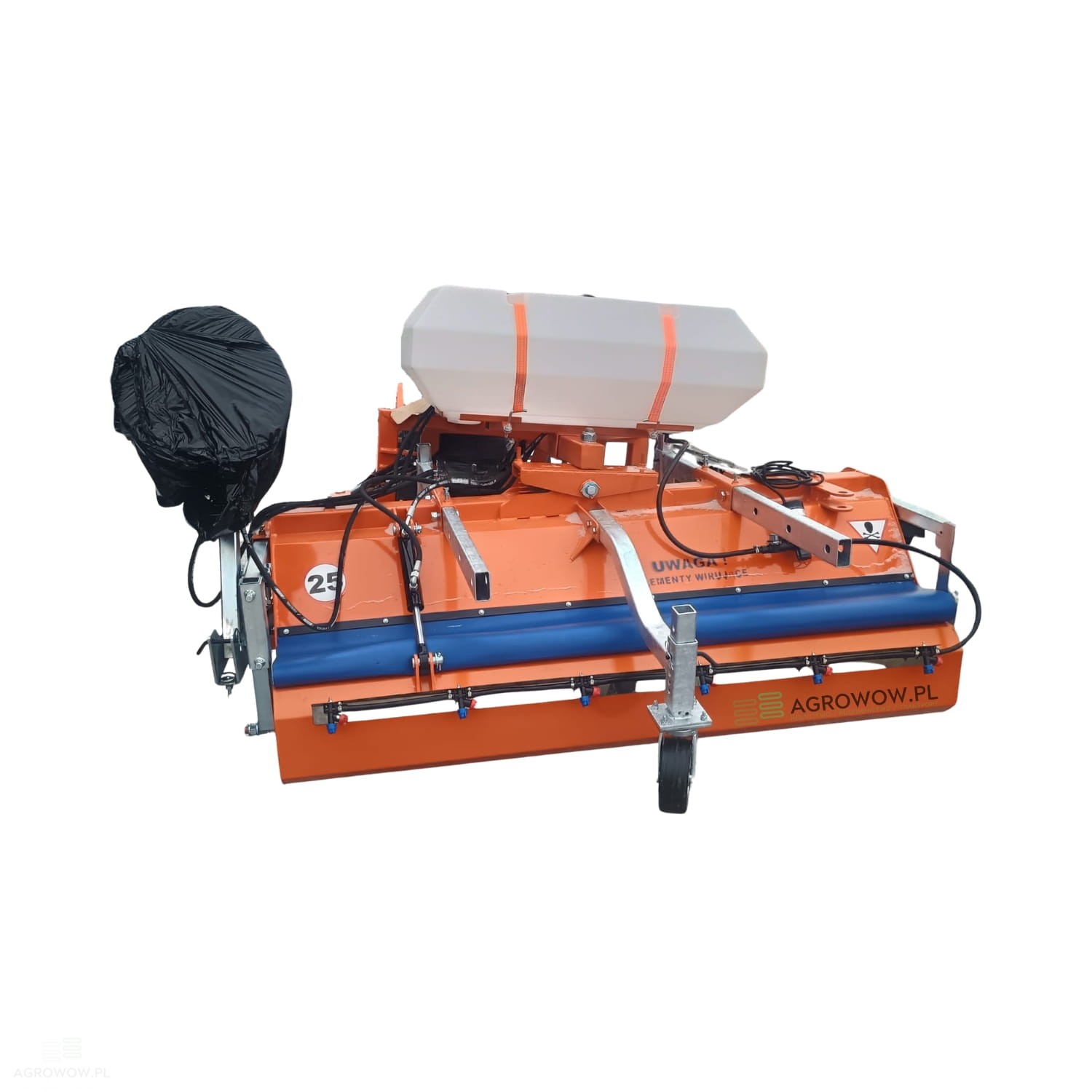

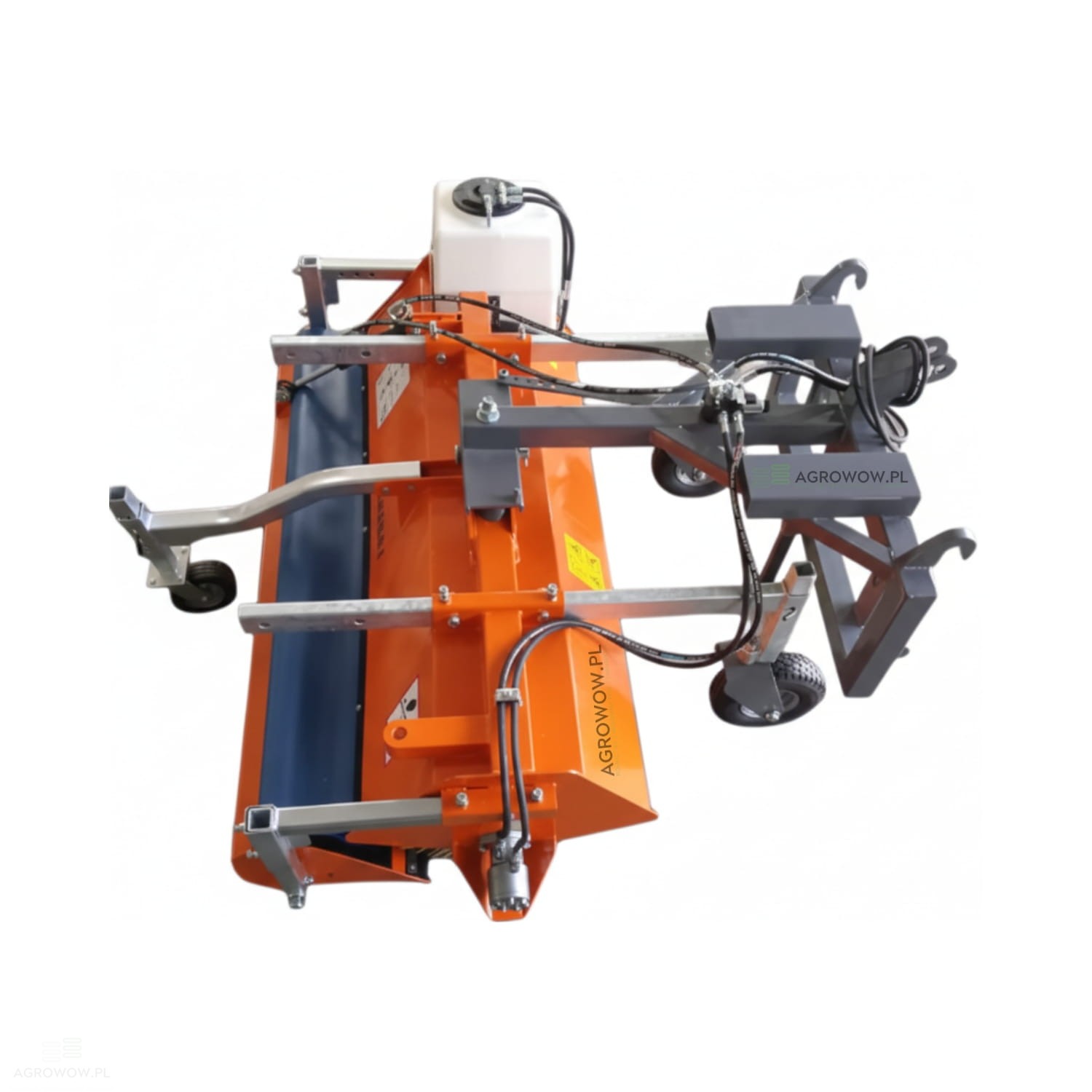

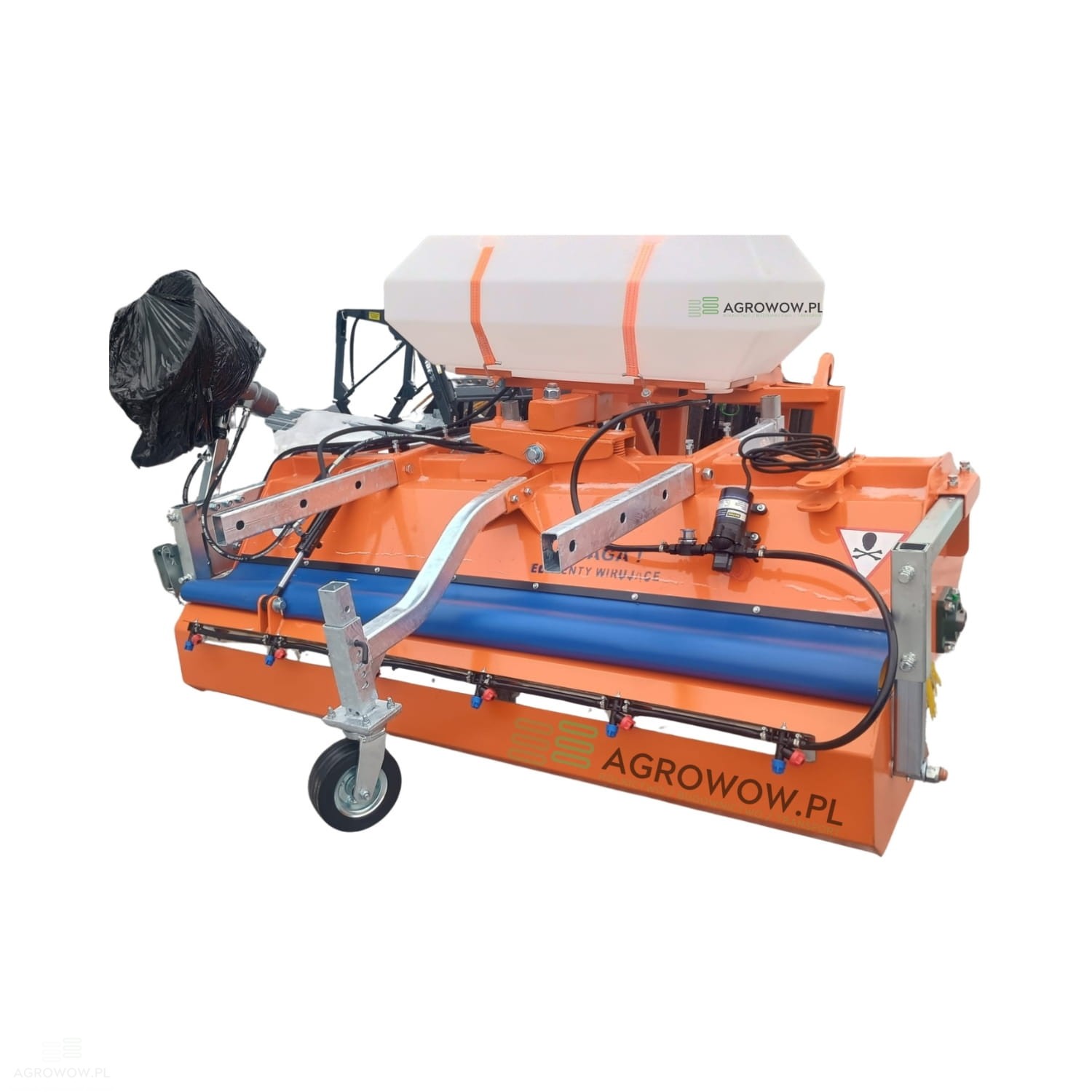

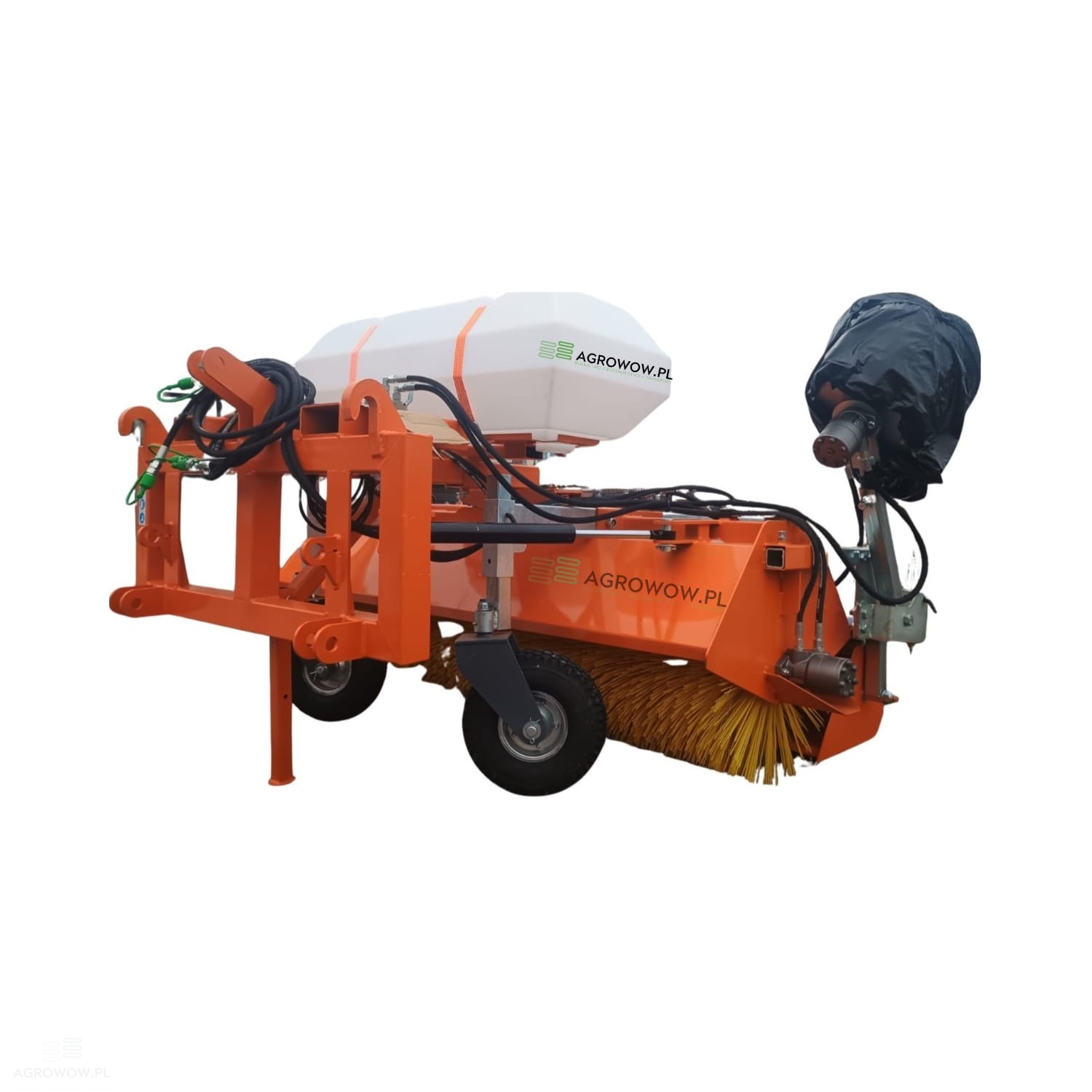

Agrowow 2.4 m road sweeper for tractors and loaders

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AB24ZD

- Manufacturer's name: IGA Sweeper

- Width: 2652 mm

- Length: 1150 mm

- Working width: 2400 mm

- Height: 1200 mm

- Brush speed: 140 – 160 RPM

- Weight: 457 kg

- Working speed: Up to 10 km/h

- Transport speed: Up to 20 km/h

- Minimum working pressure in the hydraulic system: 10 MPa

- Maximum pressure in the hydraulic system: 14 MPa

- Tractor pump capacity: 30 – 50 L/min

- Brush drive: Hydraulic drive powered by the carrier's external hydraulics

- Hitch: Front and rear tractor mounting, Cat. I and Cat. II

- Compatibility: Adapted for loaders and forklifts

- Hopper lifting: Hydraulic waste hopper emptying/lifting

- Brush options: Easily replaceable brushes

- Wheels: Solid rubber wheels with adjustable working height

- Application suitability: Designed for sweeping flat surfaces, roads, asphalt sidewalks, paving stones, and concrete

Extra Cost:

- Steering Cylinder

The steering cylinder is a key component of the hydraulic control system used in municipal, construction, and agricultural machinery such as sweepers, loaders, or tractors. Its role is to precisely control the turning angle of the axles, wheels, or other moving parts, ensuring better maneuverability and vehicle stability. The cylinder operates by converting hydraulic pressure into linear motion, enabling smooth and precise adjustment of the machine's positioning to match working conditions. Made of heavy-duty, corrosion-resistant materials, it ensures a long lifespan and operational reliability.

- Side Brush

The side brush is an element mounted on sweepers designed for the effective cleaning of road edges, sidewalks, and hard-to-reach places such as corners or roadsides. Made of synthetic fibers or a plastic-metal mixture, it features high resistance to abrasion and a long service life. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise adjustment of its position relative to the surface. It is often equipped with an additional water sprinkling system to limit dust and improve cleaning effectiveness, enhancing user comfort.

- Water Sprinkling System

The water sprinkling system is a solution used in sweepers and municipal machinery aimed at reducing dust emissions and improving debris collection efficiency. It consists of a water tank, pressure pumps, hoses, and spray nozzles positioned in strategic locations – near the brushes and the waste hopper. By adjusting the water pressure and flow, the system can be tailored to working conditions, minimizing airborne dust and increasing cleaning efficiency. Made of materials resistant to corrosion and weather conditions, it ensures long-lasting and reliable operation.

- Third Support Wheel

The third support wheel is an additional structural component mounted centrally on the sweeper, which increases the machine's stability and distributes the pressure on the ground evenly. This solution is particularly useful in wider models where reducing the load on the brushes and protecting the frame from overloading is crucial. This wheel significantly simplifies guiding the machine over uneven surfaces, enabling precise and smooth sweeping along edges, curbs, and road margins. The integration of a third wheel also assists in maneuvering the machine and reduces the risk of surface damage, improving handling comfort and precision in more demanding terrain conditions.

Detailed Description:

• This road sweeper with a working width of 2400 mm is a high-performance and reliable device designed for the professional maintenance of cleanliness on large areas.

• Thanks to its robust construction and precise operation, it performs perfectly as a tractor, loader, and forklift sweeper, enabling the effective cleaning of streets, squares, parking lots, and industrial zones.

• Modern technical solutions guarantee maximum working efficiency.

• The 2400 mm working width allows for the quick and thorough removal of various types of debris, such as sand, leaves, mud, or municipal waste, making it an excellent choice for municipal companies, road services, and industrial enterprises.

•  The sweeper comes equipped with a hydraulic brush drive powered by the external hydraulics of the carrier machine, ensuring smooth and efficient performance.

• The ability to mount it on either the front or the rear of a tractor (Category I and II) increases operational flexibility, allowing the machine to be adapted to specific working conditions.

• The brush speed within the range of 140–160 RPM guarantees thorough and precise cleaning even under intensive operating conditions.

• The hydraulically lifted waste hopper allows for rapid emptying of the container, which significantly simplifies handling and increases work efficiency.

• Solid rubber wheels with adjustable working height allow for precise adaptation of the sweeper to various types of surfaces, ensuring optimal cleaning results.

• Thanks to its heavy-duty construction and high-quality materials, the sweeper is ideally suited for cleaning asphalt surfaces, interlocking paving stone sidewalks, concrete squares, and roads with varying degrees of contamination.

• A working speed of up to 10 km/h and a transport speed of up to 20 km/h allow for quick transit between different working areas, maximizing productivity and saving time.

• The hydraulic system operates within a pressure range of 10 to 14 MPa, and compatibility with tractor pump capacities of 30–50 L/min guarantees optimal operating conditions.

• Easily replaceable brushes enable fast machine maintenance, minimizing downtime and reducing operational costs.

• The Agrowow sweeper is a professional solution for municipal companies, road managers, industrial plants, and farms that require efficient and durable equipment to keep large surfaces clean.
