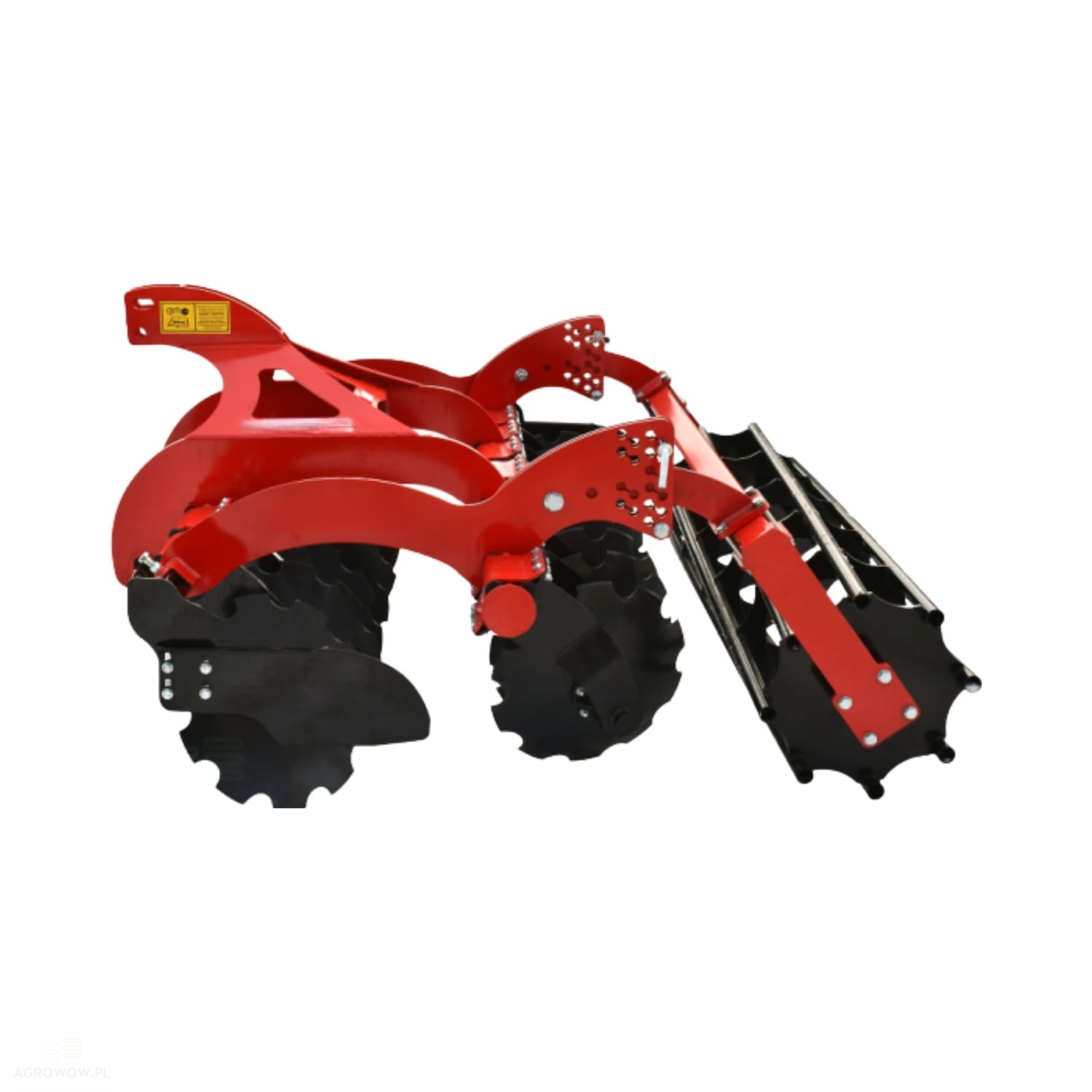

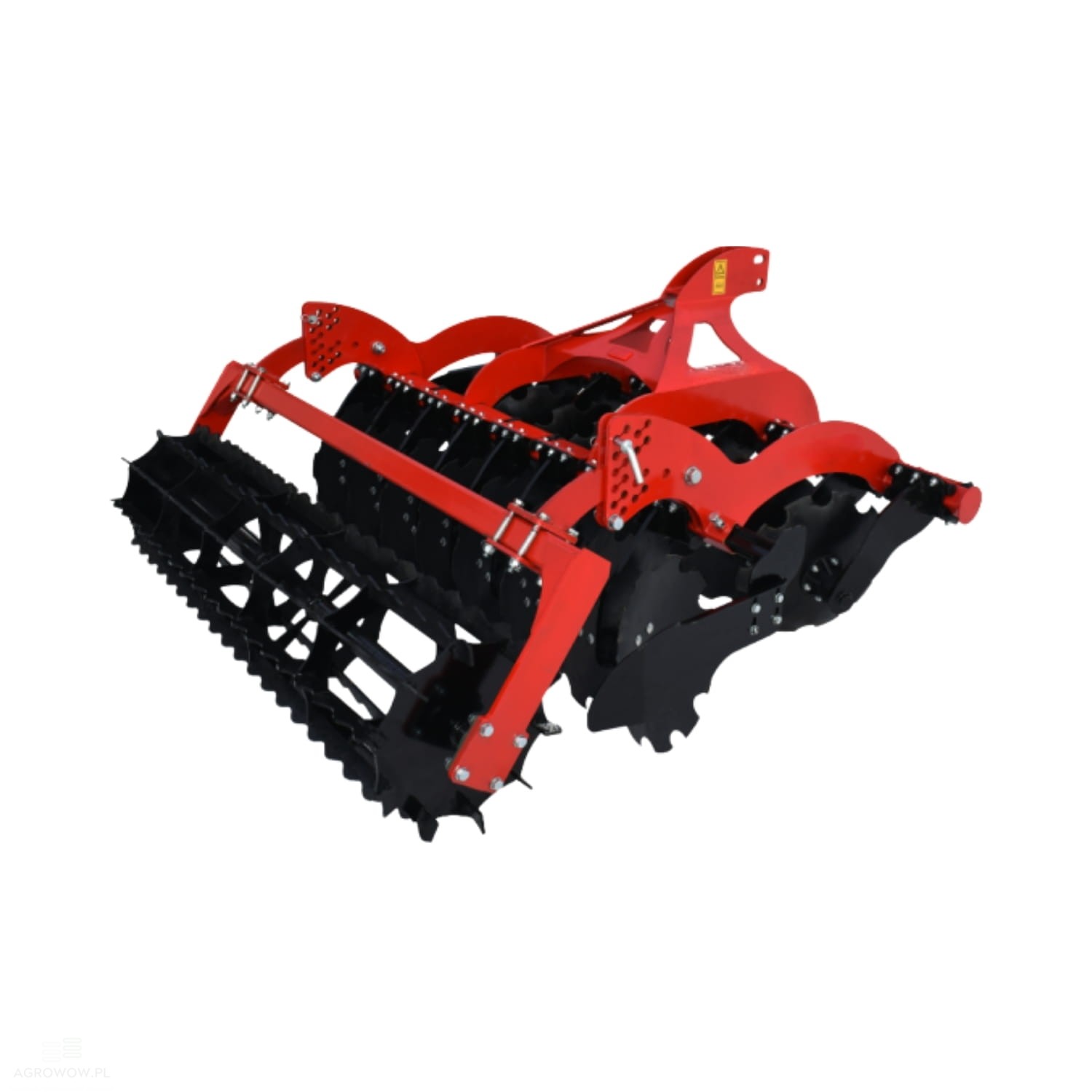

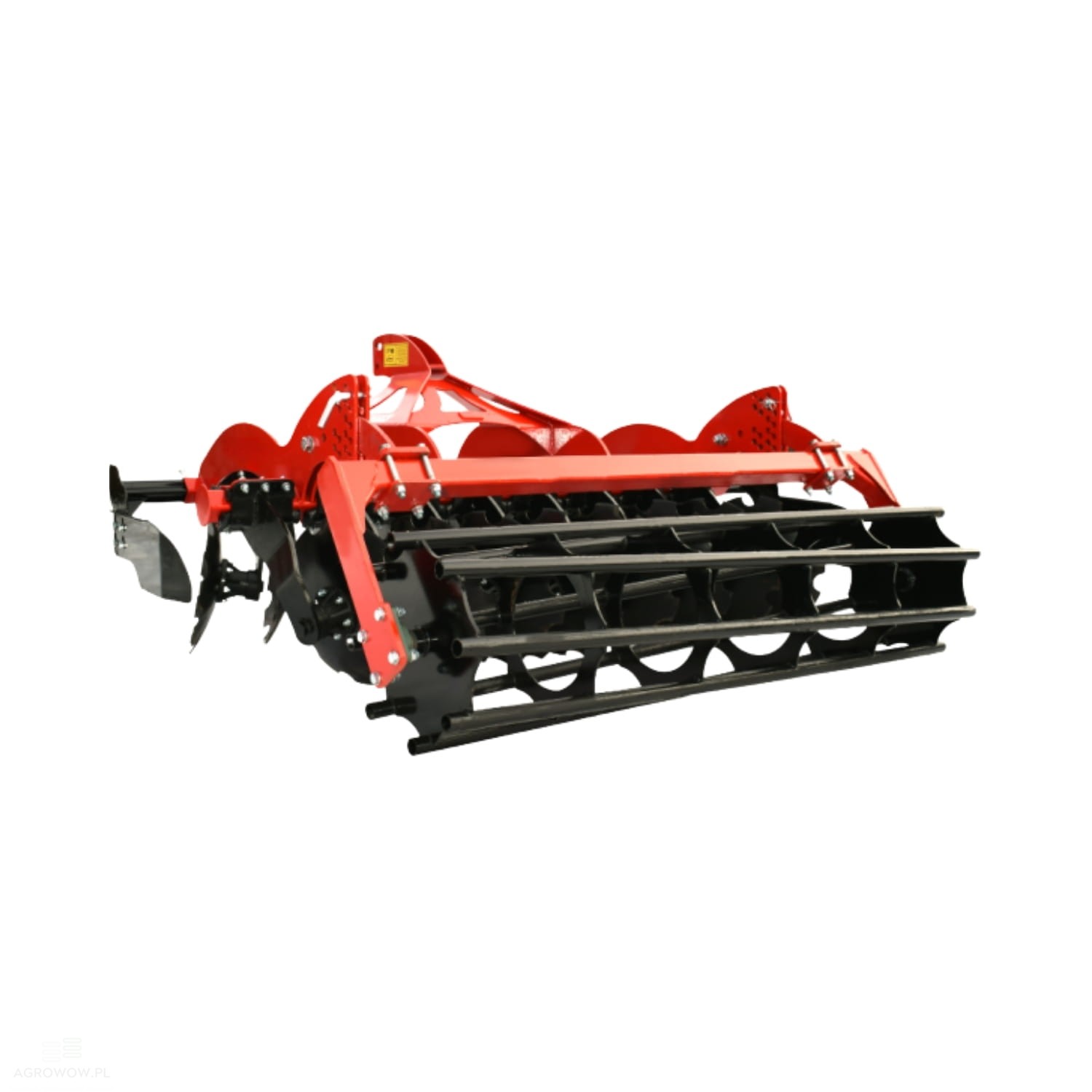

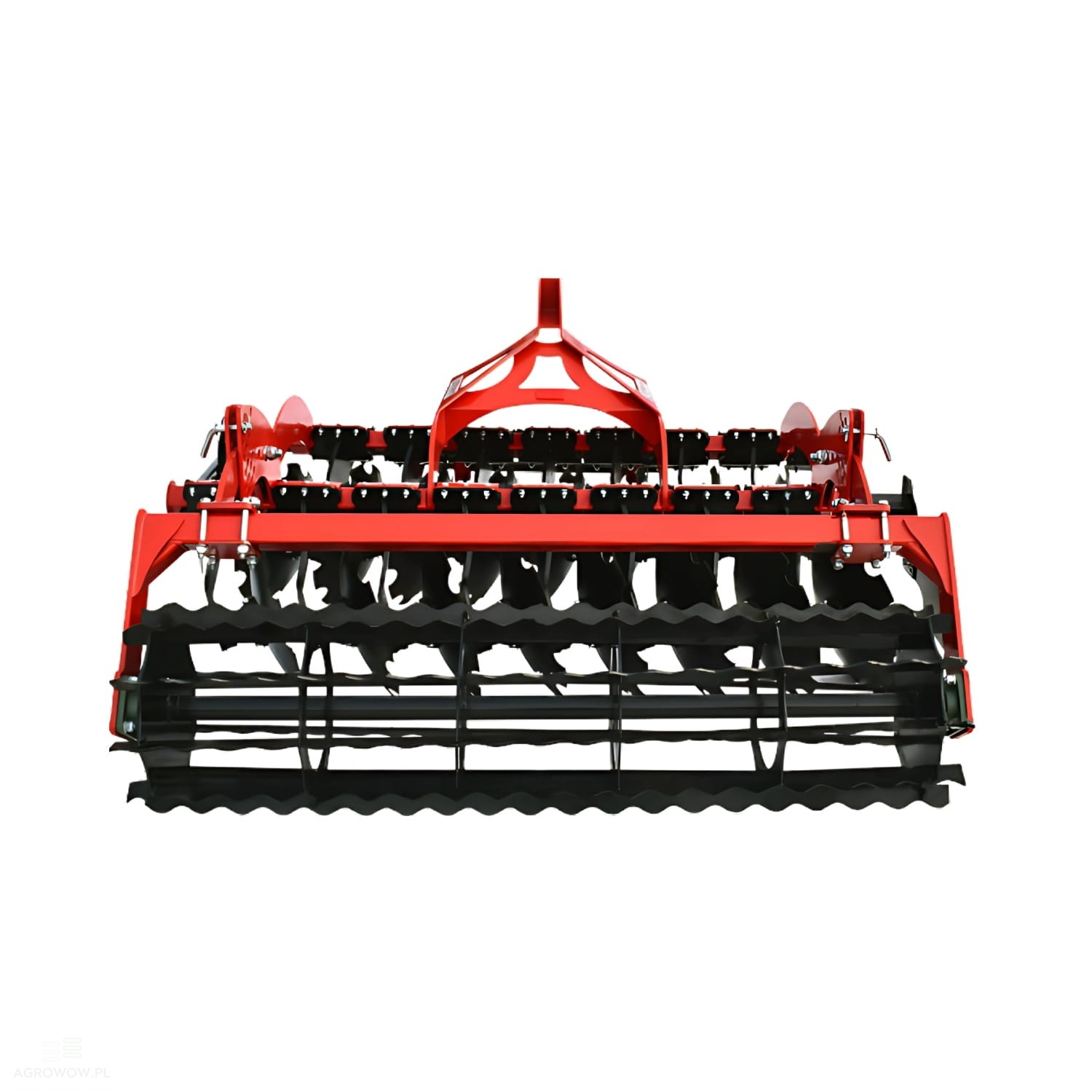

Agrowow disc harrow TIGER JUNIOR 1.6 m

Would you like to set the specification and tailor the disc harrow to your individual needs?

We can prepare a mounting for any type of equipment — tractor, excavator, loader, forklift and many other machines

Get in touch with our sales engineer!

E-mail address: sklep@agrowow.pl

Telephone number: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any question you may have.

- Manufacturer: Agrowow

- Catalogue number: TJII16

- Manufacturer's designation: Disc harrow TIGER JUNIOR

- Width: 1600 mm

- Number of discs: 12

- Spacing between disc rows: 750 mm

- Disc diameter: 460 / 510 / 560 mm

- Working depth: 100-200 mm

- Weight: 480 kg

- Power requirement: 15-25 HP

- Output: 0.9-1.4 ha/h

- Polish 560 mm disc in boron steel

- Reinforced construction

- 6-hole hubs

- Damping system in the form of rubber rollers

- Side screens

- Universal mounted hitch system cat. II and III

- Rear tube or cage roller

- Powder-coated parts

Optional extras at additional cost:

- Packer roller

The packer roller is an important component of tillage machines which is responsible for the effective consolidation and levelling of the soil. Its special construction makes it possible to break up larger clods of earth, which significantly improves the structure of the ground and supports the process of the capillary rise of moisture. Thanks to the use of this roller the soil gains suitable stability, which promotes the proper rooting of the plants and provides optimum conditions for their growth.

- Gable roller

The gable roller is a solution dedicated to work on light and medium soils, where it effectively crumbles and levels the surface of the ground. Its unique construction limits excessive drying out of the soil and improves its water retention, which is of key importance for the proper growth of the plants. This roller performs ideally in crops that require precise preparation of the soil, while at the same time preventing its erosion.

- Crosskill roller

The Crosskill roller is a modern solution whose double construction makes efficient crumbling of larger clods of earth and levelling of the field surface possible. It is particularly useful at the stage of preparing the soil before sowing, because it improves its structure and increases its ability to retain moisture. It performs excellently in conditions of medium and heavy soils, stabilising the ground and eliminating compacted layers, which promotes better plant growth.

- Polish 560 mm discs made of boron steel

The discs with a diameter of 560 mm, made of high-quality boron steel, are distinguished by exceptional resistance to abrasion and a long service life. Their suitable construction makes effective cutting of plant residues, intensive mixing of the soil and its proper preparation for the further stages of cultivation possible. The use of boron steel provides great durability, which makes it possible to use the discs even in difficult field conditions without the fear of them wearing out quickly.

- Maintenance-free SKF hubs

Maintenance-free SKF hubs are a modern solution which eliminates the need for regular maintenance and greasing, and this significantly simplifies the use of agricultural machines. Made of strong materials, they are resistant to intensive loads and guarantee a long service life. Thanks to the use of these hubs the risk of failure and of downtime is reduced, which translates into lower operating costs and increased efficiency of the whole cultivation process.

Detailed description:

• The TIGER JUNIOR disc harrow is a compact and modern agricultural machine intended for pre-sowing soil cultivation and basic field work.
• Its versatility means it is excellently suited to loosening, packing and crumbling the soil, creating optimal conditions for plant growth.
• The machine with a working width of 1600 mm has been equipped with 12 working discs arranged in two rows, which ensures even loosening and aeration of the ground.
• An adjustable working depth in the range of 100 to 200 mm makes it possible to adapt the harrow to different soil conditions and to the specific requirements of the crops.
• The TIGER JUNIOR performs excellently both in seedbed cultivation and in mixing crop residues and organic fertilisers, contributing to the improvement of soil fertility.
• The disc harrow can also be used for secondary soil preparation in simplified min-till systems, which increases its versatility.
• The ability to work with a seed drill allows cultivation and sowing to be carried out at the same time, which considerably shortens working time and increases farming efficiency.
• The robust construction of the machine has been designed with longevity and reliability in mind.
• The discs with a diameter of 460, 510 or 560 mm, made of high-quality boron steel, are distinguished by excellent abrasion resistance and a long service life.
• Thanks to the reinforced build and the use of 6-hole hubs the unit is stable and durable, even under intensive use.
• The cushioning system in the form of rubber rollers effectively reduces vibration, protecting the structure against overloads, and the side screens prevent soil from spilling outside the working area, improving the precision of work.
• The disc harrow has been fitted with a rear tube or cage roller, which additionally levels the soil and increases its ability to store moisture, which is of key importance for proper plant growth.
• A power requirement in the range of 15-25 HP makes it possible to pair the implement with a wide range of tractors, ensuring economical and efficient work.
• The output of the harrow of 0.9-1.4 ha/h makes it an ideal solution for farmers looking for dependable equipment for effective soil cultivation.
• The universal mounted hitch system of category II and III allows quick and convenient attachment of the machine to various models of tractors.
• All parts of the machine have been powder coated, which effectively protects them against corrosion and mechanical damage while adding to the durability and appearance of the implement.
• Its modern design and solid workmanship make TIGER JUNIOR an excellent choice for farmers who value high quality, efficiency and comfortable operation.
