Kołaszewski 2.0T excavator pallet forks

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: FK20WK

- Manufacturer's name: Pallet forks 2.0T

- Model: UPF20/12 M382

- Frame width: 1100 mm

- Minimum fork spacing: 385 mm

- Maximum fork spacing: 1025 mm

- Fork length + hitch: 1335 mm

- Height: 547 mm

- Weight: 189 kg

- Load capacity: 2000 kg

- Number of forks: 2 pcs

- Conical sleeves for bale tine mounting: 4

- Fork width adjustment: Mechanical

- Adapter: Available on request – choice of various adapter types at an additional cost

Optional Extras:

Adapter:

- A-frame (Hitch triangle) cat. 0, I, II, III

- Attachment A-frame cat. I, II, III

- Euro hitch: light, heavy, heavy hydraulic

- JCB Q-FIT

- Weidemann

- Manitou

- TUZ kat. I, II, III

- BOBCAT

- Mailleux MX

- Merlo

- VOLVO L70, L30

- Kramer

- Matbro

- Giant

- Liebherr

- FEM III

- SMS

- Class Scorpion

- AVANT

- Faucheux Gris MX

- And others

Detailed Description:

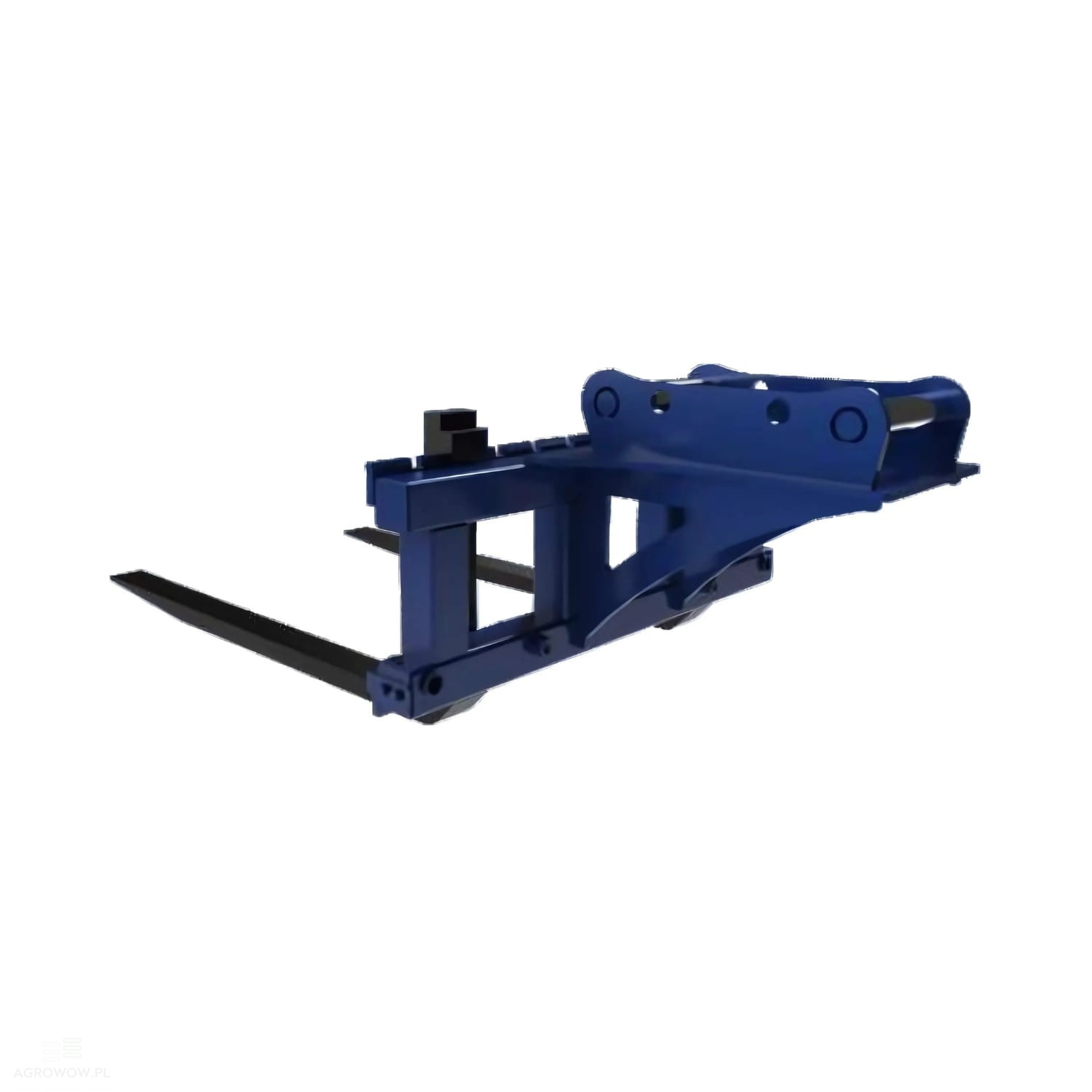

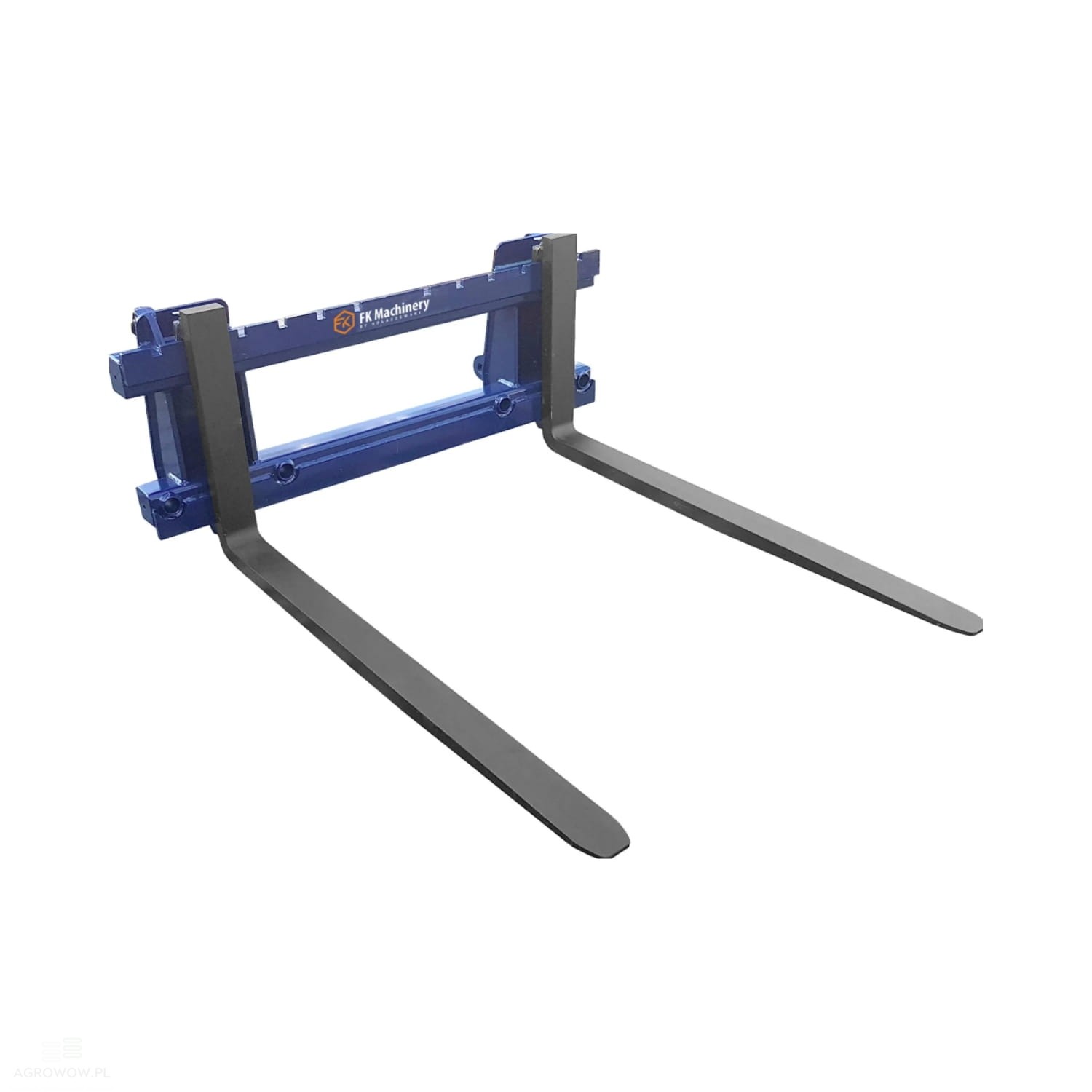

• The 2.0T excavator pallet forks are heavy-duty attachments that significantly increase the functionality of construction machinery.

• They perform perfectly wherever fast and safe transport of pallets, paving stones, or heavy construction materials is required.

• Thanks to their design, the forks can function like classic pallet jack forks while representing a professional solution for modern machinery through the use of dedicated excavator adapters.

• The attachment is equipped with a strong fork frame with a width of 1100 mm and two durable forks made of high-grade steel, which guarantees stability and operational safety even with heavy loads.

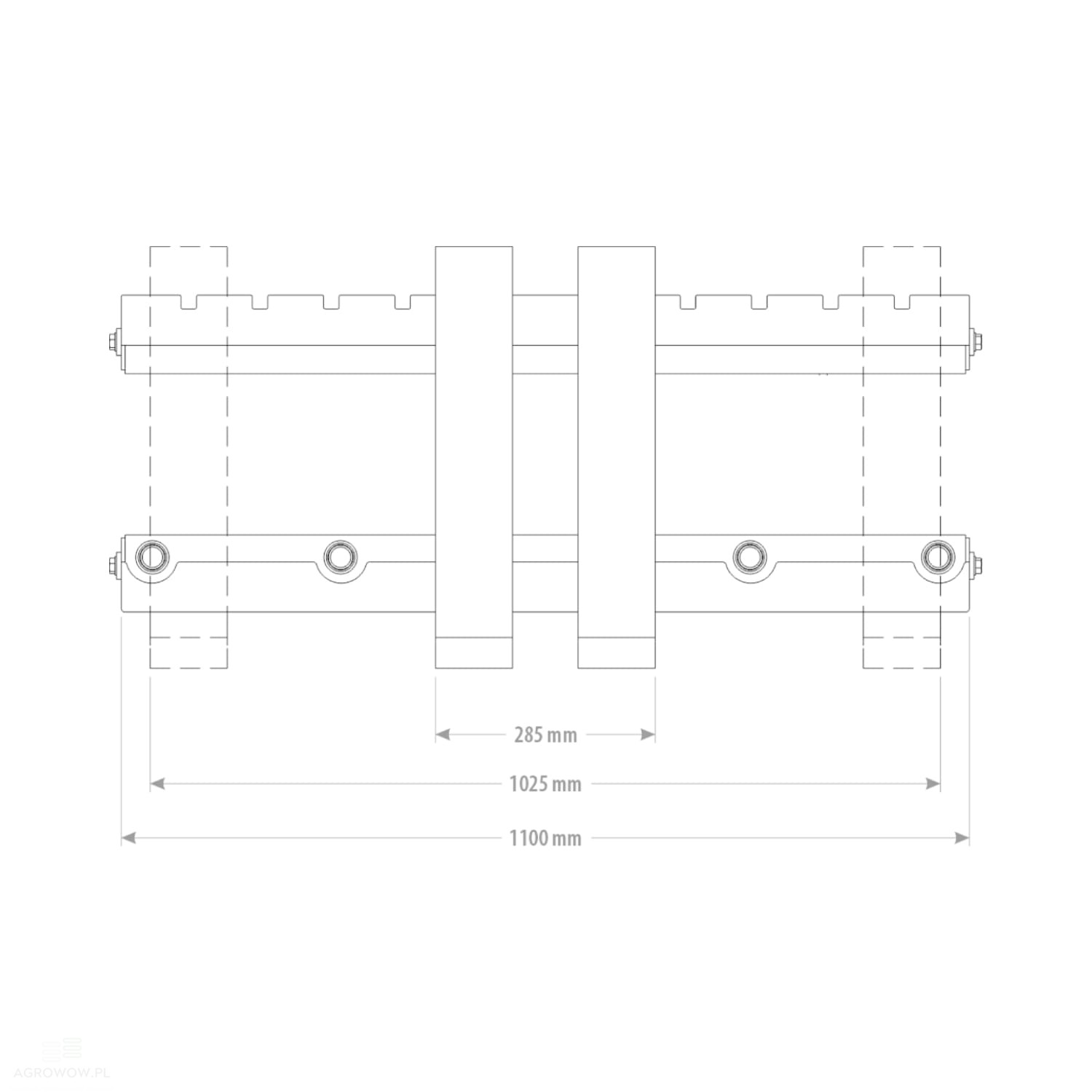

• The mechanical fork width adjustment ranging from 385 to 1025 mm allows for quick adaptation of the spacing to different types of pallets, significantly increasing loading comfort and efficiency.

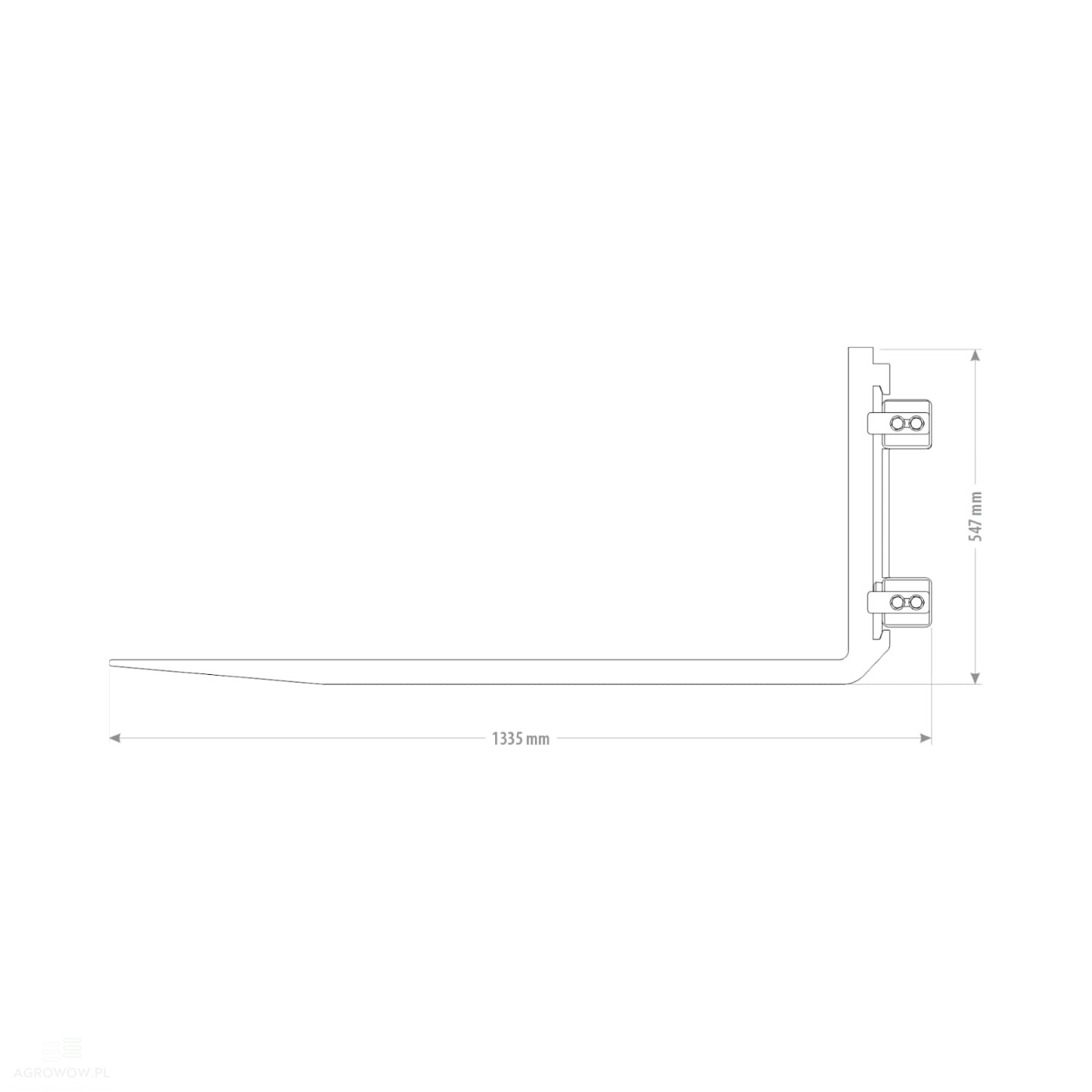

• The total length of the forks including the hitch is 1335 mm, the height is 547 mm, and the weight of the assembly is 189 kg.

• These compact dimensions facilitate machine maneuvering in areas with limited space.

• With a load capacity of 2000 kg, these excavator pallet forks excel at transporting construction materials, timber elements, or agricultural goods, providing invaluable support for construction companies, farms, and warehouses.

• The attachment can be utilized on many machines, serving as mini excavator forks, wheeled excavator forks, rotary excavator forks, backhoe loader forks, or even loader forks, which gives it exceptional versatility.

• Additionally, four conical sleeves enable the mounting of bale tines, allowing the forks to be used in agricultural transport as well.

• Various types of mounting adapters are available on request and at an additional charge, making it possible to match the attachment to popular hitching systems and the specific requirements of your equipment.

• The solid pallet frame, high-quality manufacturing, and use of durable materials ensure a long service life of the forks and operational safety even in the most demanding conditions.

• The 2.0T excavator forks are an investment that boosts machinery efficiency, improves handling comfort, and ensures trouble-free operation for many years to come.
