Kołaszewski Scandinavian bucket 10–12 T / 1.5 x 0.79 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KESH15

- Manufacturer's name: Scandinavian bucket 10-12T

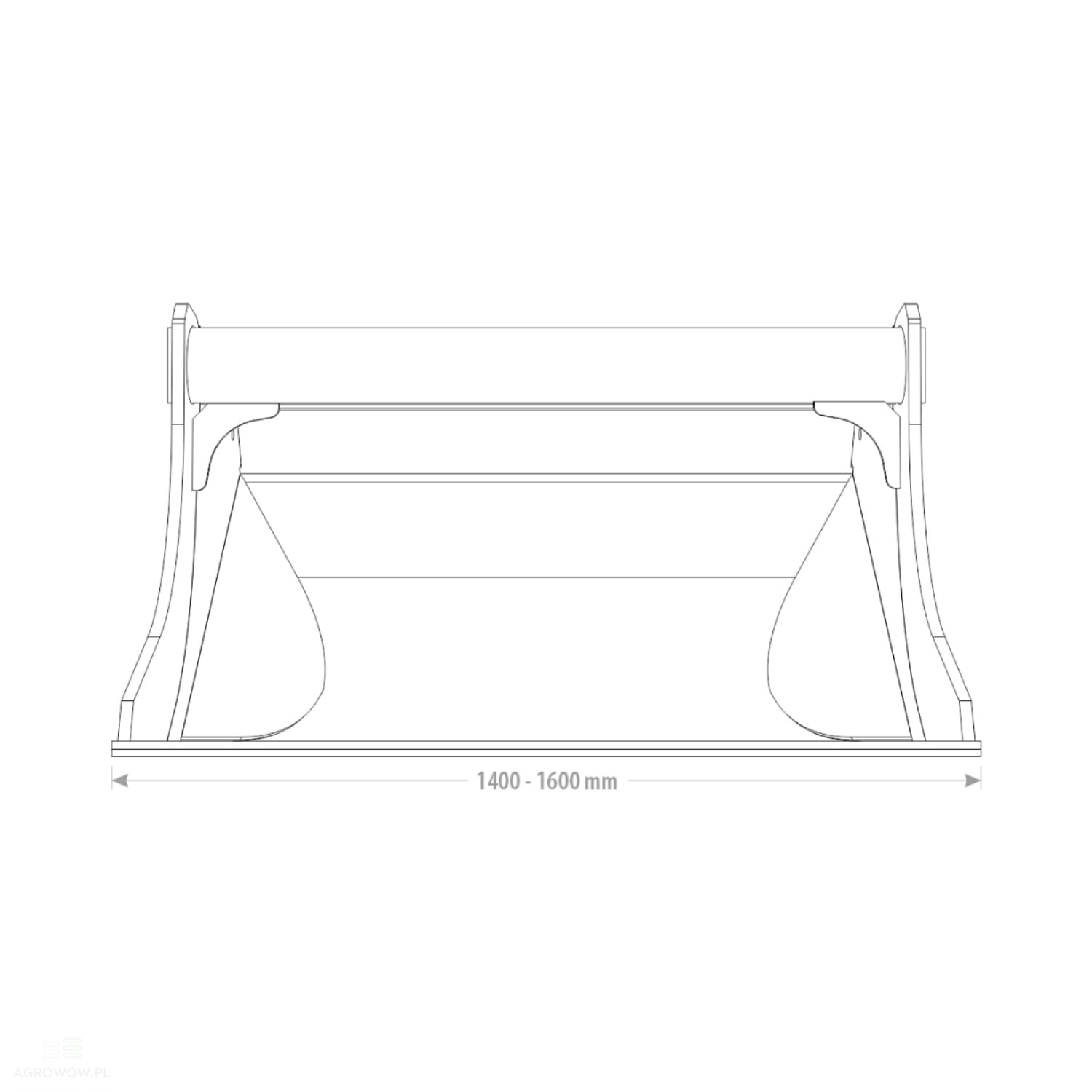

- Width: 1500 mm

- Length: 1190 mm

- Height: 790 mm

- Weight: 401 kg

- Capacity: 640 L

- Permissible machine weight: 10–12 T

- S355 J2 main shell: 8 mm

- S355 J2 side walls: 8 mm

- HB400 cutting edge base / strike plate: 20 mm

- HB500 blade / cutting edge: 250x25 mm

- S355 J2 reinforcements / ribs: 8 mm

Detailed Description:

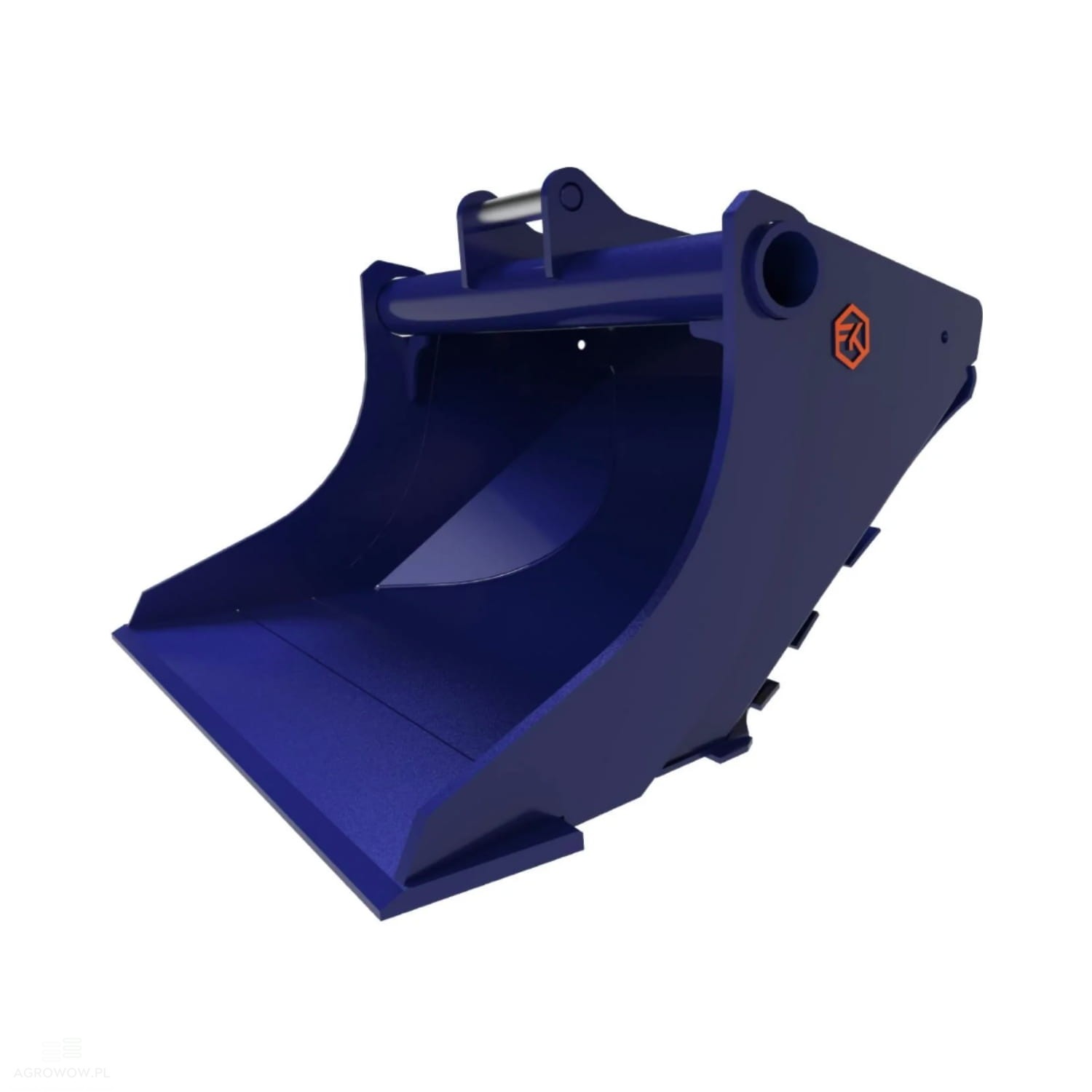

• The Scandinavian bucket, with a width of 1500 mm and a capacity of 640 liters, is a solid and modern attachment designed for excavators weighing from 10 to 12 tonnes, ideal for executing advanced earthworks and profiling tasks in diverse terrain conditions.

• The structure incorporates durable S355 J2 structural steel, which performs excellently under intensive use and ensures long-term resistance to dynamic loads.

• The bucket's main shell, side walls, and reinforcing ribs are made of 8 mm thick steel plating, which significantly increases structural rigidity and resistance to deformation when working in demanding ground types such as clay, gravel, or rocky material.

• With an operating weight of 401 kg, the bucket offers an optimal combination of sturdiness and functionality, allowing for precise maneuvering without overloading the machine.

• To ensure maximum resistance to wear and damage, especially in areas exposed to intensive contact with the ground, a cutting edge base made of HB400 wear-resistant steel (20 mm) and an HB500 cutting edge measuring 250x25 mm have been applied.

• This combination guarantees a longer service life for the bucket and lower maintenance needs, resulting in reduced operating costs and extended periods of downtime-free performance.

• Thanks to its characteristic tapered lower profile, the bucket enables a smooth material flow, which significantly improves efficiency during loading, unloading, grading, and land leveling.

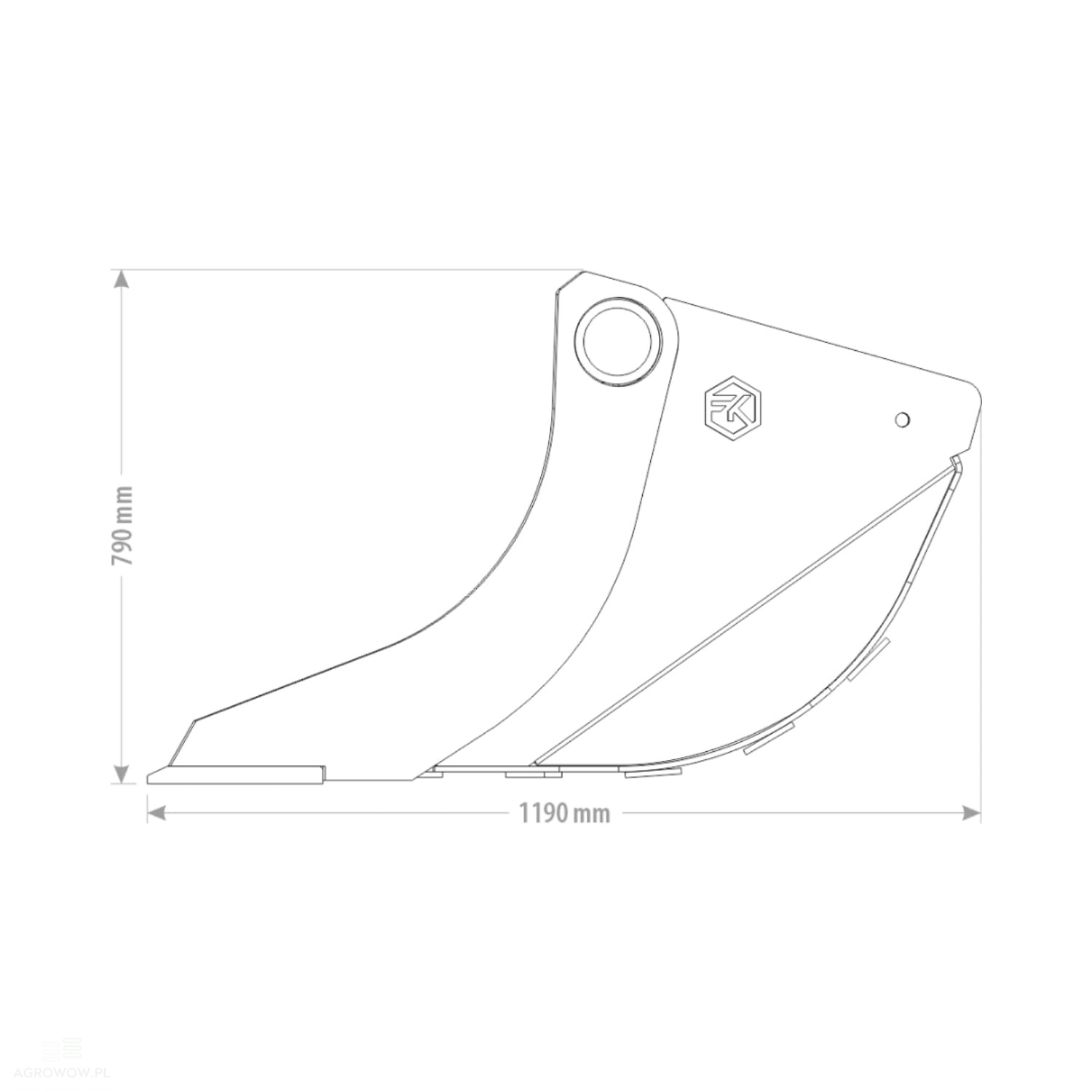

• The geometric parameters—a length of 1190 mm and a height of 790 mm—enhance control over the excavated material, allowing for precise operation even within confined workspaces.

• The 1500 mm Scandinavian bucket is fully compatible with excavators from leading manufacturers such as Caterpillar, Komatsu, Volvo, Hitachi, Hyundai, Kubota, and JCB, making it a universal choice for professionals with multi-brand fleets.

• Additionally, the bucket can be optionally equipped with an S60-type quick coupler and a hydraulic tilt system, adapting it to serve as a Scandinavian grading bucket or a hydraulic Scandinavian bucket, thus increasing its functionality on the construction site.

• This versatile tool is designed for professional users who require durable, efficient, and precise attachments for daily field operations.

• The bucket is perfectly suited for roadwork, trenching, paving, land leveling, and landscaping, offering durability and high productivity even in the most demanding conditions.
