Kołaszewski Scandinavian bucket 12–14 T / 1.4 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KESI14

- Manufacturer's name: Scandinavian bucket 12-14T

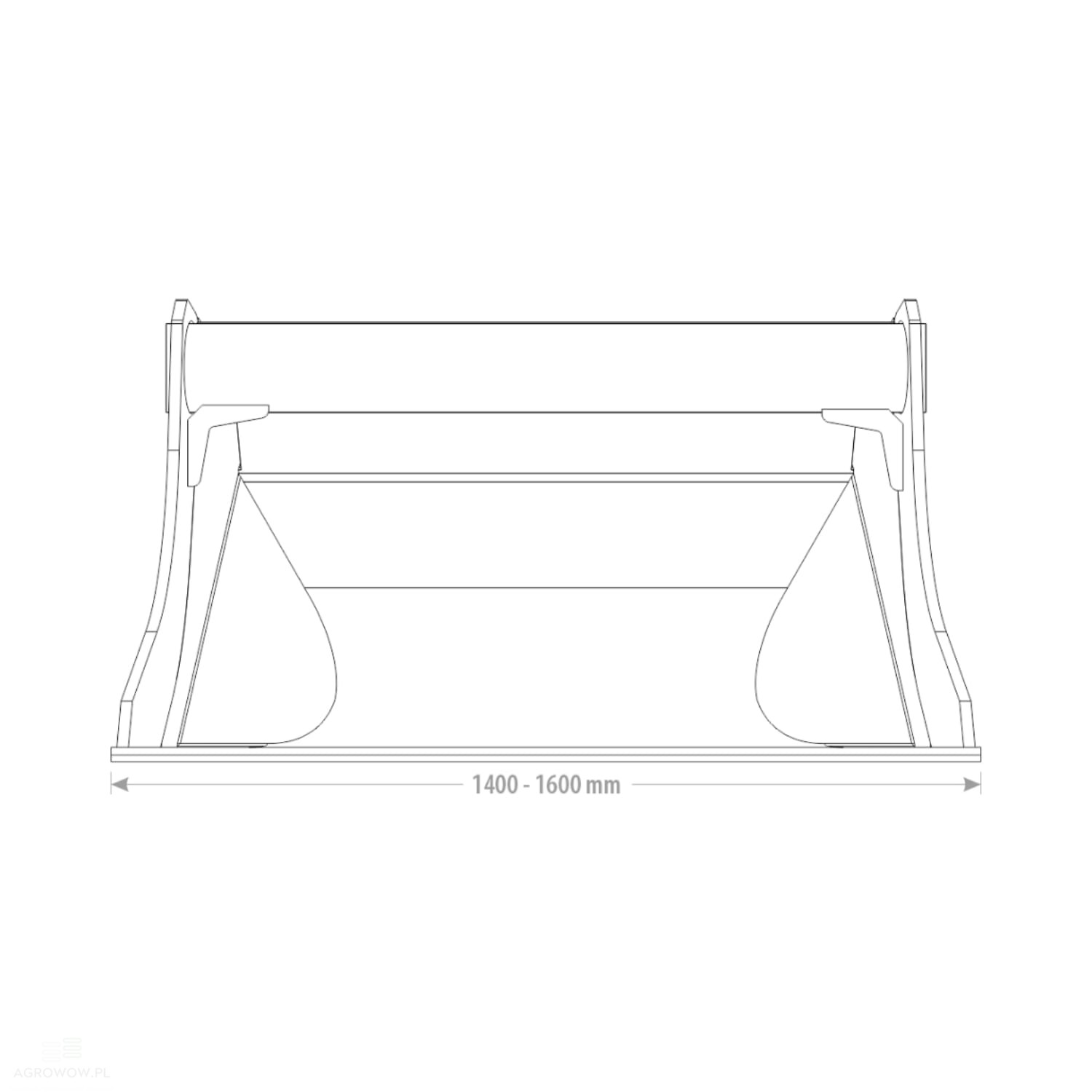

- Width: 1400 mm

- Length: 1280 mm

- Height: 796 mm

- Weight: 475 kg

- Capacity: 695 L

- Permissible machine weight: 12–14 T

- S355 J2 main shell: 10 mm

- S355 J2 side walls: 8 mm

- HB400 cutting edge base / strike plate: 20 mm

- HB500 blade / cutting edge: 250x25 mm

- S355 J2 reinforcements / ribs: 8 mm

Detailed Description:

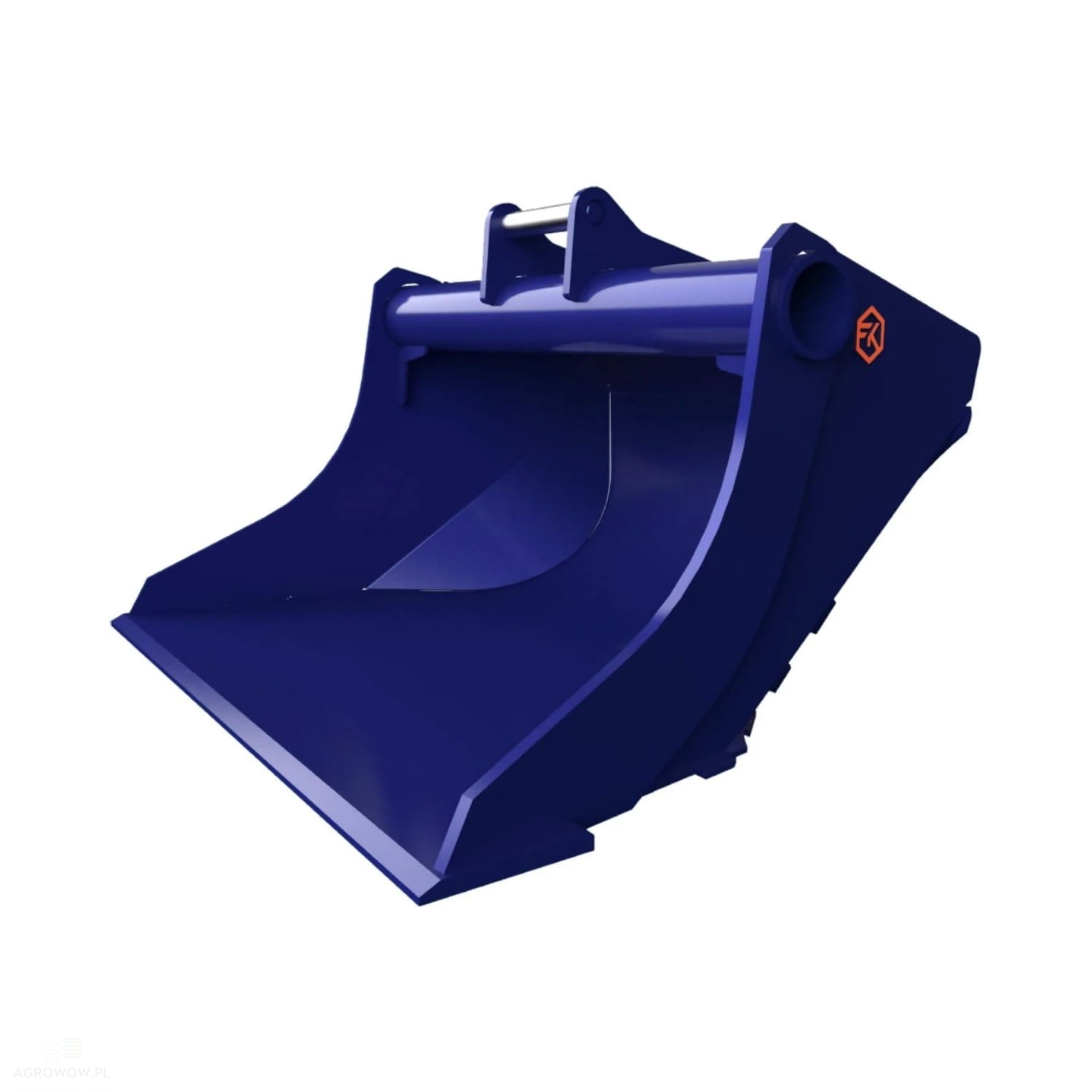

• The Scandinavian bucket, with a width of 1400 mm and a capacity of 695 liters, is a robust and efficient attachment built to operate with excavators weighing from 12 to 14 tonnes, designed with demanding operating conditions and intensive exploitation in mind.
• Manufactured from high-grade S355 J2 structural steel, it ensures excellent resistance to overloads, impacts, and daily wear during roadwork, earthworks, and landscaping.
• Featuring a 10 mm thick main shell, 8 mm side walls, and 8 mm reinforcing ribs, the bucket design is characterized by exceptional rigidity and stability, even when working with heavy and compacted materials such as clay, crushed stone, or rocks.
• An operating weight of 475 kg provides the necessary sturdiness to tackle demanding tasks while still allowing agile maneuvering without putting excessive strain on the machine's hydraulic system.
• To increase durability in the zones most vulnerable to wear, a cutting edge base made of HB400 wear-resistant steel with a thickness of 20 mm has been implemented, combined with a cutting edge made of HB500 steel measuring 250x25 mm.
• This highly effective protection safeguards the structure against abrasion and damage, significantly extending the service life of the attachment and reducing the frequency of maintenance.
• The tapered geometry typical of Scandinavian buckets improves material flow, facilitating loading, unloading, grading, and other precise field operations.

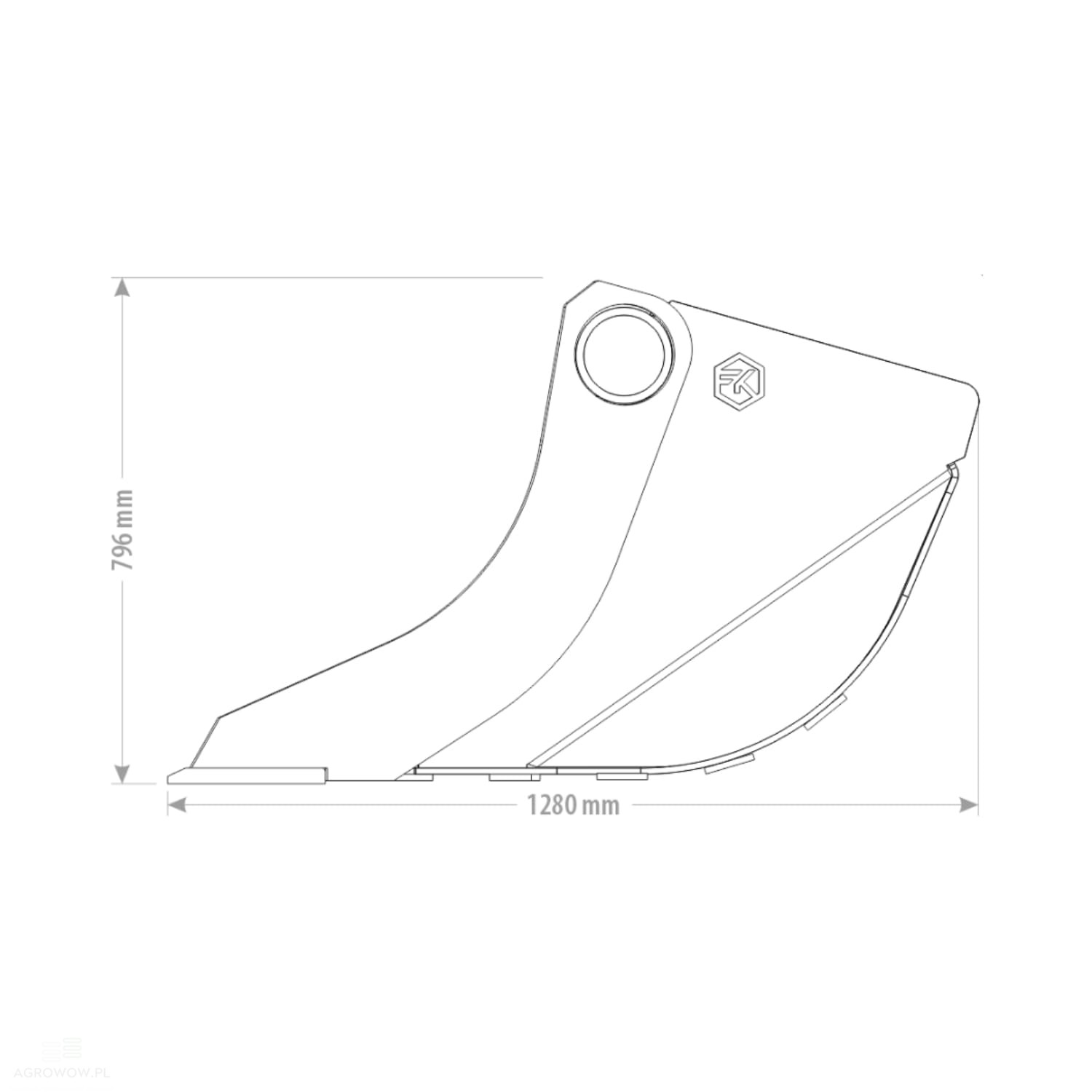

• With dimensions of 1280 mm in length and 796 mm in height, the bucket ensures good control over material movement, allowing for efficient and accurate work even within confined workspaces.
• The 1400 mm Scandinavian bucket is compatible with machinery from many renowned brands, such as Volvo, Komatsu, JCB, Hitachi, Caterpillar, Hyundai, and Kubota, making it a universal choice for professionals with diverse equipment fleets.
• Optional configuration with an S60-type quick coupler and a hydraulic tilt mechanism allows it to function as a Scandinavian grading bucket or a hydraulic Scandinavian bucket, significantly increasing its functionality in specialized construction work.
• This attachment is created for users seeking durability, precision, and versatility in a single solution, regardless of working conditions or the type of tasks performed.
• The 1400 mm Scandinavian bucket is ideally suited for land leveling, trenching, drainage work, landscaping, and civil engineering projects—ensuring reliability, ergonomics, and high operational efficiency.
