Kołaszewski Scandinavian bucket 12–14 T / 1.5 x 0.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KESI15

- Manufacturer's name: Scandinavian bucket 12-14T

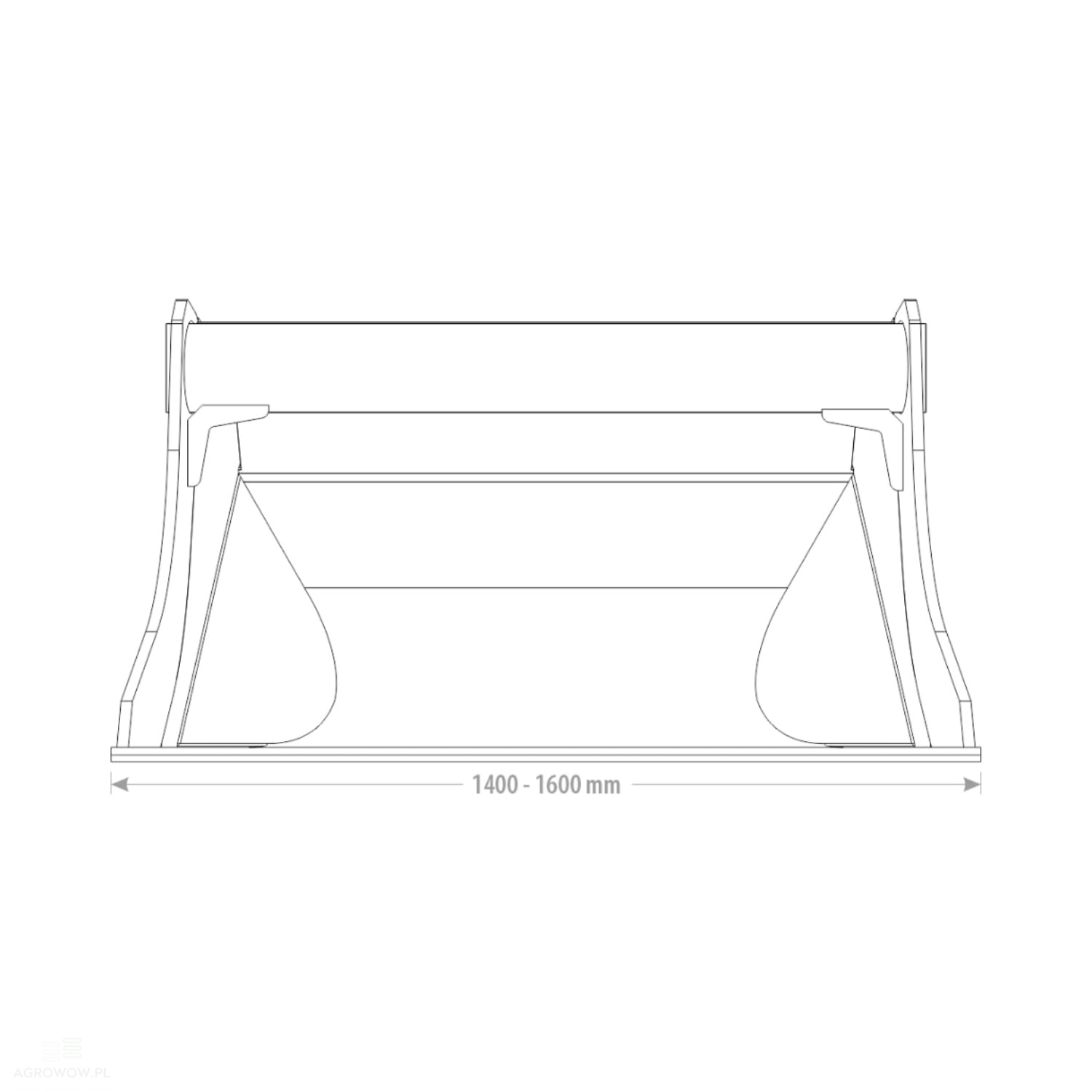

- Width: 1500 mm

- Length: 1280 mm

- Height: 796 mm

- Weight: 500 kg

- Capacity: 766 L

- Permissible machine weight: 12–14 T

- S355 J2 main shell: 10 mm

- S355 J2 side walls: 8 mm

- HB400 cutting edge base / strike plate: 20 mm

- HB500 blade / cutting edge: 250x25 mm

- S355 J2 reinforcements / ribs: 8 mm

Detailed Description:

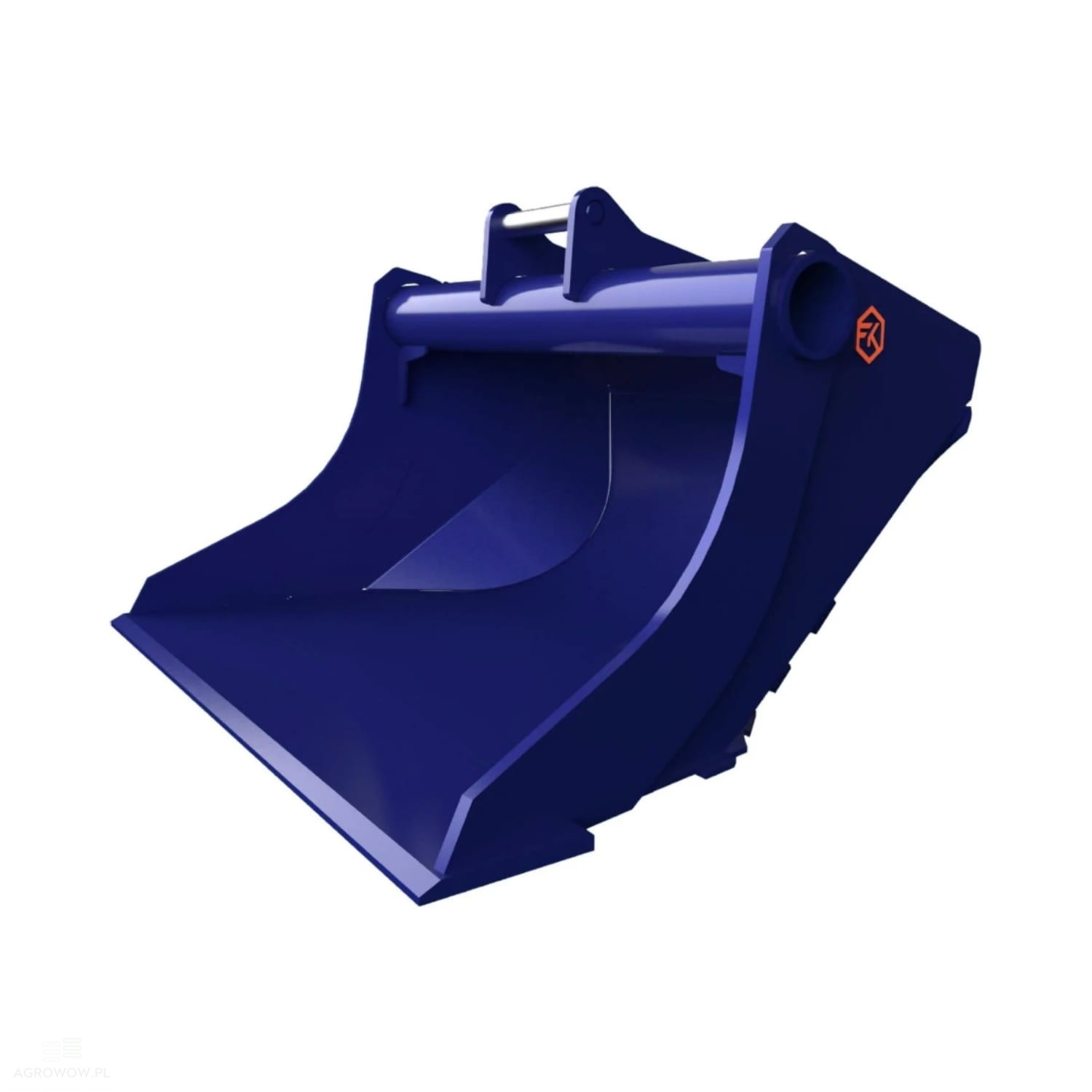

• The Scandinavian bucket, with a width of 1500 mm and a capacity of 766 liters, is a solid attachment designed to operate with machines weighing from 12 to 14 tonnes.
• It was created with intensive work in harsh terrain conditions and demanding construction operations in mind.
• Manufactured from high-grade S355 J2 structural steel, featuring a thickness of 10 mm on the main shell, 8 mm on the side walls, and 8 mm on the reinforcing ribs, it provides exceptional resistance to wear, overloads, and impacts, making it suitable for roadwork, earthworks, and landscaping.
• Thanks to its reinforced design, the bucket is characterized by high stability and rigidity, allowing for efficient operation even in the toughest conditions.
• A weight of 500 kg ensures sturdiness while enabling easy maneuvering without putting excessive strain on the machine's hydraulic system.
• To extend service life in the zones most vulnerable to wear, HB400 wear-resistant steel has been applied to the 20 mm thick cutting edge base, combined with a cutting edge made of HB500 steel measuring 250x25 mm, providing additional protection against abrasion and damage.
• The tapered geometry of the bucket—typical of the Scandinavian style—improves material flow and facilitates precise loading, unloading, as well as grading tasks.

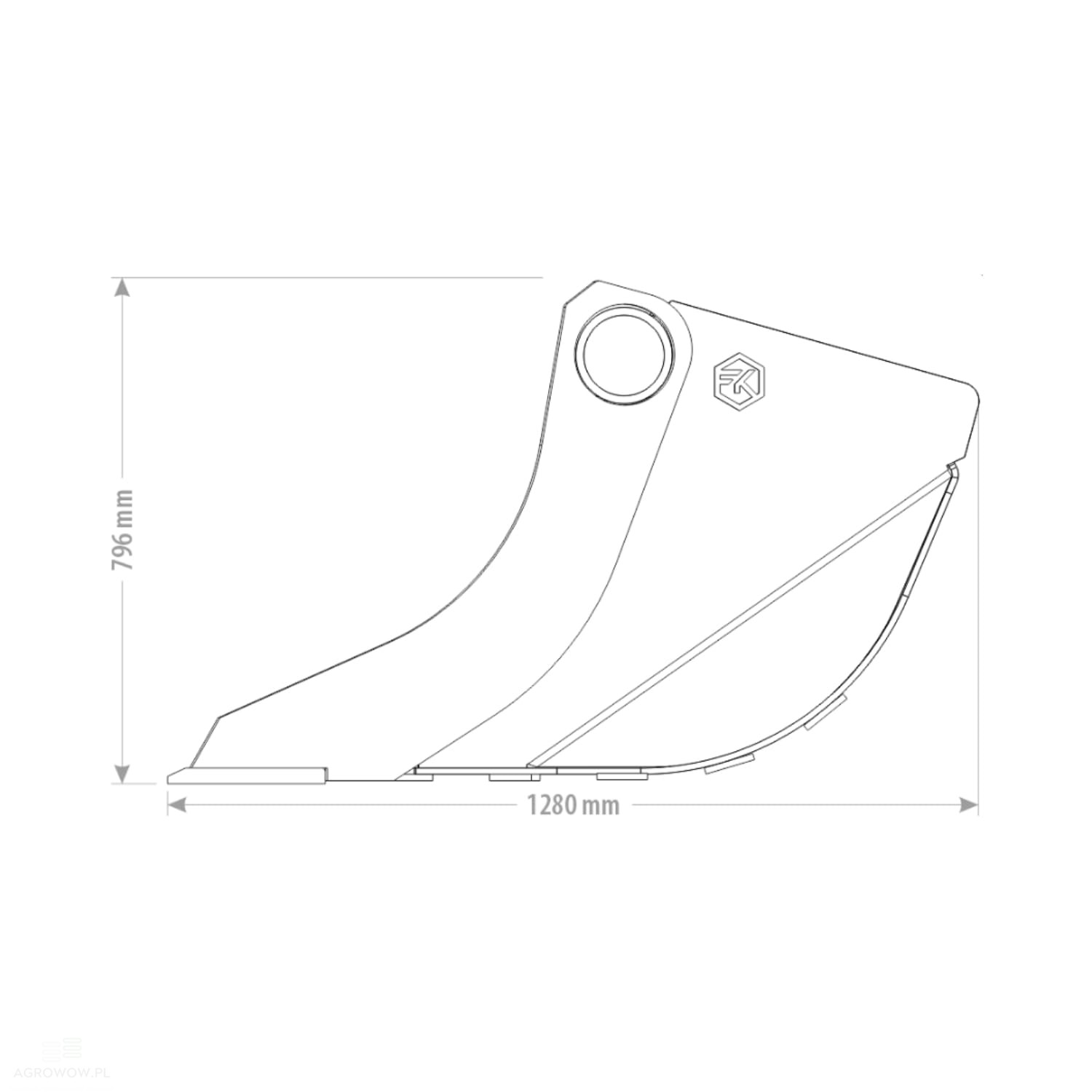

• With dimensions of 1280 mm in length and 796 mm in height, the bucket ensures precise control over the material and enables operation in confined workspaces.
• Compatible with machinery from many renowned manufacturers, such as Volvo, Komatsu, JCB, Hitachi, Caterpillar, Hyundai, and Kubota, this 1500 mm Scandinavian bucket is a versatile tool that proves its worth across various operating conditions.
• Additionally, optional configuration with an S60-type quick coupler and a hydraulic tilt mechanism allows the bucket to function as a Scandinavian grading bucket or a hydraulic Scandinavian bucket, significantly expanding its capabilities in more specialized tasks.
• This attachment is built for users who value reliability, durability, and precision, both under intensive exploitation and during demanding construction challenges.
• The 1500 mm Scandinavian bucket is ideally suited for land leveling, trenching, drainage work, landscaping, and civil engineering projects, ensuring high efficiency and reliability in every situation.
