Kołaszewski Scandinavian bucket 14–18 T / 1.5 x 0.88 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KESJ15

- Manufacturer's name: Scandinavian bucket 14-18T

- Width: 1500 mm

- Length: 1390 mm

- Height: 880 mm

- Weight: 594 kg

- Capacity: 860 L

- Permissible machine weight: 14–18 T

- S355 J2 main shell: 10 mm

- S355 J2 side walls: 10 mm

- HB400 cutting edge base / strike plate: 25 mm

- HB500 blade / cutting edge: 300x30 mm

- S355 J2 reinforcements / ribs: 10 mm

Detailed Description:

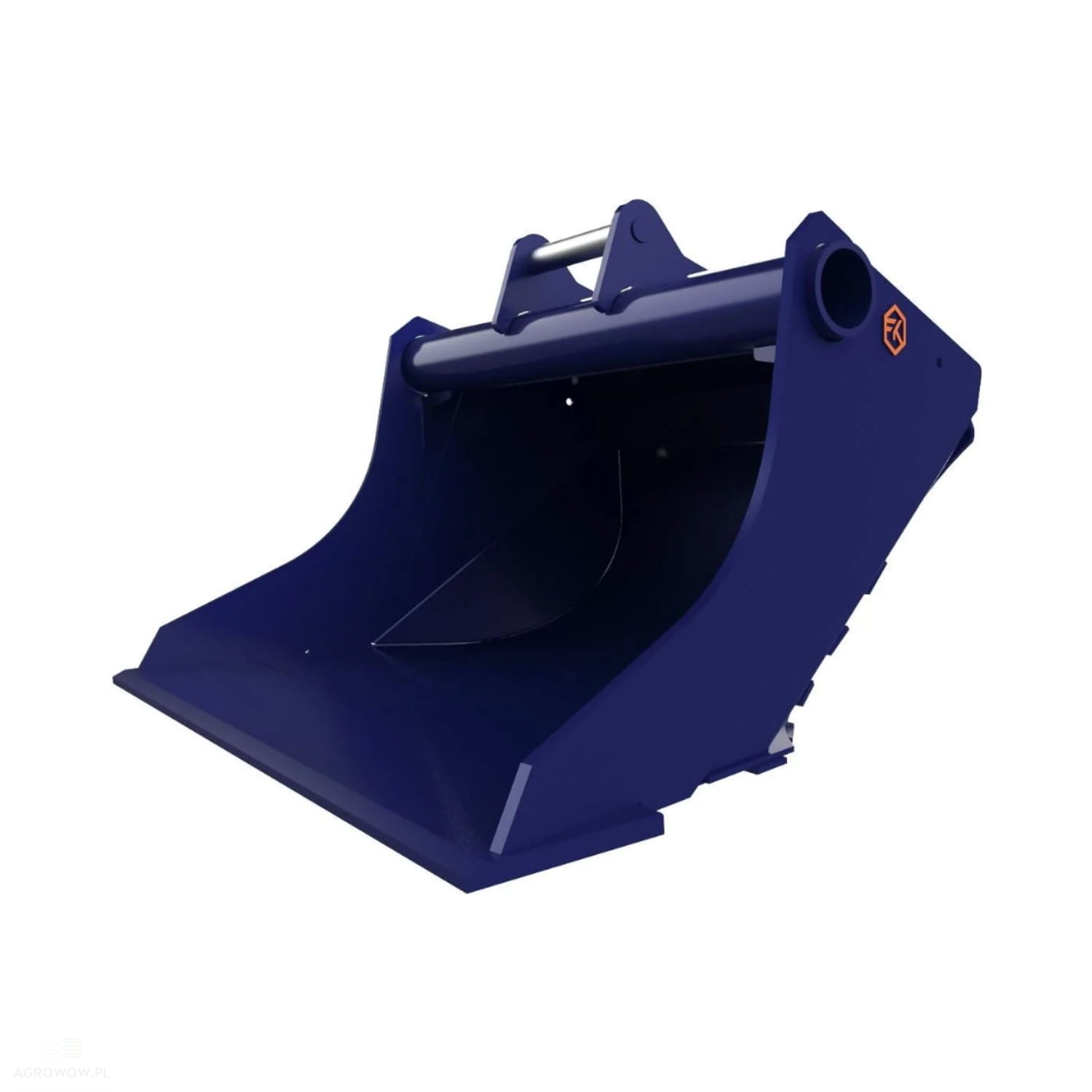

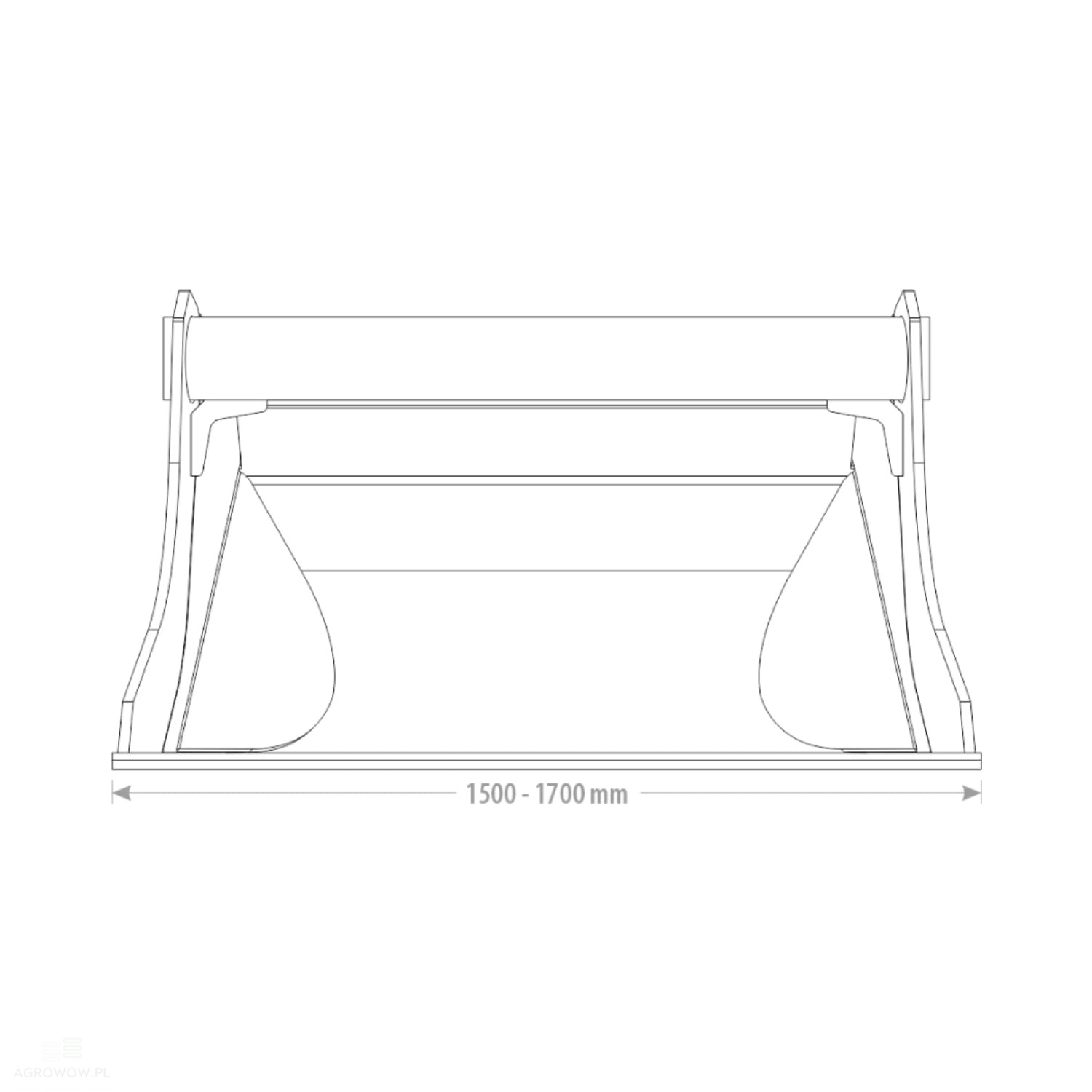

• The Scandinavian bucket, with a width of 1500 mm and a capacity of 860 liters, is an exceptional attachment created to operate with machines weighing from 14 to 18 tonnes.

• It performs perfectly under harsh terrain conditions as well as during demanding construction tasks.

• Manufactured from premium-grade S355 J2 structural steel, featuring a thickness of 10 mm on the main shell, 10 mm on the side walls, and 10 mm on the reinforcing ribs, the bucket ensures excellent resistance to wear, overloads, and impacts, which makes it suitable for long-term operation in difficult conditions.

• The bucket is characterized by exceptional stability and rigidity, ensuring efficient operation even in the most demanding environments.

• A weight of 594 kg guarantees the appropriate sturdiness while still allowing agile maneuvering without putting excessive strain on the machine's hydraulic system.

• To increase durability in the zones most vulnerable to wear, HB400 steel has been applied to the 25 mm thick cutting edge base, combined with a cutting edge made of HB500 steel measuring 300x30 mm, providing superior protection against abrasion and mechanical damage.

• The tapered geometry of the bucket—typical of the Scandinavian style—improves material flow, facilitating loading, unloading, and grading, particularly in demanding terrains.

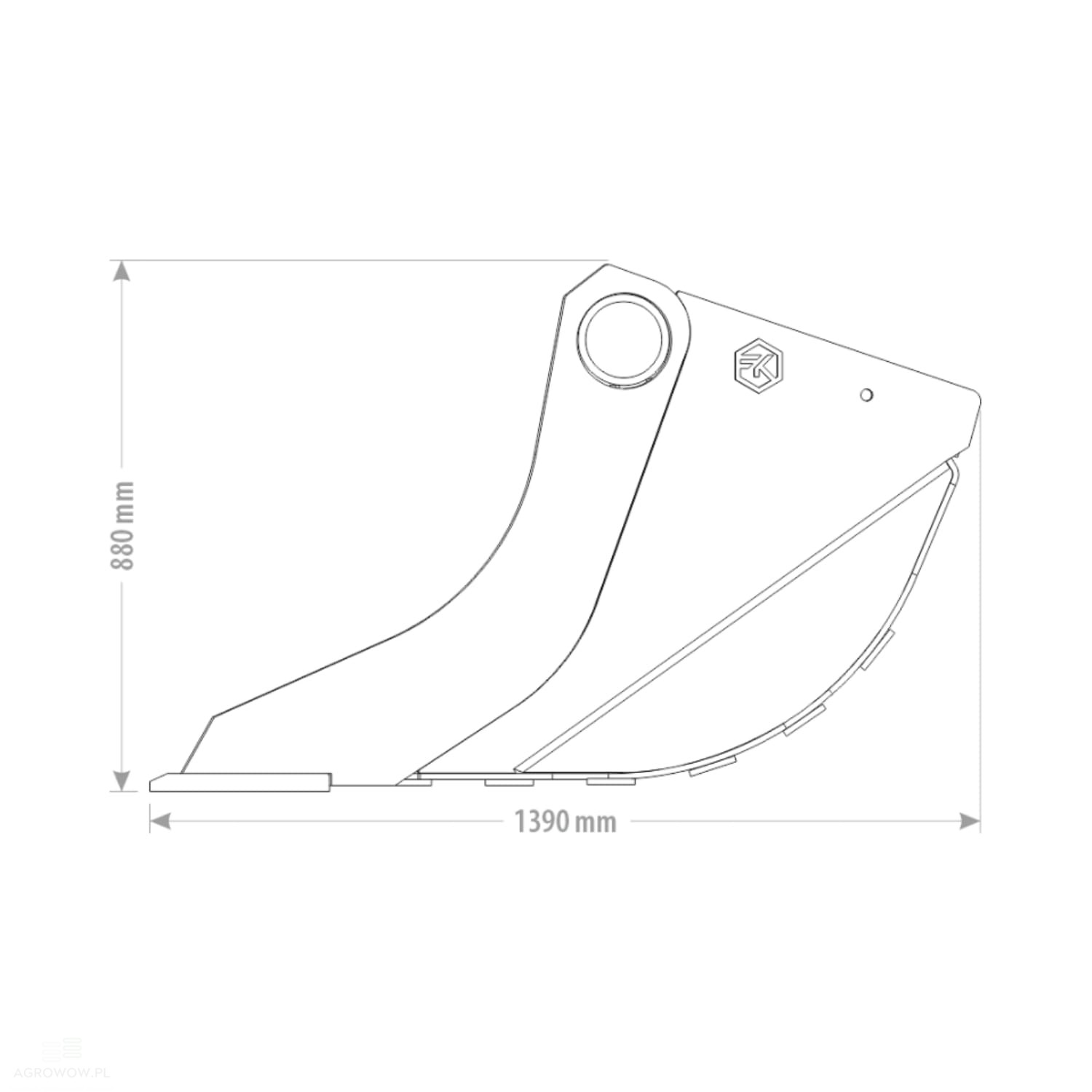

• With dimensions of 1390 mm in length and 880 mm in height, the bucket ensures excellent control over the material, allowing for precise operation in confined workspaces.

• Compatible with machinery from many renowned manufacturers, such as Volvo, Komatsu, JCB, Hitachi, Caterpillar, Hyundai, and Kubota, this 1500 mm Scandinavian bucket constitutes a versatile option that proves its worth across varied operating conditions.

• Optional configuration with an S60-type quick coupler and a hydraulic tilt mechanism allows the bucket to function as a Scandinavian grading bucket or a hydraulic Scandinavian bucket, significantly expanding its capabilities in specialized construction work.

• It is a reliable attachment that combines durability, precision, and efficiency, fully meeting user requirements in intensive field applications, including demanding construction and civil engineering projects.

• The 1500 mm Scandinavian bucket is ideally suited for land leveling, trenching, drainage work, landscaping, and civil engineering projects, ensuring high productivity and reliability in every task.
