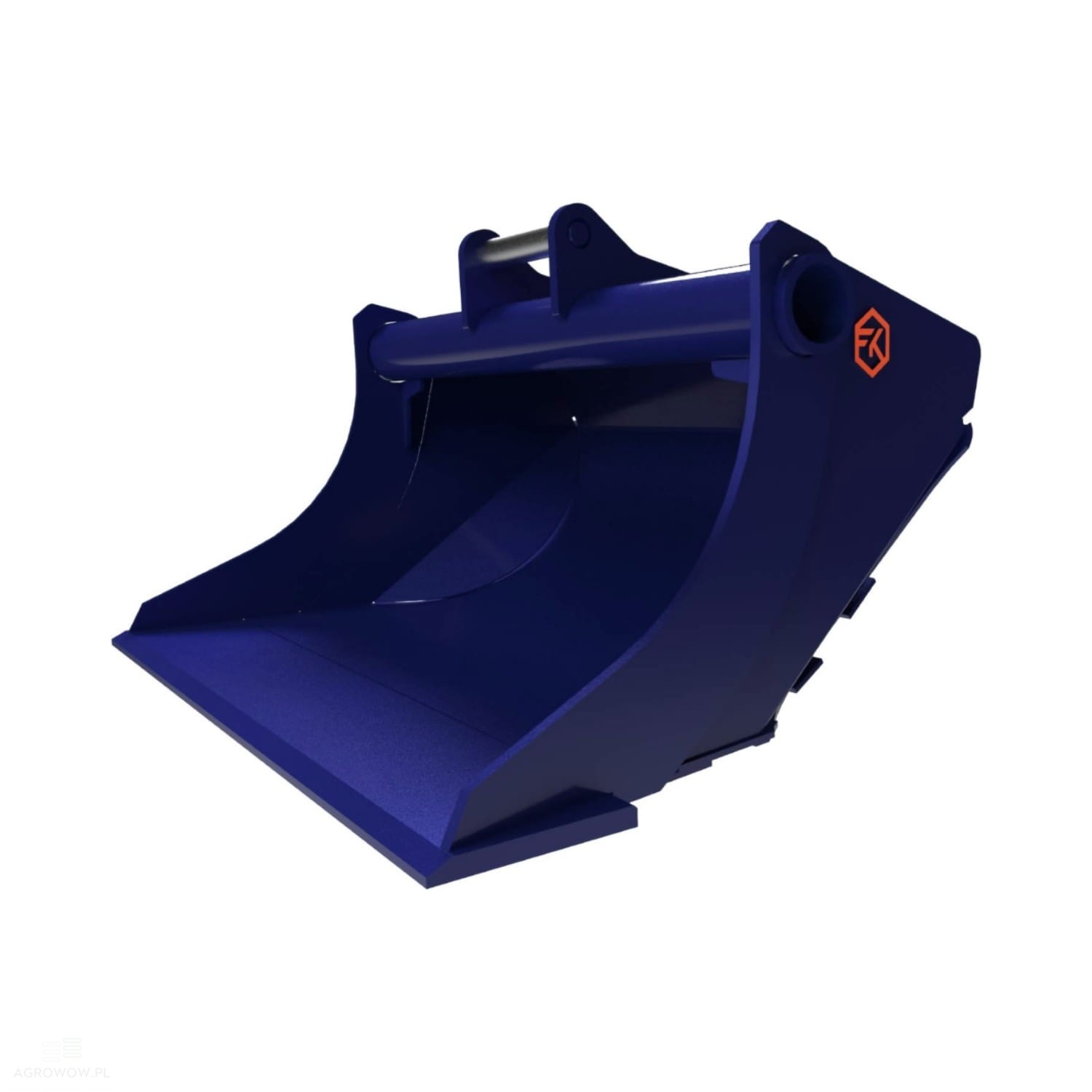

Kołaszewski Scandinavian bucket 8.5–10 T / 1.6 x 0.65 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KESG16

- Manufacturer's name: Scandinavian bucket 8.5-10T

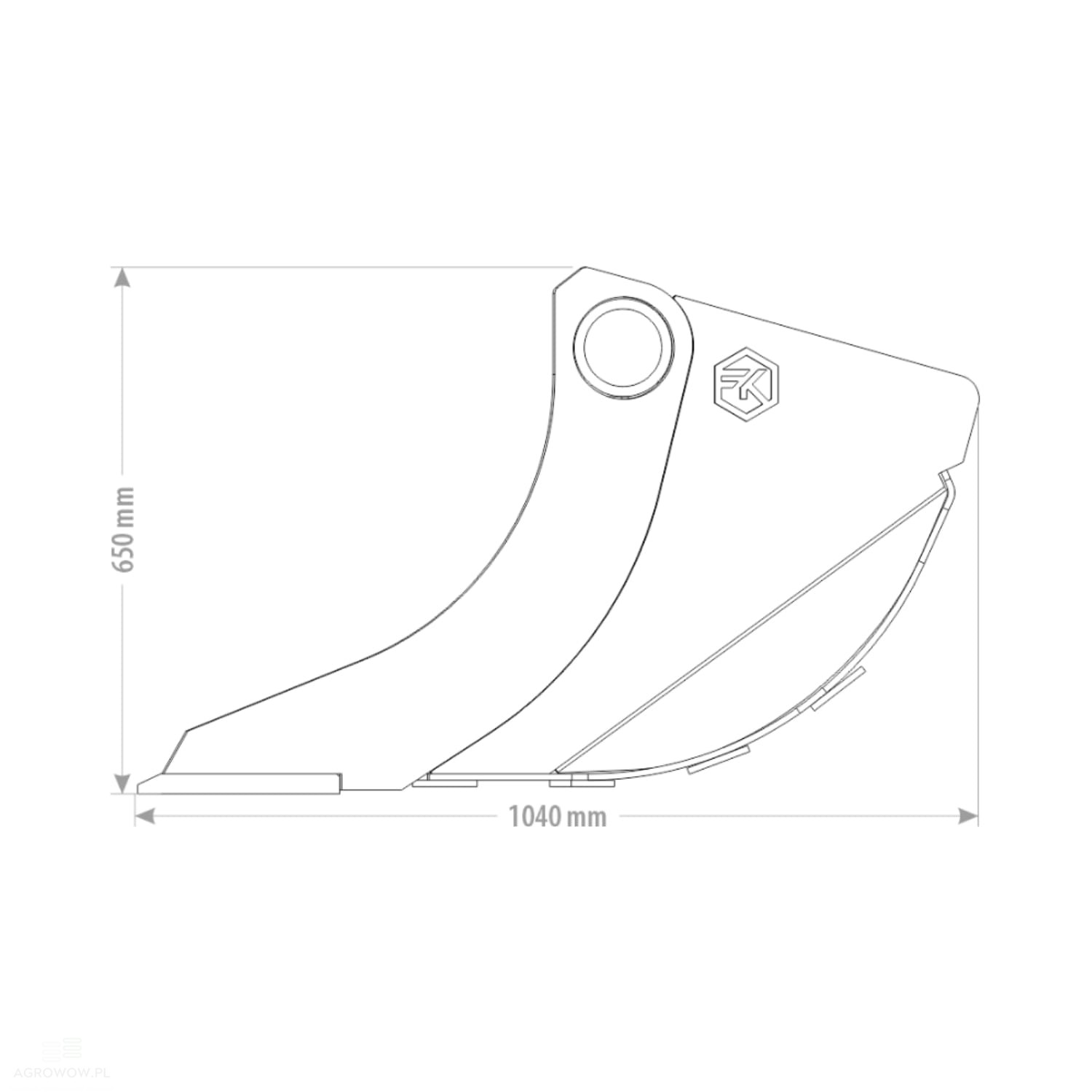

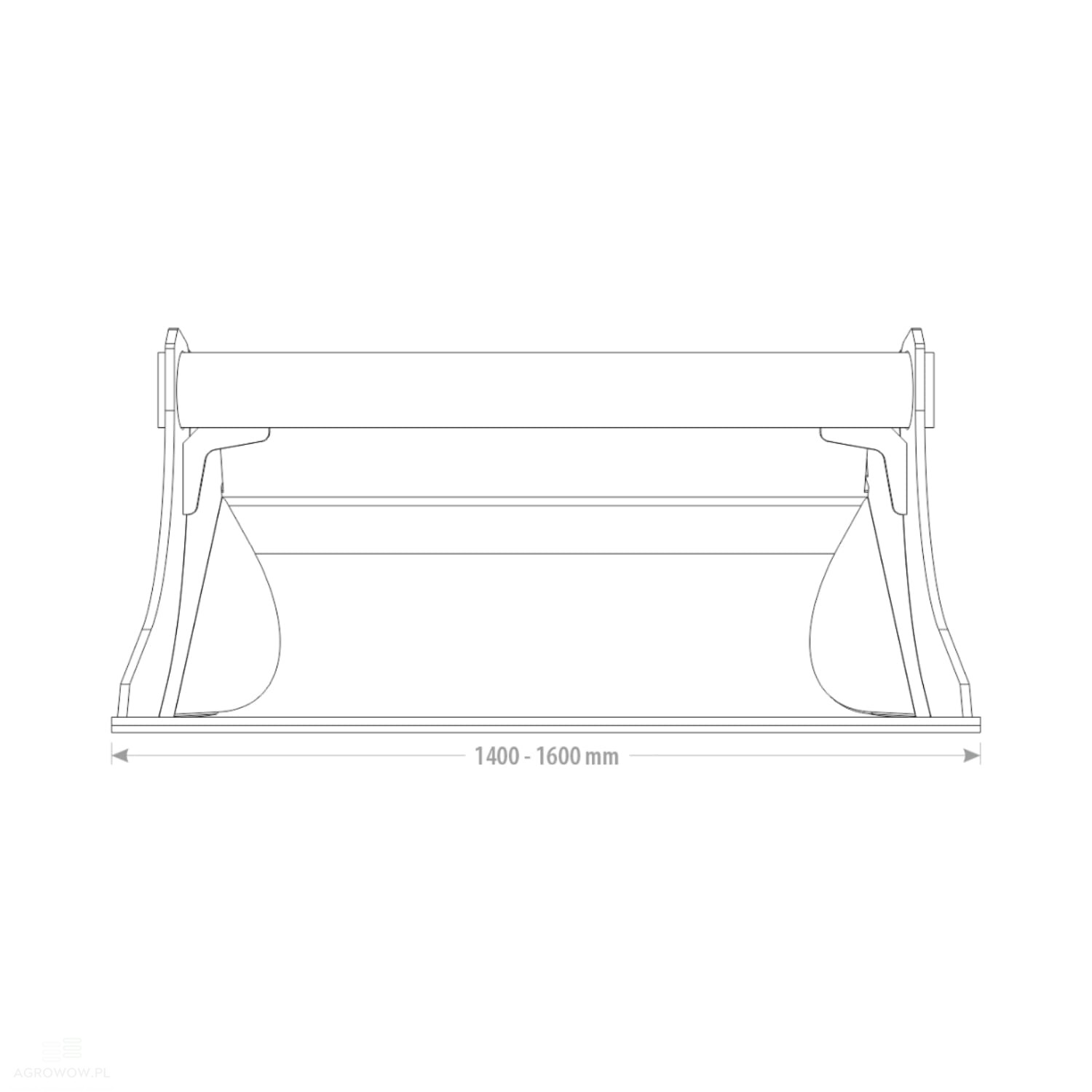

- Width: 1600 mm

- Length: 1040 mm

- Height: 650 mm

- Weight: 363 kg

- Capacity: 543 L

- Permissible machine weight: 8.5–10 T

- S355 J2 main shell: 8 mm

- S355 J2 side walls: 6 mm

- HB400 cutting edge base / strike plate: 15 mm

- HB500 blade / cutting edge: 250x25 mm

- S355 J2 reinforcements / ribs: 8 mm

Detailed Description:

• The Scandinavian bucket, with a width of 1600 mm and a capacity of 543 liters, is a versatile and highly durable attachment designed specifically for excavators with an operating weight of 8.5 to 10 tonnes that work in diverse terrain conditions and require reliability under intensive exploitation.

• Its design is based on high-quality S355 J2 structural steel, known for its excellent mechanical properties and resistance to dynamic loads.

• The 8 mm thick main shell, 6 mm side walls, and 8 mm reinforcing ribs form a rigid, stable, and deformation-resistant structure that meets the demands of daily operations in any type of soil—from loose sand to clay and rocks.

• Thanks to its relatively low operating weight of 363 kg, the bucket maintains an excellent strength-to-weight ratio, which enables agile maneuvering while minimizing machine wear and reducing stress on the excavator arm.

• To extend service life and limit operational wear, particularly in areas exposed to the highest stresses and material contact, components made of wear-resistant steel have been implemented: an HB500 steel cutting edge measuring 250x25 mm combined with a 15 mm thick HB400 steel cutting edge base.

• This solution provides resistance to abrasion and damage even under difficult conditions, such as working with debris, gravel, or frozen ground.

• The tapered lower geometry typical of Scandinavian buckets allows for a smooth flow of excavated material through the interior, which translates into faster, more controlled loading and unloading, reduced material loss, and easier precision maneuvers.

• The 1600 mm Scandinavian bucket is ideal for tasks such as leveling, grading slopes, spreading material, drainage work, as well as sorting and loading materials.

• Its substantial width and capacity allow for more efficient linear earthworks, minimizing the number of passes and time required to complete tasks.

• A major advantage of this bucket is its versatility—thanks to a well-conceived mounting system, it is compatible with a wide range of machinery from leading manufacturers such as Volvo, Caterpillar, JCB, Hitachi, Komatsu, Kubota, Hyundai, and others.

• This makes it an excellent choice for companies managing mixed equipment fleets.

• Configuration with an S60-type quick coupler and an optional hydraulic tilt mechanism expands its capabilities to include the features of a Scandinavian grading bucket or a hydraulic Scandinavian bucket, allowing the operator to maneuver the attachment with even greater precision and flexibility without needing to reposition the machine.

• This professional solution is engineered for heavy duty and long-term service—particularly recommended for companies specialized in road construction, sewage systems, landscaping, or foundation works.

• The 1600 mm Scandinavian bucket combines a modern design approach with practical user experience, offering excellent durability, operating comfort, and optimal productivity for everyday work.
