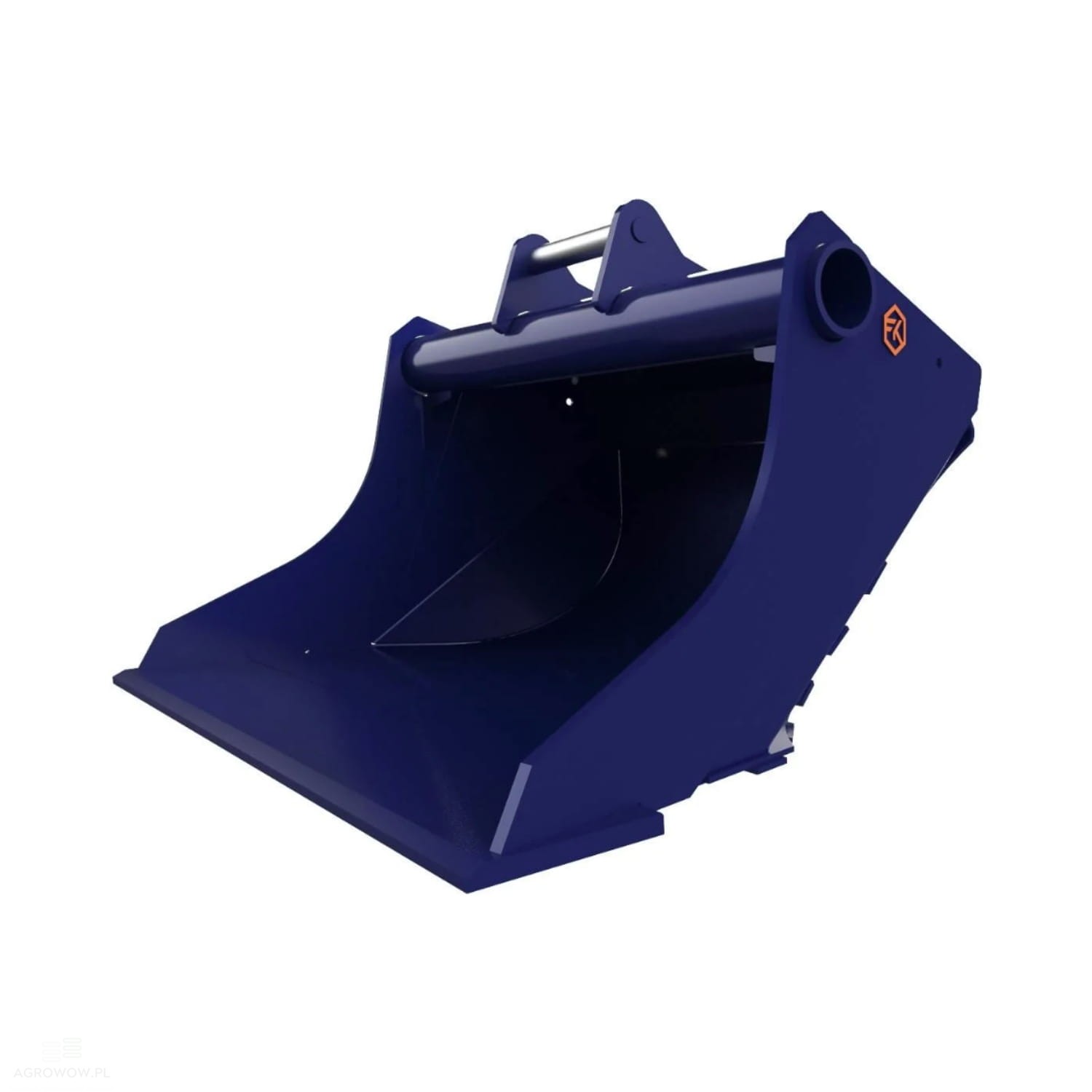

Kołaszewski Scandinavian digging bucket 14–18 T / 1.7 x 0.88 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KESJ17

- Manufacturer's name: Scandinavian bucket 14-18T

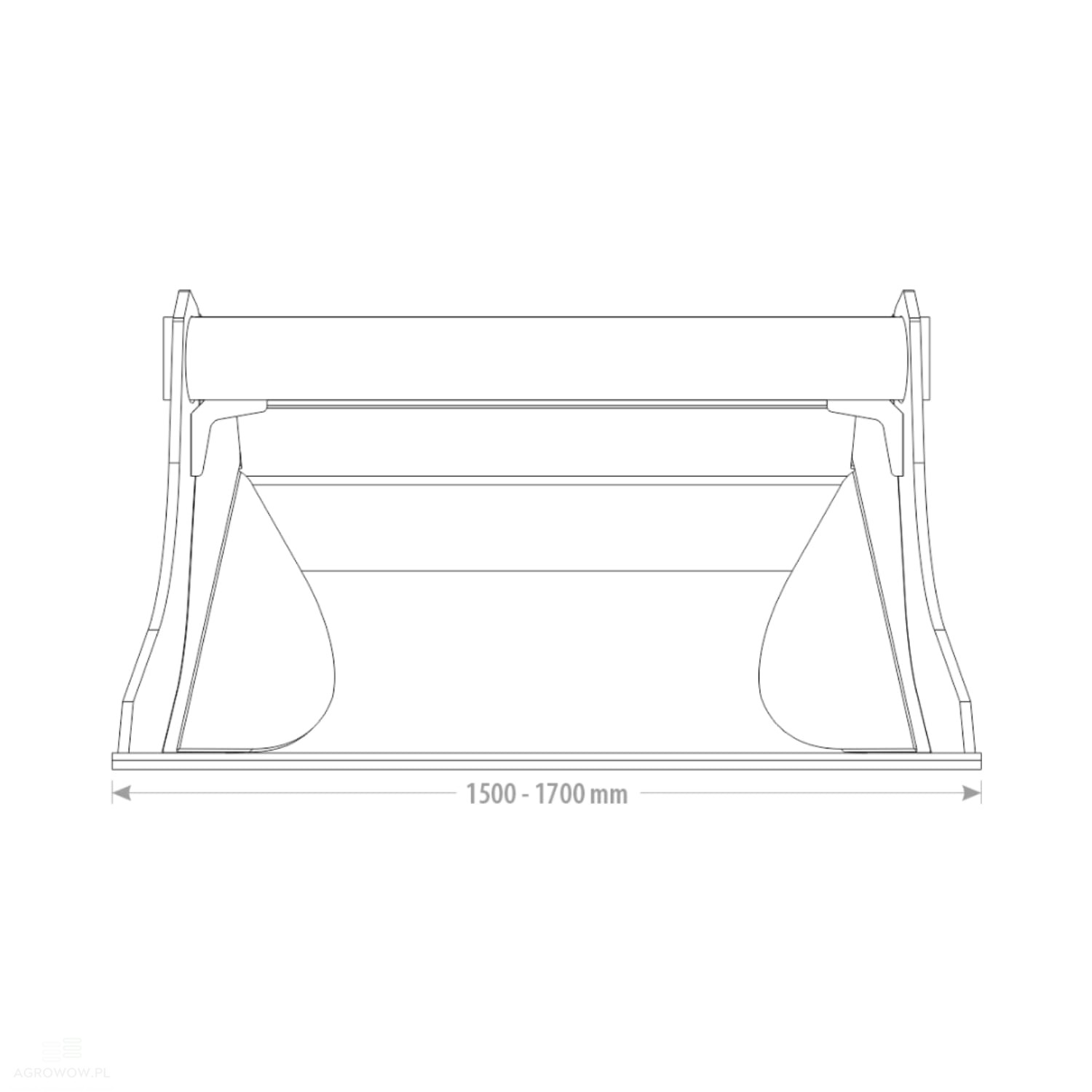

- Width: 1700 mm

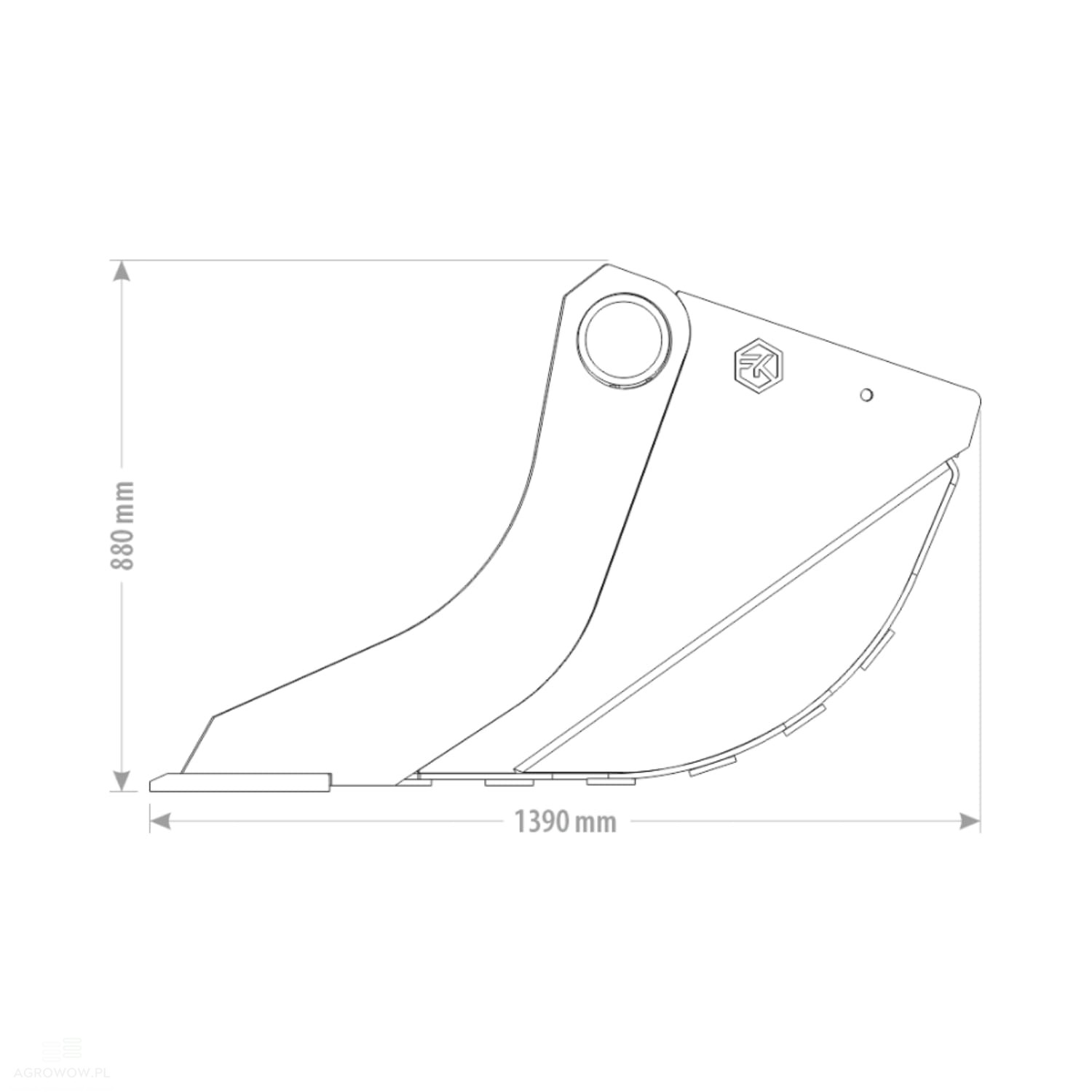

- Length: 1390 mm

- Height: 880 mm

- Weight: 652 kg

- Capacity: 1010 L

- Permissible machine weight: 14–18 T

- S355 J2 main shell: 10 mm

- S355 J2 side walls: 10 mm

- HB400 cutting edge base / strike plate: 25 mm

- HB500 blade / cutting edge: 300x30 mm

- S355 J2 reinforcements / ribs: 10 mm

Detailed Description:

• The Scandinavian bucket, with a width of 1700 mm and a capacity of 1010 liters, is an excellent attachment designed to operate with machines weighing from 14 to 18 tonnes.
• It performs perfectly under harsh operating conditions as well as during demanding construction and civil engineering tasks.
• Manufactured from premium-grade S355 J2 structural steel, it features a 10 mm thick main shell, 10 mm side walls, and 10 mm reinforcing ribs.
• This construction provides superb resistance to wear, overloads, and impacts, ensuring dependable performance over long-term exploitation.
• The bucket is characterized by exceptional stability and rigidity, enabling efficient operation even in the most challenging environments.
• A weight of 652 kg delivers the appropriate sturdiness while still allowing seamless maneuvering without putting excessive strain on the machine's hydraulic system.
• To increase durability in the areas most vulnerable to wear, HB400 steel has been applied to the 25 mm thick cutting edge base, combined with a cutting edge made of HB500 steel measuring 300x30 mm.
• This provides superior protection against abrasion and mechanical damage.
• The tapered geometry of the bucket—highly characteristic of the Scandinavian style—improves material flow and facilitates loading, unloading, and grading, particularly in difficult job site terrains.
• With dimensions of 1390 mm in length and 880 mm in height, the bucket ensures complete control over the material, allowing for precise operation in confined workspaces.
• Compatible with machinery from numerous renowned brands, such as Volvo, Komatsu, JCB, Hitachi, Caterpillar, Hyundai, and Kubota, this 1700 mm Scandinavian bucket is a highly versatile tool that proves its worth across various operating conditions.
• Optional configuration with an S60-type quick coupler and a hydraulic tilt mechanism allows the bucket to function as a Scandinavian grading bucket or a hydraulic Scandinavian bucket, significantly expanding its application in more specialized construction work.
• It is a reliable attachment that combines durability, precision, and efficiency, fully meeting user requirements in tough field applications.
• The 1700 mm Scandinavian bucket is perfectly suited for land leveling, trenching, drainage work, landscaping, and civil engineering projects, guaranteeing high productivity and reliability in every task.
