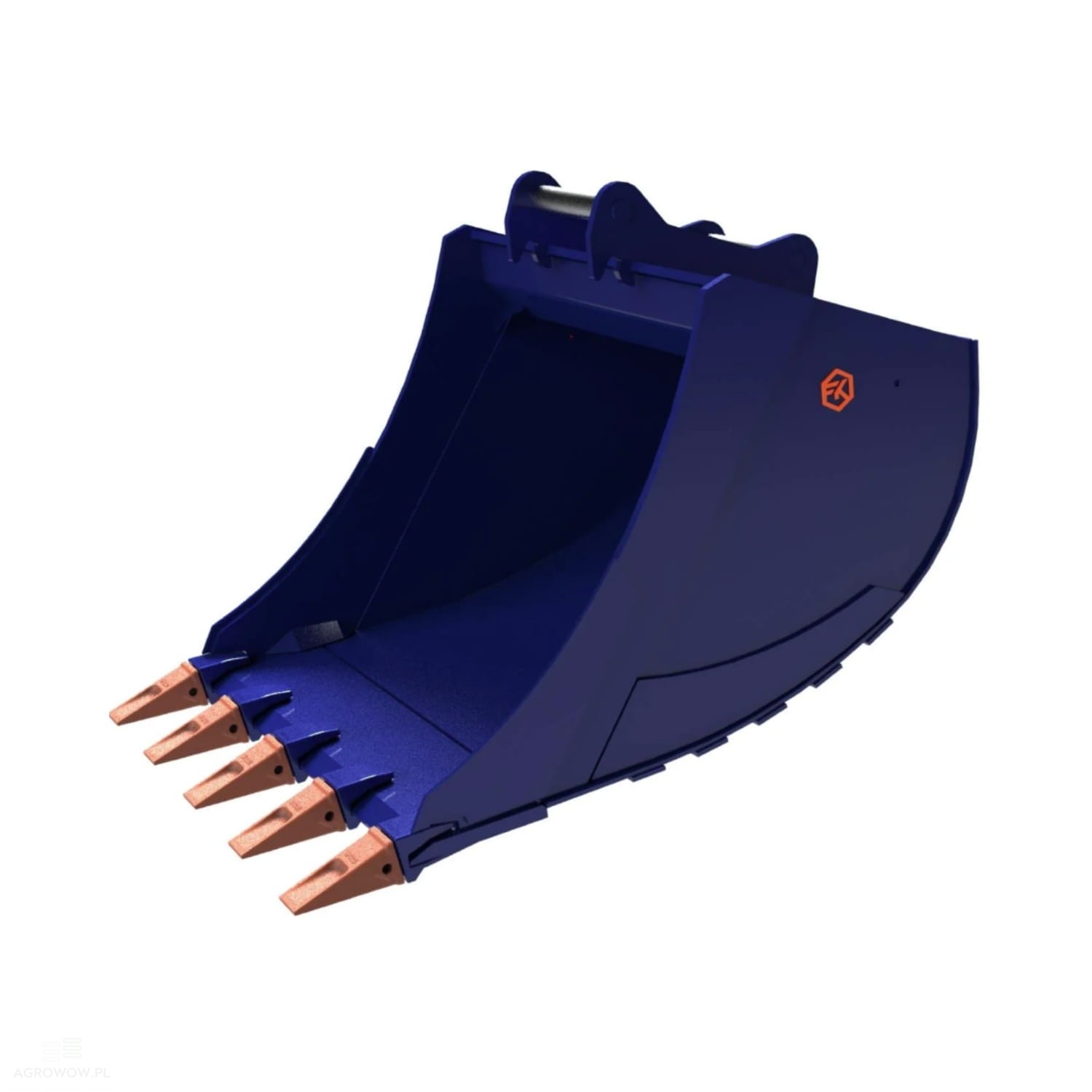

Kołaszewski backhoe bucket 14–18 T / 0.8 x 1.02 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEBJ08

- Manufacturer's name: Backhoe bucket 14-18T

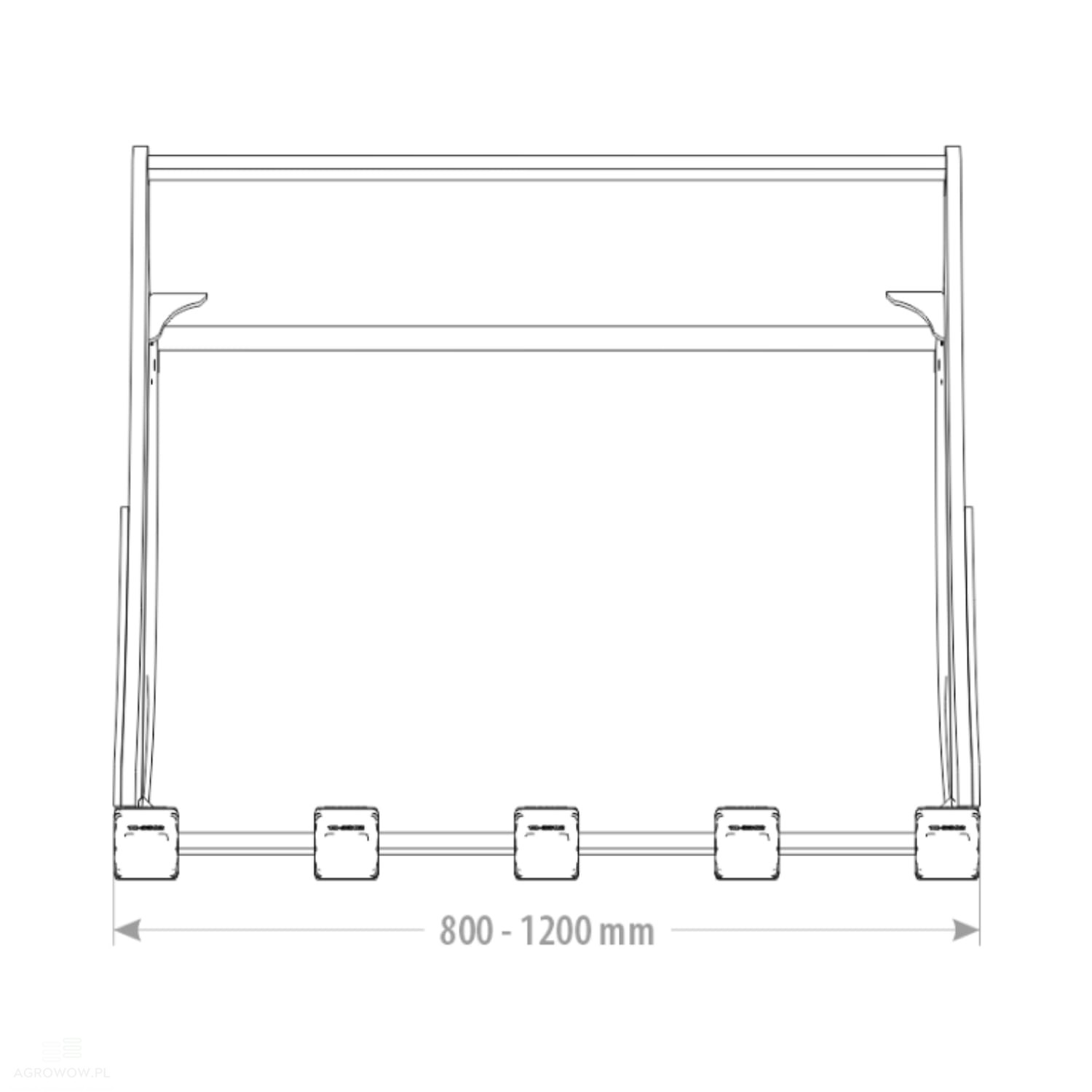

- Width: 800 mm

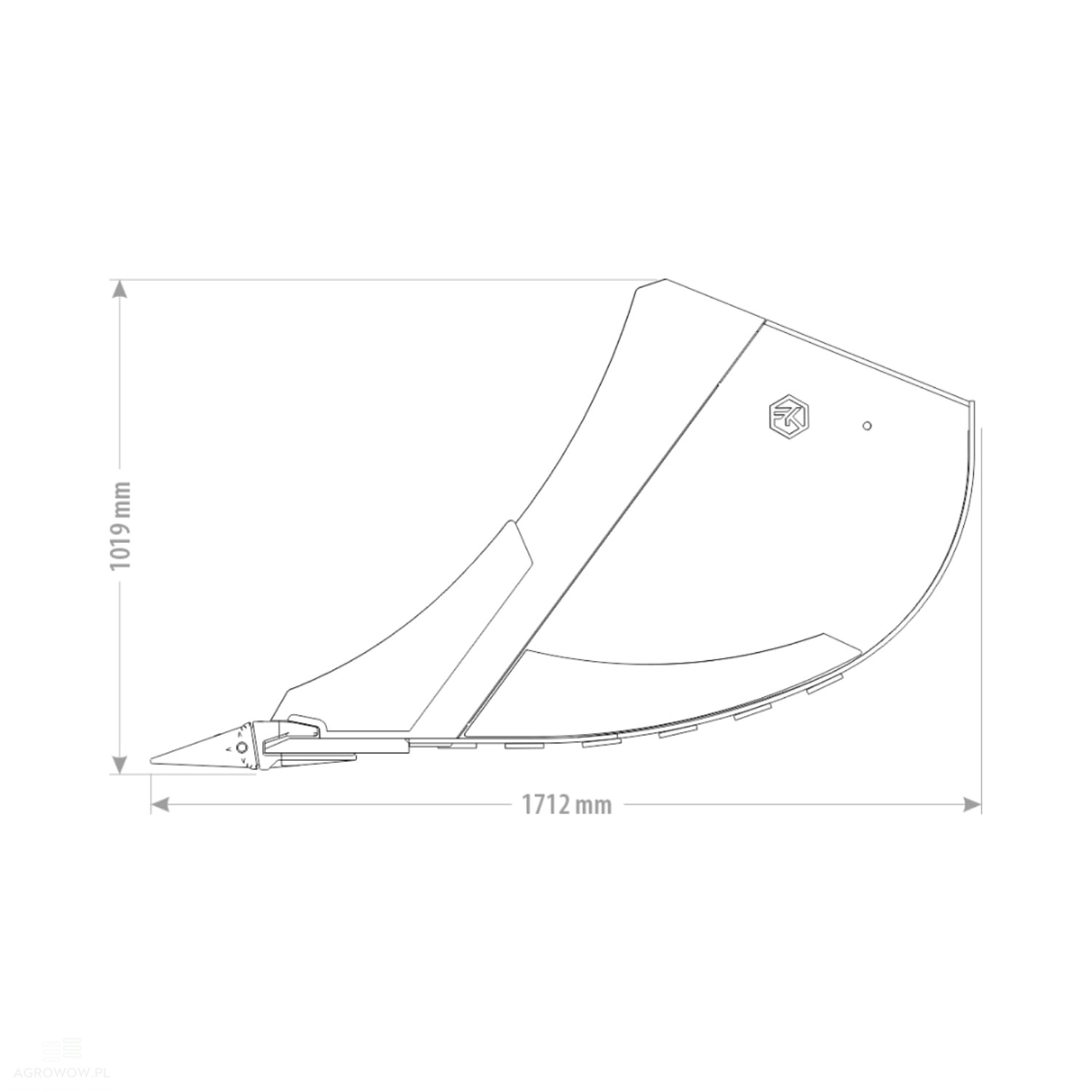

- Length: 1712 mm

- Height: 1019 mm

- Weight: 538 kg

- Capacity: 570 L

- Number of teeth: 4

- Permissible machine weight: 14–18 T

- Tooth model: CAT J300

- S355 J2 main shell / structure: 10 mm

- S355 J2 side walls: 8–10 mm

- HB400 cutting edge base / strike plate: 20+10 mm

- HB500 main cutting edge / blade: 300x30 mm

- S355 J2 ribs / reinforcements: 10 mm

Detailed Description:

• The backhoe bucket, featuring a volume capacity of 570 liters, is an exceptionally robust and heavy-duty work tool designed specifically for operation in extreme field conditions.

• It is engineered for environments where maximum structural reliability, high overload resistance, and digging precision are critical.

• Optimized for tracked or wheeled excavators with an operating weight ranging from 14 to 18 tonnes, this attachment delivers peak performance across advanced earthworks, civil infrastructure, and utility installation projects, handling all soil types effortlessly.

• With a highly efficient functional width of 800 mm, a length of 1712 mm, and a height of 1019 mm, this high-capacity bucket allows for rapid narrow trenching, deep excavation, and precise material handling.

• This significantly shortens loading cycle times and maximizes on-site operational throughput. Weighing 538 kg, its reinforced and rigid build guarantees consistent stability, safe control, and dependable continuous service under high breakout forces.

• The structural frame is manufactured from high-grade S355 J2 steel, utilizing a 10 mm thick main wrapper shell, 8–10 mm thick side panels, and 10 mm thick reinforcing ribs.

• This comprehensive steel configuration provides outstanding resistance against high mechanical impact, twisting forces, and structural deformation during rigorous daily use in harsh terrain.

• To withstand aggressive abrasion, the bucket features a dual-layered cutting edge base plate made from HB400 wear-resistant steel (20+10 mm) combined with an ultra-tough HB500 main cutting edge blade measuring 300x30 mm.

• This heavy-duty armor setup shields the core structure from severe wear, ensuring prolonged service life even when operating in highly abrasive, stony, or heavily compacted ground.

• Equipped with four aggressive, powerful teeth utilizing the industry-standard CAT J300 locking system, the bucket ensures excellent ground penetration, clean slicing, and superior material retention.

• The engineered spacing and geometric alignment of the teeth facilitate smooth hydraulic maneuvering, low drag resistance, and optimal filling behaviors, minimizing fuel consumption and machine wear while increasing operator comfort.

• This versatile backhoe bucket is the premier choice for deep trenching, foundation excavation, utility pipeline installation, and heavy drainage works where equipment durability cannot be compromised.

• By selecting this heavy-duty model, professionals invest in high-tier engineering that seamlessly merges modern manufacturing standards with rugged durability, ensuring a reliable, long-term asset for the most demanding construction challenges.
