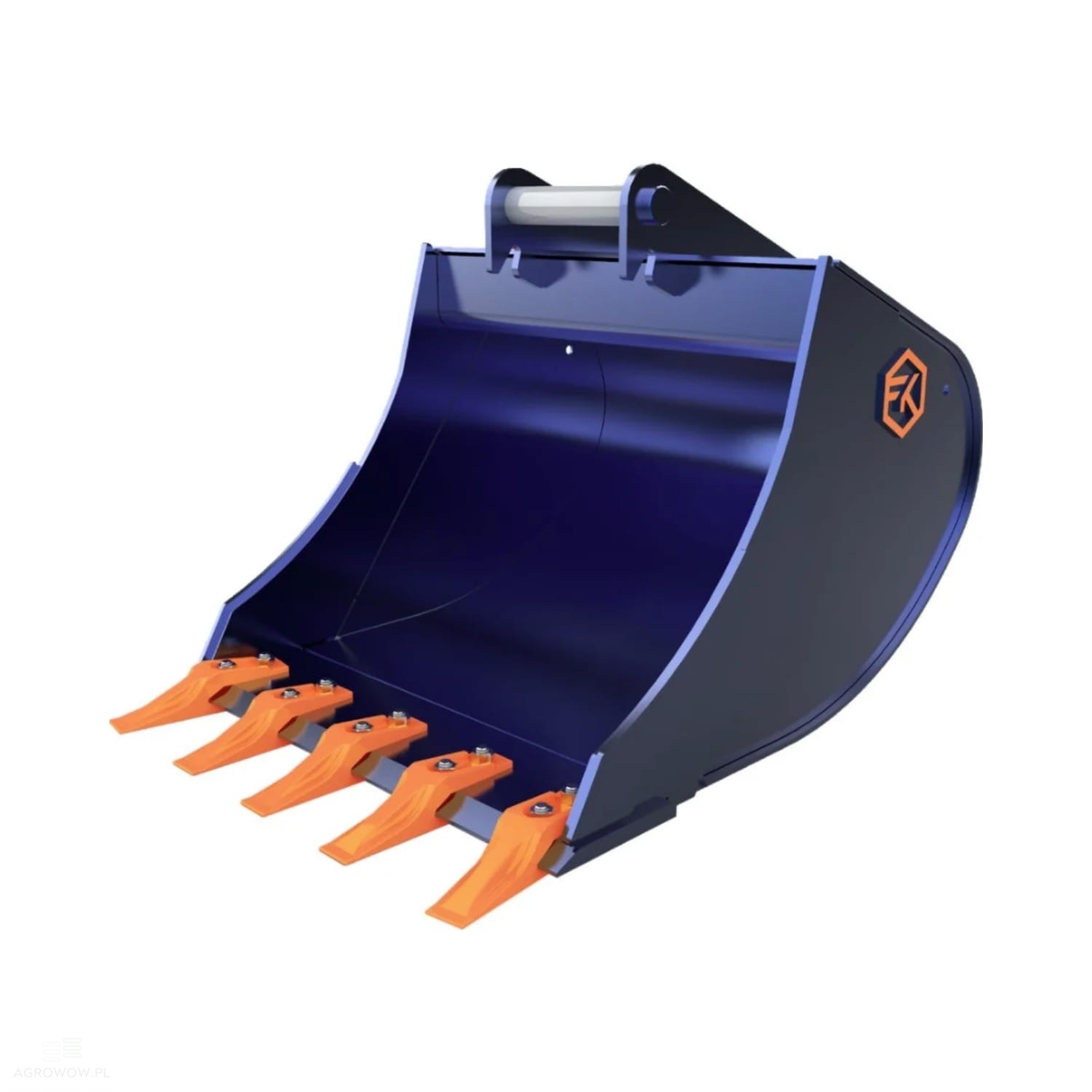

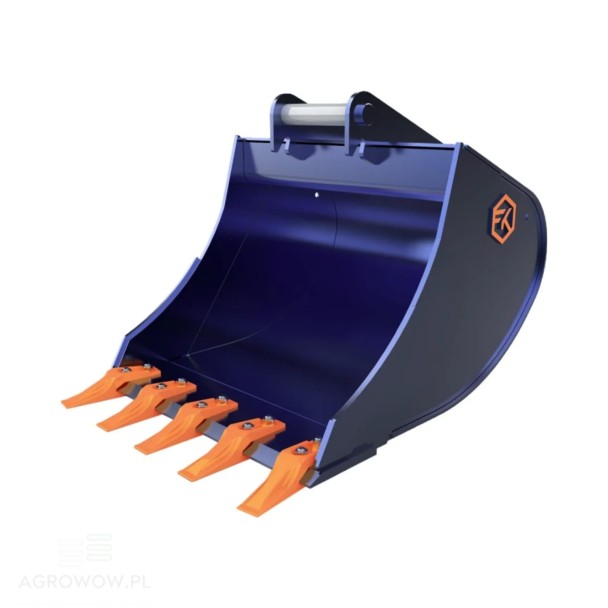

Kołaszewski backhoe bucket 2.6-3.5 T / 0.8 x 0.49 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEBC08

- Manufacturer's name: Backhoe bucket 2.6-3.5T

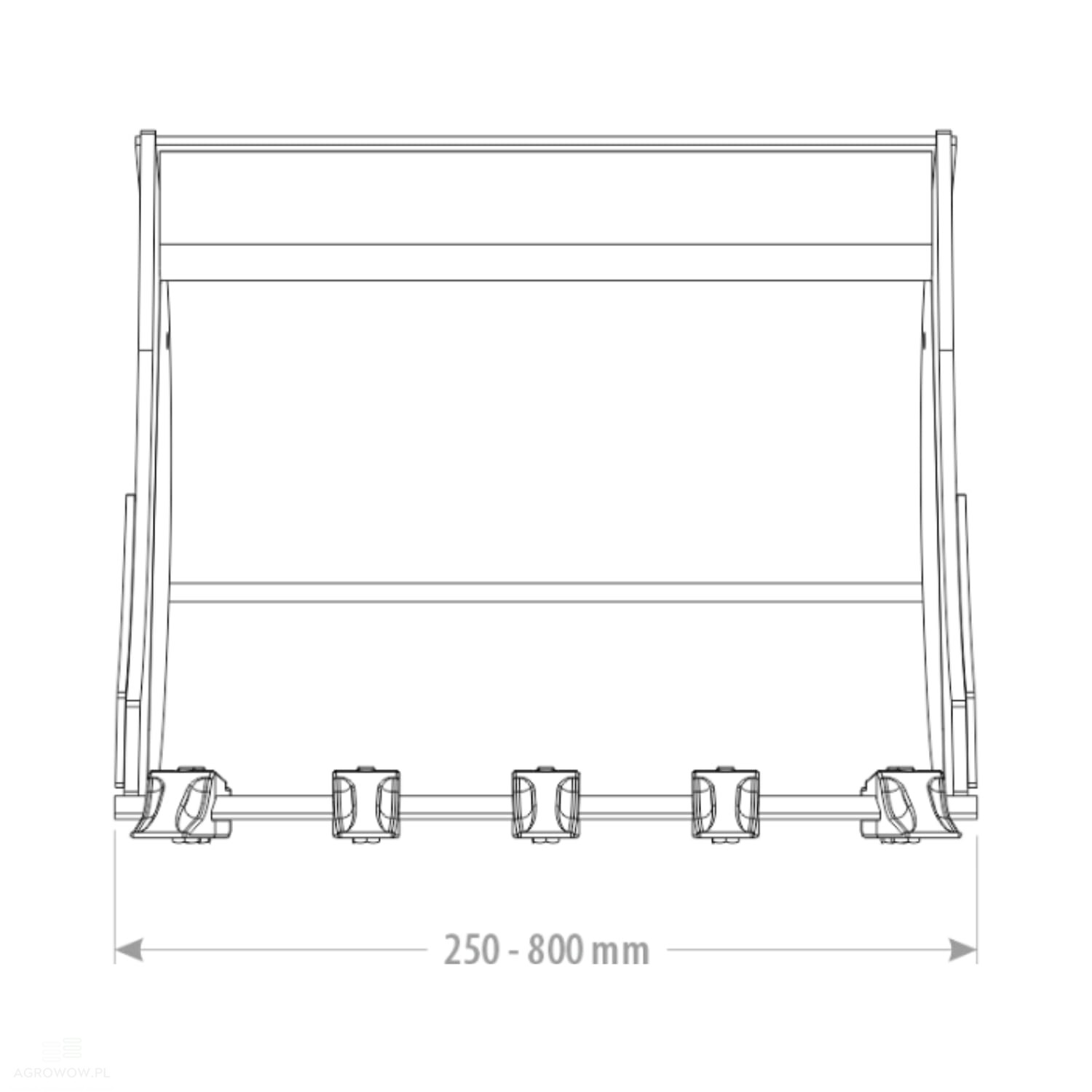

- Width: 800 mm

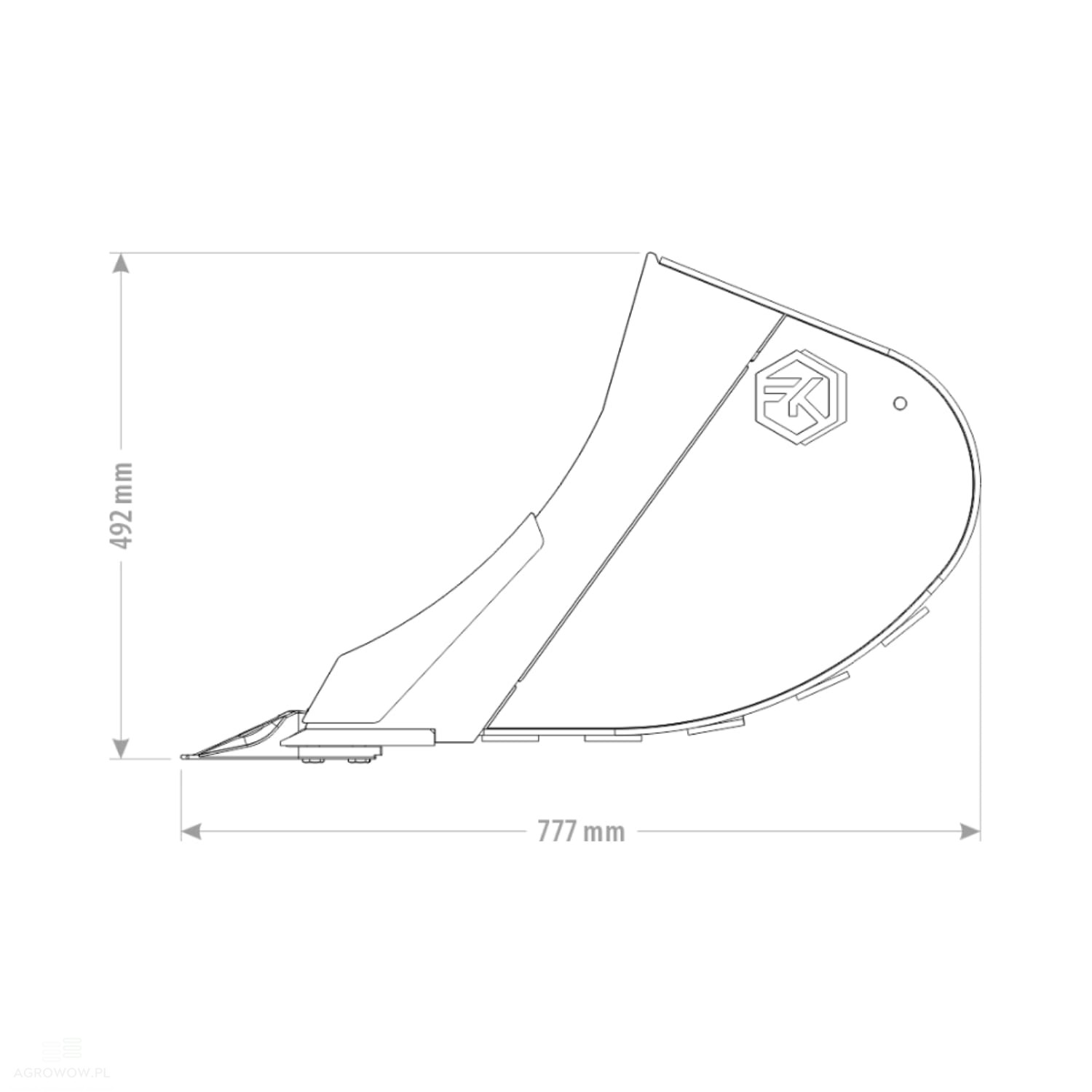

- Length: 777 mm

- Height: 492 mm

- Weight: 110 kg

- Capacity: 177 L

- Number of teeth: 6

- Permissible machine weight: 2.6-3.5 T

- Tooth model: 3FU

- S355 J2 main body shell thickness: 6 mm

- S355 J2 side panel thickness: 5-10 mm

- HB400 leading edge thickness: 6 mm

- HB500 cutting edge: 150x16 mm

- S355 J2 reinforcing ribs thickness: 6 mm

Detailed Description:

• The backhoe bucket with a capacity of 177 liters is a durable and extremely spacious tool designed to work with mini-excavators with an operating weight of 2.6 to 3.5 tons.

• Thanks to its width of 800 mm, it is perfectly suited for larger-scale excavations—where high efficiency and fast movement of excavated material are essential, such as when creating extensive installation trenches, foundations, or earthworks for surfaces and construction sites.

• The length of 777 mm and height of 492 mm allow for deep digging while maintaining a compact structural shape.

• These parameters provide high functionality also in restricted working areas, such as urban development or zones with dense technical infrastructure.

• Six teeth of the 3FU system ensure effective penetration of various types of ground—from loose and clayey to compacted and stony.

• The use of replaceable teeth significantly reduces maintenance time and allows for maintaining continuity of work without unnecessary downtime.

• As a backhoe bucket for a "Troll" loader/excavator, it was designed with maximum durability and reliability in mind.

• High-strength structural steel S355 J2, known for its resistance to stress, impacts, and mechanical deformations, was used for its production.

• The 6 mm thick shell and side panels with a variable thickness from 5 to 10 mm ensure structural stability even in the most demanding field conditions.

• The lower sections of the bucket are additionally reinforced with a cutting edge made of wear-resistant HB500 steel (150x16 mm) and an HB400 leading edge with a thickness of 6 mm, which effectively protects the tool against abrasion and damage in contact with debris, gravel, or roots.

• The 6 mm thick reinforcing ribs, also made of high-strength S355 J2 steel, increase the stiffness and durability of the entire structure, while its own weight of 110 kg ensures an optimal balance between solidity and operational comfort—without overloading the machine, yet enabling effective utilization of the excavator's breakout force.

• The "Troll" bucket with these parameters is utilized in many branches of construction and installation—from earthworks and underground infrastructure installation to sewage works or preparing land for industrial investments.

• As a long backhoe bucket, it ensures a large volume of excavated material with minimal disruption to the surrounding area, which limits the scope of finishing works and significantly accelerates the completion of projects.

• The 177L backhoe bucket is an indispensable tool for operators and construction companies looking for an attachment that combines durability, large capacity, and reliability in daily work.

• Its ergonomic design and solid workmanship guarantee maximum efficiency even in the most demanding conditions.
