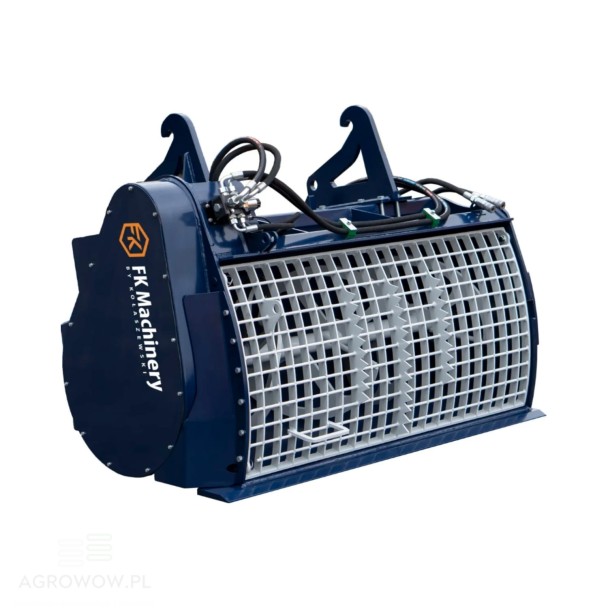

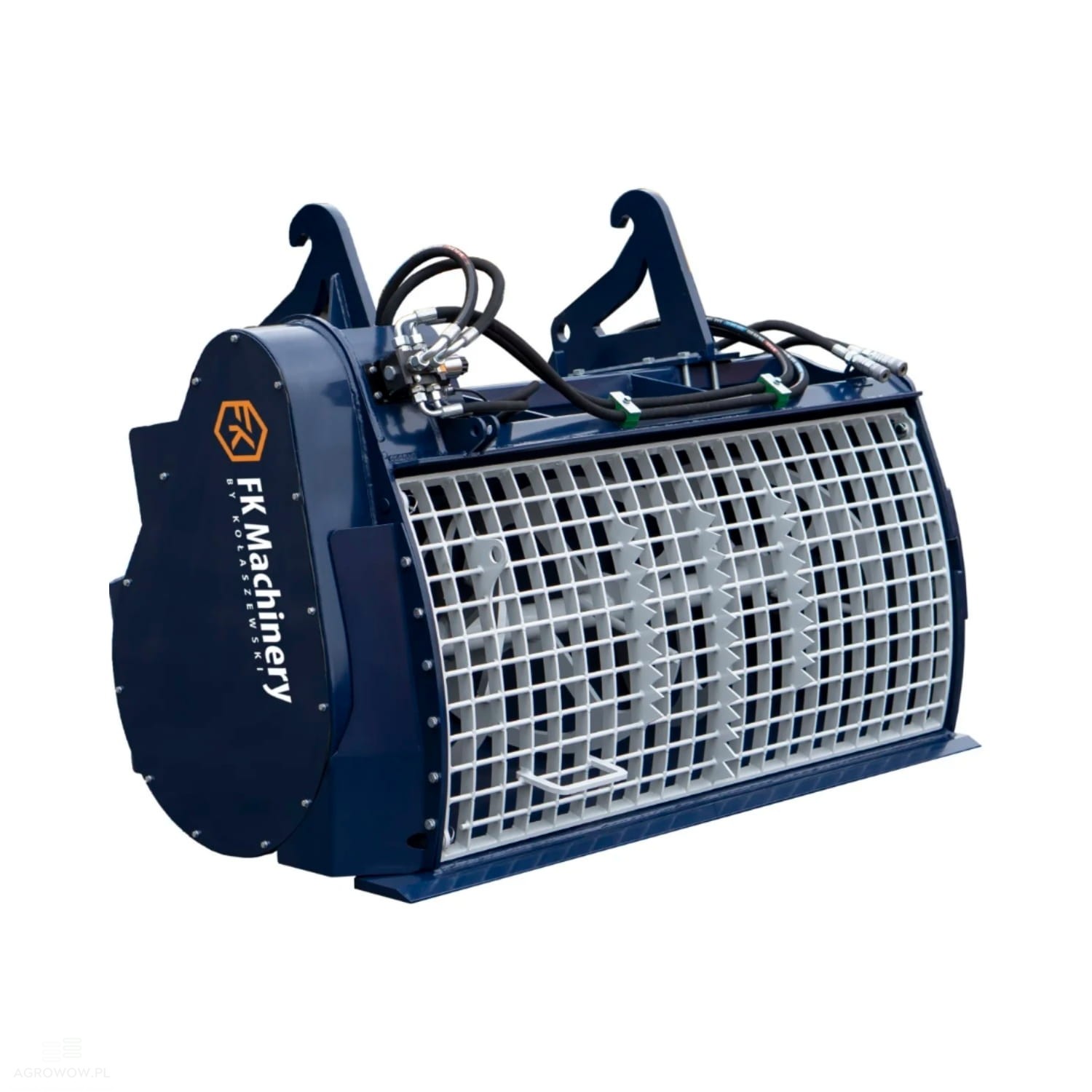

Kołaszewski concrete mixer bucket 1.4 x 1.02 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KUCMB140

- Manufacturer's name: Concrete mixer bucket

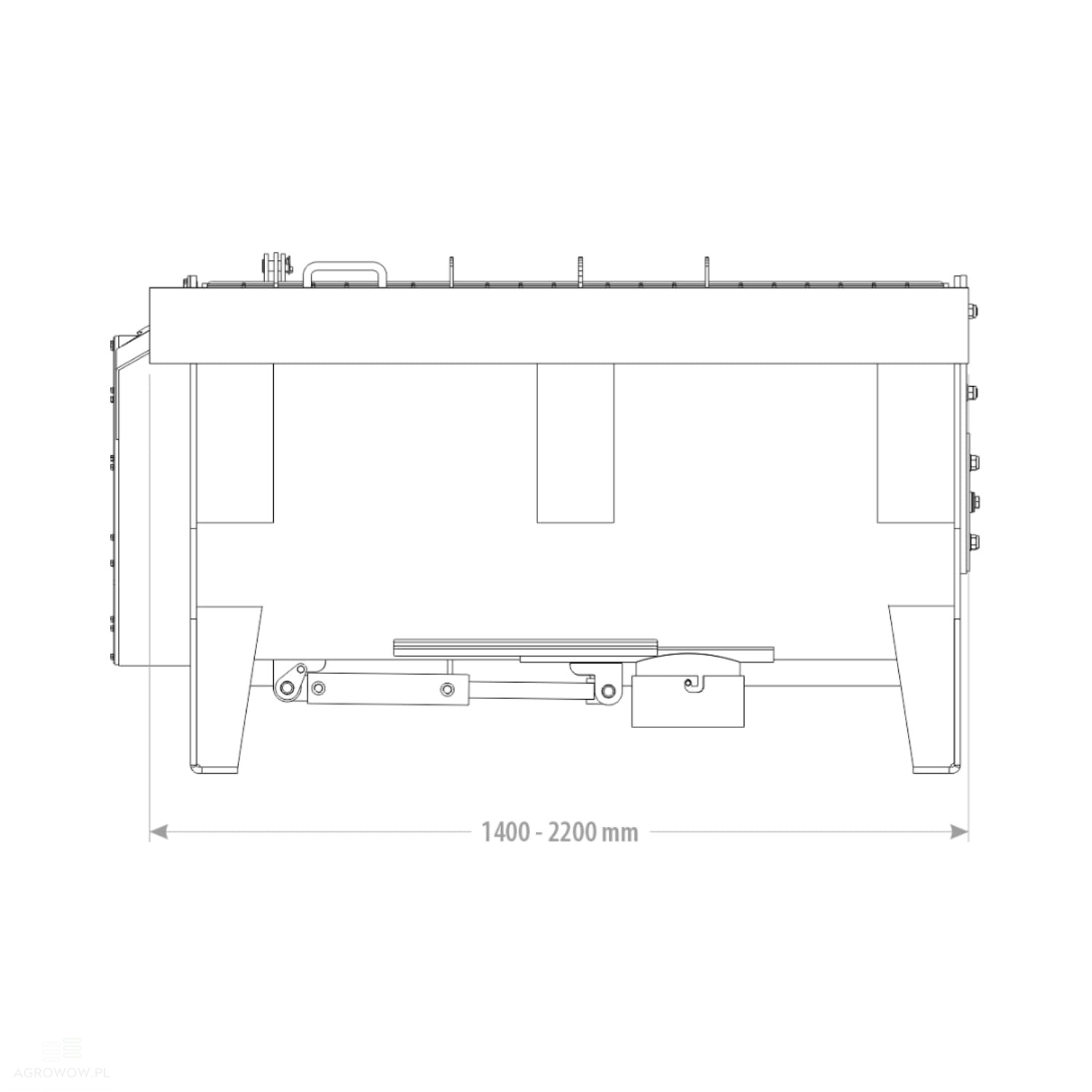

- Width: 1400 mm

- Working width: 1180 mm

- Length: 1045 mm

- Height: 1020 mm

- Weight: 593 kg

- Capacity: 0.44 m³

- Side panel thickness: 12 mm

- Main body shell thickness: 8 mm

- Hydraulic pressure: 180 bar

- Oil flow: 40 L/min

- HB500 cutting edge: 150x20 mm

- Bottom reinforcement: 15 mm

- Electrically controlled sectional valve

- Mixer paddle made of high-grade HB400 steel

- Heavy-duty safety screen for filtering out stones

- Recommended oil flow: 40 L/min

- 3rd hose for free-flow return line

Optional equipment (at additional cost):

- Spill guard

The spill guard is a practical protective element mounted at the upper part of the outlet of a concrete mixer tank or other bulk material device. Its task is to restrict the uncontrolled spillage of material outside the designated zone, which translates into greater order and work safety. The guard also prevents concrete, mortar, or aggregate from spilling during drum tilting or transport, allowing the operator to control the discharge process more precisely. This is particularly important in places with limited working space or when working with small molds and containers.

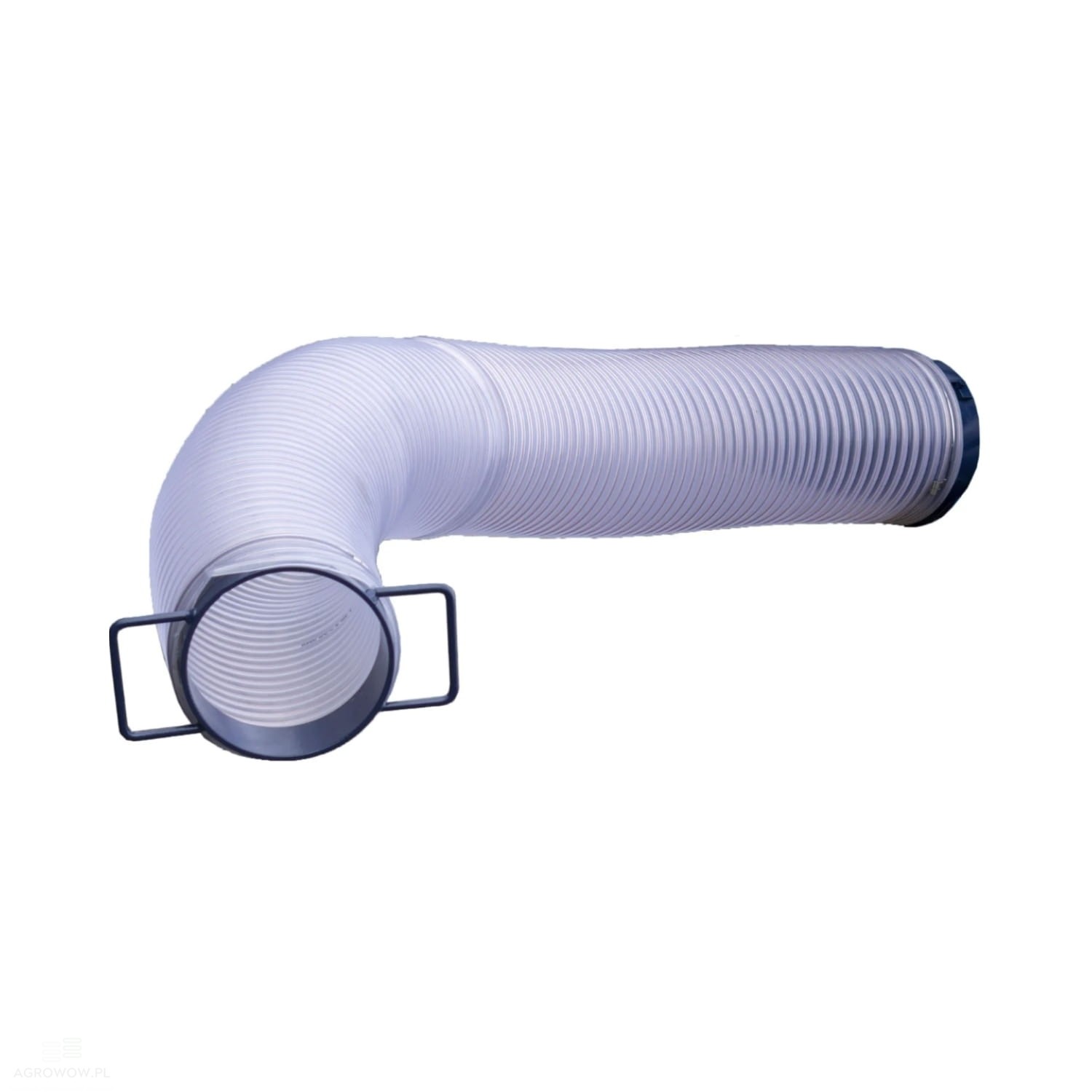

- Discharge chute 1500 mm

The 1500 mm discharge chute is an element that extends the outflow path of the concrete mixture, designed for directional and precise emptying of the tank. Thanks to its greater reach, the chute enables the delivery of concrete to hard-to-reach places—e.g., into deeper formwork, into containers placed further away from the concrete mixer, or when working in a limited space. This facilitates operating the device and shortens the time needed to distribute the material, while reducing the risk of waste and contamination in the working environment.

Detailed Description:

• The concrete mixer bucket with a width of 1400 mm is an advanced, multifunctional hydraulic tool designed for mixing and loading various types of bulk and semi-liquid materials.
• Thanks to the built-in mixing system with a paddle made of high-grade HB400 steel, the device works perfectly both as a bucket for sand, grain, coal, and for preparing mortars, road bedding materials, or concentrated feed.
• The ability to work with materials of different densities makes it a universal tool for applications in construction, agriculture, and the municipal industry.
• The tank with a capacity of 0.44 m³, equipped with a safety screen protecting against the penetration of larger stones and contaminants, guarantees high quality of the prepared mixture.
• An 8 mm thick shell, 12 mm side panels, and a 15 mm bottom reinforcement ensure maximum durability and resistance to mechanical damage, even when working with heavy fractions of raw materials.
• The bucket is equipped with a precise sectional valve controlled electrically, which allows for convenient control over the mixing and discharging process.
• It operates at a working pressure of 180 bar and a flow rate of 40 L/min, which ensures smooth operation even during intensive exploitation.
• The HB500 cutting edge measuring 150x20 mm additionally supports work in difficult terrain, facilitating penetration into a compacted mass.

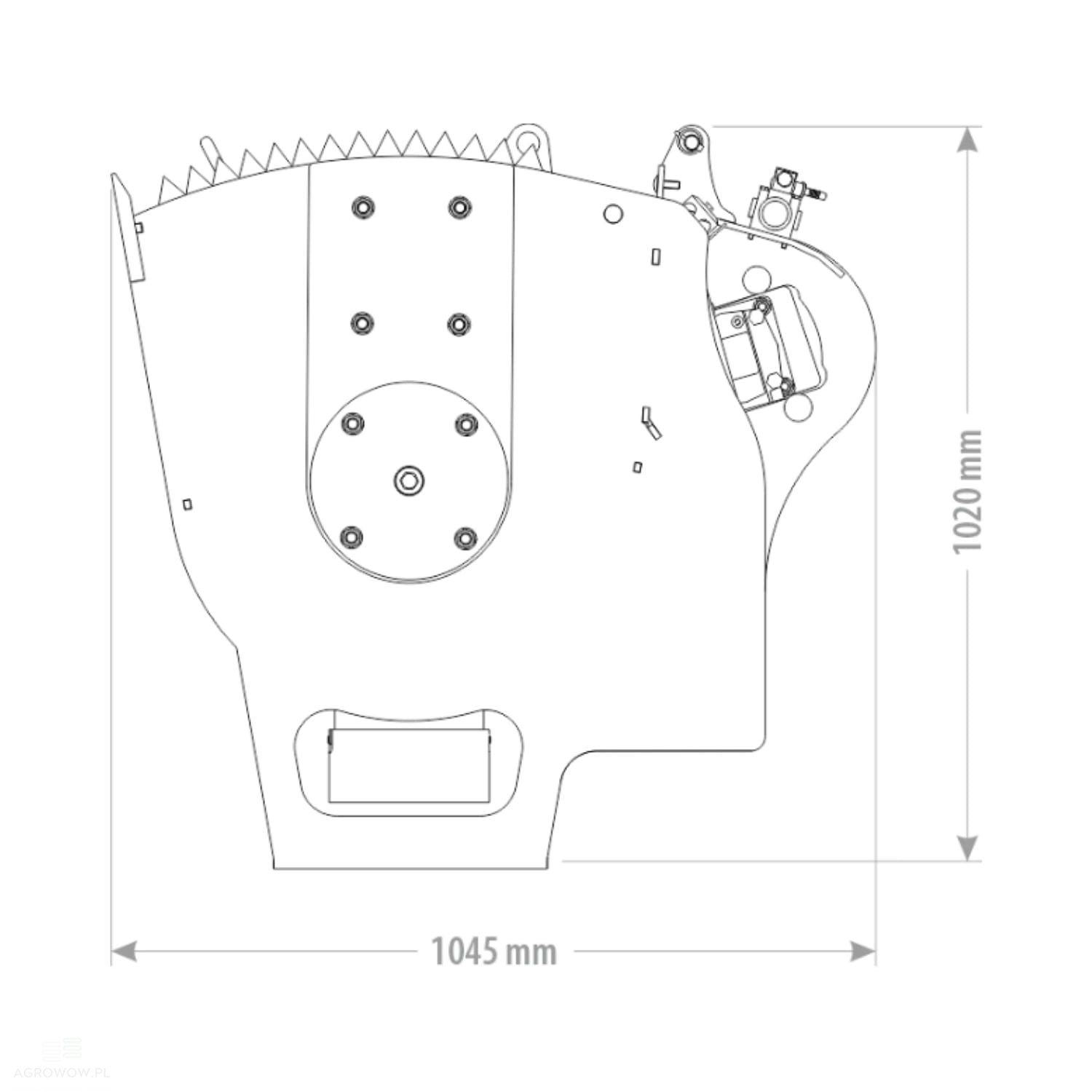

• Thanks to its working width of 1180 mm and compact overall dimensions (length of 1045 mm, height of 1020 mm), the mixer bucket is suitable for work in restricted spaces.
• It can be mounted as an attachment for a front loader, tractor, front loader arms, and even—with an appropriate adapter—as a bucket for a forklift.
• The metal structure, hydraulic drive, and full compatibility with modern working systems make it an ideal bucket for manure, potatoes, feed, as well as bulk materials that require uniform mixing before application.
• The mixer bucket is an investment in work efficiency, equipment durability, and maximum functionality—regardless of the industry and working conditions.
