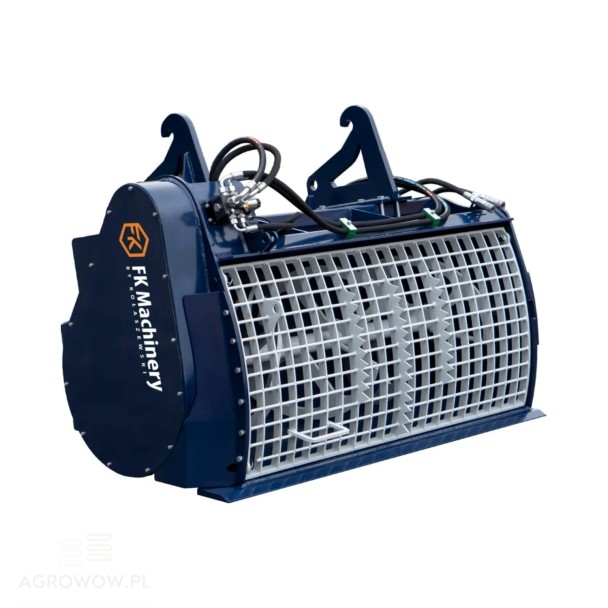

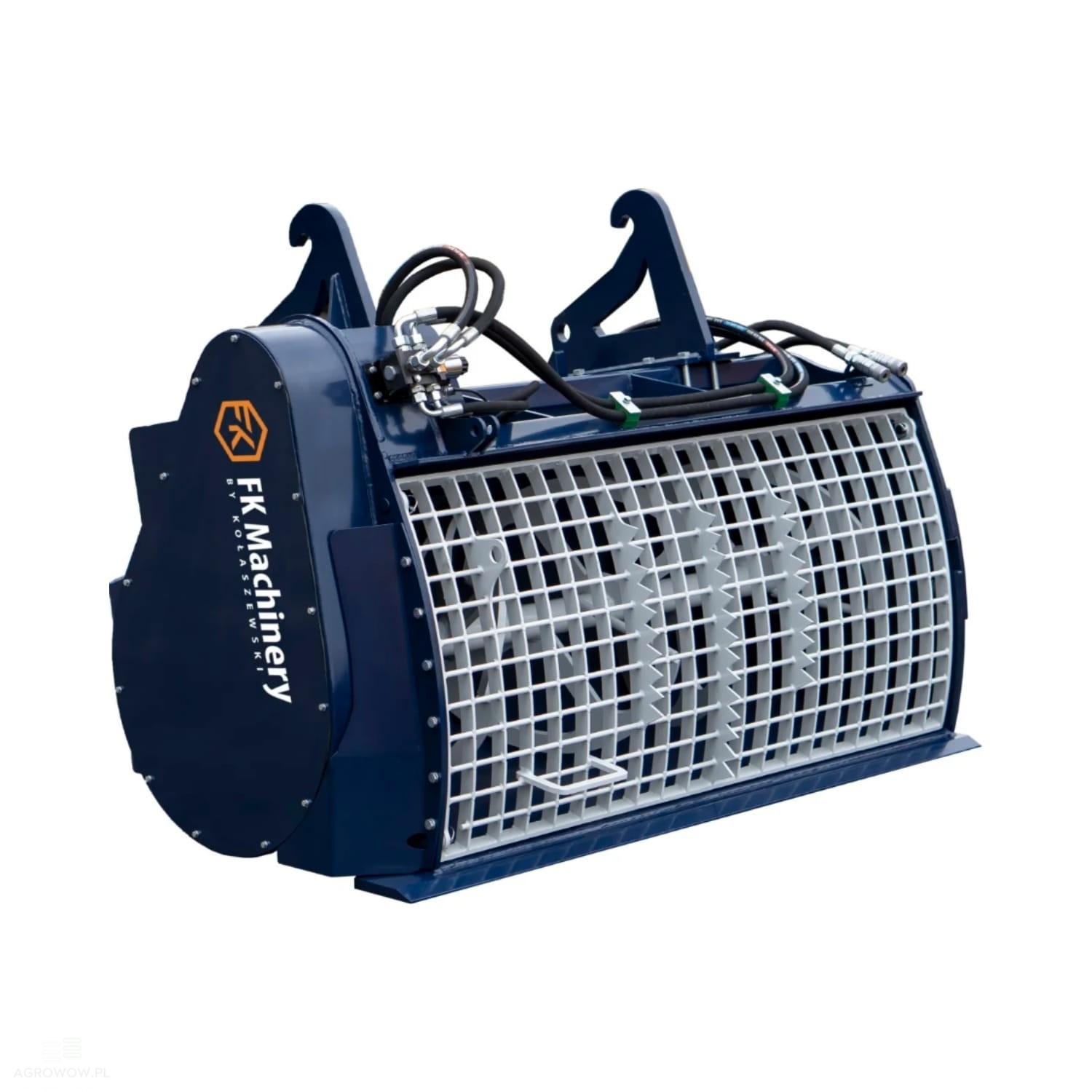

Kołaszewski concrete mixer bucket 1.7 x 1.02 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KUCMB170

- Manufacturer's name: Concrete mixer bucket

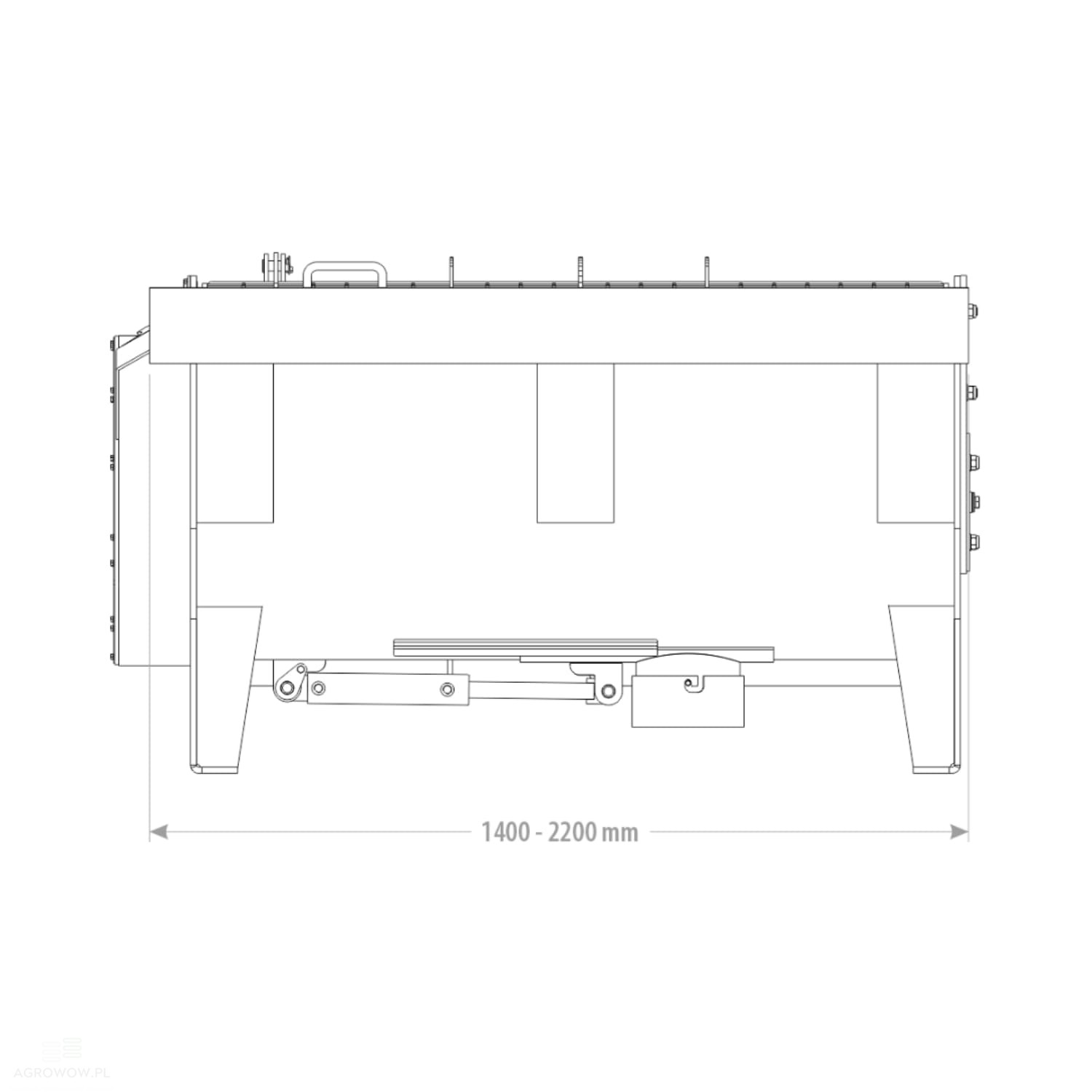

- Width: 1700 mm

- Working width: 1450 mm

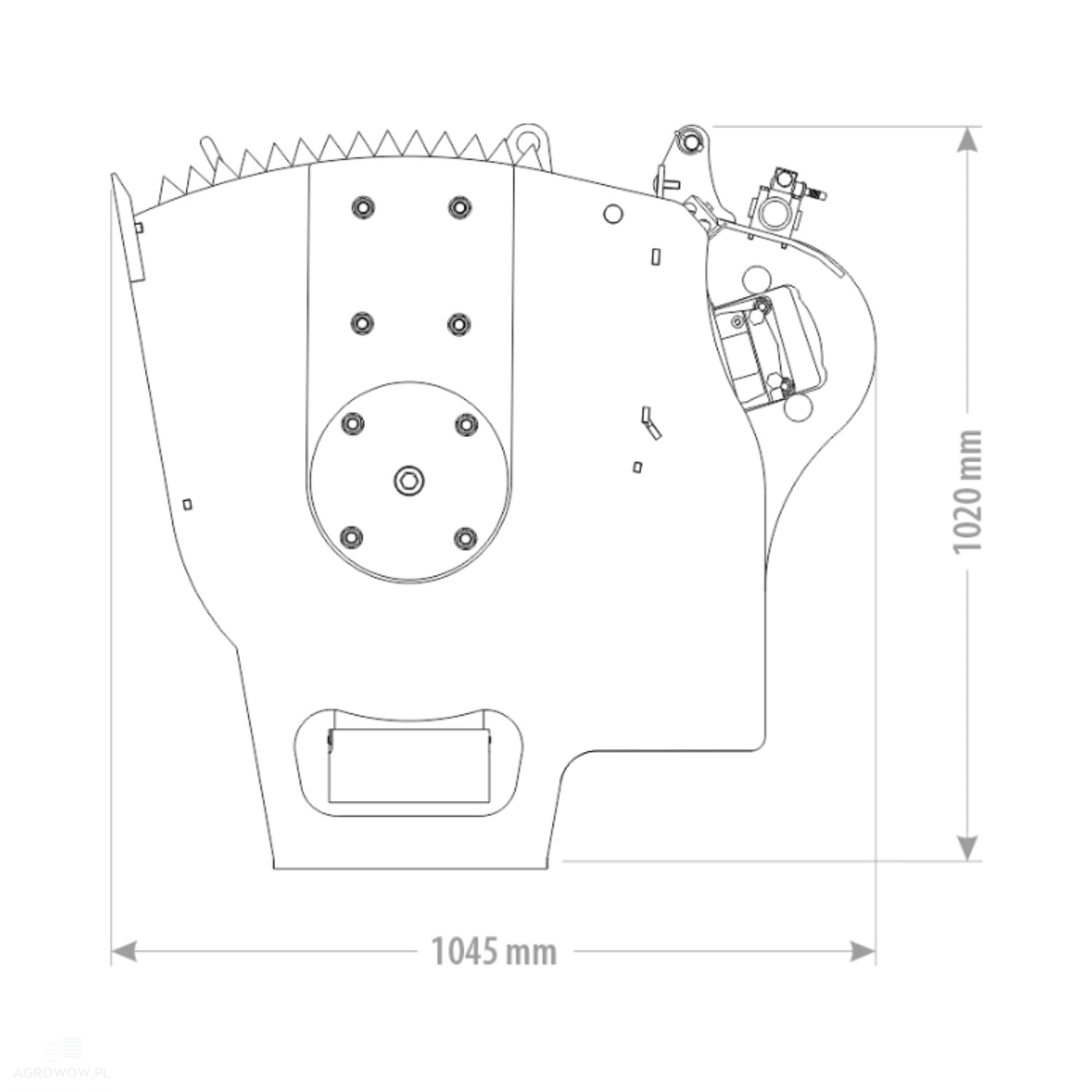

- Length: 1045 mm

- Height: 1020 mm

- Weight: 672 kg

- Capacity: 0.53 m³

- Side panel thickness: 12 mm

- Main body shell thickness: 8 mm

- Hydraulic pressure: 180 bar

- Oil flow: 40 L/min

- HB500 cutting edge: 150x20 mm

- Bottom reinforcement: 15 mm

- Electrically controlled sectional valve

- Mixer paddle made of high-grade HB400 steel

- Heavy-duty safety screen for filtering out stones

- Recommended oil flow: 40 L/min

- 3rd hose for free-flow return line

Optional equipment (at additional cost):

- Spill guard

The spill guard is a functional element mounted at the upper part of the concrete mixer outlet or other bulk material device. Its main purpose is to restrict the uncontrolled spillage of the mixture outside the working area. Thanks to this, the work becomes more precise, safer, and orderly. The guard allows for better control over the discharge process, especially while tilting the drum or moving the machine, which is of significant importance when working in tight spaces or when filling small molds and containers.

- Discharge chute 1500 mm

The 1500 mm discharge chute enables accurate and directional routing of the concrete mixture from the device. The extended discharge channel allows for precise dosing of concrete into molds distant from the mixer, deep formwork, or hard-to-reach places, eliminating the need to move the material manually. This solution increases operating convenience, speeds up work, and reduces the risk of waste and contamination in the workspace.

Detailed Description:

• The concrete mixer bucket with a width of 1700 mm is a specialized hydraulic tool designed for mixing and transporting bulk and semi-liquid materials in various industries—ranging from construction and agriculture to the municipal sector.
• Equipped with a durable mixer paddle made of high-grade HB400 steel and a safety screen that stops stones, the bucket enables the preparation of a homogeneous mixture from materials such as sand, grain, manure, feed, or road bedding aggregates.
• The working capacity of 0.53 m³ makes the device perfectly capable of handling larger batches of material, shortening the time needed for loading and mixing.
• The structure is made of durable steel—12 mm thick side panels, an 8 mm shell, and an additional 15 mm bottom reinforcement ensure maximum resistance to damage and abrasion, even when working with heavy raw materials.
• The HB500 cutting edge (150x20 mm) supports the effective penetration of the bucket into hard ground or compacted mass, which speeds up work in difficult field conditions.
• The hydraulic system with a pressure of 180 bar and a flow rate of 40 L/min guarantees smooth, reliable operation of both the mixer paddle and the discharge system. The electrically controlled sectional valve allows for convenient control from the operator's cab.
• The working width of 1450 mm combined with compact overall dimensions (length of 1045 mm, height of 1020 mm) allows for efficient maneuvering in restricted working spaces.
• The mixer bucket can be mounted as an attachment for a front loader, tractor, or forklift—using an appropriate adapter—which makes it extremely versatile in daily work.
• The three-hose hydraulic system (including a free-flow return line hose) ensures safe and stable operation of the mixer even under heavy load.
• This is a metal bucket, ideal for sand, for coal, for grain, and for potatoes—where, in addition to transport, precise and uniform mixing of the material is what matters.
• Thanks to its solid construction and functional solutions, the 1700 mm mixer bucket is an investment in reliability, efficiency, and flexibility of application—for contractors, farmers, and municipal machine operators alike.
