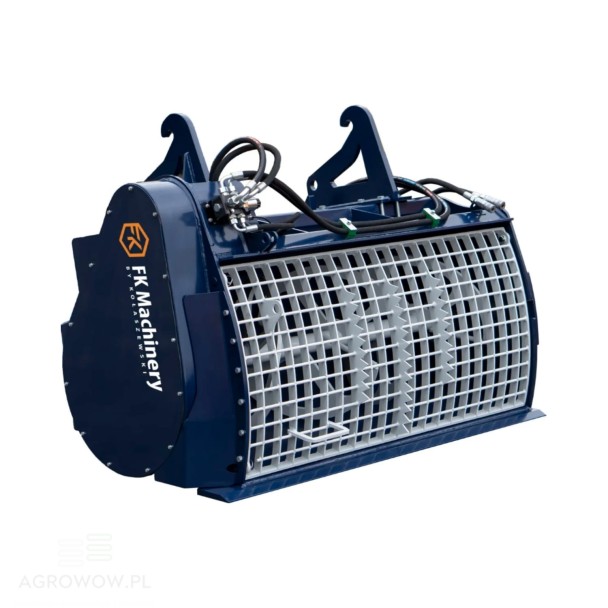

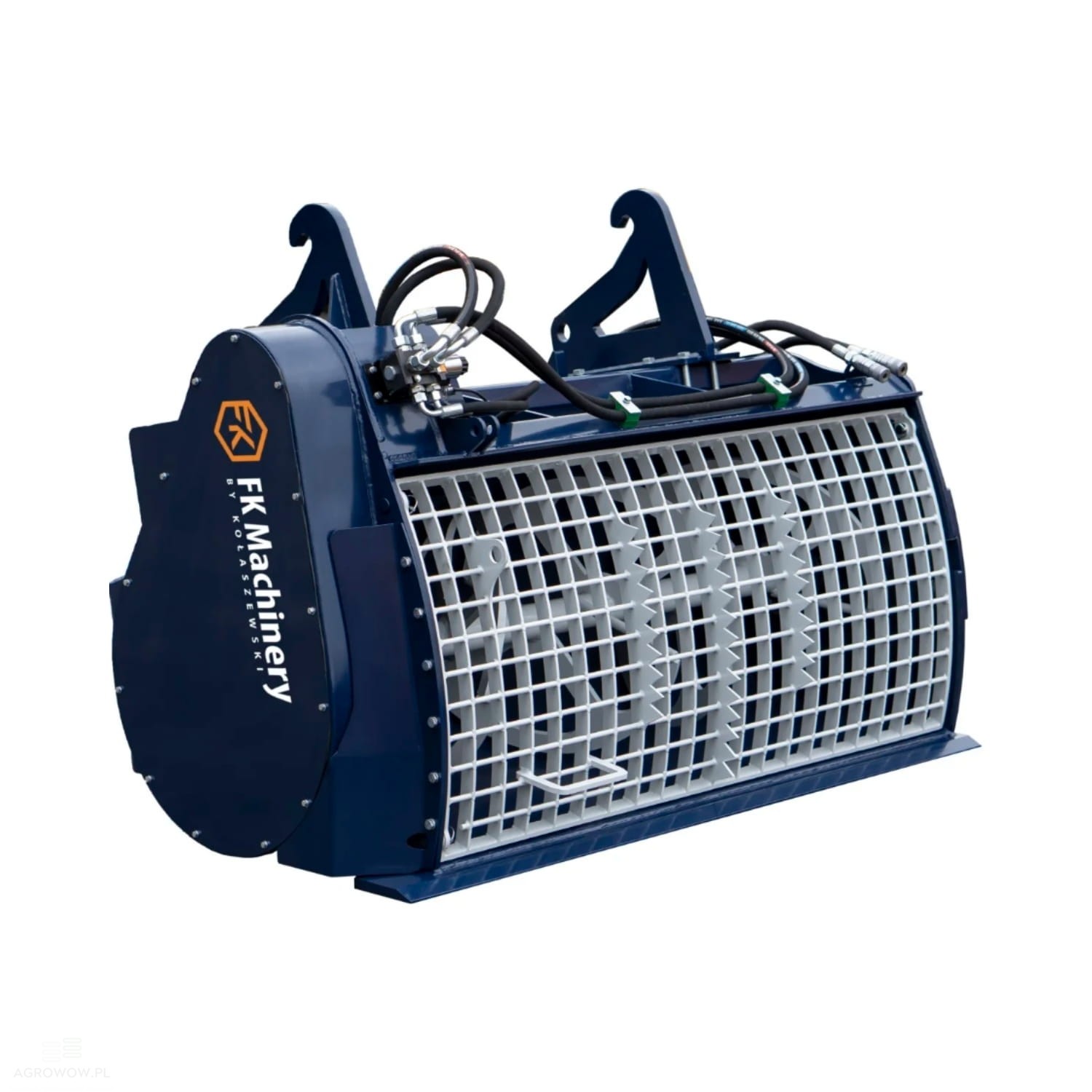

Kołaszewski concrete mixer bucket 2.0 x 1.02 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KUCMB200

- Manufacturer's name: Concrete mixer bucket

- Width: 2000 mm

- Working width: 1780 mm

- Length: 1045 mm

- Height: 1020 mm

- Weight: 750 kg

- Capacity: 0.62 m³

- Side panel thickness: 12 mm

- Main body shell thickness: 8 mm

- Hydraulic pressure: 180 bar

- Oil flow: 40 L/min

- HB500 cutting edge: 150x20 mm

- Bottom reinforcement: 15 mm

- Mixer paddle made of high-grade HB400 steel

- Heavy-duty safety screen for filtering out stones

- Solidna kratownica przesiewająca kamienie

- Recommended oil flow: 40 L/min

- 3rd hose for free-flow return line

Optional equipment (at additional cost):

- Spill guard

The spill guard is a functional element mounted at the upper part of the concrete mixer outlet or other bulk material device. Its main purpose is to restrict the uncontrolled spillage of the mixture outside the working area. Thanks to this, the work becomes more precise, safer, and orderly. The guard allows for better control over the discharge process, especially while tilting the drum or moving the machine, which is of significant importance when working in tight spaces or when filling small molds and containers.

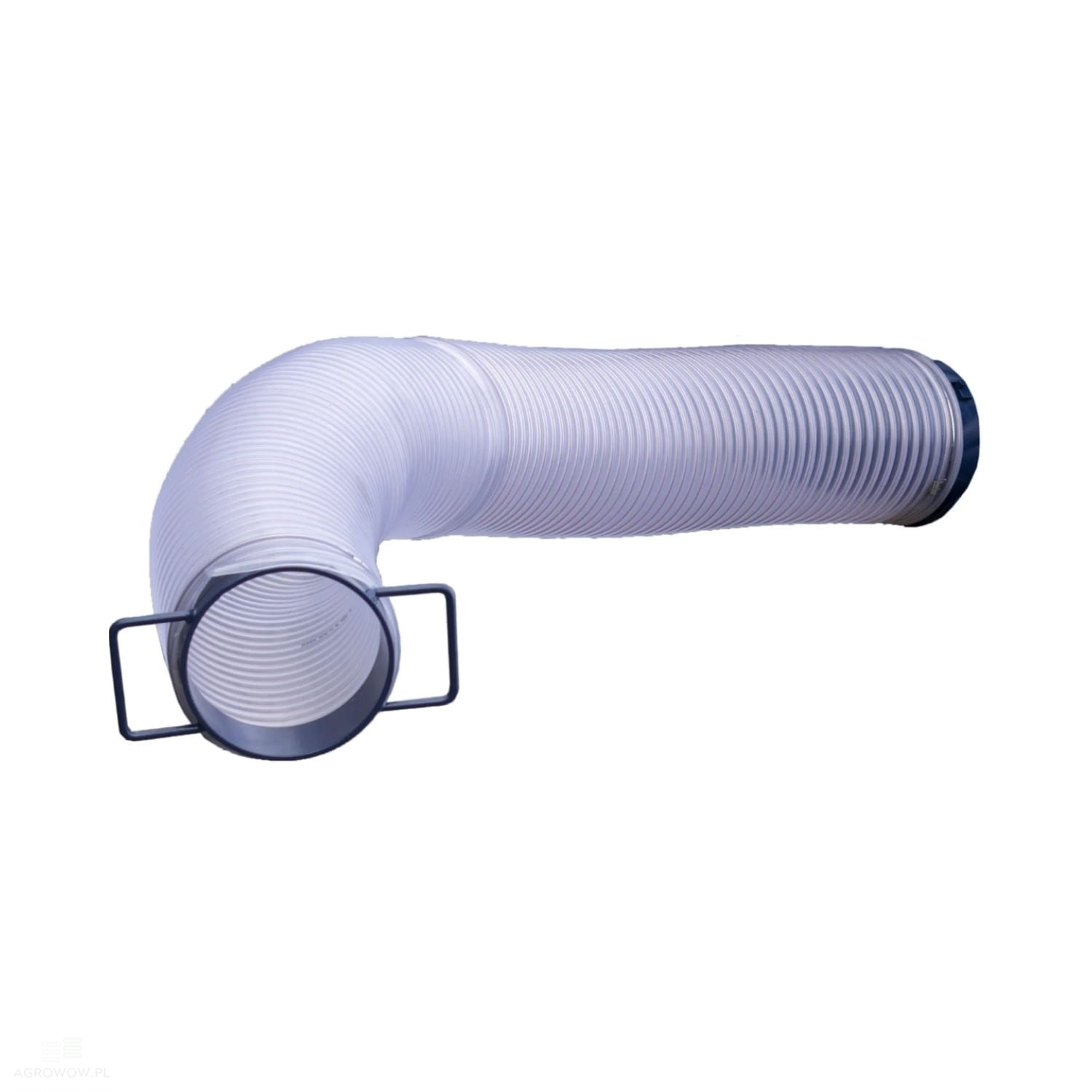

- Discharge chute 1500 mm

The 1500 mm discharge chute is used for precise routing of the concrete outflow into the destination area. Its extended design enables convenient emptying of the bucket into molds distant from the device, deep formwork, or hard-to-reach locations. The application of such a solution improves the entire work process, reduces the need for manual transport of the material, and minimizes waste and dirt in the working zone.

Detailed Description:

• The concrete mixer bucket with a width of 2000 mm is a versatile hydraulic device designed for fast mixing and transporting of bulk and semi-liquid materials in industrial, agricultural, and construction conditions.
• Its working capacity is 0.62 m³, which allows for the one-time preparation of a large amount of material—such as feed, bedding materials, manure, sand, grain, or potatoes—and significantly accelerates the progress of loading and preparation works.
• The mixer paddle made of resistant HB400 steel effectively homogenizes the contents of the tank, and the heavy-duty safety screen prevents stones and other contaminants from entering the mixing chamber, increasing the quality of the final material.
• The structure of the bucket is based on an 8 mm thick steel shell, 12 mm side panels, and a bottom additionally reinforced with 15 mm thick steel, which translates into high resistance to abrasion, dents, and stresses occurring during intensive exploitation.
• Equipped with a wear-resistant HB500 cutting edge measuring 150x20 mm, it enables effective penetration into hard and compacted ground, which facilitates scooping even heavy materials from the soil.
• The hydraulic system of the bucket works at a pressure of 180 bar and a flow rate of 40 L/min—which guarantees a dynamic yet stable operation of the mixer and the discharging system. The electrically controlled sectional valve allows for convenient management of the device functions without leaving the operator's cab.

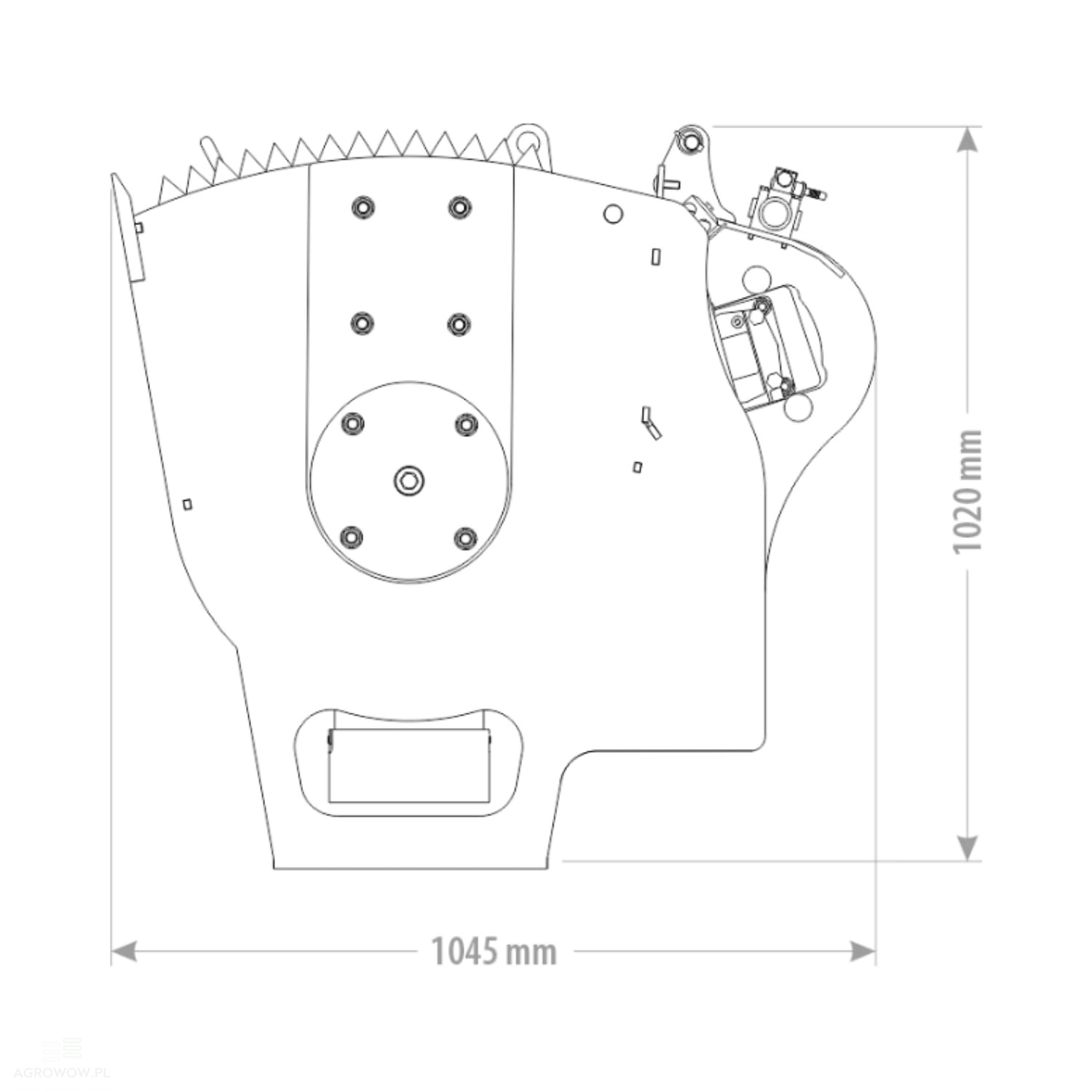

• The working width of 1780 mm with a length of 1045 mm and a height of 1020 mm ensures effective operation also in restricted working spaces—such as in warehouses, farms, or on narrow traffic routes of a construction site.
• The three-hose hydraulic system (with a free-flow return line hose) ensures safe functioning even in the most demanding field conditions.
• Thanks to the universal mounting system, the 2000 mm mixer bucket can be used as an attachment for a front loader, tractor, or—after applying an adapter—for a forklift.
• This is an ideal hydraulic solution for applications anywhere a standard metal bucket is not enough—it will work as a tool for grain, for coal, for sand, or for manure.
• The durable structure, high functionality, and precision of operation make this mixer bucket an indispensable tool for professionals who need reliability, high efficiency, and comfort of handling in one device.
