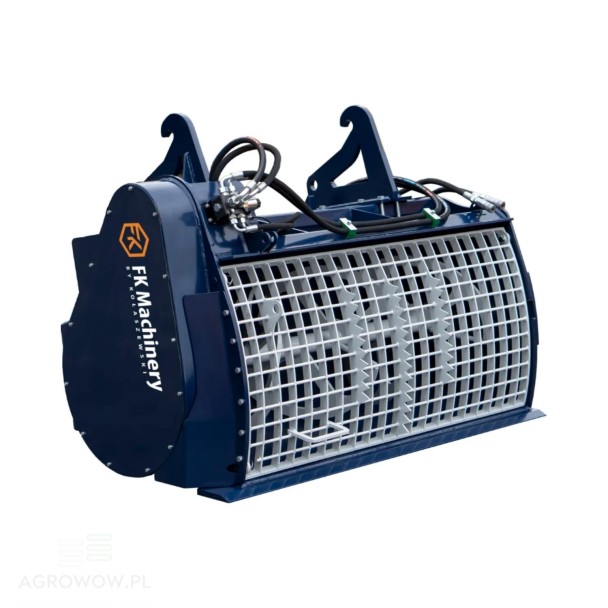

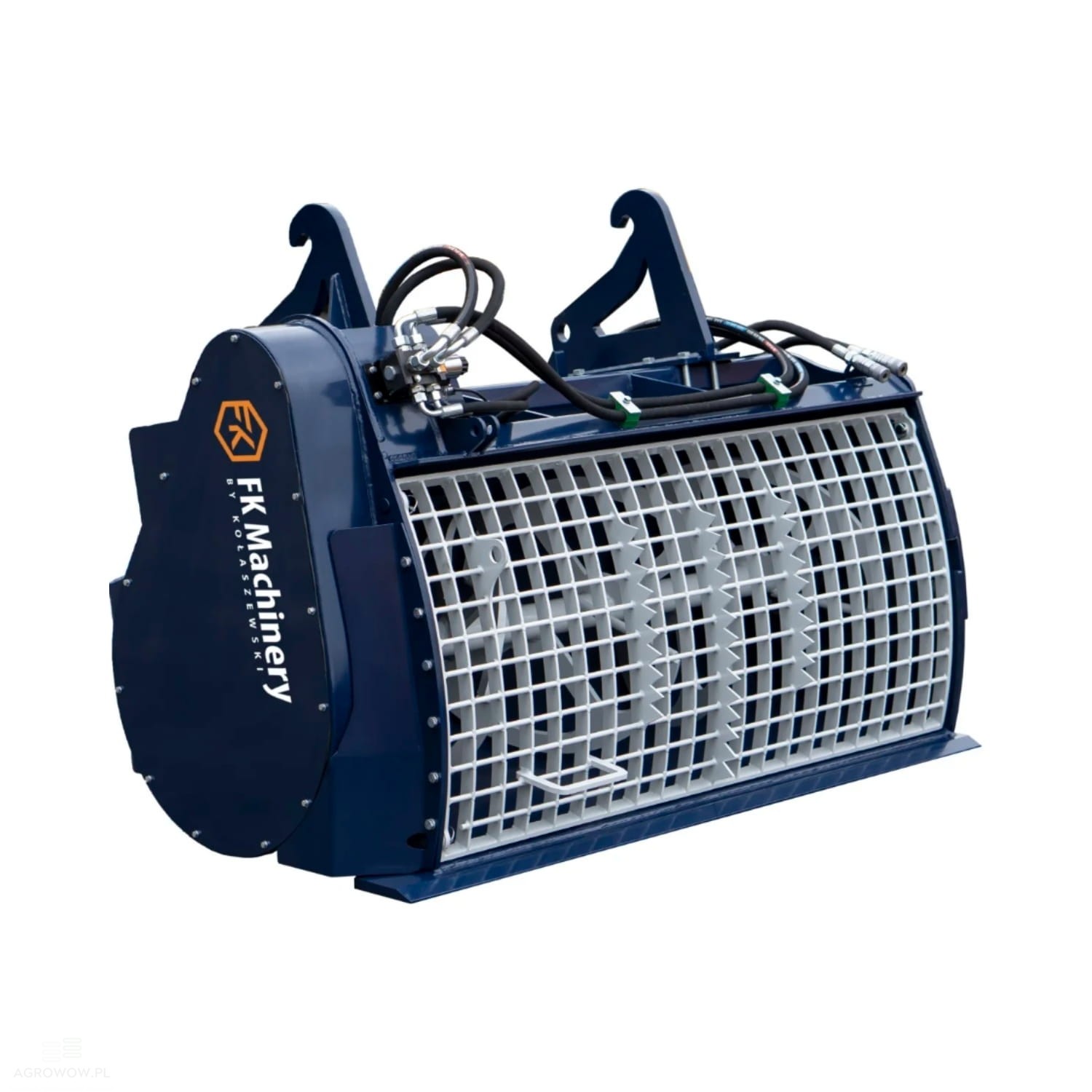

Kołaszewski concrete mixer bucket 2.2 x 1.02 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KUCMB220

- Manufacturer's name: Concrete mixer bucket

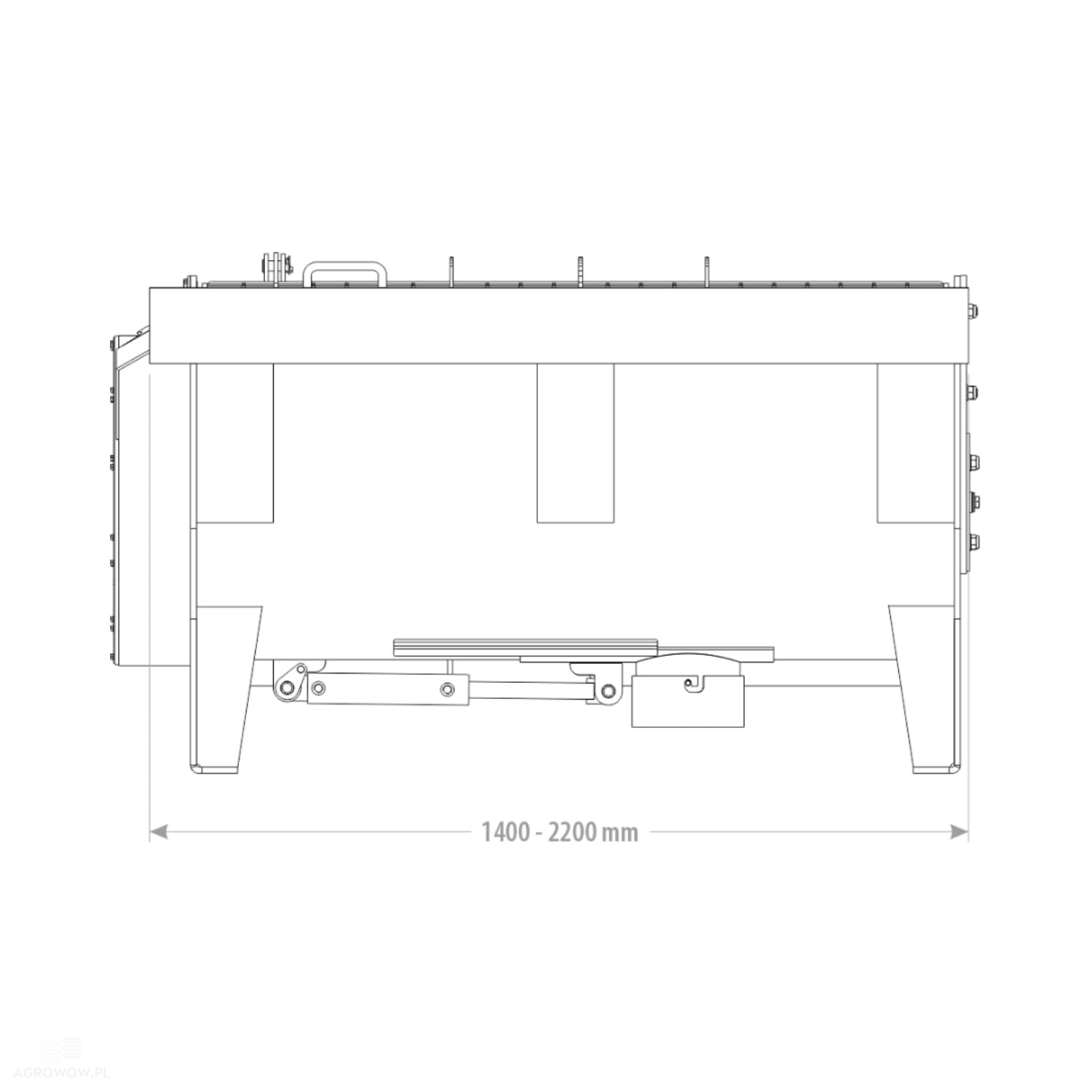

- Width: 2200 mm

- Working width: 1980 mm

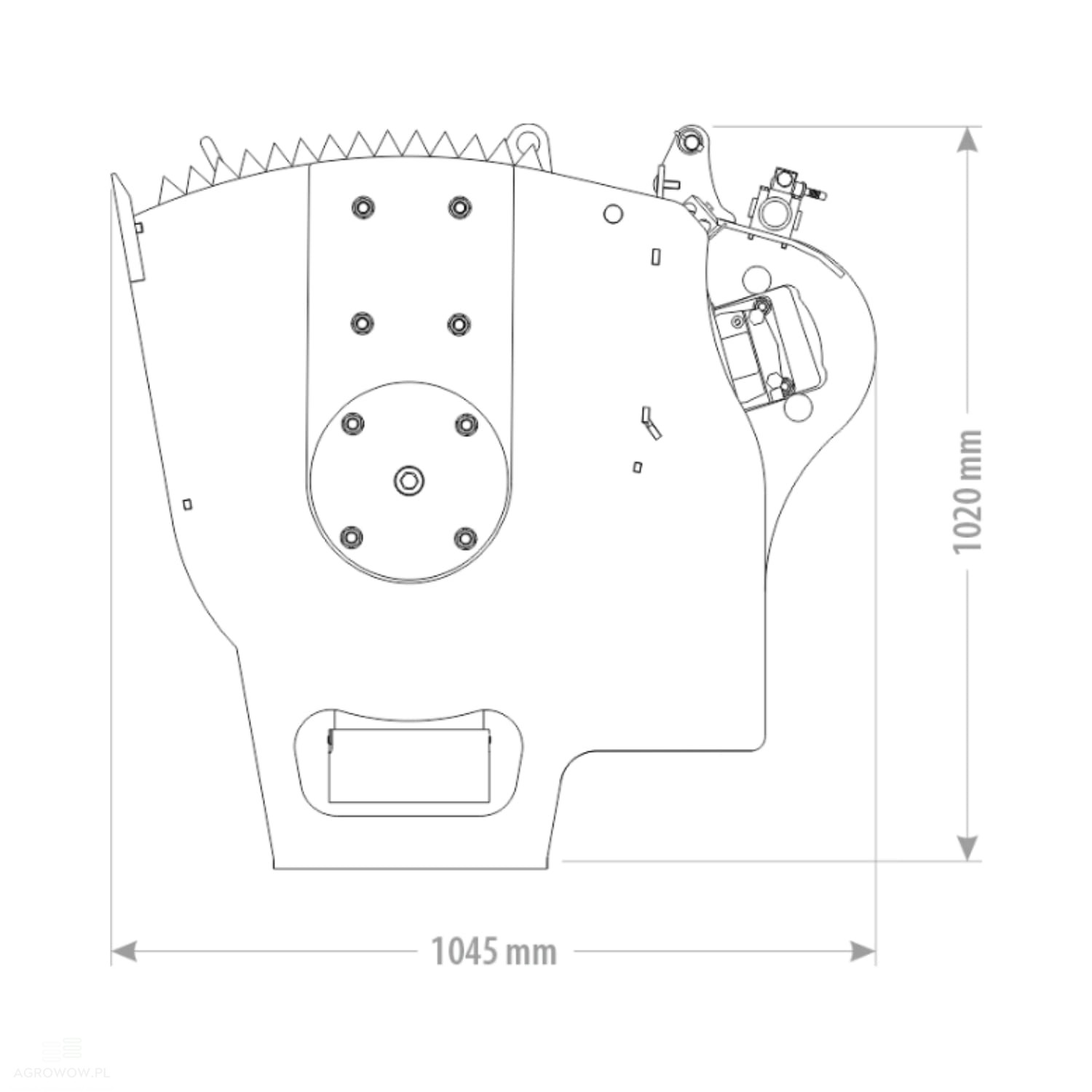

- Length: 1045 mm

- Height: 1020 mm

- Weight: 794 kg

- Capacity: 0.68 m³

- Side panel thickness: 12 mm

- Main body shell thickness: 8 mm

- Hydraulic pressure: 180 bar

- Oil flow: 40 L/min

- HB500 cutting edge: 150x20 mm

- Bottom reinforcement: 15 mm

- Electrically controlled sectional valve

- Mixer paddle made of high-grade HB400 steel

- Heavy-duty safety screen for filtering out stones

- Recommended oil flow: 40 L/min

- 3rd hose for free-flow return line

Optional equipment (at additional cost):

- Spill guard

The spill guard is a practical solution mounted at the upper rim of the mixer discharge area, designed to restrict uncontrolled spillage of the contents outside the working zone. It provides the operator with enhanced control over the material discharge, ensuring a cleaner and safer workspace. This component is particularly useful when tilting the bucket or moving the machine, where the risk of material spilling is higher—such as when filling molds or containers in confined areas.

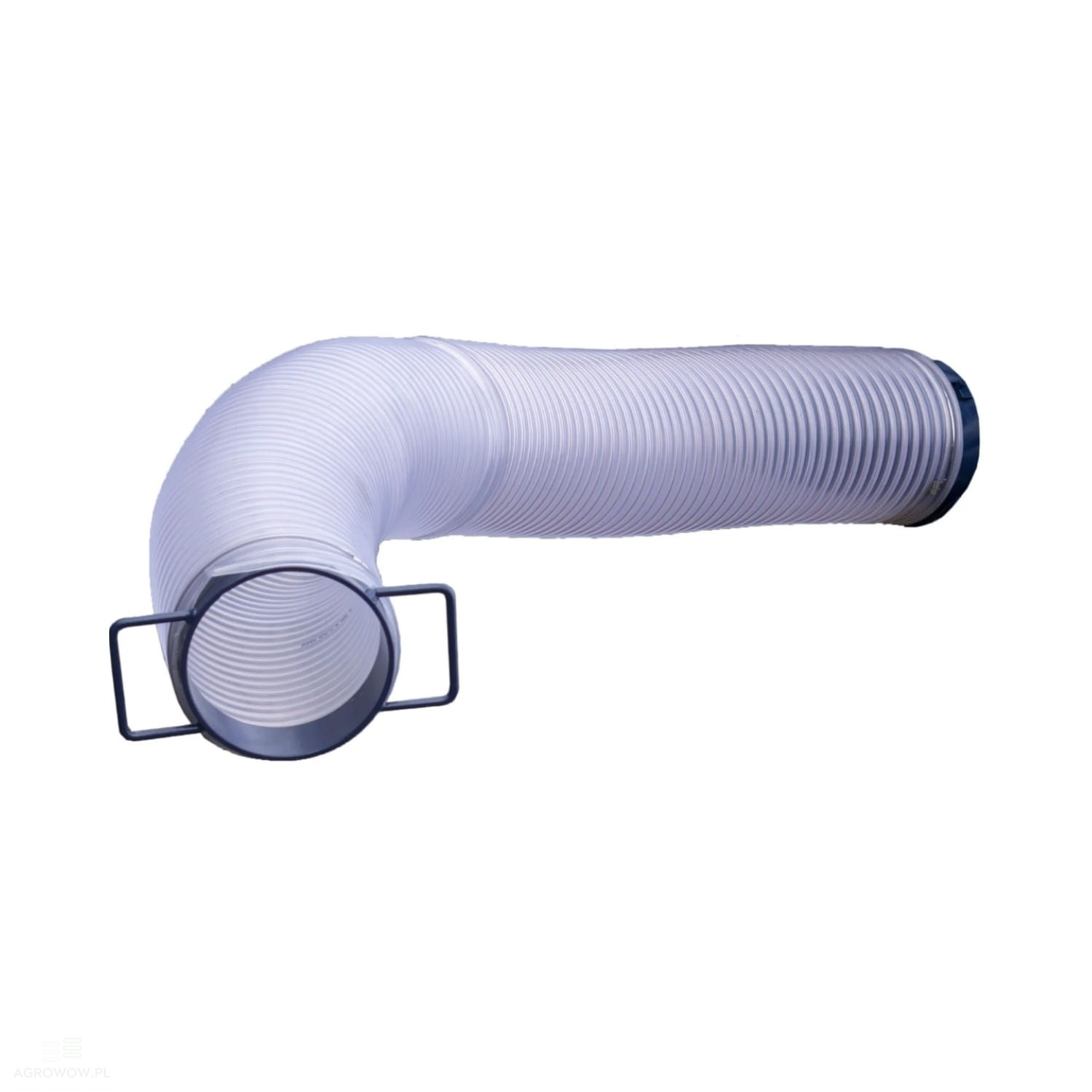

- Discharge chute 1500 mm

The 1500 mm discharge chute is designed for precise routing of concrete or other mixtures into designated locations. Its extended length allows for convenient emptying of the bucket into distant molds, deep formwork, or hard-to-reach work spaces. This enables more efficient and clean material dosing, reduces the need for manual handling of the concrete, and minimizes contamination of the surrounding area.

Detailed Description:

• The concrete mixer bucket with a width of 2200 mm is a modern and extremely durable hydraulic device designed for the efficient mixing and transport of bulk and semi-liquid materials—such as sand, grain, manure, coal, or potatoes.

• Thanks to its capacity of 0.68 m³ and a working width of 1980 mm, the bucket allows for the processing of large amounts of material in a single cycle, significantly reducing working time on farms, construction sites, or in municipal plants.

• The built-in mixer paddle made of high-grade HB400 steel guarantees a thorough and uniform blending of ingredients, while the stone-screening grid protects the mixture from stones and other contaminants, which increases the quality of the final product.

• The stable and resistant structure—with 12 mm thick side panels, an 8 mm shell, and a 15 mm bottom reinforcement—ensures a long service life even during intensive use with heavy or aggressive materials.

• On the working edge, there is a cutting edge made of HB500 wear-resistant steel (150x20 mm), which effectively supports scooping material from the ground and protects the structure from wear.

• The hydraulic system with a pressure of 180 bar and a recommended flow rate of 40 L/min ensures smooth operation of the mixer and discharging, while the electrically controlled sectional valve allows for comfortable management of functions without having to leave the operator's cab.

• The compact overall dimensions (1045 mm in length, 1020 mm in height) combined with a large capacity make the device ideal also for spaces with limited access.

• The three-hose hydraulic system, including a free-flow return line, increases the reliability of the entire installation, especially during long-term work with materials of varied consistency.

• The bucket can be successfully mounted as an attachment for a front loader, tractor, or—with an appropriate adapter—for a forklift, which makes it extremely versatile in application.

• The metal structure, high resistance to abrasion, and the possibility of use in both mechanical and hydraulic versions make this device a solid support for anyone who needs reliable and efficient working equipment.

• The 2200 mm concrete mixer bucket is an ideal choice for professionals looking for a combination of efficiency, quality, and comfort of work—both in agriculture, construction, and municipal management.
