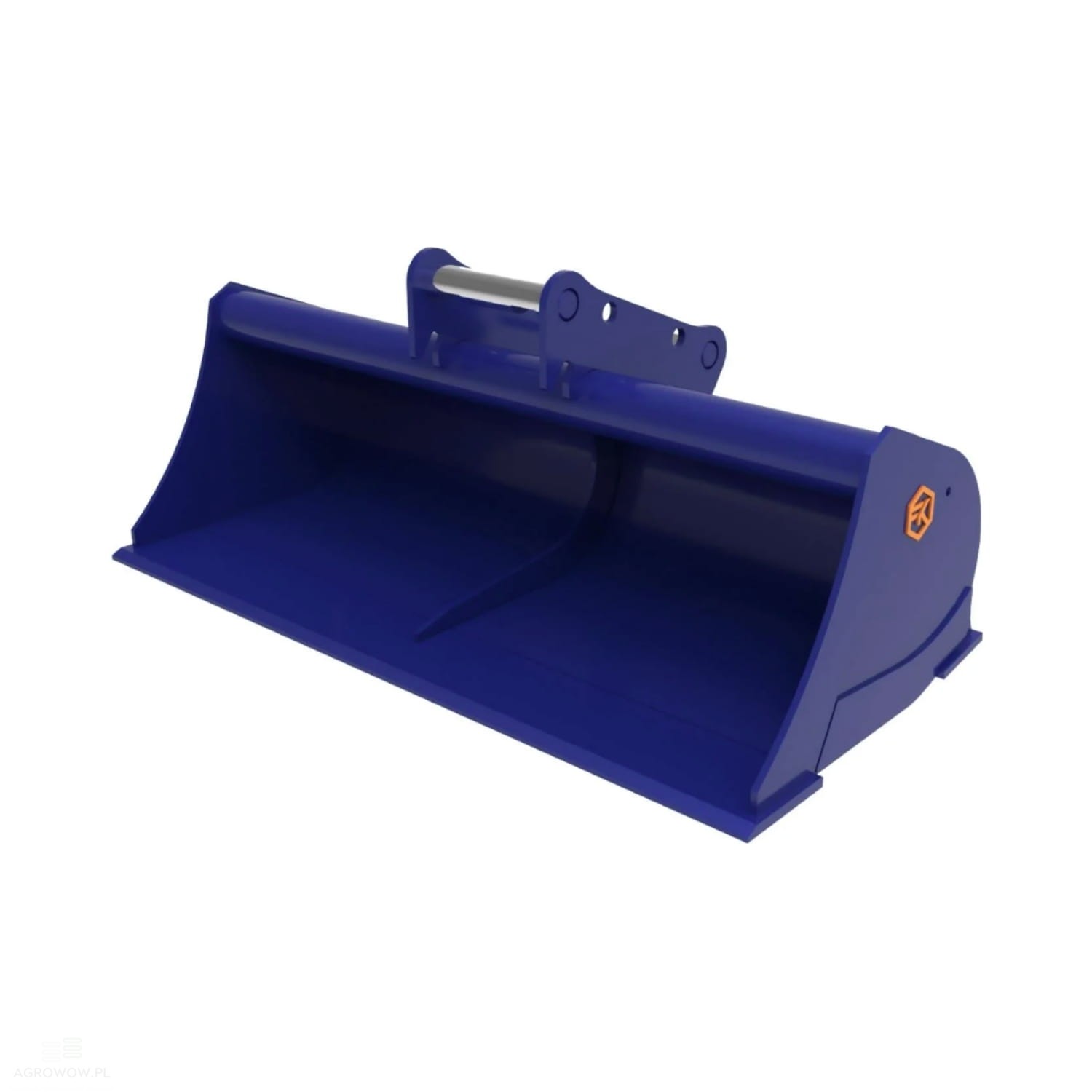

Kołaszewski grading bucket DUO 10–12 T / 1.6 x 0.53 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEDH16-B

- Manufacturer's name: Grading bucket DUO 10-12T

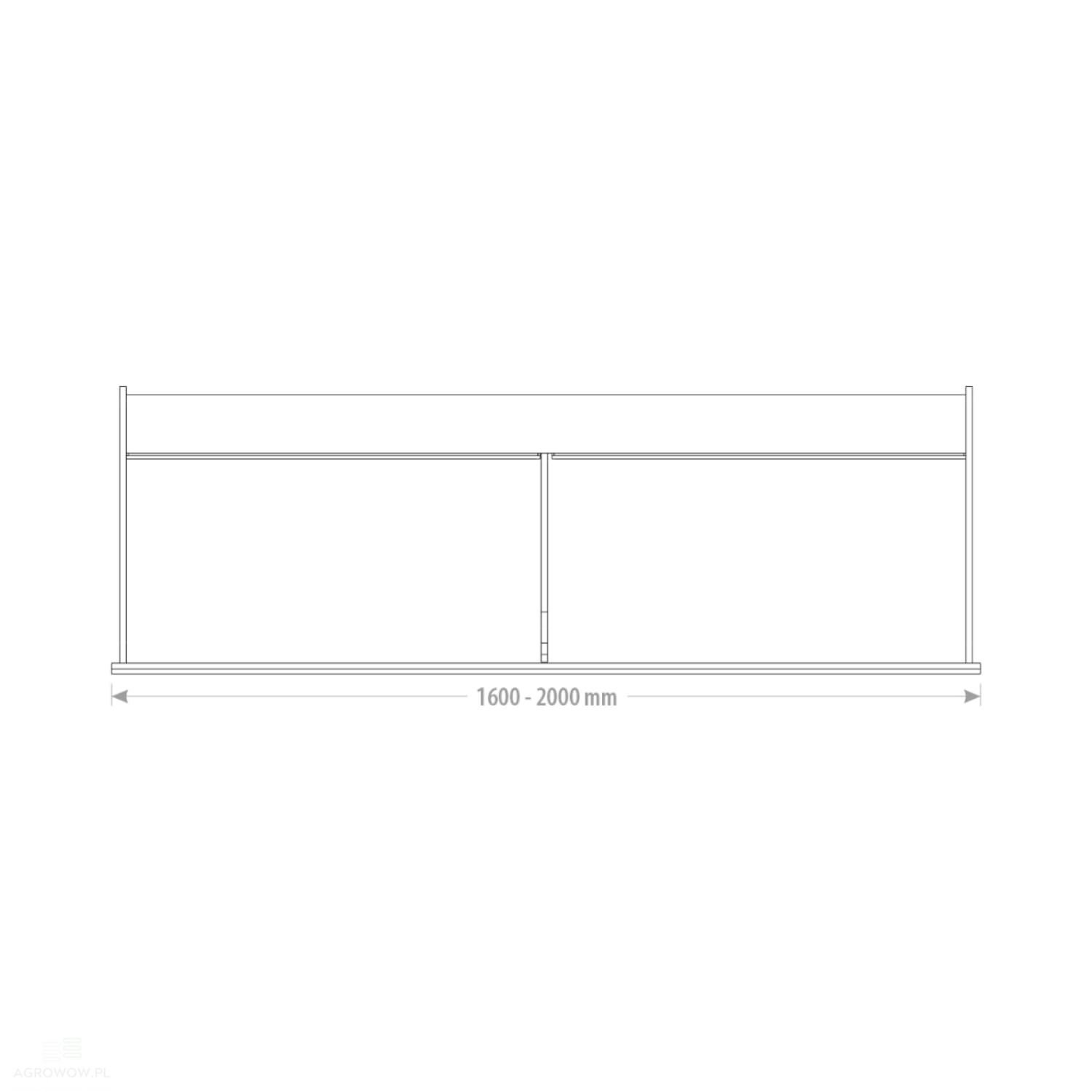

- Width: 1600 mm

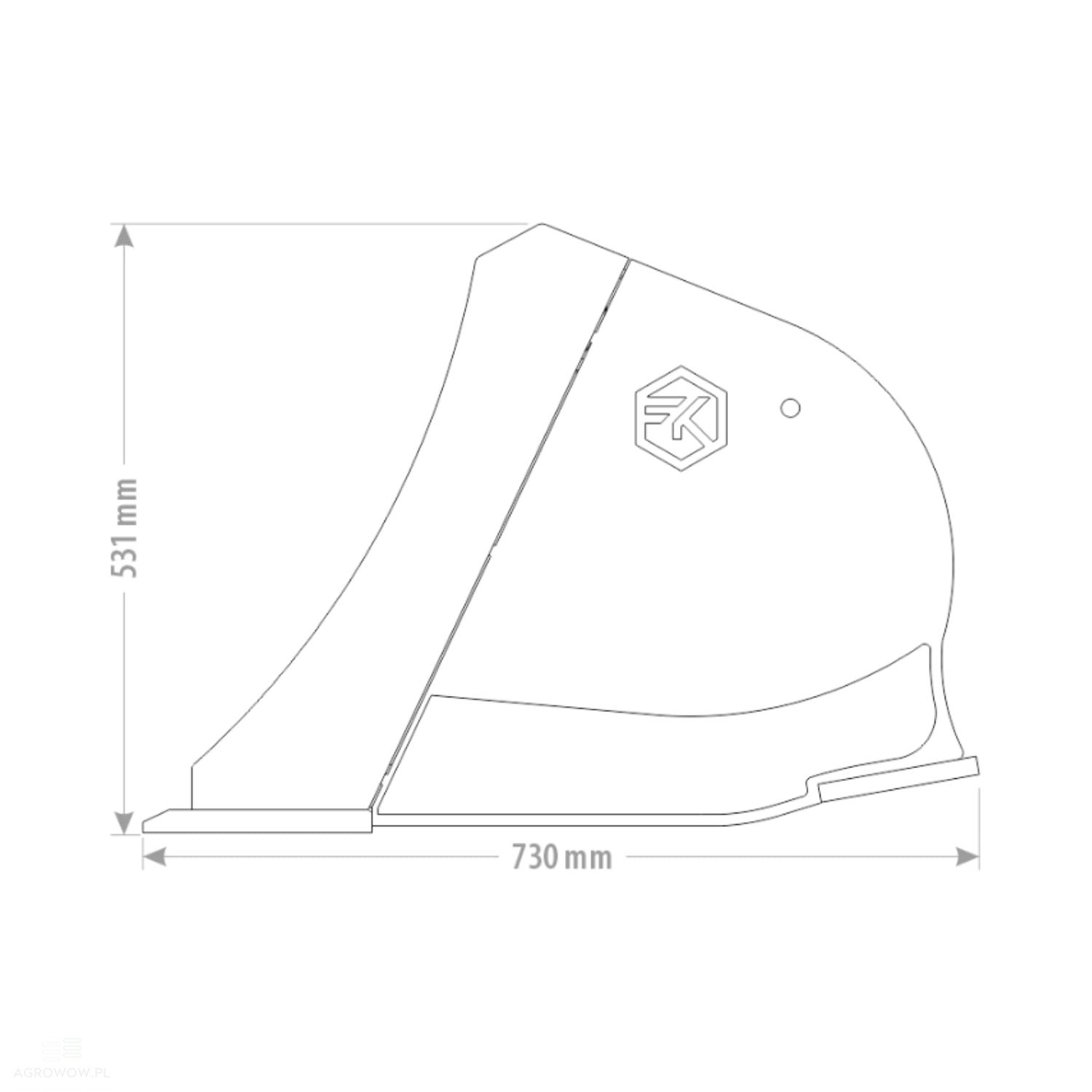

- Length: 730 mm

- Height: 531 mm

- Weight: 298 kg

- Capacity: 404 L

- Permissible machine weight: 10–12 T

- S355 J2 main shell: 6 mm

- S355 J2 side walls: 6 mm

- HB400 cutting edge base / strike plate: 12 mm

- HB500 primary blade / cutting edge: 200x20 mm

- HB400 secondary blade / rear cutting edge: 150x16 mm

- S355 J2 reinforcements / ribs: 6 mm

Detailed Description:

• The DUO rigid grading bucket, featuring a functional width of 1600 mm and a capacity of 404 liters, is a high-performance attachment engineered for medium-to-large scale, demanding earthworks.

• It delivers excellent precision and high operational throughput even under heavy-duty site conditions.

• This rugged tool is highly versatile, making it perfect for a wide range of applications including foundation excavations, ditch digging, land leveling, and bulk material transport, ensuring superior efficiency in every maneuver.

• Designed to fulfill strict industrial requirements, this grading bucket provides outstanding structural stability and profiling accuracy, making it a professional-grade asset for complex civil engineering and earthmoving operations.

• It is fabricated entirely from premium structural steel—featuring a reinforced 6 mm thick S355 J2 main shell paired with 6 mm S355 J2 side walls—offering excellent structural rigidity and rugged resistance against mechanical impacts, wear, and structural fatigue.

• S355 J2 steel is selected for its high tensile strength and anti-corrosive properties, securing an extended service life during intensive, long-term operational use.

• The structural design incorporates a 12 mm HB400 steel plate reinforcing the cutting edge base, which works alongside an aggressive dual-blade assembly.

• This configuration utilizes a heavy-duty main HB500 cutting edge measuring 200x20 mm and a secondary rear HB400 cutting edge measuring 150x16 mm.

• This combination delivers supreme protection against severe abrasive wear and heavy-impact shocks encountered when processing compacted, rocky, or hard soils.

• Longitudinal 6 mm S355 J2 internal reinforcement ribs provide total resistance against frame twisting and high structural stress.

• With dimensions of 1600 mm in width, 730 mm in length, and a compact height of 531 mm, this bucket achieves an optimal payload-to-width ratio, remaining highly efficient even when operating in tight or restricted work zones.

• Its unladen weight of 298 kg supplies a solid, stabilizing counterweight to the carrier machine, facilitating smooth and controlled manipulation across uneven and difficult terrains.

• This rigid grading bucket is purpose-built for mid-sized excavators with an operating weight ranging from 10 to 12 tonnes, providing an effective match for infrastructure and site development equipment.

• It is fully compatible with major global machinery brands, including Atlas, Bobcat, Caterpillar, Doosan, JCB, Kubota, Volvo, Hyundai, Hitachi, and Komatsu, fitting seamlessly into diverse, multi-brand corporate fleets.

• The ergonomic mold profile guarantees high material retention during movement and clean dumping cycles, giving operators absolute control during precision profiling, ditching, and final embankment trimming.

• Its standard attachment interface allows for quick coupling and uncoupling to minimize non-productive downtime.

• Providing solid performance on uneven and loose surfaces, this tool vastly increases operational efficiency across road building, water/sewer utilities installation, drainage systems, and general site preparation, serving as a dependable, highly durable investment for industrial multi-season deployment.
