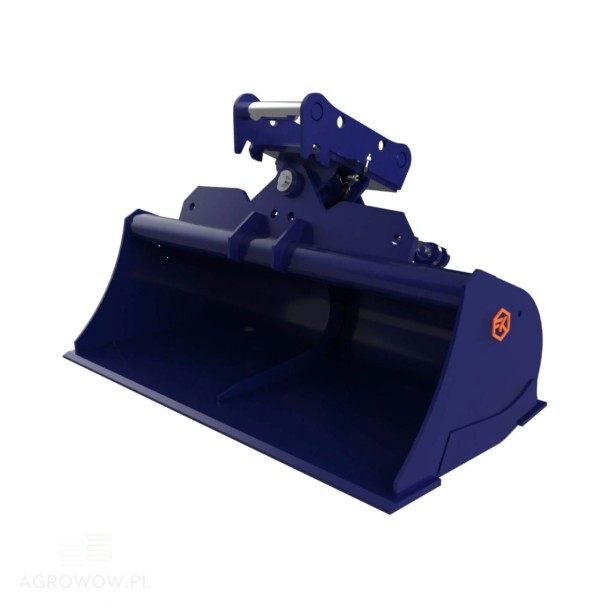

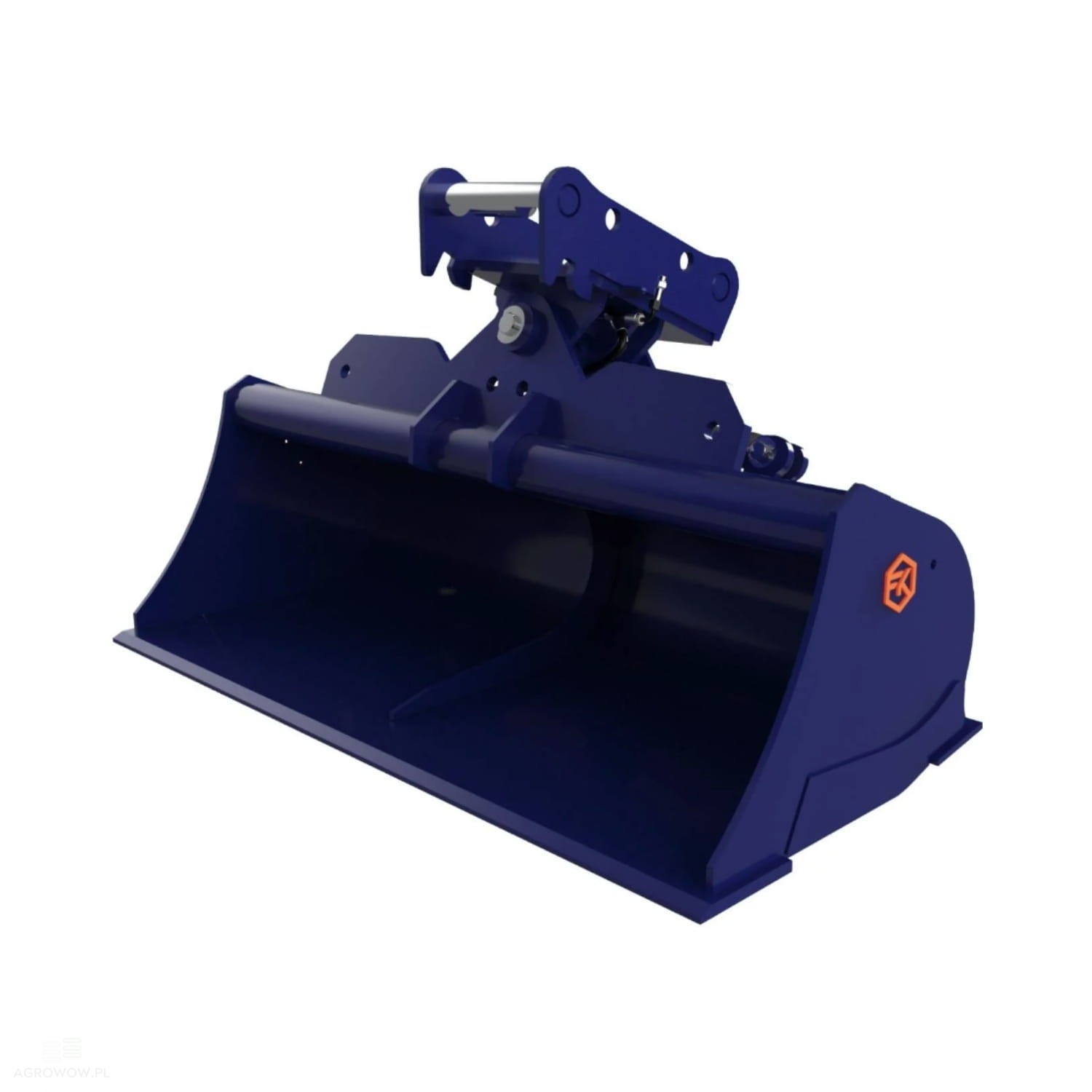

Kołaszewski hydraulic grading bucket DUO 10–12 T / 1.6 x 0.96 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEGH16-B

- Manufacturer's name: Hydraulic grading bucket 10-12T

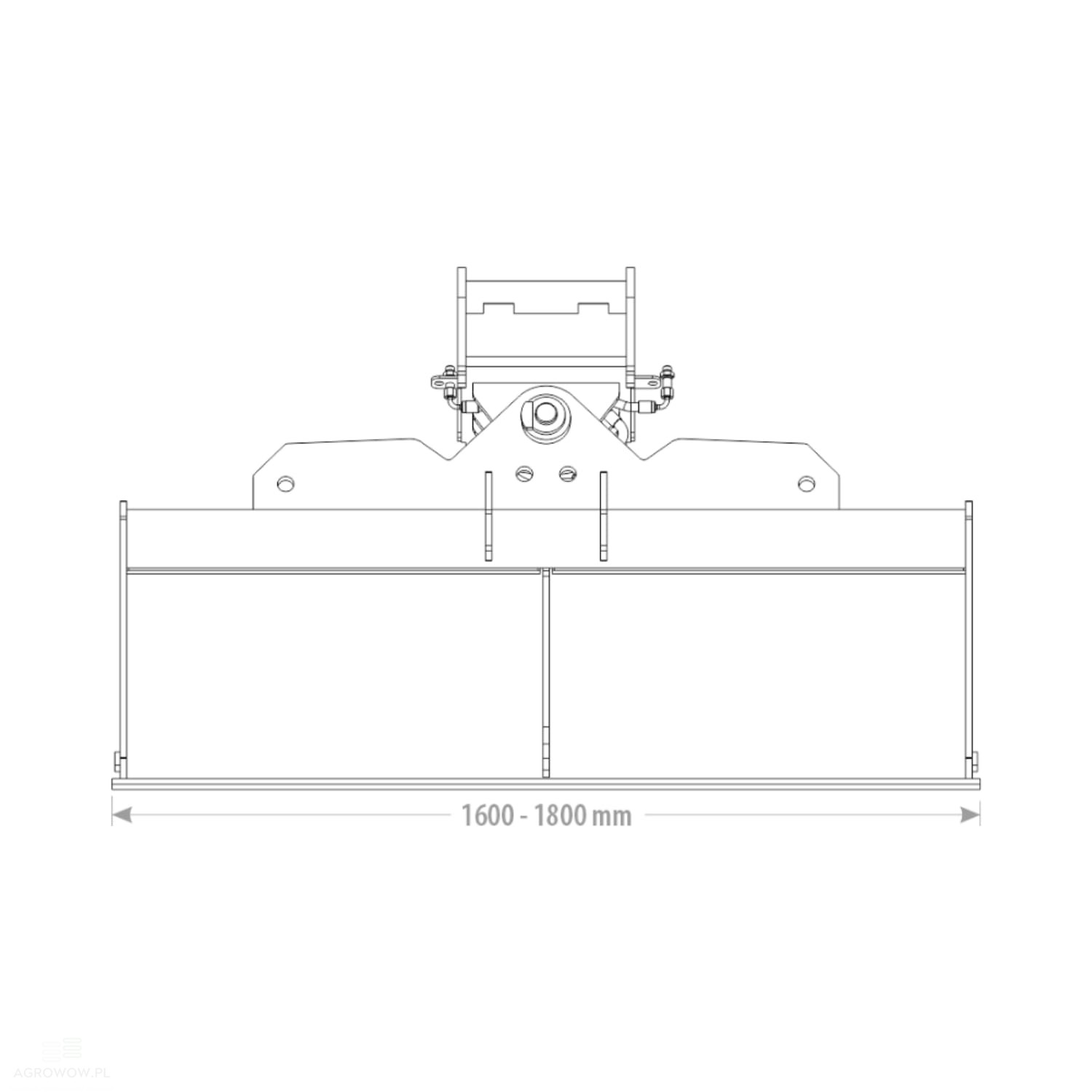

- Width: 1600 mm

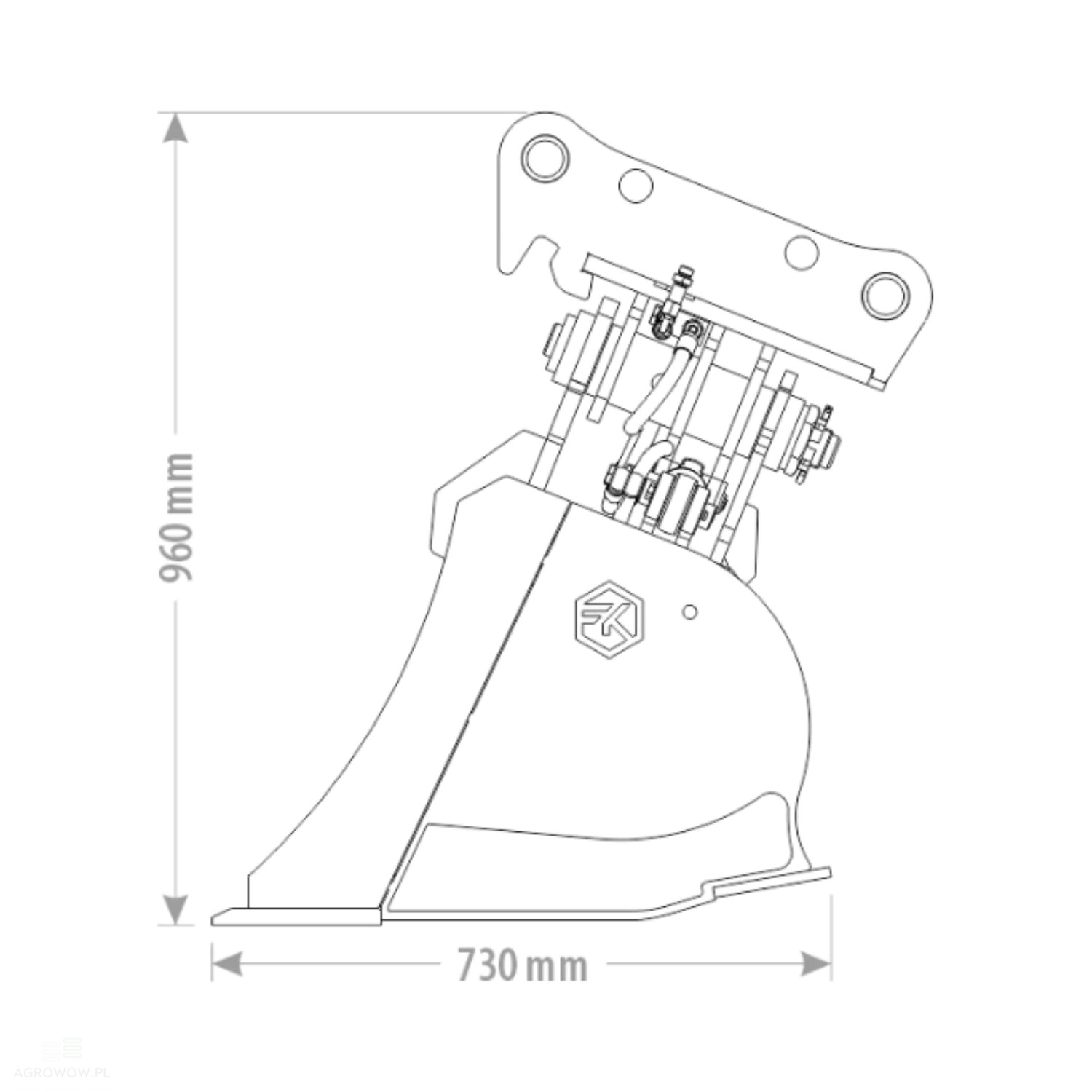

- Length: 730 mm

- Height: 960 mm

- Weight: 396 kg

- Capacity: 404 L

- Permissible machine weight: 10–12 T

- S355 J2 main shell: 6 mm

- S355 J2 side walls: 6 mm

- HB400 cutting edge base / strike plate: 12 mm

- HB500 primary blade / cutting edge: 200x20 mm

- HB500 secondary blade / rear cutting edge: 150x16 mm

- Tilt angle: 42.5°

- HB400 reinforcements / ribs: 6 mm

- Hydraulic cylinders: 2

Detailed Description:

• The DUO hydraulic grading bucket, with a width of 1600 mm and a capacity of 404 liters, is engineered for advanced operations in demanding work areas, offering exceptional precision and high efficiency even in challenging terrain conditions.

• It is ideal for tasks such as foundation excavation, land leveling, and the handling of loose materials, ensuring reliability and high performance during every application.

• This grading bucket guarantees remarkable precision and operational efficiency, making it a highly suitable tool for professionals performing complex construction and earthmoving tasks.

• Fabricated from premium-grade S355 J2 structural steel—featuring a 6 mm thick main shell and 6 mm side walls—the bucket provides excellent resistance to wear and mechanical damage.

• S355 J2 steel is characterized by high strength and solid structural properties, ensuring the longevity of the tool even under intensive, heavy-duty exploitation.

• The cutting edge base is reinforced with 12 mm thick HB400 steel, working in tandem with a dual-blade layout consisting of an HB500 cutting edge measuring 200x20 mm and a secondary HB500 edge measuring 150x16 mm.

• This combination delivers superior protection against abrasion and impact when processing hard materials.

• With a width of 1600 mm, a length of 730 mm, and a height of 960 mm, this bucket is optimally proportioned for large-scale operations where speed and leveling accuracy are paramount.

• Its total weight of 396 kg provides the necessary stability to facilitate steady, controlled maneuvering in demanding work environments.

• This hydraulic grading bucket is specifically designated for mid-sized excavators with an operating weight ranging from 10 to 12 tonnes, making it an ideal choice for advanced earthworks and extensive field operations.

• It is fully compatible with many renowned machinery brands, including Atlas, Bobcat, Caterpillar, Doosan, JCB, Kubota, Volvo, Hyundai, Hitachi, and Komatsu, allowing it to easily adapt to mixed equipment fleets and enhance site functionality.

• The ergonomic and optimized construction of the grading bucket ensures smooth operation, allowing the operator to execute precise sloping, ditching, and finishing works.

• It features a straightforward mounting system for fast attachment changes, maximizing uptime and on-site productivity.

• Providing excellent stability on uneven ground, this tool significantly enhances operational efficiency across various applications, including roadwork, landscaping, drainage installations, and civil engineering projects.

• Thanks to its outstanding durability, wear resistance, and dual-blade versatility, this hydraulic grading bucket represents a secure, high-yield investment built to perform reliably for years to come.
