Kołaszewski ripper 3,5-6T

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEFC

- Manufacturer's name: Ripper tooth

- Width: 220 mm

- Shank width without adapter/tip: 30 mm

- Shank width with adapter/tip: 45 mm

- Length: 570 mm

- Height: 580 mm

- Weight: 78 kg

- Permissible machine weight: 3.5–6 T

- Tooth model: CAT J200

- S355 J2 core: 30 + 8 mm

- Wear plates / Shrouds: HB400

Detailed Description:

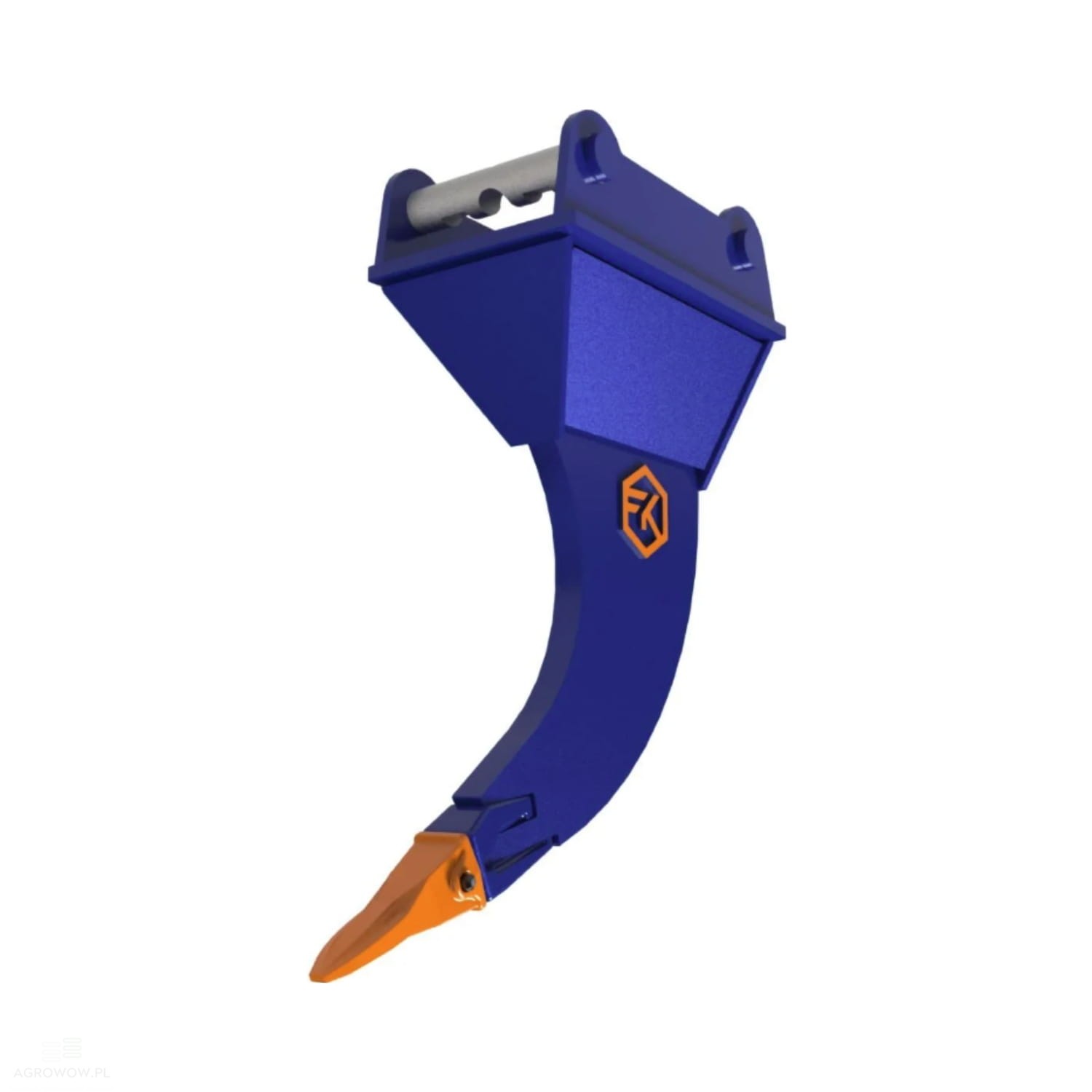

• The ripper, also known as an excavator ripper tooth, is a specialized attachment designed for heavy-duty field applications where power, precision, and reliability are essential.

• Engineered for excavators and mini-excavators weighing from 3.5 to 6 tonnes, it is perfectly suited for tasks requiring the breaking up of hard soil structures, rock shattering, as well as forestry and clearing operations such as extracting stumps and clearing roots.

• Thanks to its reinforced construction, the ripper copes with the most demanding conditions—on construction sites as well as in mountainous, clayey, rocky, or frozen terrains.

• It is an ideal solution for contractors in need of a dependable excavator ripper.

• The key component is a CAT J200 standard tooth supported by a shank made of S355 J2 structural steel with a thickness of 30 mm, supplemented by an additional 8 mm shroud.

• This combination ensures high rigidity, resistance to deformation, and a long service life even under intensive utilization.

• Additional wear plates made of HB400 steel enhance resistance to abrasion and impacts, making the device excellent as a root-clearing attachment, stump puller, or demolition tool in difficult ground.

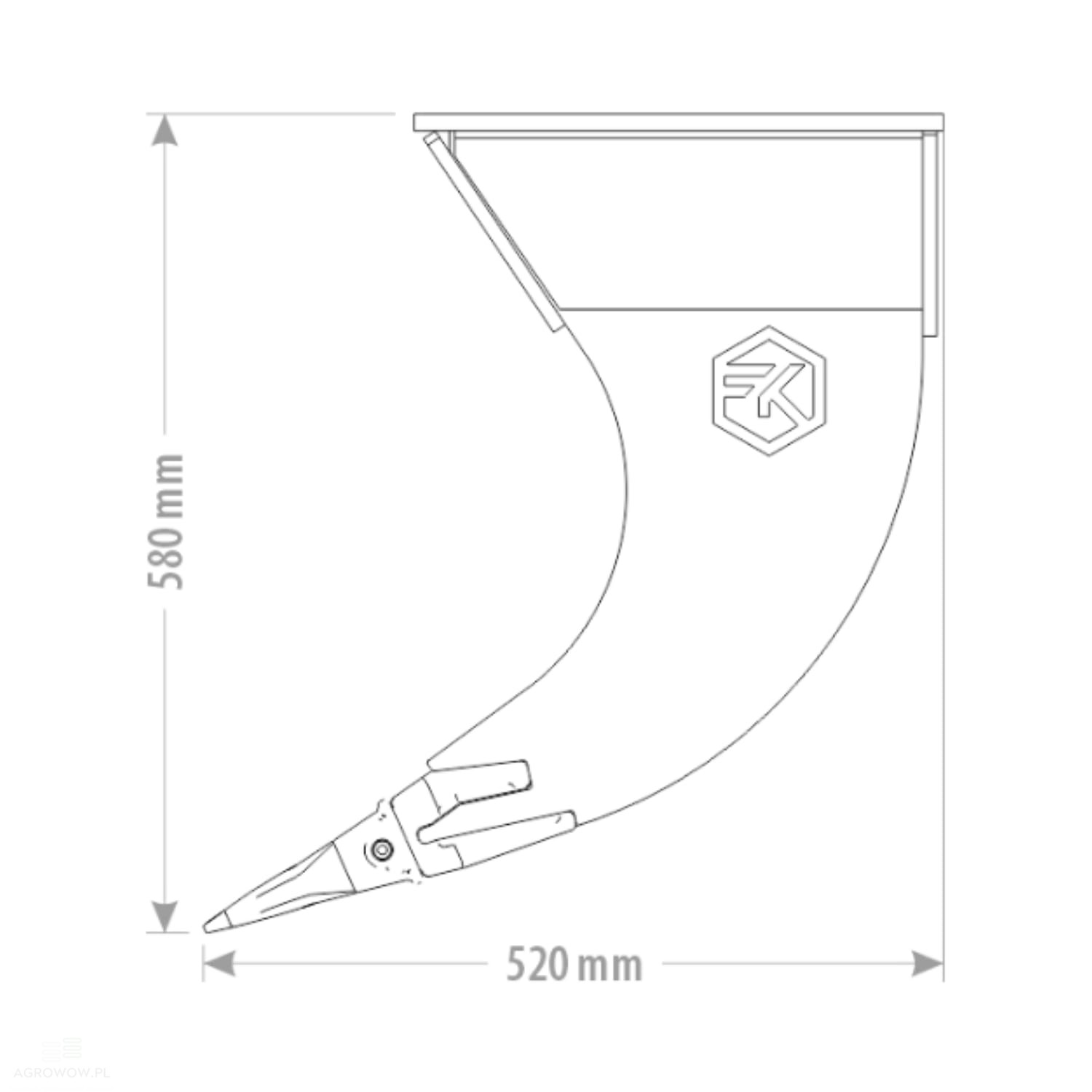

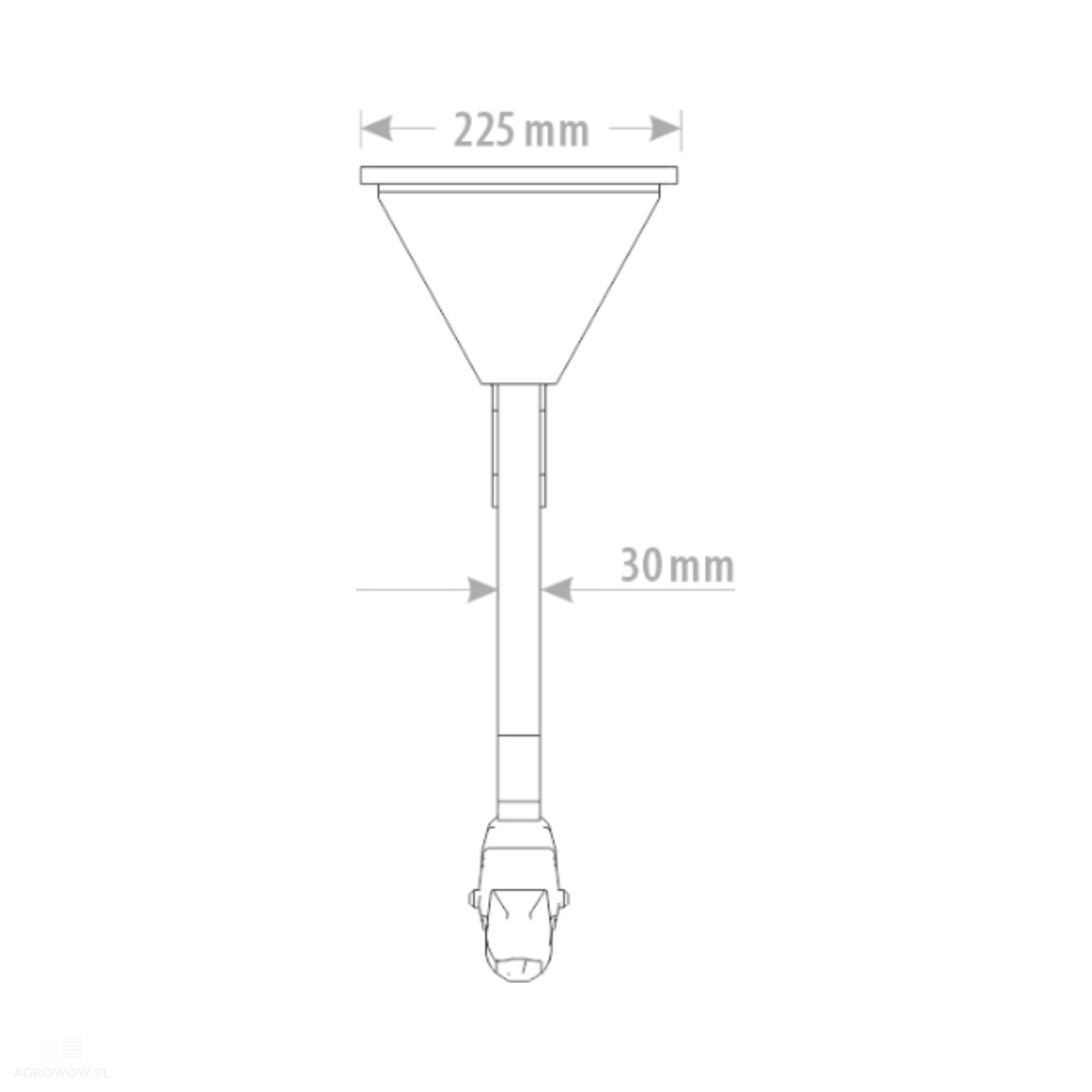

• The dimensions of the ripper have been optimized for maximum operational comfort and effectiveness: the total width is 220 mm, the shank width is 30 mm without the wear plates, and 45 mm with the wear plates installed, enabling efficient soil penetration and precise point action.

• With a length of 570 mm and a height of 580 mm, the attachment offers a perfect balance between power and control, allowing for safe maneuvering even in hard-to-reach spaces.

• Weighing 78 kg, the ripper delivers appropriate downforce onto the ground and optimal operational stability while avoiding over-ballasting of the carrier machine.

• Rippers of this type are highly valued in the construction, roadwork, forestry, and agricultural sectors, where they are frequently utilized as tree pullers, for removing deeply rooted vegetation, or preparing soil for future investments.

• As an excavator root ripper, it allows for fast and thorough site clearing, accelerating project timelines and lowering operational costs by reducing the wear and tear on other working attachments.

• Robust manufacturing and carefully selected materials ensure that this ripper tooth not only meets the expectations of professionals but also guarantees years of trouble-free use under the most demanding conditions.

• This versatile attachment increases operator efficiency, shortens project execution times, and eliminates the need for additional machinery or accessories in highly challenging terrain.

• If you are looking for a tool capable of pulling stumps, breaking rocks, removing underground obstacles, and preparing ground for investments—this excavator ripper tooth is a highly profitable asset.

• Choose a proven, efficient, and durable ripper that will not fail you even in the harshest operating conditions.
