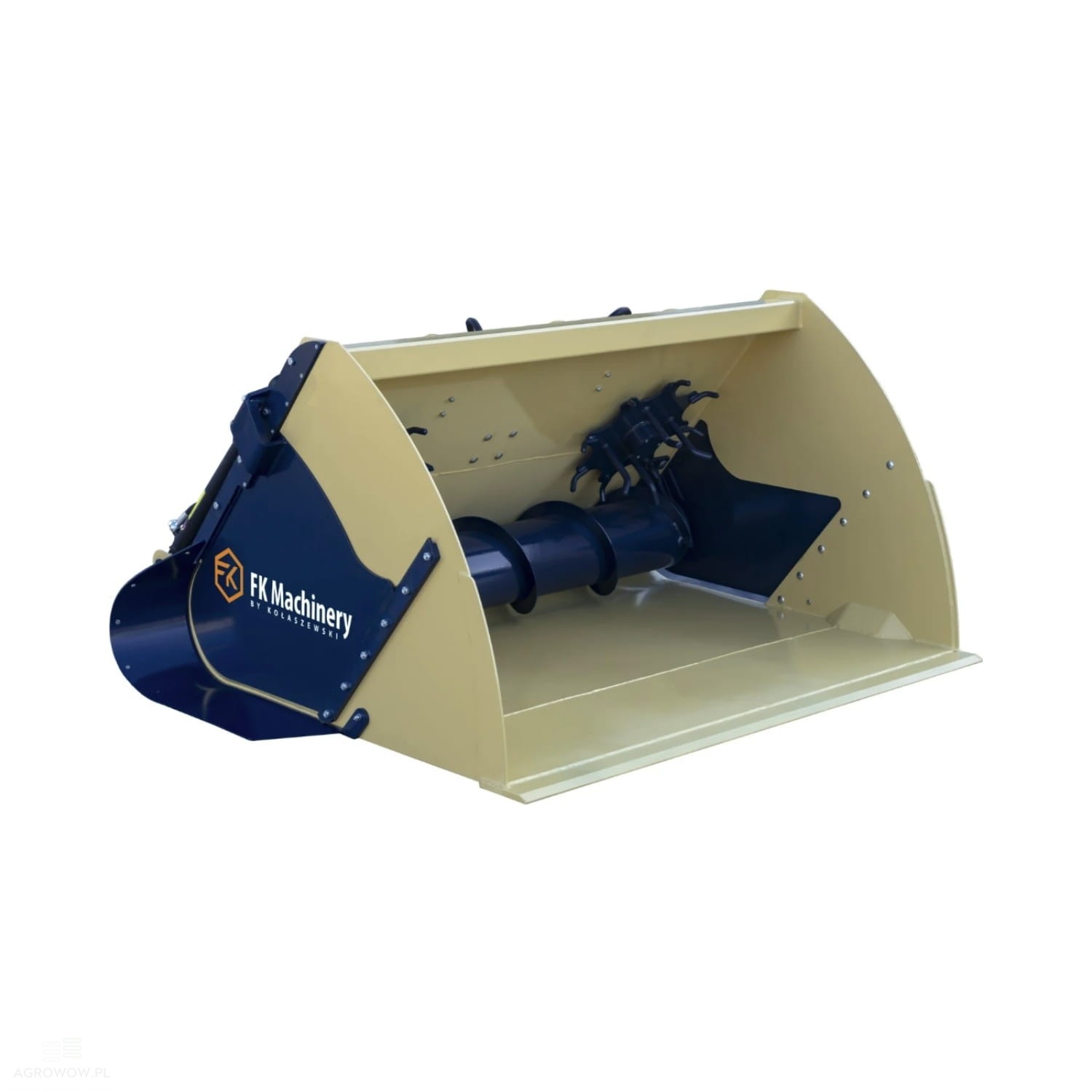

Kołaszewski screw feeder bucket 2.0 x 1.16 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KFBSS200

- Manufacturer's name: Screw feeder bucket

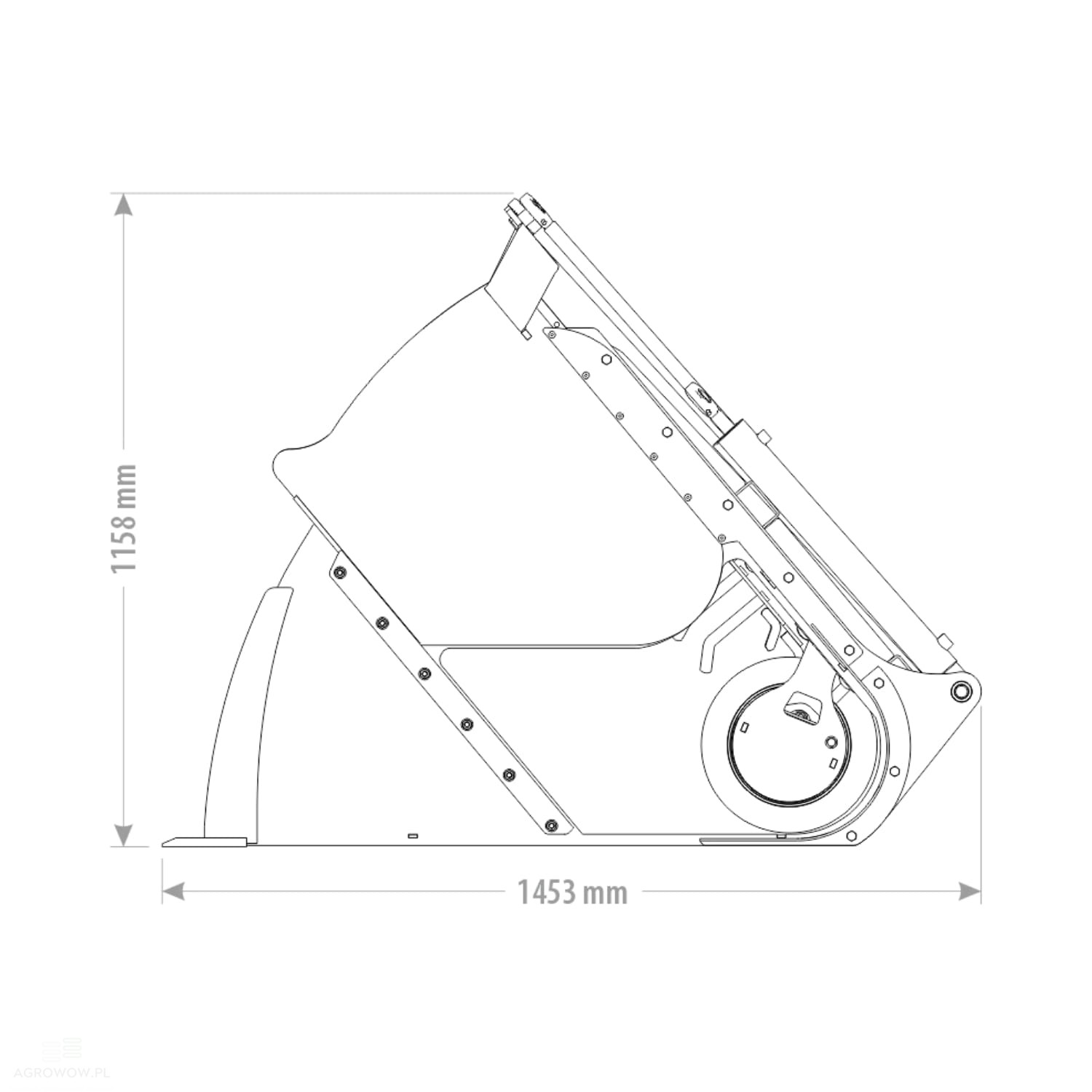

- Width: 2000 mm

- Length: 1453 mm

- Height: 1158 mm

- Capacity: 1.42 m³

- Weight: 560 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve plays a crucial role in hydraulic systems, ensuring the safety and operational stability of the entire system. Its primary task is to monitor pressure by discharging excess working fluid from the circuit when the pressure exceeds a specific value. Installing this valve protects the system from excessive load, preventing damage and ensuring stable hydraulic performance. Thanks to its adjustable function, the valve allows the operating pressure to be precisely tailored to the individual requirements of the machine.

- Additional Motor

Recommended for feed with grass and straw additives. An additional hydraulic motor is used to increase torque and device efficiency, particularly during intensive use or when working in challenging conditions. Adding this motor enables an even load distribution, which improves performance and provides better control over the attachment. In systems requiring greater power or a faster duty cycle, the additional motor delivers vital support while also extending the durability of the drive system.

Detailed Description:

• The screw feeder bucket is a modern, reliable tool that performs perfectly on cattle, pig, and poultry farms where both the speed and precision of feed dispensing are essential.

• This attachment combines exceptional functionality with dependability, serving as an irreplaceable asset on agricultural farms that require smooth, accurate, fast, and efficient feed dosing.

• The bucket features a hopper with a capacity of 1.42 m³, enabling a larger volume of feed to be loaded at one time, which raises work productivity and shortens the time spent transporting feed to the animals.

• This optimal capacity allows for the dispensing of loose feeds, such as grains and meals, as well as mixtures with grass and straw additives, contributing to time savings and increasing the efficiency of daily farm duties.

• The rugged construction of the bucket, featuring 6 mm thick side walls and a 5 mm main shell, ensures exceptional strength and resistance to mechanical damage, guaranteeing reliable, long-term operation even under demanding working conditions.

• The cutting edge, made of durable HB500 steel measuring 150x16 mm, provides excellent resistance to abrasion, which allows for long-term utilization of the machine even under intensive workloads.

• The cutting edge efficiently handles the feed, ensuring its uniform delivery, which is essential for optimizing the animal feeding routine and increasing its overall effectiveness.

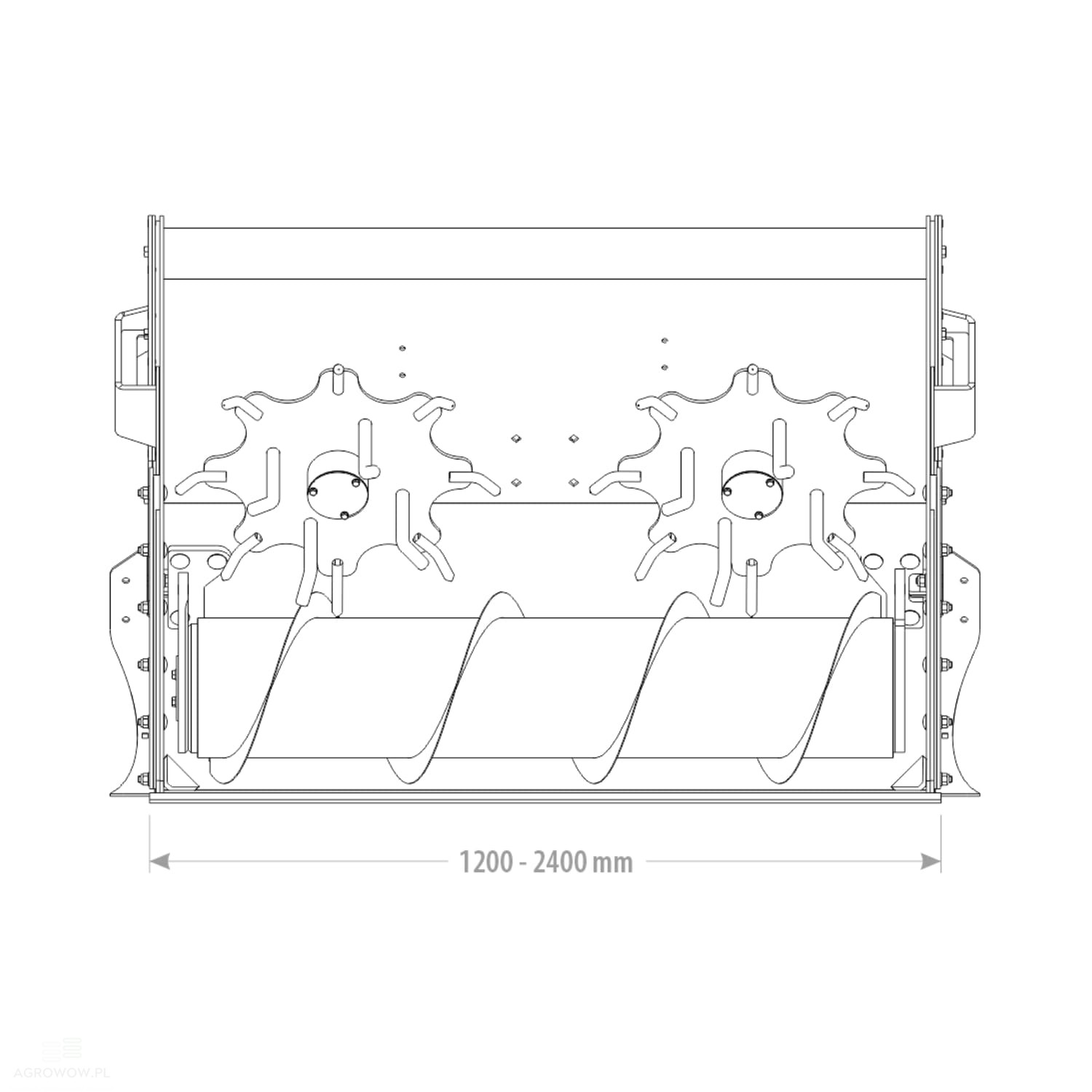

• The built-in auger mechanism ensures precise feed dosing. Thanks to an adjustable rotational speed, the user can adapt the dispensing rate to the individual needs of the herd, allowing for better control over the feeding process.

• The dual-side discharge capability allows for even feed distribution, which improves loading and unloading efficiency while making better use of the working space on the farm.

• Internal agitators inside the bucket prevent the feed from bridging, which ensures uniform dosing, prevents material from clumping, and improves feed utilization by the livestock.

• The design of the screw feeder bucket is engineered with easy maintenance in mind, featuring straightforward access to the pin lubrication points, which simplifies regular inspections and ensures the long-term durability of the tool.

• A required oil flow of 45 L/min ensures stability and output of the attachment, providing dependable operation across various working conditions.

• The screw feeder bucket is an indispensable tool that boosts productivity on agricultural farms, contributing to the optimization of the animal feeding routine and significant time savings.
