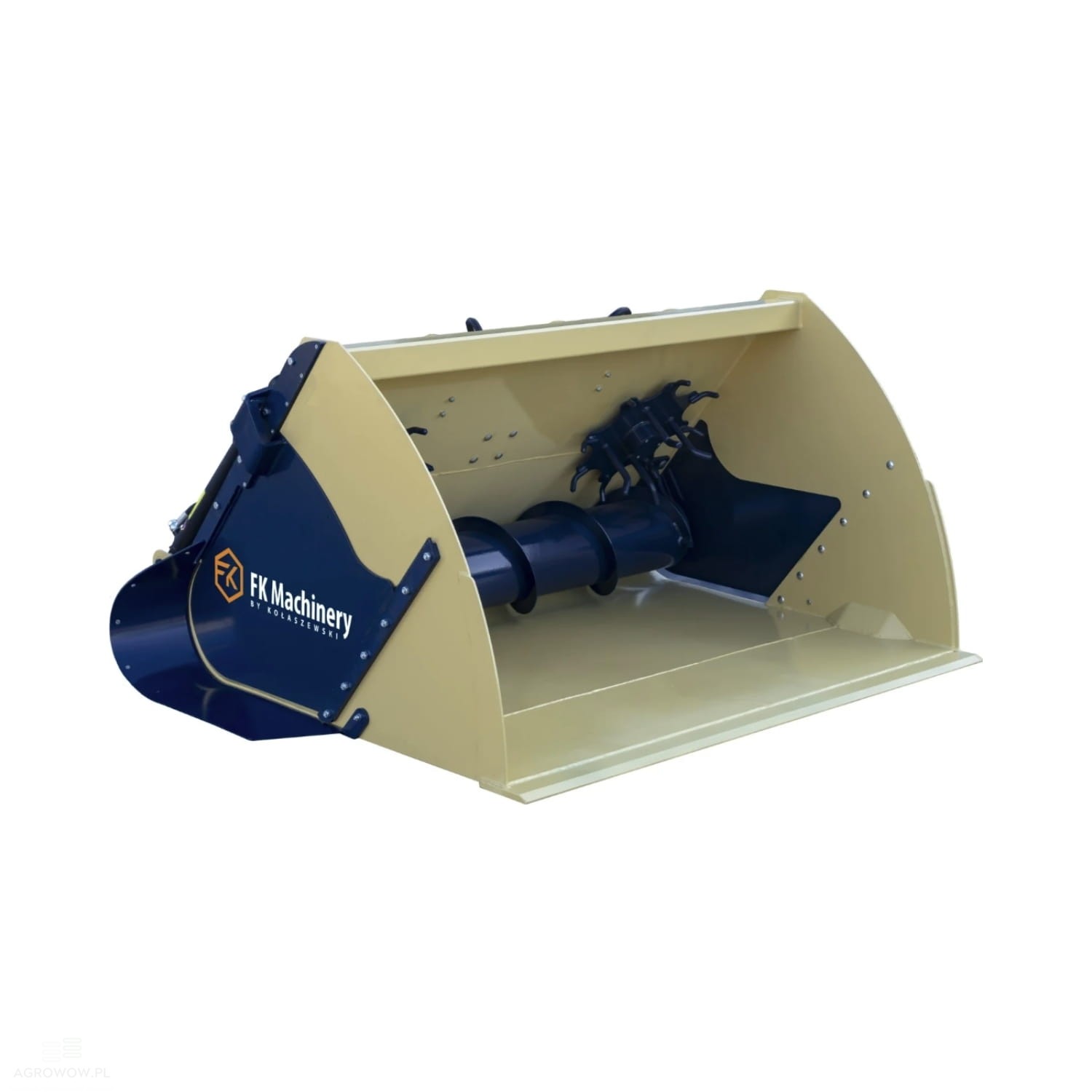

Kołaszewski screw feeder bucket 2.2 x 1.16 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: 9738-962AF

- Manufacturer's name: Screw feeder bucket

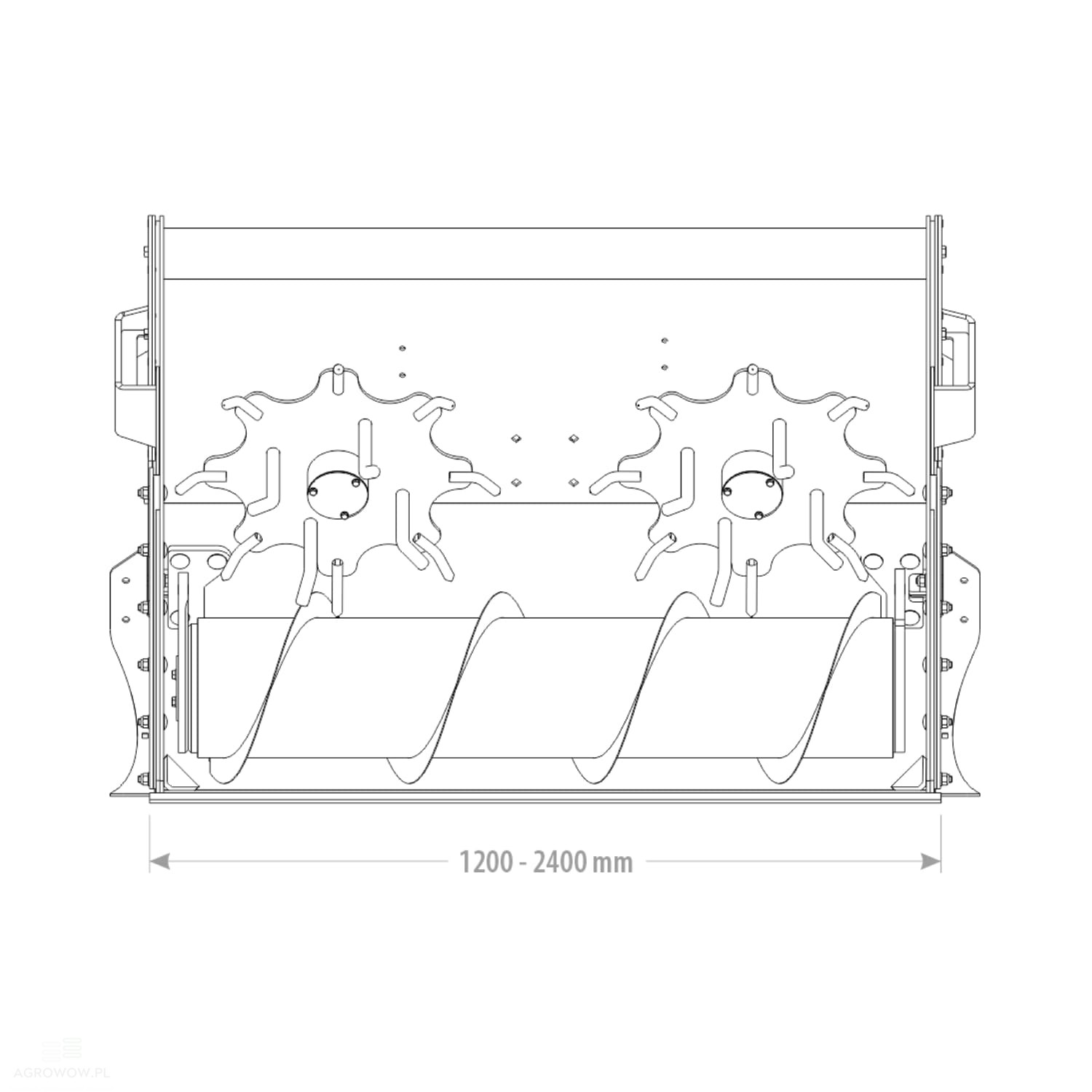

- Width: 2200 mm

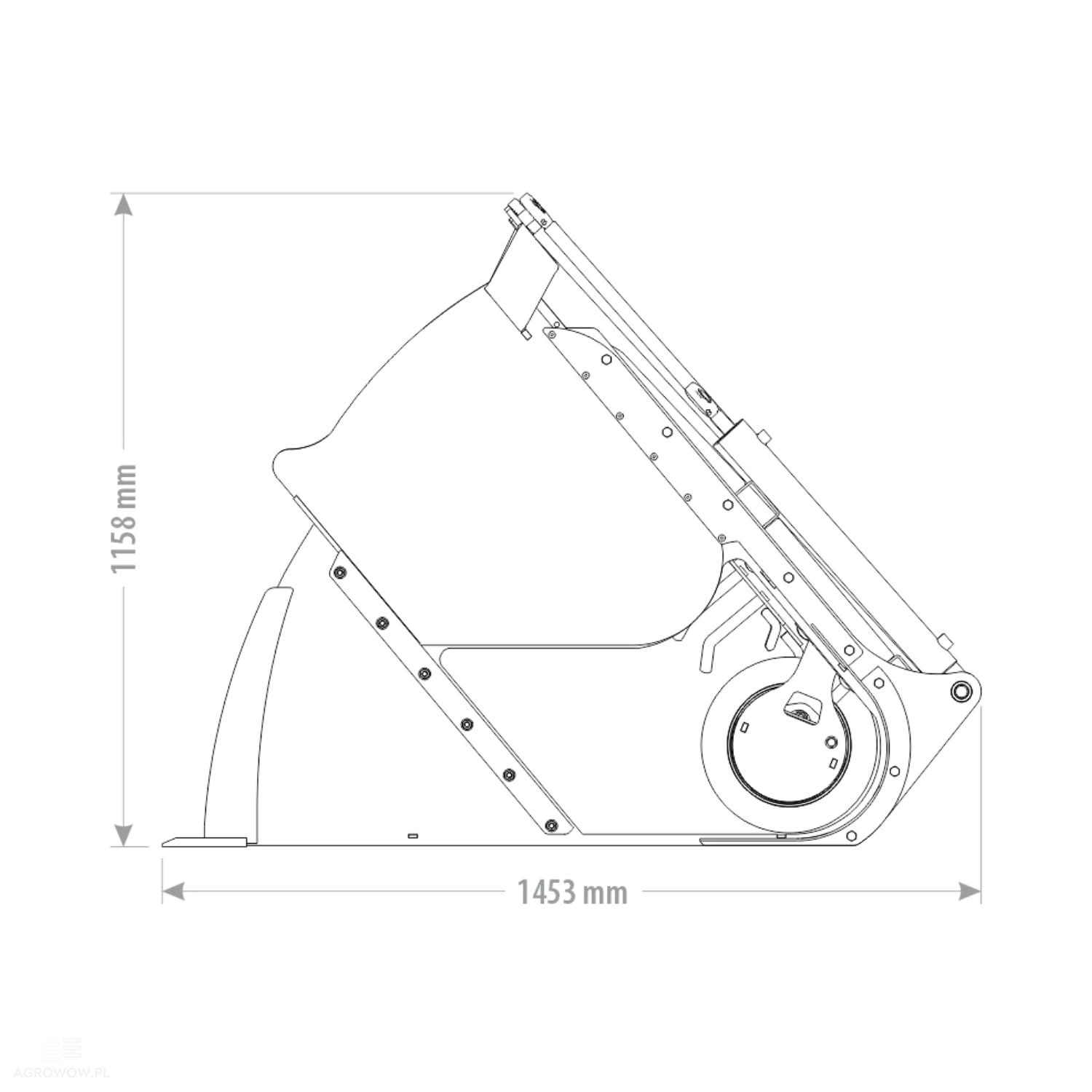

- Length: 1453 mm

- Height: 1158 mm

- Capacity: 1.56 m³

- Weight: 594 kg

- Side wall thickness: 6 mm

- Main shell thickness: 5 mm

- HB500 cutting edge: 150x16 mm

- Dual-side discharge: Capable of feeding to both left and right sides

- Agitators: Internal anti-bridging agitators to prevent feed blockage

- Recommended oil flow: 45 L/min

- Hydraulic motors: 2

Optional Equipment (Extra Charge):

- VMP Relief Valve

The VMP relief valve plays a crucial role in hydraulic systems, ensuring the safety and operational stability of the entire system. Its primary function is to regulate pressure by discharging excess working fluid when the pressure within the system exceeds a specific value. The installation of a VMP valve protects the system from excessive load, preventing damage and ensuring balance in hydraulic operations. The valve is adjustable, allowing the working pressure to be precisely matched to the specific needs of the equipment.

- Additional Motor

Recommended for feed with grass and straw additives. An additional hydraulic motor is mounted to increase torque and boost the efficiency of the device, particularly during intensive use or when working under challenging conditions. Installing an additional motor allows for an even load distribution, which improves work efficiency and provides better control over the attachment. In systems requiring greater power or a faster duty cycle, the additional motor delivers vital support, contributing to a longer service life for the entire drive system.

Detailed Description:

• The screw feeder bucket is an innovative, reliable attachment that performs perfectly on cattle, pig, and poultry farms where both the speed and precision of feed dispensing are essential.
• This tool combines high functionality with dependability, serving as a valuable asset on agricultural farms where precise feed dosing is required for the effective management of the animal feeding process.
• The bucket is equipped with a hopper featuring a capacity of 1.56 m³, which allows for a larger volume of feed to be loaded in a single cycle, thereby increasing efficiency and reducing the time spent transporting feed to the livestock.
• This optimal capacity enables the dispensing of loose feeds, such as grains and meals, as well as mixtures with grass and straw additives, contributing to time savings and improving the efficiency of daily farm duties.
• The rugged construction of the bucket, including 6 mm thick side walls and a 5 mm thick main shell, ensures exceptional durability and resistance to mechanical damage, which guarantees reliable, long-term operation even under demanding working conditions.
• The cutting edge, made of high-quality HB500 steel measuring 150x16 mm, provides excellent resistance to abrasion, ensuring the long-term performance of the device even during heavy-duty use.
• The cutting edge efficiently handles the feed, ensuring its uniform dosing, which is essential for optimizing the feeding routine and improving animal nutrition efficiency.
• The built-in auger mechanism enables precise feed dosing. Thanks to an adjustable rotational speed, the user can adapt the dispensing rate to the individual needs of the herd, increasing control over the feeding process.
• The dual-side discharge capability allows for even feed distribution, which improves loading and unloading efficiency while making better use of the working space on the farm.
• Internal agitators inside the bucket prevent the feed from bridging, ensuring uniform dosing, preventing material from clumping, and increasing feed utilization efficiency by the livestock.
• The design of the screw feeder bucket also prioritizes easy maintenance; thanks to direct access to the pin lubrication points, routine inspections are simplified, allowing the tool to maintain high durability over a long lifespan.
• A recommended oil flow of 45 L/min ensures stability and optimal output of the attachment, allowing for dependable operation across various working conditions.
• The screw feeder bucket is an indispensable tool that boosts productivity on agricultural farms, contributing to the optimization of the feeding process and significant time savings.
