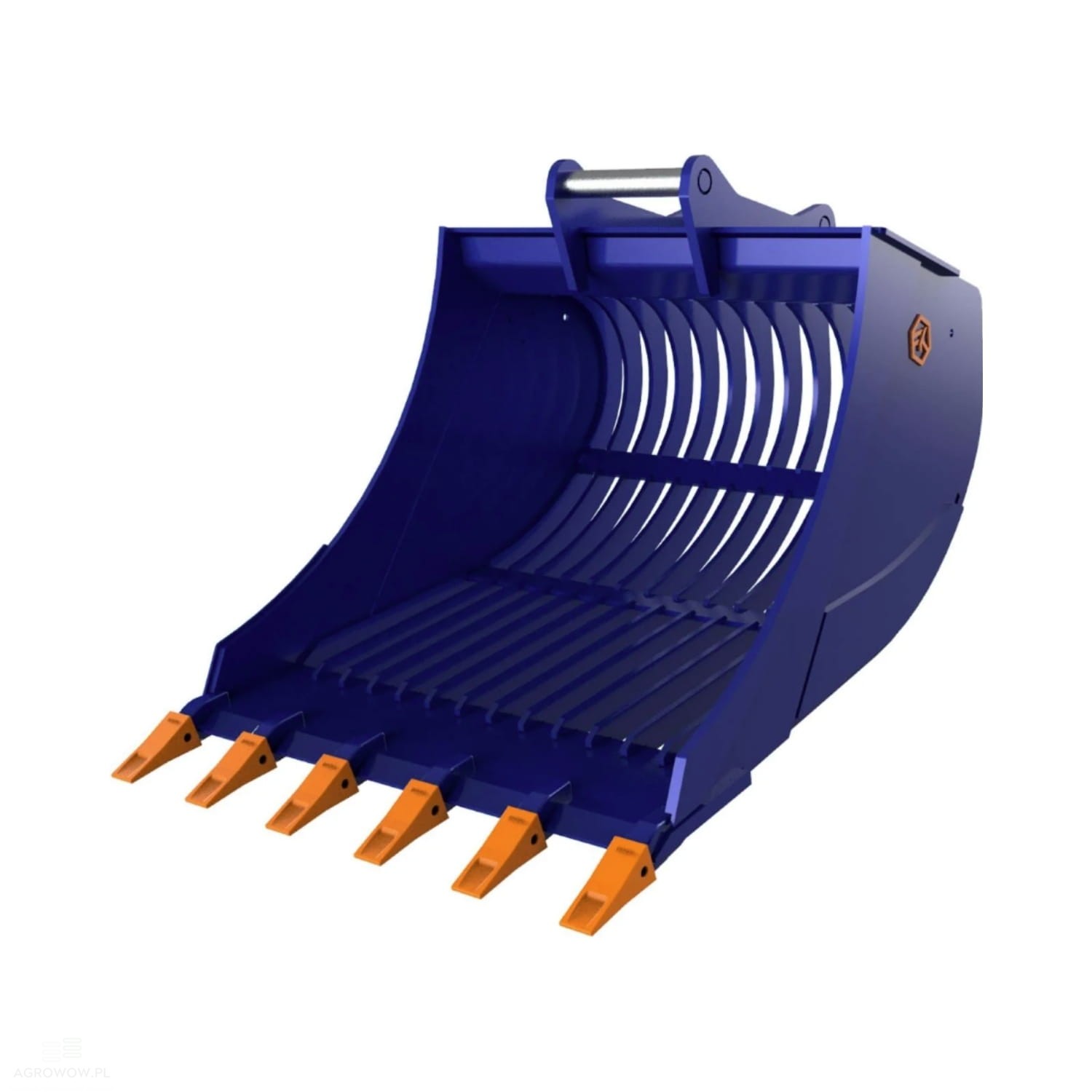

Kołaszewski skeleton bucket 10–12 T / 1.2 x 0.77 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEEH12

- Manufacturer's name: Skeleton bucket 10-12T

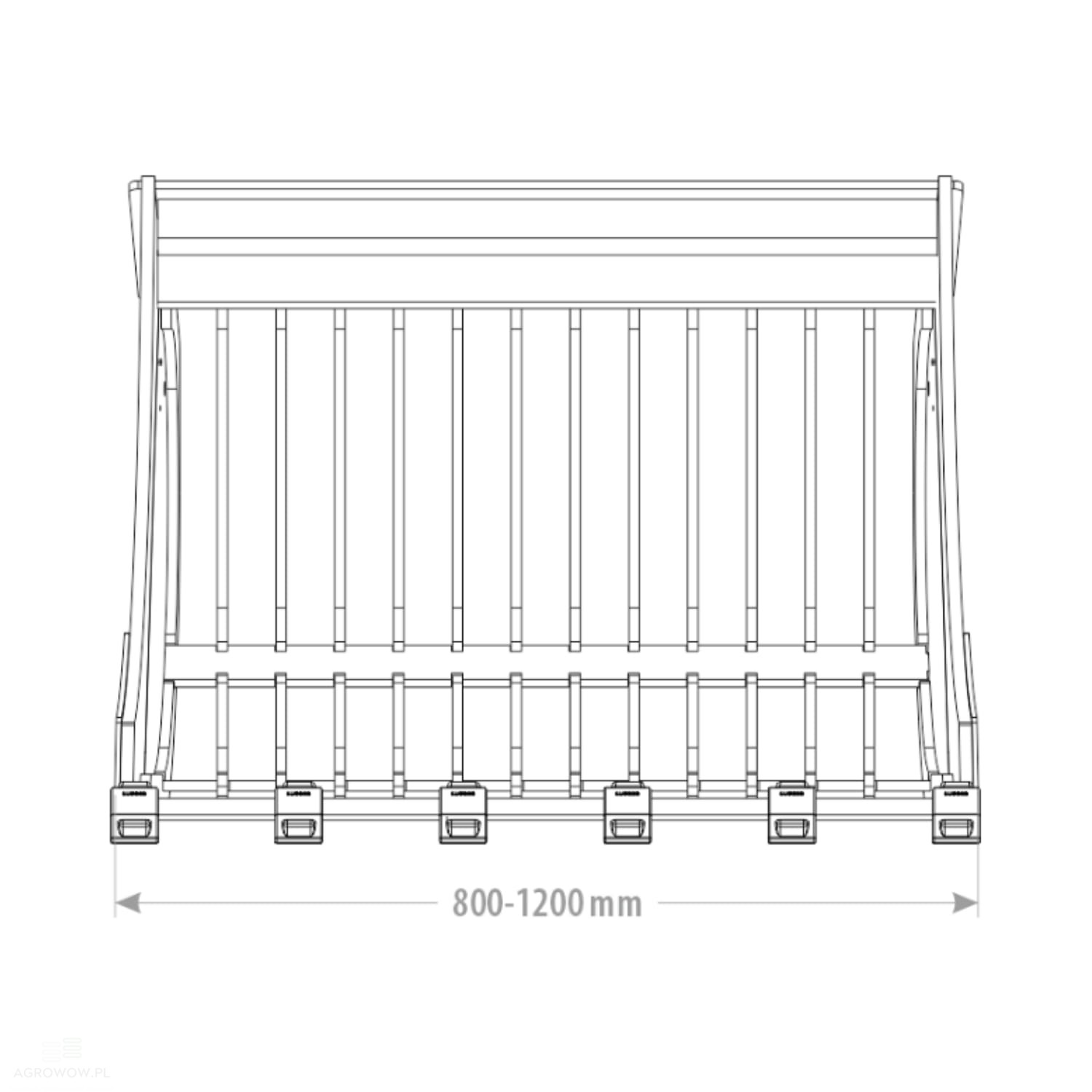

- Width: 1200 mm

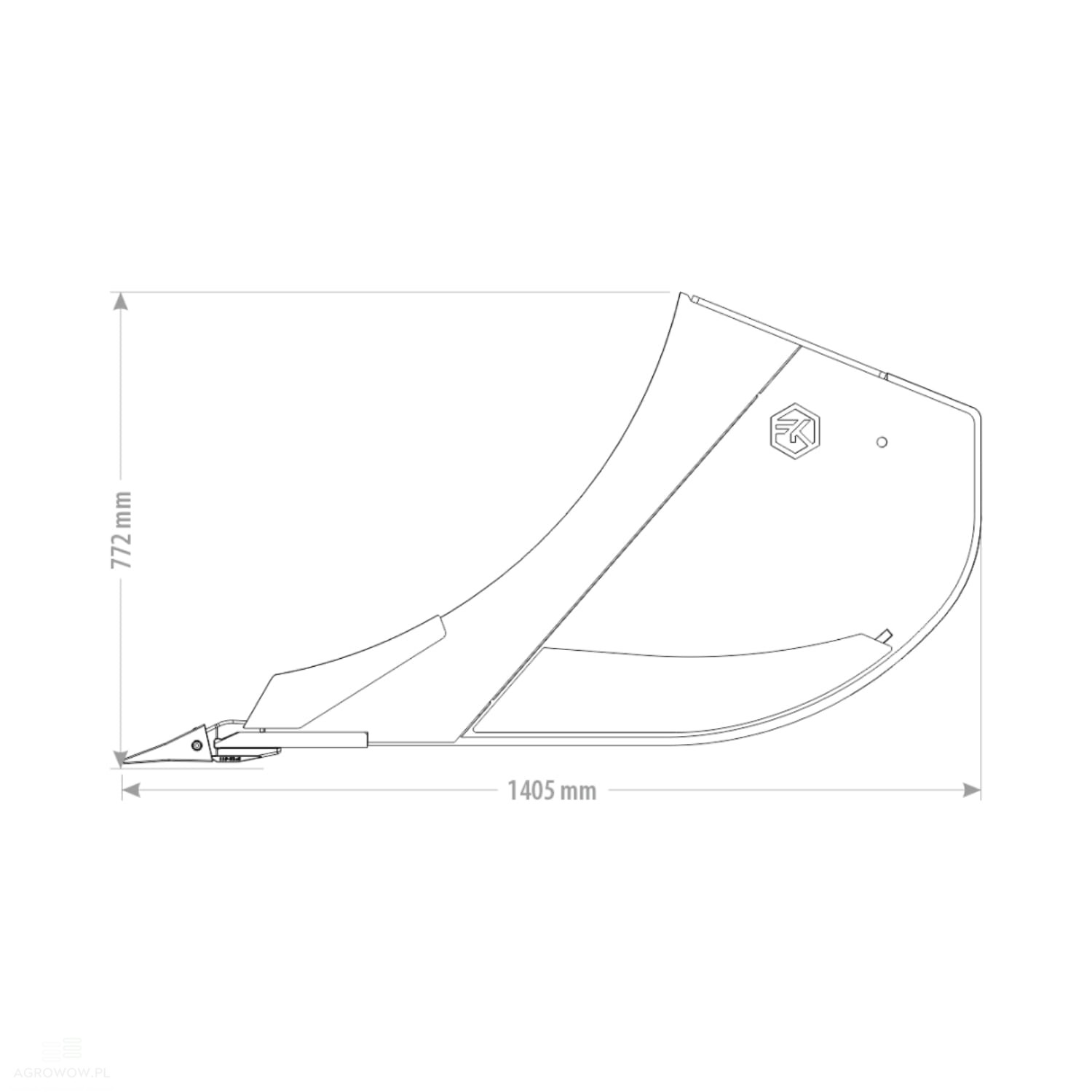

- Length: 1405 mm

- Height: 772 mm

- Weight: 392 kg

- Capacity: 680 L

- Number of teeth: 7

- Permissible machine weight: 10–12 T

- Tooth model: CAT J200

- S355 J2 main shell / structure: 10 mm

- S355 J2 side walls: 8–10 mm

- HB400 cutting edge base / strike plate: 15+6 mm

- HB500 main cutting edge / blade: 250x25 mm

- S355 J2 main rib / reinforcement: 12 mm

Detailed Description:

• The skeleton (riddle) bucket, featuring a volume capacity of 680 liters, is a highly efficient and durable work tool engineered for carrier machines with an operating weight between 10 and 12 tonnes.

• With a functional width of 1200 mm, an overall length of 1405 mm, and a height of 772 mm, this attachment handles substantial material volumes with ease while maintaining excellent structural stability and digging precision across all operating conditions.

• This model is purposely built for intensive use in demanding work environments, spanning heavy civil engineering, agriculture, and municipal services.

• Its outstanding mounting versatility makes it a perfect solution as a skeleton bucket for tracked or wheeled excavators, backhoe loaders, telehandlers, and front loaders (TUR system).

• The specialized skeletonized grid design allows for highly efficient screening and separation of fine components—such as soil, sand, and organic compost—from larger fractions including rocks, concrete debris, and tree roots.

• This makes the bucket an excellent choice as a dedicated stone reclamation bucket, as well as for any sorting and site-clearing operations.

• Equipped with seven robust teeth utilizing the industry-standard CAT J200 locking system, the bucket ensures maximum efficiency during scooping, handling, and breaking up various material types—ranging from loose aggregates to compacted soils.

• The optimized bucket geometry supports rapid, dynamic, and precise cycles for the operator.

• The precisely spaced grid profile and slotted floor arrangement facilitate effective self-cleaning during operation.

• This feature drastically minimizes non-productive downtime and guarantees continuous workflow, even when handling wet, sticky, or heavily contaminated materials.

• Supreme structural longevity is achieved through a meticulous selection of high-grade industrial steels: a 10 mm thick S355 J2 main structural shell, 8–10 mm thick S355 J2 side panels, and a 15+6 mm thick HB400 wear-resistant cutting edge base plate.

• The assembly is further reinforced by a heavy-duty HB500 main cutting edge blade measuring 250x25 mm, backed by a 12 mm thick S355 J2 central structural rib.

• Together, these components provide ultimate protection against aggressive abrasive wear and heavy high-impact loads over years of intensive service.

• The bucket excels across a wide spectrum of tasks—from site preparation and land clearing, through sorting construction and organic materials, to raw material handling on active job sites or agricultural homesteads.

• The 680-liter skeleton bucket offers seamless mechanical and hydraulic compatibility with an extensive fleet of premier global machinery brands, including Atlas, Bobcat, Bomag, Case, Caterpillar (Cat), Doosan, Fadroma, Hitachi, Hyundai, JCB, John Deere, Komatsu, Kubota, Liebherr, New Holland, O&K, Terex, Volvo, Wacker Neuson, Yanmar, and Zeppelin.

• This attachment represents a high-capacity, heavy-duty solution for professionals who demand maximum operational efficiency, dependable durability, and shorter processing cycles.
