Kołaszewski skeleton bucket 12–14 T / 1.0 x 0.97 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Kołaszewski

- Catalogue number: KEEI10

- Manufacturer's name: Skeleton bucket 12-14T

- Width: 1000 mm

- Length: 1687 mm

- Height: 971 mm

- Weight: 500 kg

- Capacity: 785 L

- Number of teeth: 5

- Permissible machine weight: 12–14 T

- Tooth model: CAT J250

- S355 J2 main shell / structure: 12 mm

- S355 J2 side walls: 8–10 mm

- HB400 cutting edge base / strike plate: 20+6 mm

- HB500 main cutting edge / blade: 250x25 mm

- S355 J2 main rib / reinforcement: 12 mm

Detailed Description:

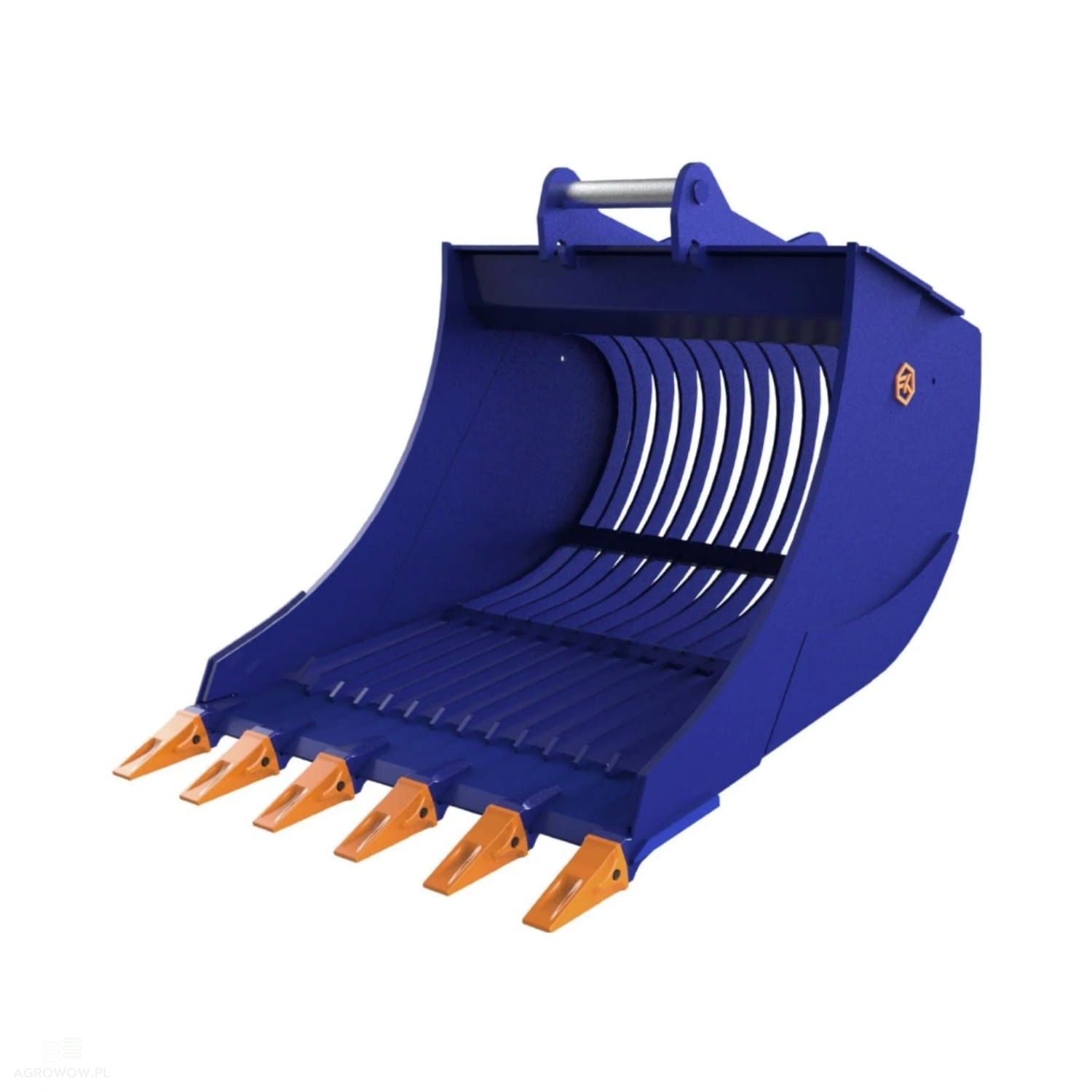

• The skeleton (riddle) bucket, featuring a volume capacity of 785 liters, is a professional-grade attachment engineered for carrier machines with an operating weight between 12 and 14 tonnes.

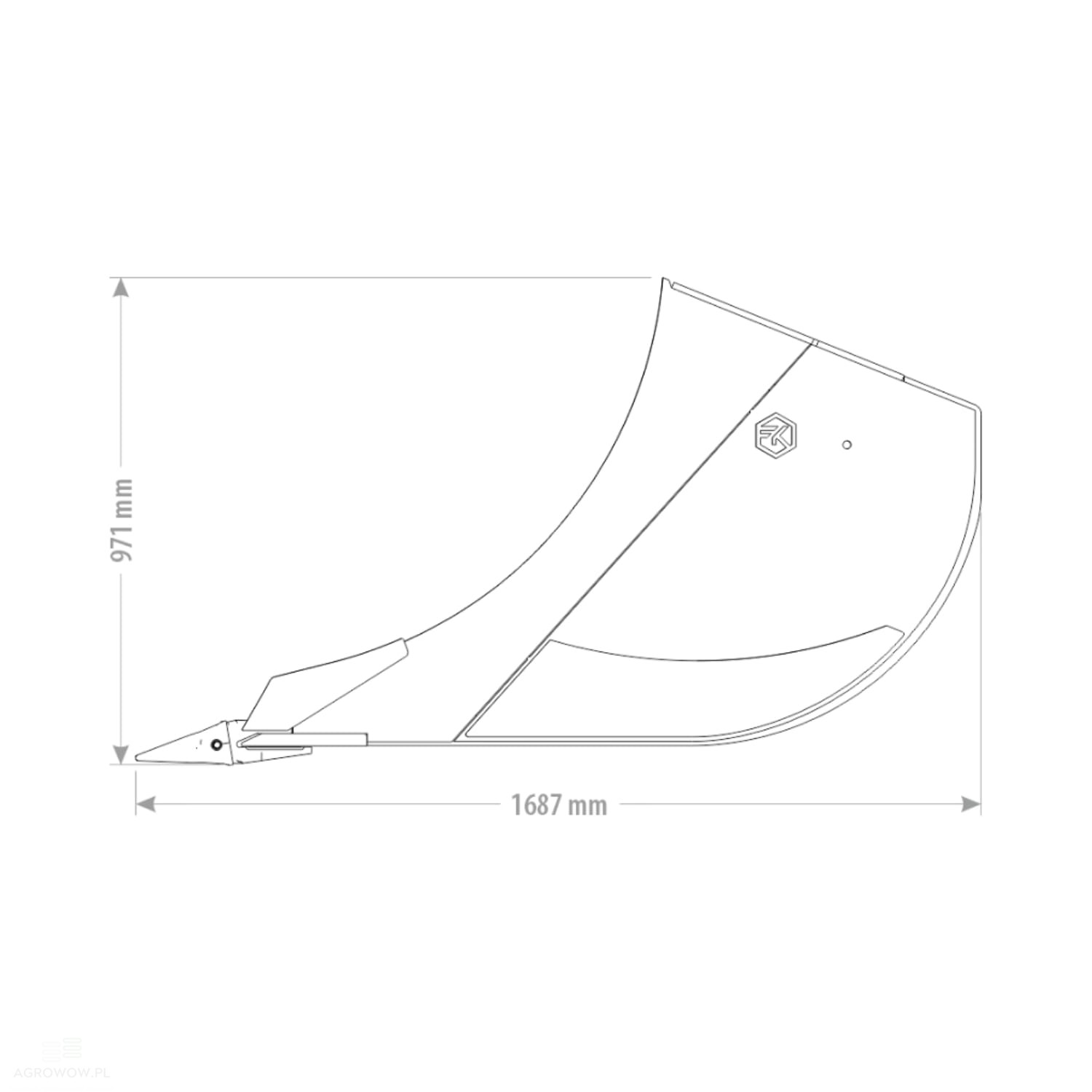

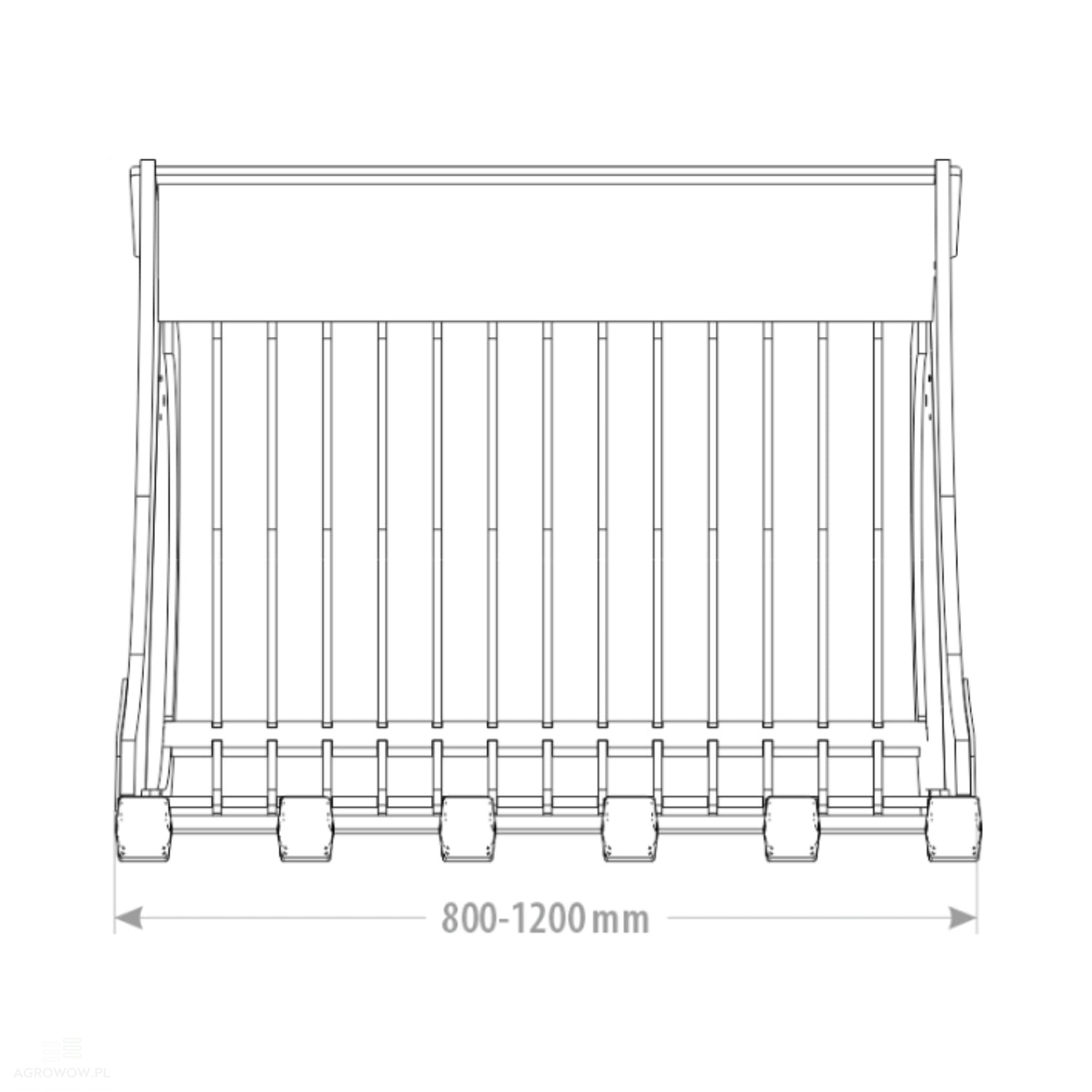

• With a functional width of 1000 mm, an overall length of 1687 mm, and a height of 971 mm, this attachment handles large material volumes with ease while maintaining excellent structural stability and digging precision across diverse, rugged terrains.

• This model is purposely built for intensive, multi-shift operation in demanding sectors such as heavy civil engineering, industrial demolition, agriculture, and municipal infrastructure.

• Its highly versatile mounting adaptability makes it a perfect fit as a skeleton bucket for heavy tracked or wheeled excavators, backhoe loaders, telehandlers, and front loaders (TUR system).

• The specialized skeletonized grid design allows for highly efficient primary screening and separation of fine materials—such as soil, sand, and organic compost—from larger aggregates including concrete debris, rocks, bricks, or tree roots.

• This makes the bucket an ideal choice for site clearing, recycling sorting, and dedicated stone reclamation tasks.

• Equipped with five robust, field-proven teeth utilizing the industry-standard CAT J250 locking system, the bucket ensures aggressive ground penetration, easy material breakout, and efficient handling of both loose materials and highly compacted soils.

• The engineered bucket geometry optimizes the filling factor and gives the operator maximum control, significantly reducing cycle times and fuel consumption.

• Thanks to the precisely spaced grid profile and slotted floor arrangement, the attachment benefits from a self-cleaning motion during operation.

• This dynamic action drastically reduces the risk of material clogging or packing, minimizing non-productive cleaning stops and workflow interruptions.

• Supreme structural longevity is achieved through a meticulous selection of high-grade industrial steels: a 12 mm thick S355 J2 main structural shell, 8–10 mm thick S355 J2 side panels, and a 20+6 mm thick HB400 wear-resistant cutting edge base plate.

• The assembly is further reinforced by a heavy-duty HB500 main cutting edge blade measuring 250x25 mm, backed by a 12 mm thick S355 J2 central structural rib.

• Together, these components provide ultimate protection against aggressive abrasive wear, torsional twisting, and severe high-impact loads.

• The 785-liter skeleton bucket offers seamless mechanical and hydraulic compatibility with an extensive fleet of premier global machinery brands, including Atlas, Bobcat, Bomag, Case, Caterpillar (Cat), Doosan, Fadroma, Hitachi, Hyundai, JCB, John Deere, Komatsu, Kubota, Liebherr, New Holland, O&K, Terex, Volvo, Wacker Neuson, Yanmar, and Zeppelin.

• This attachment is a highly dependable, professional-grade investment designed to optimize material sorting directly on-site, delivering reliable performance and structural integrity over years of intensive service.
