Kołaszewski snow plow 1.8 x 0.7 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: FK Machinery

- Catalogue number: KCPLH180

- Manufacturer's name: Light straight snow plow

- Width: 1800 mm

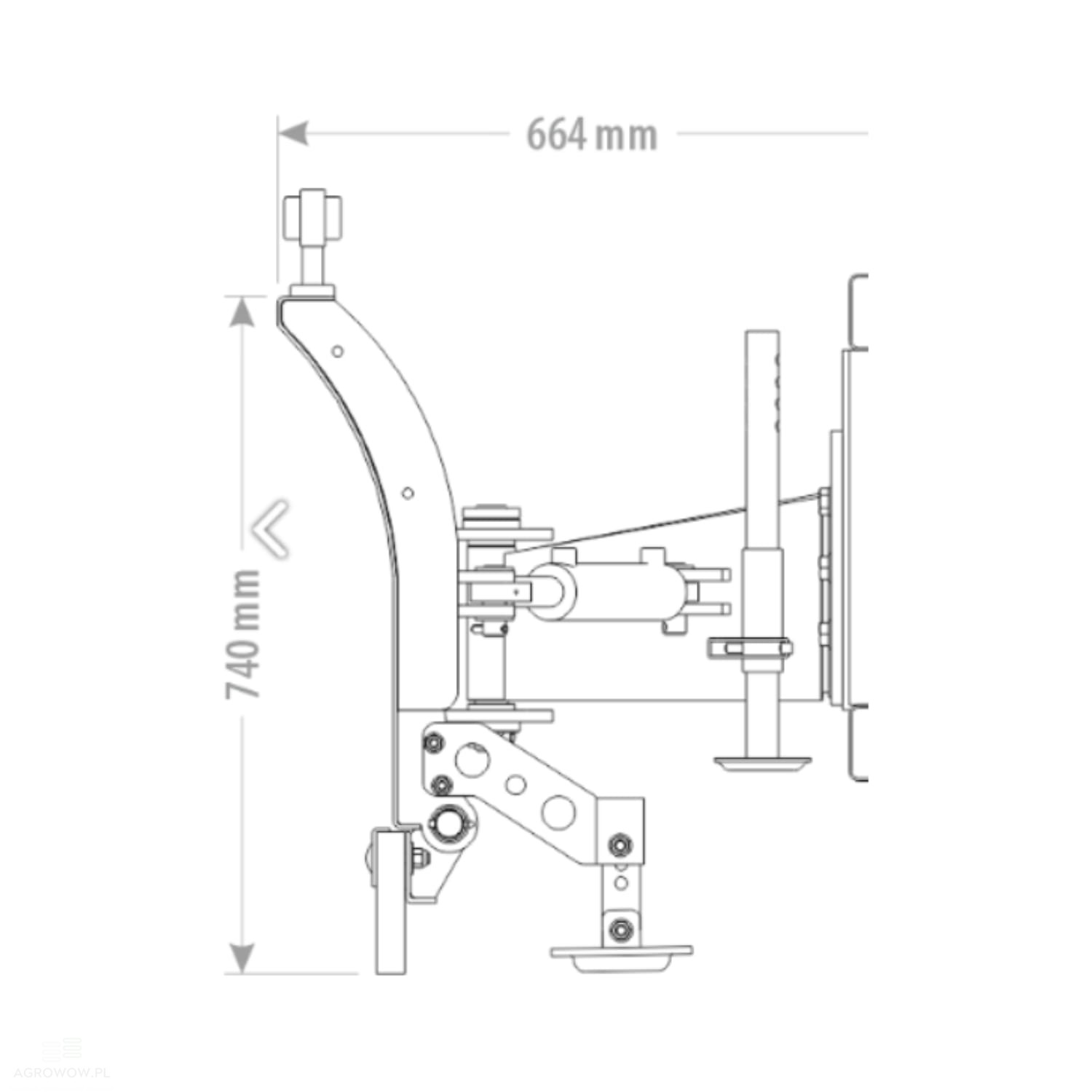

- Height: 740 mm

- Weight: 163 kg

- Ribs: 6 mm

- Main moldboard shell thickness: 4 mm

- Rubber cutting edge / blade: 150 x 30 mm

- Curved moldboard design: Yes

- Hydraulic moldboard adjustment: Yes

- Spring-loaded / trip moldboard mechanism: Yes

- Terrain contour following / oscillation system: Yes

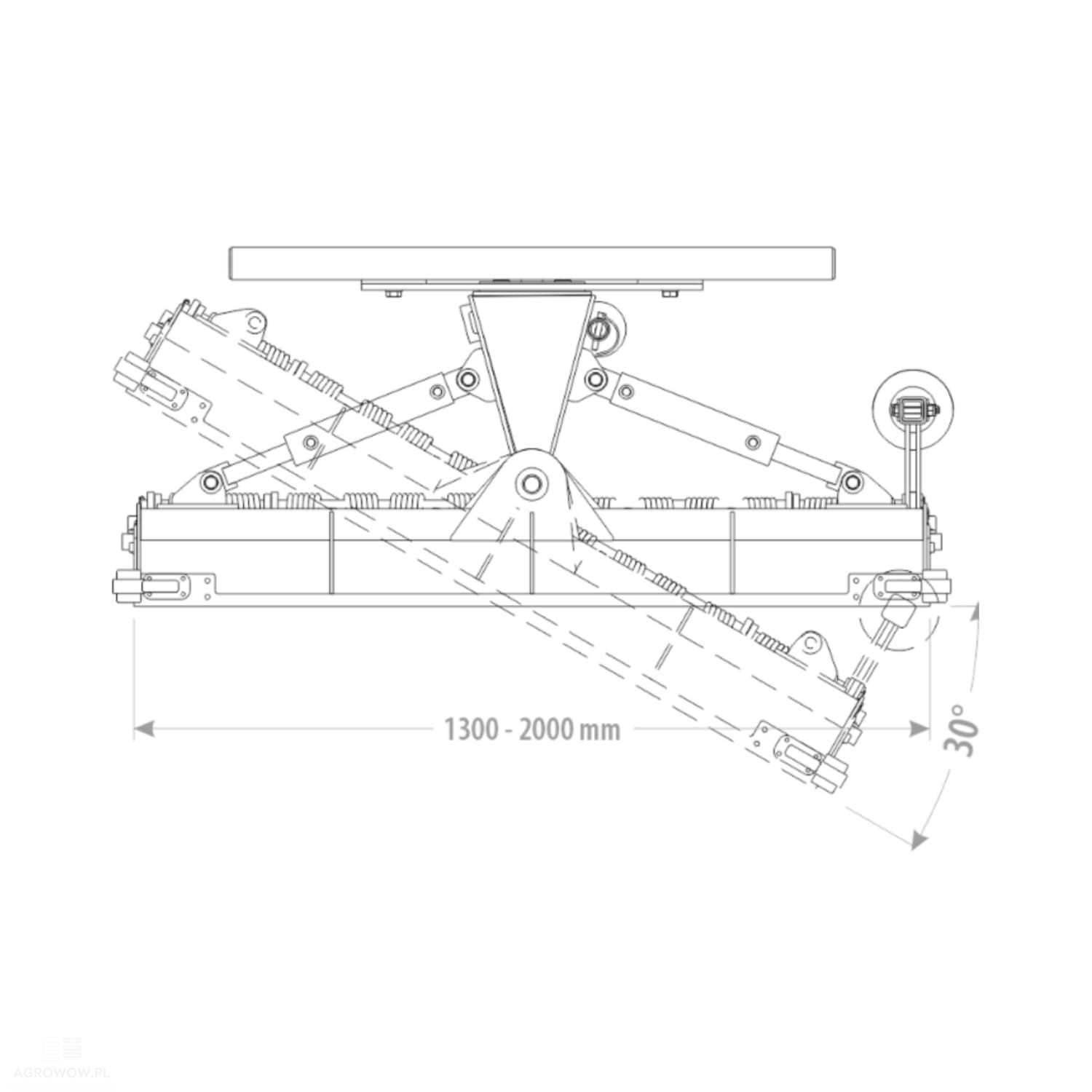

- Left / right turning angle: 30°

Optional Extras:

- LED Lighting System

High-performance LED work lights mounted directly on the snow plow significantly improve safety and operational efficiency during low-visibility conditions, such as nighttime operations, heavy fog, or intense blizzards. This upgrade illuminates the immediate working path, granting the operator maximum control over the cleared surface.

- Support Wheels

Heavy-duty support wheels are essential for precise height clearance adjustment over the terrain. They allow the operator to tailor the plow's positioning to various ground surfaces, effectively preventing premature cutting edge wear. Depending on the exact specification, height configuration is handled via a manual screw spindle or hydraulic actuator. These wheels distribute the attachment's weight evenly, relieving strain from the carrier machine's suspension and prolonging overall equipment life.

- Skid Shoes

Adjustable support skid shoes act as both a leveling mechanism and a protective guard. They ensure smooth tracking across the ground, minimizing the risk of causing damage to paved surfaces or inflicting impact stress on the cutting edge itself. Mounted on adjustable brackets, they allow micro-adjustments of the moldboard height depending on surface type and snow accumulation depth.

- Alternative Brackets / Couplers (e.g., for loaders): Available upon request.

Detailed Description:

• This straight snow plow is a versatile, high-efficiency attachment engineered for the rapid clearing of sidewalks, parking lots, access roads, and urban squares.

• Featuring a heavy-duty frame build and premium structural materials, this snow plow serves as a dependable, professional-grade solution capable of managing demanding winter maintenance operations under severe weather conditions.



• The machine is equipped with a flexible angling system that allows for a 30° turn to both the left and right sides, providing the operator with precise control over snow discharge direction and allowing the setup to easily adapt to different layouts.

• Thanks to the integrated hydraulic moldboard control, the operator can adjust the configuration seamlessly on the move directly from the vehicle cabin.

• This significantly quickens work cycles, reduces manual effort, and enhances on-site productivity.



• This light municipal straight snow plow is not just an attachment that ensures fast and effective snow removal; it is an engineered solution designed to eliminate intensive physical labor while maximizing operator comfort and operational throughput.

• It stands as an indispensable tool for winter maintenance, tailored specifically for urban areas, tight configurations, and smaller commercial properties.
