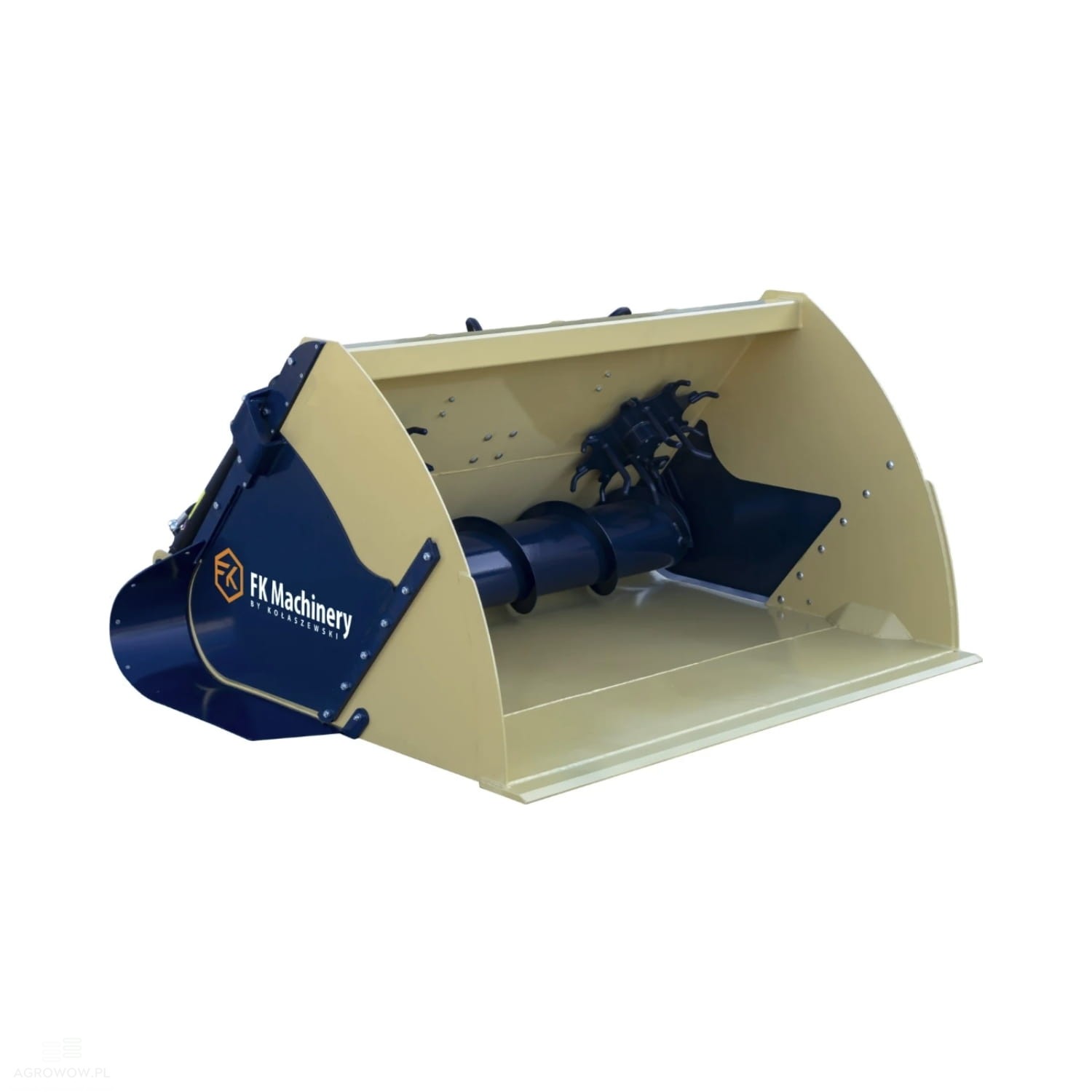

Kolaszewski auger feed bucket 2.4 x 1.16 m

Would you like to set the specification and tailor the bucket to your individual needs?

We can prepare a mounting for any type of equipment — tractor, excavator, loader, forklift and many other machines

Get in touch with our sales engineer!

E-mail address: sklep@agrowow.pl

Telephone number: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any question you may have.

- Manufacturer: Kolaszewski

- Catalogue number: FBSS240

- Manufacturer's designation: Auger feed bucket

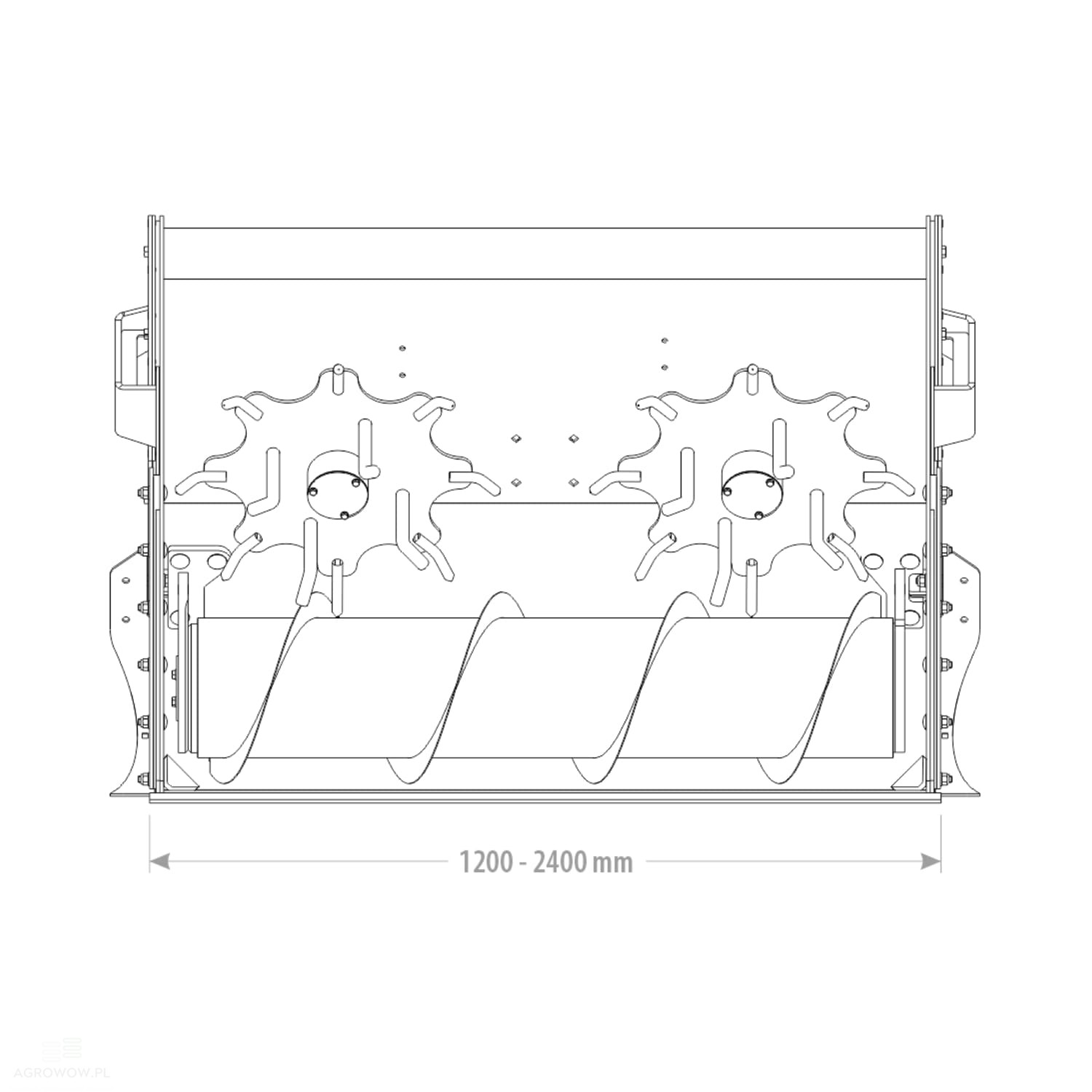

- Width: 2400 mm

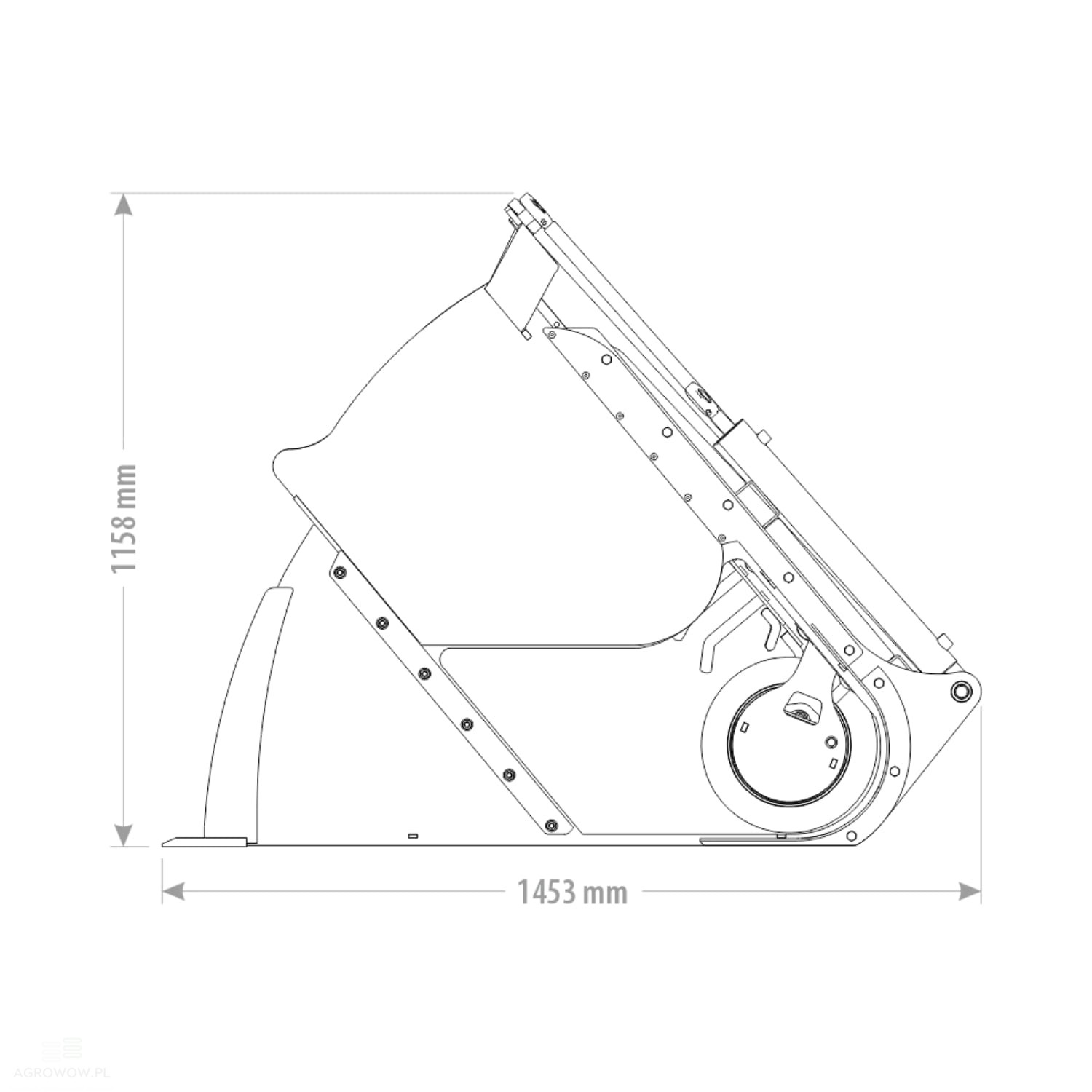

- Length: 1453 mm

- Height: 1158 mm

- Capacity: 1.70 m3

- Weight: 622 kg

- Side: 6 mm

- Shell: 5 mm

- Blade HB500: 150x16

- Feeding possible on both sides

- Agitators preventing the feed from bridging

- Recommended oil flow: 45 L/min

- Hydraulic motor: 2

Optional extras at additional cost:

- VMP relief valve

The VMP relief valve performs an extremely important function in hydraulic systems, providing the safety and stability of operation of the whole circuit. Its main task is to control the pressure by removing excess working fluid when the pressure in the circuit exceeds the set value. Thanks to the use of this valve the system is protected against excessive load, which prevents damage and provides the stability of the hydraulics. The valve, with its adjustment option, allows the working pressure to be matched precisely to the specific requirements of the machine.

- Extra motor (advised for feed with an admixture of grass and straw)

The additional hydraulic motor is used in order to increase the torque and improve the efficiency of the machine, especially in the case of intensive use or work in difficult conditions. Fitting an additional motor allows an even distribution of the load, which improves performance and makes better control over the machine possible. In circuits that require greater power or a faster working cycle, the additional motor is valuable support, also contributing to the long life of the drive system.

Detailed description:

• The auger feeding bucket is a modern and reliable piece of equipment which works perfectly on cattle, pig and poultry farms, where both the speed and the precision of feeding are crucial.
• This tool combines high functionality with reliability, being an invaluable aid on farms where the efficient dosing of fodder is of great importance.
• The bucket is fitted with a chamber with a capacity of 1.70 m³, which allows a larger quantity of feed to be loaded at one time, thereby increasing working efficiency and shortening the time spent transporting feed to the animals.
• The optimal capacity allows loose feeds such as grain, meal and mixes with grass and straw to be dispensed, which leads to time savings and improved efficiency of everyday tasks on the holding.
• The solid construction of the bucket, including 6 mm thick sides and a 5 mm thick shell, provides high resistance to mechanical damage, which guarantees reliability and long-lasting operation in difficult conditions.
• The blade made of HB500 steel with dimensions of 150x16 mm provides excellent abrasion resistance, which guarantees long-lasting performance of the unit even with intensive use.
• The blade processes the feed efficiently and ensures it is dispensed evenly, which is essential for optimising the feeding process and improving the efficiency of animal feeding.
• The built-in auger mechanism allows feed to be dosed precisely. Thanks to the adjustable rotational speed, the user can match the feeding rate to the individual needs of the herd, which increases control over the feeding process.
• The possibility of feeding out to both sides allows even distribution of the feed, which improves the efficiency of loading and unloading and also makes better use of the working space on the farm.
• The agitators inside the bucket prevent the feed from bridging, which ensures that it is dosed evenly, stops the feed from caking and improves how efficiently the animals make use of it.
• The design of the auger bucket takes easy maintenance into account. Thanks to the access to the greasing points of the pins, inspections are easier and the tool retains high durability over a long period.
• The recommended oil flow, amounting to 45 L/min, ensures stability and optimum performance of the unit, which allows it to work reliably in various working conditions.
• The auger bucket for feeding out is an indispensable tool which improves working efficiency on the farm, contributing to the optimisation of the feeding process and to savings of time.
