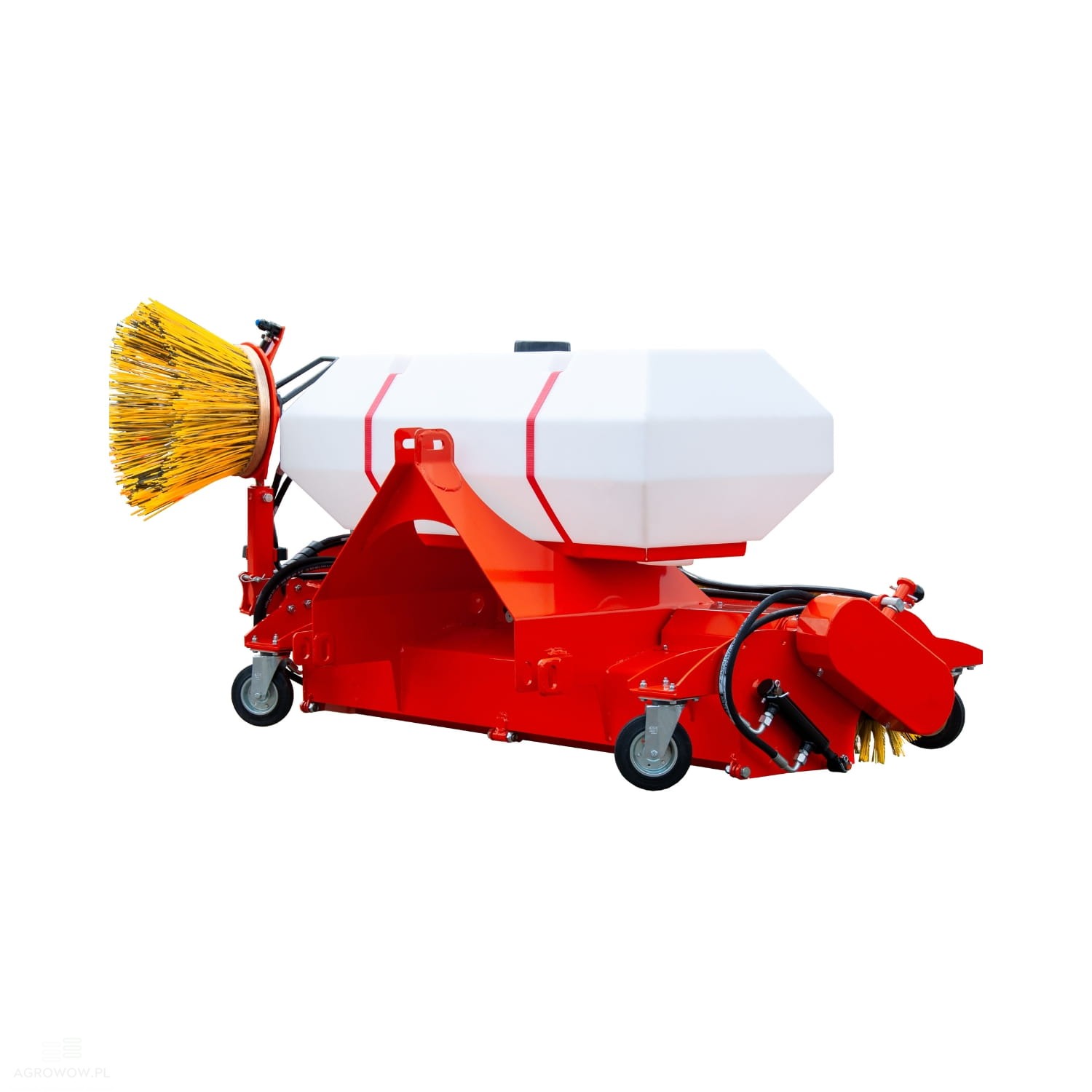

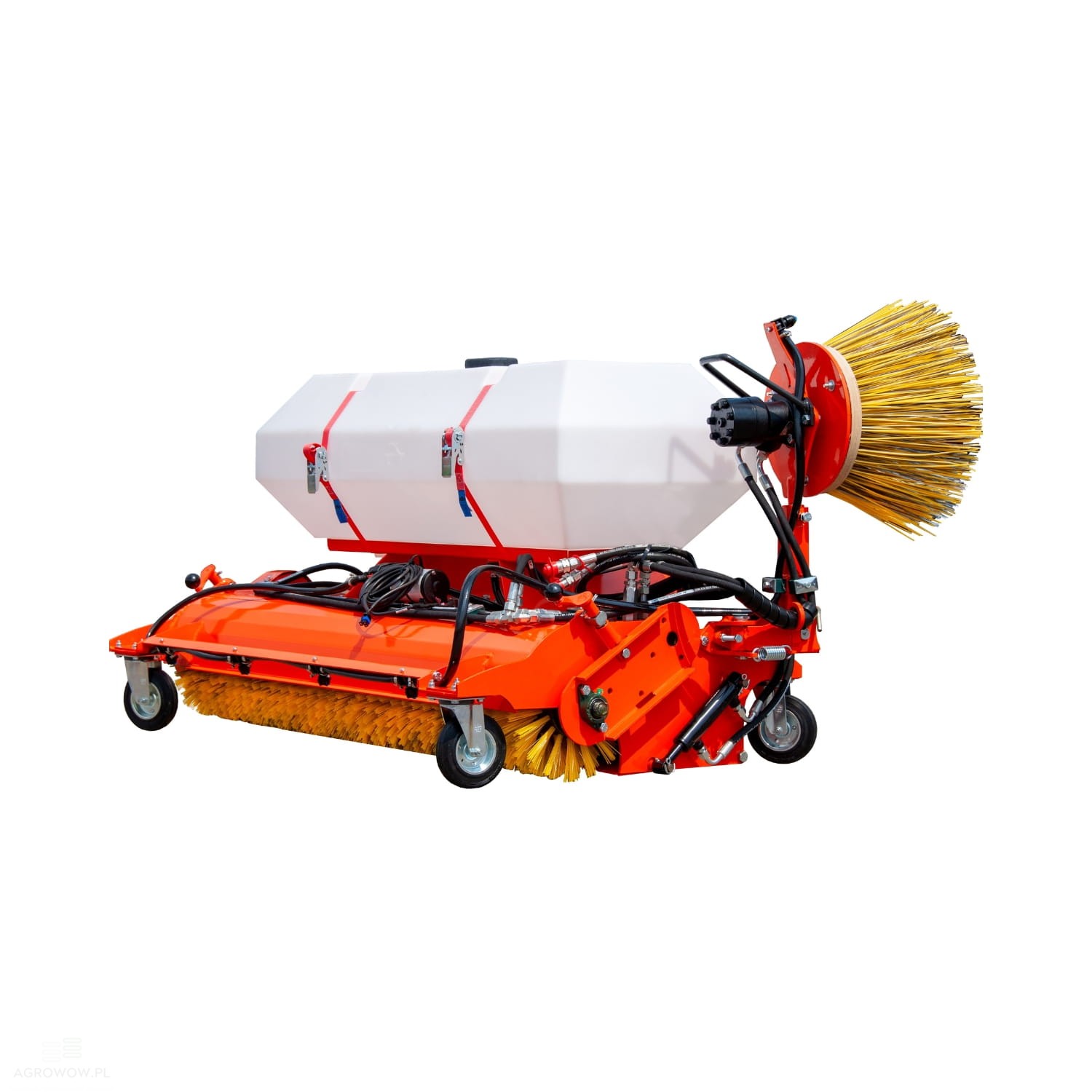

Metal-Technik 1.2 m rear-mounted street sweeper for compact utility tractors

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT120ZU

- Manufacturer's name: MTS2 Sweeper

- Width: 1200 mm

- Width with side brush: 1640 mm

- Length: 1070 mm

- Height: 880 mm

- Weight: 190 kg

- Brush diameter: 300 mm

- Side brush drive: Hydraulic motor

- Water tank capacity: 200 L

- Minimum oil flow: 30 L/min

- Maximum oil flow: 60 L/min

- Maksymalne ciśnienie oleju: 140 bar

- Main drive system: Driven by PTO shaft

- Supported PTO speed: 540 RPM

- Hitch design: Equipped with a terrain-following / contour-adaptation system

- Hopper lifting: Hydraulic collection hopper emptying

- Brush options: Easily replaceable plastic or plastic-metal bristles

- Mounting: Rear 3-point hitch (TUZ), Cat. I small or Cat. I large

- Vehicle compatibility: Designed for aggregation with small carriers, compact tractors, small loaders, and mini machines

Extra Cost:

- Water Tank

The water tank is a key component of the sprinkling system in road and municipal sweepers, aimed at reducing airborne dust and improving surface cleaning efficiency. Made of durable material resistant to corrosion and mechanical damage, it ensures long-term and trouble-free operation. Its capacity, typically ranging from 100 to 500 liters, enables extended work periods without the need for frequent refills. The tank design includes connection ports for the spraying system and a wide inlet that makes filling easy. Some models utilize a water level indicator and a filtration system to prevent contamination and clogging of the spray nozzles.

- Side Brush

The side brush is a crucial element of mechanical sweepers, designed for the effective removal of debris from hard-to-reach areas such as curbs, corners, and sidewalk edges. Made of durable synthetic fibers or a mixture of plastic and metal wires, it features high resistance to abrasion and intensive use. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise raising, lowering, and adjustment to working conditions. On certain sweeper models, the side brush is equipped with a sprinkling system that limits dust and increases cleaning effectiveness.

Detailed Description:

• This road sweeper with a working width of 1200 mm is a modern device designed for the effective cleaning of various surfaces.

• Thanks to its compact dimensions and solid construction, it performs perfectly as a tractor sweeper, loader sweeper, or forklift sweeper.

• This model has been engineered to cooperate with smaller machinery, making it an ideal choice as a compact utility tractor sweeper or an ATV/quad sweeper, enabling the efficient cleaning of yards, warehouses, sidewalks, and streets.

• Equipped with a hydraulically driven side brush and a main brush with a diameter of 300 mm, the sweeper perfectly removes debris such as dust, mud, sand, and leaves—which also makes it an excellent leaf sweeper.

• The device features a hydraulic collection hopper lifting function, which significantly streamlines operation and increases user comfort.

• The drive system, based on a PTO shaft, supports a rotational speed of 540 RPM, allowing the device to be adapted to various machines and applications.

• Thanks to the hitch with a terrain-following function, the sweeper adjusts to surface unevenness, increasing its effectiveness and operational comfort.

• This model is equipped with a 200 L water tank, which allows for effective dust reduction and improves working comfort in challenging conditions.

• The possibility of mounting it on the rear 3-point hitch (Category I small and Category I large) makes the sweeper ideal for use as a sidewalk sweeper, street sweeper, and road sweeper.

• The oil flow range from 30 to 60 L/min and a maximum pressure of 140 bar guarantee efficiency and trouble-free operation under various conditions.

• Easily replaceable plastic or plastic-metal brushes ensure a long lifespan for the device and adaptation to different types of surfaces.

• It can also be utilized as a snow sweeper during the winter season, making it an all-season piece of equipment.

• The sweeper is a professional solution for municipal companies, industrial plants, farms, and users seeking durable and effective equipment for sweeping roads, squares, and urban areas.
