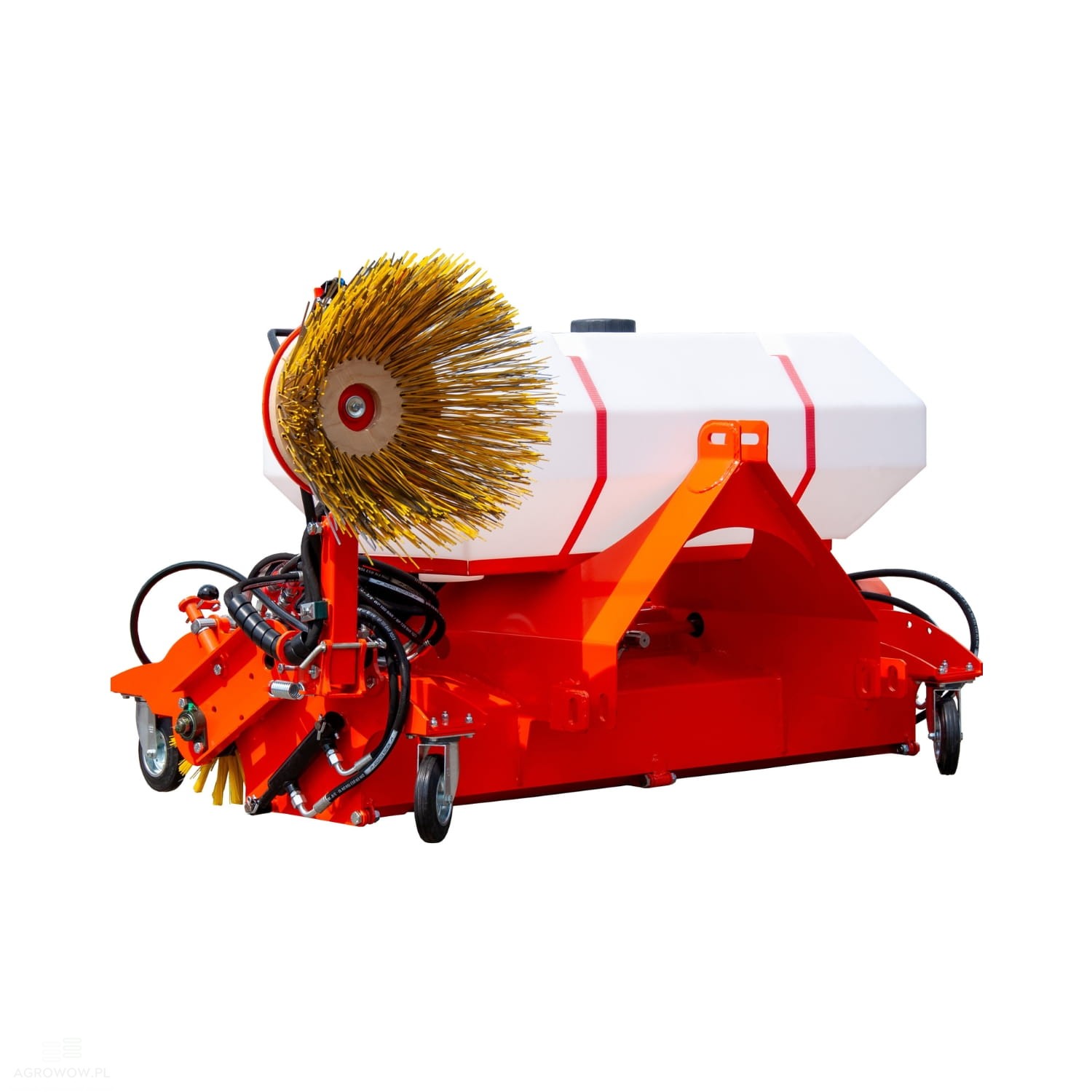

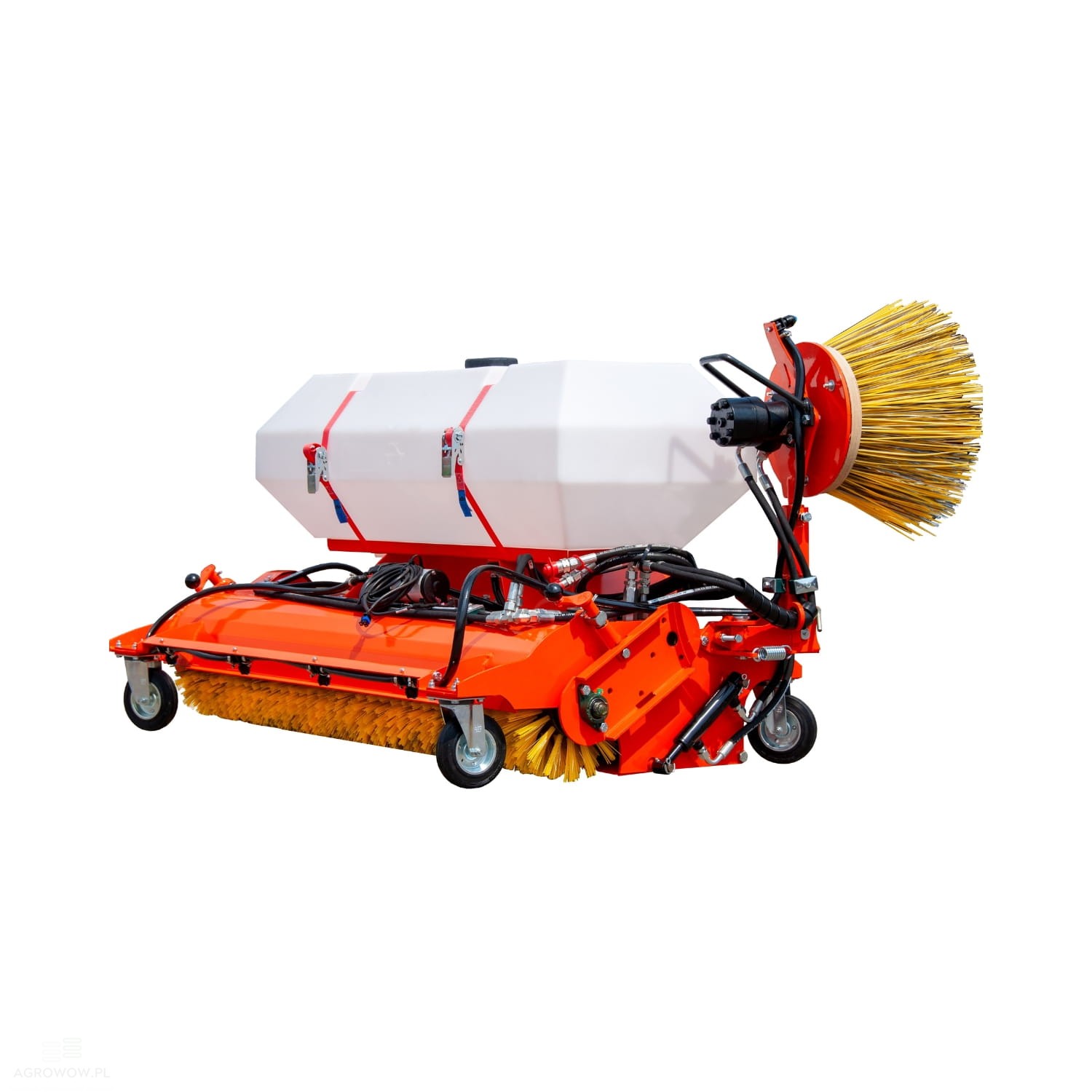

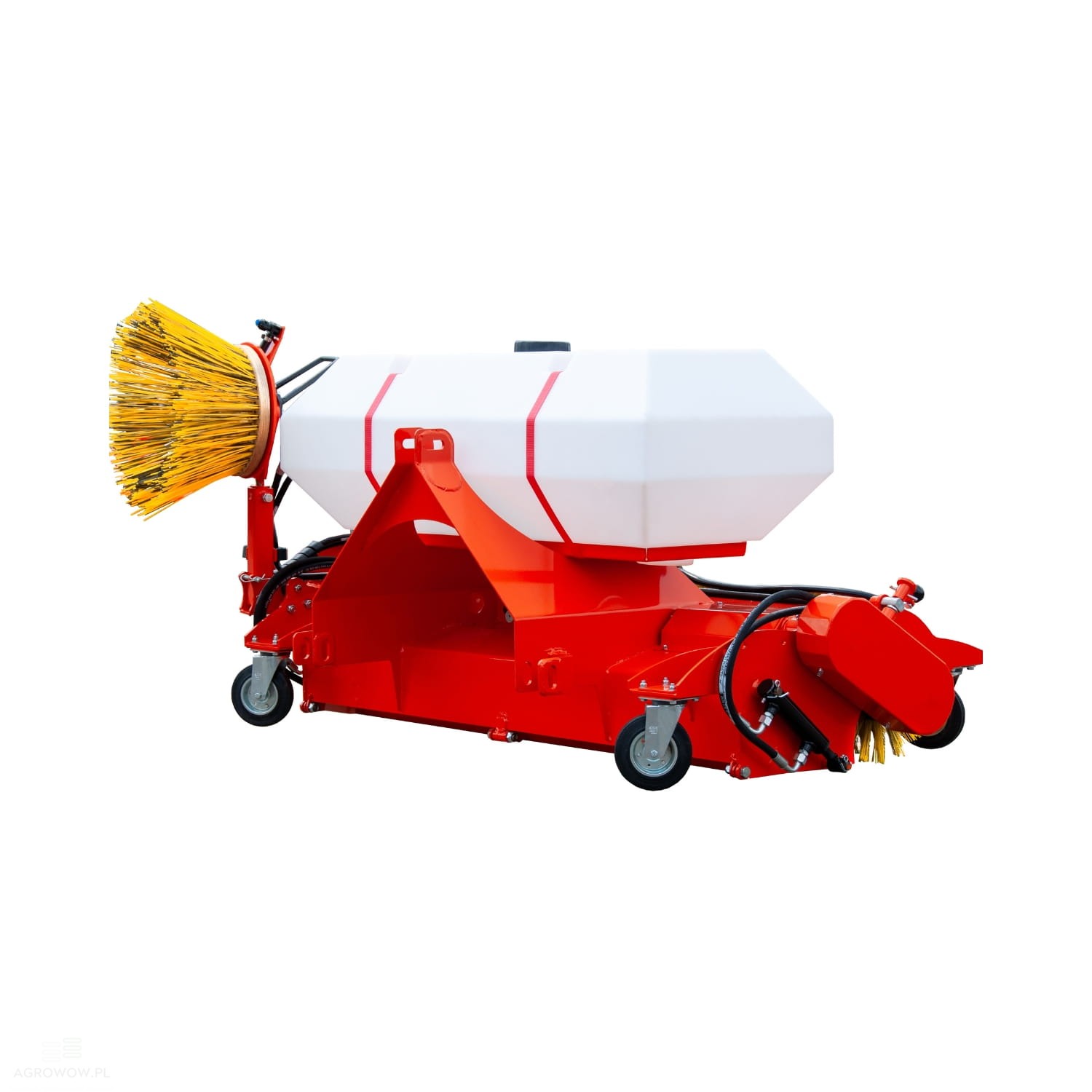

Metal-Technik 1.4 m rear-mounted street sweeper for compact utility tractors

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT140ZU

- Manufacturer's name: MTS2 Sweeper

- Width: 1400 mm

- Width with side brush: 1840 mm

- Length: 1070 mm

- Height: 880 mm

- Weight: 200 kg

- Brush diameter: 300 mm

- Side brush drive: Hydraulic motor

- Water tank capacity: 200 L

- Minimum oil flow: 30 L/min

- Maximum oil flow: 60 L/min

- Maximum oil pressure: 140 bar

- Main drive system: Driven by PTO shaft

- Supported PTO speed: 540 RPM

- Hitch design: Equipped with a terrain-following / contour-adaptation system

- Hopper lifting: Hydraulic collection hopper emptying

- Brush options: Easily replaceable plastic or plastic-metal bristles

- Mounting: Rear 3-point hitch (TUZ), Cat. I small or Cat. I large

- Vehicle compatibility: Designed for aggregation with small carriers, compact tractors, small loaders, and mini machines

Extra Cost:

- Water Tank

The water tank is an essential component of the sprinkling system in municipal and road sweepers, responsible for reducing airborne dust and increasing cleaning efficiency. Made of durable, corrosion-resistant material, it withstands mechanical damage and changing weather conditions. Its capacity, typically ranging from 100 to 500 liters, allows for long-term operation without the need for frequent refills. The tank features special connection ports for the spraying system and a convenient inlet for easy filling. Some models also include a water level indicator and a filtration system to prevent clogging of the spray nozzles.

- Side Brush

The side brush is an important element of mechanical sweepers, designed for the effective removal of debris from hard-to-reach areas such as curbs, corners, or spaces along building walls. Made of wear-resistant synthetic fibers or a mixture of plastic and metal wires, it features high durability and resistance to intensive use. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise raising and lowering depending on working conditions. Certain sweeper models are additionally equipped with a sprinkling system at the side brush, which effectively reduces dust and improves sweeping quality.

Detailed Description:

• This road sweeper with a working width of 1400 mm is a functional and modern device that ensures effective maintenance of cleanliness on various types of surfaces.

• Thanks to its durable construction and compact dimensions, it is an ideal choice as a tractor sweeper, loader sweeper, or forklift sweeper.

• It represents an excellent solution for working in smaller spaces, making it an efficient compact utility tractor sweeper or ATV/quad sweeper that provides thorough cleaning of yards, warehouses, sidewalks, and streets.

• The implementation of a hydraulically driven side brush along with a main brush with a diameter of 300 mm allows for the effective removal of sand, dust, mud, and leaves—making this model highly suitable as a leaf sweeper.

• The device is equipped with a hydraulically lifted collection hopper, which increases user comfort and simplifies the emptying of collected debris.

• The drive, powered via a PTO shaft at a rotational speed of 540 RPM, enables efficient operation and compatibility with various machines.

• The terrain-following function in the hitch ensures that the sweeper adapts to surface unevenness, guaranteeing effective performance under all conditions.

• This model is equipped with a 200 L water tank, which effectively reduces dust, improving operation comfort in demanding environments.

• Its mounting capability on the rear 3-point hitch (Category I small and Category I large) allows for a wide range of applications as a sidewalk sweeper, street sweeper, and road sweeper.

• The oil flow range of 30 to 60 L/min combined with a maximum pressure of 140 bar guarantees high performance and operational reliability.

• Easily replaceable plastic or plastic-metal brushes ensure a long lifespan and easy adaptation to different surfaces.

• The device can be used year-round, including as a snow sweeper during the winter season, making it a multi-functional tool for professional cleanliness maintenance.

• The Metal-Technik sweeper is a solid and reliable solution for municipal companies, industrial plants, farms, and all users seeking efficient equipment for sweeping roads, squares, and urban spaces.
