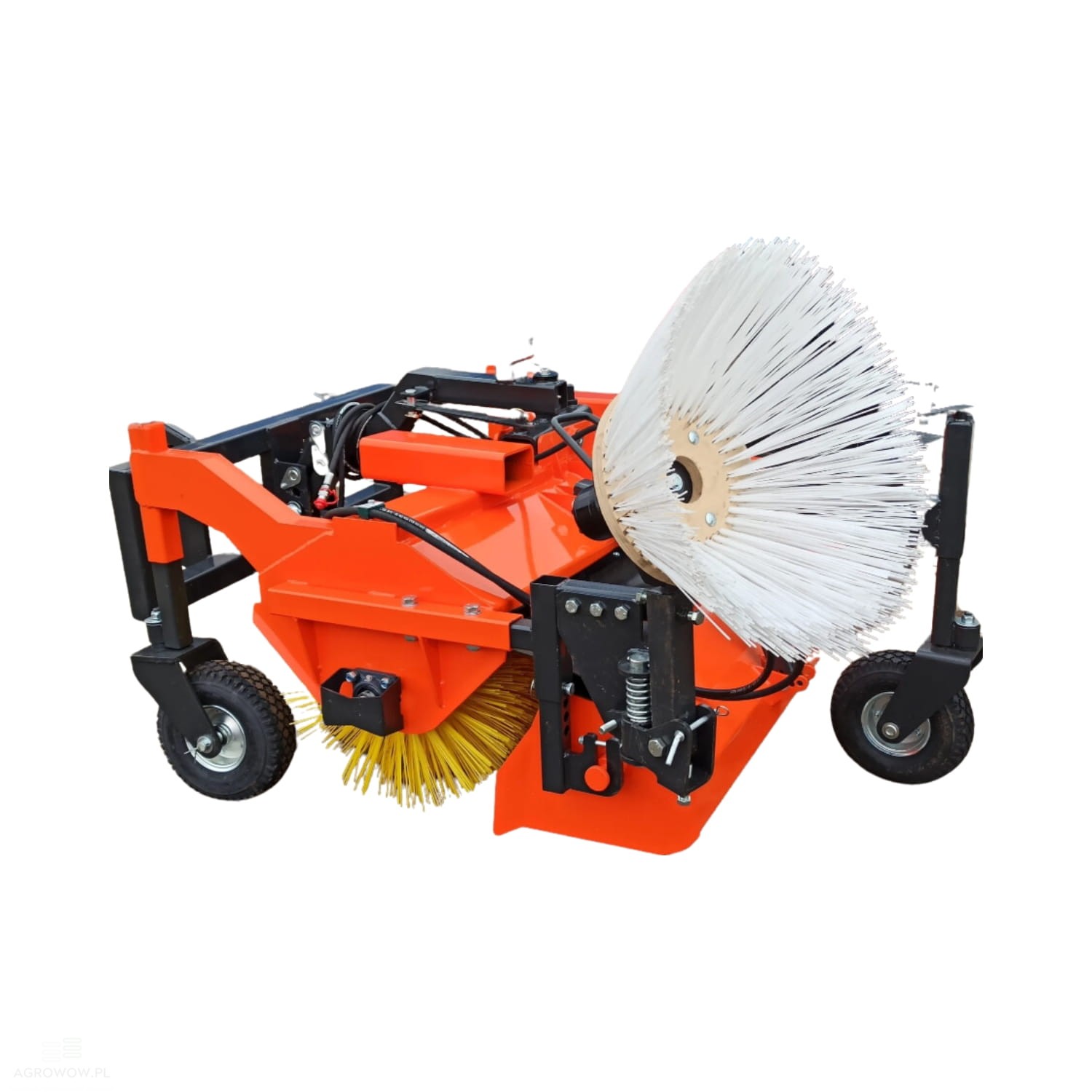

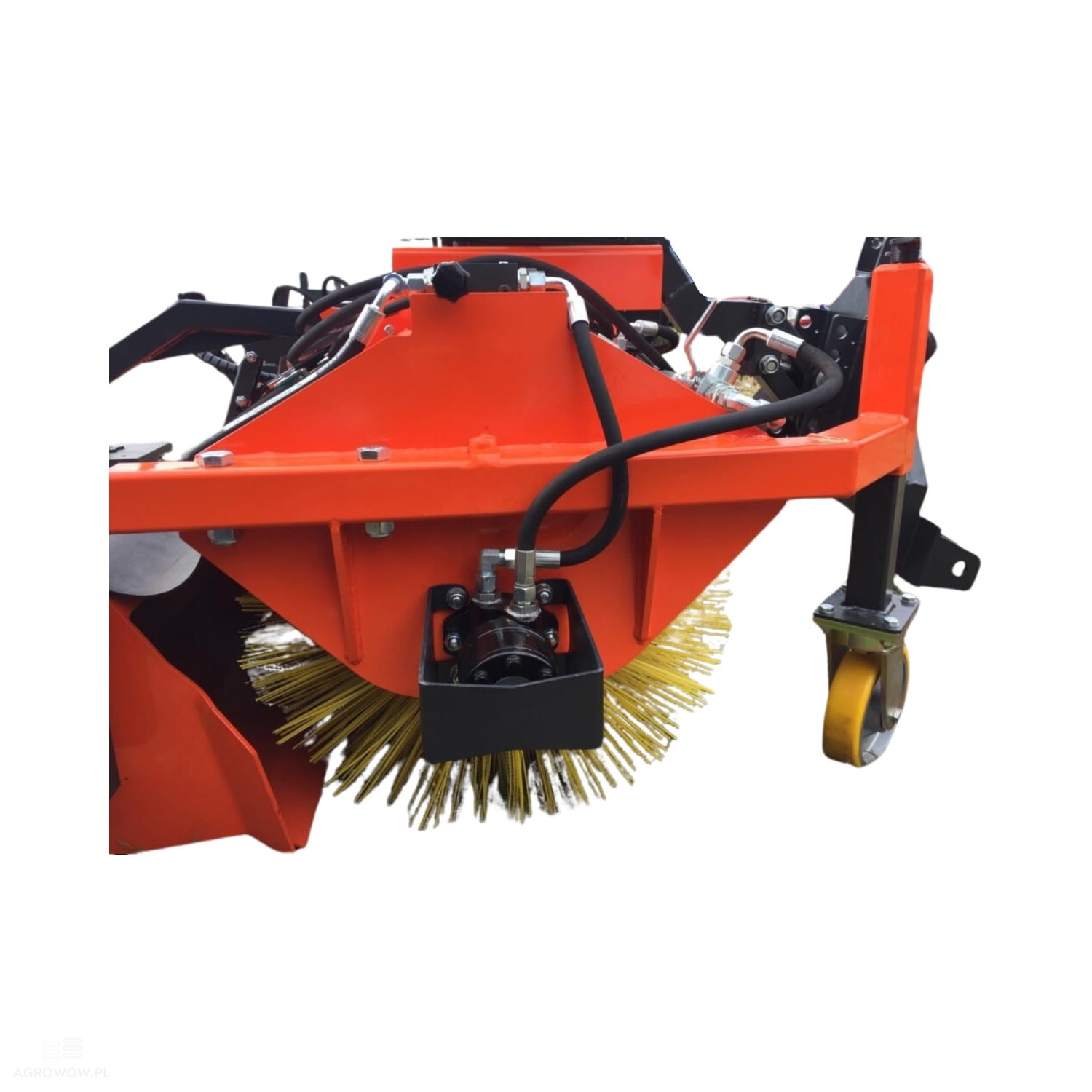

Metal-Technik 1.6 m road sweeper for tractor and loader (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT16ZD

- Manufacturer's name: Sweeper TOP MT

- Width: 1600 mm

- Length: 2600 mm

- Height: 1215 mm

- Weight: 420 kg

- Brush diameter: 600 mm

- Actuators: 1 hydraulic cylinder

- Water tank capacity: 175 L

- Waste hopper capacity: 160 L

- Minimum oil flow: 40 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch (TUZ) Cat. II

- Hopper emptying: Hydraulic lift

- Dust reduction: Rubber shroud between the brush housing and the waste hopper to minimize dust and airborne particles

- Brush options: Easily replaceable plastic or mixed plastic-and-wire bristles

- Wheels: Pneumatic tires to dampen ground vibrations

- Application: Sweeping flat surfaces (asphalt, concrete, paving stones) such as roads, squares, and sidewalks, as well as winter maintenance (snow removal)

Extra Cost:

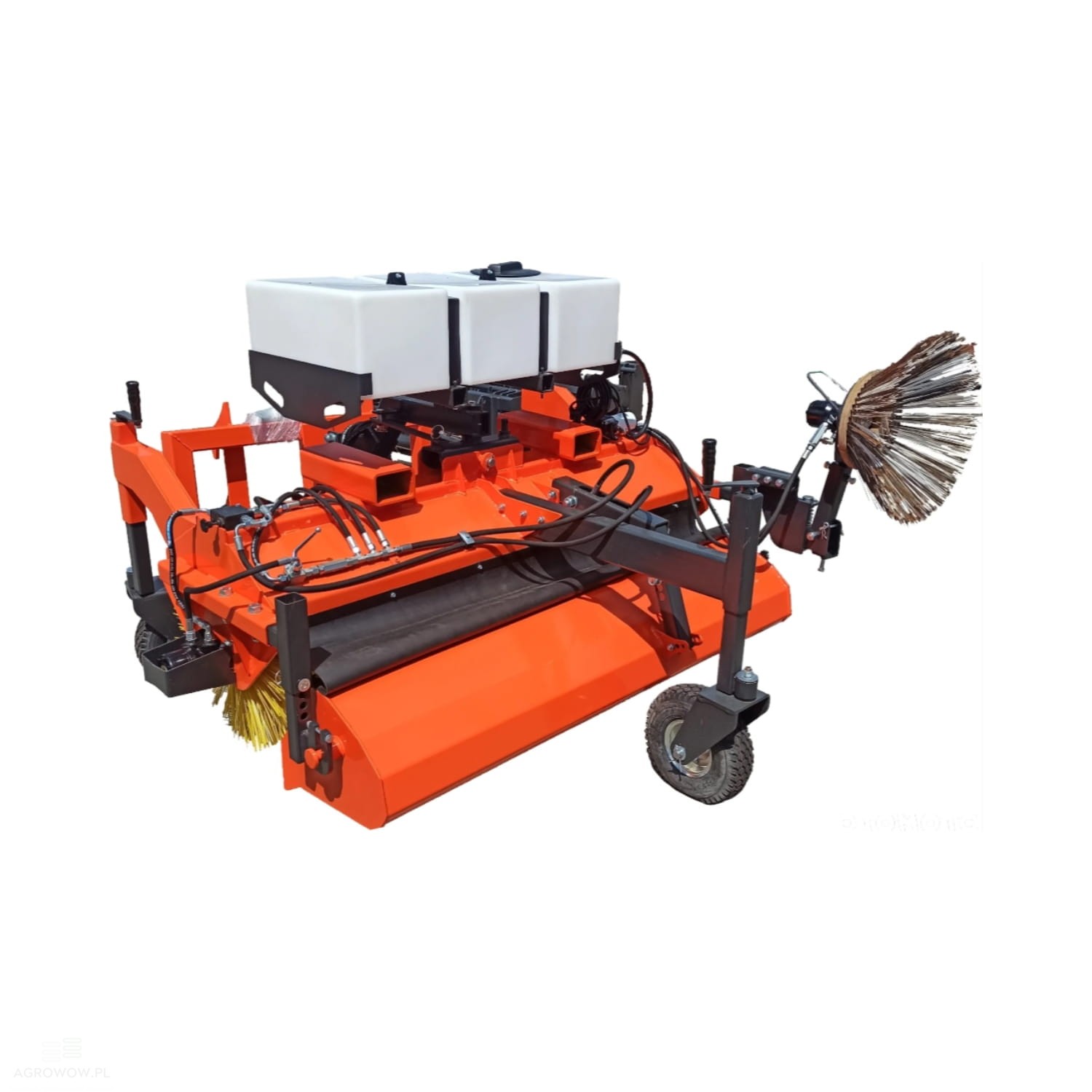

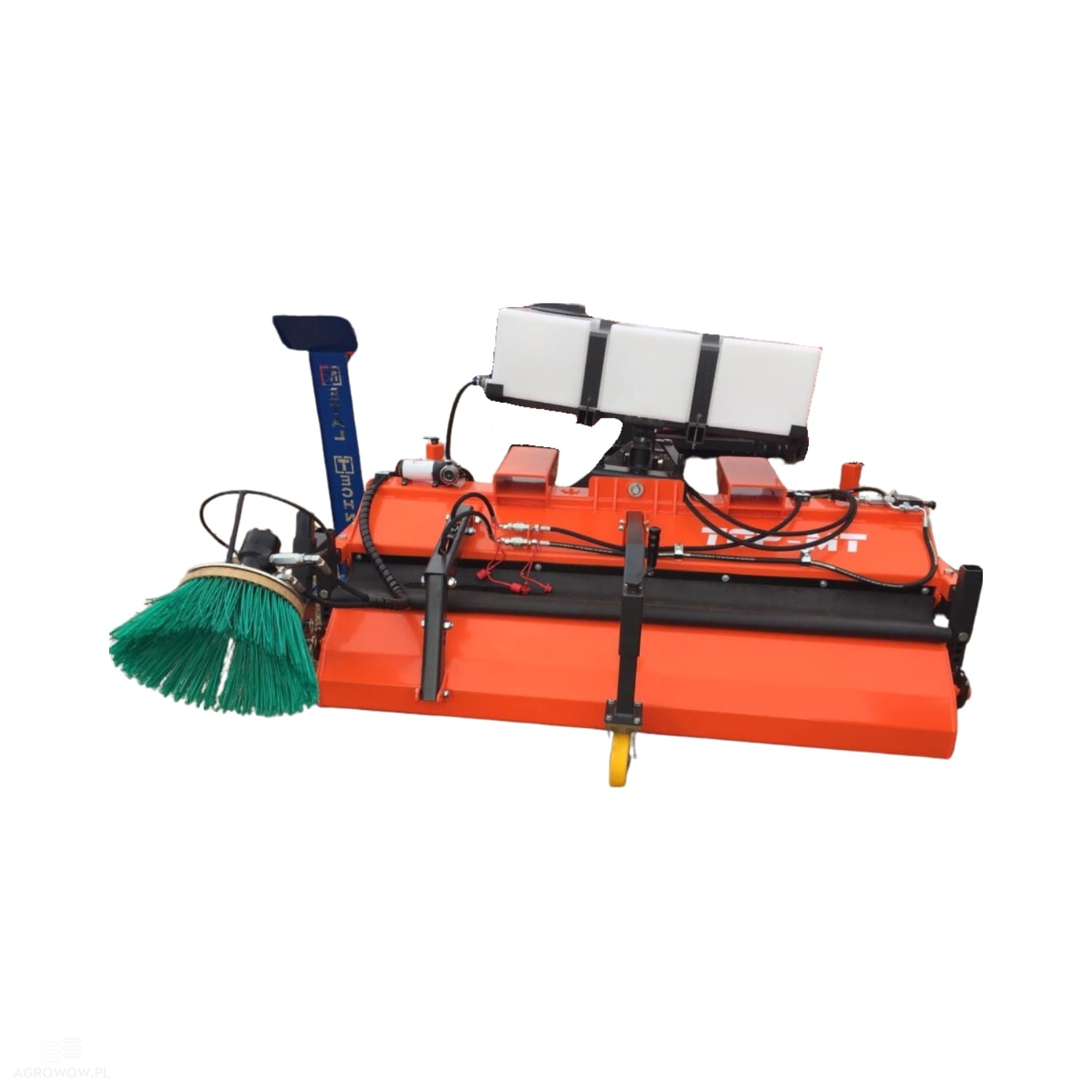

- Side Brush

An important component of sweepers, designed for the effective removal of dirt from hard-to-reach places such as curbs, roadsides, and corners. Made of durable synthetic fibers or a mixture of plastic and metal fibers, it ensures high wear resistance and outstanding operational efficiency. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise adjustment of its position to working conditions. In modern models, it is often equipped with a spraying system that minimizes dusting and increases cleaning efficiency while improving operator comfort.

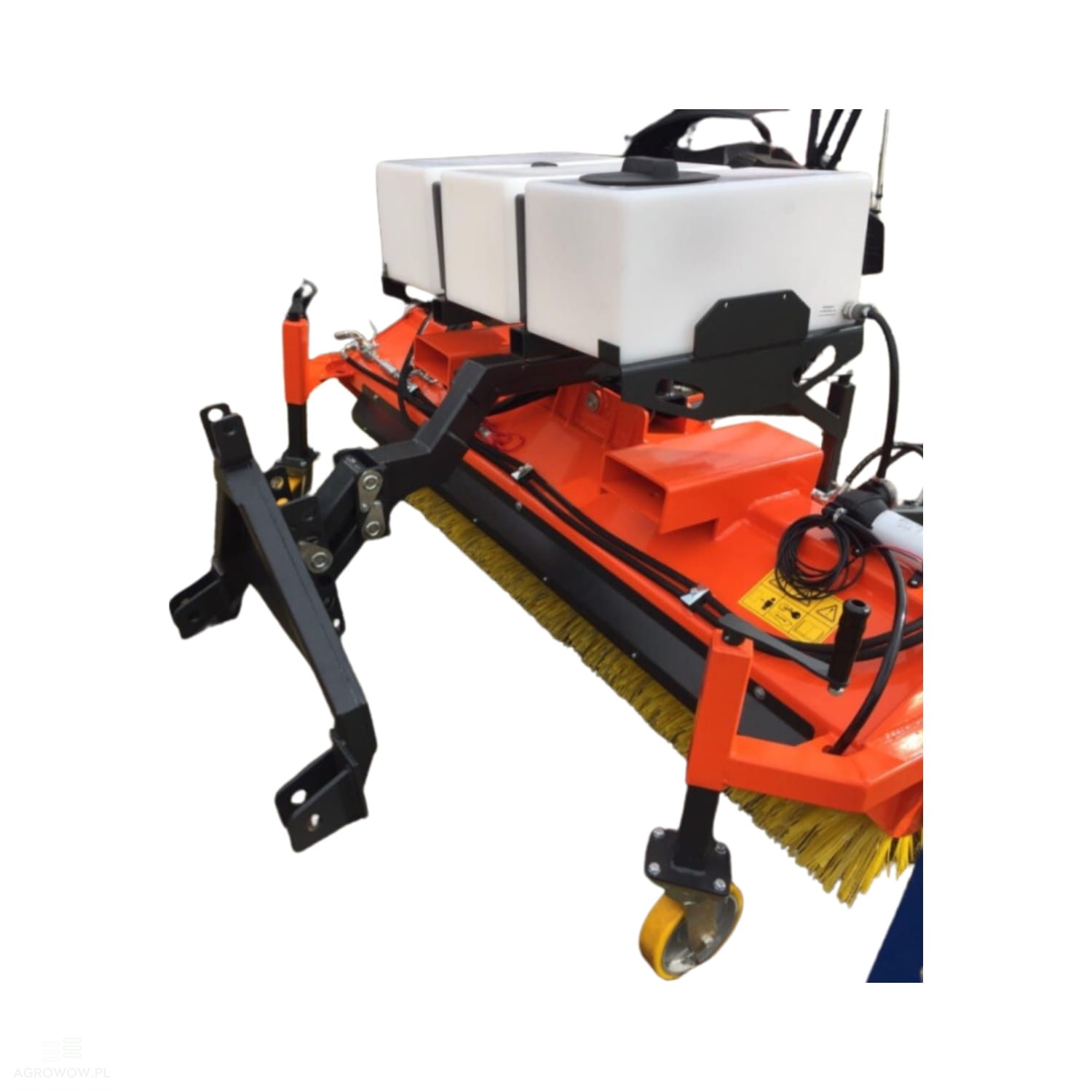

- Water Tank

A crucial component of the spraying system in road and municipal sweepers, aimed at reducing dust and improving cleaning effectiveness. Made of durable, corrosion-resistant materials, it ensures reliability and long-term operation even in demanding conditions. Its 175 L capacity allows for long running times without the need for frequent water refills. The tank design includes a wide filler opening, connections to the spraying system, and a filter preventing nozzles from clogging. Some versions also feature a water level indicator to monitor consumption during operation.

- Pins & Bolts

Key structural elements used in agricultural, construction, and municipal machinery that enable a movable connection between individual components. Made of hardened steel or coated with an anti-corrosion layer, they provide high durability and resistance to heavy loads and intensive use. Their main task is to transfer forces and torques in joint mechanisms, such as suspensions, steering systems, or hydraulic cylinders. Pins can be used in combination with slide bushings or bearings, which reduces friction and extends their service life. Available in various sizes, they are tailored to the specific needs of the machines, and additional protective devices, such as snap rings or grease nipples, facilitate maintenance and increase durability.

Detailed Description:

• The 1600 mm road sweeper is a modern and versatile machine designed for the effective maintenance of cleanliness on various types of surfaces.

• Thanks to its robust construction and advanced technical solutions, it works perfectly as a sweeper for tractors, loaders, forklifts, and compact utility tractors for smaller-scale applications.

• It is ideally suited for cleaning squares, warehouses, production halls, roads, and sidewalks.

• With its 1600 mm working width, the device efficiently removes dust, sand, mud, trash, and other debris.

• The possibility of mounting it on either the front or rear tractor 3-point hitch (TUZ Cat. I and II) allows for flexible adaptation to specific work setups.

• This makes it an indispensable solution for city road managers, municipal companies, and industrial plants.

• The unit is equipped with a 160 L waste hopper featuring a hydraulic lift, which simplifies emptying and streamlines operation.

• A rubber shroud between the brush housing and the hopper prevents dust from rising, significantly improving operator comfort.

• The hydraulic system operates at a maximum oil pressure of 140 bar, guaranteeing trouble-free operation even under difficult conditions.

• Easily interchangeable plastic or plastic-and-metal brushes ensure a long service life and allow for easy adaptation to different surfaces, including asphalt, concrete, and paving stones.

• During the winter season, the sweeper can be utilized for snow removal, increasing its functionality and making it a true multi-season asset.

• It can also serve as an ATV/quad sweeper for smaller areas, and works excellently as a leaf collector, effectively removing organic waste from parks and green zones.

• This is a reliable piece of equipment for municipal departments, construction companies, industrial facilities, and farms looking for a durable and efficient tool for comprehensive large-area cleaning.
