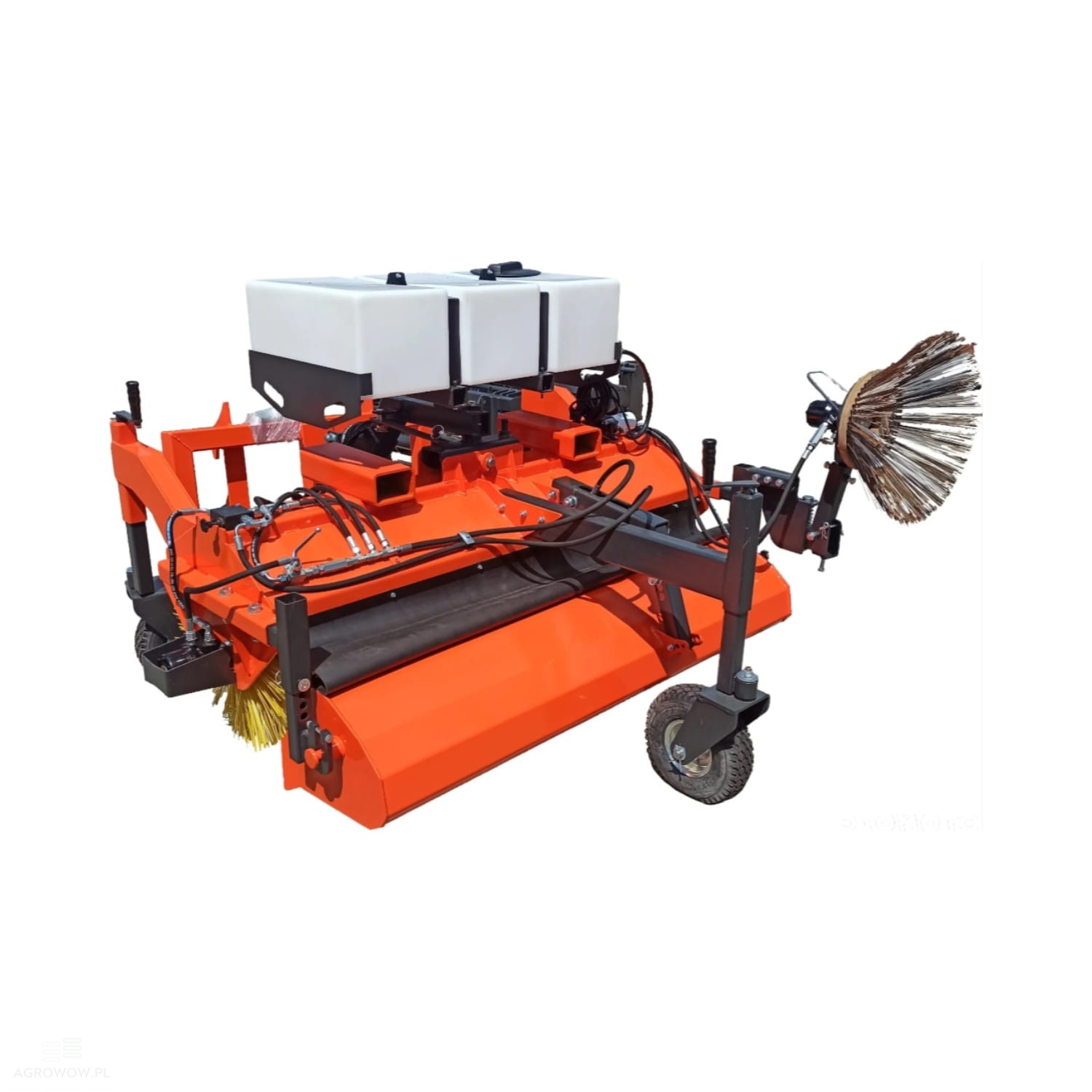

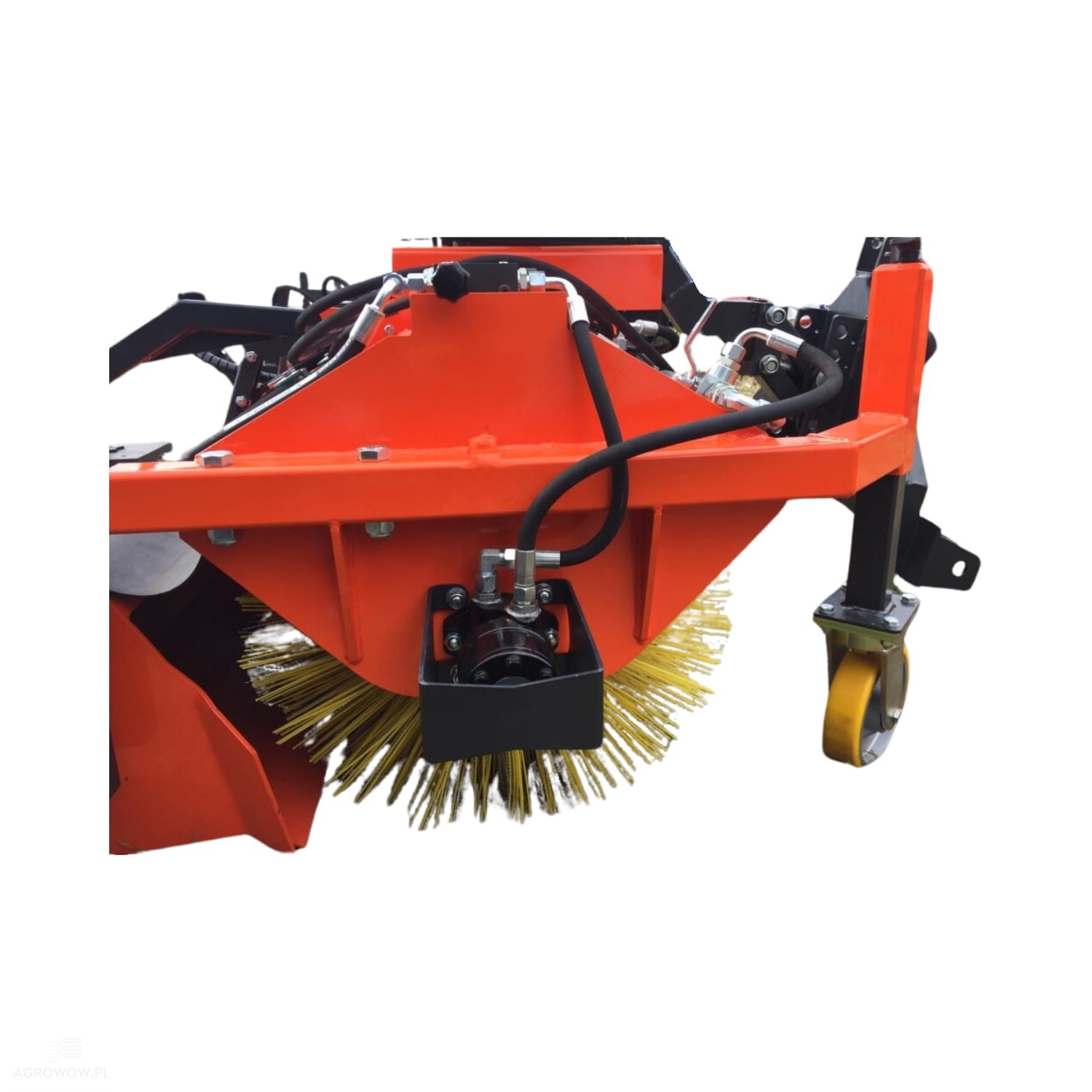

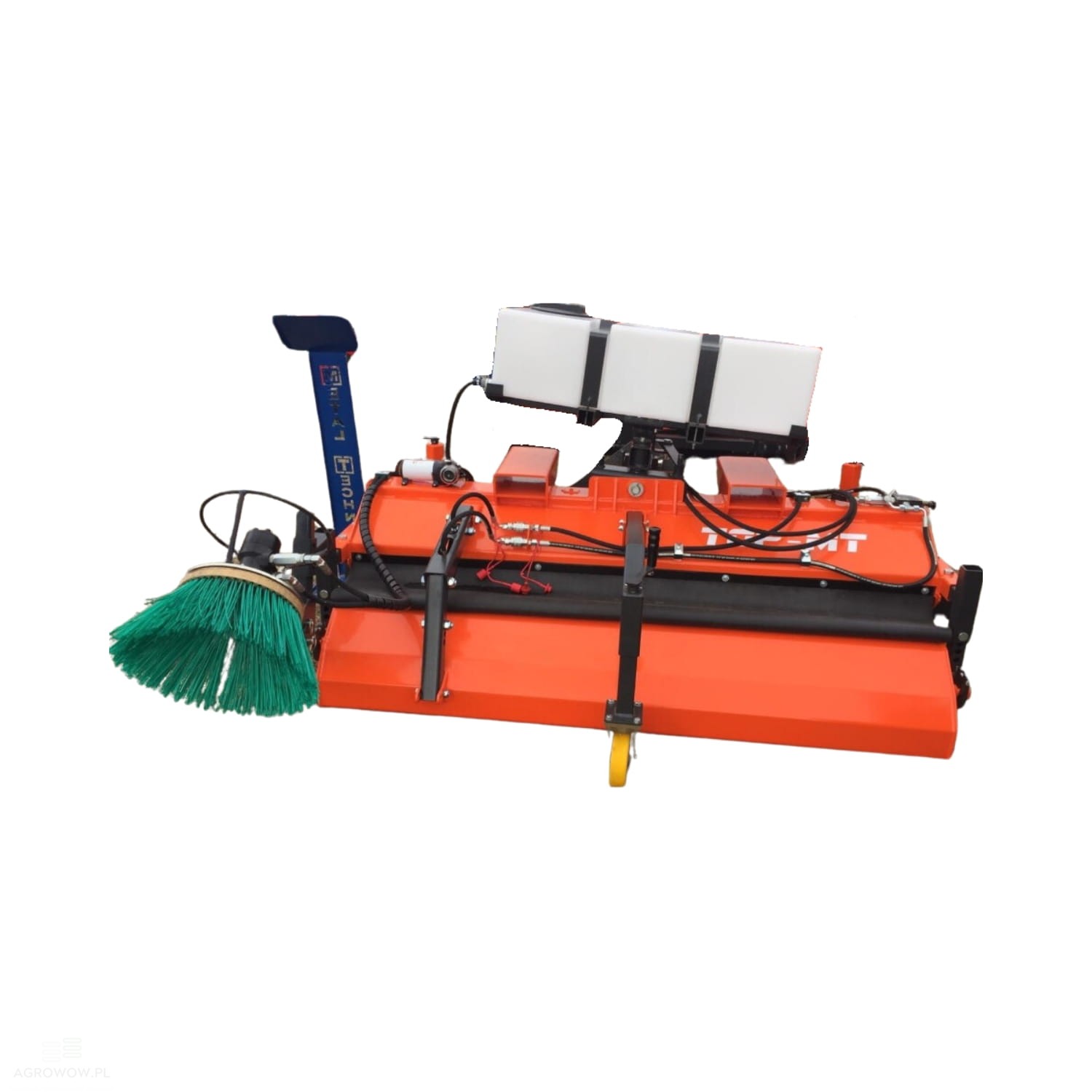

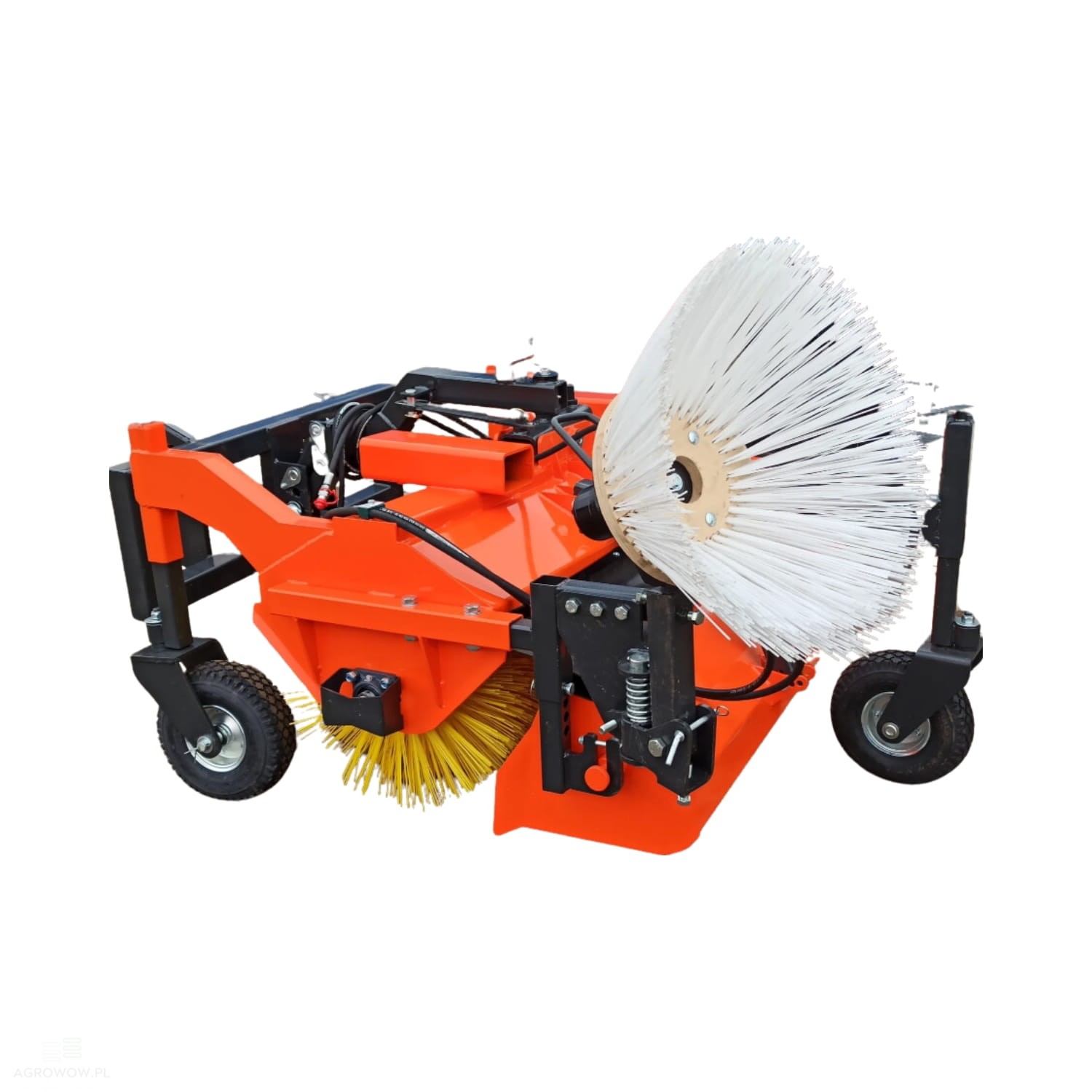

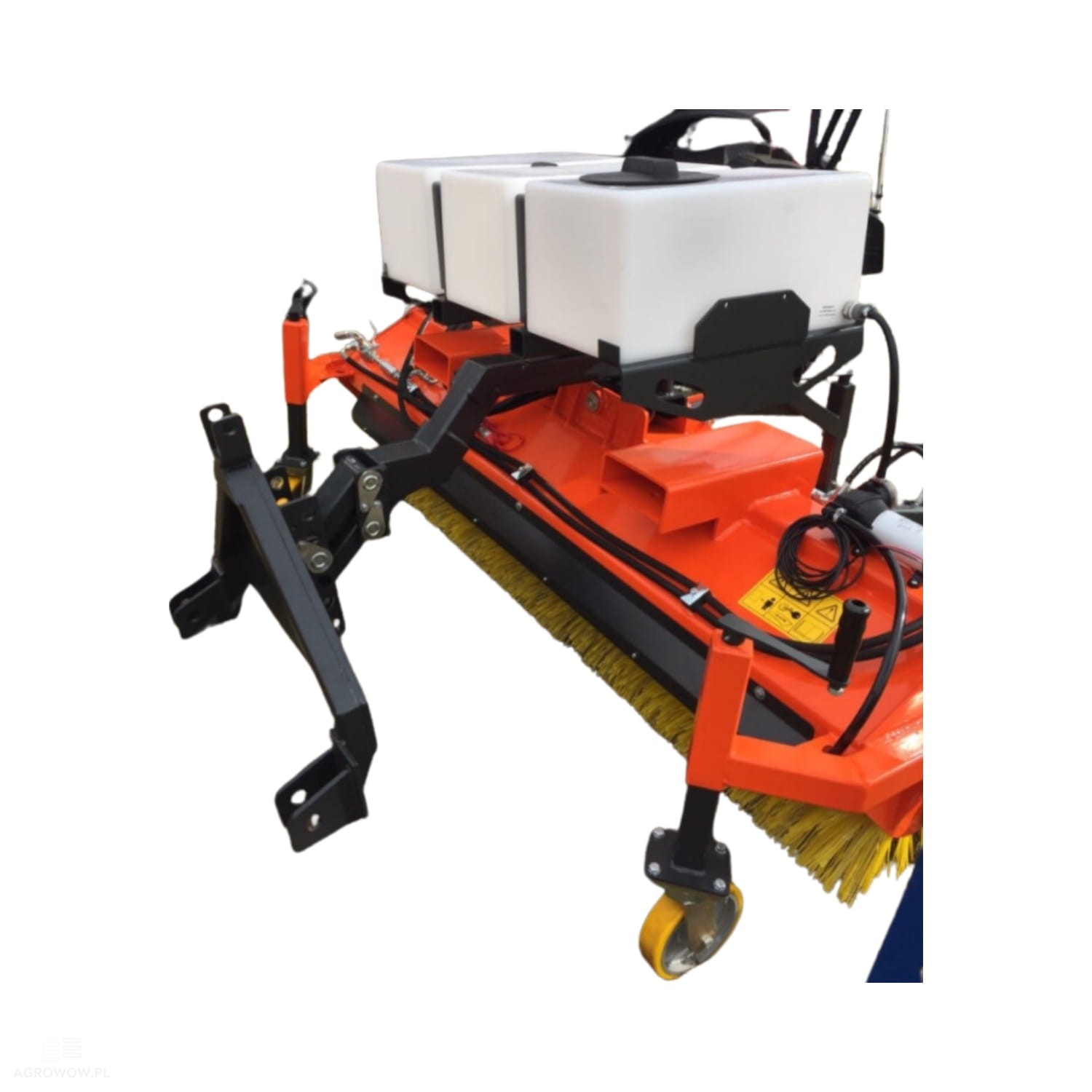

Metal-Technik 1.8 m road sweeper for tractor and loader (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT18ZD

- Manufacturer's name: Sweeper TOP MT

- Width: 1800 mm

- Length: 2600 mm

- Height: 1215 mm

- Weight: 445 kg

- Brush diameter: 600 mm

- Actuators: 1 hydraulic cylinder

- Water tank capacity: 175 L

- Waste hopper capacity: 180 L

- Minimum oil flow: 40 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch (TUZ) Cat. II

- Hopper emptying: Hydraulic lift

- Dust reduction: Rubber shroud between the brush housing and the waste hopper to minimize dust and airborne particles

- Brush options: Easily replaceable plastic or mixed plastic-and-wire bristles

- Wheels: Pneumatic tires to dampen ground vibrations

- Application: Sweeping flat surfaces (asphalt, concrete, paving stones) such as roads, squares, and sidewalks, as well as winter maintenance (snow removal)

Extra Cost:

- Side Brush

A crucial component for effectively removing dirt from hard-to-reach areas such as roadsides, corners, and curbs. Made of wear-resistant synthetic fibers or a combination of plastic and metal fibers, it features high abrasion resistance and a long service life. Mounted on a movable arm, it can be hydraulically controlled for precise position adjustment based on specific working conditions. In modern sweepers, the side brush is often equipped with a spraying system to reduce dust, improving cleaning efficiency and user comfort.

- Water Tank

An integral part of the spraying system in road and municipal sweepers that reduces dust and increases surface cleaning effectiveness. Built from durable, corrosion-resistant materials, it ensures reliable operation even in demanding working conditions. Its 175 L capacity allows for long-term use without frequent refills. The tank design features a wide filler opening, spraying system connection ports, and a filter protecting the nozzles against contamination. Some models also include a water level indicator for real-time monitoring by the operator.

- Pins & Bolts

Key structural connection pieces used in agricultural, construction, and municipal machinery to enable articulated movement between different components. Made of high-quality hardened steel or coated with an anti-corrosion layer, they provide high resistance to heavy loads and long-term operation. Their primary function is to transfer forces and torques within joint systems, such as steering mechanisms, suspensions, or hydraulic cylinders. They can be installed with slide bushings or bearings to minimize friction and extend service life, while additional securing elements like snap rings or grease nipples simplify maintenance and improve joint durability.

Detailed Description:

• The 1800 mm road sweeper is a modern, high-performance unit engineered for the efficient cleaning of various surfaces.

• Thanks to its robust construction and advanced technical solutions, it operates exceptionally well as a sweeper for tractors, loaders, forklifts, and compact utility tractors, providing outstanding operational versatility.

• The device is perfectly adapted for cleaning squares, parking lots, industrial halls, warehouses, as well as roads and sidewalks, making it an indispensable tool for municipal services and industrial plants.

• With its 1800 mm working width, the sweeper efficiently removes dust, mud, sand, and other debris, significantly streamlining property maintenance.

• The mounting system allows for attachment to either the front or rear tractor 3-point hitch (TUZ Cat. I and II), increasing operational flexibility across different work conditions.

• Equipped with a 180 L waste hopper featuring hydraulic lifting, it enables rapid automated emptying and enhances overall user comfort.

• To improve working conditions for the operator, a special rubber shroud is positioned between the brush housing and the waste hopper to effectively contain rising dust.

• The hydraulic system operates reliably at a maximum oil pressure of 140 bar with a flow range of 40 to 60 l/min, ensuring smooth performance even under challenging circumstances.

• The unit is fitted with easily interchangeable plastic or plastic-and-metal brushes, making it highly adaptable to various surfaces, including asphalt, concrete, and paving stones.

• Modern vibration-damping pneumatic wheels ensure excellent stability and comfort on uneven ground.

• This sweeper delivers true year-round functionality: it can be utilized for winter snow removal, adapted for smaller-scale use as an ATV/quad sweeper, and works brilliantly as an autumn leaf collector to clear organic waste from parks and green zones.

• It represents a highly durable and efficient solution for municipal departments, construction companies, industrial facilities, and farms looking for a comprehensive large-area cleaning tool.
