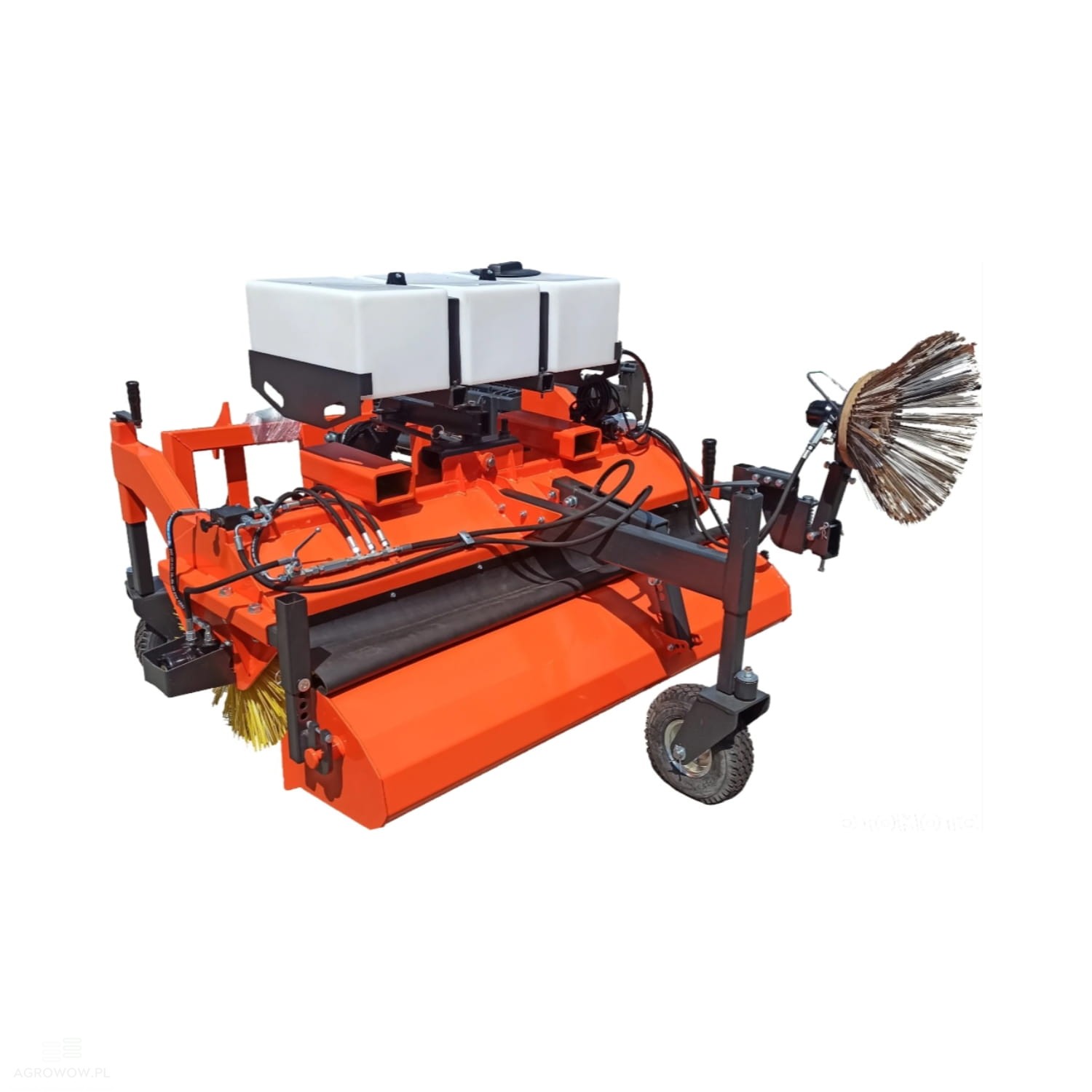

Metal-Technik 2.0 m road sweeper for tractor and loader (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Adres e-mail: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT20ZD

- Manufacturer's name: Sweeper TOP MT

- Width: 2000 mm

- Length: 2600 mm

- Height: 1215 mm

- Weight: 485 kg

- Brush diameter: 600 mm

- Actuators: 1 hydraulic cylinder

- Water tank capacity: 175 L

- Waste hopper capacity: 200 L

- Minimum oil flow: 40 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch (TUZ) Cat. II

- Hopper emptying: Hydraulic lift

- Dust reduction: Rubber shroud between the brush housing and the waste hopper to minimize dust and airborne particles

- Brush options: Easily replaceable plastic or mixed plastic-and-wire bristles

- Wheels: Pneumatic tires to dampen ground vibrations

- Application: Sweeping flat surfaces (asphalt, concrete, paving stones) such as roads, squares, and sidewalks, as well as winter maintenance (snow removal)

Extra Cost:

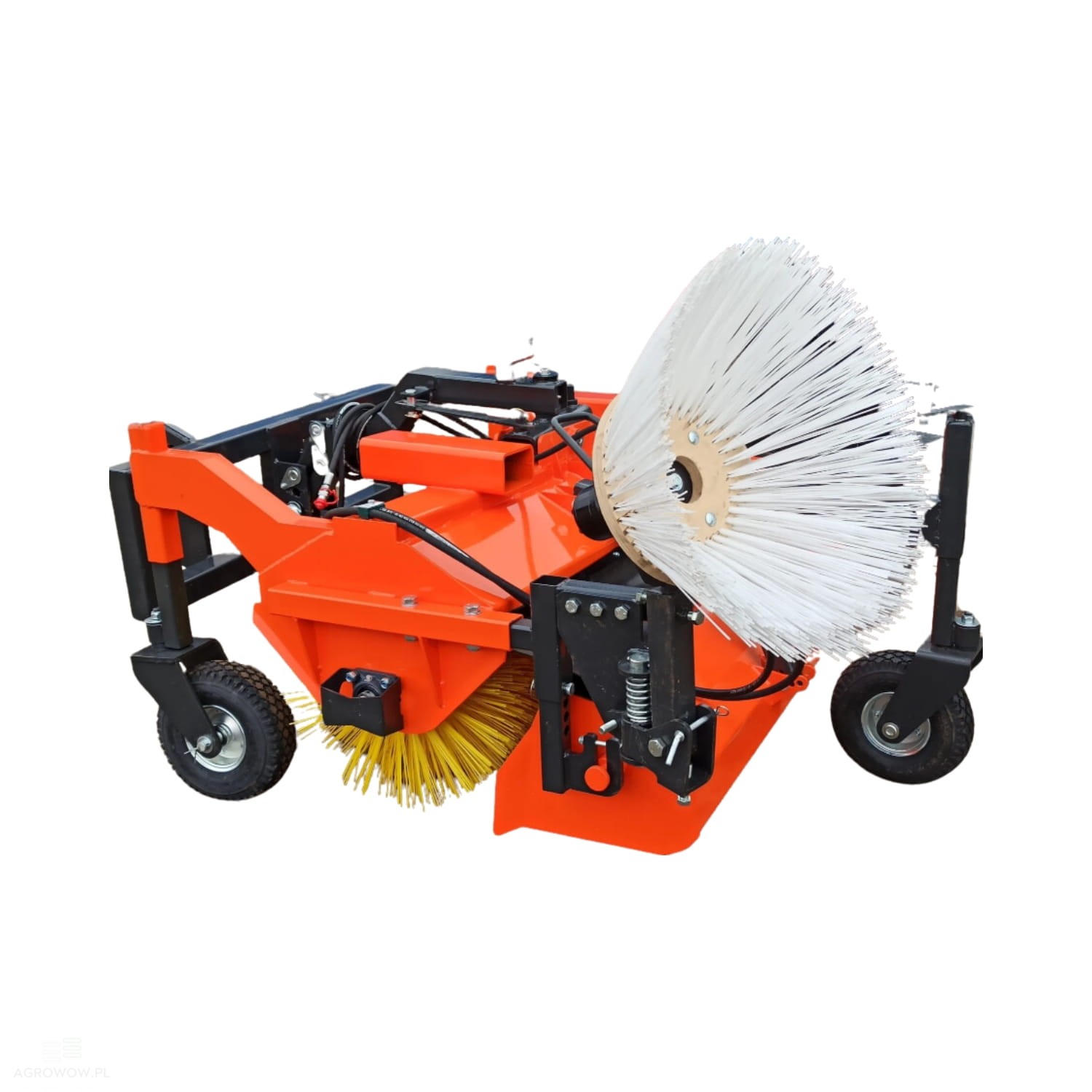

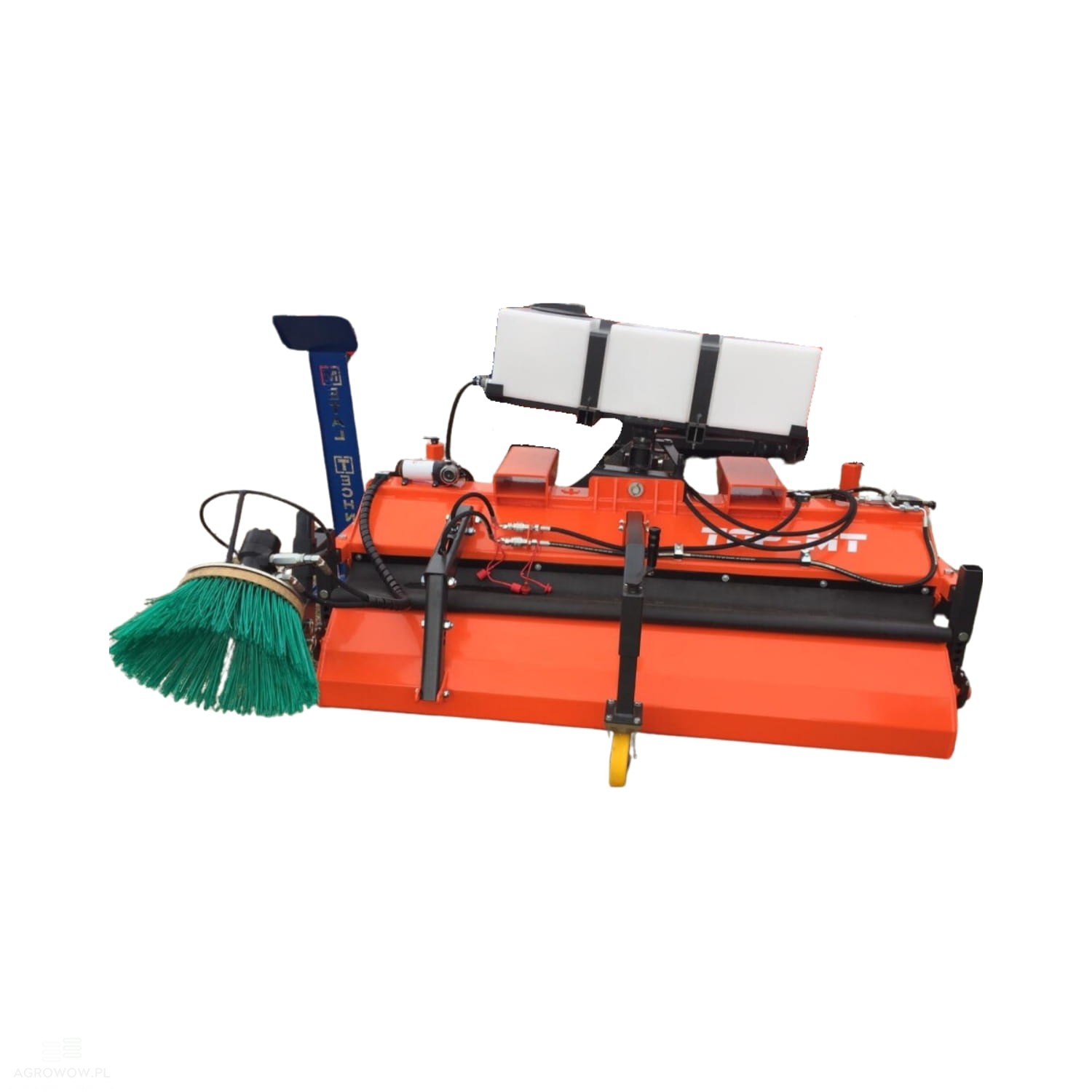

- Side Brush

An important component of sweepers, designed to effectively remove dirt from hard-to-reach places such as roadsides, corners, or curbs. Made of wear-resistant synthetic fibers or a combination of plastic and metal fibers, it ensures high durability and operational efficiency. Mounted on a movable arm, it can be hydraulically controlled, allowing for precise adjustment of its position to working conditions. In many sweeper models, the side brush is additionally equipped with a spraying system that limits dusting and improves cleaning efficiency, increasing operator comfort.

- Water Tank

An integral part of the spraying system in road and municipal sweepers, responsible for reducing dust and increasing surface cleaning efficiency. Made of durable, corrosion-resistant materials, it guarantees long life and reliable operation even in difficult working conditions. The tank capacity, which typically ranges from 100 to 500 liters, allows for long-term use without the frequent need to refill water. The tank design includes a wide filler opening, connections to the spraying system, and a filter protecting against clogged nozzles. In some sweeper models, water level indicators are also available, enabling the operator to monitor its consumption on an ongoing basis.

- Pins & Bolts

Crucial structural elements used in agricultural, construction, and municipal machinery, enabling a movable connection of various components. Made of high-quality hardened steel or coated with an anti-corrosion layer, they provide high resistance to heavy loads and long-term operation. Their main function is to transfer forces and torques in articulated systems, such as suspensions, steering mechanisms, or hydraulic cylinders. Pins can be mounted with slide bushings or bearings, which reduces friction and extends their service life. They are available in various diameters and lengths, tailored to the specific requirements of the machines, and additional protection devices, such as snap rings or grease nipples, facilitate their maintenance and improve the durability of connections.

Detailed Description:

• The 2000 mm road sweeper is a modern, high-performance unit engineered for the efficient cleaning of various surfaces.

• Thanks to its robust build and innovative technological solutions, it functions exceptionally well as a sweeper for tractors, loaders, forklifts, and compact utility tractors, providing a wide range of applications.

• The unit is designed for the effective cleaning of squares, parking lots, industrial halls, warehouses, as well as roads and sidewalks, making it an ideal choice for municipal services and construction companies.

• Its 2000 mm working width enables the rapid and thorough removal of all types of debris, including dust, mud, sand, and other waste.

• A 200 L waste hopper with hydraulic lifting allows for convenient emptying, which significantly streamlines the process and enhances user comfort.

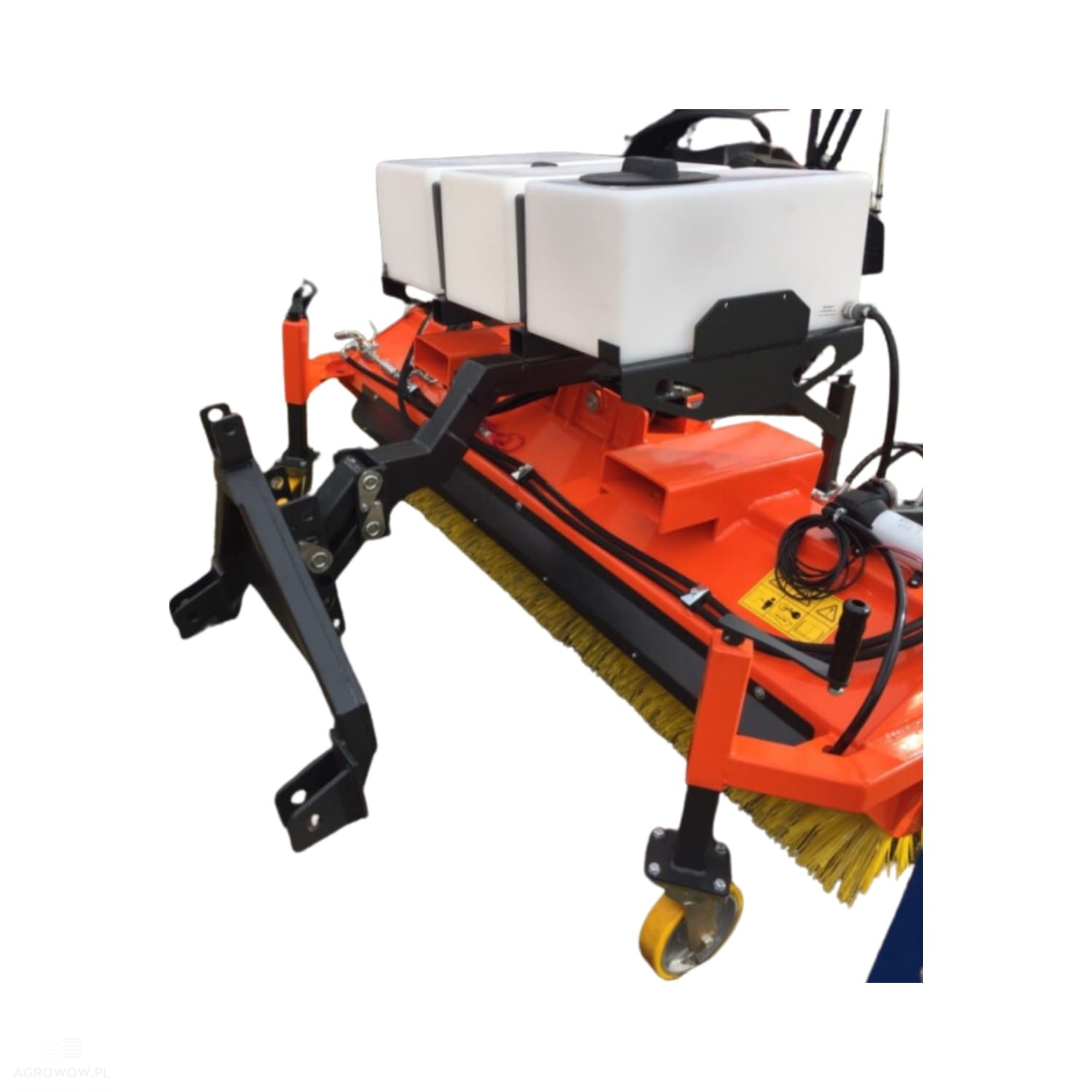

• The sweeper features a mounting system for either the front or rear 3-point hitch (TUZ Cat. I and II) of a tractor, allowing it to adapt to various working conditions.

• The special housing design, fitted with a rubber shroud between the brush and the waste hopper, effectively limits rising dust, ensuring better visibility and comfort for the operator.

• The device operates at a maximum oil pressure of 140 bar with an oil flow range of 40 to 60 l/min, guaranteeing smooth and reliable performance.

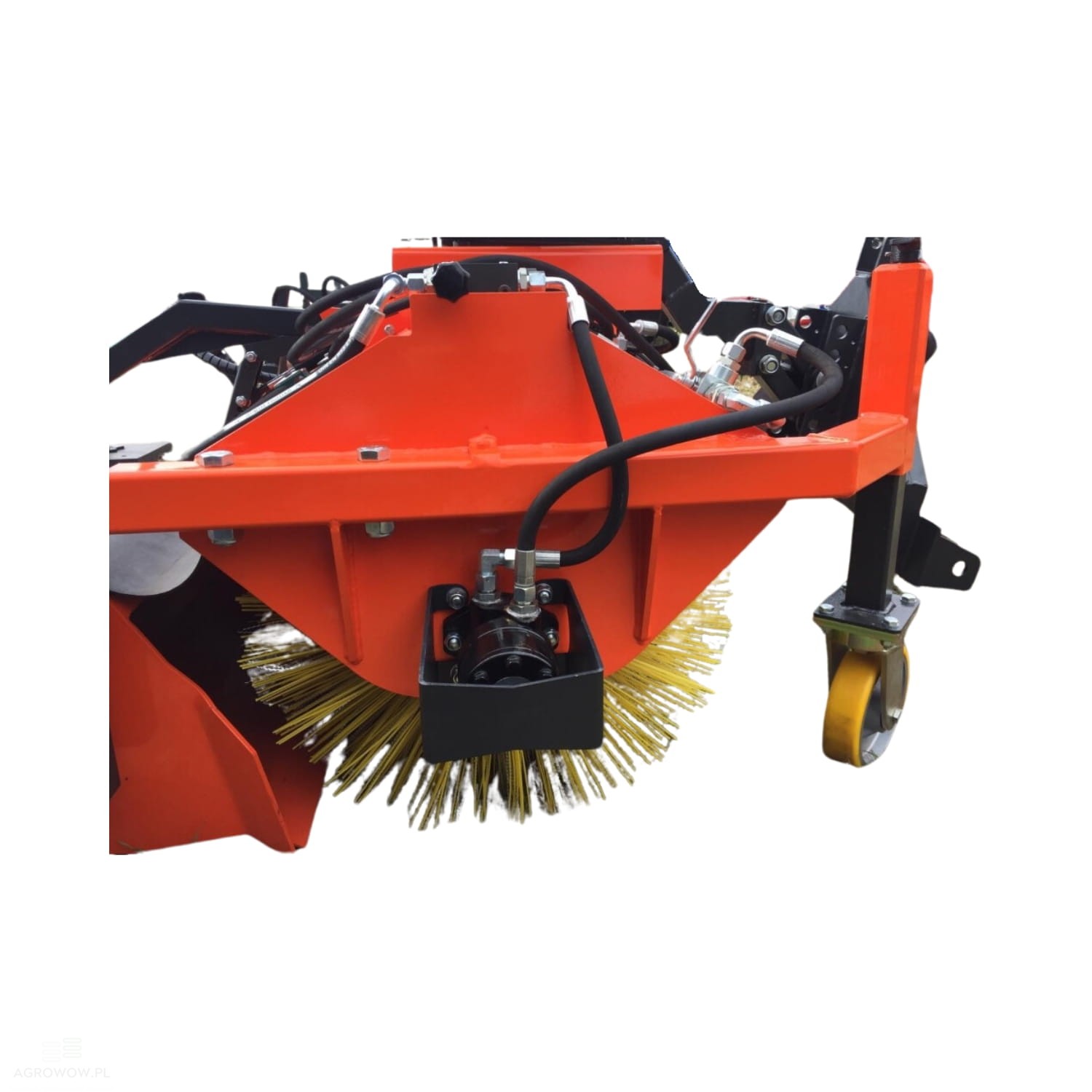

• Easily interchangeable plastic or plastic-and-metal brushes allow the sweeper to be adapted to different types of surfaces, such as asphalt, concrete, or paving stones.

• Thanks to vibration-damping pneumatic wheels, the unit operates stably and efficiently even on uneven surfaces.

• The sweeper can also be used for snow removal, making it a multi-season asset ideal for use in various weather conditions.

• Its design also allows it to be used as an ATV/quad sweeper, and thanks to its high cleaning efficiency, it works perfectly as a leaf sweeper, effectively removing organic waste from parks and green areas.

• It is a reliable solution for municipal departments, construction companies, industrial facilities, and farms looking for a durable, powerful device for comprehensive large-area cleaning.
