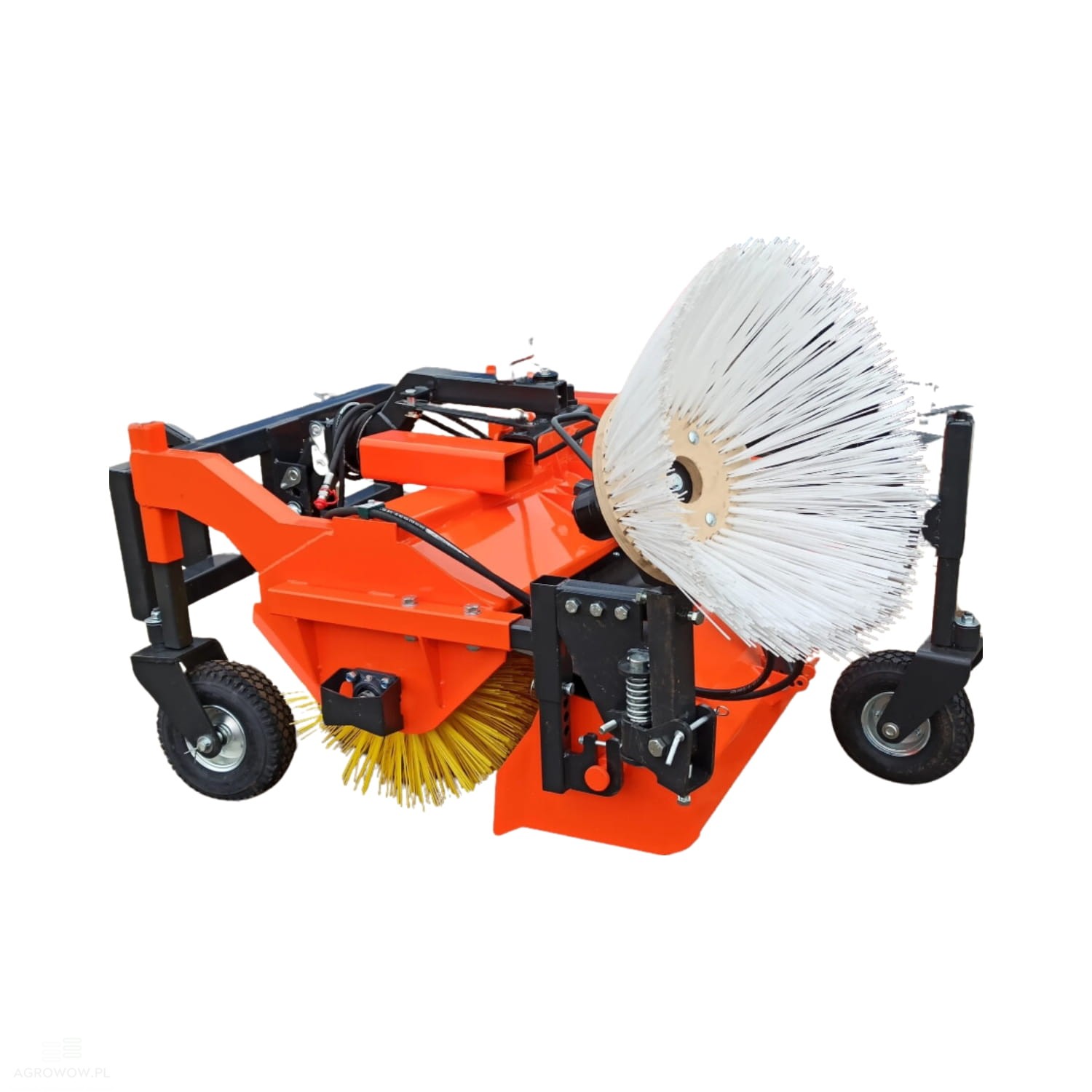

Metal-Technik 2.2 m road sweeper for tractor and loader (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT22ZD

- Manufacturer's name: Sweeper TOP MT

- Width: 2200 mm

- Length: 2600 mm

- Height: 1215 mm

- Weight: 485 kg

- Brush diameter: 600 mm

- Actuators: 1 hydraulic cylinder

- Water tank capacity: 175 L

- Waste hopper capacity: 220 L

- Minimum oil flow: 40 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch (TUZ) Cat. II

- Hopper emptying: Hydraulic lift

- Dust reduction: Rubber shroud between the brush housing and the waste hopper to minimize dust and airborne particles

- Brush options: Easily replaceable plastic or mixed plastic-and-wire bristles

- Wheels: Pneumatic tires to dampen ground vibrations

- Application: Sweeping flat surfaces (asphalt, concrete, paving stones) such as roads, squares, and sidewalks, as well as winter maintenance (snow removal)

Extra Cost:

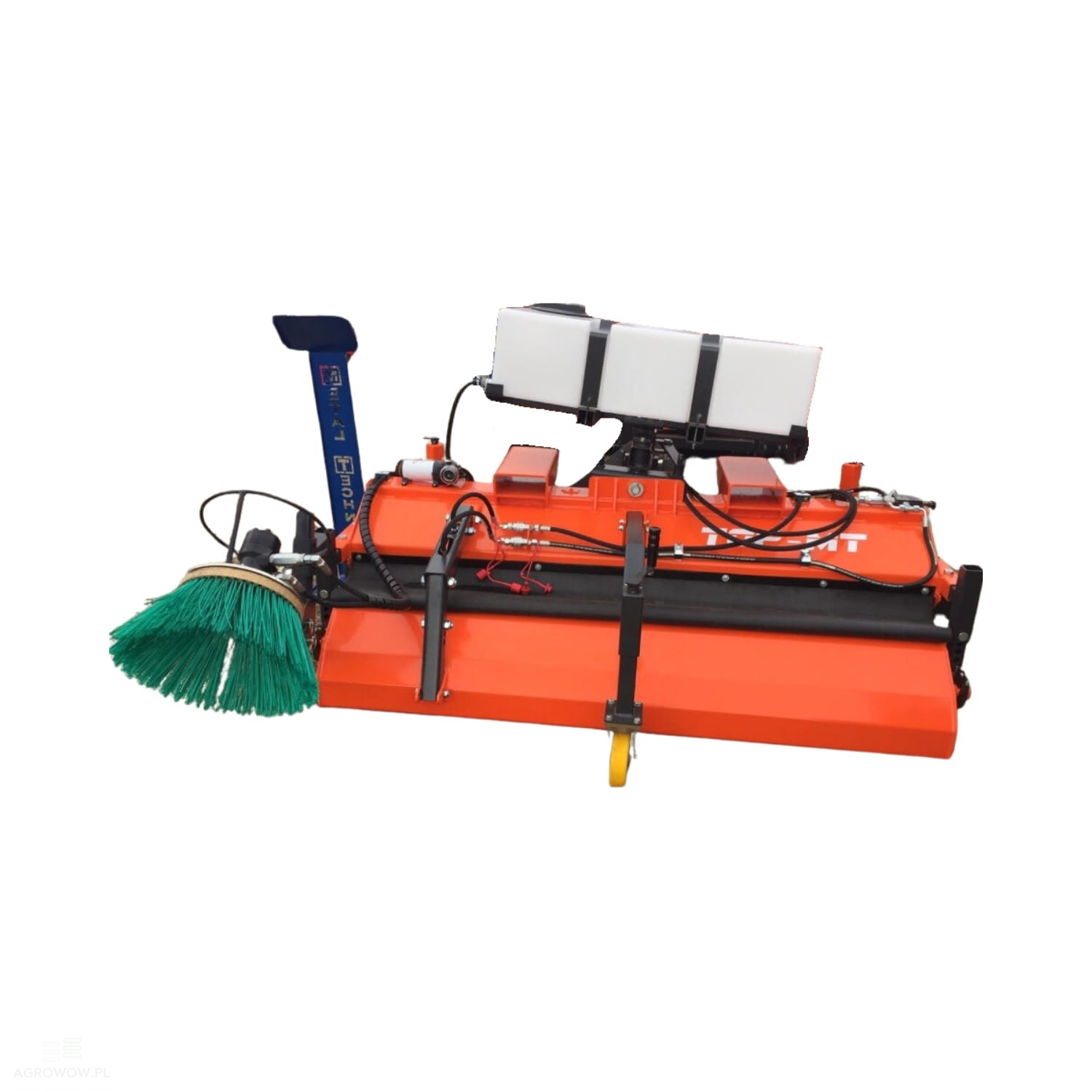

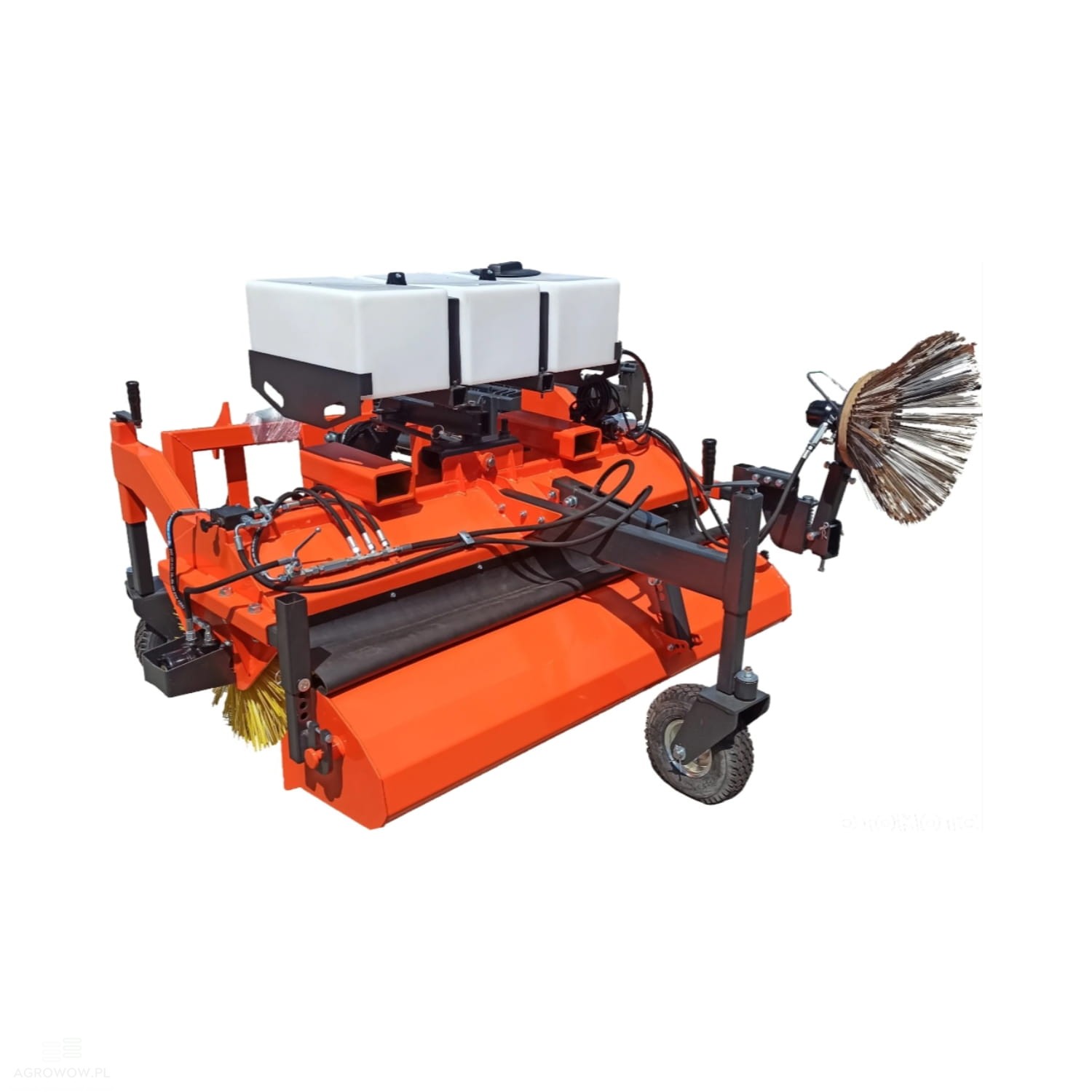

- Side Brush

A key component for effectively removing dirt from hard-to-reach areas such as roadsides, corners, and curbs. Made of wear-resistant synthetic fibers or a plastic-and-wire mix, it ensures high durability and performance. Mounted on a movable arm, it can be hydraulically controlled for precise positioning based on terrain conditions. Many models include an integrated spray system to reduce airborne dust and enhance operator comfort.

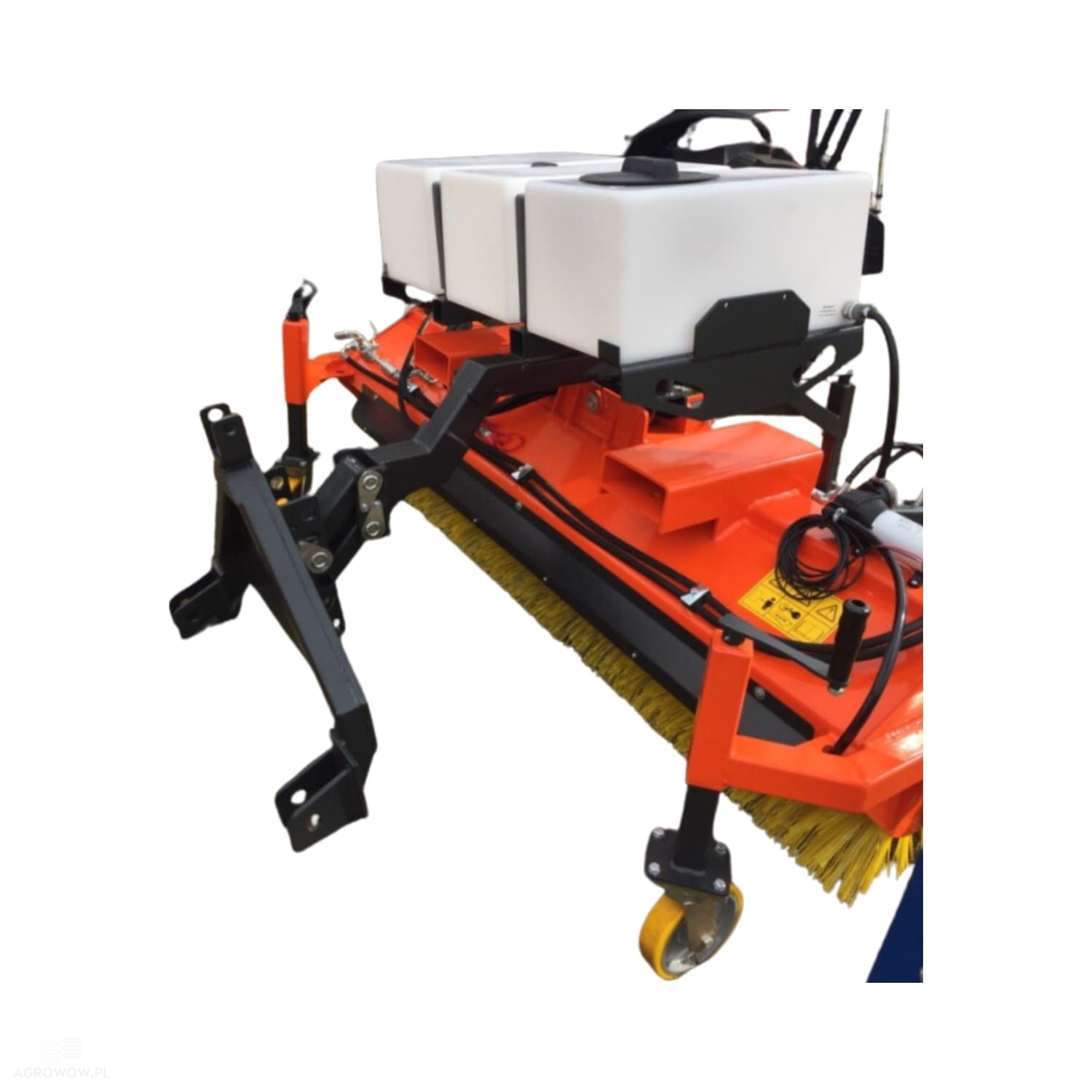

- Water Tank

A crucial part of the dust suppression system for road and municipal sweepers that minimizes dust and improves cleaning effectiveness. Built from durable, corrosion-resistant materials, it guarantees a long service life even in demanding working conditions. Its 175 L capacity allows for longer operating intervals without frequent refills. The tank design features a wide filler opening for easy replenishment, spray system connection ports, and a protective filter to prevent nozzle clogging.

- Pins & Bolts

Vital structural connection pieces used in agricultural, construction, and municipal machinery to allow articulated movement between components. Made of high-quality hardened or anti-corrosion coated steel, they guarantee high resistance to heavy loads and intensive use. Their primary function is to transfer forces and torques within joint systems, such as suspensions, steering mechanisms, or hydraulic arms. They can be installed with sliding sleeves or bearings to reduce friction, and some variants feature grease nipples or snap rings for straightforward maintenance and extended service life.

Detailed Description:

• The 2200 mm road sweeper is a professional, high-efficiency machine engineered to maintain cleanliness across various surface types.

• Thanks to its robust construction and advanced technological solutions, it operates exceptionally well as a sweeper for tractors, loaders, forklifts, and compact utility tractors, offering a wide range of operational possibilities.

• This unit is ideal for cleaning parking lots, industrial yards, warehouses, as well as streets and sidewalks.

• With its 2200 mm working width, it rapidly and thoroughly removes diverse types of debris—such as sand, leaves, mud, and other waste—making it an excellent investment for municipal services and road maintenance crews.

• The sweeper comes equipped with a 220 L waste hopper featuring hydraulic lifting, which simplifies emptying and streamlines the cleaning process.

• The mounting setup offers great flexibility, allowing the unit to be attached to both the front and rear 3-point hitch (TUZ Cat. I and II) of a tractor, adapting easily to specific work setups.

• To maximize user comfort and visibility during operation, the housing is fitted with a protective rubber shroud that effectively contains rising dust.

• The hydraulic system operates smoothly at a maximum working pressure of 140 bar with an oil flow range of 40 to 60 l/min, ensuring reliable performance even under demanding conditions.

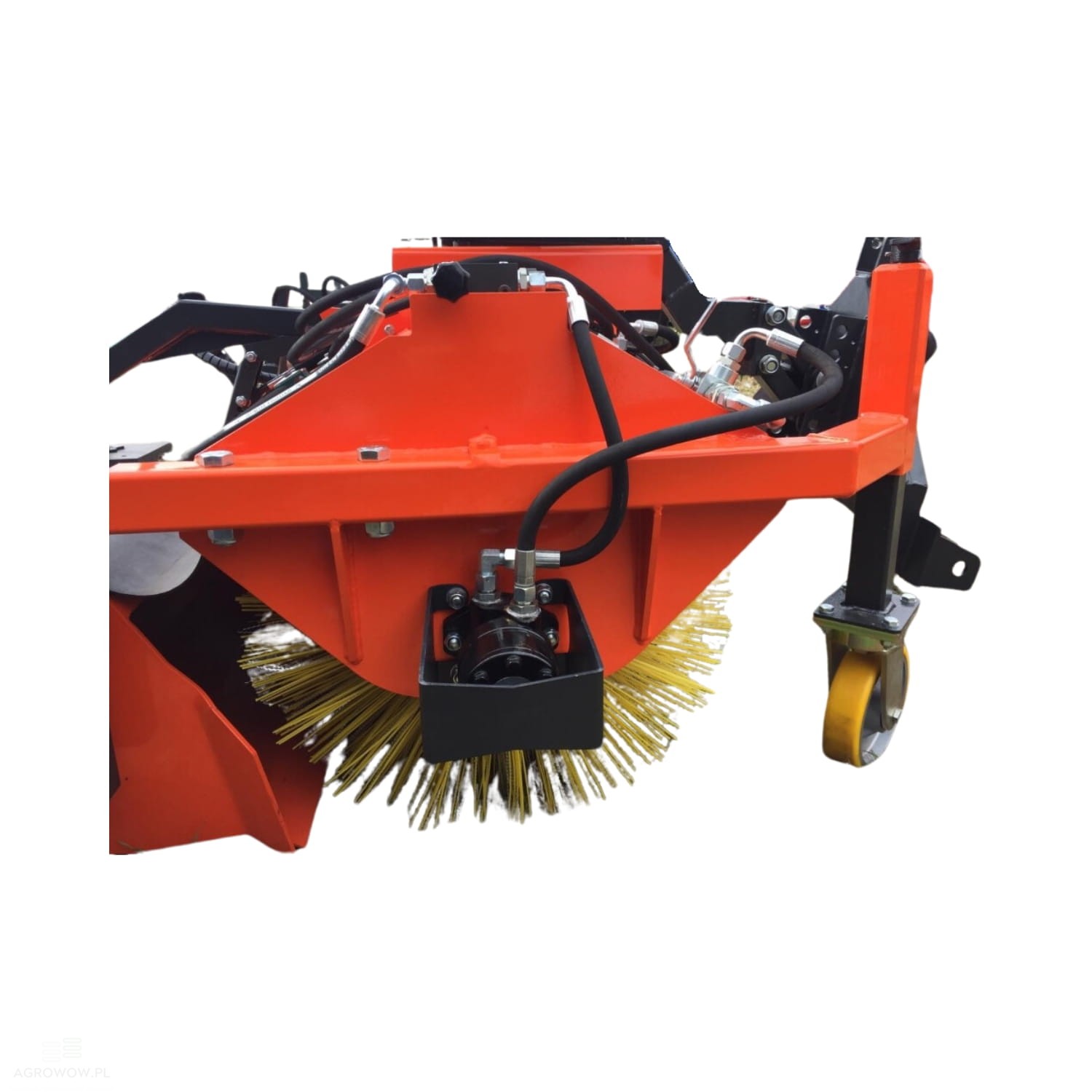

• The high-quality plastic or plastic-and-metal brushes are easily interchangeable, allowing quick configuration changes to suit different surfaces—from asphalt and concrete to delicate paving stones. Additionally, vibration-damping pneumatic wheels ensure excellent stability and cleaning performance on uneven grounds.

• This versatile machine provides year-round functionality: it transitions seamlessly into a winter maintenance tool for clearing snow, works brilliantly as an autumn leaf collector on green spaces, and can even be adapted for smaller-scale operations with quads.

• It is an indispensable asset for municipal departments, construction companies, industrial facilities, and farms looking for a durable, powerful, and multi-functional solution to maintain large outdoor areas.
