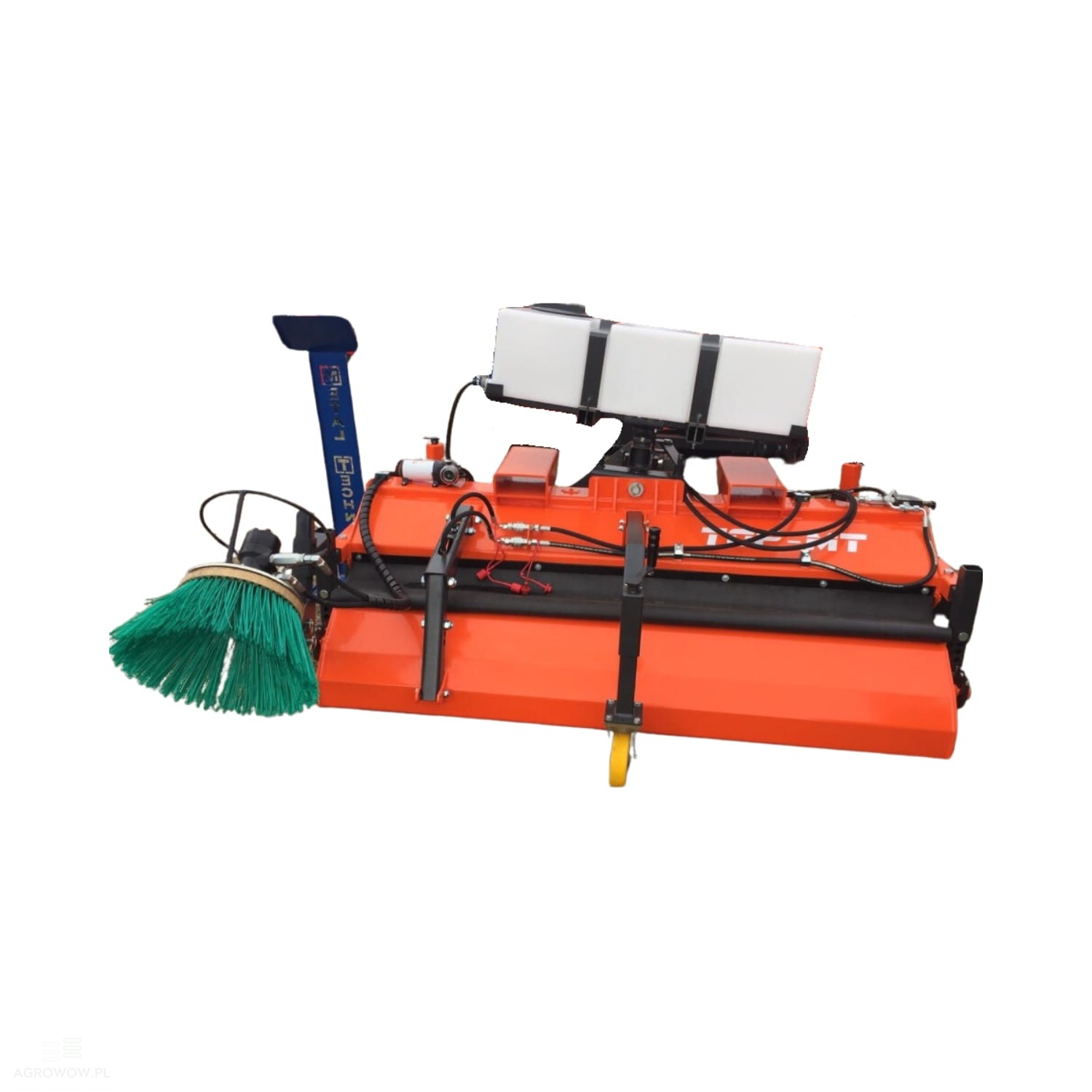

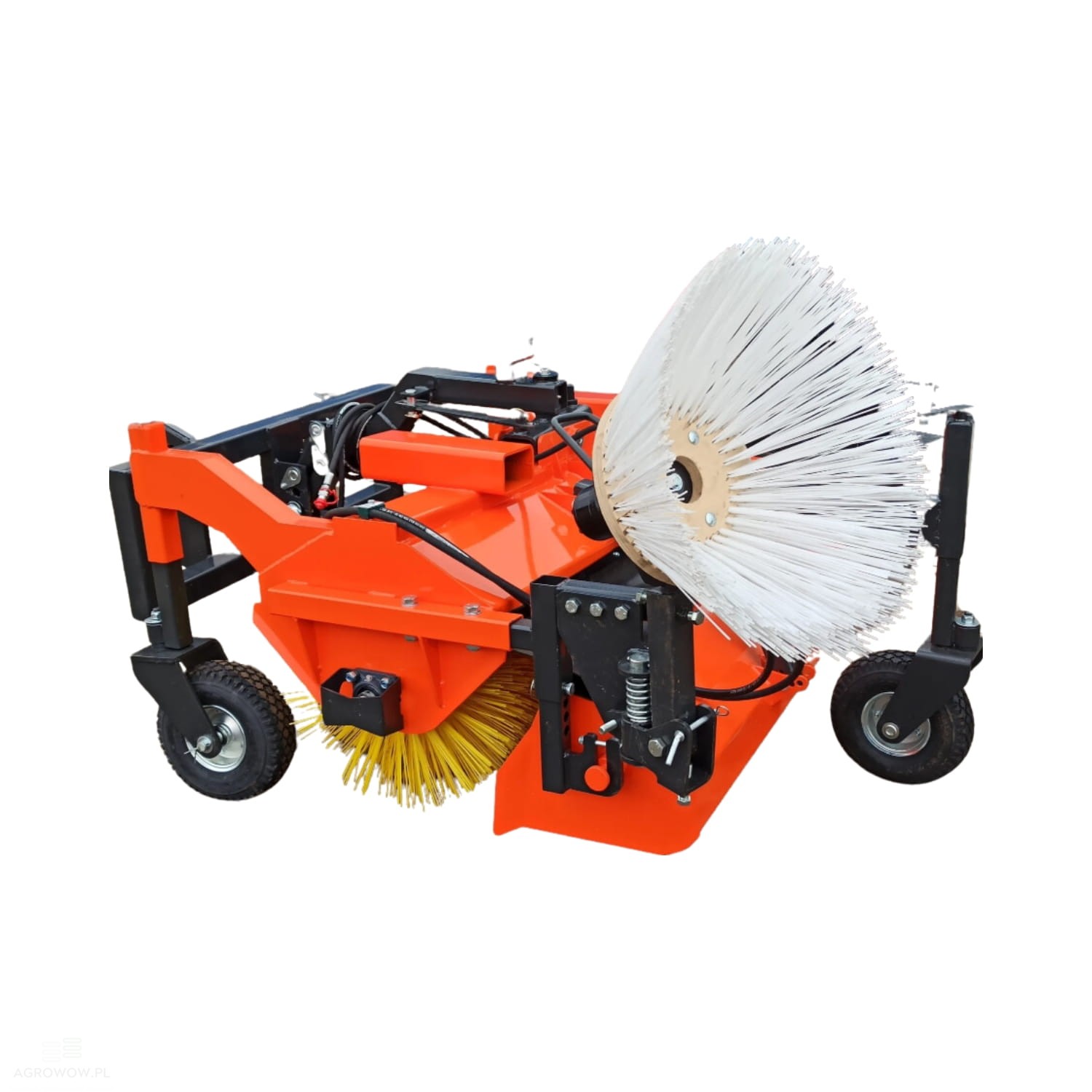

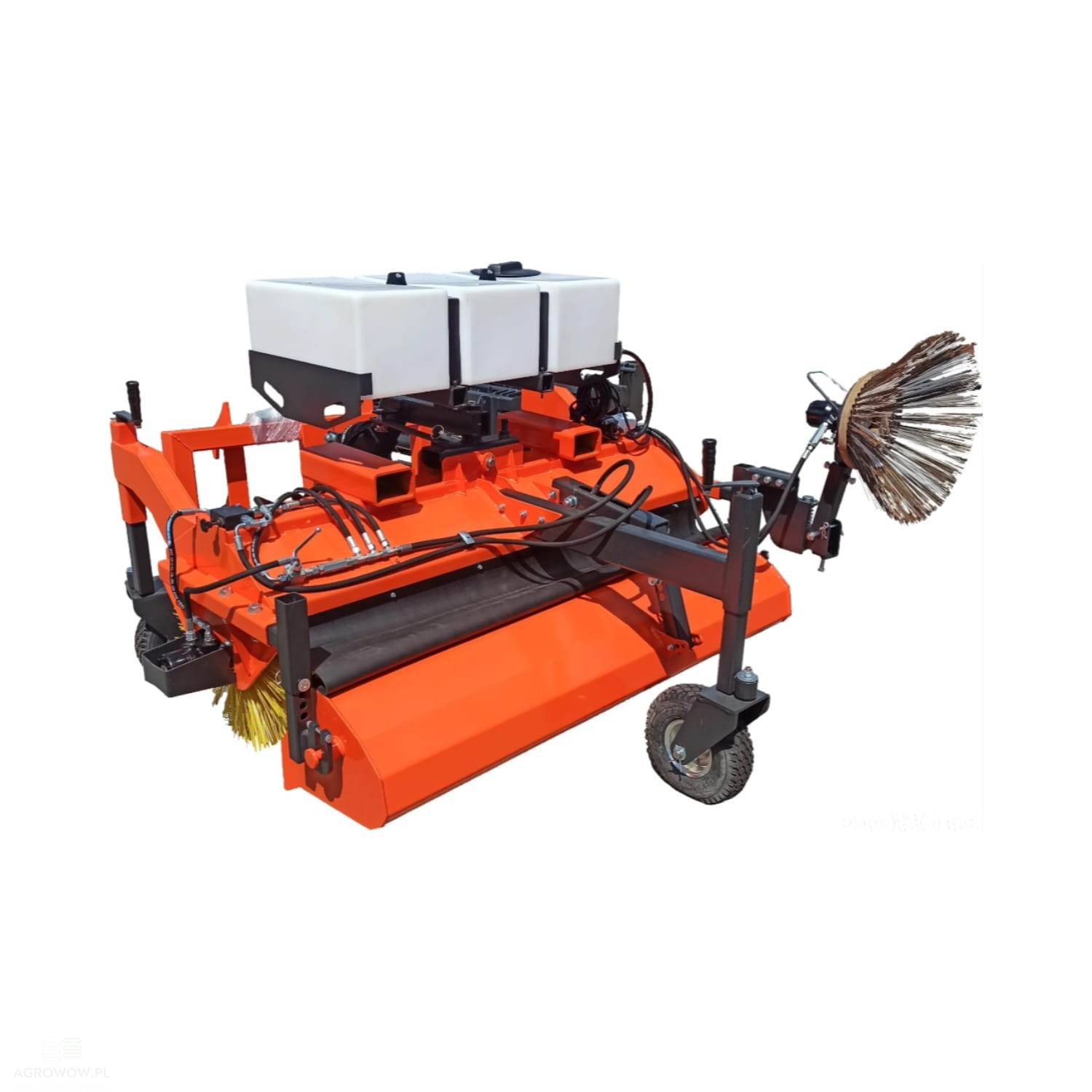

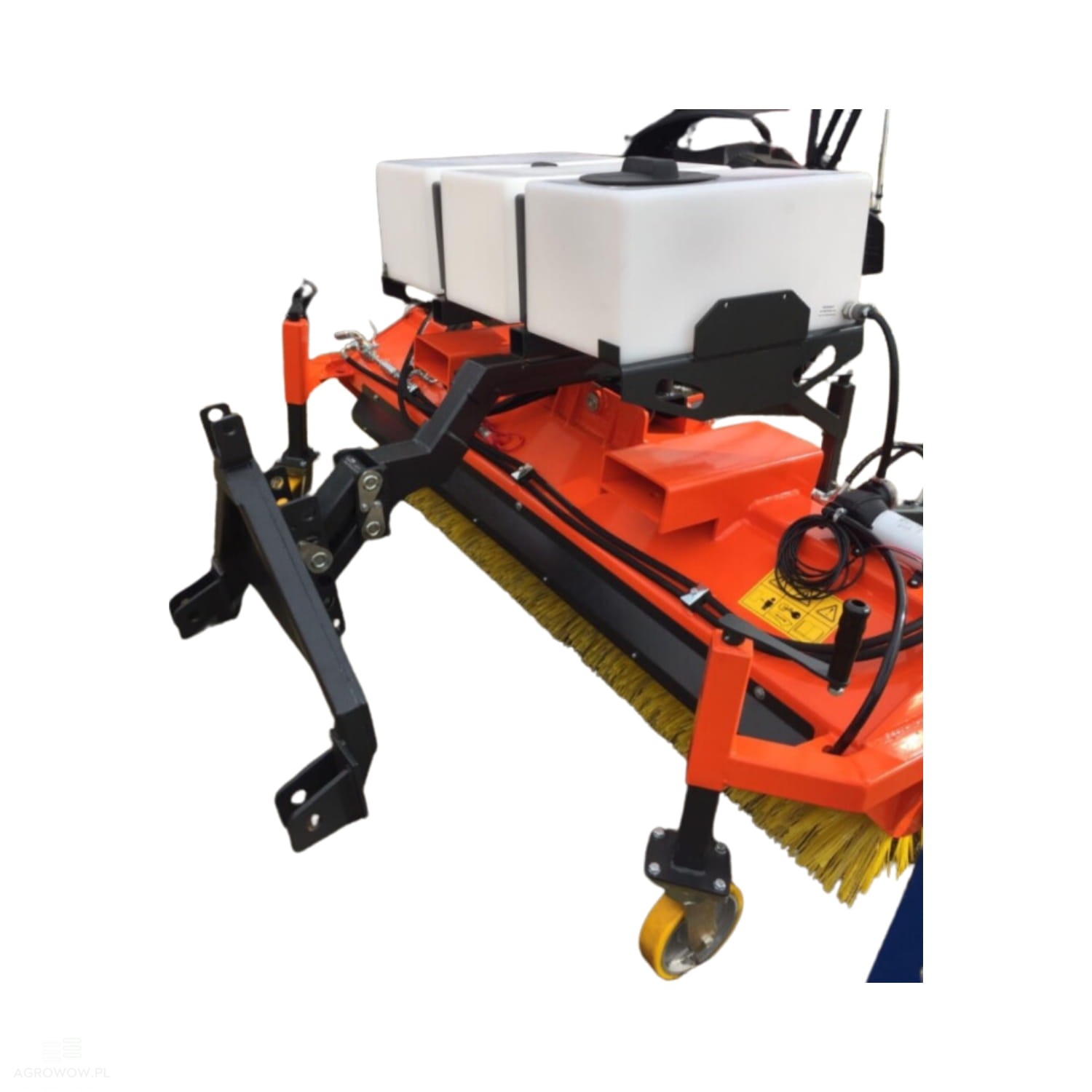

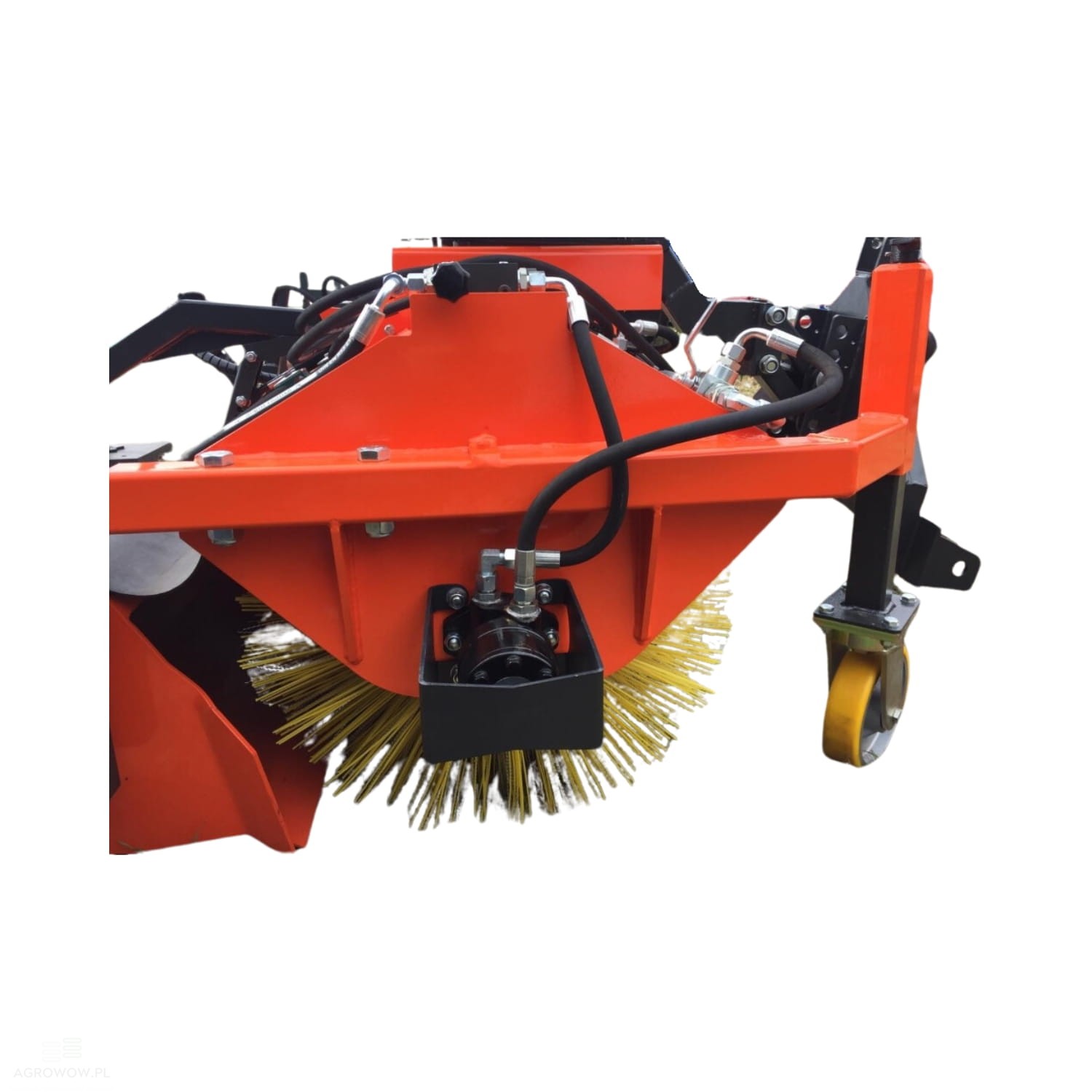

Metal-Technik 2.4 m road sweeper for tractor and loader (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Catalogue number: MT24ZD

- Manufacturer's name: Sweeper TOP MT

- Width: 2400 mm

- Length: 2600 mm

- Height: 1215 mm

- Weight: 510 kg

- Brush diameter: 600 mm

- Actuators: 1 hydraulic cylinder

- Water tank capacity: 175 L

- Waste hopper capacity: 240 L

- Minimum oil flow: 40 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch (TUZ) Cat. II

- Hopper emptying: Hydraulic lift

- Dust reduction: Rubber shroud between the brush housing and the waste hopper to minimize dust and airborne particles

- Brush options: Easily replaceable plastic or mixed plastic-and-wire bristles

- Wheels: Pneumatic tires to dampen ground vibrations

- Application: Sweeping flat surfaces (asphalt, concrete, paving stones) such as roads, squares, and sidewalks, as well as winter maintenance (snow removal)

Optional Equipment:

- Side Brush

An indispensable addition for effectively clearing debris from hard-to-reach areas like curbs, corners, and roadsides. Made of wear-resistant synthetic fibers or a plastic-wire mix, it ensures high durability. Mounted on a movable arm, it can be hydraulically controlled for precise positioning. Many models also include an integrated spray nozzle to suppress dust and enhance sweeping efficiency.

- Water Tank

A key component of the dust suppression system for road and municipal sweepers. Made of durable, corrosion-resistant materials, it ensures long-term reliability in harsh conditions. Its 175 L capacity allows for extended operation without frequent refills. It features a wide filler opening, system connection ports, and a protective filter to prevent nozzle clogging.

- Pins & Bolts

High-strength steel connection pins (often hardened or coated for anti-corrosion protection) designed to withstand heavy loads and intensive use. They transfer force within articulated joints, such as hydraulic arm links. Depending on configuration, they can be fitted with sliding sleeves or bearings to minimize friction, and feature grease nipples for easy maintenance.

Detailed Description:

• The 2400 mm road sweeper is a modern, high-performance unit engineered for the efficient cleaning of various surfaces.

• Thanks to its robust build and versatile design, it functions exceptionally well as a sweeper for tractors, loaders, and forklifts, providing an all-in-one solution for professional property and facility maintenance.

• With its 2400 mm working width, the machine rapidly removes sand, dust, mud, trash, and other debris from large squares, industrial halls, sidewalks, and roadways.

• The front-mounted 3-point hitch (Cat. II compatible) provides outstanding operational flexibility, making it an ideal choice for municipal services, construction companies, and industrial plants.

• The unit features a 240 L waste hopper with hydraulic lifting for effortless, automated emptying directly from the operator's cabin.

• To protect the environment and improve operator comfort, a built-in rubber shroud encloses the brush assembly, effectively trapping dust and preventing it from becoming airborne.

• The hydraulic system operates at a maximum pressure of 140 bar, guaranteeing reliable, breakdown-free performance even during prolonged, heavy-duty cycles.

• Thanks to the easily interchangeable plastic or plastic-and-wire brushes, the machine can be perfectly configured for everything from delicate paving stones to rugged concrete and asphalt.

• This sweeper is a true multi-season asset: it transitions seamlessly into a winter maintenance tool for clearing light snow, can be adapted for specialized towing vehicles, and works brilliantly as a leaf collector in autumn.

• It represents a highly durable, cost-effective investment for any commercial, agricultural, or municipal fleet looking to maintain large outdoor areas in pristine condition year-round.
