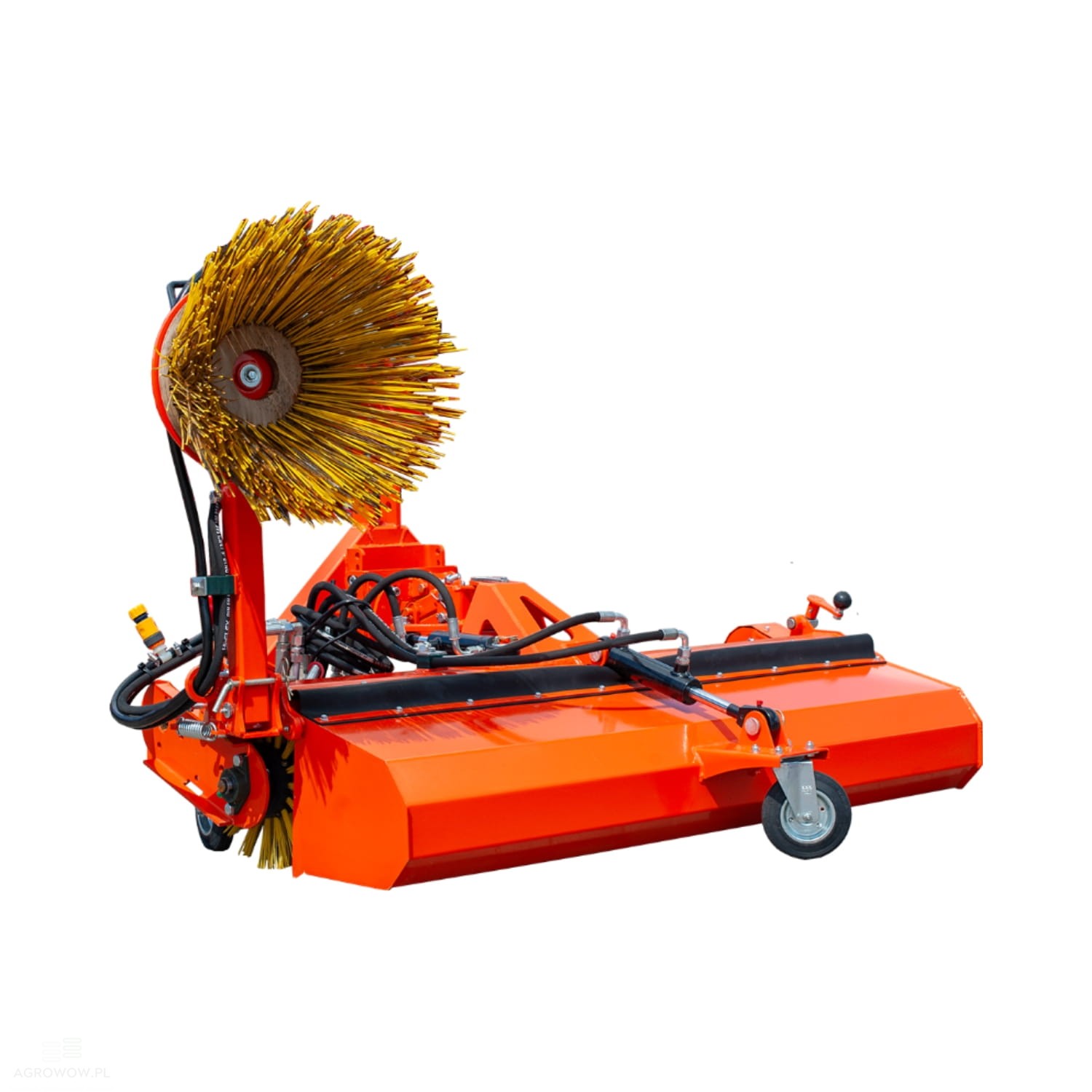

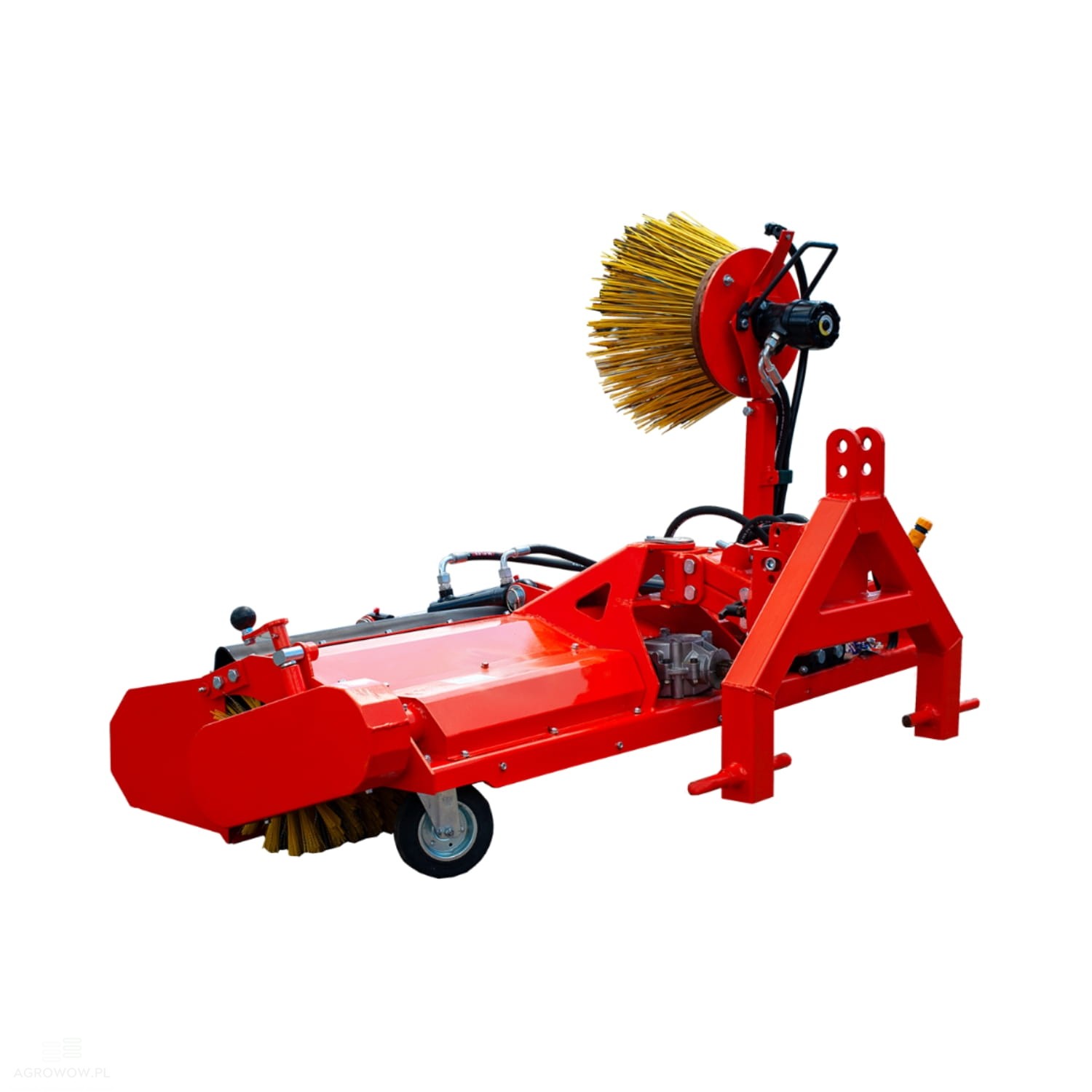

Metal-Technik street sweeper for compact utility tractor 1.2 m (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT12ZU

- Manufacturer's name: Sweeper MTS

- Width: 1200 mm

- Length: 1520 mm

- Height: 650 mm

- Weight: 190 kg

- Brush diameter: 300 mm

- Actuators: 2

- Waste hopper capacity: 27 L

- Minimum oil flow: 30 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch / TUZ (Municipal: Cat. 0, Cat. I small, or Cat. I large)

- Hitch alignment: Equipped with terrain-following system (contour adapting)

- Hopper emptying: Hydraulic lift

- Sweeper angling: Hydraulic turn/angling

- Functionality: Sweeping-away function

- Dust reduction: Rubber shroud between the brush housing and the hopper to minimize rising dust

- Brush options: Easily replaceable plastic or mixed plastic-and-metal bristles

- Drive type: Driven by PTO shaft

- PTO rotation options: Clockwise / Counterclockwise (right / left)

- PTO speeds: 540 RPM, 1000 RPM, and 2000 RPM

- Application suitability: Designed for small machines, small tractors, and small loaders

Extra Cost:

- Water Tank

The water tank is an essential element of the spraying system in road and municipal sweepers, whose main function is to reduce dusting and improve cleaning efficiency. Made of durable, corrosion-resistant materials, it ensures reliable operation even in demanding working conditions. Its capacity, usually ranging from 100 to 500 liters, enables longer work without the need for frequent water refills. The tank design includes a wide filler inlet, connections to the spraying system, and a filter that prevents nozzles from clogging. In some models, a water level indicator is used, which enables ongoing monitoring of liquid consumption.

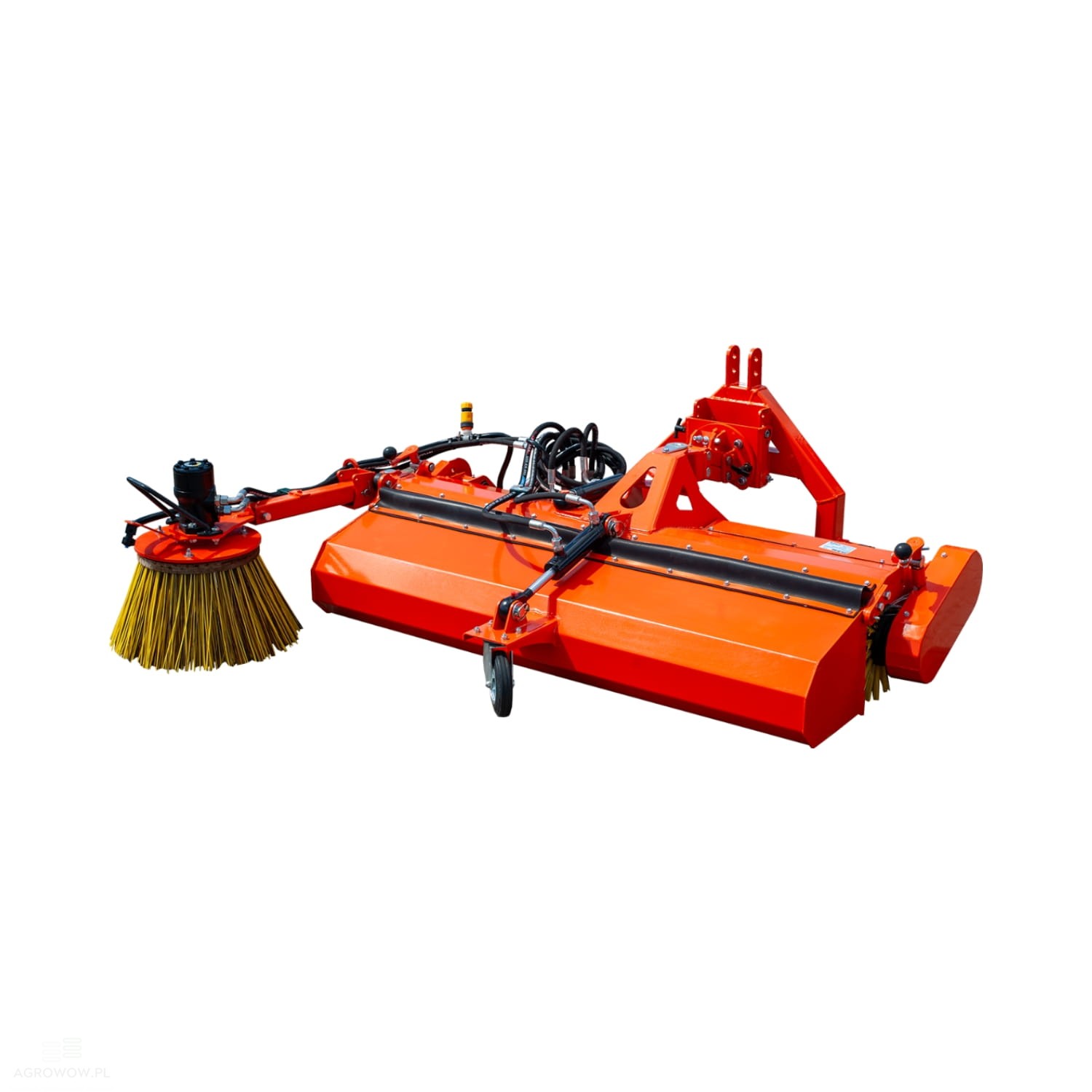

- Side Brush

The side brush is a key element of sweepers, designed for the effective removal of dirt from hard-to-reach places such as curbs, corners, or roadsides. Made of durable synthetic fibers or a mixture of plastic and metal fibers, it is characterized by high resistance to abrasion and sweeping efficiency. Mounted on a movable arm, it can be hydraulically controlled, which allows for precise adjustment of its position to working conditions. In many sweeper models, the side brush is additionally equipped with a spraying system that effectively reduces dusting, improving the quality of cleaning and the comfort of using the machine.

Detailed Description:

• The sweeper with a working width of 1200 mm is a compact and efficient device, ideal for maintaining cleanliness on a variety of surfaces.

• Thanks to its solid construction and modern technical solutions, it works well as a sweeper for tractors, loaders, or forklifts.

• Due to its compact dimensions, it is also perfectly suited as a sweeper for compact utility tractors and smaller machines, making it a versatile tool for cleaning squares, warehouse halls, roads, and sidewalks.

• The hydraulic system of the sweeper enables both lifting of the hopper and its turning, which increases the convenience and precision of the operator's work.

• The device is equipped with a brush with a diameter of 300 mm, which ensures the effective removal of debris such as sand, leaves, mud, and other contaminants.

• Hydraulic control of the sweeper, including lifting the hopper and the possibility of turning, enables precise maneuvering and adaptation of work to specific terrain conditions.

• The sweeping-away function allows for effective cleaning of hard-to-reach places, and the rubber shroud placed between the brush housing and the hopper limits the rising of dust, which improves user comfort.

• The sweeper is driven by a PTO shaft that can work in both right and left rotations.

• The possible rotation speed of the shaft is 540, 1000, or 2000 RPM, which provides a wide range of adaptation of the device to various machines.

• The municipal 3-point hitch mounting system (category 0, I small, I large) allows for quick and convenient mounting both at the front and rear of the vehicle, which further increases the versatility of the equipment.

• The waste hopper with a capacity of 27 liters enables efficient work without the need for frequent emptying, and easily replaceable plastic or plastic-and-metal brushes ensure a long service life and the ability to adapt the device to various surfaces.

• A maximum oil pressure of 140 bar and an oil flow range from 30 to 60 l/min guarantee efficiency and reliability under all conditions.
