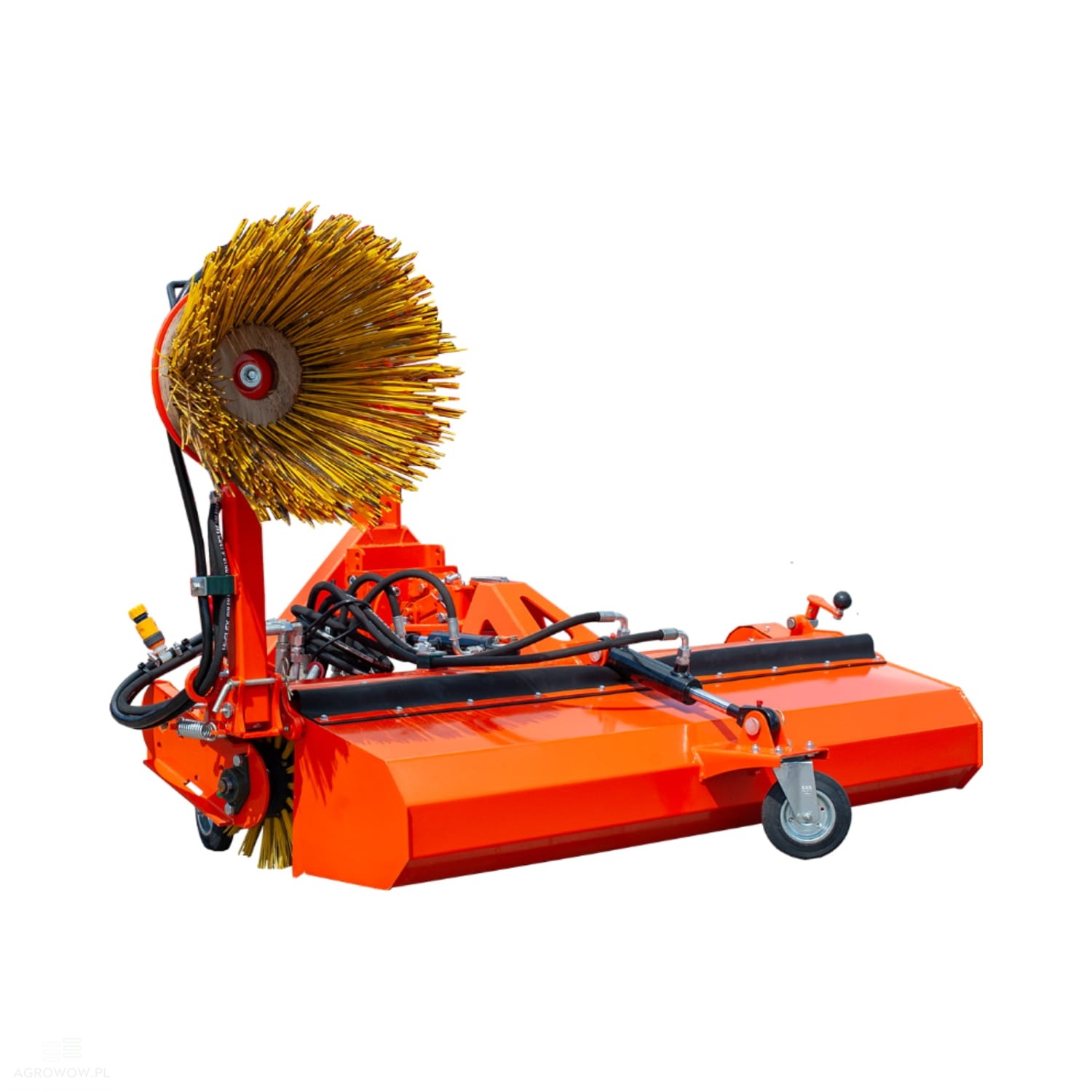

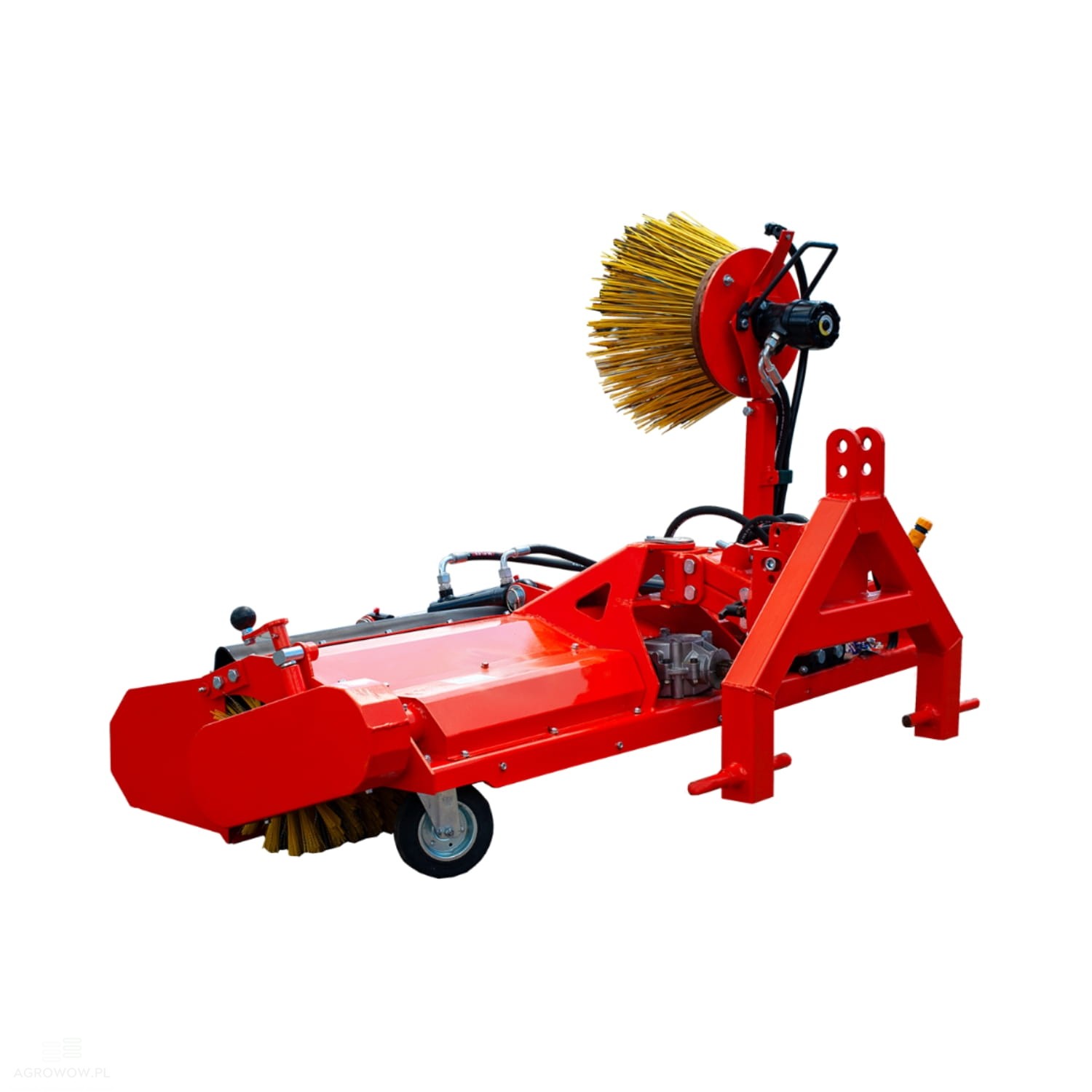

Metal-Technik street sweeper for compact utility tractor 1.6 m (front-mounted)

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

Numer telefonu: +48 880 261 210 | +48 504 947 222

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Metal-Technik

- Catalogue number: MT16ZU

- Manufacturer's name: Sweeper MTS

- Width: 1600 mm

- Length: 1520 mm

- Height: 650 mm

- Weight: 210 kg

- Brush diameter: 300 mm

- Actuators: 2

- Waste hopper capacity: 35 L

- Minimum oil flow: 40 l/min

- Maximum oil flow: 60 l/min

- Maximum oil pressure: 140 bar

- Mounting: Front 3-point hitch / TUZ (Municipal: Cat. 0, Cat. I small, or Cat. I large)

- Hitch alignment: Equipped with terrain-following system (contour adapting)

- Hopper emptying: Hydraulic lift

- Sweeper angling: Hydraulic turn/angling

- Functionality: Sweeping-away function (odmiatanie)

- Dust reduction: Rubber shroud between the brush housing and the hopper to minimize rising dust

- Brush options: Easily replaceable plastic or mixed plastic-and-metal bristles

- Drive type: Driven by PTO shaft (Wałek WOM)

- PTO rotation options: Clockwise / Counterclockwise (right / left)

- PTO speeds: 540 RPM, 1000 RPM, and 2000 RPM

- Application suitability: Designed for small machines, small tractors, and small loaders

Extra Cost:

- Water Tank

An important element of the spraying system used in road and municipal sweepers, which effectively reduces the rising of dust and improves surface cleaning efficiency. Made of durable materials resistant to corrosion and damage, it guarantees a long service life and reliable operation. Its capacity, usually ranging from 100 to 500 liters, allows for longer work without the need for frequent water refills. The tank design includes a convenient filler inlet, connections to the spraying system, and often an additional filtration system that prevents nozzles from clogging. Some models also use a water level indicator, which makes it easier to monitor its consumption during operation.

- Side Brush

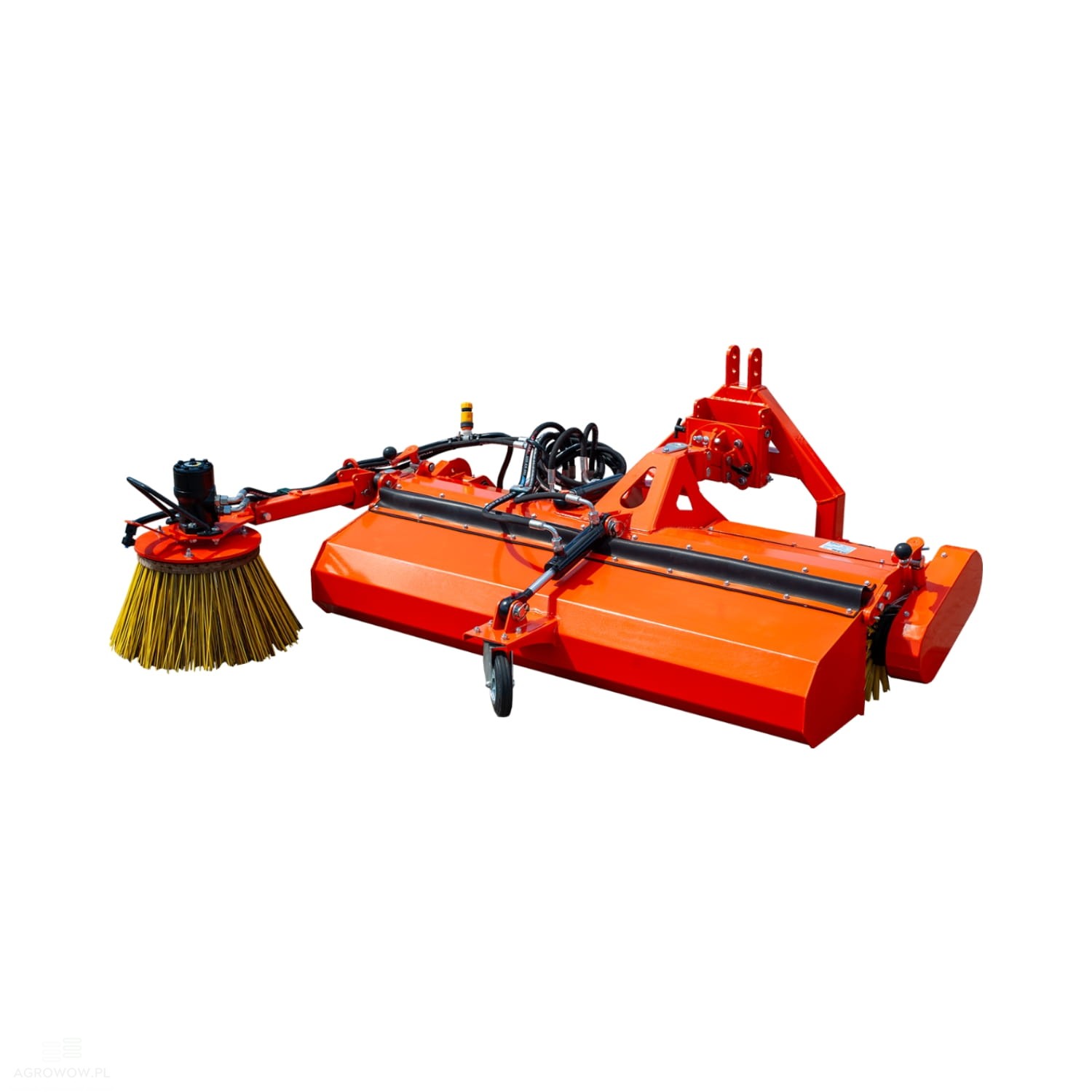

An important component of sweepers, responsible for the effective removal of debris from hard-to-reach places such as curbs, corners, and road edges. Made of wear-resistant synthetic fibers or a mixture of plastic and metal fibers, it ensures durability and work efficiency. Mounted on an adjustable arm, it can be hydraulically controlled, which enables its precise lifting, lowering, and adaptation to various terrain conditions. In many sweeper models, the side brush is additionally equipped with a spraying system that minimizes dusting and increases surface cleaning effectiveness.

Detailed Description:

• The road sweeper with a working width of 1600 mm is a modern and versatile device designed for the effective maintenance of cleanliness on various surfaces, both in urban and industrial spaces.

• Thanks to its solid construction and innovative technical solutions, it works perfectly as a sweeper for tractors, loaders, and forklifts.

• Its compact dimensions make the device also work great as a tractor and quad sweeper, making it an ideal choice for cleaning squares, warehouses, sidewalks, and streets.

• The hydraulic control system enables easy lifting of the hopper and its turning, which ensures precision and comfort for the operator during work.

• Equipped with a brush with a diameter of 300 mm, the sweeper effectively removes various types of debris, such as sand, mud, dust, and leaves, which makes it an ideal solution as a leaf sweeper.

• The sweeping-away function allows for thorough cleaning of even hard-to-reach places, and the rubber shroud between the brush housing and the hopper effectively limits the rising of dust, improving working comfort.

• The device is driven by a PTO shaft that can work in both right and left rotations, which increases its versatility.

• The possible rotation speeds of the shaft are 540, 1000, and 2000 RPM, which allows it to be used in various machines.

• The municipal 3-point hitch mounting system (category 0, I small, I large) ensures the possibility of quick and convenient mounting both at the front and rear of the vehicle, thanks to which the sweeper will work well as a sidewalk sweeper, street sweeper, and road sweeper.

• The waste hopper with a capacity of 35 liters ensures convenient work without the need for frequent emptying, and easily replaceable plastic or plastic-and-metal brushes guarantee a long service life and the ability to adapt to various surfaces.

• The hydraulic control system operated in the pressure range of 140 bar and oil flow from 40 to 60 l/min ensure high efficiency and operational reliability.

• The sweeper can also be used as a snow sweeper in the winter season, which makes it a universal tool for year-round work.

• This is an ideal solution for municipal companies, industrial plants, agricultural farms, and enterprises involved in maintenance of cleanliness that are looking for a solid and efficient equipment for sweeping roads, squares, and urban areas.
