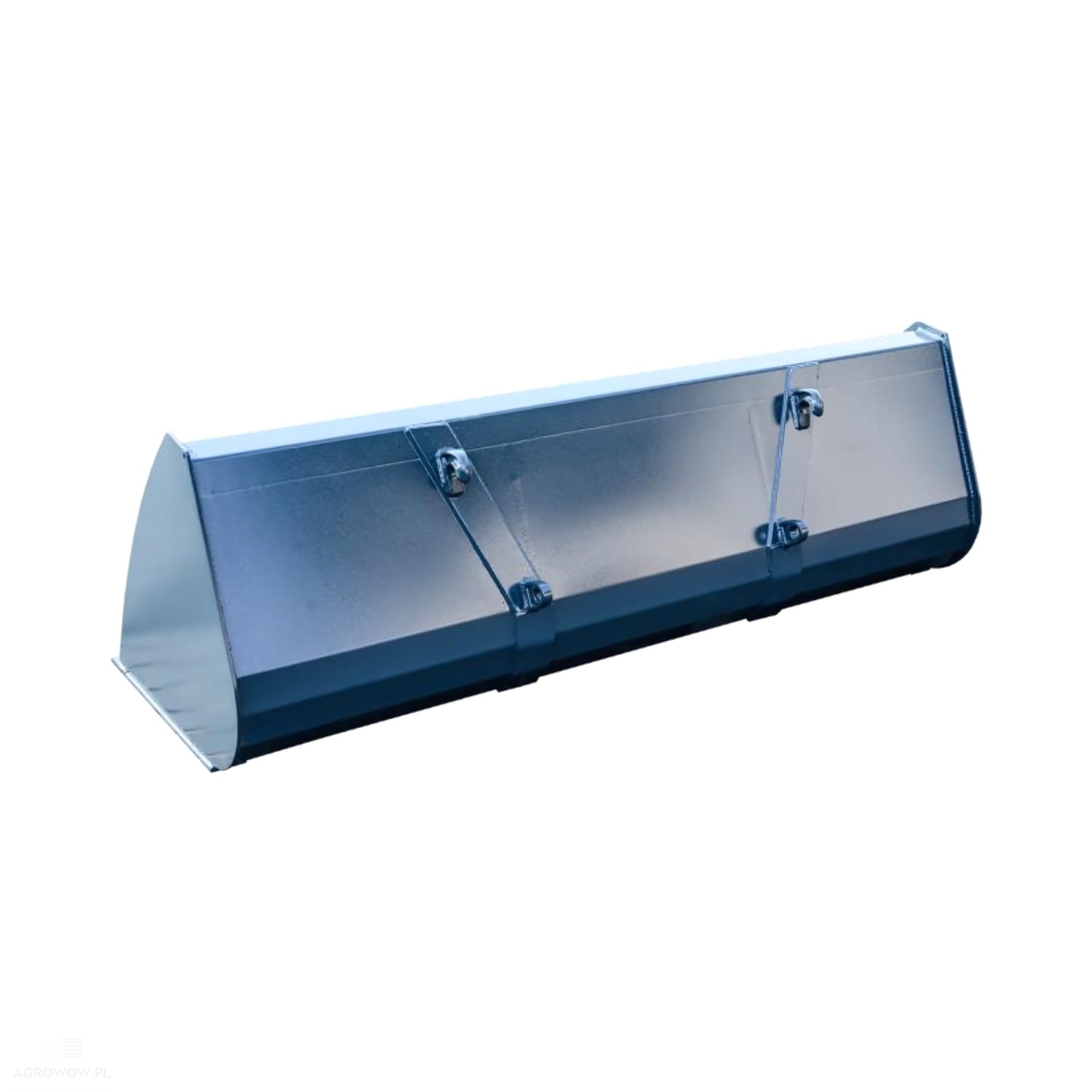

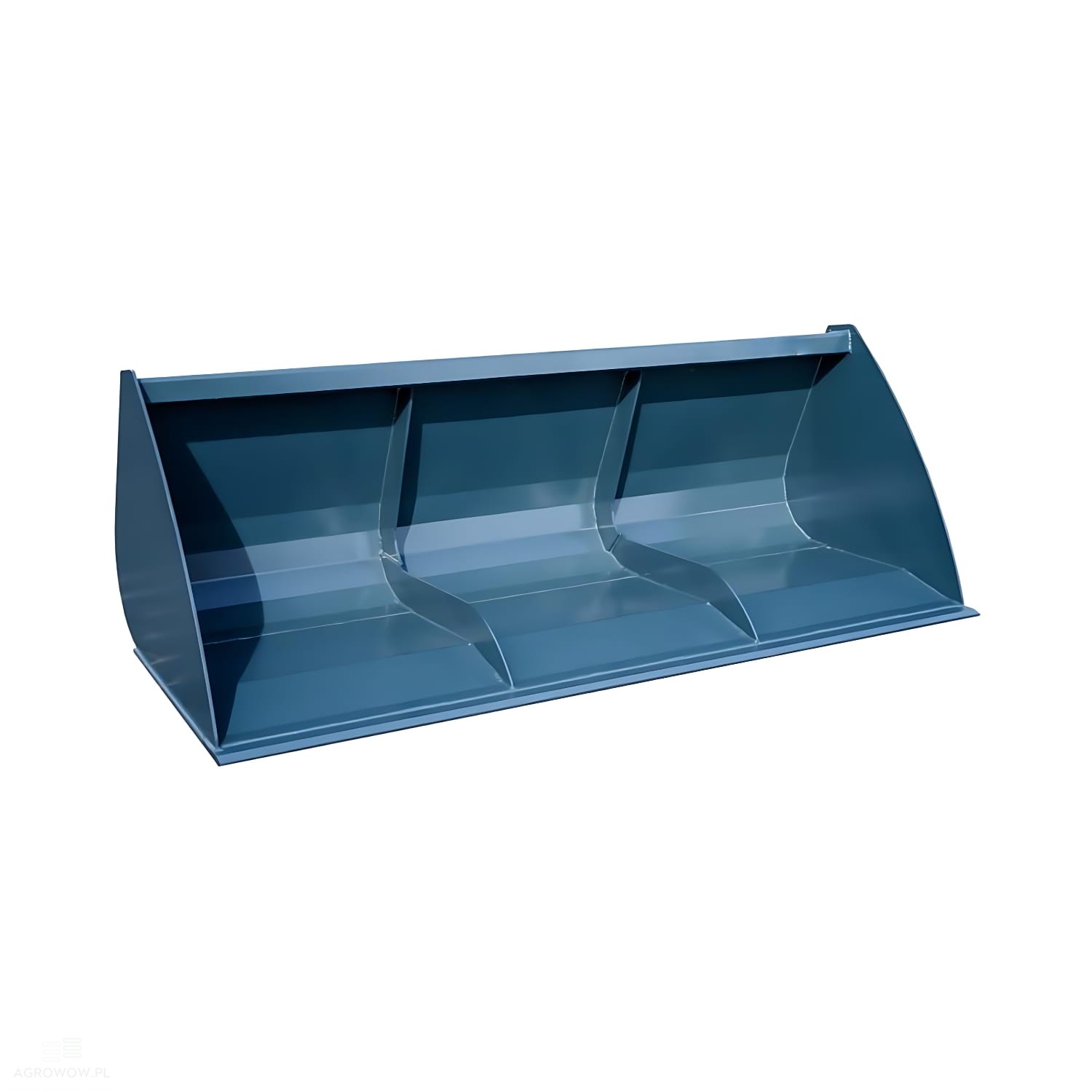

WAW-POL high-capacity bucket 8-11 T / 1.8 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: WAW-POL

- Catalogue number: WL18LO

- Manufacturer's name: High-capacity bucket

- Width: 1800 mm

- Weight: 190 kg

- Capacity: 0.70 m³

- Shell thickness: 4 mm

- Side plate thickness: 8 mm

- Reinforcement: 10 mm

- Cutting edge: 15x120 mm

- Machine weight class: 8-11 T

- Universal compatibility for any machine

- Hitch upon request: any mounting type available (e.g., Euro, JCB, Manitou, Bobcat, CAT, Weidemann, Tramer, etc.)

Detailed Description:

• The high-capacity bucket featuring a width of 1800 mm and a capacity of 0.70 m³ is a durable and efficient attachment designed to operate with machines that have an operating weight ranging from 8 to 11 tons.

• It is engineered for loading and transporting low-density materials, such as grain, sawdust, compost, silage, bedding, manure, snow, or organic waste.

• Thanks to its high volume combined with a moderate unladen weight, this bucket performs excellently in agricultural and municipal work, as well as in waste management.

• The bucket's structure is manufactured from structural steel with high wear resistance.

• The working shell has a thickness of 4 mm, and the side plates have been reinforced to 8 mm, which increases the durability and rigidity of the construction during intensive use.

• Additionally, a 10 mm thick reinforcement is used in the middle section, effectively stabilizing the bucket body and protecting it from deformation when working with heavier or damp material.

• The bucket is equipped with a steel cutting edge measuring 120x15 mm, which serves as the main working edge – handling the scooping and scraping of material perfectly, while its thickness and width guarantee high resistance to abrasion.

• The entire structure weighs 190 kg, representing an optimal balance between durability and limited loading on the machine.

• A major advantage of this bucket is its mounting universality. It can be equipped with any type of hitch – including Euro, JCB, Manitou, CAT, Bobcat, Weidemann, Tramer, and others – making it compatible with a wide range of machines, such as front loaders, telehandlers, forklifts, or excavators with appropriate adapters.

• The mounting option is selected individually upon customer request.

• Thanks to its well-thought-out design, large capacity, and reinforced structure, the 1800 mm high-capacity bucket is an excellent solution for users looking for a reliable and universal attachment for lightweight yet high-volume materials.

• It is an ideal choice for both farmers and companies involved in municipal services or material management.
