WAW-POL high-capacity bucket 9-12 T / 2.0 m

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: WAW-POL

- Catalogue number: WL20LO

- Manufacturer's name: High-capacity bucket

- Width: 2000 mm

- Weight: 210 kg

- Capacity: 0.78 m³

- Shell thickness: 4 mm

- Side plate thickness: 8 mm

- Reinforcement: 10 mm

- Cutting edge: 15x120 mm

- Machine weight class: 9-12 T

- Universal compatibility for any machine

- Hitch upon request: any mounting type available (e.g., Euro, JCB, Manitou, Bobcat, CAT, Weidemann, Tramer, etc.)

Detailed Description:

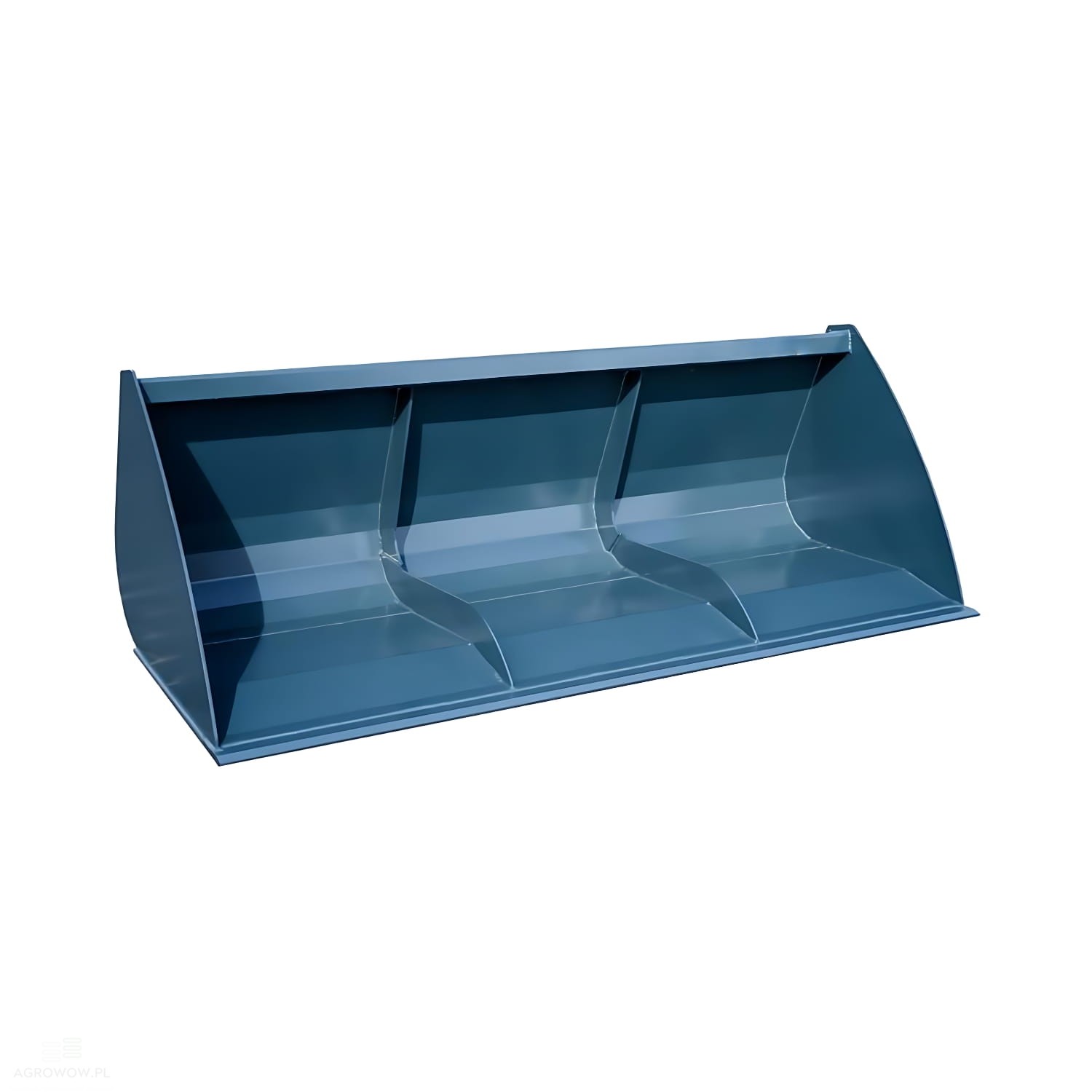

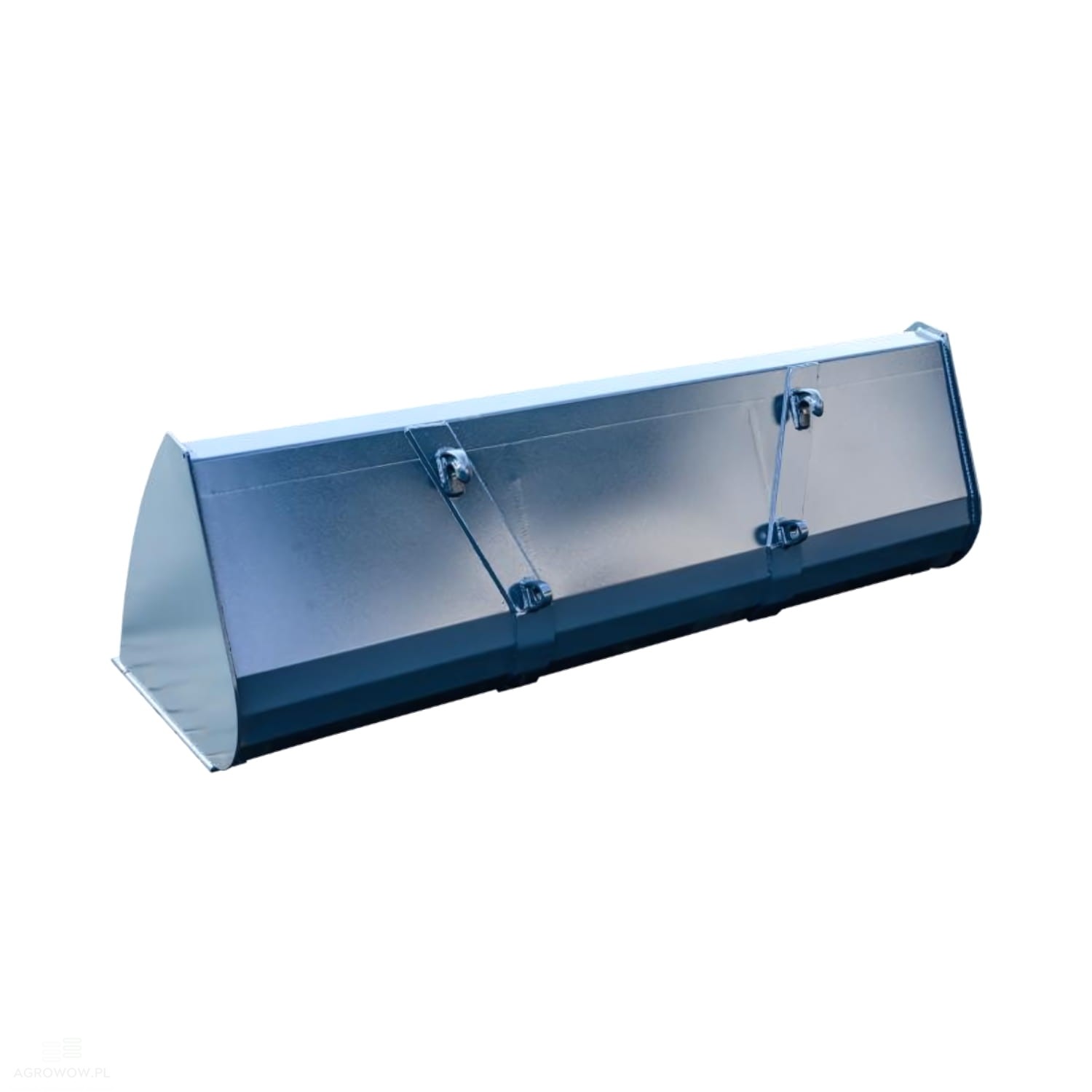

• The high-capacity bucket featuring a width of 2000 mm and a capacity of 0.78 m³ is a robust and versatile attachment designed to operate with machines that have an operating weight ranging from 9 to 12 tons.
• Its design is tailored for handling low-density materials, such as grain, sawdust, compost, snow, silage, manure, organic waste, or dry feed.
• Thanks to its large working volume combined with a relatively low unladen weight, this bucket performs excellently on agricultural farms, in the municipal sector, and during warehouse handling operations.
• The entire structure is manufactured from structural steel with increased wear resistance, guaranteeing a long operational life even under intensive use.
• The 4 mm thick shell and reinforced 8 mm side plates protect the bucket from deformation and mechanical damage.
• Additionally, a 10 mm thick central reinforcement is applied to improve the rigidity and strength of the whole structure, particularly when working with wet or compacted material.
• The bottom edge features a steel working cutting edge measuring 120x15 mm, which acts as the main scraping edge.
• Thanks to its appropriate thickness and width, this cutting edge exhibits high resistance to abrasion and guarantees effective scooping of material from the ground.
• With a total weight of 210 kg, the bucket offers an excellent balance between durability and optimal loading for the machine.
• A major advantage of this model is its hitch adaptability to virtually any machine available on the market.
• The bucket can be equipped with mountings such as Euro, JCB Q-Fit, Manitou, CAT IT, Bobcat, Weidemann, Tramer, and others – depending on individual user requirements.
• This universality ensures that the attachment fits telehandlers, front loaders, excavators with an adapter, as well as forklifts with hydraulic attachments.
• Thanks to its solid workmanship, large usable volume, and reinforced structure, the 2000 mm high-capacity bucket constitutes an excellent solution for professional users who need an efficient and reliable tool for working with lightweight materials requiring a large loading space.
• It is the perfect choice for modern farms, service companies, and municipal or industrial plants.
