Agrowow 1.2 m fork with grapple

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW12WK

- Manufacturer's name: Krokodyl

- Width: 1200 mm

- Height: 800 mm

- Depth: 900 mm

- Weight: 174 kg

- Capacity: 0.5 m³

- Machine weight class: 2-3 T

- Cylinders: 2

- Number of top tines: 5

- Number of bottom tines: 6

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A specialized hitch system created by MX – a renowned manufacturer of front loaders. Unlike the Euro standard, it features a different design and a distinct arrangement of mounting points. It has been engineered for specific MX loader models, ensuring an exact fit, durability, and a reliable connection with the attachment.

- Manitou

A mounting type used on Manitou telehandlers. It is adapted to operate under demanding conditions and heavy workloads. Frequently utilized on agricultural farms, in orchards, and on construction sites where durability and reliability are paramount.

- Weidemann

A compact and practical mounting system intended for Weidemann articulated loaders. It facilitates quick attachment of equipment and is ideally suited for lighter tasks – such as livestock handling, feed transport, or green area maintenance.

- JCB hitch (Q-Fit or JCB type)

A solution used on JCB telehandlers and wheeled loaders. This system offers a strong, stable, and secure attachment connection even when working with heavy loads. It is available in several variants depending on the specific machine model.

- SMS hitch (Stoll, Schäffer and others)

A popular and functional mounting system used on equipment from brands such as Stoll, Schäffer, or Ålö. Thanks to its simple design and ease of operation, it works excellently on compact loaders utilized mainly in Western and Northern Europe.

- Other hitch systems (on request)

Upon special request, it is possible to manufacture the attachment in a version adapted to non-standard mounting systems – according to the customer's requirements and the specifications of the particular machine.

Detailed Description:

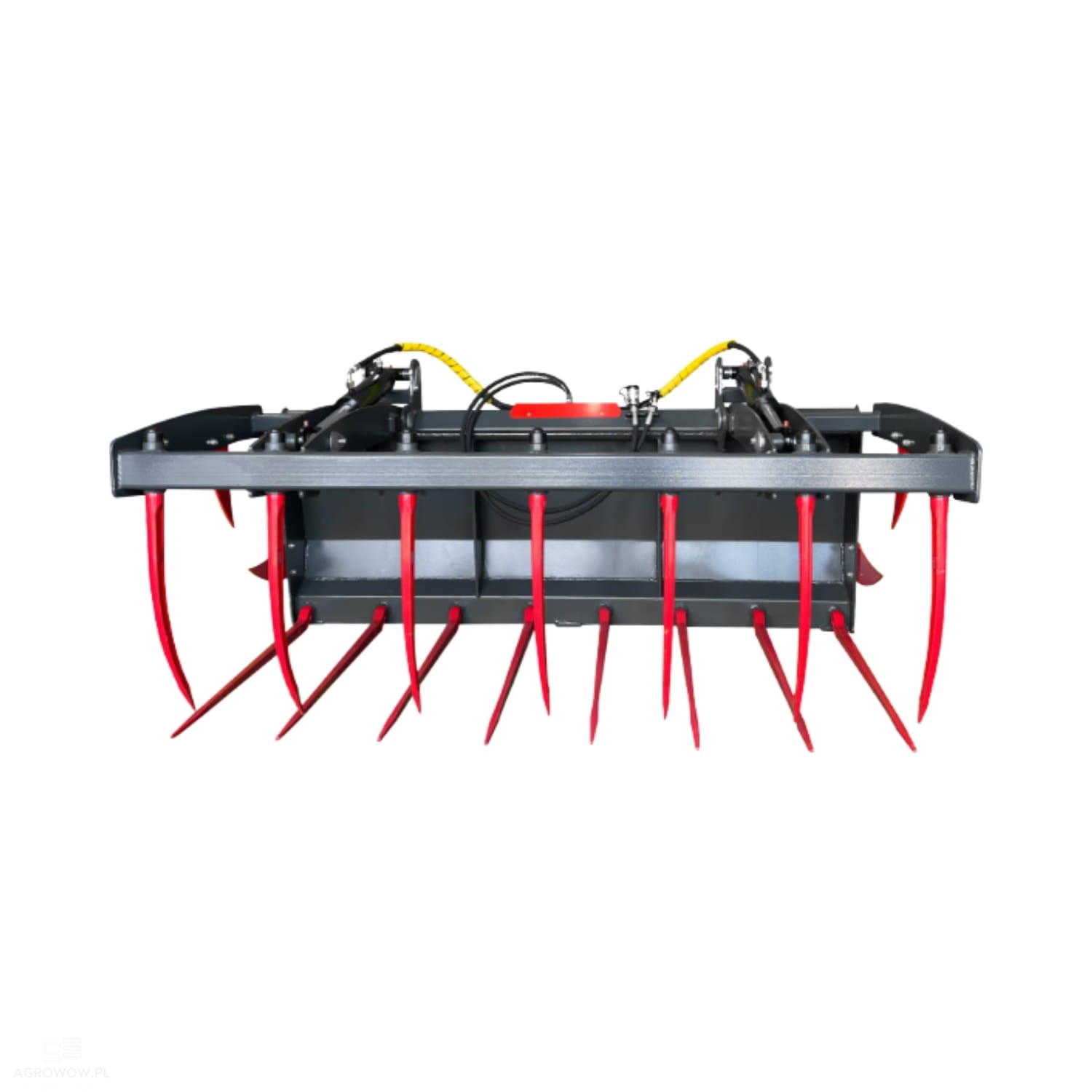

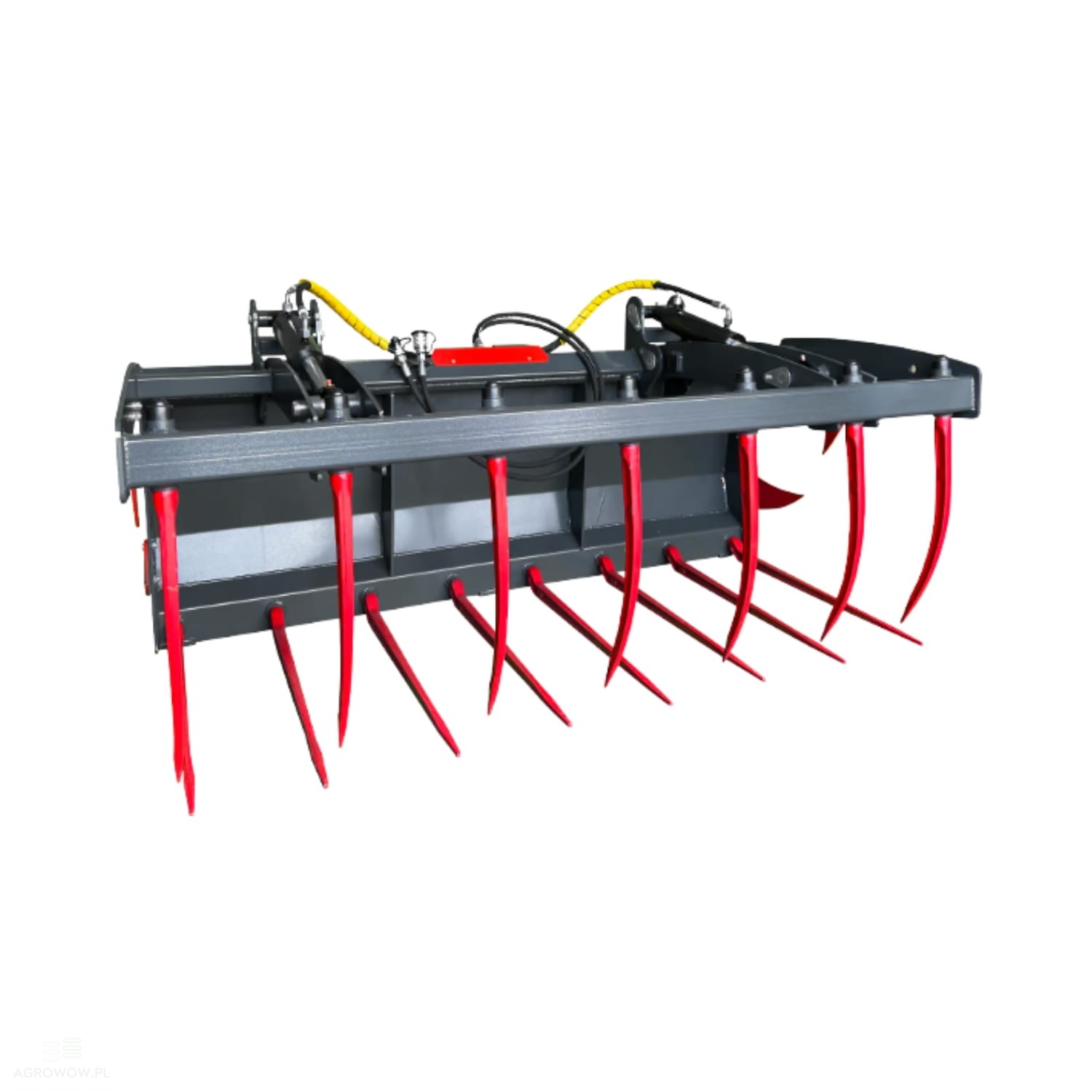

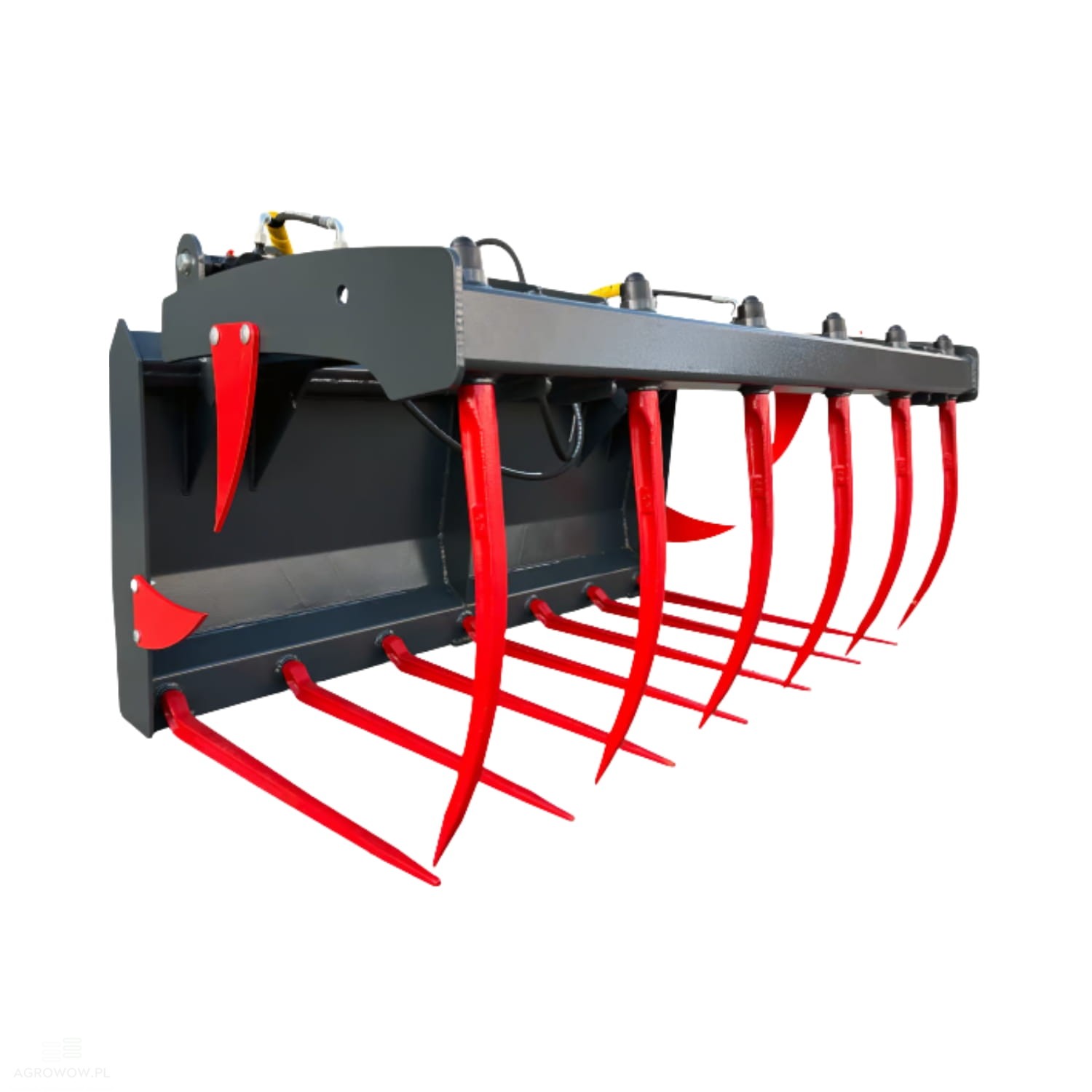

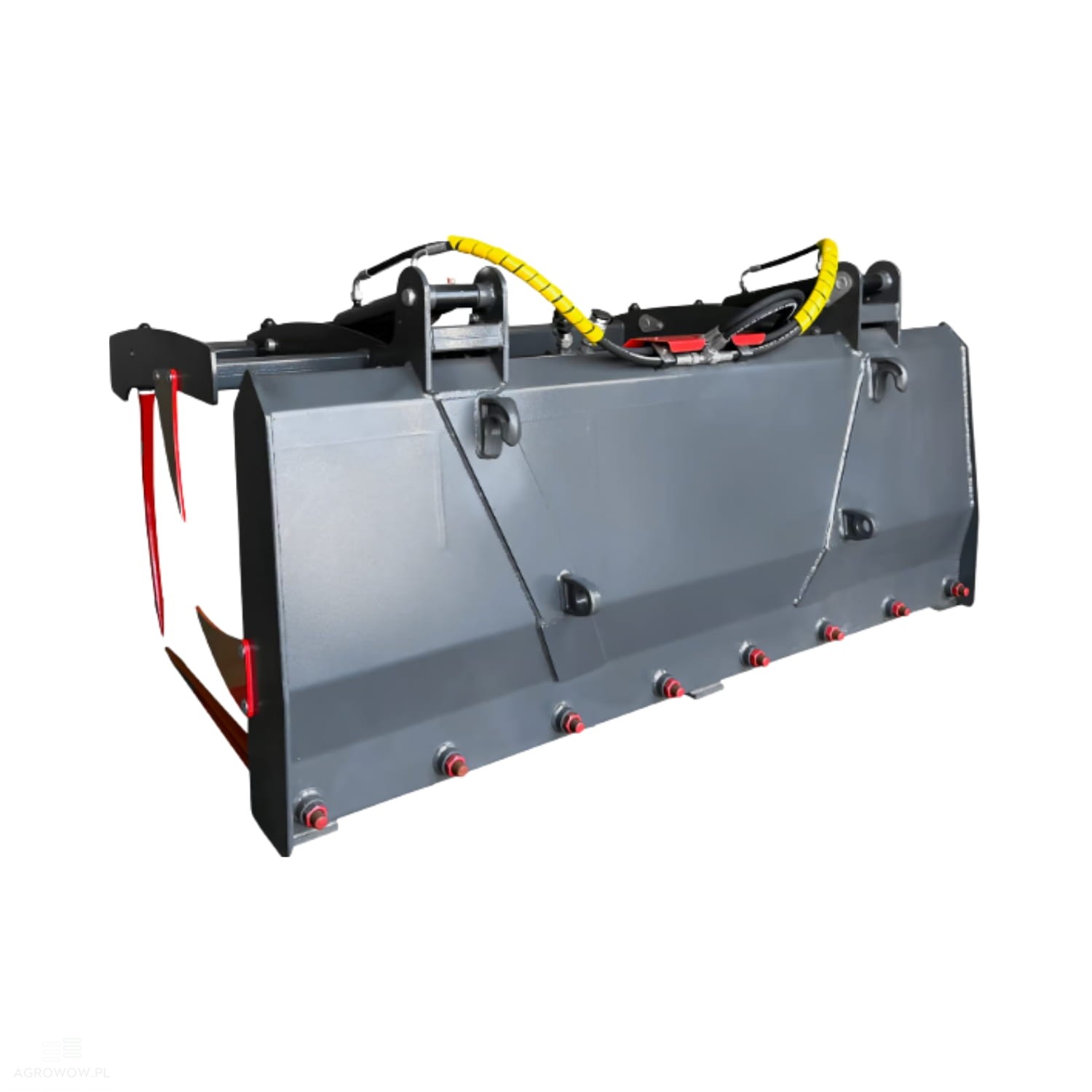

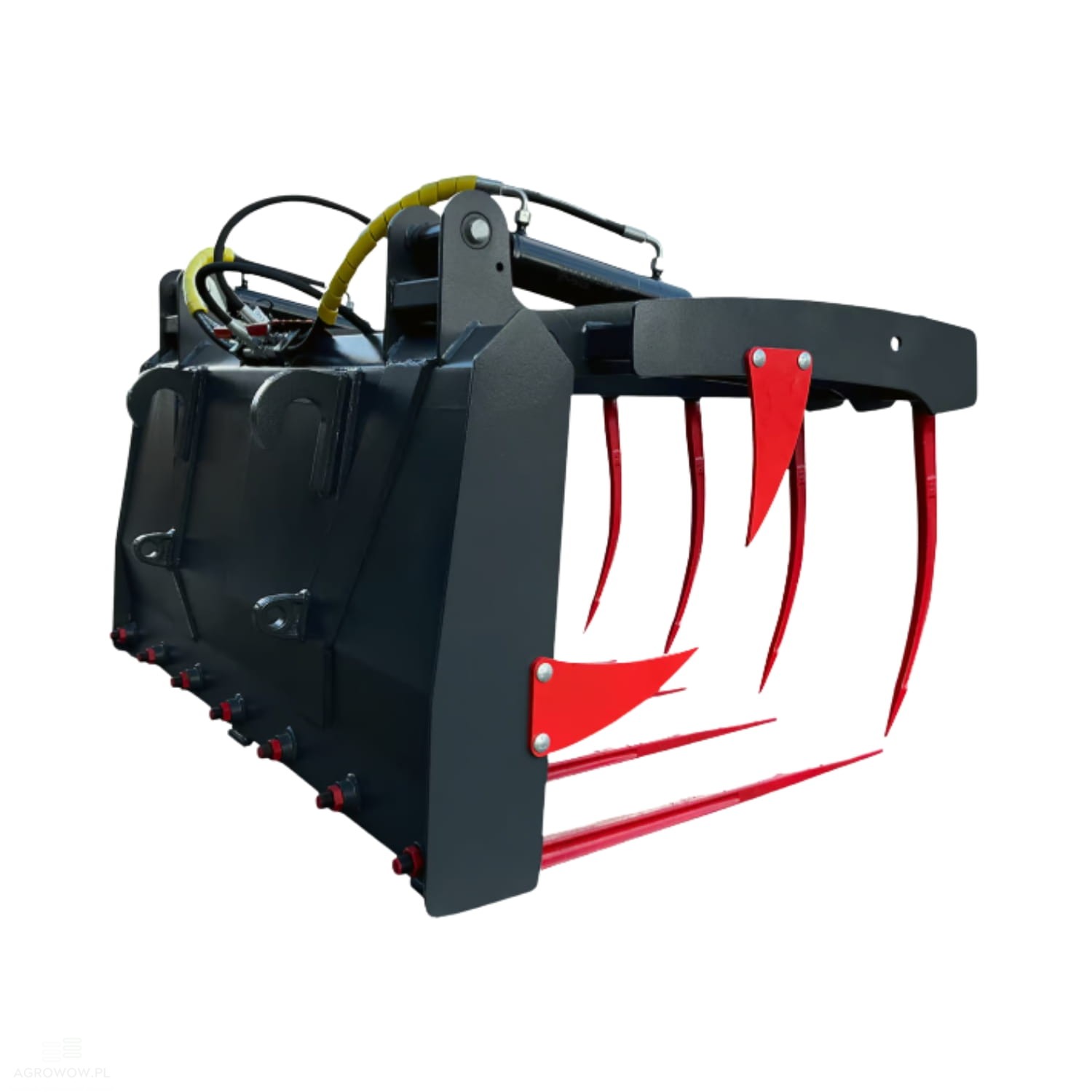

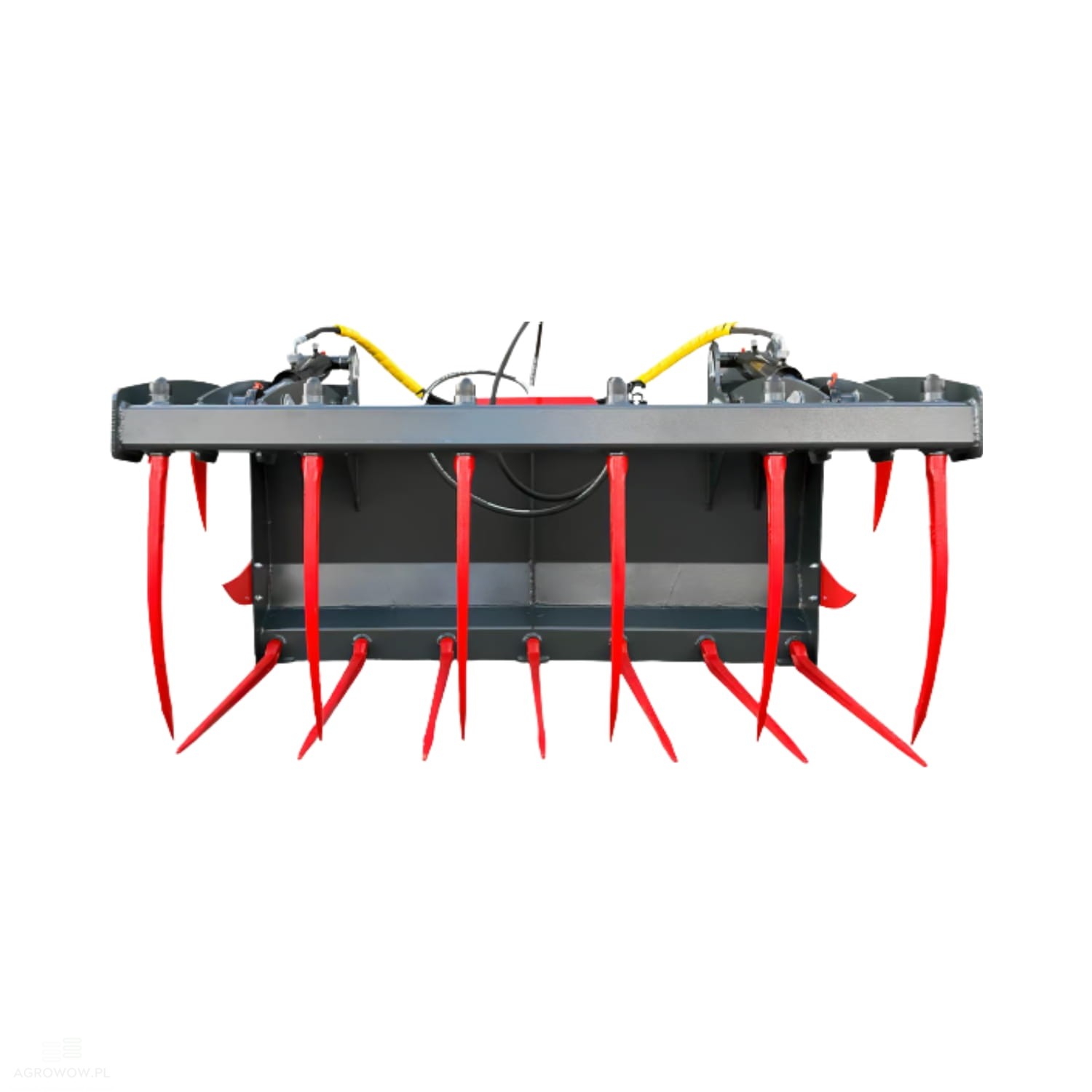

• The 1200 mm wide manure fork with hydraulic grapple (fork-crocodile) is a durable yet compact working attachment designed to operate with loaders in the 2 to 3-tonne weight class.

• It has been engineered for the efficient support of smaller machines, without compromising on functionality or performance.

• It is an excellent solution for agricultural farms, livestock breeding operations, as well as companies involved in green area maintenance or municipal services.

• Dimensions of 800 mm in height and 900 mm in depth, combined with a working capacity of 0.5 m³, allow for the efficient handling of materials such as manure, silage, green forage, and compost.

• The solid rear wall of the bucket effectively protects the transported material from falling out, increasing control over the load and improving working cleanliness.

• Two powerful hydraulic cylinders, positioned in the rear section of the frame, ensure a secure and even closing of the upper jaw – even with unevenly distributed material.

• The large opening angle of the jaw enables loading close to the walls of silos or feed pens, making the attachment particularly practical in tight working spaces.

• The upper section is equipped with five robust tines, and the bottom section features six, which ensures effective penetration into the material and its stable retention during transport.

• The working elements are made of durable steel resistant to wear and mechanical damage, guaranteeing a long service life for the attachment even under intensive use.

• The structure weighs only 174 kg, making it ideal for light loaders while maintaining very good rigidity and stability during operation.

• The standard EURO-type hitch ensures quick compatibility with a wide range of popular machines, and an alternative hitch system can also be manufactured upon request.

• The 1200 mm fork-crocodile is a practical and reliable tool for users who need a compact yet fully functional attachment for daily loading and transport tasks.

• Thanks to its versatility and durability, it will perform perfectly both in agriculture and during light municipal or service work.
