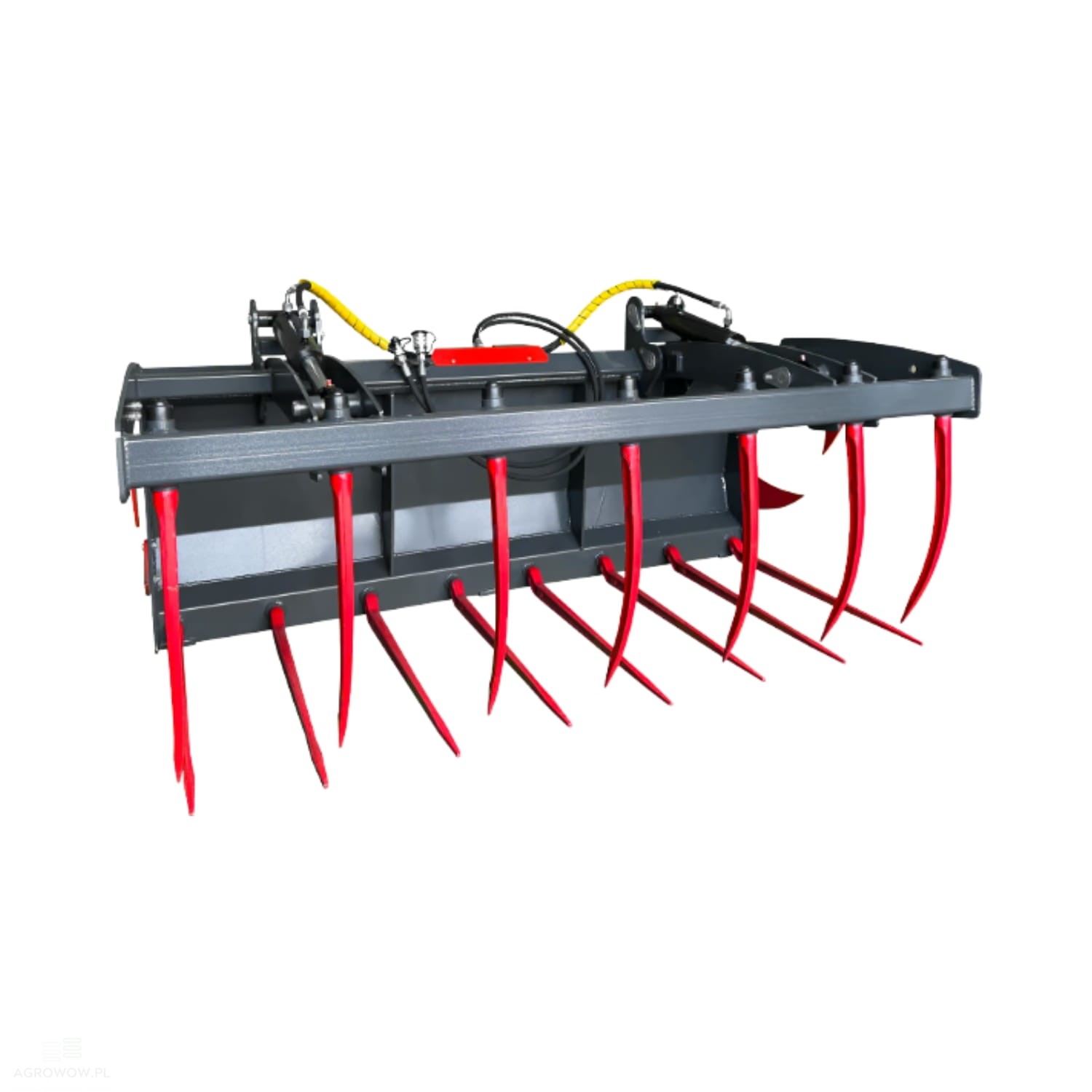

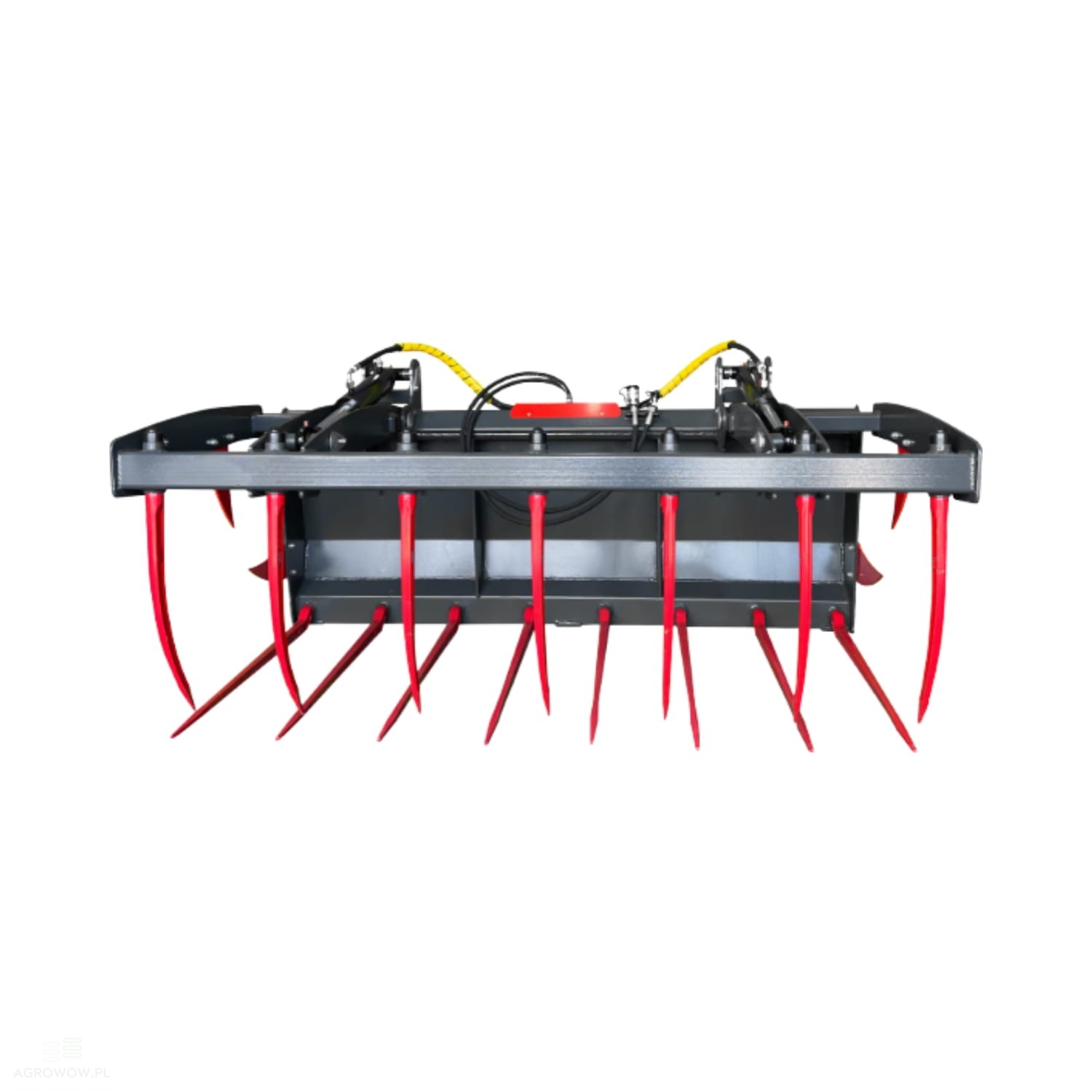

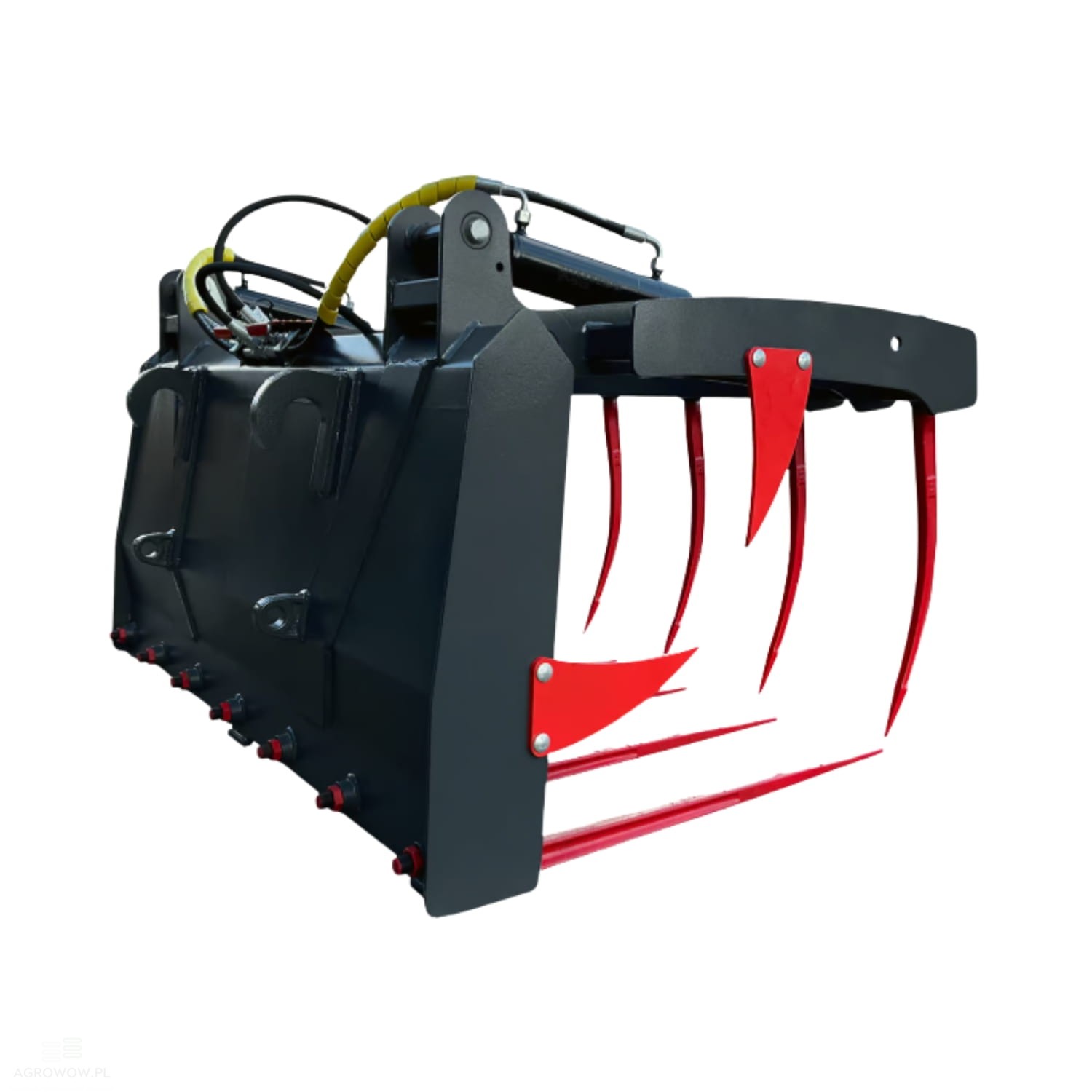

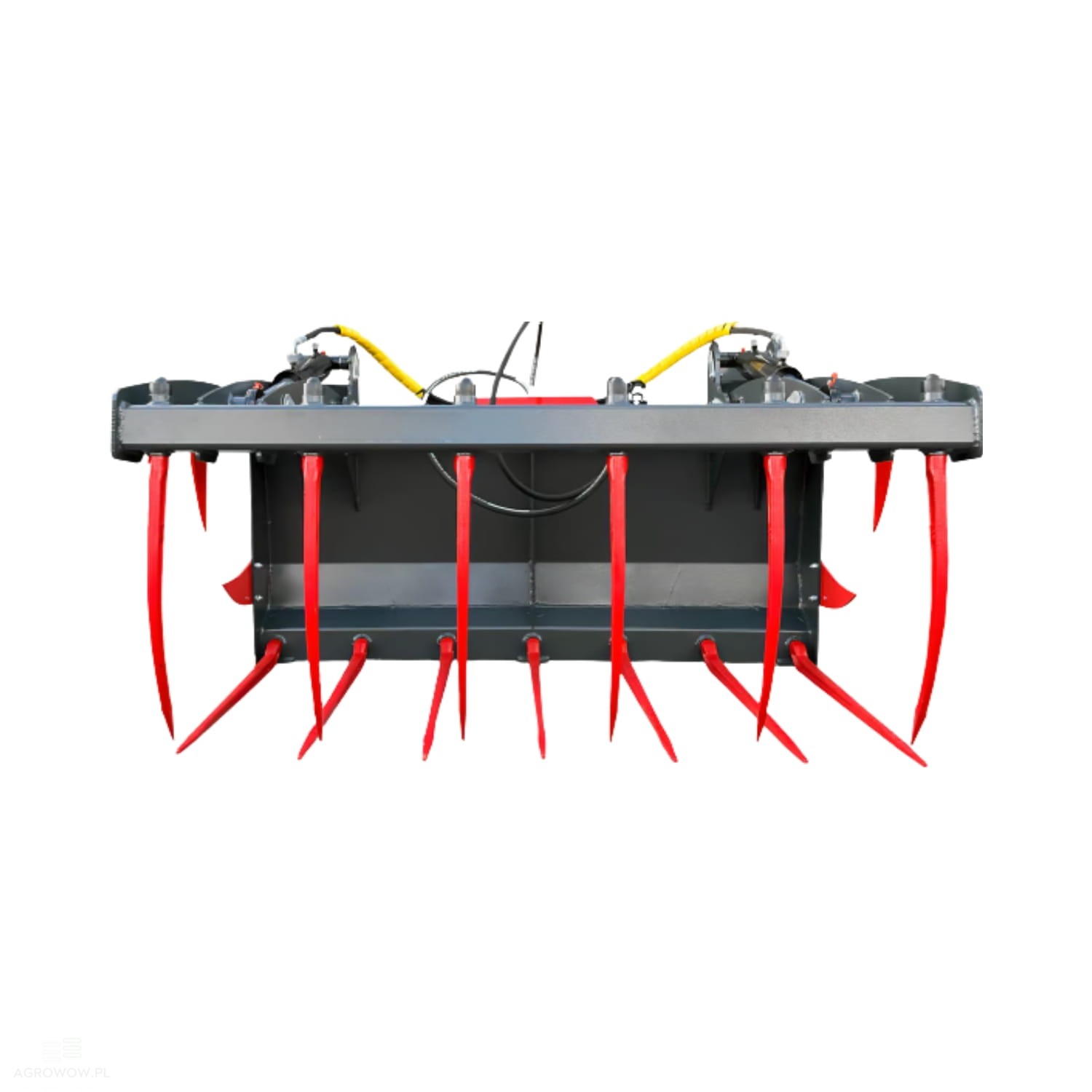

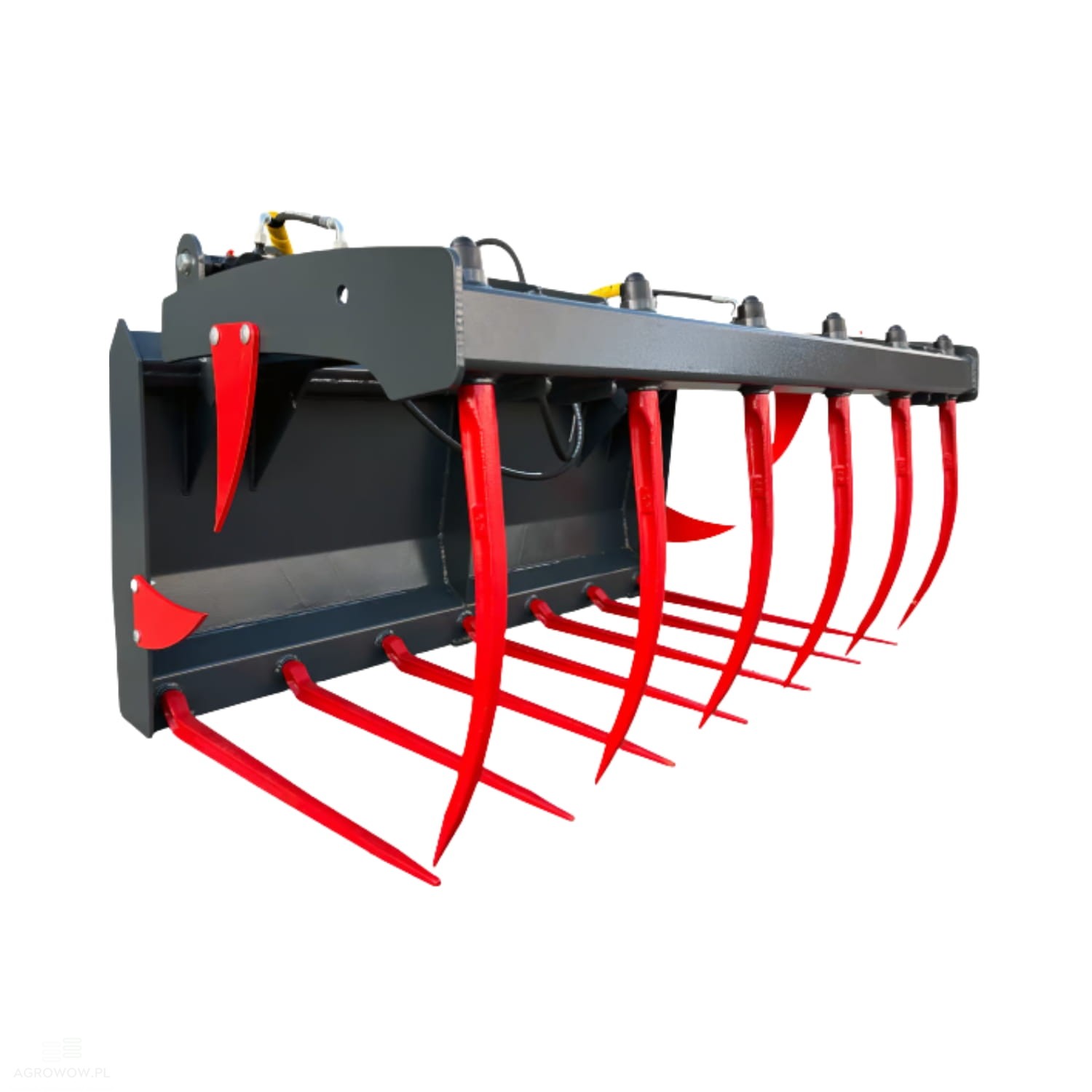

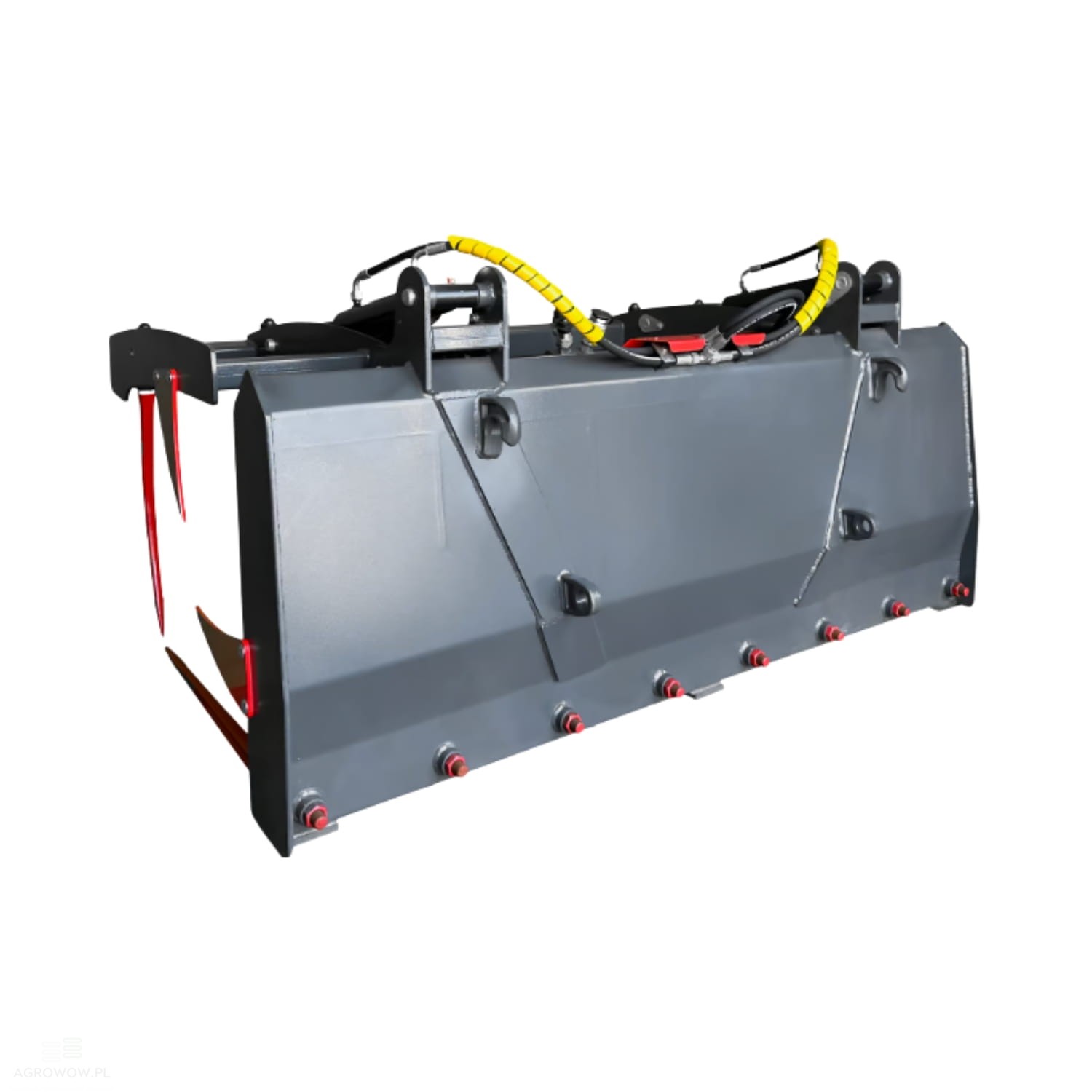

Agrowow 1.4 m fork with grapple

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW14WK

- Manufacturer's name: Krokodyl

- Width: 1400 mm

- Height: 800 mm

- Depth: 900 mm

- Weight: 190 kg

- Capacity: 0.6 m³

- Machine weight class: 2.5-4 T

- Cylinders: 2

- Number of top tines: 6

- Number of bottom tines: 7

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A system developed by MX, a recognized manufacturer of front loaders. It differs from the popular Euro system in both design and layout of mounting points. Intended for selected models of MX loaders, it guarantees a perfect fit, high durability, and a secure, stable connection with the attachment.

- Manitou

A specialized hitch used in Manitou telehandlers. Designed with intensive use and heavy workloads in mind. Widely used in agriculture, orcharding, and construction where durability and operational reliability are essential.

- Weidemann

A compact hitch system dedicated to Weidemann articulated loaders. It enables quick and convenient connection of attachments. It works best for light agricultural and farm chores such as animal feeding, feed transport, or green area maintenance.

- JCB hitch (Q-Fit or JCB type)

A design solution dedicated to JCB wheeled loaders and telehandlers. It ensures a durable and secure attachment even under high load conditions. This system is available in various versions depending on the specific machine model.

- SMS hitch (Stoll, Schäffer and others)

A universal system used in machines such as Stoll, Schäffer, or Ålö. It is characterized by simplicity, durability, and convenience of use. Thanks to its functionality, it is commonly utilized in compact loaders across Western and Northern Europe.

- Other hitch systems (on request)

It is possible to manufacture the attachment with a non-standard hitch system adapted to the specific requirements of the user and the technical parameters of their machine.

Detailed Description:

• The 1400 mm wide manure fork with hydraulic grapple (fork-crocodile) is a versatile and solidly built working attachment designed to cooperate with loaders in the 2.5 to 4-tonne weight class.

• It represents an ideal solution for smaller and medium-sized agricultural farms, livestock farms, as well as companies involved in municipal work and green area maintenance.

• Its compact dimensions – 800 mm in height and 900 mm in depth – and a working capacity of 0.6 m³ allow for the efficient and safe handling of organic and loose materials, such as manure, haylage, plant waste, sawdust, or compost.

• Thanks to its low unladen weight of just 190 kg, the attachment does not overload the machine, which translates into better maneuverability and lower fuel consumption, while maintaining adequate structural rigidity and resistance to deformation.

• The solid rear wall of the bucket effectively protects the material from spilling during transport, significantly increasing working comfort and hygiene, especially on livestock farms and service facilities.

• Two hydraulic cylinders mounted in the rear section ensure even and powerful closing of the upper jaw – regardless of the type or distribution of the load.

• This gives the operator better control over operations, particularly during precise loading and unloading.

• The large opening angle of the upper jaw is an additional advantage – it enables convenient access to materials stored against the walls of pens, silos, or silage clamps, as well as efficient maneuvering in confined spaces.

• The upper part of the structure is equipped with six durable tines, while the bottom section features seven – ensuring very good penetration into the material and its stable retention during transport.

• The entire unit is made of high-grade steel resistant to abrasion, impacts, and other mechanical damage, resulting in high durability, even during intensive use over many seasons.

• The fork-crocodile features a standard EURO-type hitch, which guarantees easy and quick connection to most popular loaders available on the market.

• There is also the possibility of adapting the hitch to another type of machine – in accordance with the individual requirements of the customer.

• The 1400 mm model is a reliable and functional tool created for daily handling tasks, which will perform perfectly wherever precision, reliability, and operational efficiency matter.
