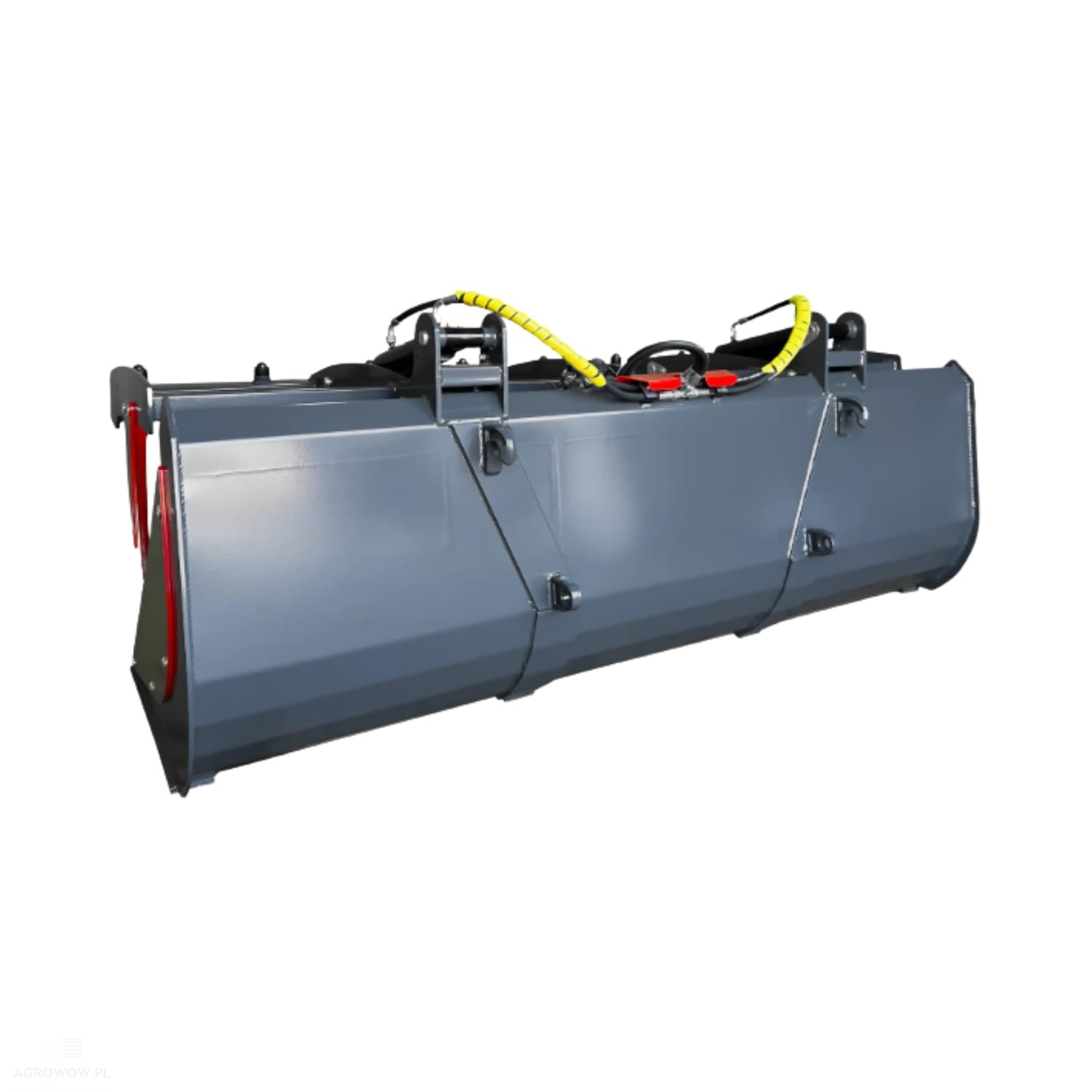

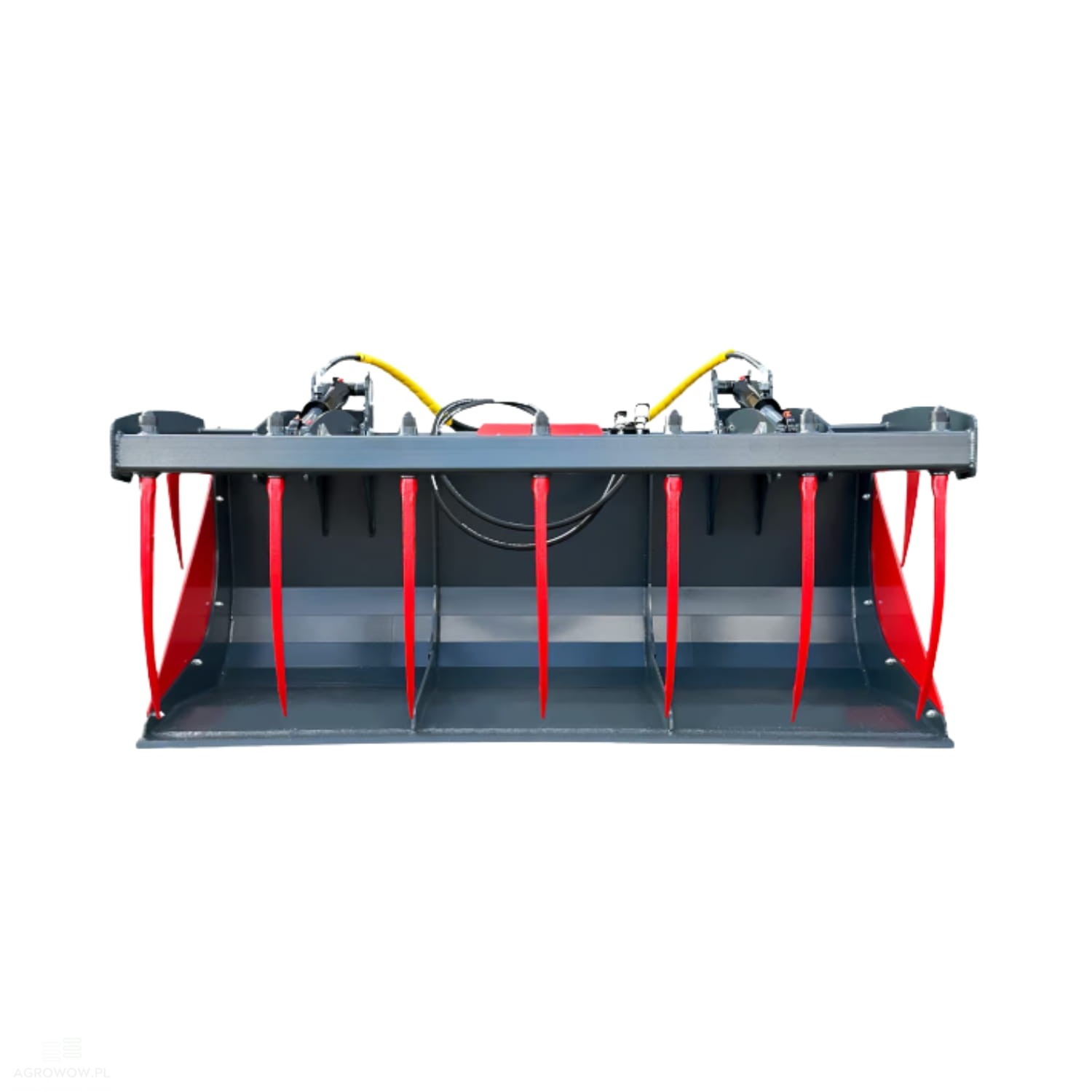

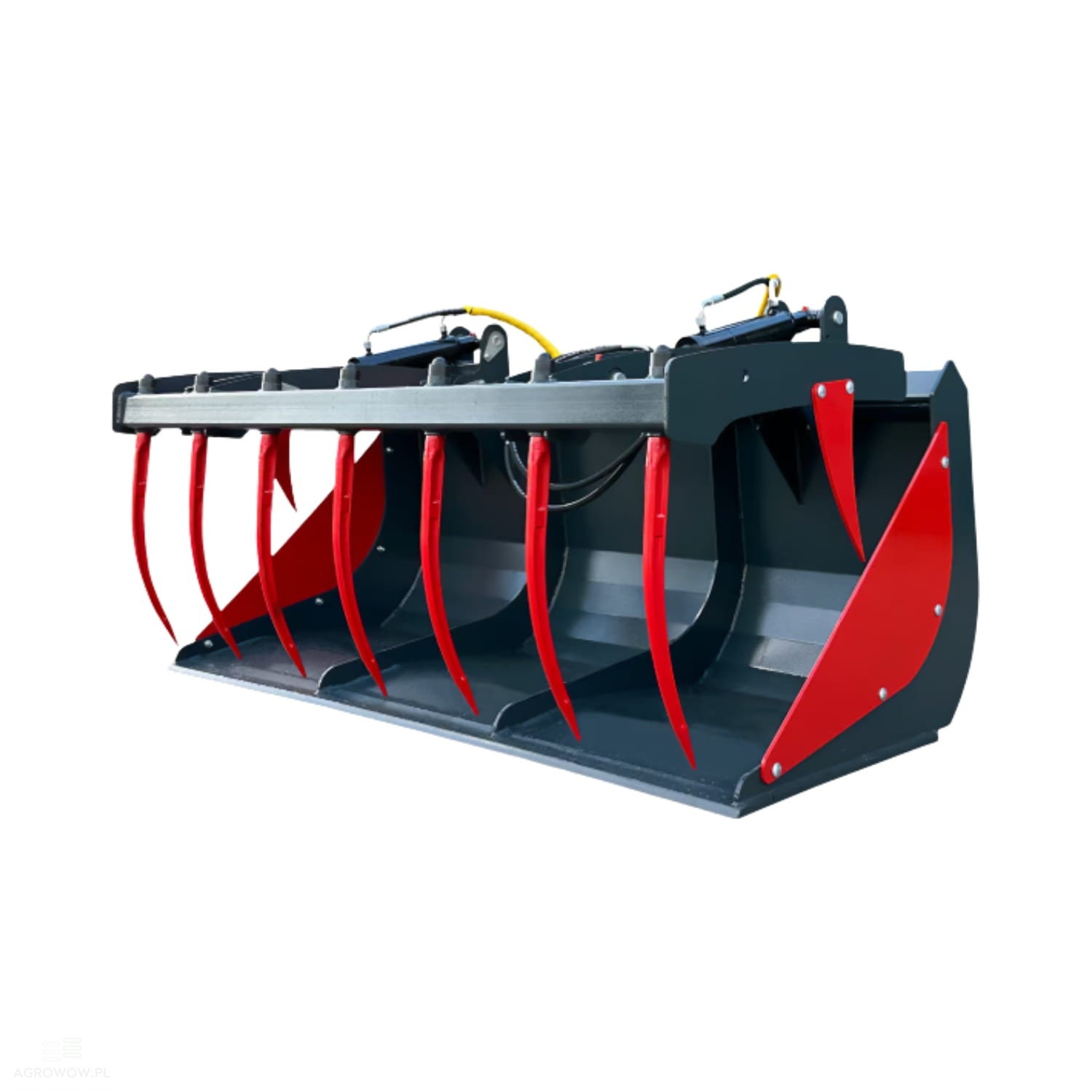

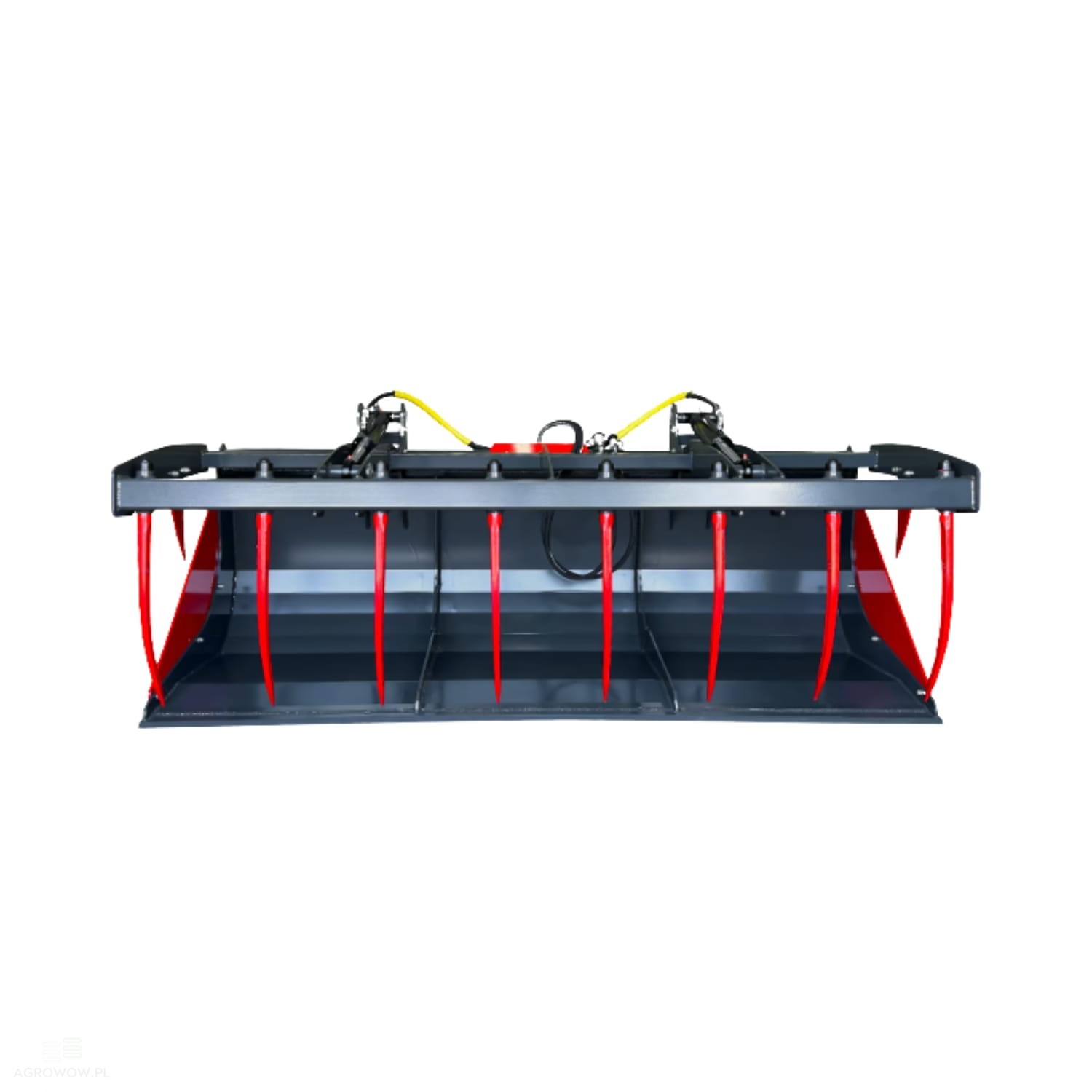

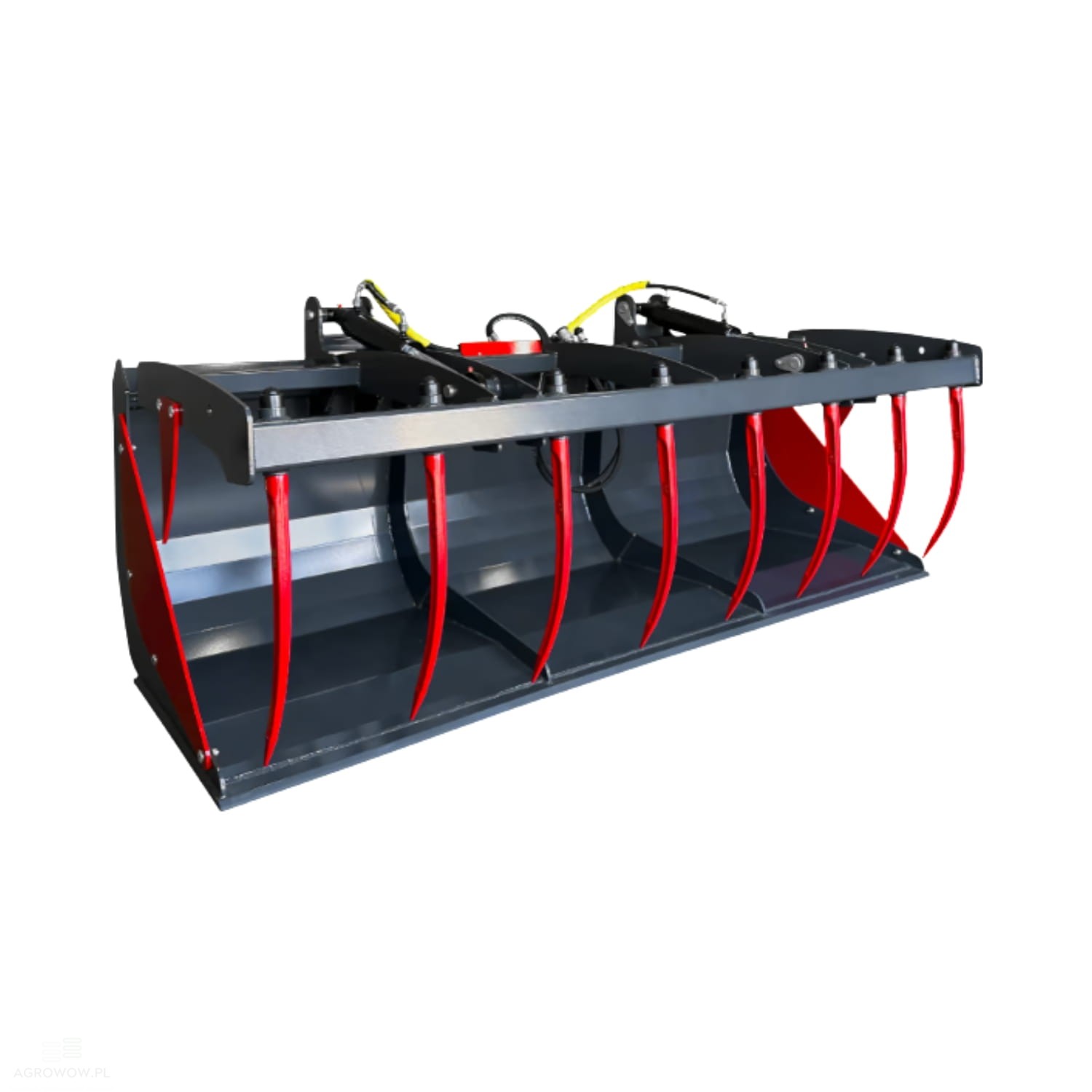

Agrowow 1.5 m bucket with grabs

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW15SK

- Manufacturer's name: Bucket with grabs

- Width: 1500 mm

- Height: 900 mm

- Depth: 900 mm

- Weight: 285 kg

- Capacity: 0.75 m³

- Machine weight class: 4-6 T

- Cylinders: 2

- Number of top tines: 6

- Hitch/Mounting: Euro

- Detachable sides for increased versatility

Optional Extras:

- Mailleux (MX) hitch

A mounting system developed by the reputable company MX, which specializes in manufacturing front loaders. It differs structurally from the popular Euro hitch, mainly in the arrangement and shape of the mounting points. Dedicated to specific loader models of this brand, it guarantees a durable, secure, and precise connection between the attachment and the machine, even during intensive work.

- Manitou

A standard used on Manitou telehandlers, designed for operating in tough conditions and under heavy loads. It is characterized by a robust build and high durability, making it a popular solution in agriculture, orchards, and the construction industry.

- Weidemann

A compact and convenient mounting system intended for Weidemann articulated loaders. Thanks to its quick and simple attachment connection system, it is widely used for light agricultural, gardening, and livestock farming tasks.

- JCB hitch (Q-Fit / JCB type)

A type of hitch commonly used on JCB telehandlers and wheeled loaders. Adapted for high lifting capacities and intensive exploitation, it offers quick installation and safe use of the attachment. It comes in various versions depending on the machine model, but each guarantees high connection stability.

- SMS hitch (Stoll, Schäffer, Ålö and others)

A popular mounting solution frequently found on German and Scandinavian machines such as Schäffer, Stoll, or Ålö. It features a simple construction and high functionality.

- Other hitches (on request)

For non-standard machines or individual user preferences, it is possible to manufacture the hitch as a special order. This allows the attachment to be fully adapted to a specific machine, ensuring complete compatibility and operational comfort.

Detailed Description:

• The 1500 mm wide bucket with grabs is a solid, versatile, and reliable attachment created for intensive use on medium to large agricultural and livestock farms, as well as for municipal, clean-up, and service tasks.

• Thanks to its well-thought-out dimensions — 900 mm in height and 900 mm in depth — and a weight of 285 kg, the device offers an increased working capacity while maintaining proper maneuverability, which facilitates handling even in more difficult terrain conditions or restricted work spaces.

• This model was designed with machines in the 4 to 6-tonne weight class in mind, allowing it to cooperate perfectly with larger front loaders as well as articulated loaders or telehandlers, while offering stability and safe operation under heavier loads.

• Equipped with two hydraulic cylinders, the bucket with grabs ensures strong and even closing of the upper section, which translates into a secure grip and safe transport of various materials, such as manure, silage, plant waste, straw, soil, or small rubble.

• The lower part features six solid tines that support efficient scooping and retaining of material, especially in conditions where precision and effectiveness are required.

• Thanks to a capacity of 0.75 m³, the device allows for loading a larger volume of material during a single working cycle, which directly translates into increased work efficiency and shorter task completion times.

• The standard EURO-type hitch enables quick and convenient connection to most machines available on the market, saving time and increasing the versatility of the attachment in daily operations.

• Alternatively, it can be equipped with other popular mounting systems — such as Mailleux MX, Manitou, Weidemann, JCB, or SMS — allowing the attachment to perfectly match your existing machinery fleet.

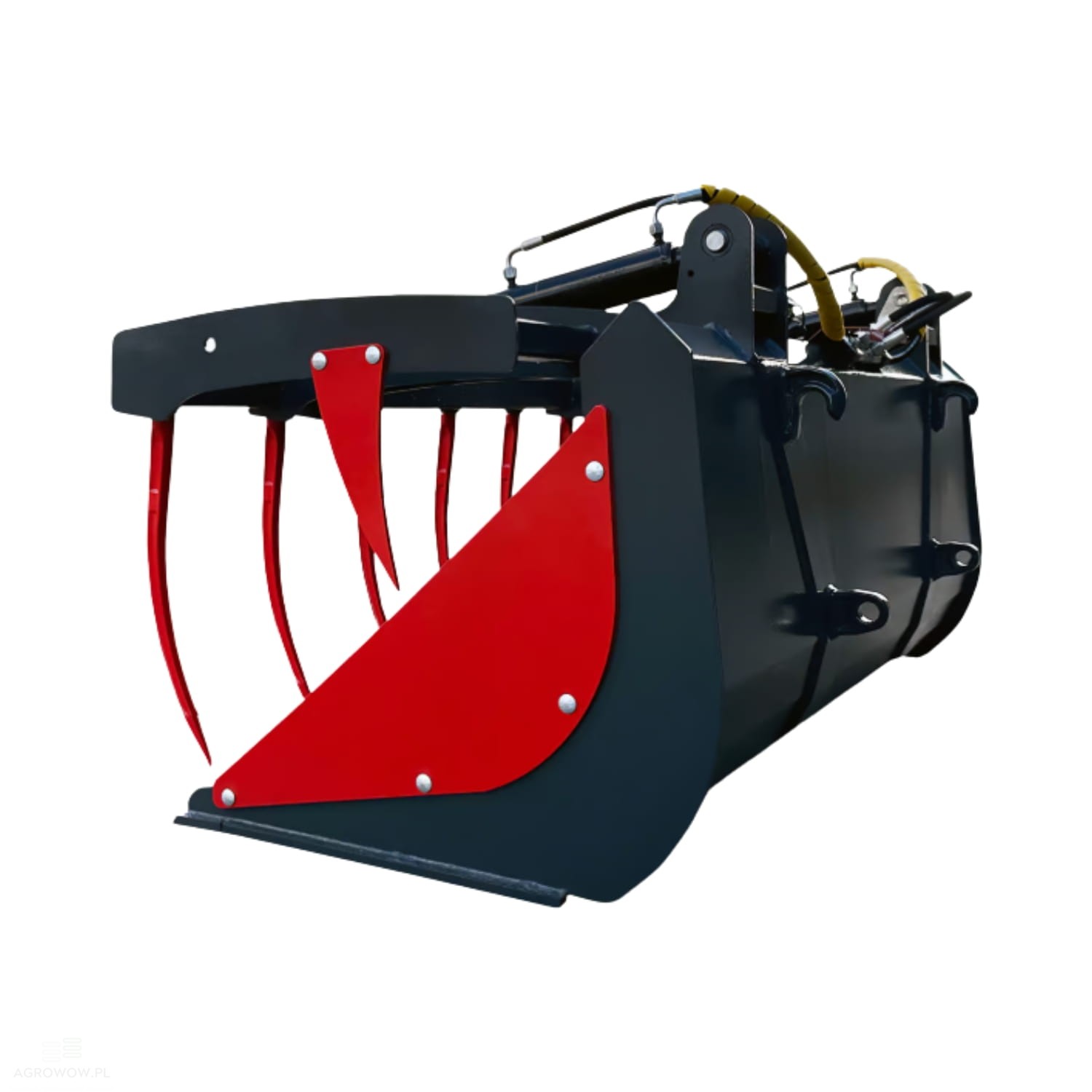

• The detachable sides are a practical and highly appreciated solution that significantly increases the functionality of the bucket with grabs.

• They facilitate working along silo walls, in feed bunks, or narrow work areas without the risk of damaging the structure or the surroundings.

• The solid, reinforced structure made of high-grade steel resistant to abrasion and deformation ensures a long service life for the device, even during intensive use in demanding conditions.

• Its simple design and ease of maintenance make the bucket with grabs very user-friendly in daily operation, ensuring that any eventual servicing tasks are quick and uncomplicated.

• The 1500 mm wide bucket with grabs is a practical, durable, and universal tool that enhances operator comfort, improves loading efficiency, and allows for faster and safer completion of work on the farm or within a service company.
