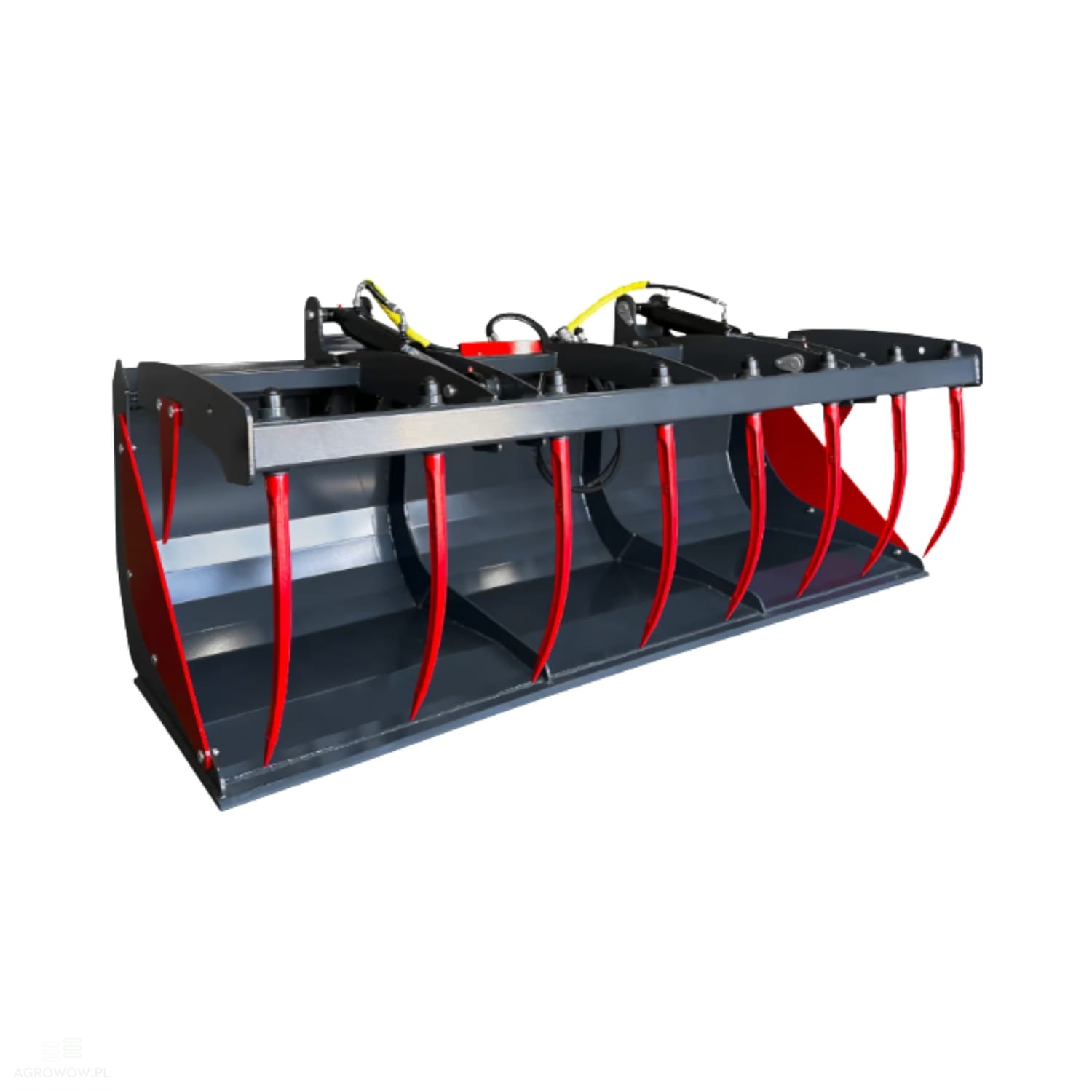

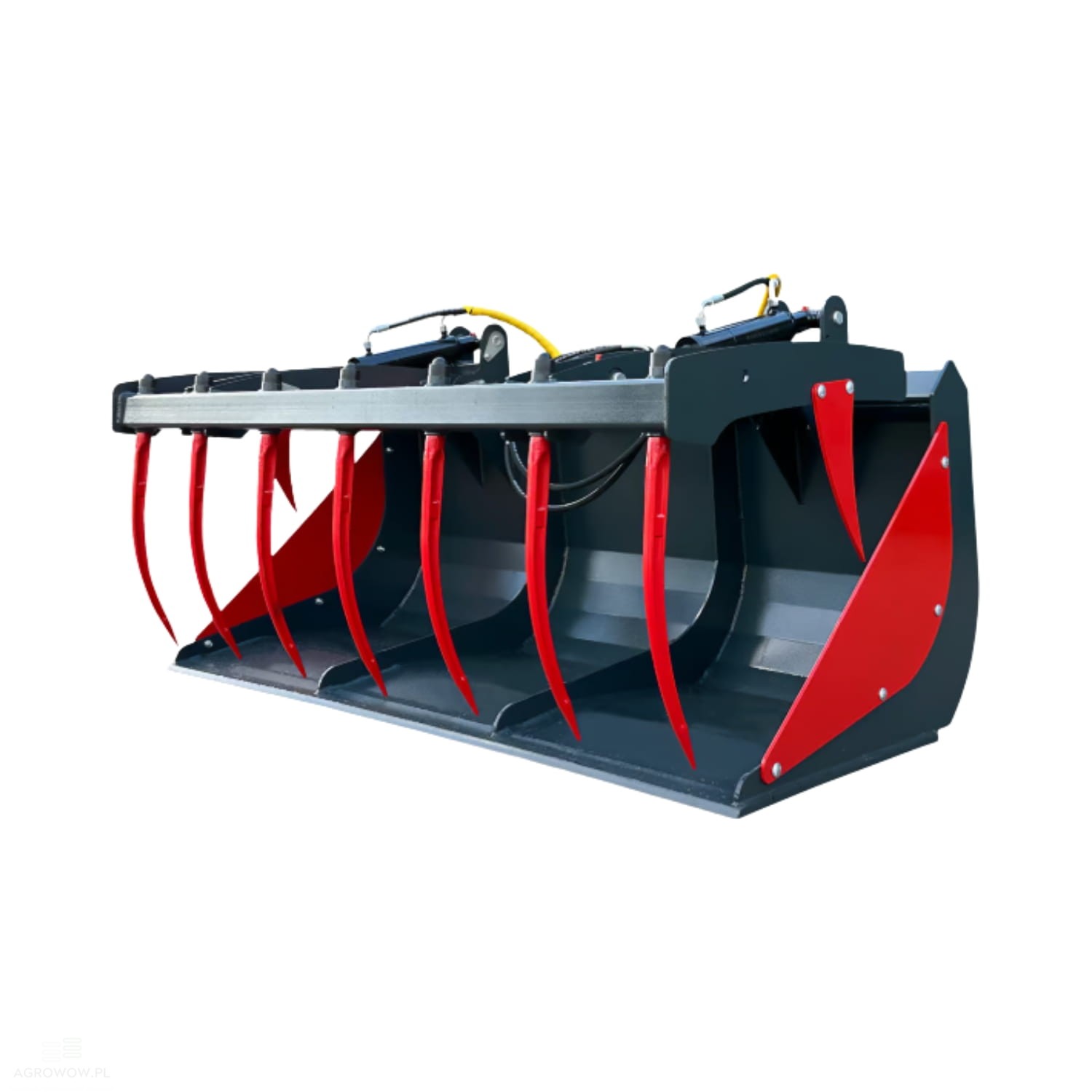

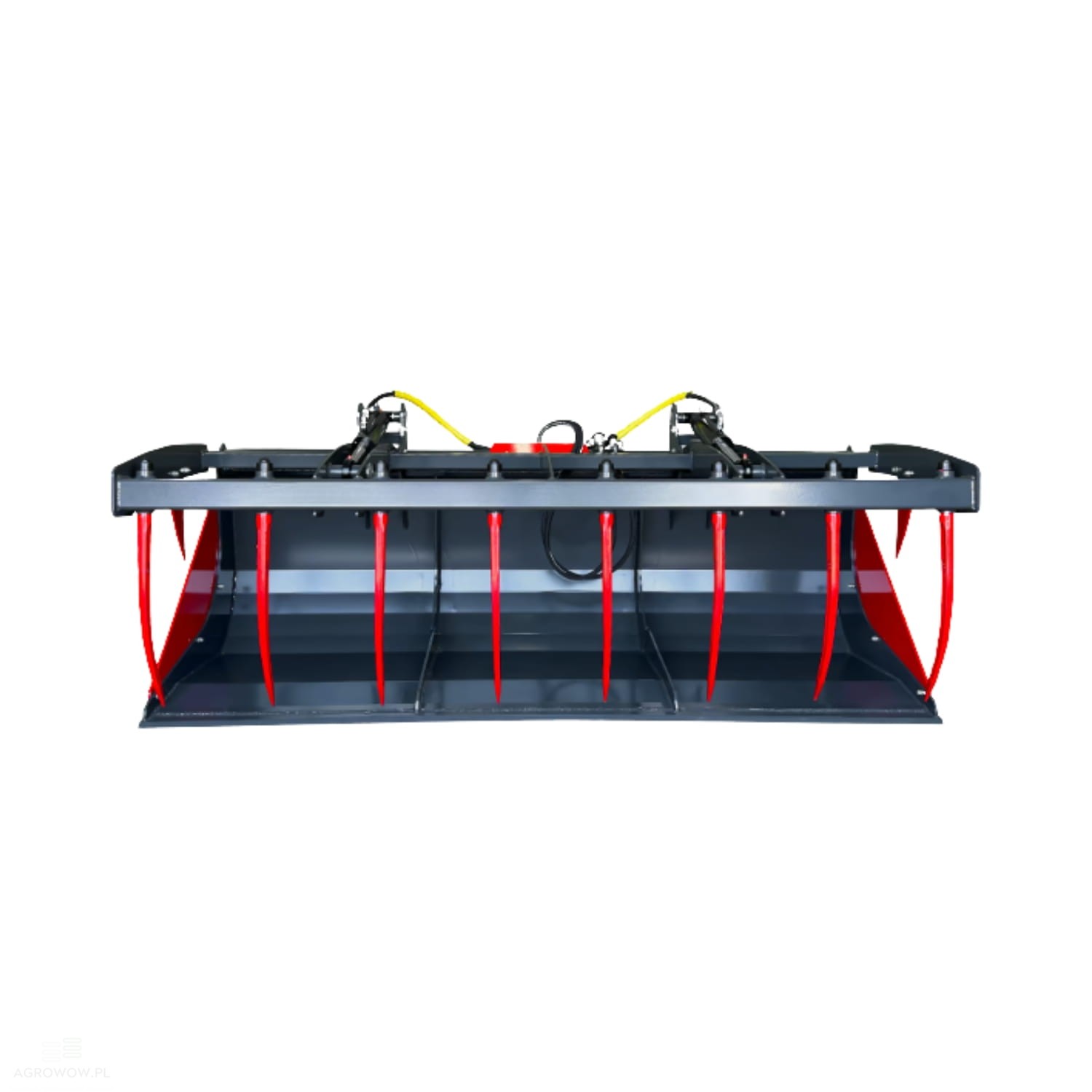

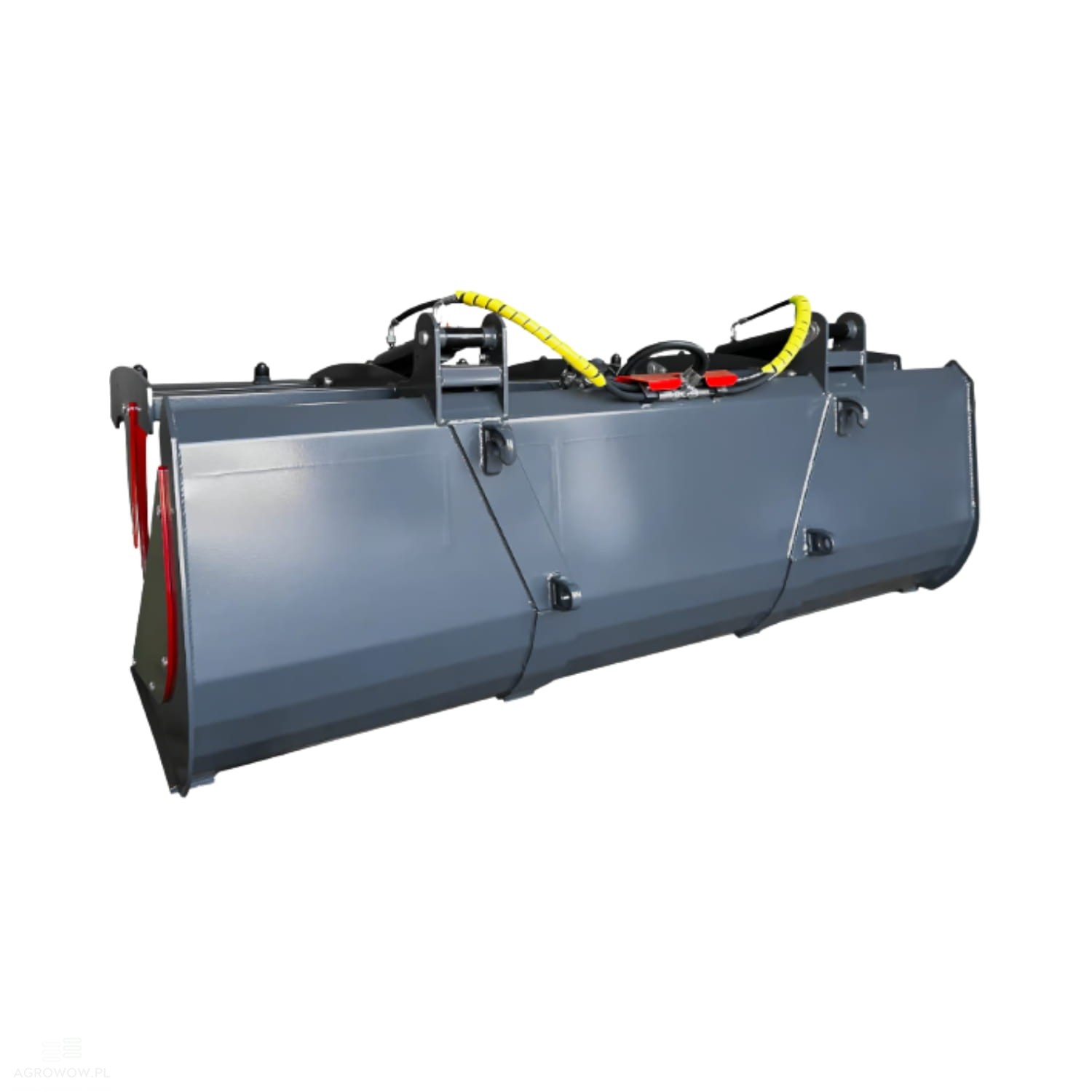

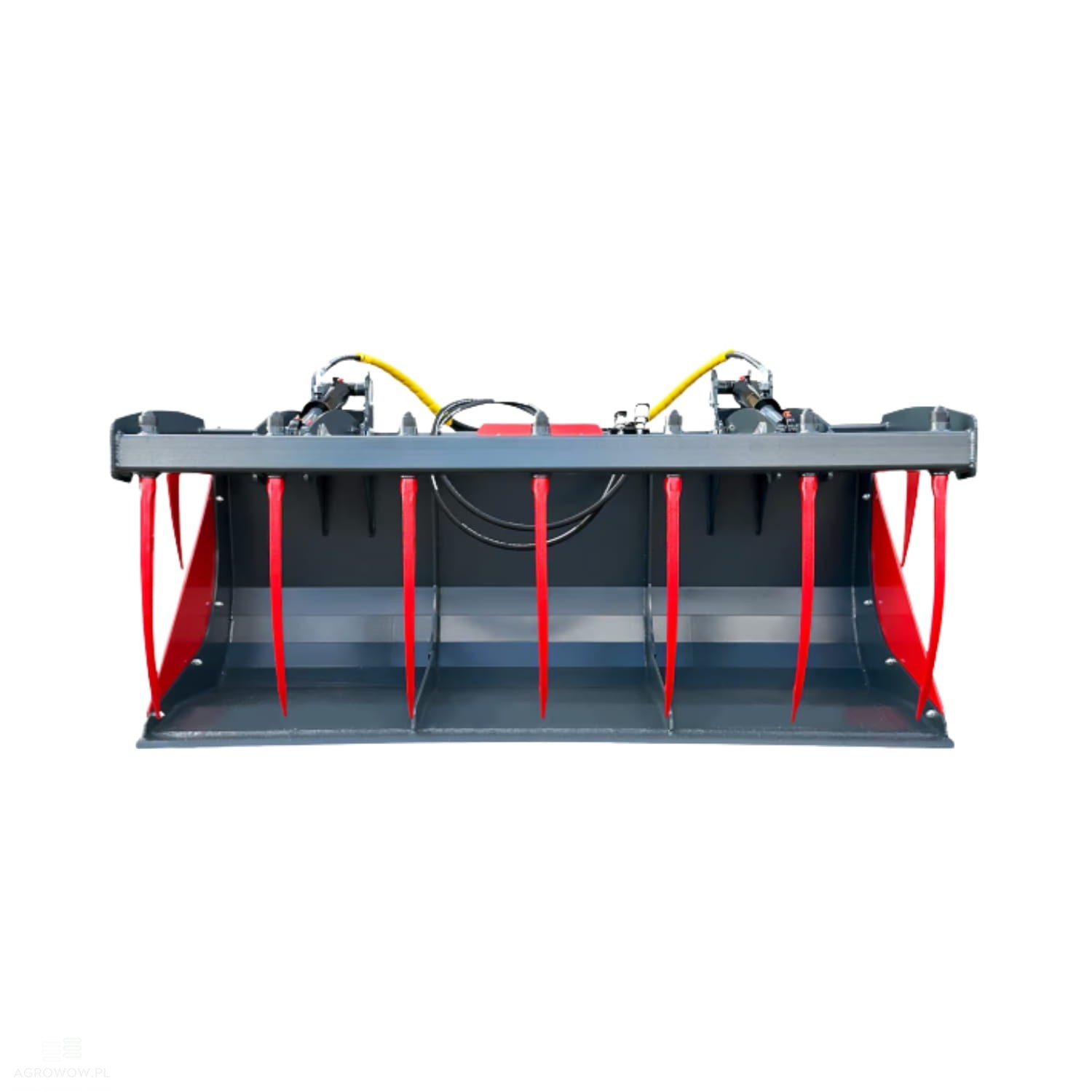

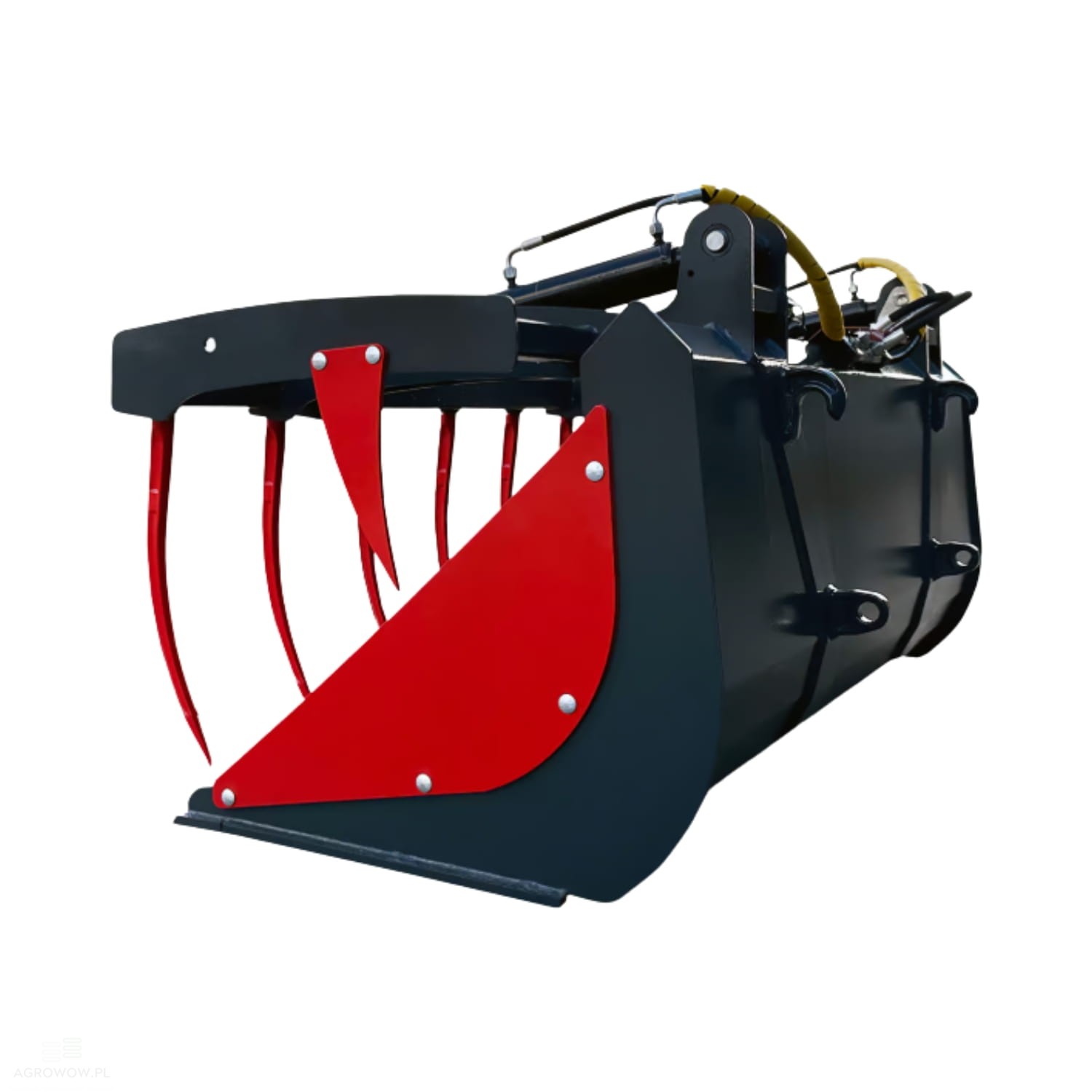

Agrowow 1.6 m bucket with grabs

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW16SK

- Manufacturer's name: Bucket with grabs

- Width: 1600 mm

- Height: 900 mm

- Depth: 900 mm

- Weight: 302 kg

- Capacity: 0.8 m³

- Machine weight class: 5-7 T

- Cylinders: 2

- Number of top tines: 6

- Hitch/Mounting: Euro

- Detachable sides for increased versatility

Optional Extras:

- Mailleux (MX) hitch

A system developed by MX, a company specializing in front loaders. It differs from the standard Euro system in its construction and arrangement of mounting points. Dedicated to specific loader models of this brand, it ensures a durable and precise connection with the attachment.

- Manitou

A solution used on Manitou telehandlers. It was designed to work in tough conditions and under heavy loads. Frequently chosen by farmers, orchardists, and construction companies.

- Weidemann

A compact mounting type utilized on Weidemann articulated loaders. It enables quick connection of attachments and performs perfectly for light agricultural work, livestock handling, or gardening.

- JCB hitch (Q-Fit or JCB type)

A type of hitch intended for JCB telehandlers and wheeled loaders. It ensures a solid and durable connection even with high lifting capacities. It is available in several versions, depending on the specific machine model.

- SMS hitch (Stoll, Schäffer and others)

A system found on machines such as Schäffer, Stoll, or Ålö. It features a simple construction and intuitive handling. Particularly popular on compact loaders originating from Northern and Western European countries.

- Other hitch types (on request)

We also offer the possibility of adapting the hitch to other systems – in accordance with individual customer requirements and machine specifications.

Detailed Description:

• The 1600 mm wide bucket with grabs is a durable, functional, and versatile attachment designed for intensive work on large agricultural and livestock farms, as well as during various municipal and service tasks.

• Thanks to a height of 900 mm, a depth of 900 mm, and a weight of 302 kg, this model provides a solid working capacity while maintaining proper stability, which facilitates operation even in more difficult terrain conditions or under a larger load.

• Intended to cooperate with machines in the 5 to 7-tonne weight class, it works perfectly in combination with loaders of higher lifting capacity, ensuring reliability and operational safety even during intensive use.

• Equipped with two hydraulic cylinders, the bucket with grabs guarantees even and powerful closing of the upper section, enabling the effective gripping and transporting of various types of materials – from silage, manure, and straw to plant waste or soil.

• The lower part, equipped with six solid tines, allows for efficient material scooping and its stable retention during loading and handling.

• A capacity of 0.8 m³ enables the efficient loading of a larger volume of material in a single working cycle, which positively affects efficiency and shortens task completion times.

• The standard EURO-type hitch ensures wide compatibility with popular loaders, allowing for quick connection and startup without the need for adapters.

• Alternatively, other hitch types are available – such as Mailleux MX, Manitou, Weidemann, JCB, or SMS – allowing the device to be adapted to different systems and machines used on the farm.

• The detachable sides increase operational flexibility, allowing for instance for material extraction against silo walls or in hard-to-reach places without the risk of damaging the equipment or the surroundings.

• The solid structure, made of high-quality steel resistant to abrasion and mechanical damage, ensures durability, reliability, and resistance to harsh working conditions.

• Its simple design and easy access to working components make the bucket with grabs convenient to operate, maintain, and service.

• The 1600 mm model is an excellent choice for users expecting high efficiency, reliability, and working comfort – regardless of the nature and intensity of the tasks performed.
