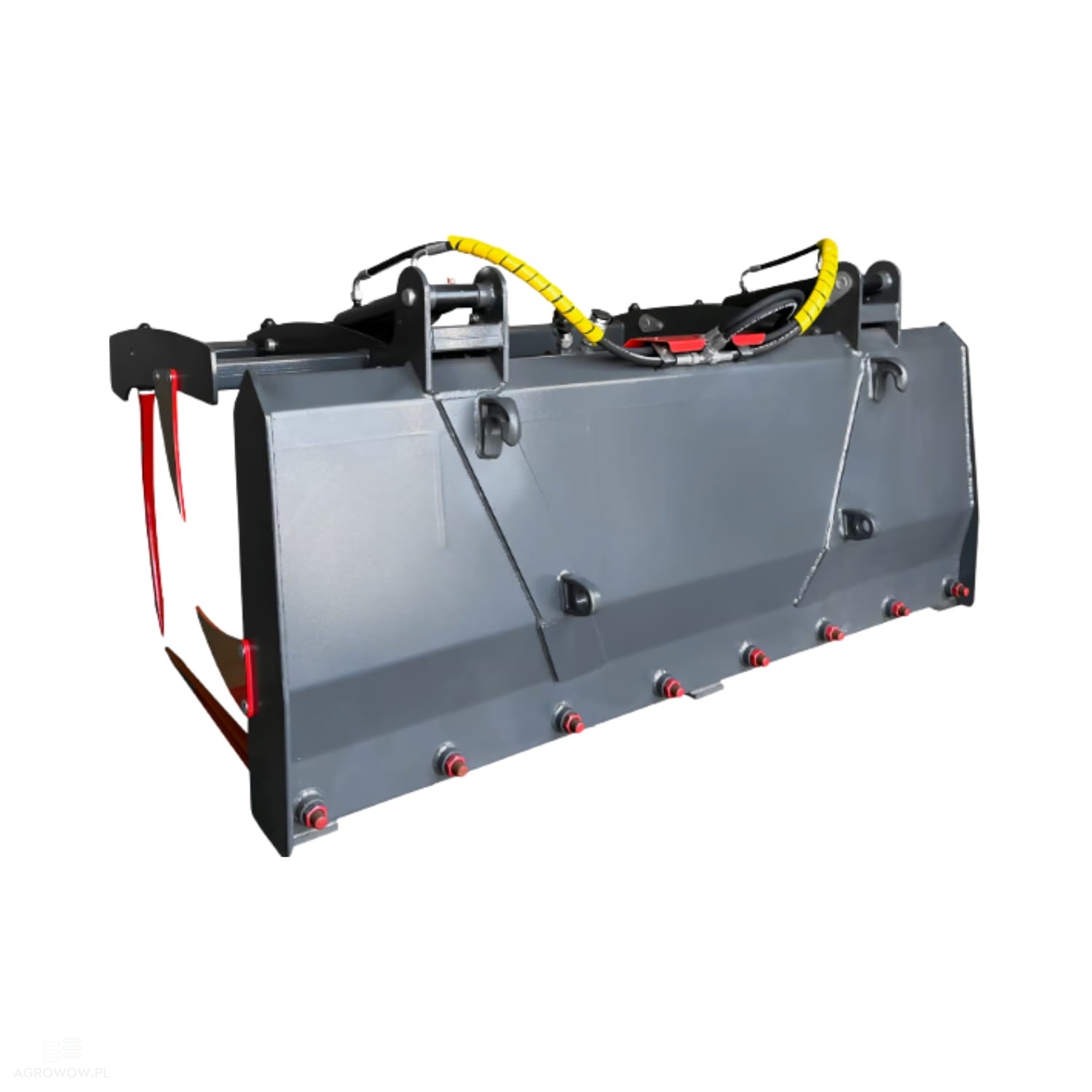

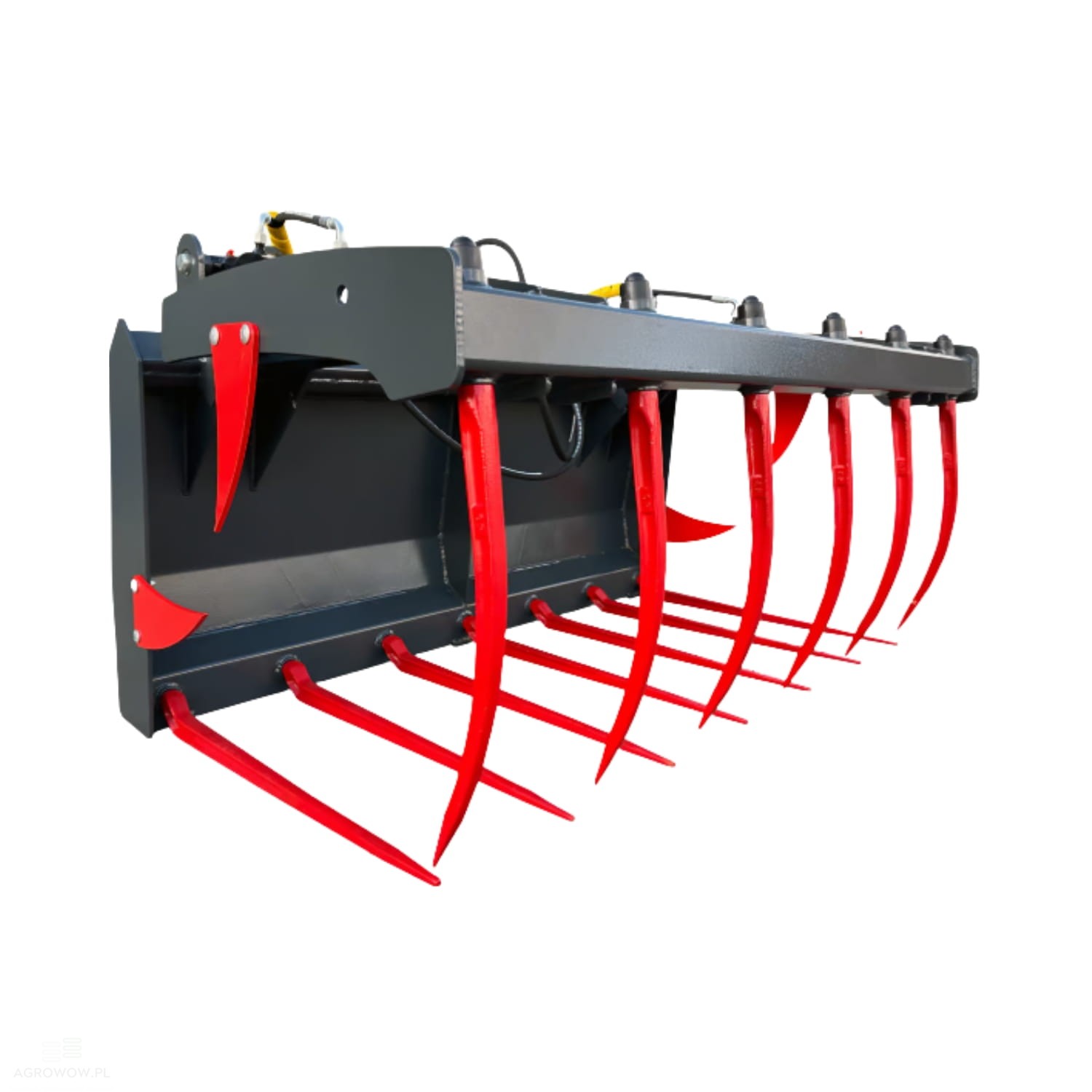

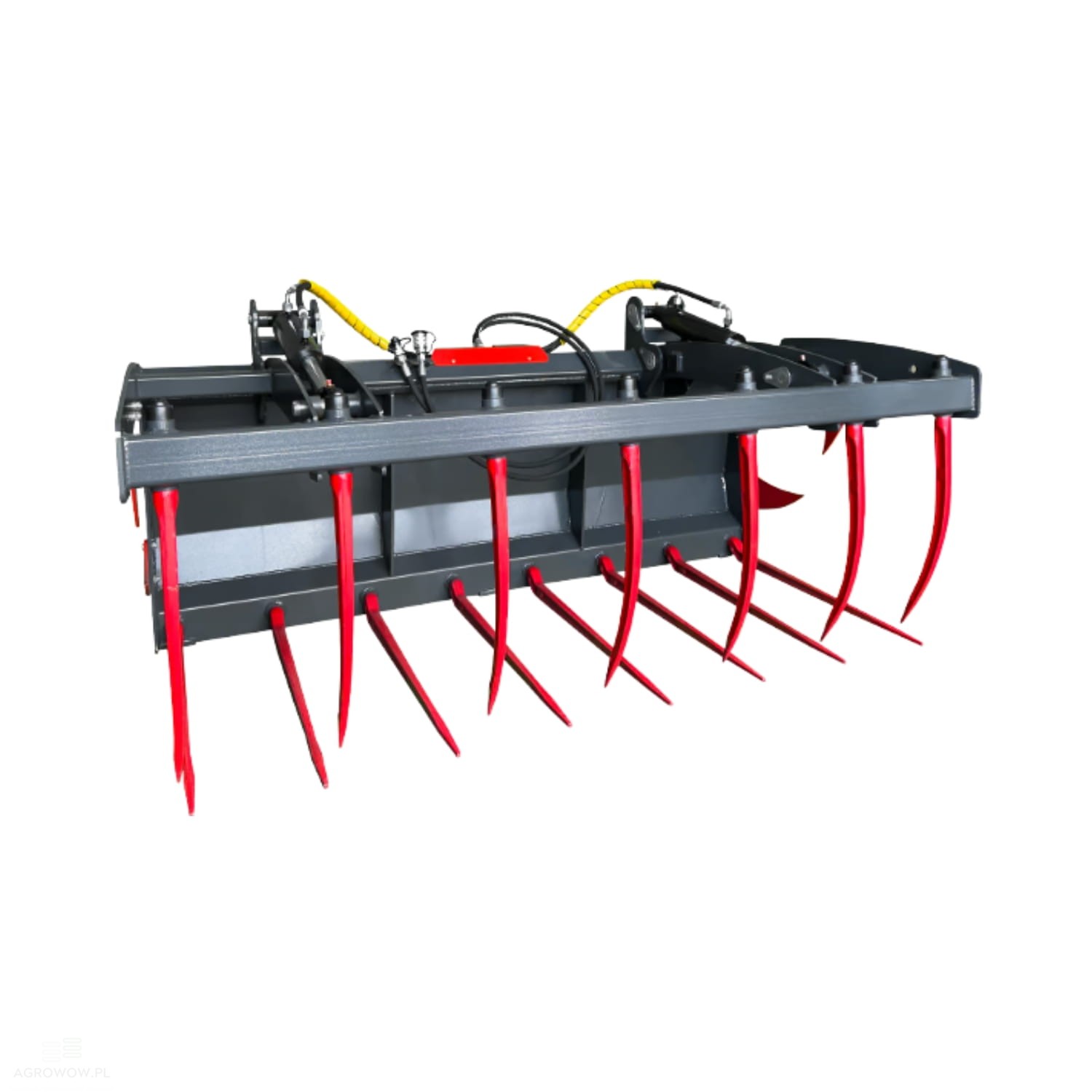

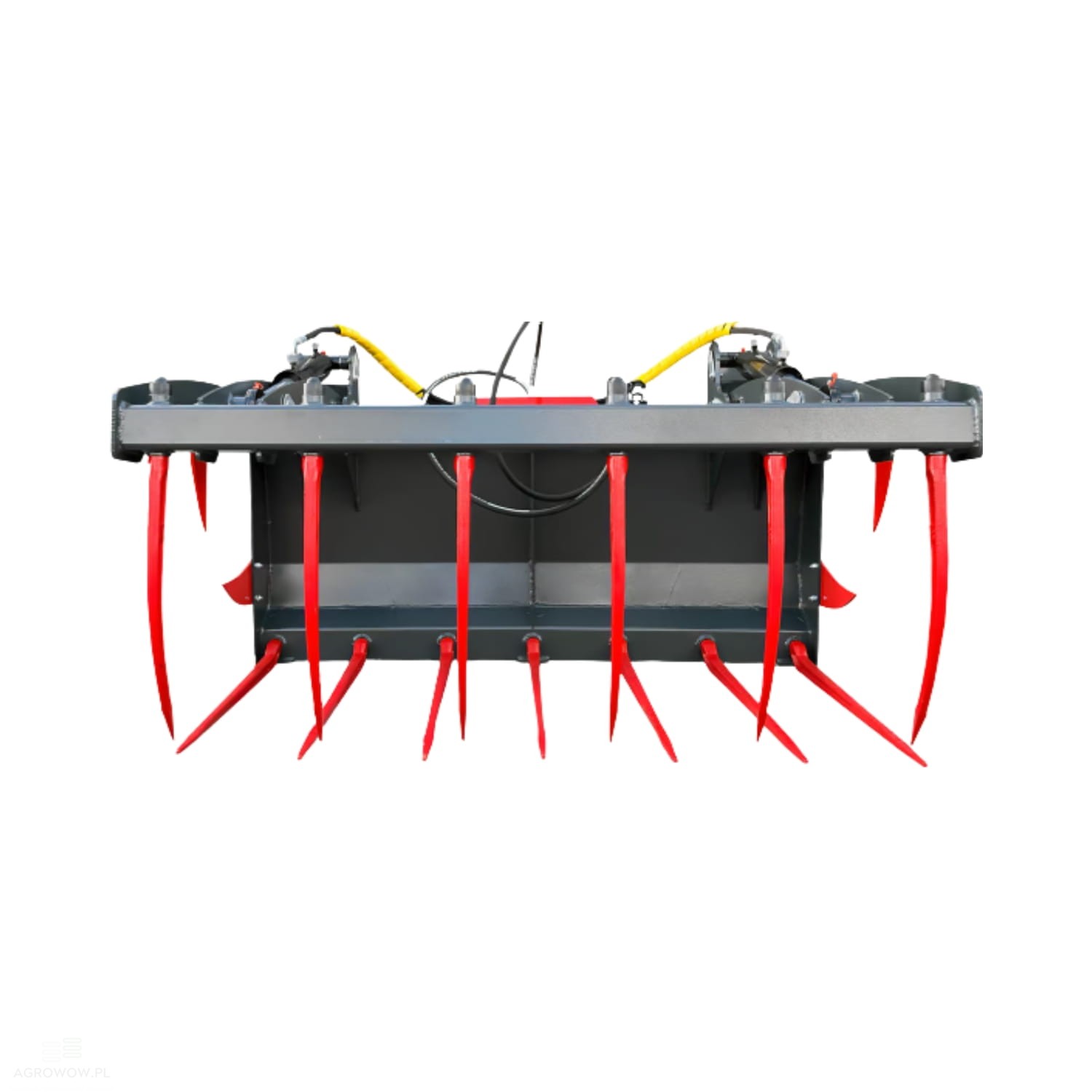

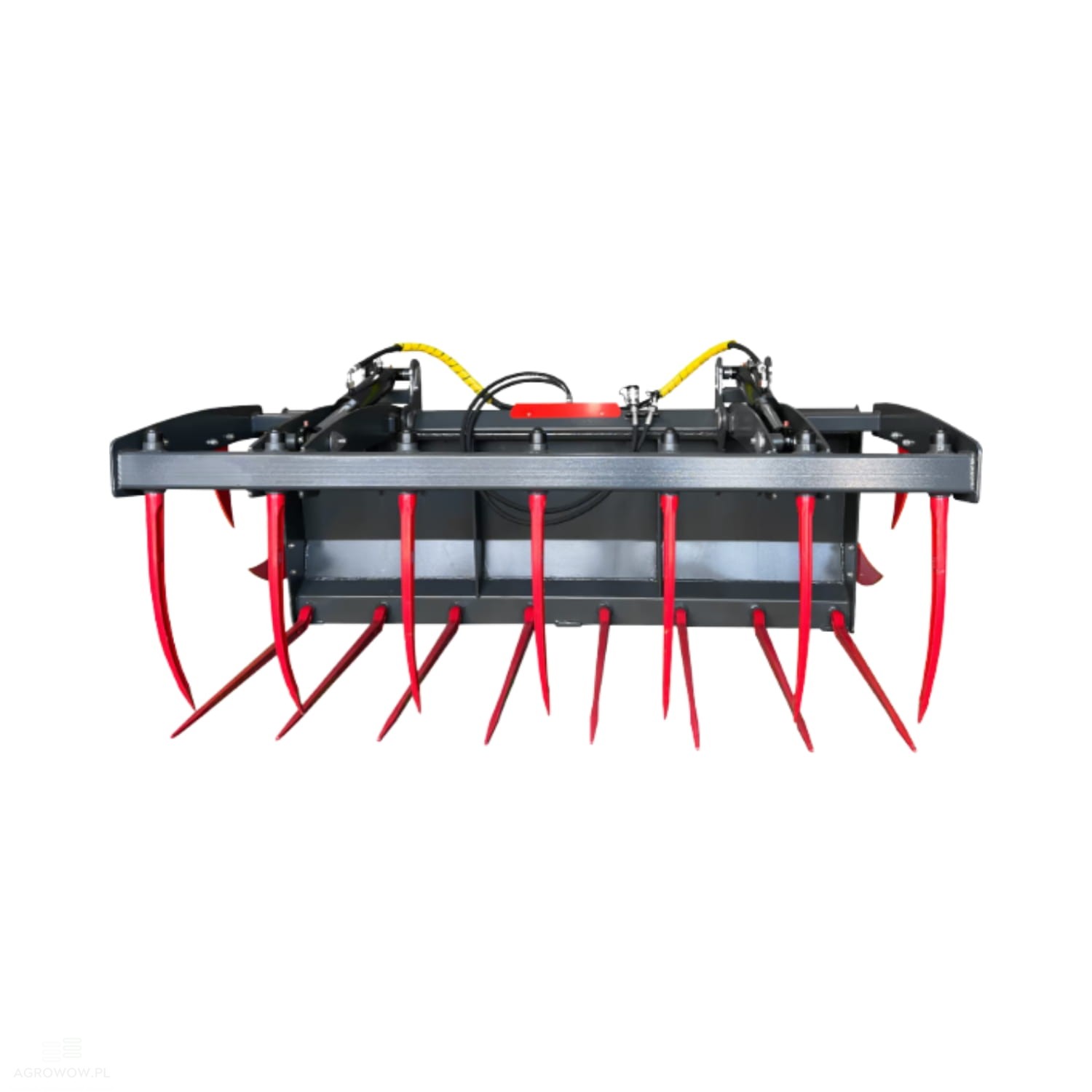

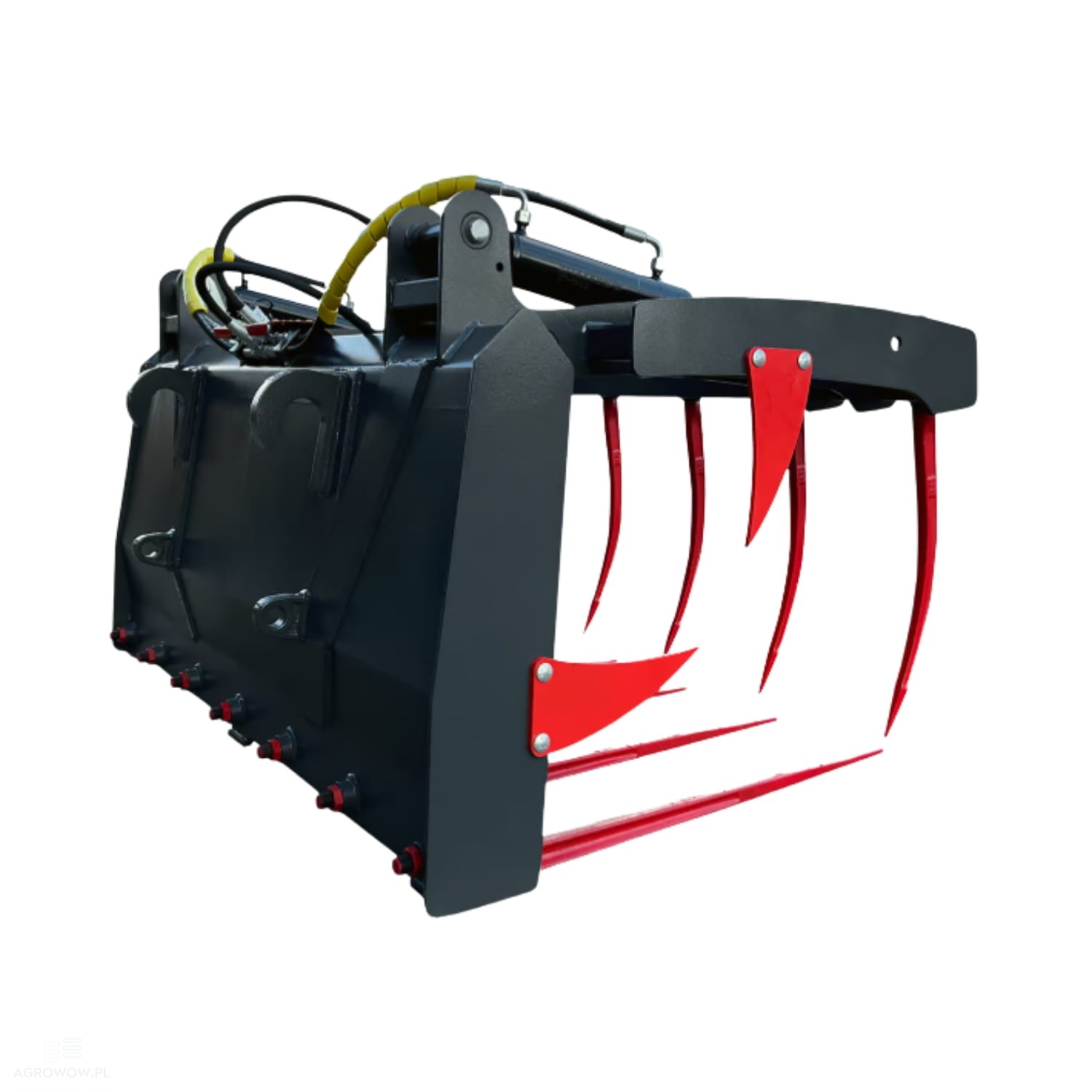

Agrowow 1.6 m fork with grapple

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW16WK

- Manufacturer's name: Krokodyl

- Width: 1600 mm

- Height: 900 mm

- Depth: 900 mm

- Weight: 249 kg

- Capacity: 0.8 m³

- Machine weight class: 3.5-5 T

- Cylinders: 2

- Number of top tines: 6

- Number of bottom tines: 7

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A specialized mounting type developed by MX – a recognized manufacturer of front loaders. Unlike the Euro standard, it is characterized by a different construction and arrangement of attachment points. Intended for selected models of MX loaders, it ensures a perfect fit, high durability, and a reliable connection with the equipment.

- Manitou

A system designed with Manitou telehandlers in mind. Adapted to work under heavy loads and in difficult operating conditions, it is commonly used in agriculture, orcharding, and the construction industry where the robustness and reliability of equipment matter.

- Weidemann

A compact mounting system dedicated to Weidemann articulated loaders. It enables quick and convenient connecting and disconnecting of attachments, facilitating daily work. It is particularly useful for lighter tasks such as animal feeding, feed transport, or cleanup chores.

- JCB hitch (Q-Fit or JCB type)

A mounting type intended for JCB telehandlers and wheeled loaders. It features a robust design as well as a secure and stable connection even under intensive operation. It comes in various versions adapted to individual machine models.

- SMS hitch (Stoll, Schäffer and others)

A universal and easy-to-use hitch system used on loaders from brands such as Stoll, Schäffer, or Ålö. Thanks to its simple construction and high durability, it is particularly popular on compact loaders used in Northern and Western Europe.

- Other hitch systems (on request)

It is possible to manufacture the attachment with a less standard hitch system – tailored to the specific requirements of the machine and the individual needs of the user.

Detailed Description:

• The 1600 mm wide manure fork with hydraulic grapple (fork-crocodile) is a durable, functional, and precisely engineered attachment created to work with loaders with an operating weight of 3.5 to 5 tonnes.

• It is an ideal choice for medium-sized farms, municipal companies, and businesses engaged in green area maintenance and livestock farm management.

• Thanks to its compact yet high-capacity dimensions – 900 mm in height, 900 mm in depth, and a working capacity of 0.8 m³ – the device enables efficient handling of organic, loose, and semi-liquid materials such as silage, compost, green waste, sawdust, or manure.

• The relatively low unladen weight (249 kg) while maintaining high structural rigidity allows for intensive use without overloading the machine, which positively impacts working economy and reduces fuel consumption.

• The robust, solid rear wall protects against accidental spilling of material, increasing control over the load and maintaining cleanliness at the workplace – which is particularly important when working in barns, silos, and on loading yards.

• Two powerful hydraulic cylinders, mounted in the rear of the construction, ensure a strong, symmetrical, and reliable closing of the upper jaw.

• Thanks to this, the operator is assured that the material will be gripped evenly and held stably, even during transport over uneven terrain.

• The large opening angle of the upper jaw enables efficient loading directly against the walls of silos, feed pens, narrow alleys, or other hard-to-reach places.

• This is a significant convenience in daily work where maneuverability and precision are key.

• The fork-crocodile is equipped with six tines in the upper section and seven in the bottom section, ensuring powerful penetration into the material and its secure retention during loading and transport operations.

• The tines are arranged optimally for an even distribution of forces.

• The entire construction is made of high-grade steel resistant to deformation, cracking, and abrasion, which translates into a long service life, operational reliability, and low maintenance costs even during intensive seasonal work.

• The attachment is equipped with a standard EURO-type hitch, which ensures quick compatibility with most popular loader models available on the market.

• On customer request, it is possible to manufacture a version with a different hitch type tailored to a specific machine model.

• The 1600 mm model is a perfect combination of practicality, sturdiness, and functionality – indispensable in daily loading, transport, or workspace cleanup tasks on farms and service facilities.
