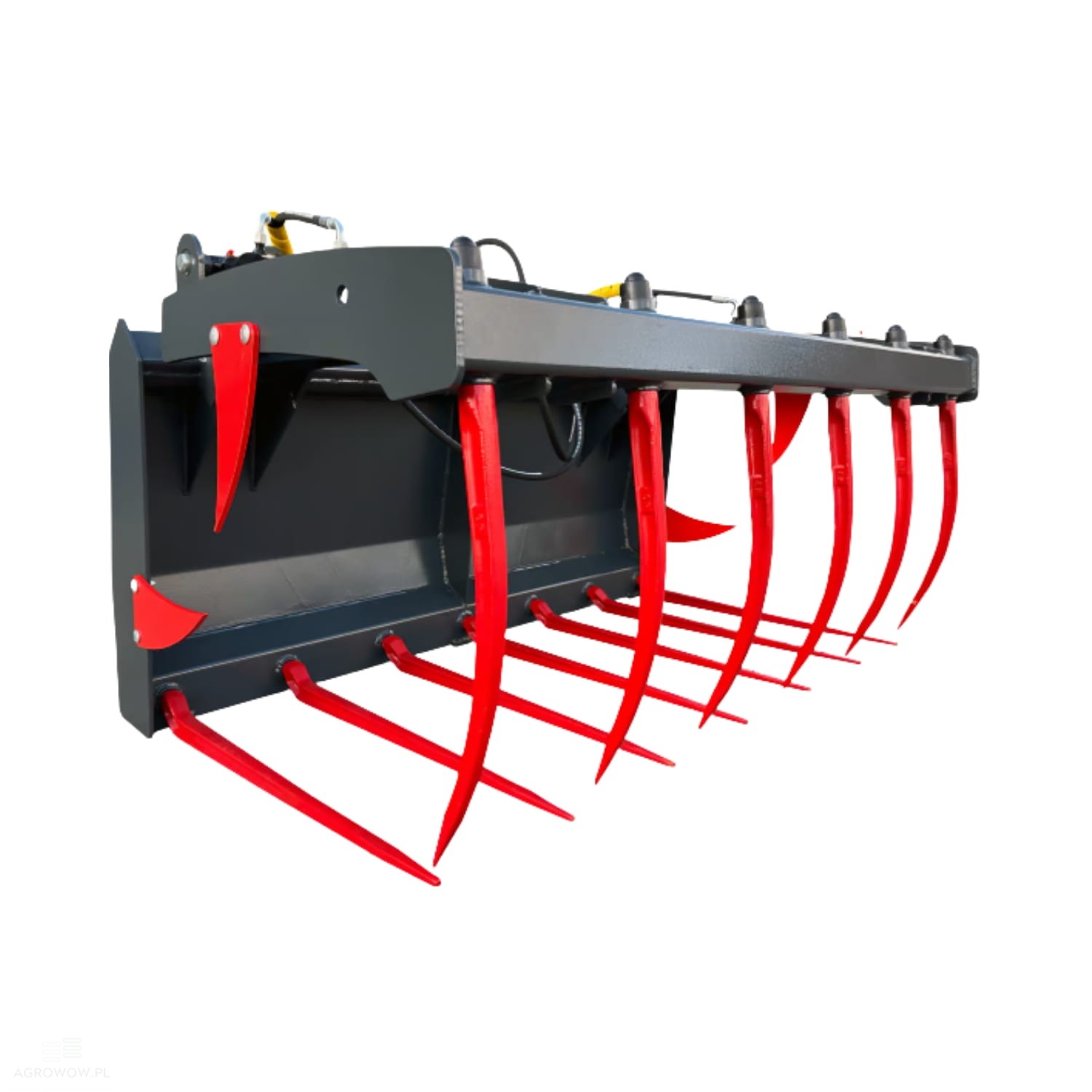

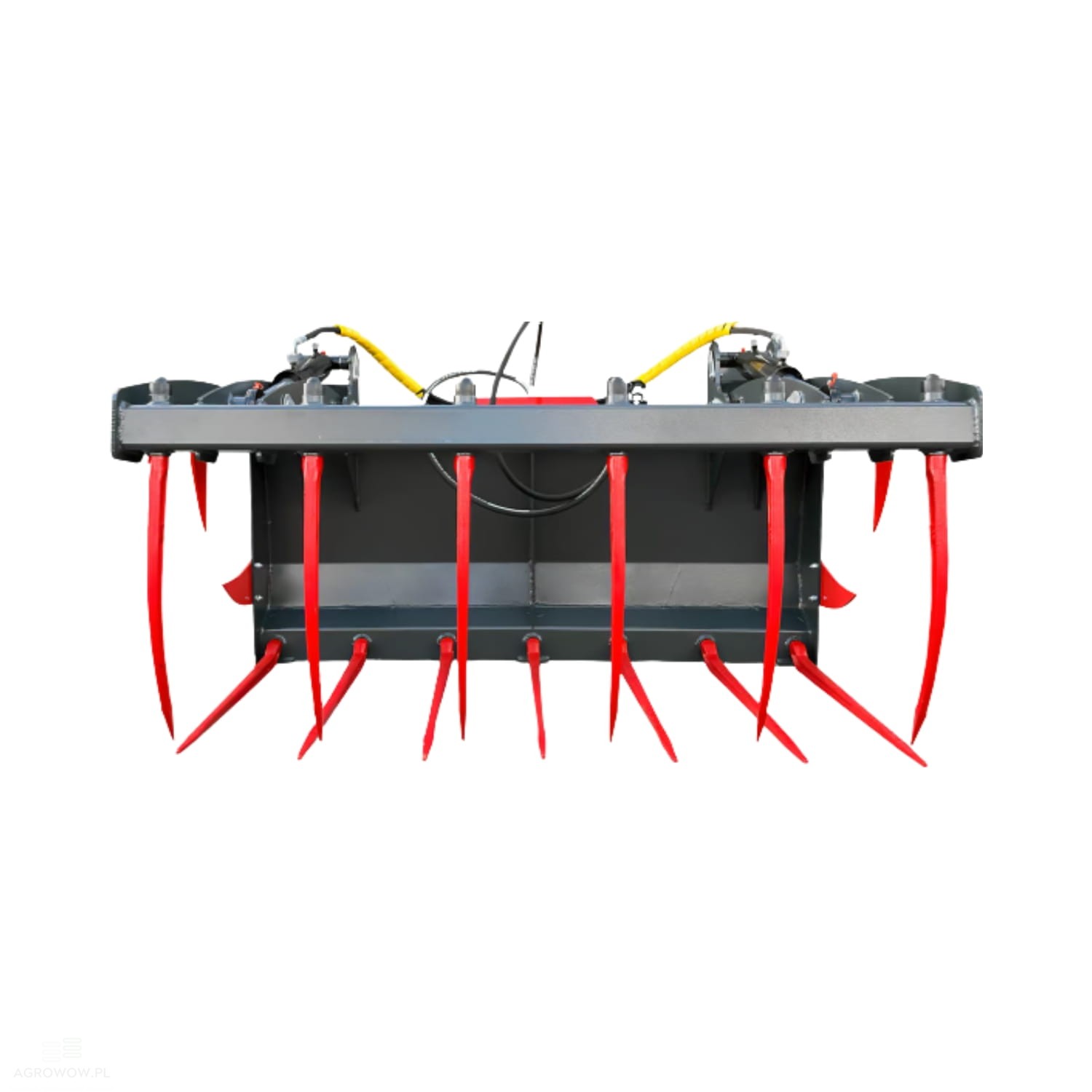

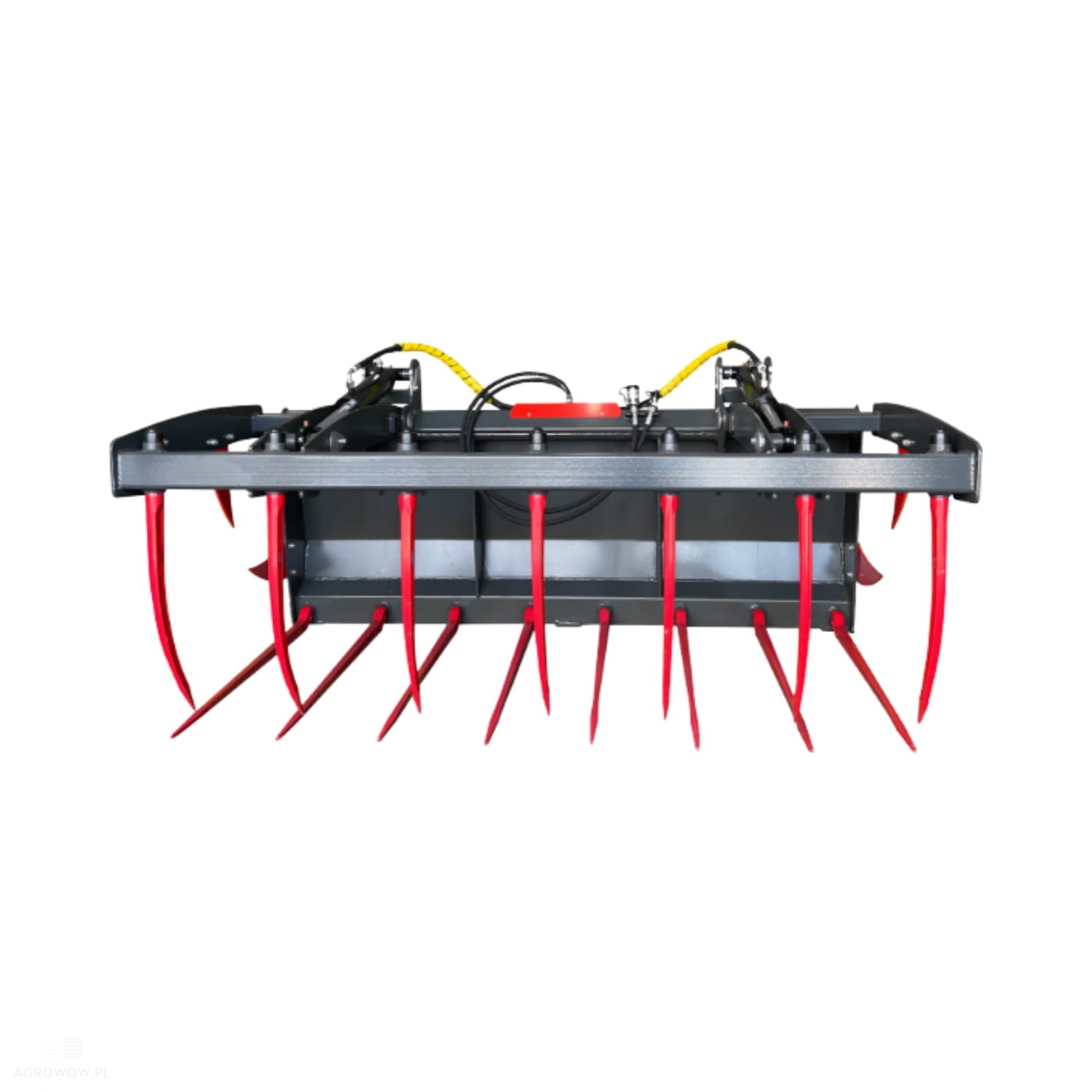

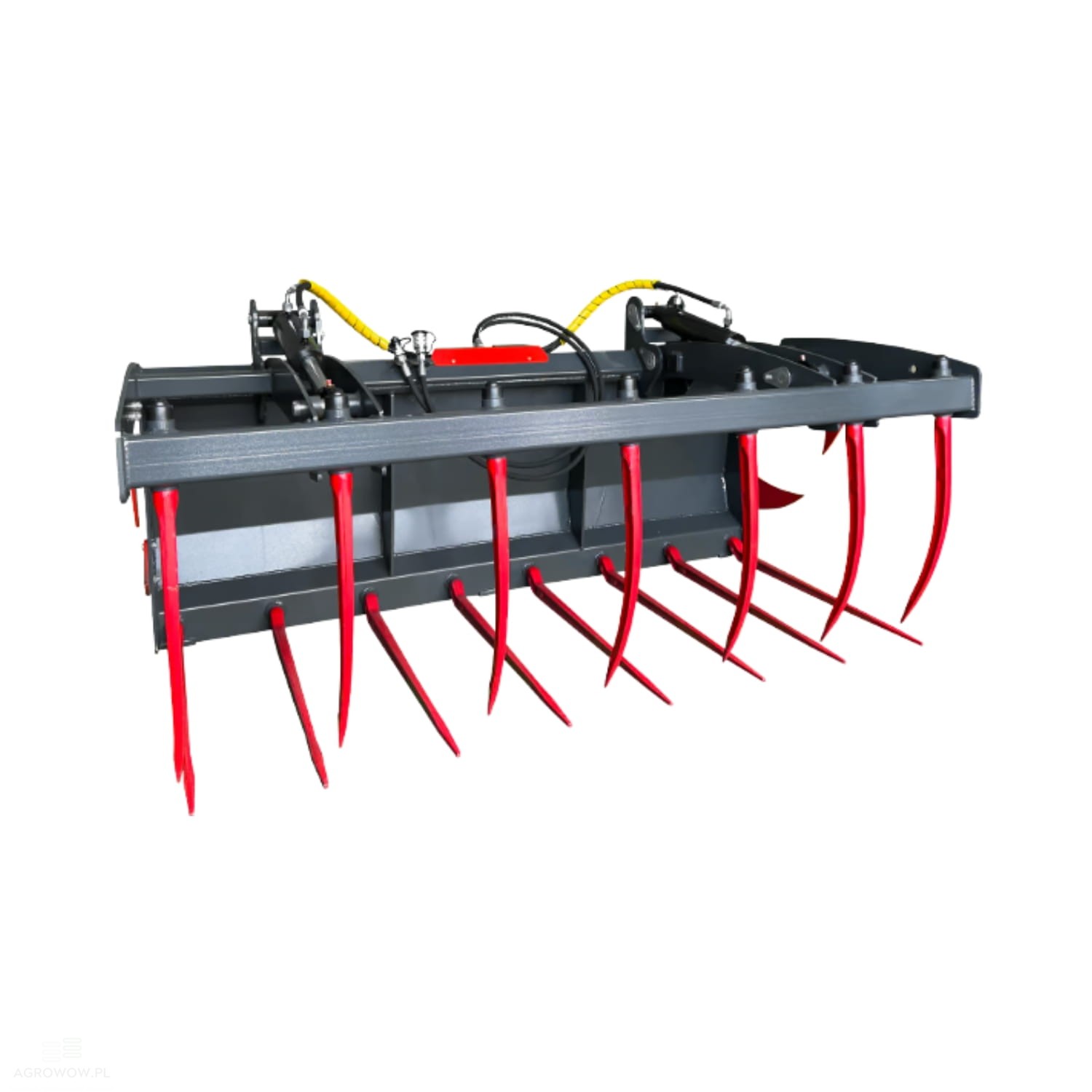

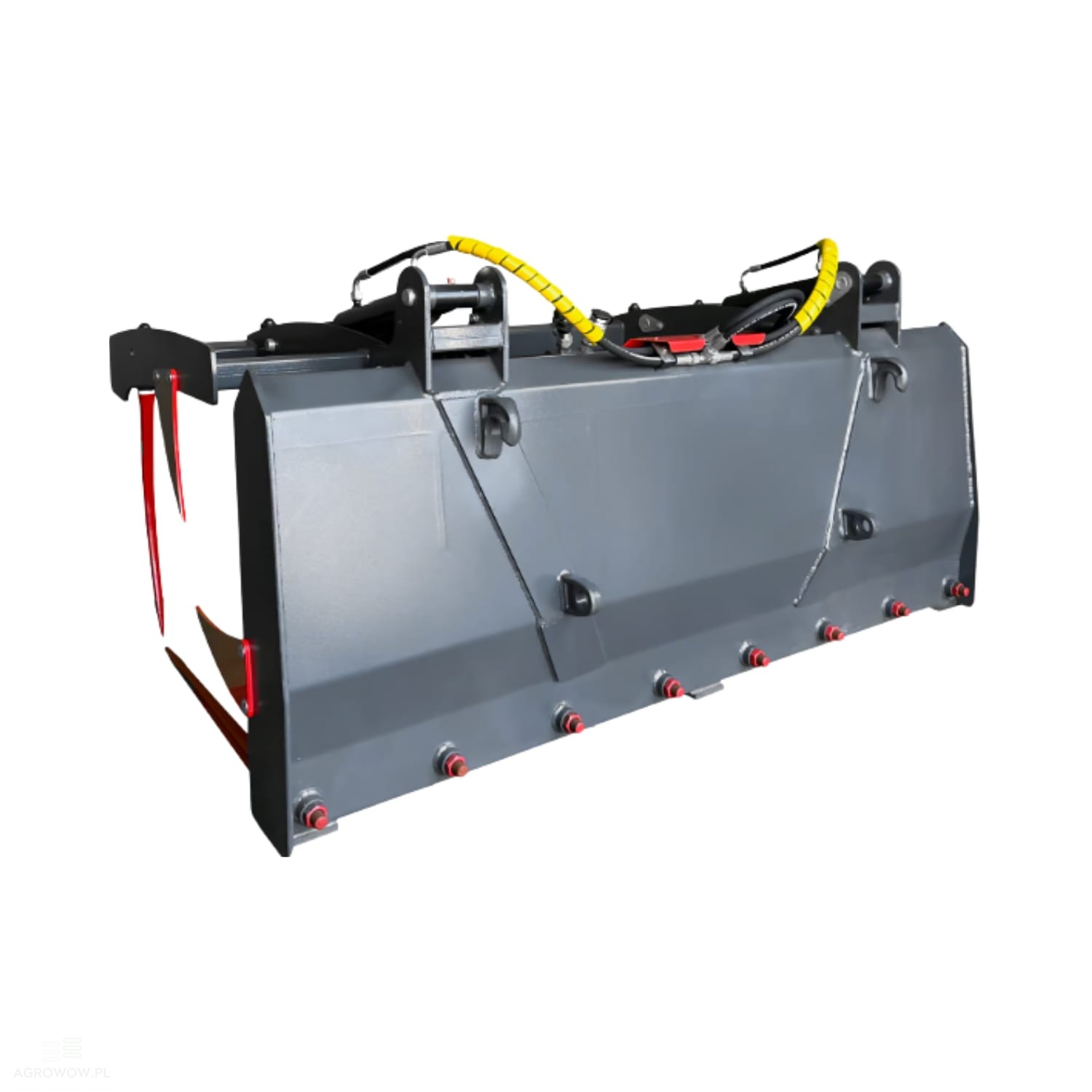

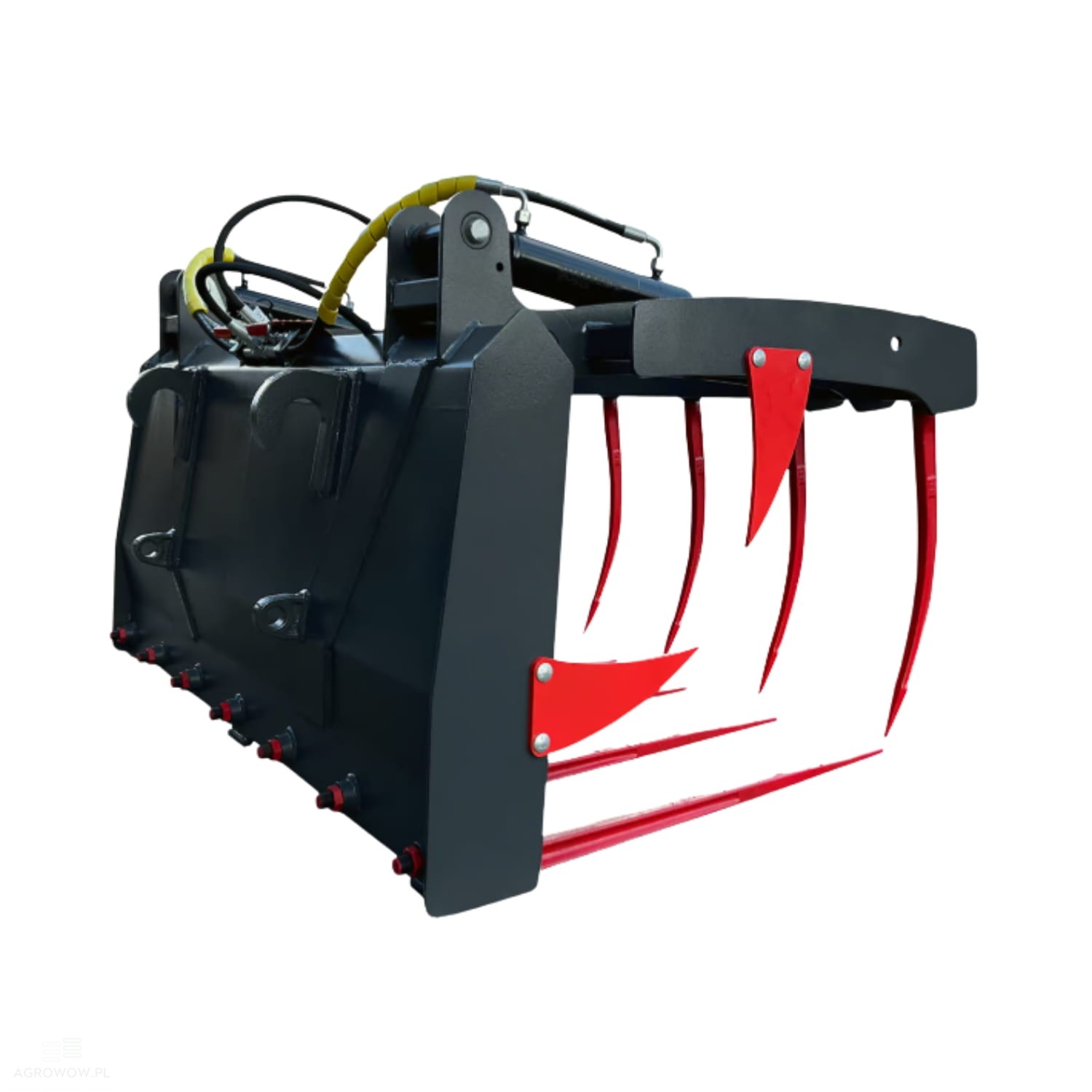

Agrowow 1.8 m fork with grapple

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW18WK

- Manufacturer's name: Krokodyl

- Width: 1800 mm

- Height: 900 mm

- Depth: 900 mm

- Weight: 266 kg

- Capacity: 0.9 m³

- Machine weight class: 4-6 T

- Cylinders: 2

- Number of top tines: 7

- Number of bottom tines: 8

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A dedicated mounting system developed by MX – a manufacturer specializing in front loaders. Unlike the popular Euro hitch, it features a different construction and layout of attachment points. Created for specific loader models of this brand, it ensures a perfect fit, durability, and a reliable connection with the equipment.

- Manitou

A solution intended for Manitou telehandlers. Adapted for intensive operation and heavy loads, it performs exceptionally well in agriculture, orcharding, and construction where robustness and reliability are key.

- Weidemann

A compact system intended for Weidemann articulated loaders. It allows for quick and convenient mounting of equipment, streamlining work on the farm. It is particularly well-suited for lighter applications such as livestock handling, feed transport, or cleanup chores.

- JCB hitch (Q-Fit or JCB type)

A system created for use with JCB telehandlers and wheeled loaders. It guarantees a solid and secure attachment connection, even during intensive use. Available in various versions depending on the specific machine model.

- SMS hitch (Stoll, Schäffer and others)

A simple and versatile hitch system used on machines from brands such as Stoll, Schäffer, or Ålö. Thanks to its easy operation and durable construction, it is popular among users of compact loaders, especially in Western and Northern European countries.

- Other hitch systems (on request)

Upon individual customer request, it is possible to manufacture the attachment with a non-standard hitch type – properly adapted to the given machine and user requirements.

Detailed Description:

• The 1800 mm wide manure fork with hydraulic grapple (fork-crocodile) is a robust, high-capacity, and versatile attachment designed to work with loaders with an operating weight of 4 to 6 tonnes.

• It will perform perfectly on medium to large-scale farms, service companies, and enterprises dealing with municipal management, feed production, or green area maintenance.

• Thanks to its dimensions of 900 mm in height and 900 mm in depth, combined with a working capacity of 0.9 m³, the device enables quick and efficient handling of various materials – from manure and silage to sawdust, organic waste, compost, and other loose raw materials.

• An unladen weight of 266 kg guarantees structural stability and rigidity without causing excessive load on the machine, which translates into better maneuverability and lower fuel consumption in daily operation.

• The solid rear wall of the fork-crocodile effectively prevents material from spilling during transport, helping to maintain cleanliness and increasing operational safety.

• Two hydraulic cylinders, located in the rear, are responsible for the powerful and even closing of the upper jaw.

• This ensures a secure grip on the material, regardless of its weight or distribution.

• A significant convenience is the large opening angle of the upper section, which enables efficient loading even in hard-to-reach places, such as silo corners, narrow feed pens, or tight working spaces.

• The attachment is equipped with seven top tines and eight bottom tines – the properly selected spacing and number of tines allow for effective penetration into the material and its stable retention during work and transport.

• The high-grade steel used in production ensures resistance to mechanical damage, abrasion, and deformation – significantly extending the service life of the device and reducing its operating costs.

• The standard EURO-type hitch guarantees full compatibility with most machines available on the market, allowing for quick attachment swapping without the need for additional adapters.

• On request, it is possible to manufacture a version with an alternative hitch type – individually tailored to the user's machine model.

• The 1800 mm wide model is an excellent choice for users looking for a reliable, high-capacity, and sturdy tool for intensive handling, transport, and cleanup work – both in agriculture and in the service or municipal sectors.
