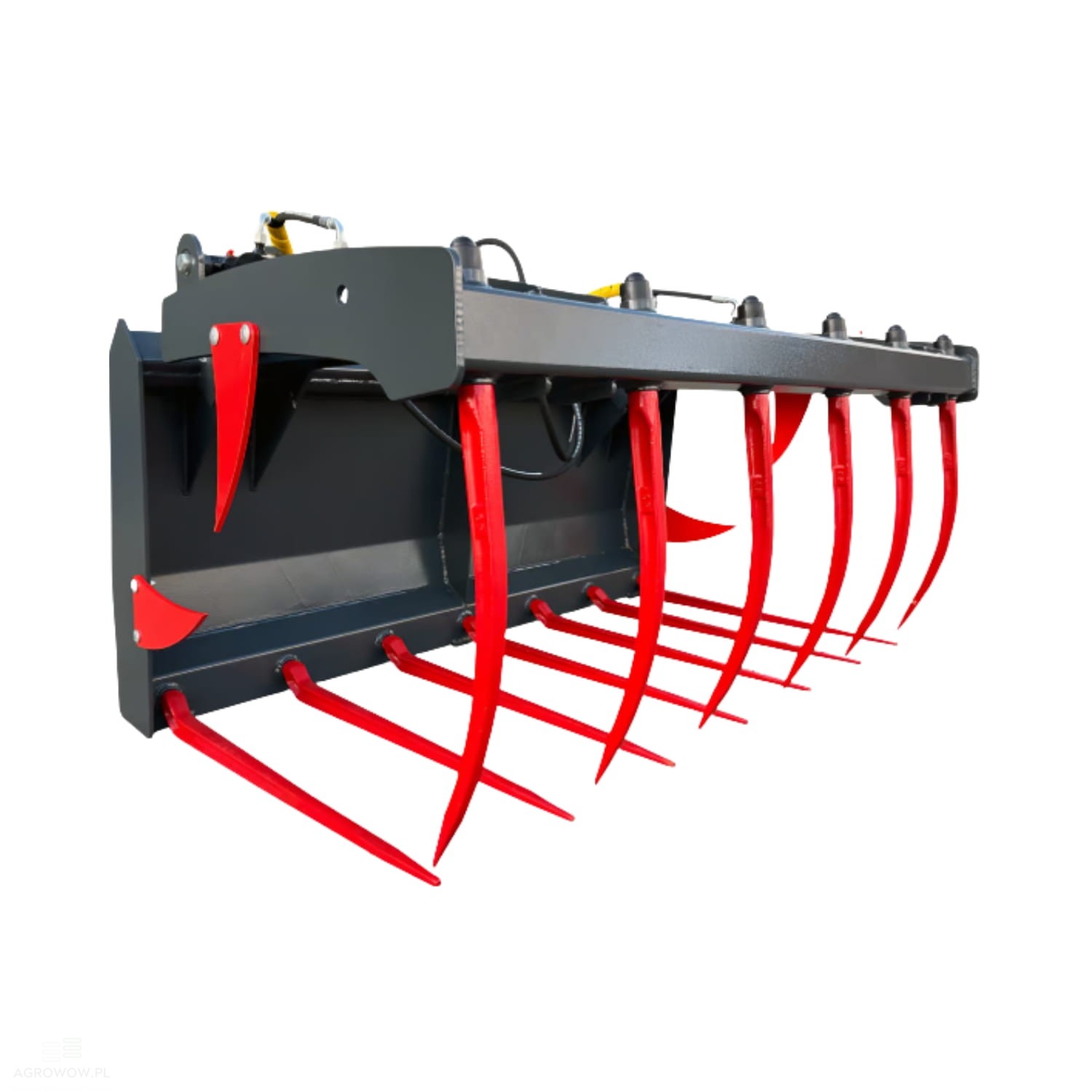

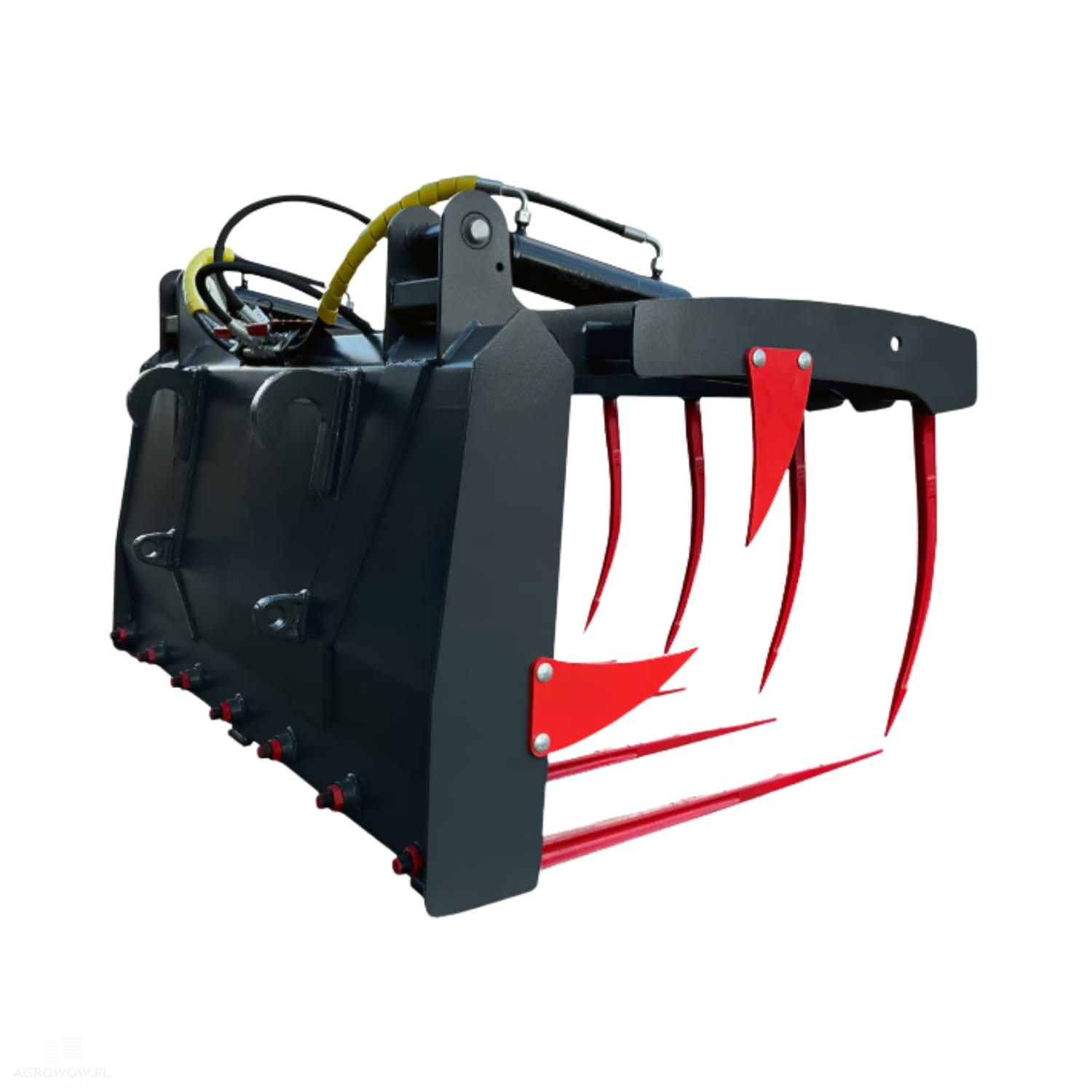

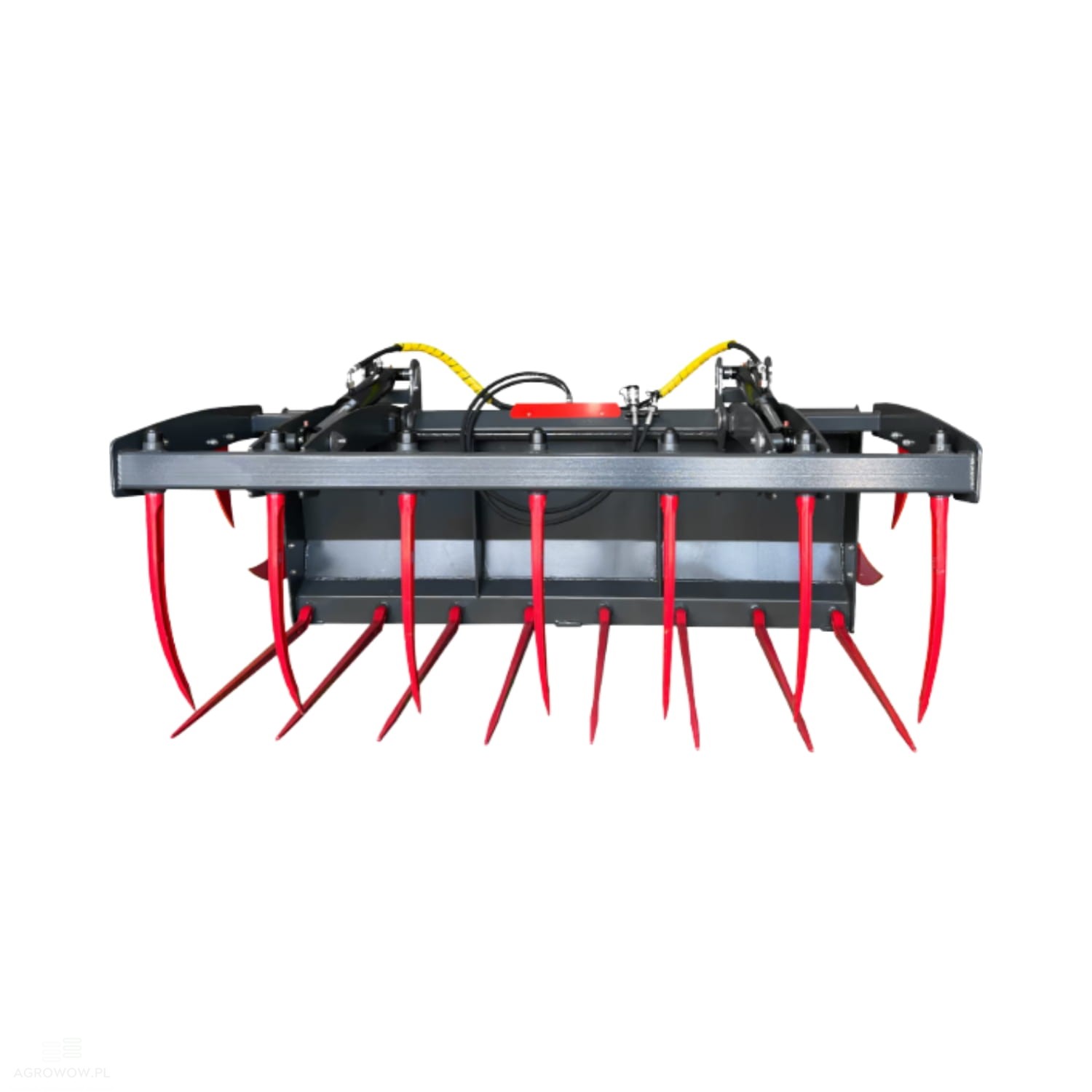

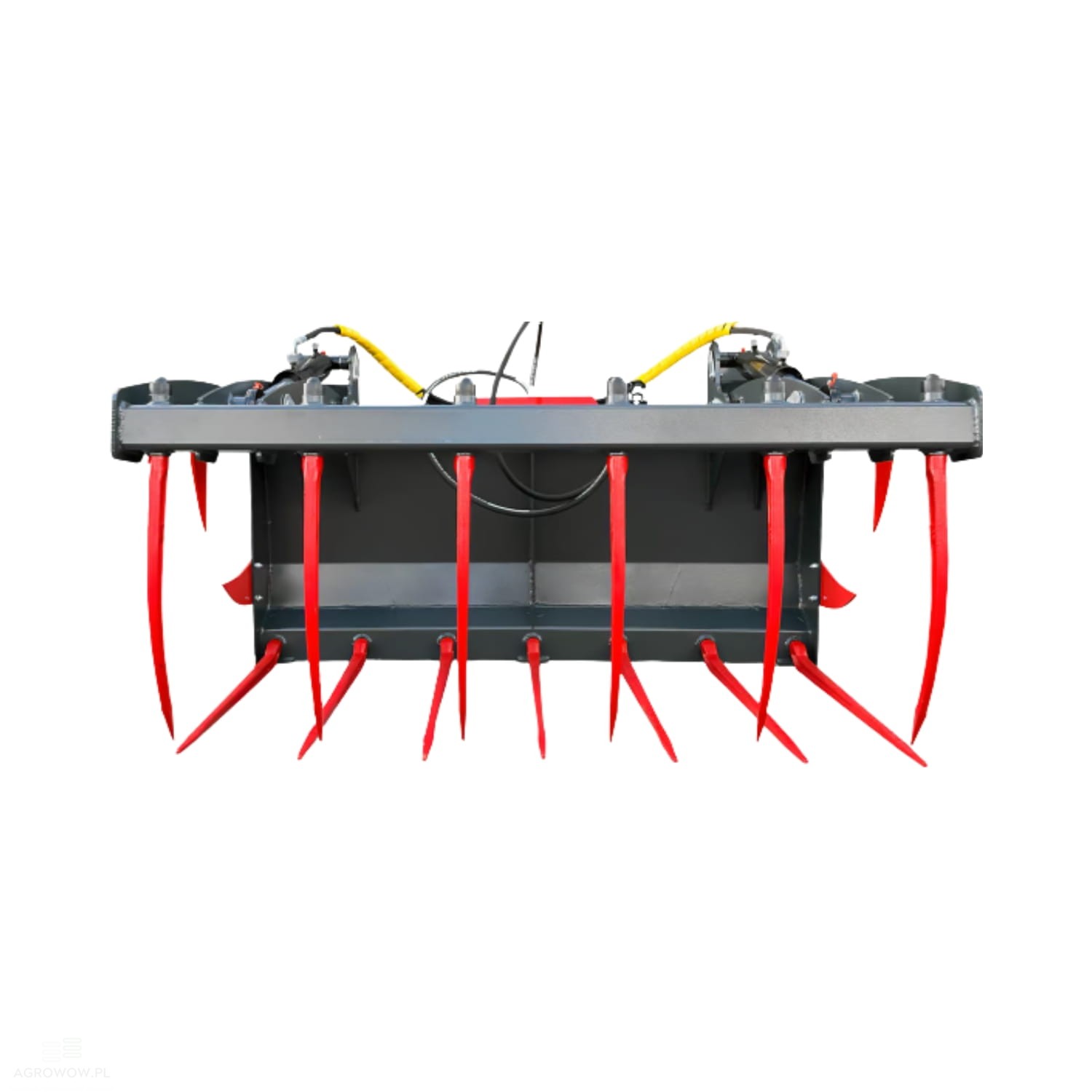

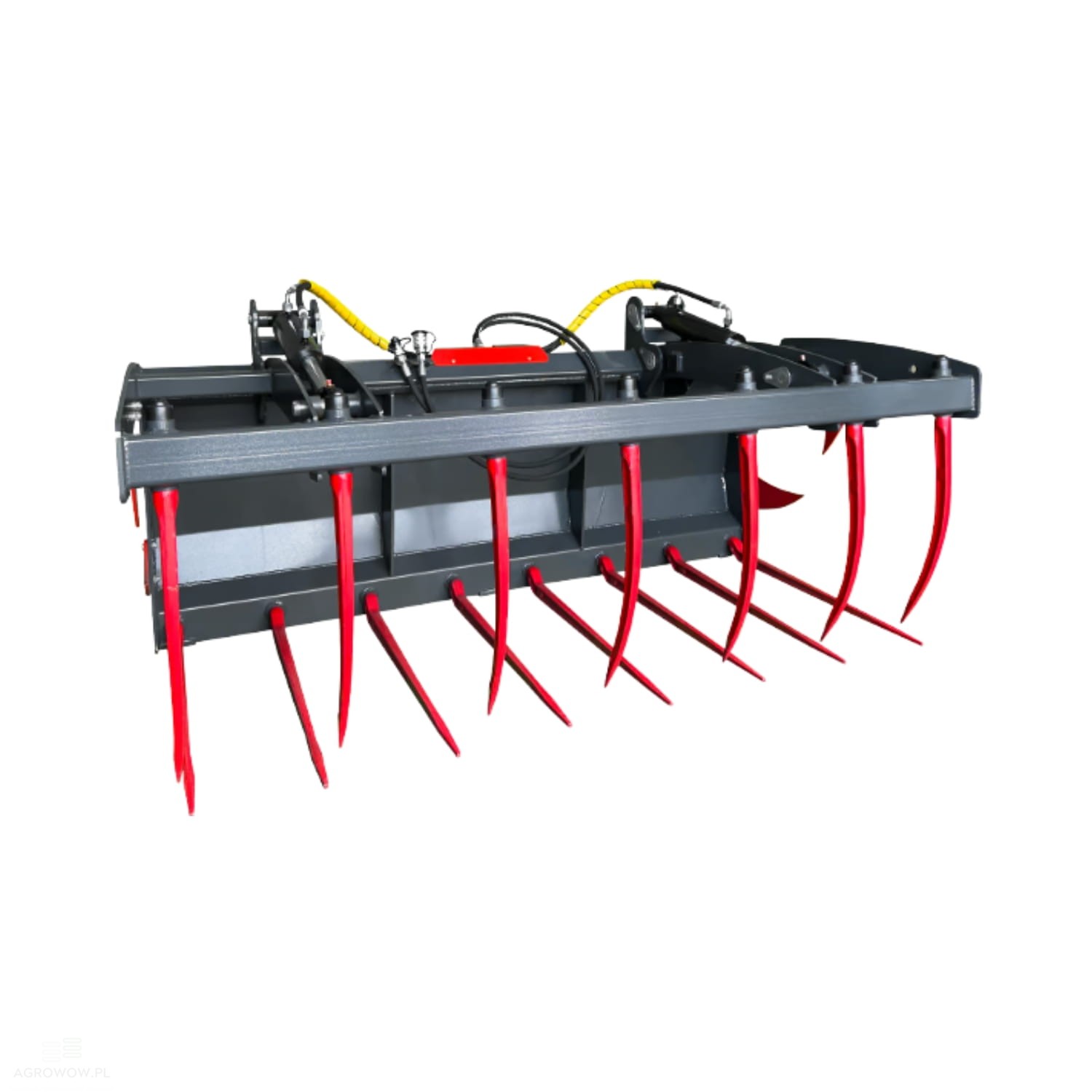

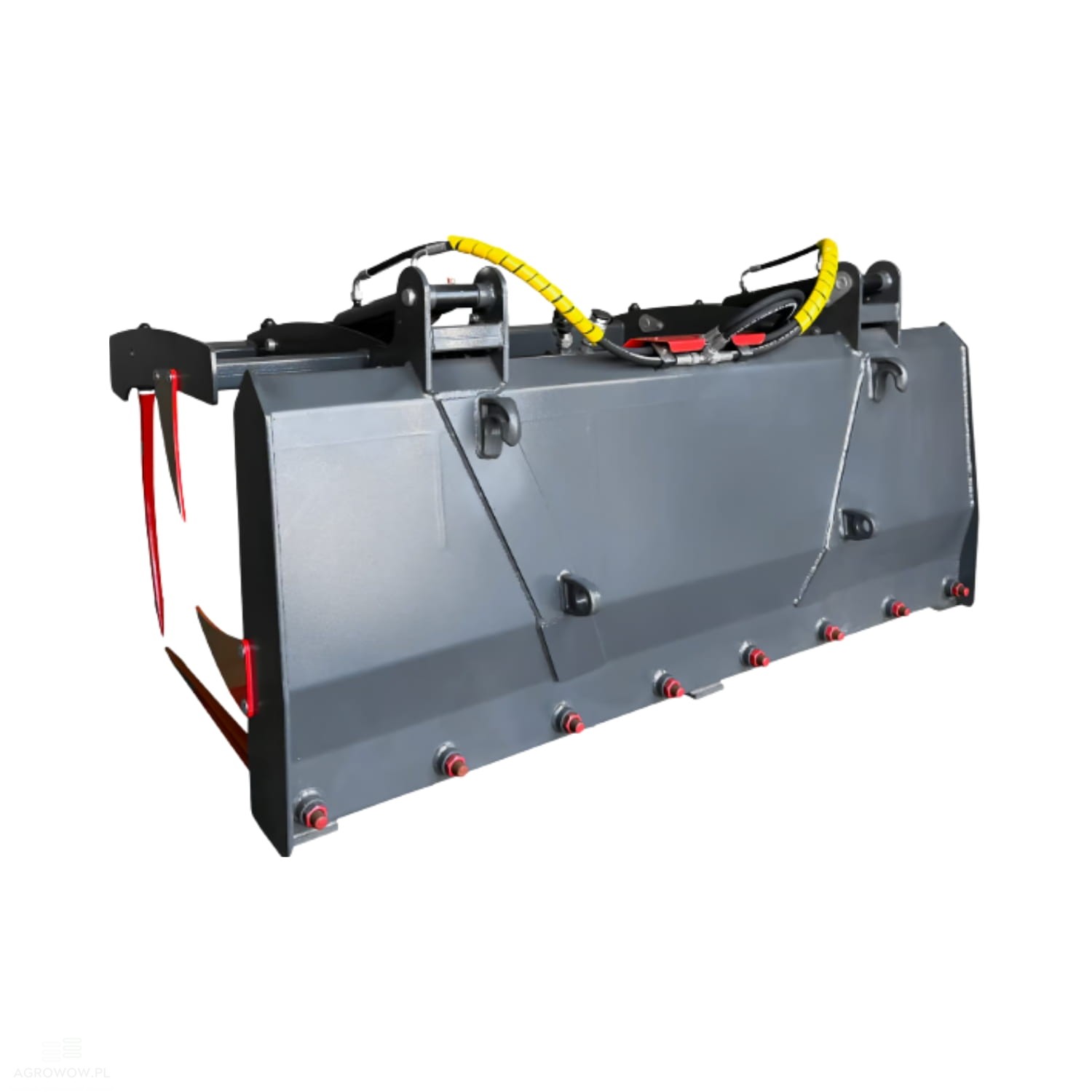

Agrowow 2.0 m fork with grapple

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW20WK

- Manufacturer's name: Krokodyl

- Width: 2000 mm

- Height: 900 mm

- Depth: 900 mm

- Weight: 300 kg

- Capacity: 1.0 m³

- Machine weight class: 5-7 T

- Cylinders: 2

- Number of top tines: 8

- Number of bottom tines: 9

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A system created by MX – a recognized manufacturer of front loaders. Unlike the popular Euro-type hitch, it features a different construction and arrangement of mounting points. Intended specifically for particular loader models of this brand, it ensures a perfect fit, high durability, and reliability during daily work.

- Manitou

A dedicated solution for Manitou telehandlers. Engineered for operation under heavy loads and harsh conditions, it finds application in agriculture, orcharding, and the construction industry where durability, precision, and dependability are essential.

- Weidemann

A compact mounting system intended for Weidemann articulated loaders. It enables quick installation of equipment, significantly increasing working efficiency. It is particularly recommended for lighter tasks on agricultural farms – such as feed transport, cleanup chores, or livestock handling.

- JCB hitch (Q-Fit or JCB type)

Specially designed for JCB wheeled loaders and telehandlers. It is characterized by robustness and a secure, stable connection, even under intensive use. Available in various versions depending on the machine model.

- SMS hitch (Stoll, Schäffer and others)

A universal and simple system used on loaders from brands such as Stoll, Schäffer, or Ålö. Thanks to its functionality and durability, it has gained popularity, especially among users of compact machines in Northern and Western Europe.

- Other hitch systems (on request)

It is possible to manufacture the attachment with a different, non-standard hitch system – individually adapted to a specific machine model and the user's needs.

Detailed Description:

• The 2000 mm wide manure fork with hydraulic grapple (fork-crocodile) is a robust and efficient working tool designed to work with loaders with an operating weight of 5 to 7 tonnes.

• It provides reliable support in intensive handling and transport operations, especially on large-scale farms, service companies, as well as municipal and feed plants.

• Thanks to its dimensions of 900 mm in height and 900 mm in depth, combined with a working capacity of 1 m³, the device allows for efficient handling and loading of various materials, such as silage, manure, green waste, compost, or other loose and organic fractions.

• The unladen weight of 300 kg provides a proper balance between stability and maintaining agile machine maneuverability – the attachment does not overload the loader while offering a solid construction resistant to deformation.

• The solid rear wall of the fork-crocodile effectively protects the transported material from accidental spilling, improving working comfort and safety.

• Being equipped with two hydraulic cylinders enables an even and powerful closing of the upper jaw, which allows for effective material gripping – even in the case of its uneven distribution or harsh working conditions.

• The wide opening angle of the upper jaw is an important convenience when working in confined spaces – against silos, silage clamps, or tight feed pens – increasing the operator's flexibility and precision.

• Eight tines on the top section and nine on the bottom section ensure very good penetration into the material and its secure retention during transport.

• The arrangement of the tines has been optimized for an even distribution of forces and maximum grip effectiveness.

• The construction is made of durable, high-grade steel resistant to abrasion, mechanical damage, and deformation, which translates into a long service life for the device, even with intensive use in demanding conditions.

• The standard EURO-type hitch ensures compatibility with a wide range of popular loaders available on the market, enabling quick and trouble-free installation.

• On request, it is also possible to adapt the hitch to less standard systems, in accordance with the requirements of a specific machine model.

• The 2000 mm wide model is an excellent choice for professionals seeking a high-capacity, durable, and multi-tasking attachment that will perform well in daily work across the agricultural, municipal, and service sectors.
