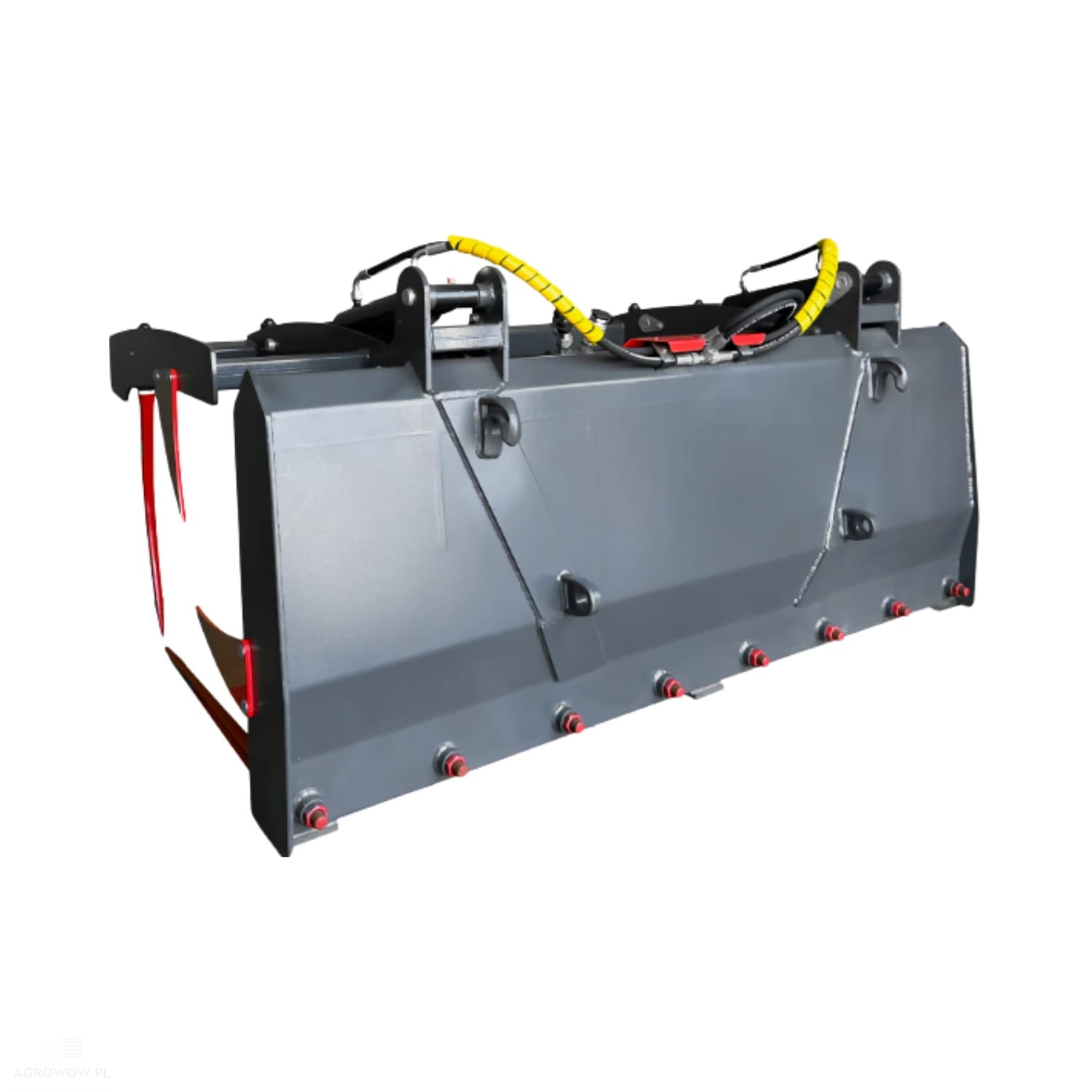

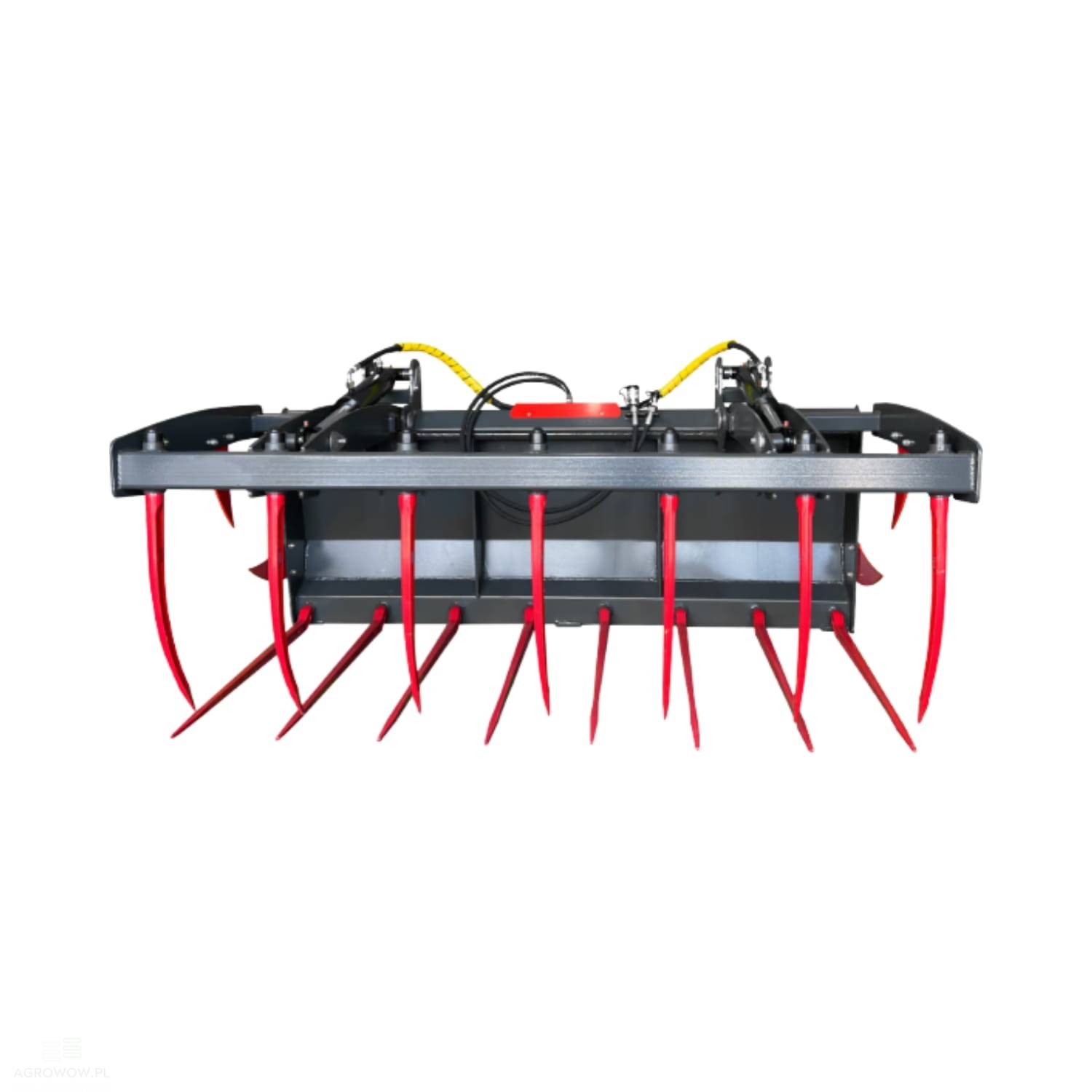

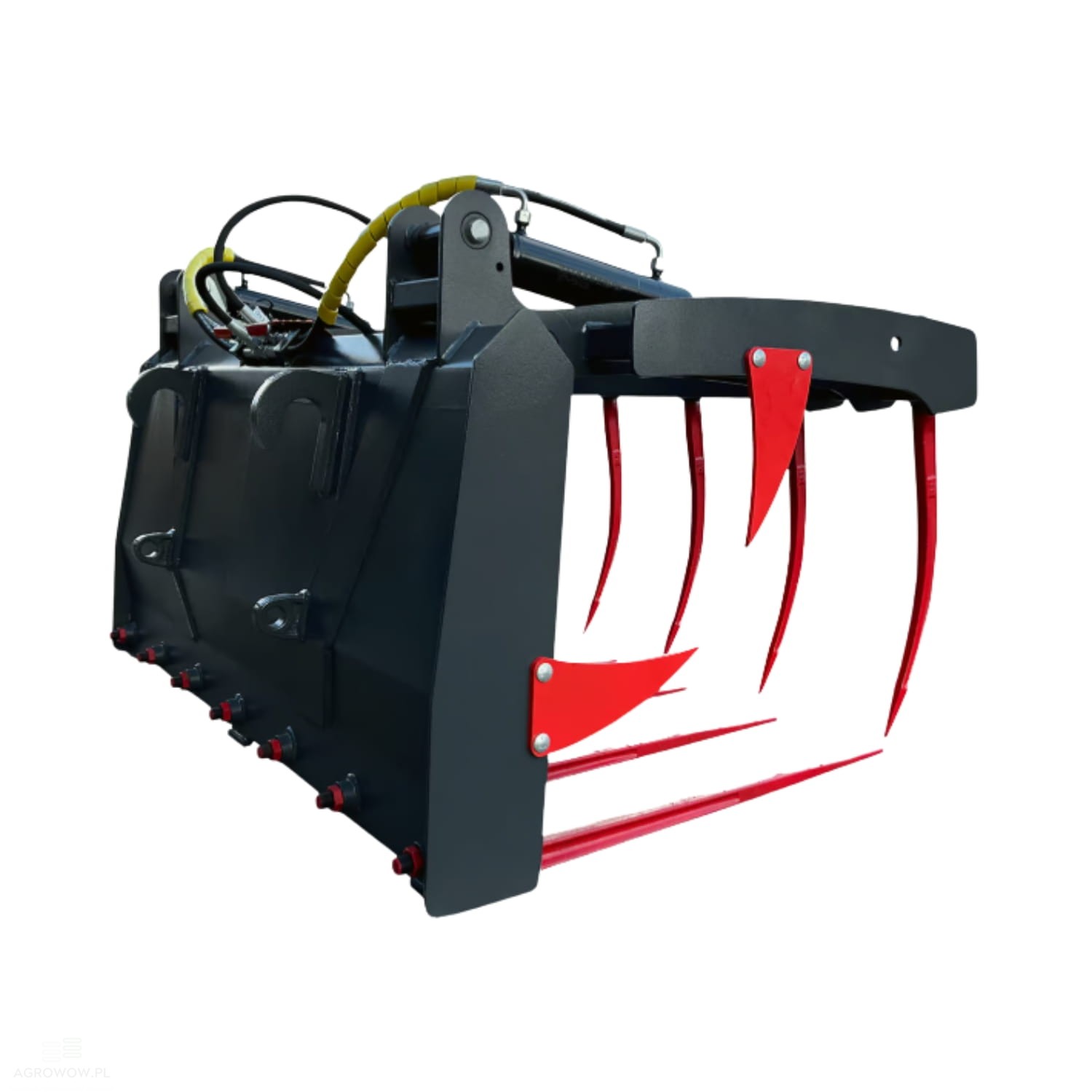

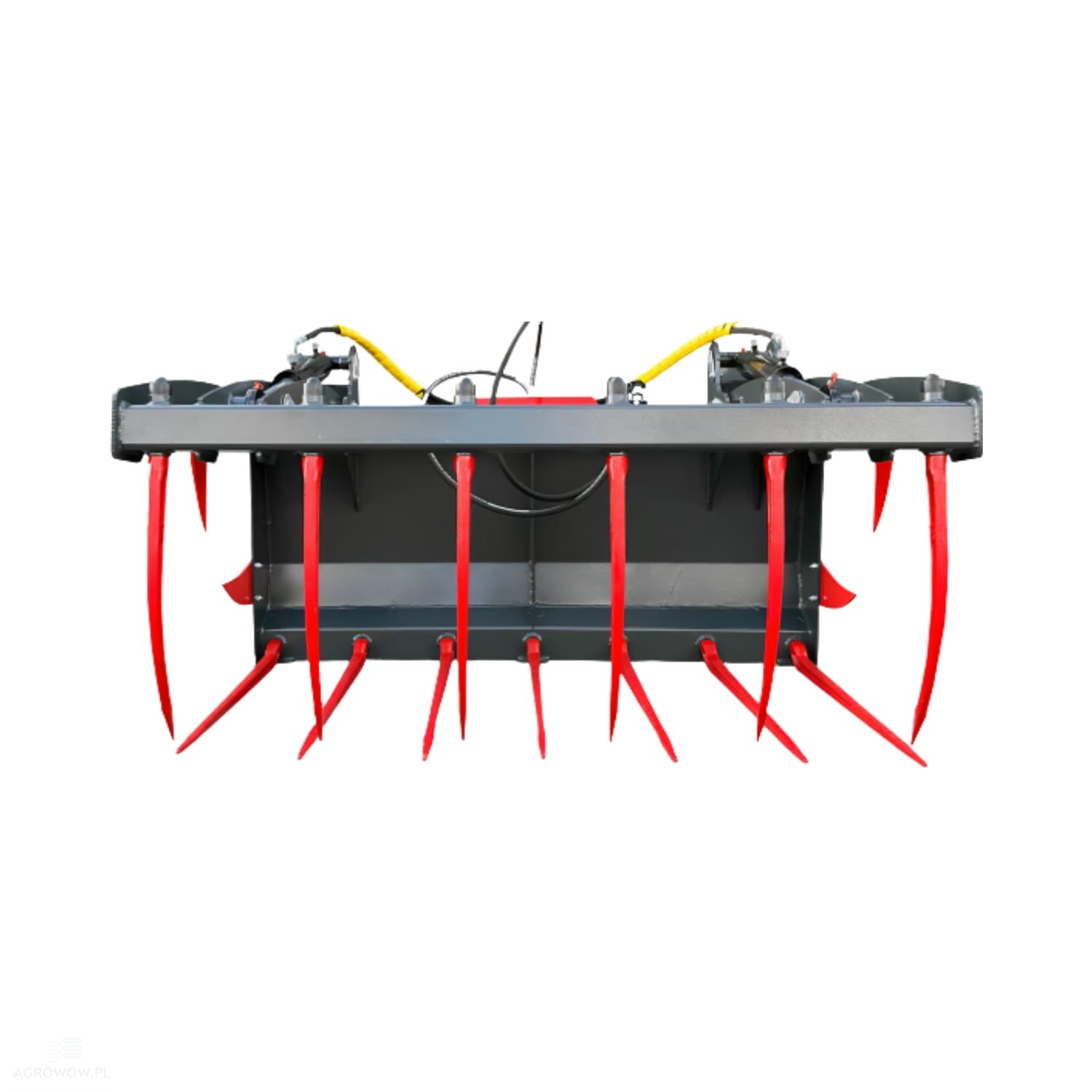

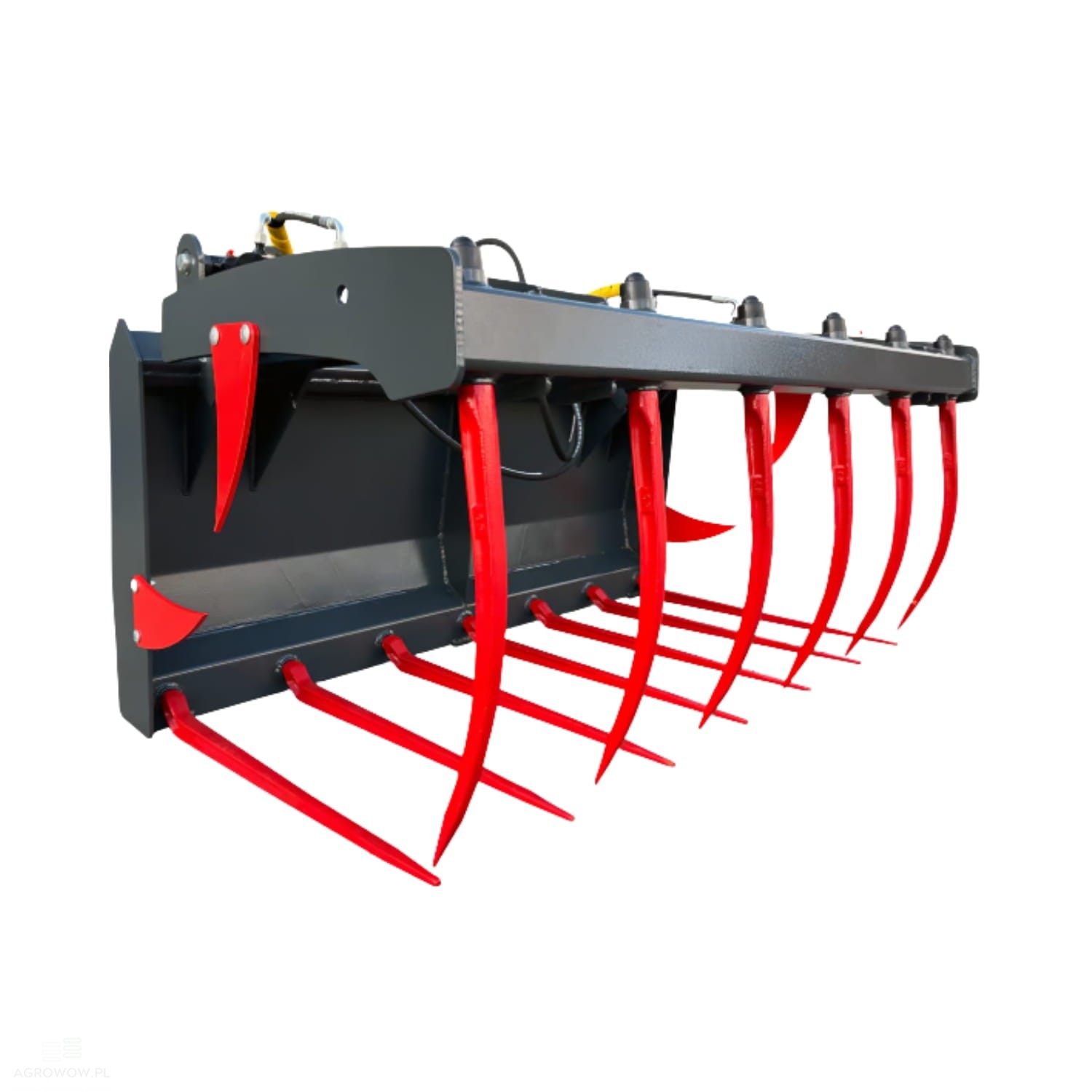

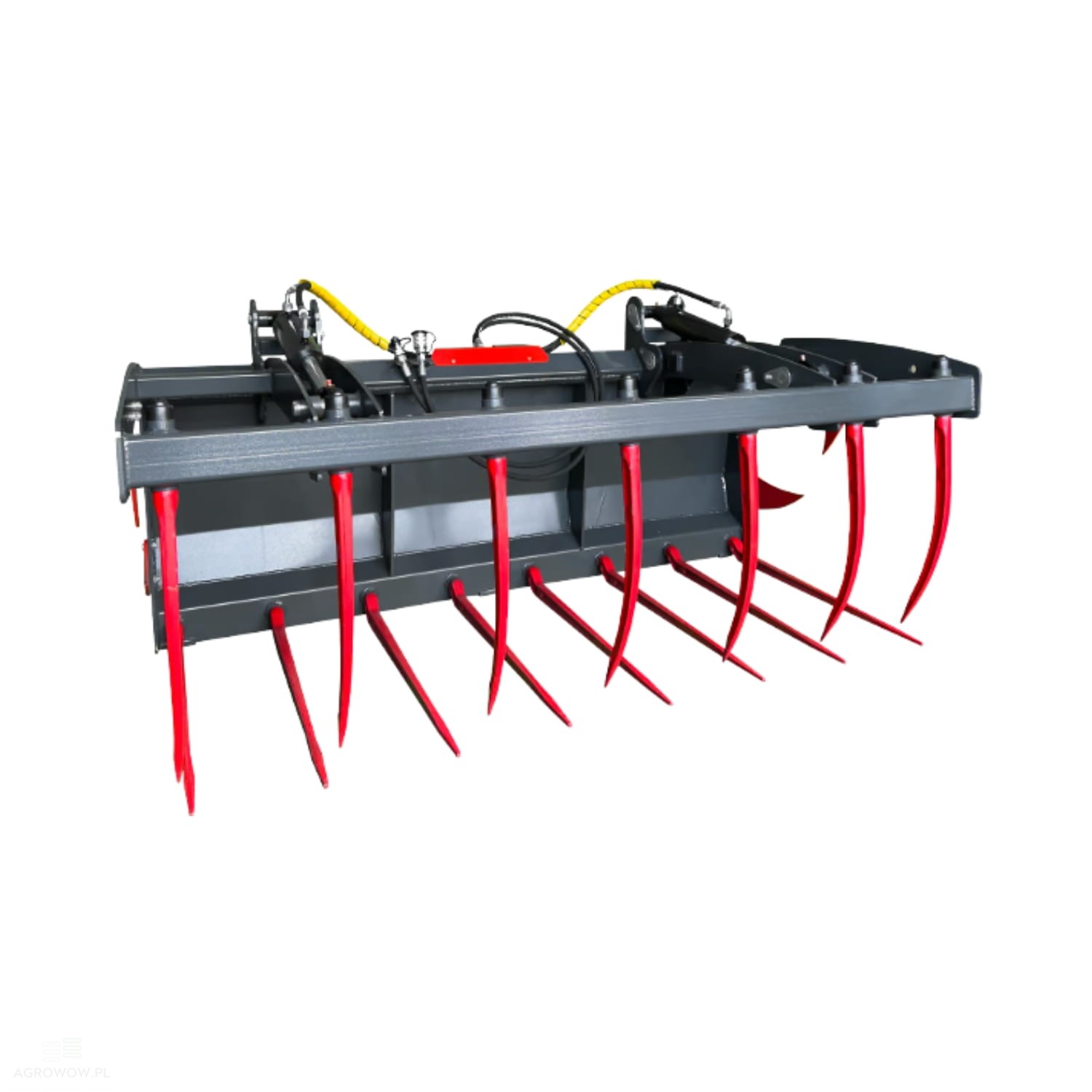

Agrowow 2.2 m fork with grapple

Want to determine the specifications and customize a meadow harrow to your individual needs?

We can prepare a mounting system for any type of equipment — tractors, excavators, loaders, forklifts, and many other machines.

Contact our sales engineer!

Email address: sklep@agrowow.pl

We will gladly help you choose the right configuration and answer any questions you may have.

- Manufacturer: Agrowow

- Catalogue number: AW22WK

- Manufacturer's name: Krokodyl

- Width: 2200 mm

- Height: 900 mm

- Depth: 900 mm

- Weight: 315 kg

- Capacity: 1.1 m³

- Machine weight class: 6-8 T

- Cylinders: 2

- Number of top tines: 9

- Number of bottom tines: 10

- Hitch/Mounting: Euro

- Large opening angle of the upper jaw

Optional Extras:

- Mailleux (MX) hitch

A specialized hitch system developed by MX – a renowned manufacturer of front loaders. Unlike the Euro standard, it features a unique design and a different layout of mounting points. Designed for selected loader models of this brand, it ensures a perfect fit, durability, and operational reliability in daily work.

- Manitou

A mounting type used on Manitou telehandlers. Adapted for heavy loads and demanding working conditions, it performs exceptionally well in agriculture, orcharding, and construction where reliability and a robust design are paramount.

- Weidemann

A compact mounting system intended for Weidemann articulated loaders. It enables efficient and quick connection of attachments, increasing working productivity. It is best suited for lighter duties such as feed distribution, area cleanup, or livestock handling.

- JCB hitch (Q-Fit or JCB type)

A system intended for JCB machines – both telehandlers and wheeled loaders. It guarantees a solid and secure connection with the attachment, even under intensive operation. It comes in several versions tailored to specific models.

- SMS hitch (Stoll, Schäffer and others)

A universal hitch type found on loaders from manufacturers such as Stoll, Schäffer, or Ålö. It features simplicity of operation, functionality, and durability, making it a popular choice among users of compact machines, especially in Western and Northern Europe.

- Other hitch systems (on request)

Upon customer request, it is possible to manufacture the attachment with a non-standard hitch system, fully adapted to a specific machine and individual user needs.

Detailed Description:

• The 2200 mm wide manure fork with hydraulic grapple (fork-crocodile) is a powerful and high-capacity attachment designed to work with loaders with an operating weight of 6 to 8 tonnes.

• It will perform perfectly on large-scale farms, industrial plants, and in companies dealing with municipal services and bulk material logistics.

• Dimensions of 900 mm in height and 900 mm in depth, combined with a capacity of 1.1 m³, allow for quick and efficient handling and loading of silage, manure, green waste, sawdust, compost, and other organic materials.

• A weight of 315 kg ensures the robustness and resistance of the construction without overloading the machine, which translates into safe and comfortable operation, even during frequent maneuvering in the field.

• The solid rear wall protects the transported material from spilling out, increasing working efficiency and aesthetics, particularly on farms and plants with high organizational standards.

• Two hydraulic cylinders mounted in the rear section ensure an even and powerful closing of the upper jaw, guaranteeing a secure grip on even unsymmetrically distributed material.

• The wide opening range of the upper jaw is a practical convenience that enables efficient loading against silo walls, inside feed pens, and in confined working spaces.

• Nine top tines and ten bottom tines ensure effective penetration into the material and its secure retention during transport.

• Their optimal arrangement allows for an even distribution of forces and maximum working efficiency.

• The construction, made of steel resistant to abrasion and damage, guarantees durability even under the most demanding operating conditions, with minimal service requirements.

• The standard EURO-type mounting system enables quick connection to most popular loaders available on the market, facilitating daily operation and attachment swapping.

• On request, it is possible to manufacture a hitch tailored to less common machine models, in line with individual user requirements.

• The 2200 mm model is an excellent solution for professional users who need a reliable, heavy-duty, and efficient tool for intensive work in the agricultural, industrial, or municipal sectors.
